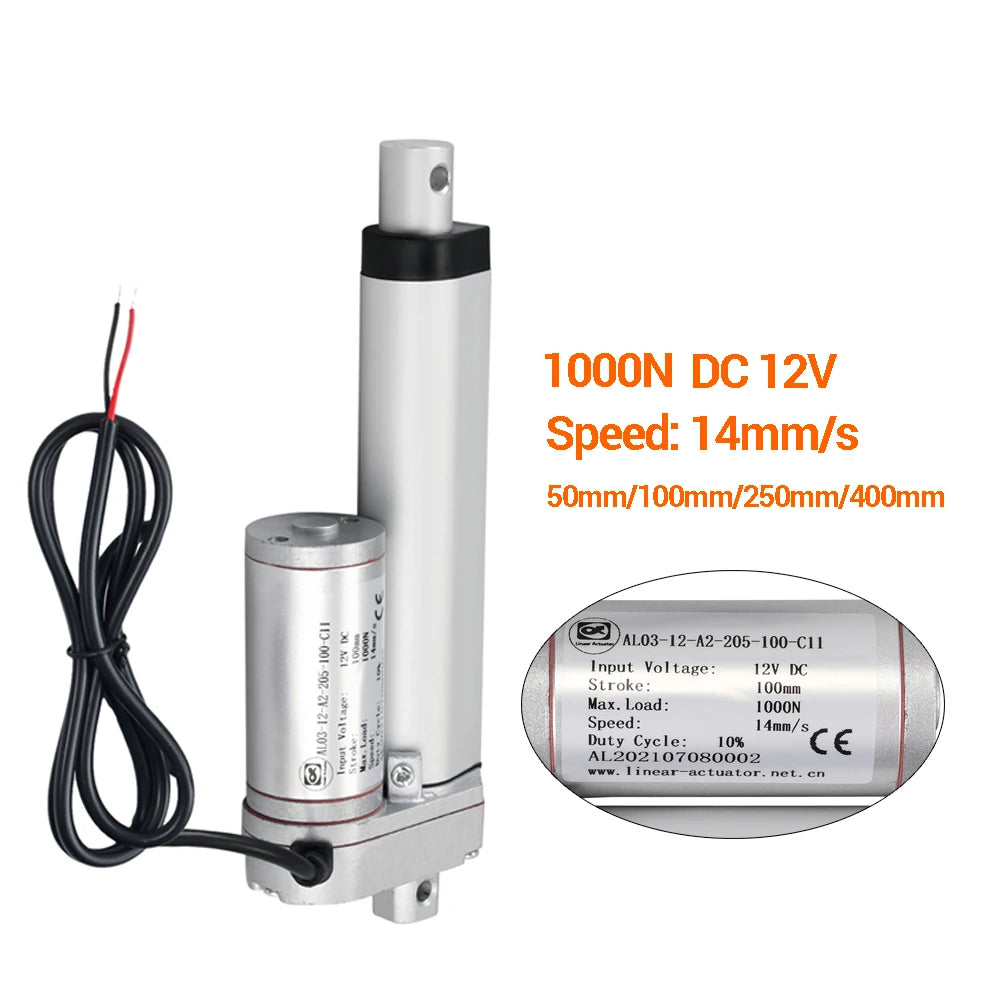

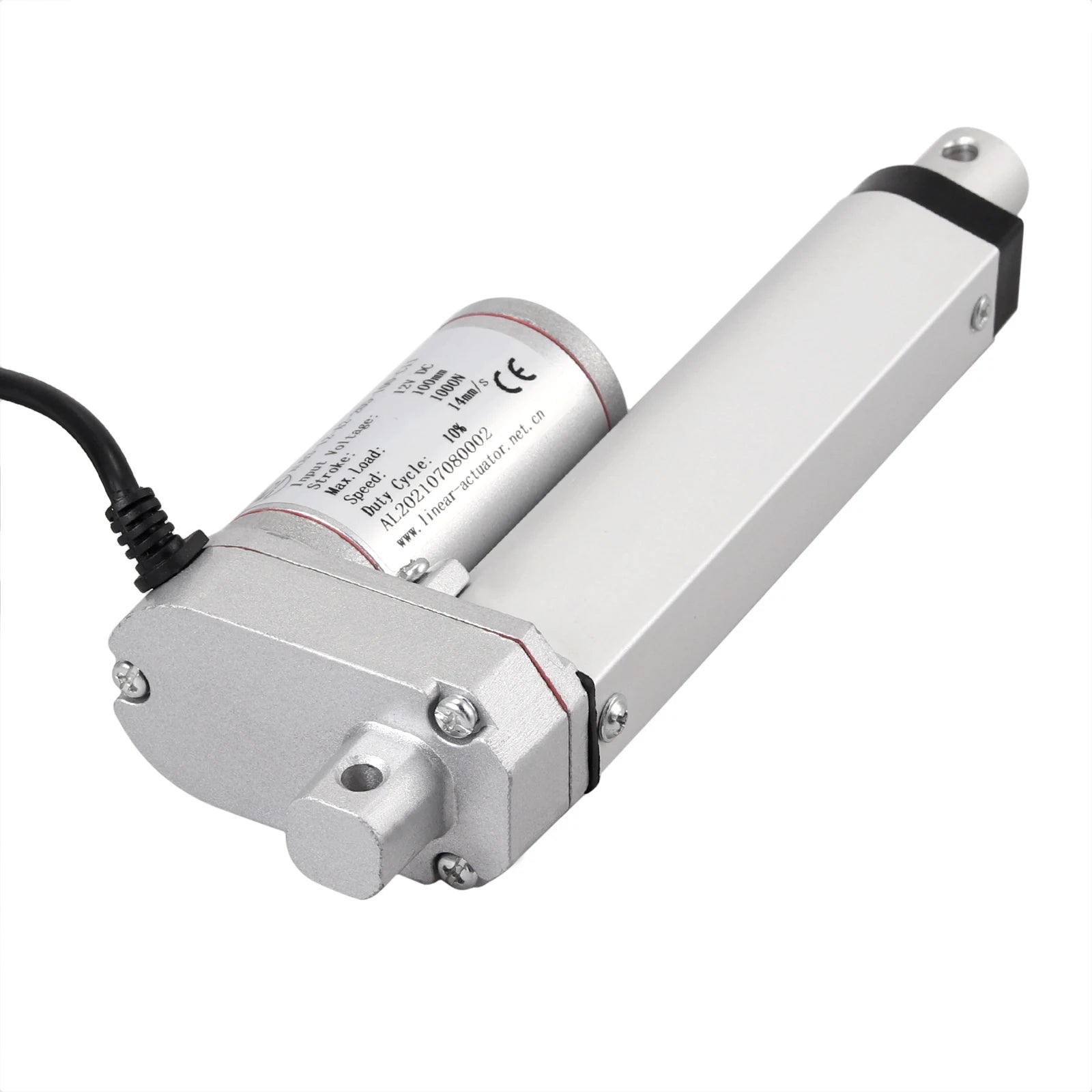

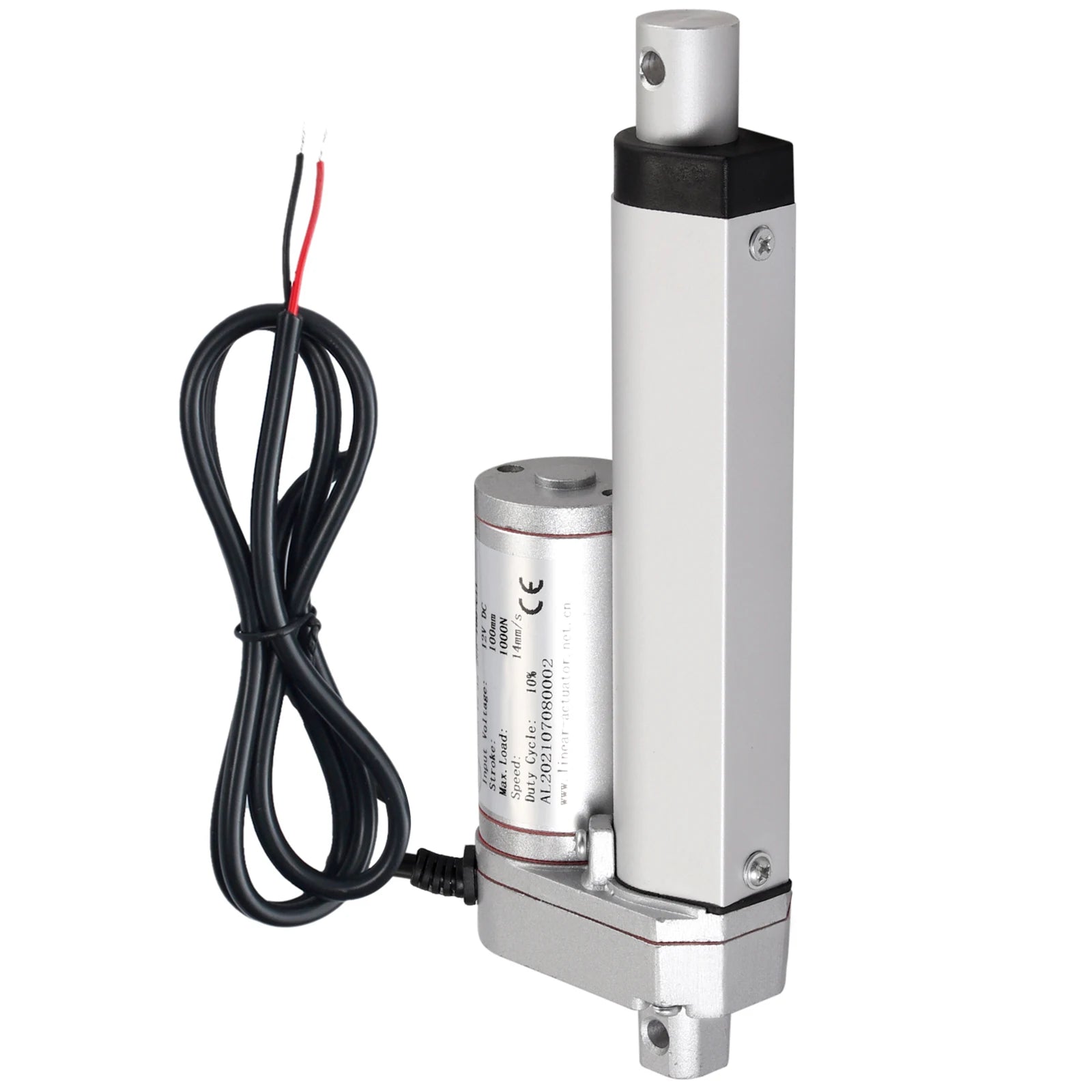

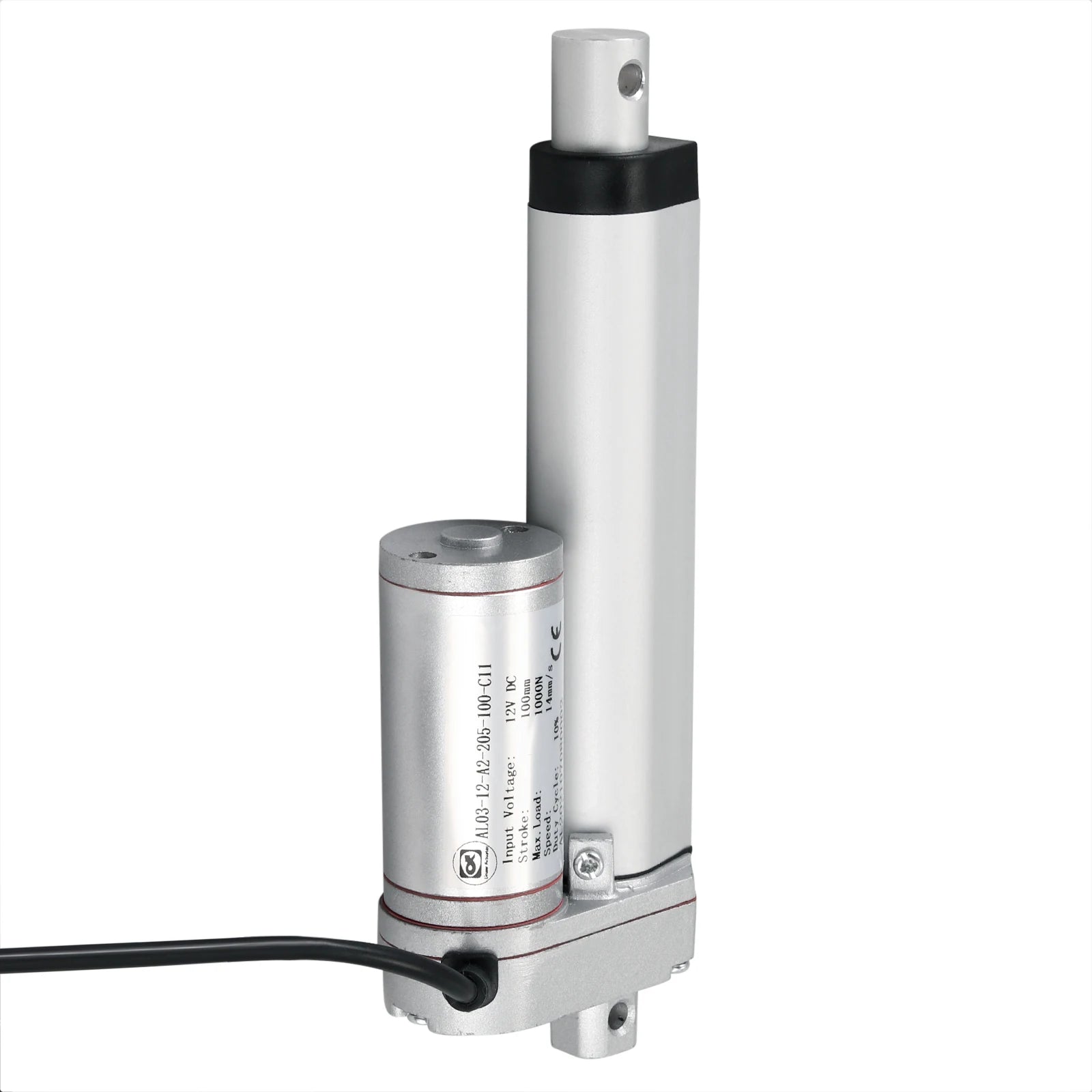

1000N DC 12V Linear Actuator Push 100kg 1000N 50mm 100mm 150mm 200mm 250mm 300mm 350mm Stroke Linear Drive Electric Motor 14mm/s
1000N DC 12V Linear Actuator Push 100kg 1000N 50mm 100mm 150mm 200mm 250mm 300mm 350mm Stroke Linear Drive Electric Motor 14mm/s
Precio habitual
$87.18 USD
Precio habitual
$0.00 USD
Precio de oferta
$87.18 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: NONE
Certification: CE
Choice: yes
Continuous Current(A): 2A
Origin: Mainland China
Type: Micro Motor
Technical Parameters:
Material: Aluminum alloy
Color: silver
Load capacity: 1000N (100kg）
Input Voltage: 12V DC
Speed: 14mm/s

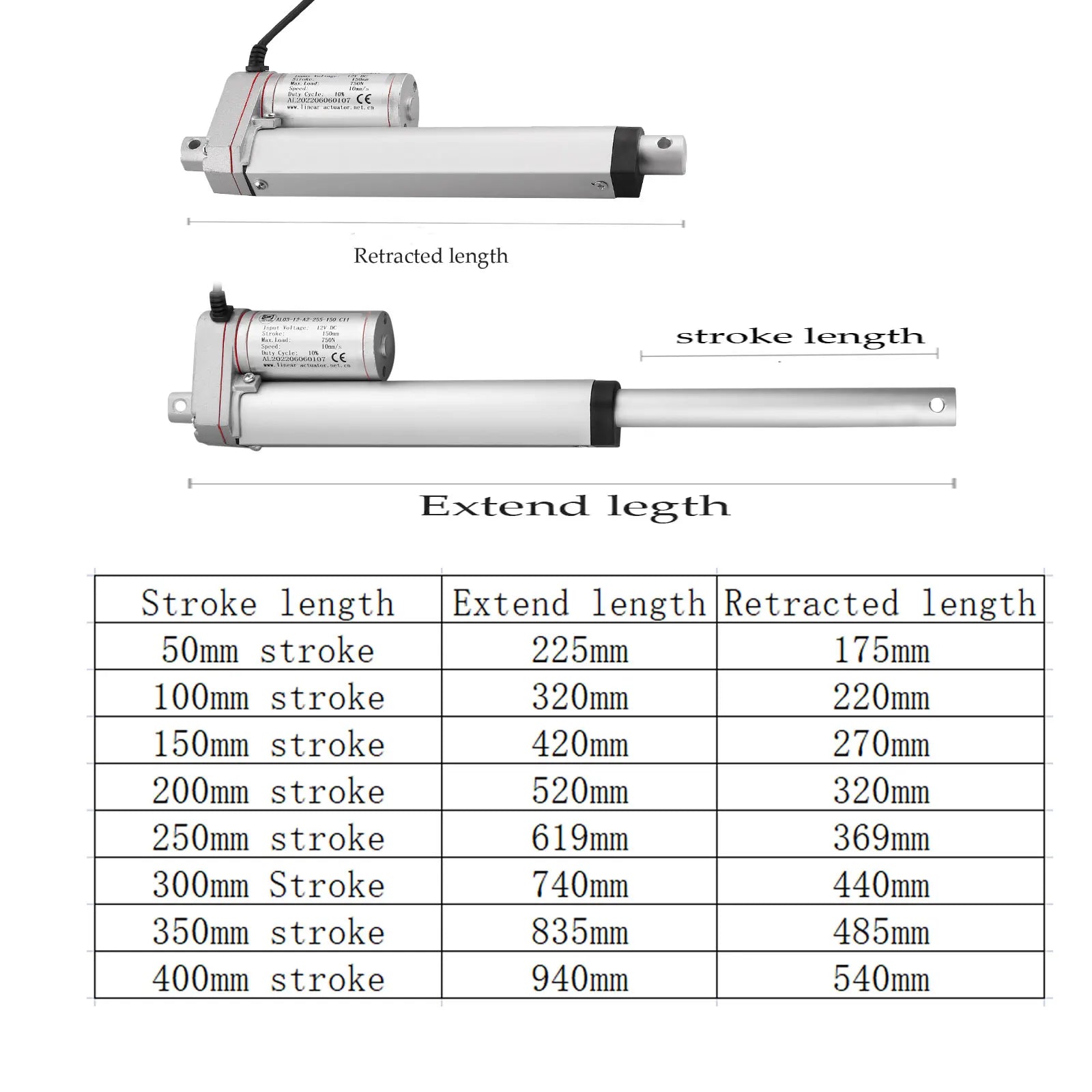

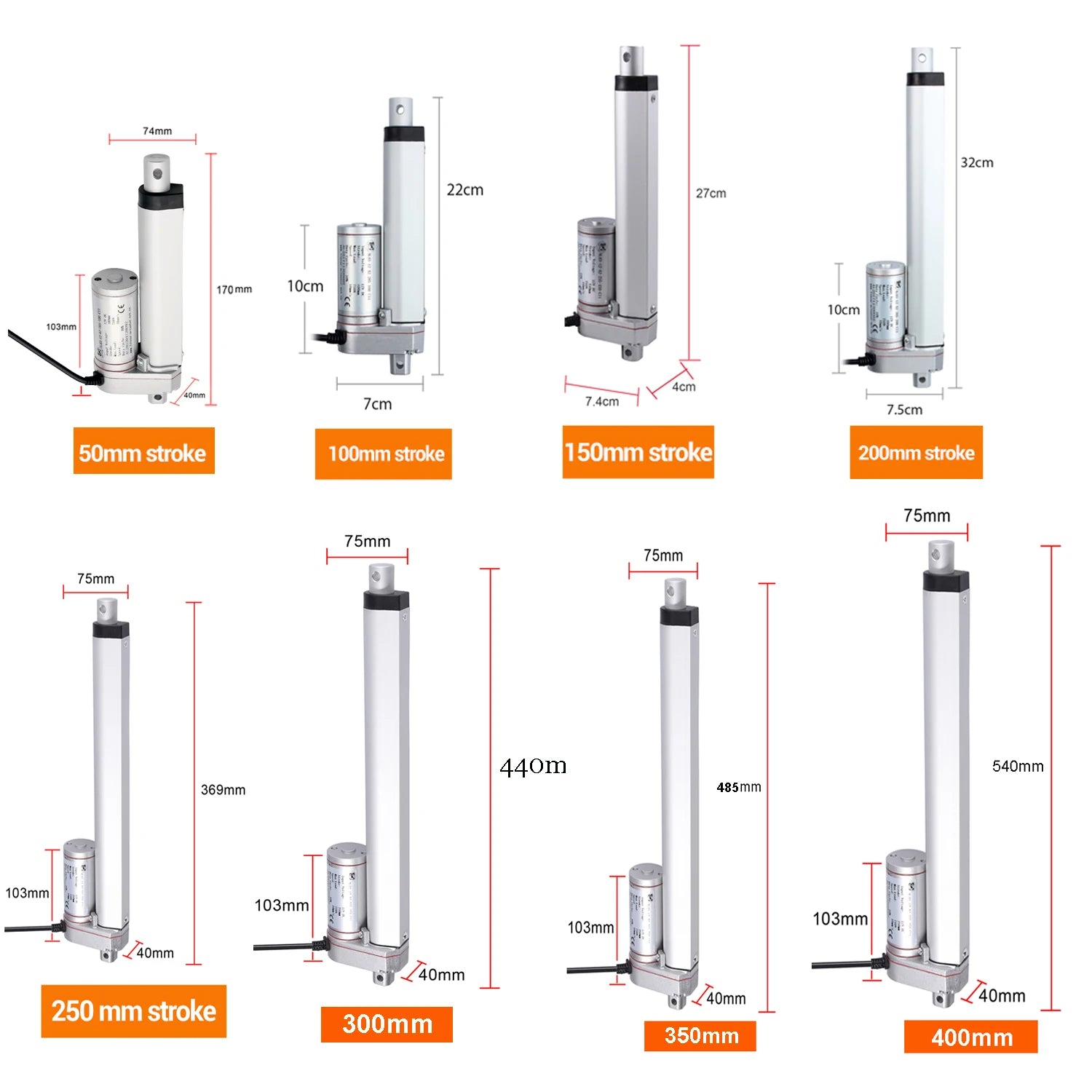

Stroke Length:50mm/100mm/150mm/200mm/250mm/300mm/350mm stroke
Working frequency: 10%
Rated power: 20W, maximum 30W.
Material: Aluminum alloy
Color: silver
Load capacity: 1000N (100kg）
Input Voltage: 12V DC
Speed: 14mm/s
Stroke Length:50mm/100mm/150mm/200mm/250mm/300mm/350mm stroke
Working frequency: 10%
Rated power: 20W, maximum 30W.
Ambient temperature: -20°C to +75°C.
Standard protection class: IP54.
Standard protection class: IP54.
Features:
1. Push bar Each side contains a travel limit switch. When the telescopic bar runs to the top or to the bottom, it will automatically disconnect the electricity.
2. The motor will not idle. Cut off the power, it can stop at any position, with self-locking function.
3. The push rod is driven by a DC motor with a screw drive. The telescopic rod can only be retracted without rotation.
4. The motor is positive and negative. For example, if the positive electrode is stretched and the negative electrode is shrunk, the telescopic direction of the rod can be changed by changing it.
5. Low noise design, noise level less than 42dB.
6. Please do not disassemble the machine.
7. Product function: drive other objects to push, pull, rise, drop.
1. Push bar Each side contains a travel limit switch. When the telescopic bar runs to the top or to the bottom, it will automatically disconnect the electricity.
2. The motor will not idle. Cut off the power, it can stop at any position, with self-locking function.
3. The push rod is driven by a DC motor with a screw drive. The telescopic rod can only be retracted without rotation.
4. The motor is positive and negative. For example, if the positive electrode is stretched and the negative electrode is shrunk, the telescopic direction of the rod can be changed by changing it.
5. Low noise design, noise level less than 42dB.
6. Please do not disassemble the machine.
7. Product function: drive other objects to push, pull, rise, drop.
Package Includes:
1×Linear Actuator Motor
