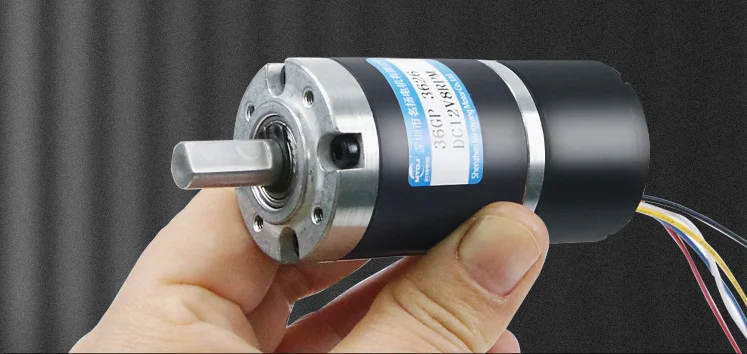

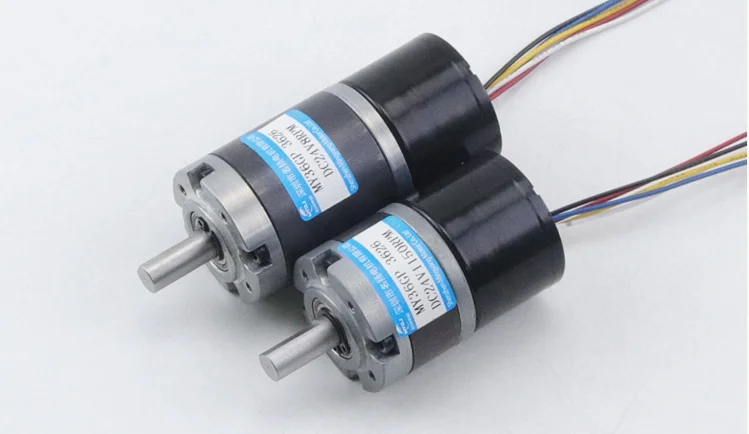

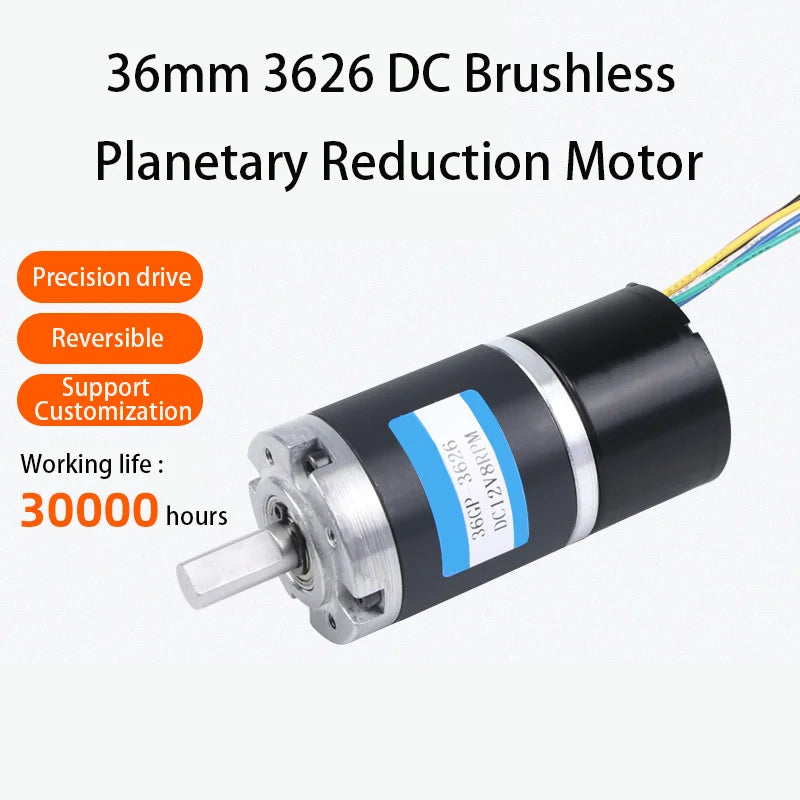

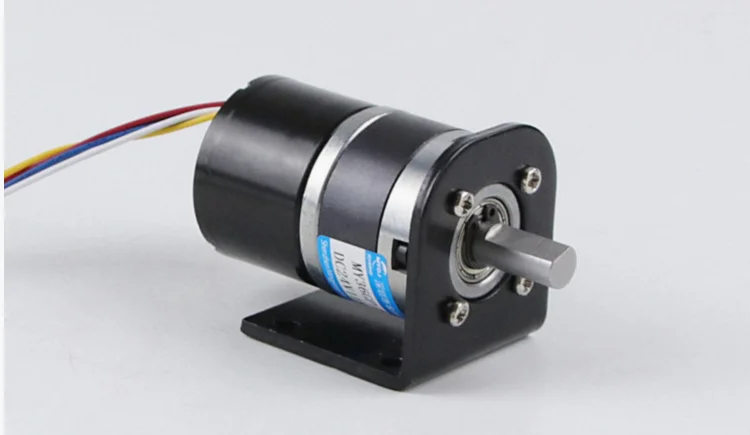

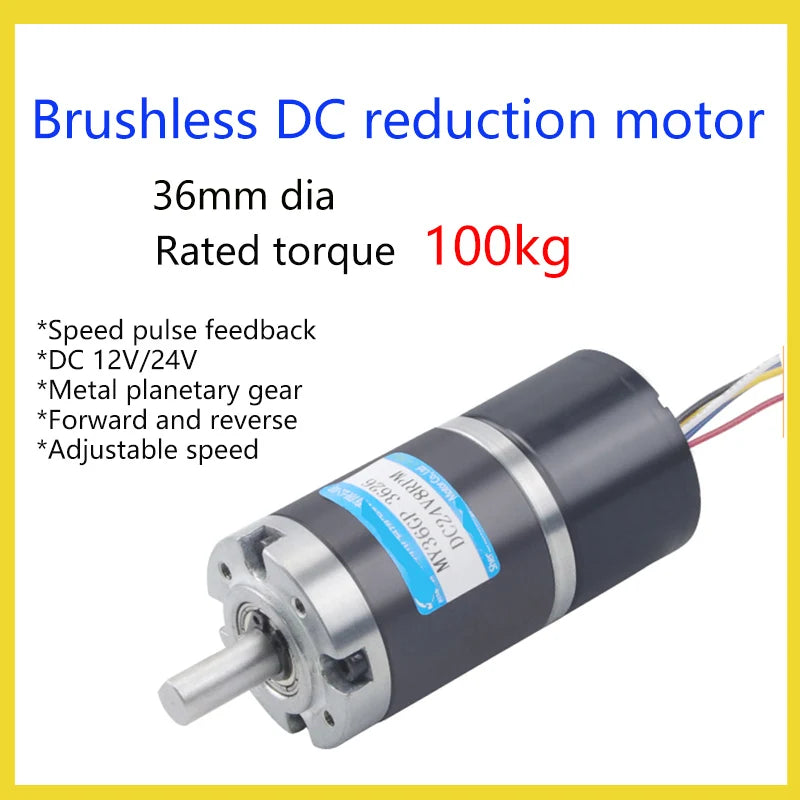

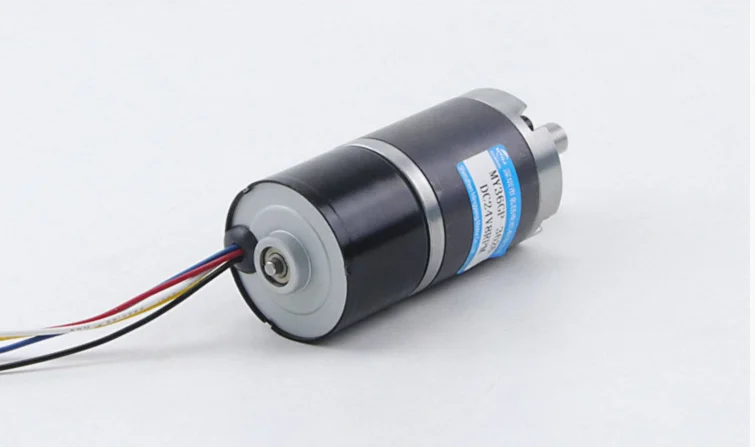

A 36 mm brushless DC motor with built-in planetary gearbox and integrated driver. It delivers 60 kg·cm continuous torque and includes speed feedback via a pulse output.
Key features

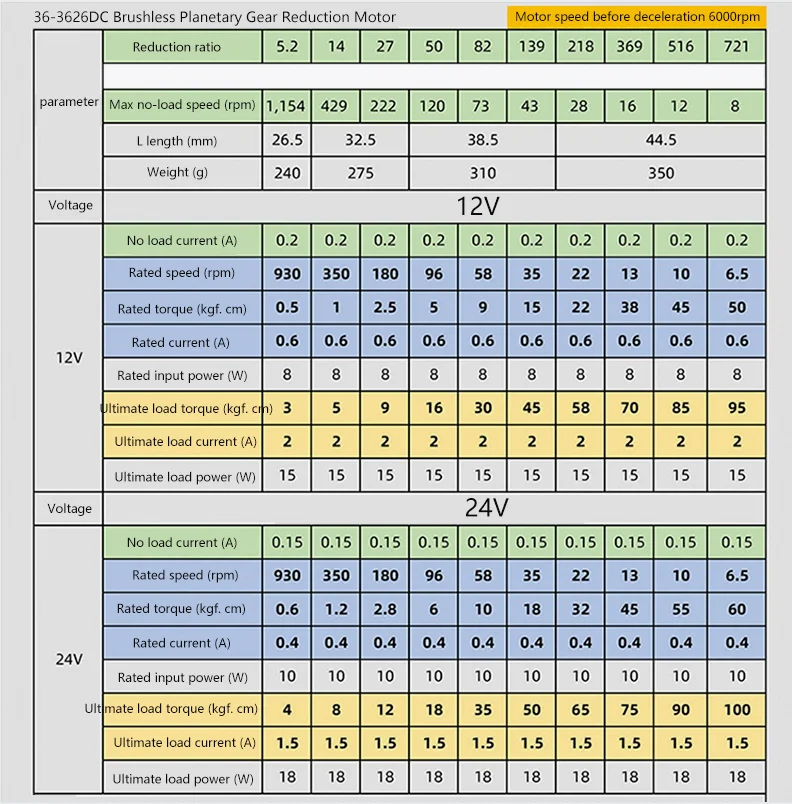

Rated for 60 kg·cm continuous torque, with 100 kg·cm peak capacity

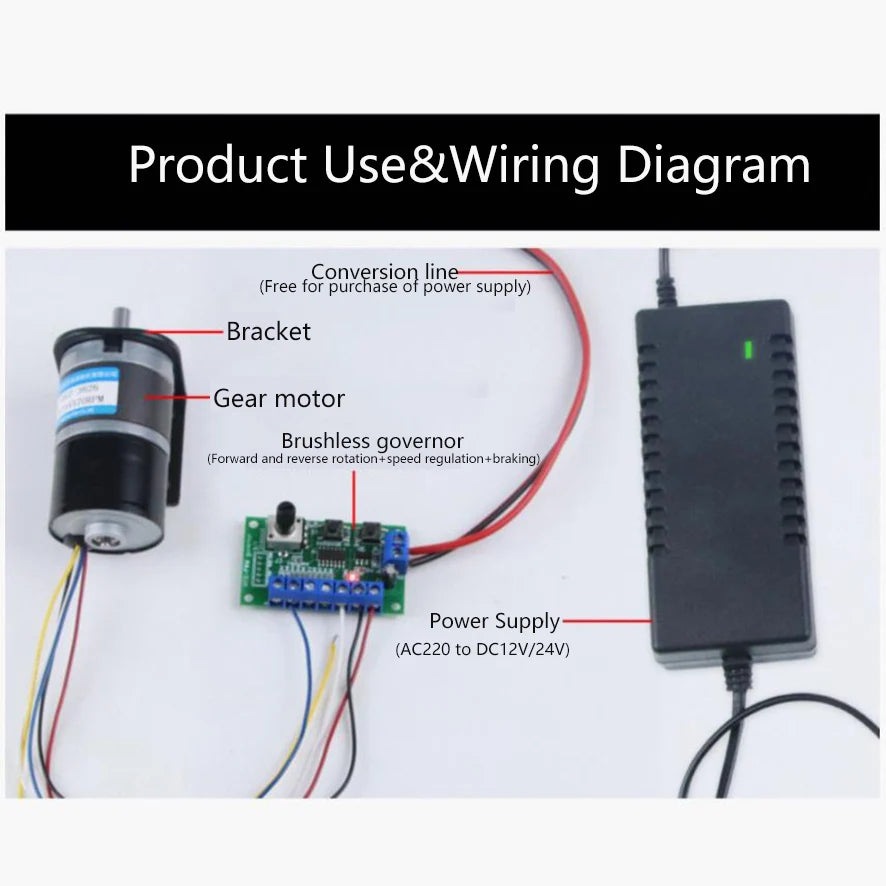

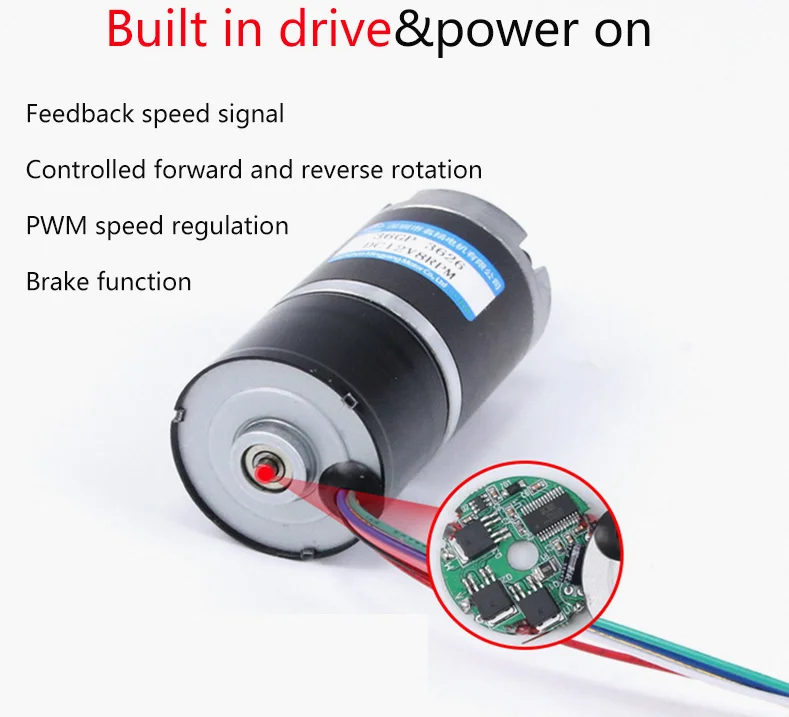

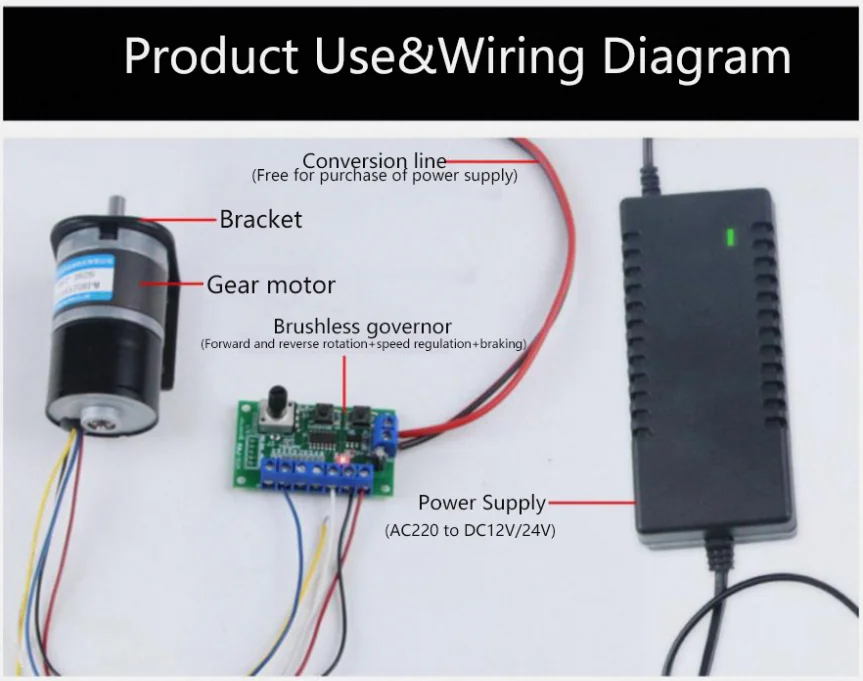

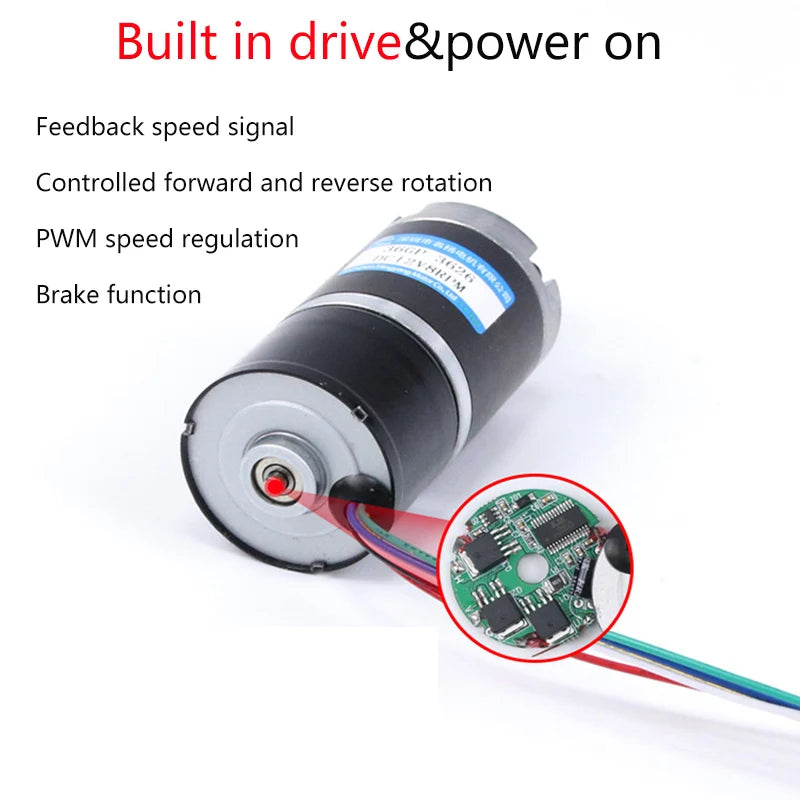

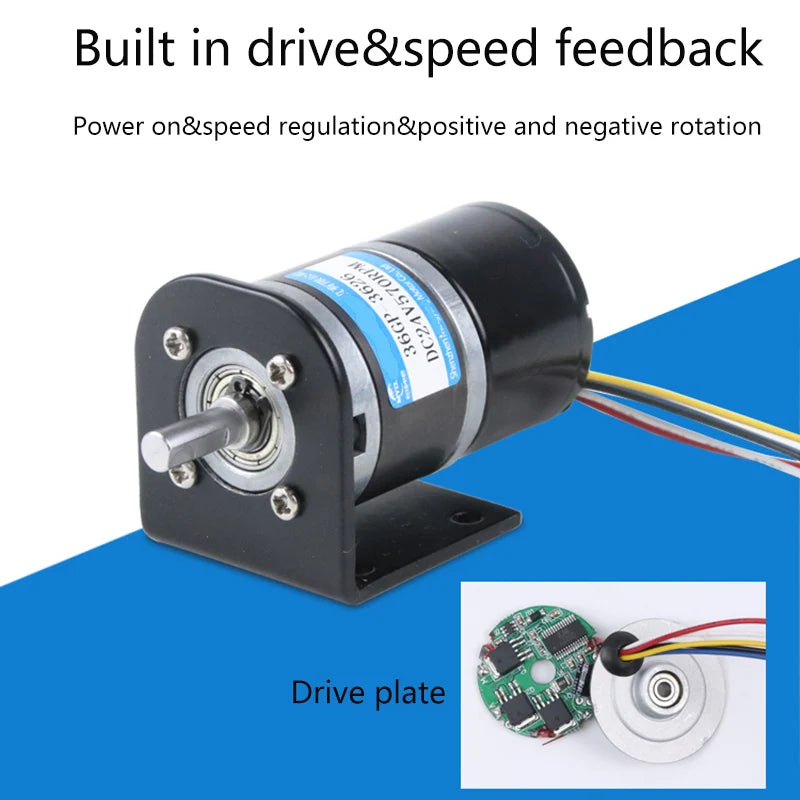

Built-in drive board—runs on power alone with no separate driver required
Planetary reduction gearbox for compact, efficient operation
Speed feedback output: 9 pulses per motor revolution (before gearing)
Available in 5-wire or 6-wire configuration

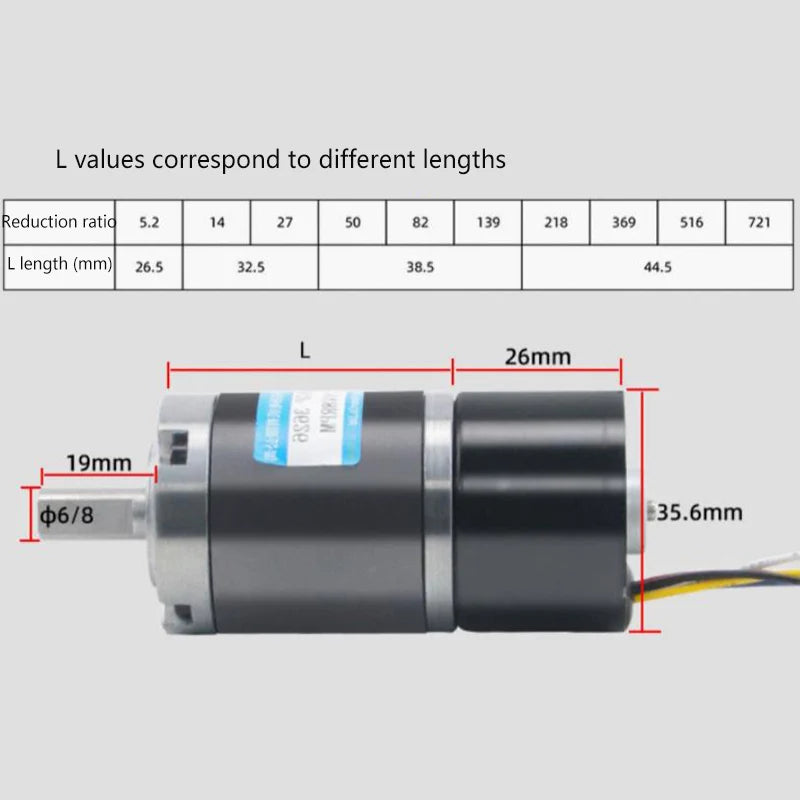

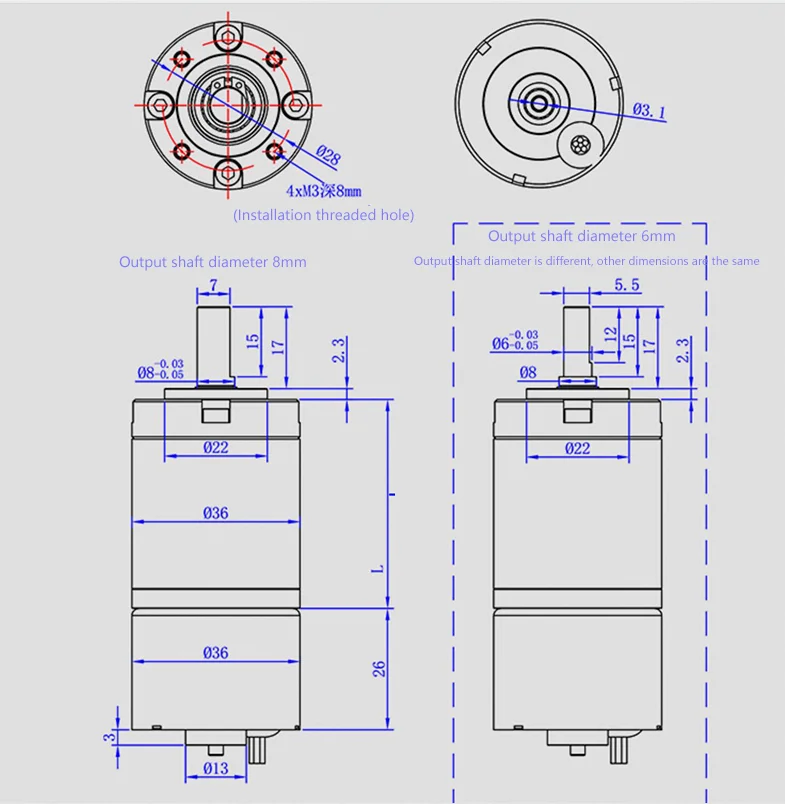

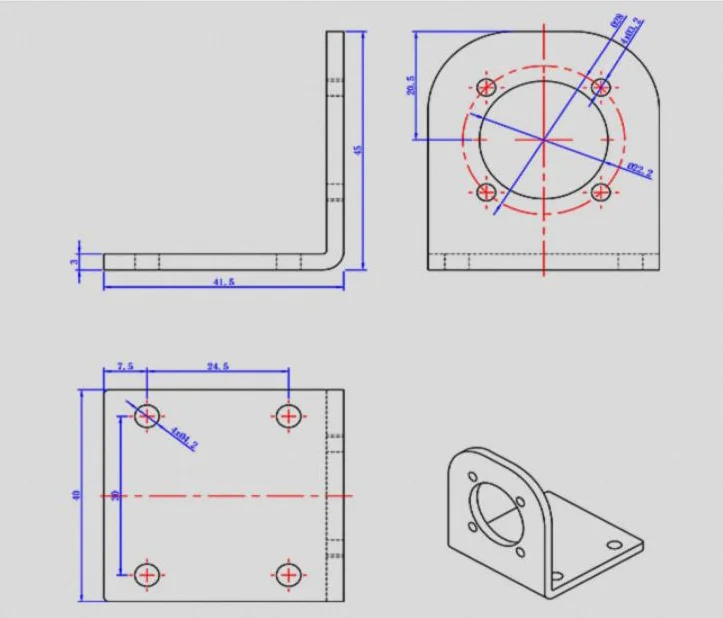

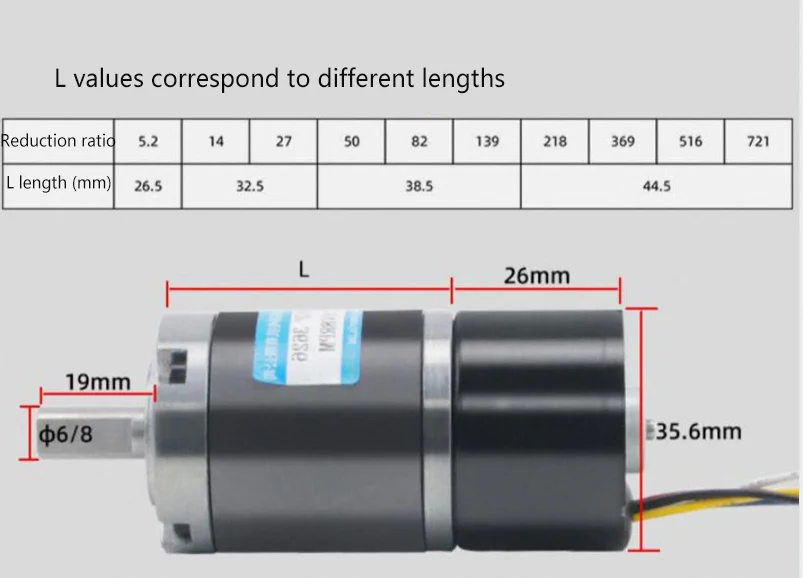

Check shaft, flange and mounting dimensions against your application before ordering
Suits applications requiring compact, controlled torque delivery with integrated electronics and speed monitoring.
