Specification:

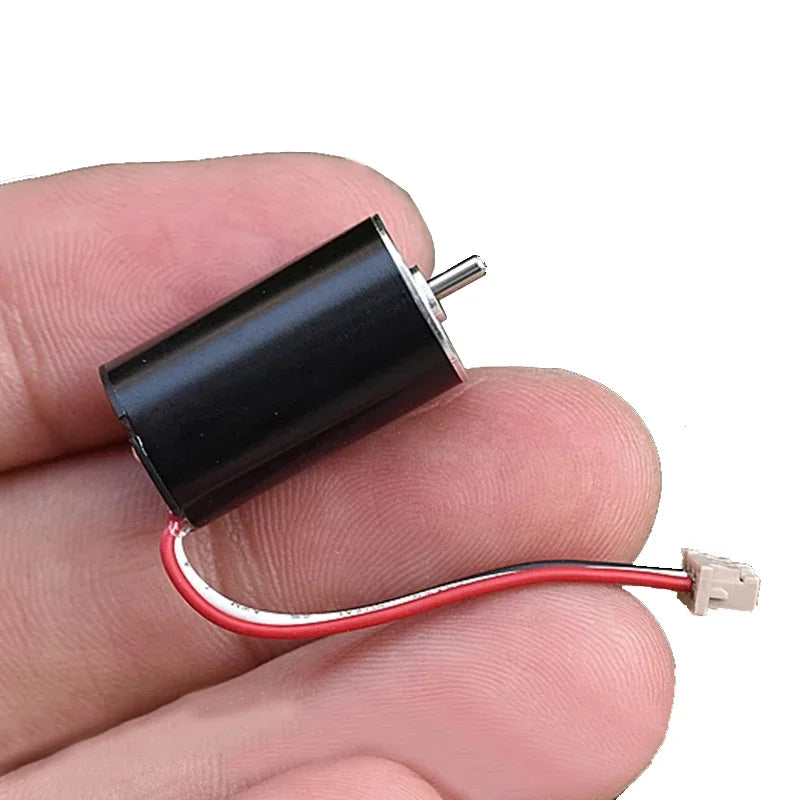

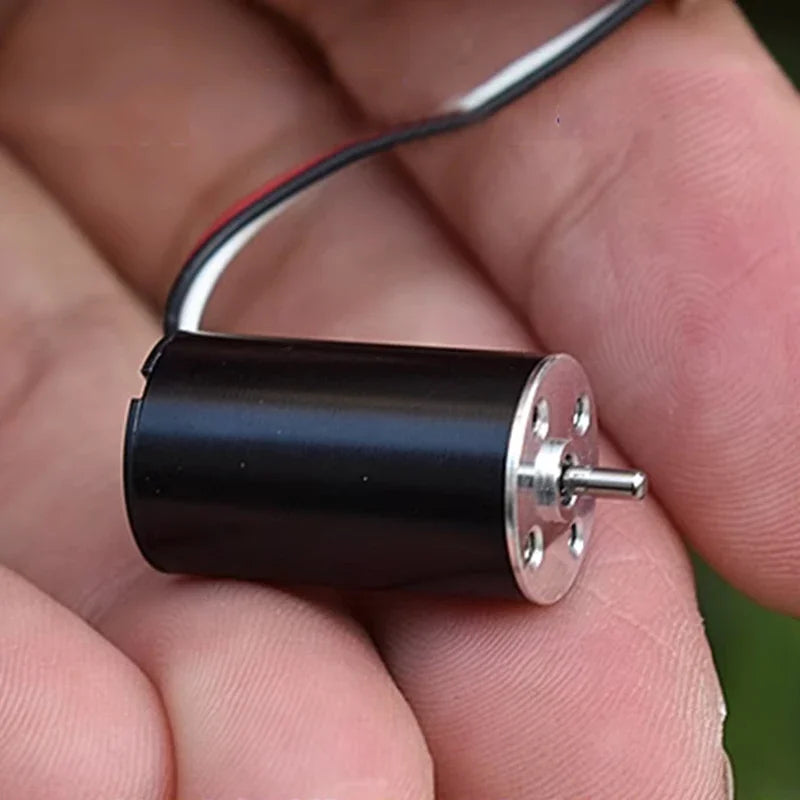

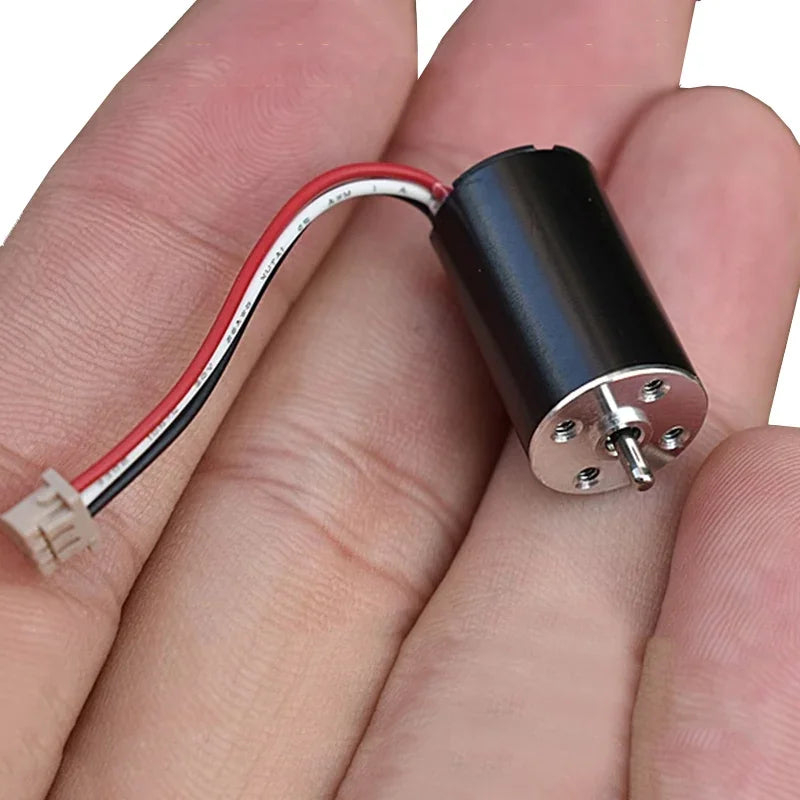

Micro car model brushless motor, this is a three-phase brushless motor without a drive board.

It requires an additional brushless motor driver to operate.

The outer diameter of the motor is 12MM, the length is 20MM, front ball bearing,

the inner rotor brushless motor with neodymium iron boron high-strength magnet,

and the KV value is approximately 6000KV.

The applicable voltage is DC4.8V-7.2V, with a rotational speed of approximately 43600rpm at DC7.2V.

It is compact but high-speed, violent, and high-power. Please pay attention to a good heat dissipation environment,

and it is not suitable for long-term work.

Special reminder: This is a three-phase brushless motor without a drive board,

so it requires an additional brushless motor driver to operate normally.

There is no information about the motor, so we do not understand the purpose and usage of this ultra micro brushless motor, and we are unable to provide technical support.

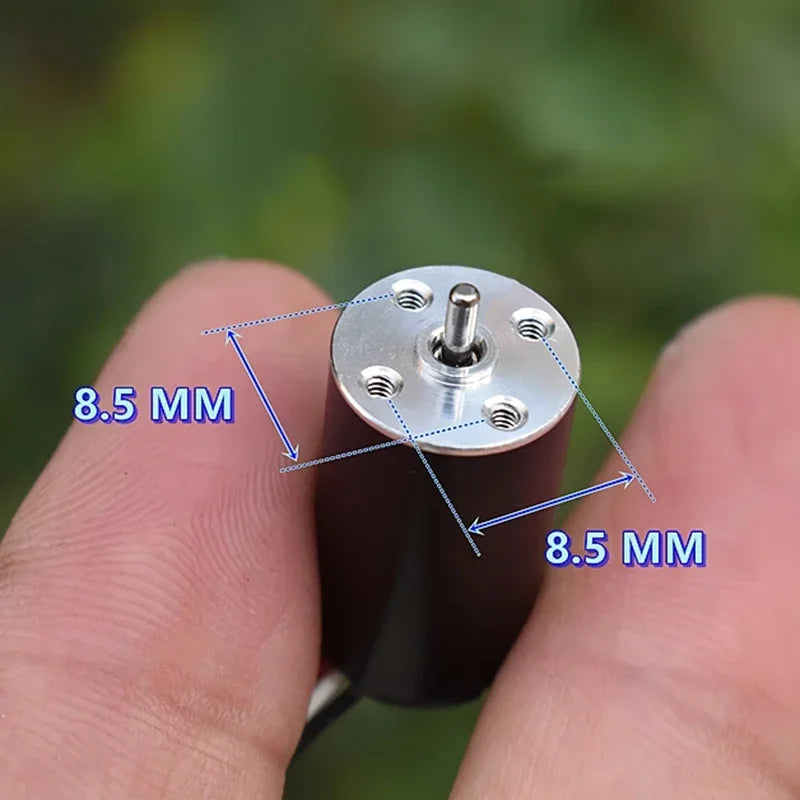

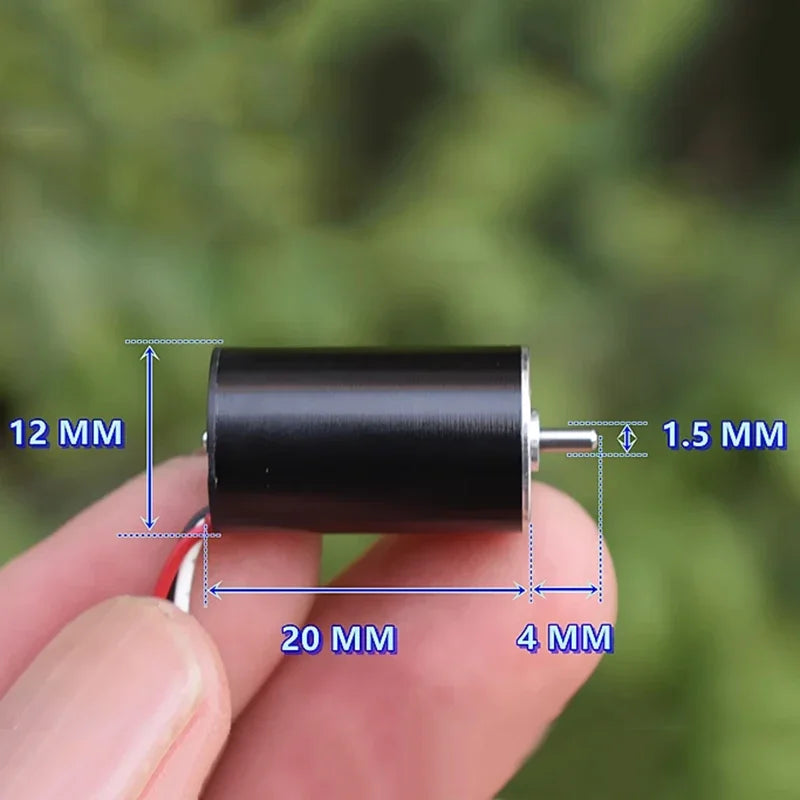

1.Motor diameter: 12mm

2.Motor length: 20mm

3.Output shaft diameter: 1.5mm

4.Output shaft length: 4mm

5.Cable length: 35mm

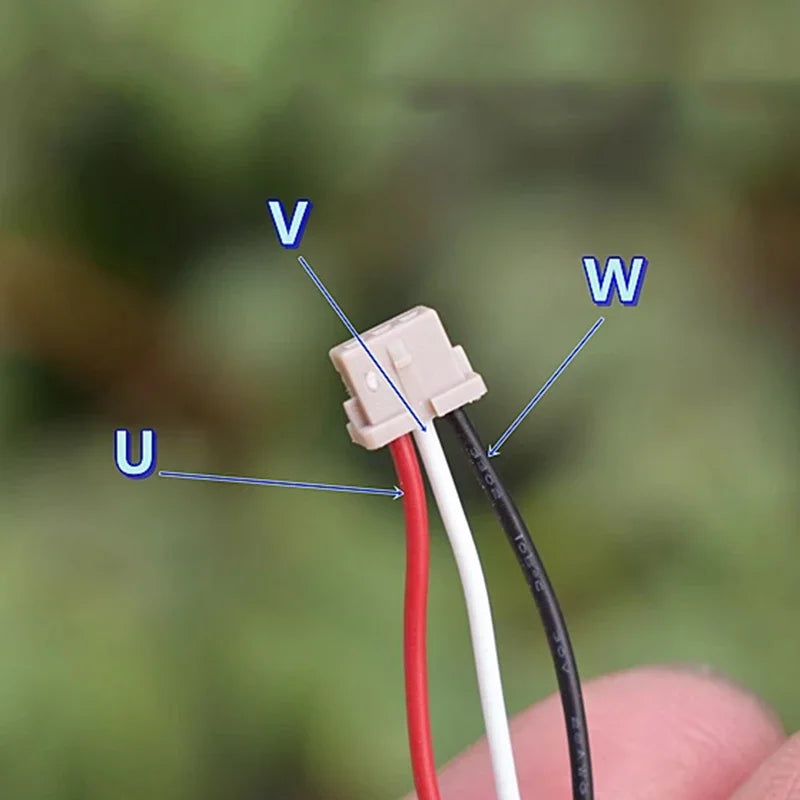

6.Motor type: 3-phase brushless motor (It requires an additional brushless motor driver)

7.Motor weight: 10g

8.Voltage: DC 7.2V

9.Max speed: 43600RPM

10.KV value: about 6000 KV

=========================

Package List:

Motor x 1PCS
