Fits (As a Reference)

For Atomik, Pitpro, TDR, Hummer, Orion, Xmoto, Lei, Dmx, Swd, Tomahawk, Go Kart, Quad, Dirt Bike, ATV, Pit Bike, Buggy, Rocket Car
For 125cc Engine Size

Key Features

Build to Last: It is made of high-quality iron and aluminum with die casting and paint spraying processes, which is rustproof, impact-resistant, not easy to crack, and can ensure a long service life.

Robust Power: The 5.5KW high-power parallel 4-stroke single-cylinder engine has a maximum speed of 7500 ± 375RPM, coupled with a torque of 8.5N. m, allowing you to easily shuttle through various terrains.

Specifications

Applicable Models: For Atomik, Pitpro, TDR, Hummer, Orion, Xmoto, Lei, Dmx, Swd, Tomahawk, Go Kart, Quad, Dirt Bike, ATV, Pit Bike, Buggy, Rocket Car
For 125cc Engine Size
Condition: New
Material: Iron, Aluminum
Process: Die Casting, Painting
Color: Silver
Engine Type: Parallel 4-Stroke Single-Cylinder Engine
Transmission System: 3 Forward+1Reverse
Starting Method: Electric Start
Ignition Device: CDI
Cooling Method: Air Cooling
Starter Type: Foot Start
Lubrication Method: Pressure/Splash
Fuel Type: Gasoline
Carburetor: PZ19
Displacement: 125CC
Maximum Power: 5.5KW
Compression Ratio: 9:1
Max. Speed: 7500±375RPM
Idle Speed: 1500±100RPM
Max. Torque: 8.5 N.m
Front Sprocket: 420-17mm-14T
Fuel Tank Capacity: 900ml/0.24gal
Air Filter Diameter: 35mm/1.38in
Cylinder Diameter*Stroke: 52.4*55.5mm/2.06*2.19in
Top Mounting Hole Spacing: 92mm/3.62in
Bottom Mounting Hole Spacing: 82mm/3.23in
Bolt Spacing: 152mm/5.98in
Way of Use: Direct Replacement

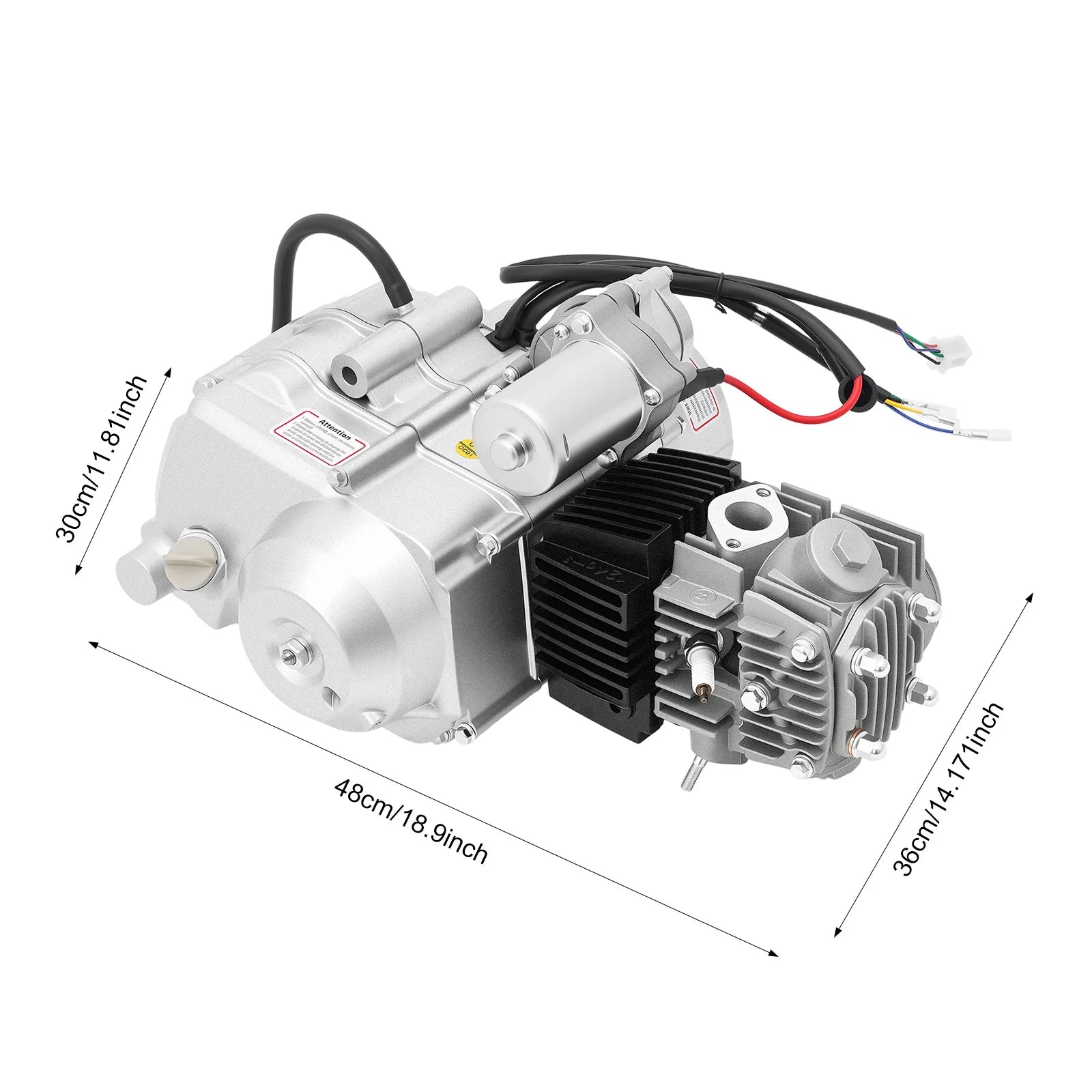

Product Size: 48*36*30cm/18.9*14.17*11.81in
Package Size: 50*37.5*32cm/19.69*14.76*12.6in
Gross Weight: 21.95kg/48.39lbs
Net Weight: 21kg/46.3lbs

Highlights

Brand New, With High Quality
Strong Power
Trouble-free Installation
Exquisite Craftsmanship
Direct Replacement
Long Service Life
Improving Vehicle Safety
Comfortable Driving

The Functions Corresponding to Different Colored Cords

1. Five Wires (Plug): Gear Indicator
2. Yellow Wire: Charging Wire
4. Black & Red Wire: Battery Wire
5. Green Line: Neutral Wire

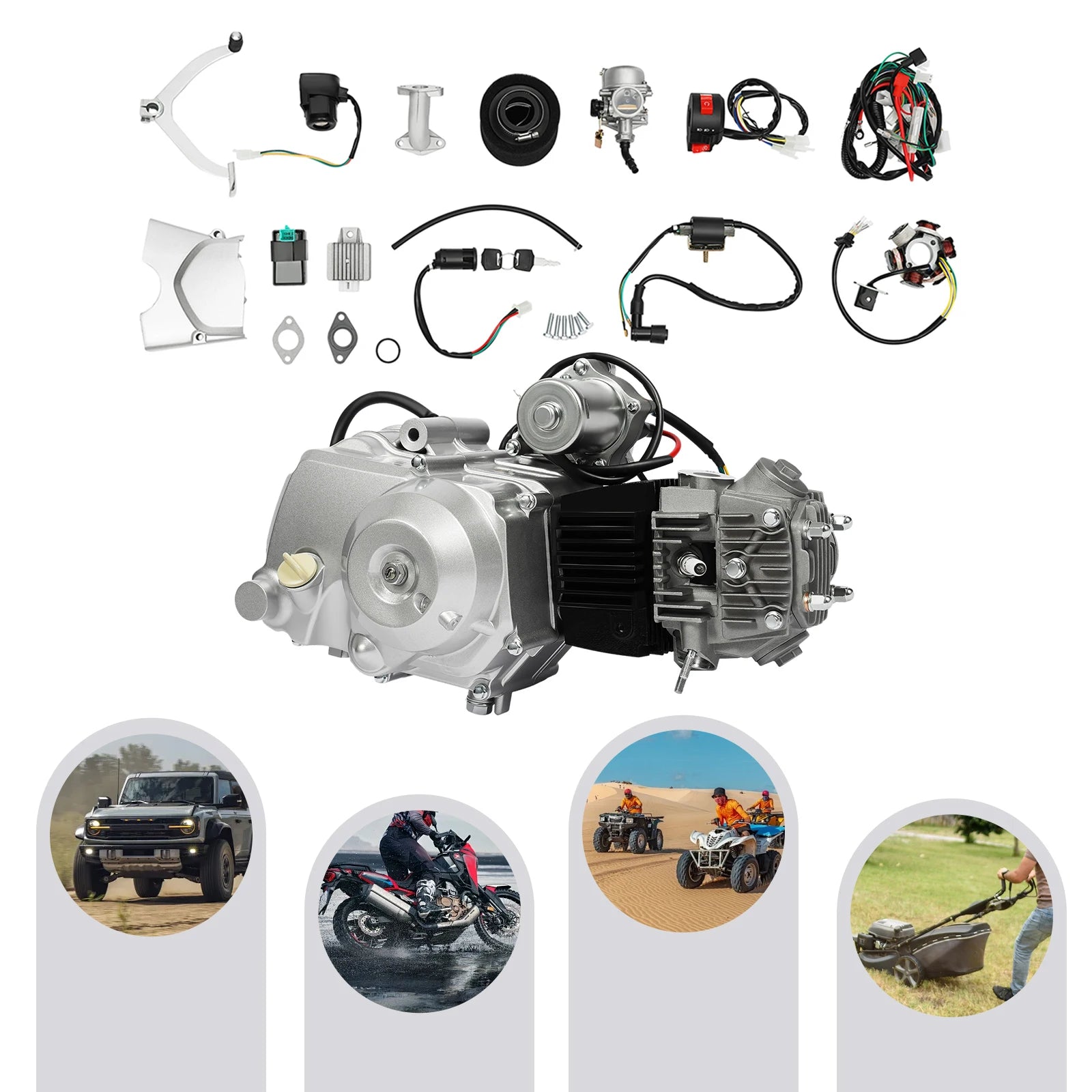

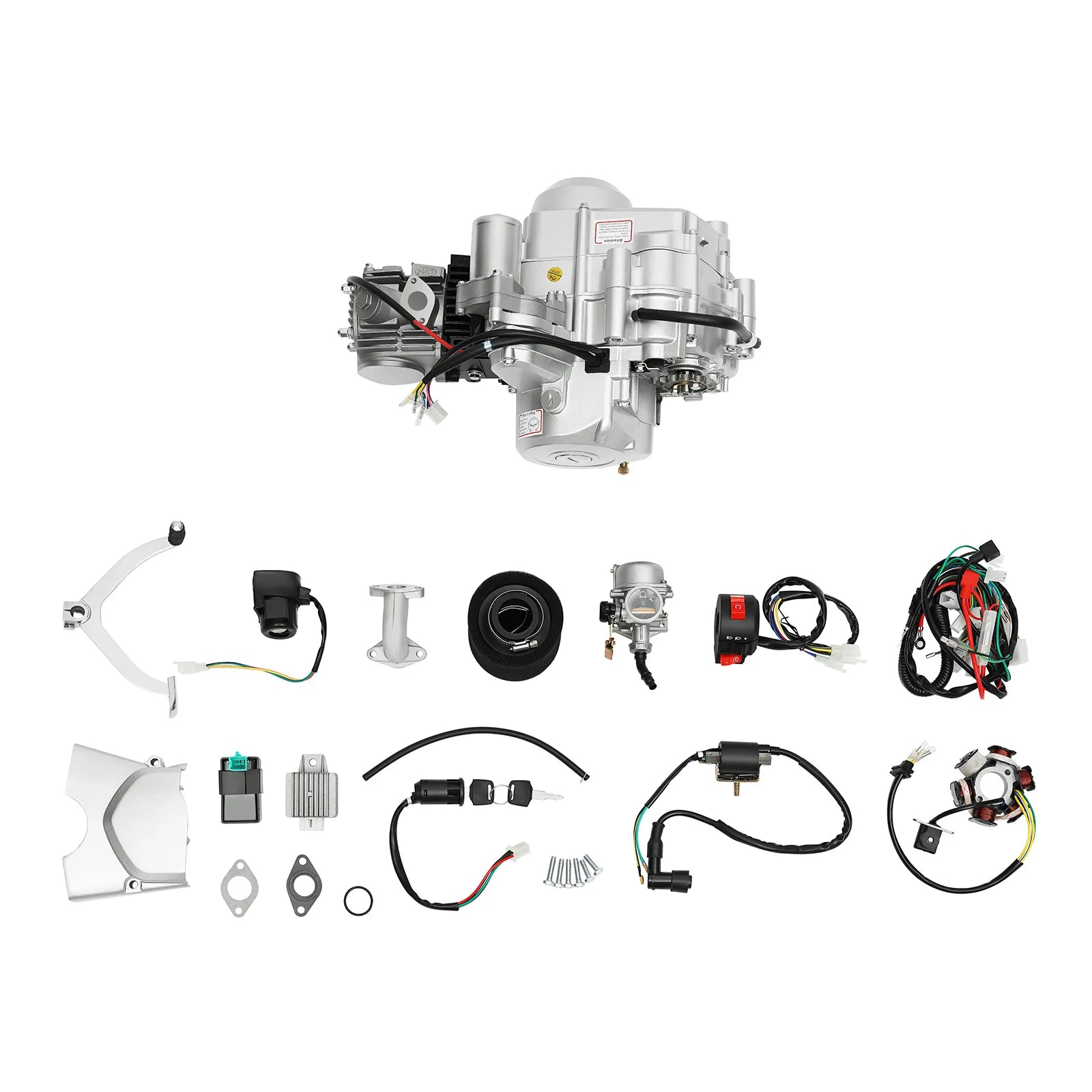

Package Included

1 * 125CC 4 Stroke Engine Motor
All Accessories for Assembly

Notes

1.We strongly recommend professional installation.
2.Please double-check compatibility before purchasing to ensure proper fit.
3.Please allow for slight color differences caused by shooting light and errors caused by manual measurement, and make sure you don't mind before ordering. If you have any questions, please contact us, and we will reply and solve your problem as soon as possible.
