150cc Engine Assembly 4-Stroke GY6 Single Cylinder Motor Air Cooled Engine Set Short Case For Scooter ATV Go Kart 157QMJ
150cc Engine Assembly 4-Stroke GY6 Single Cylinder Motor Air Cooled Engine Set Short Case For Scooter ATV Go Kart 157QMJ
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: NONE
Displacement (ml): 150CC
External Testing Certification: ce
High-concerned chemical: None
Item Height: 31
Item Length: 75
Item Type: engines
Item Weight: 28.7
Item Width: 47
Model Name: GY6 150cc Motorcycle Engine
No. of Cylinders: 1 Cylinder
Origin: Mainland China
Special Features: 150cc Single Cylinder 4-Stroke
Note:
1. Please note you need to add 0.9L of oil to use, and the model of the oil is SF15W-40.
2. Pleasemeasure your original engine size, the size needs to be consistent with our product display before order.

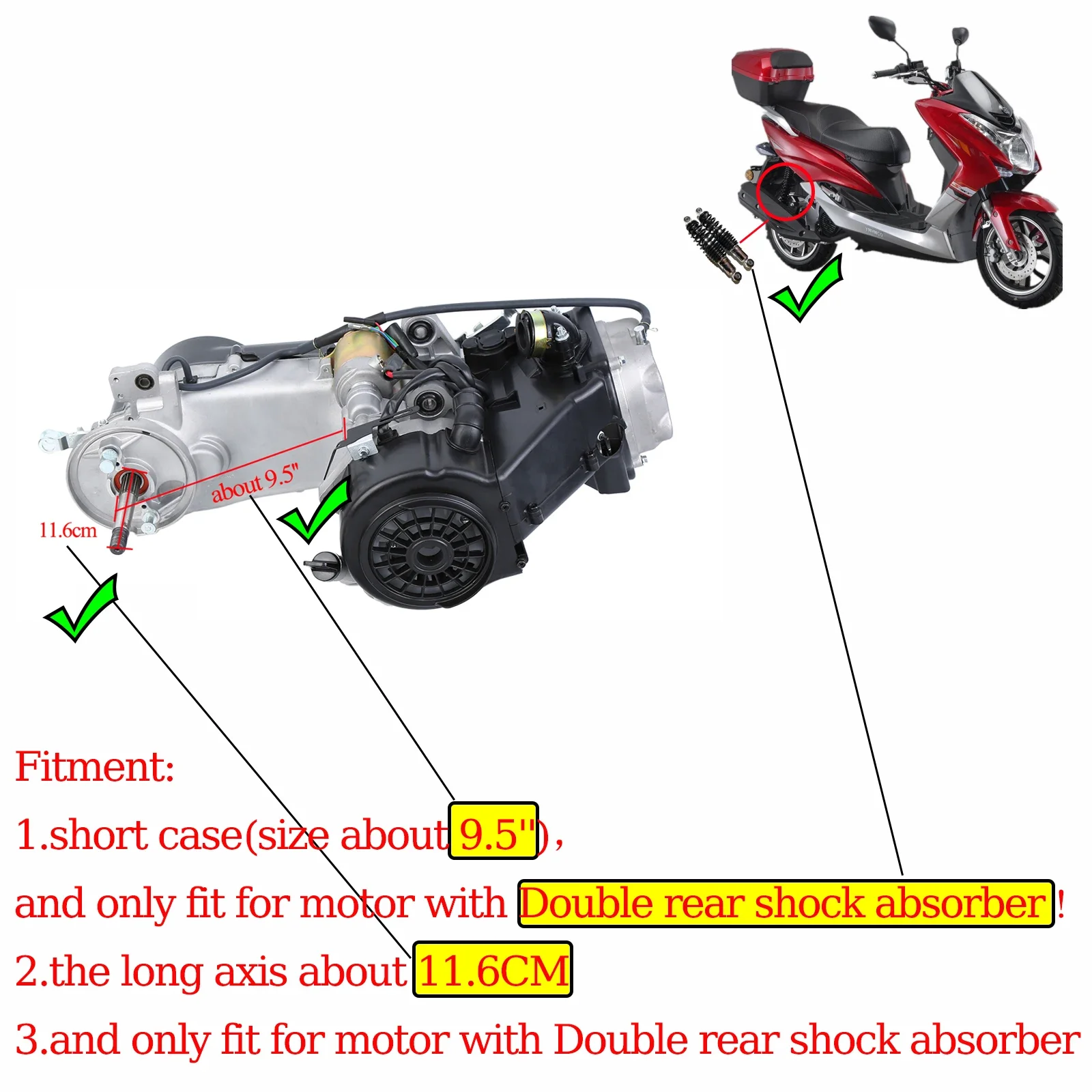

3. This engine is short case(size about 9.5'') and only fit for motor with Double rear shock absorber！
4. And pls note the size of the long axis of our engine is about 11.6CM.
5. This engine's rear axle is generally suitable for 10-inch wheels, the maximum wheel diameter is 28cm, and the tire type is 90/90---10.
6.Dear seller, if you are not confirming whether this engine is suitable for your vehicle, please send the pictures of your vehicle and the engine box to the seller to help you check the model，Thank you for your understanding.
Before you order ,please confirm the size of our product is suitable!We don't accept returns for this reason.

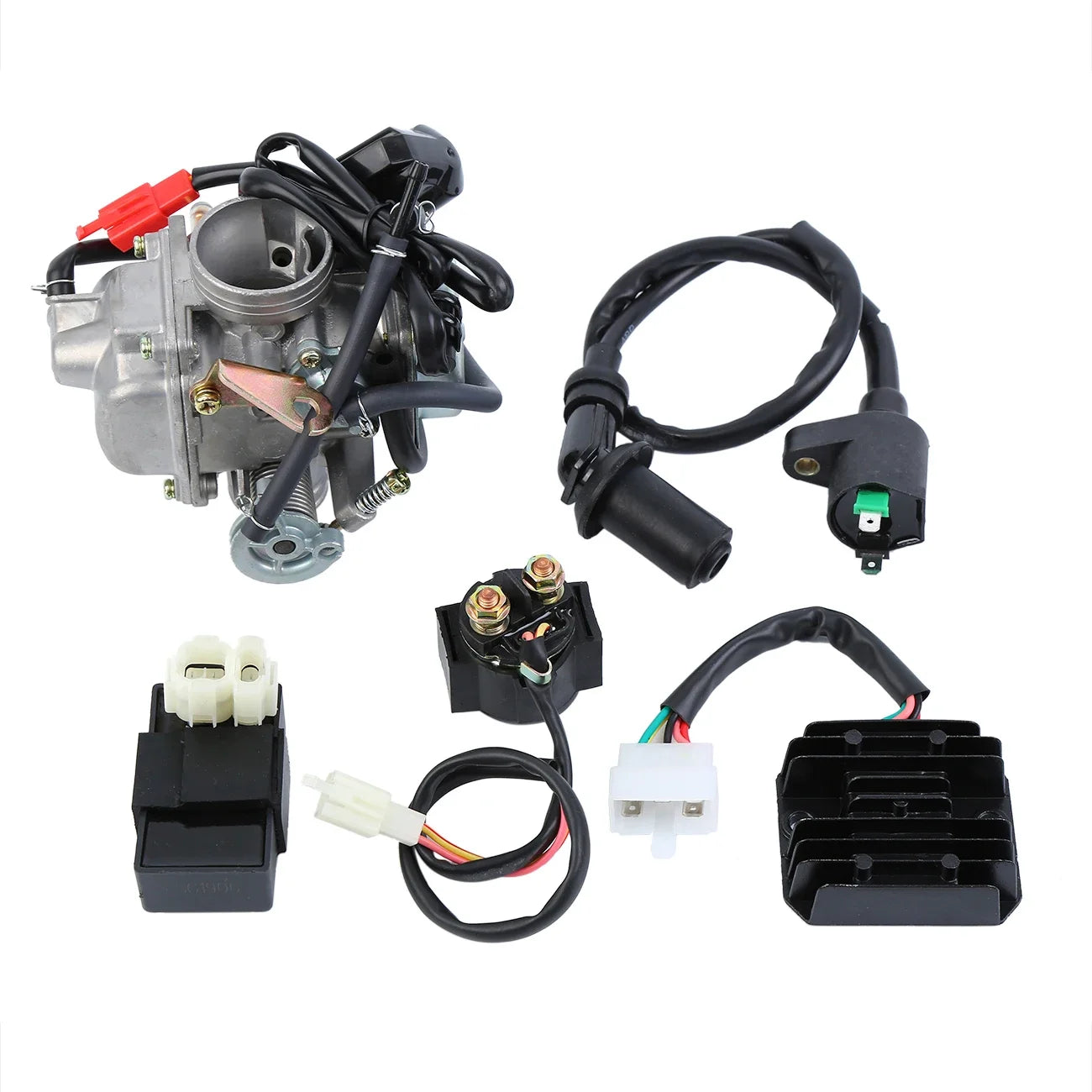

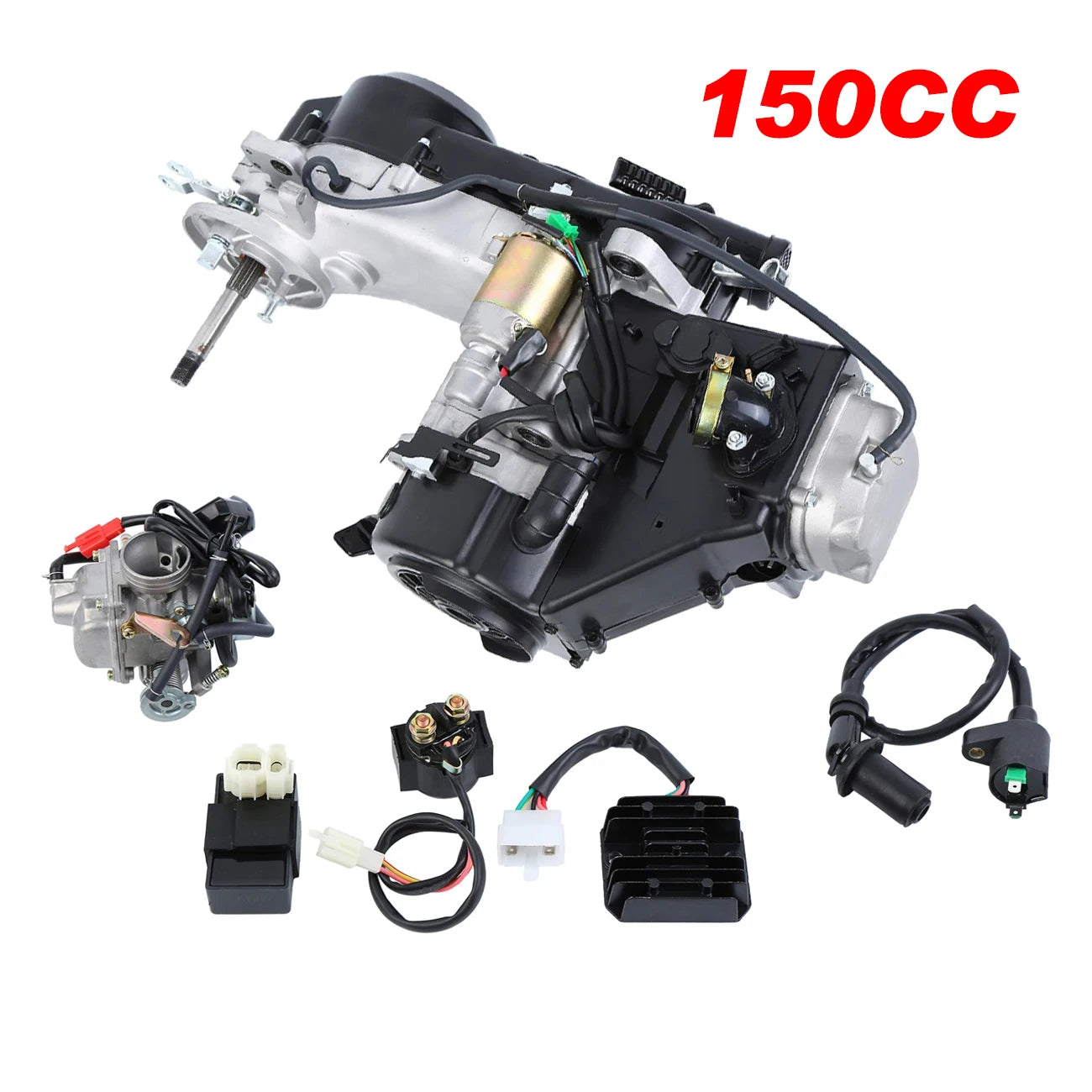

This complete engine includes carburetor, CDI, starter solenoid, coil, used in a wide variety of applications, including full-size street legal scooters, all terrain vehicles (ATVs), dirt bikes, and go karts, compatible with both 125cc and 150cc engine size scooters and vehicles.
Feature:
CVT: CVT consist mainly of 2 transmission pulleys and 2 transmission belts. It’s compact, simple design offers seamless shifting between an unlimited amount of varying gear ratios, allowing a smooth rate of acceleration.
Crank Shaft: The engine is low speed with high torque and has large diameter bearings for crankshaft connecting rod, increasing the reliability of the bearings.

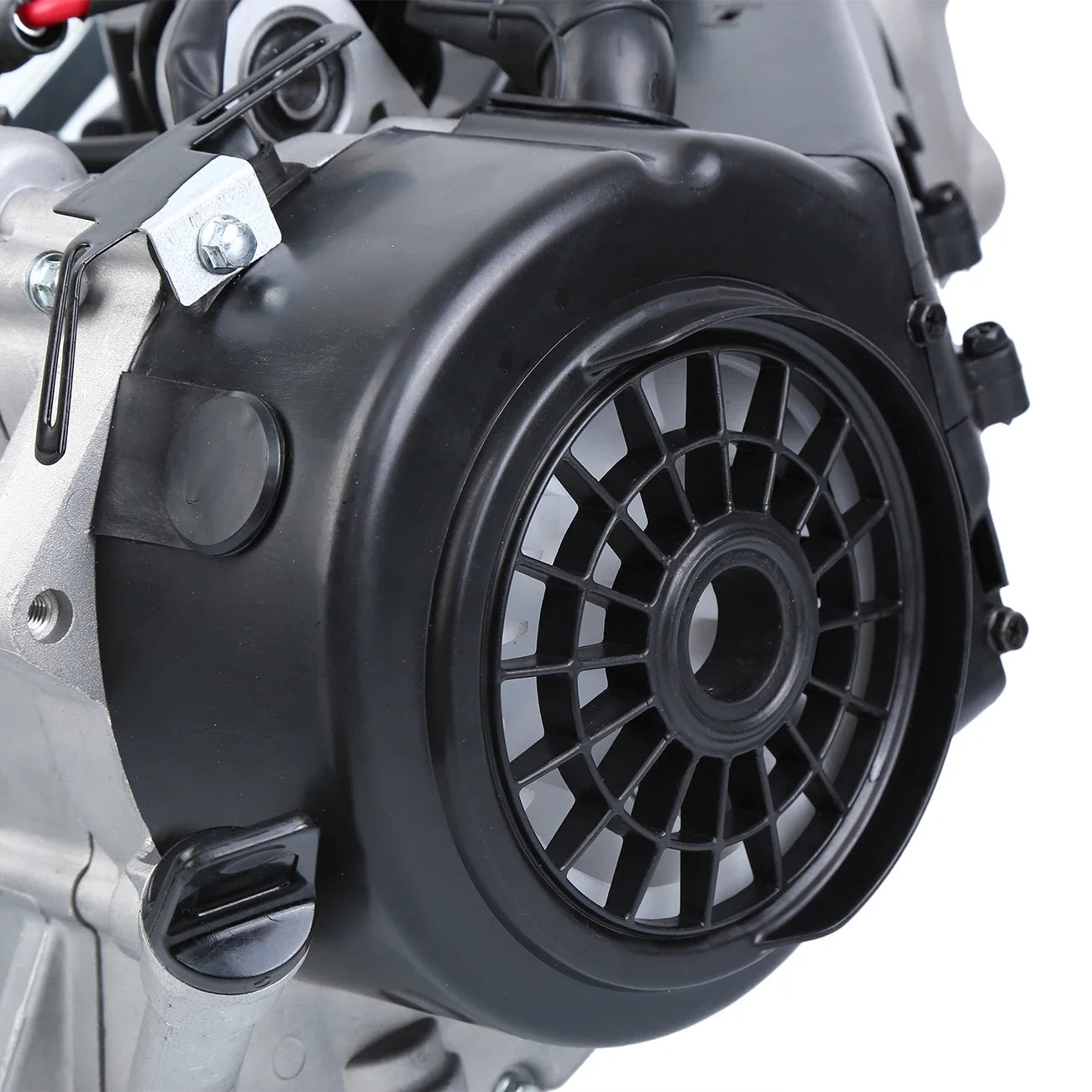

Forced Air-cooled Engine: There are metal fins covering the outside of the cylinders and the heat generated by the engine is released directly into the air when the cooling fan blows air over fins. It has the advantages of simple structure, light weight, wide adaptability to climate change, rapid start up and no need of radiator.
High-flow Oil Pump: Reduces the wear of friction pairs and prolongs the engine service life.
Lubricating Oil Strainer: Helps removing solid contamination from lubricating oil, largely reducing the wear of friction pairs and prolonging the engine service life.
Aluminum Cylinder Head & Body: Improves the heat dissipation capability, cuts the weight and increases the torque of the engine.
Specification:
Engine type: Gy6 single cylinder 4-stroke
Spark plug Model:a7tc
Ignition Type:cfw
Cooling: Air cooled
Displacement: 150cc
Max power (Kw/R/min): 6kw/7500r/min
Rated power (Kw/R/min): 5.2kw/7000r/min
Max torque(N.m/R/min):7.6n.m/6500r/min
Min. Stable idling speed 1600±150r/min
Piston diameter:57.4mm
Piston stroke: 57.8mm
Hole Hub2.26" X 2.28" (57.4mm X 57.8mm)
Compression ratio: 9.2:1
Clutch: Automatic centrifugal dry clutch of shoe type
Transmission:cvt
Speed: 8 Pole
Ignition: Cdi
Start Method: Electric/Kick
Fitment:
Compatible with 150cc engine size scooters and vehicles.

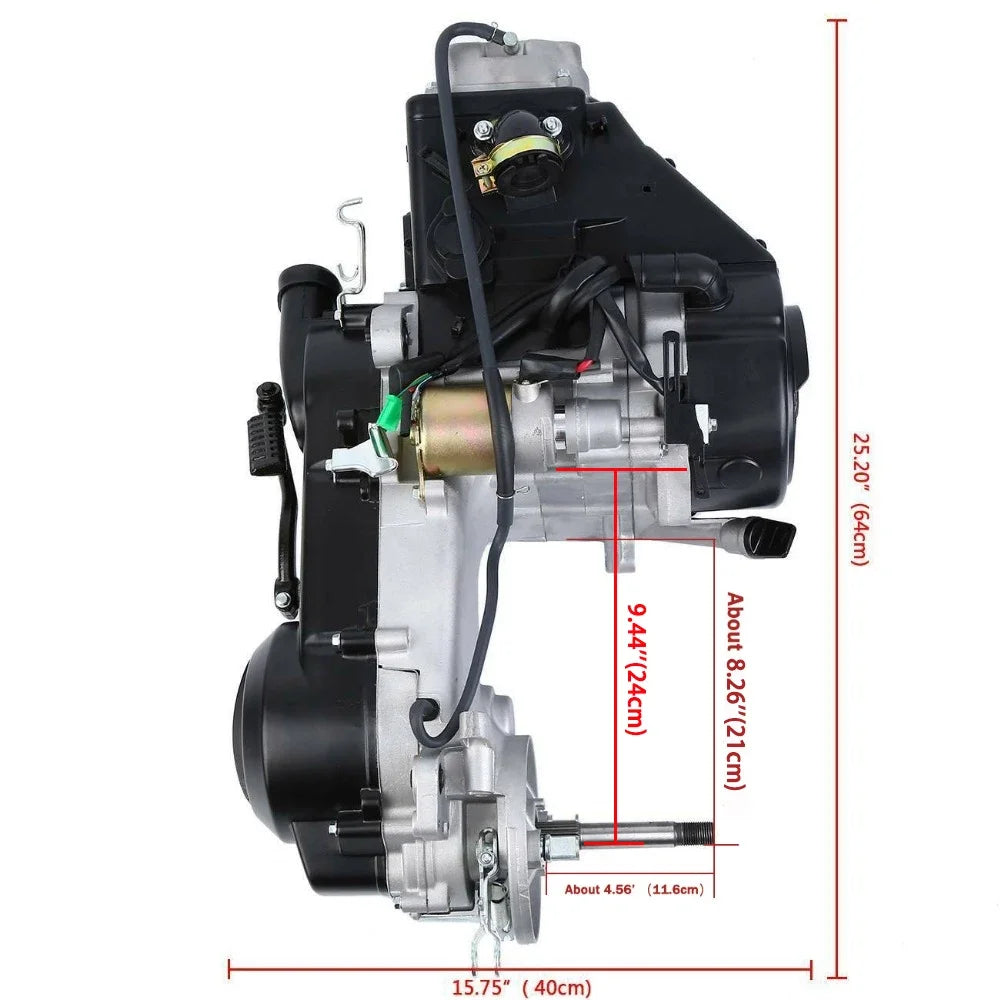

GY6 150cc motors come in different sizes. The difference is in the length of the rear swing arm. Please measure the physical size to be sure get the correct one before your purchase.
Package Included:
1x Complete Engine
