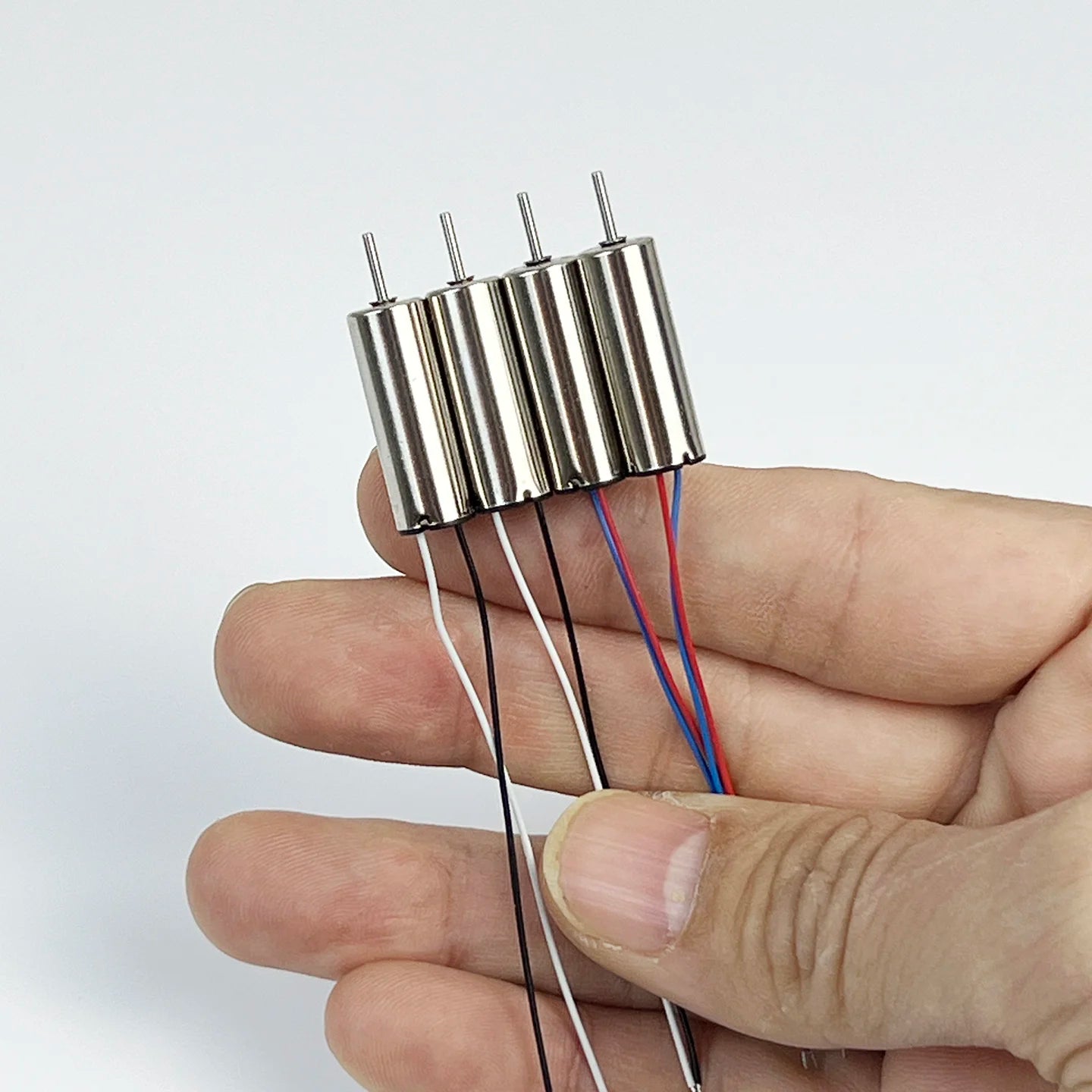

4PCS 720 7mm*20mm CW CCW Mini Coreless Motor 3.7V 50000RPM High Speed Engine DIY Toy RC Drone Quadcopter Aircraft Model

4PCS 720 7mm*20mm CW CCW Mini Coreless Motor 3.7V 50000RPM High Speed Engine DIY Toy RC Drone Quadcopter Aircraft Model

Precio habitual $16.81 USD
Precio habitual $0.00 USD Precio de oferta $16.81 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.
Cantidad

SPECIFICATIONS

Actual Rated Input Voltage: 3.7V

Brand Name: NONE

Certification: ROHS

Choice: yes

Commutation: Brush

Construction: Permanent Magnet

Current Type: DC

Efficiency: IE 1

High-concerned chemical: None

Model Number: 720 Coreless Motor

Origin: Mainland China

Output Power: <18.65

Type: Micro Motor

Use: Home Appliance

semi_Choice: yes


Specification:

Product features:
Hollow cup motor with fast speed, small size,
suitable for remote control aircraft model production with propeller, DIY electronic technology, simple wiring,
and is a accessory for making micro air vehicles.

These 720 hollow cup motors (with a diameter of 1mm) are produced by a big brand in Shenzhen.
The motors are made of super strong Nd-Fe-B magnets, precious metal brushes, and Teflon high-temperature leads.
They have more stable performance, good materials, high efficiency, and more durability. They are a kind of hollow cup with high cost performance.

This product can be used on remote-controlled aircraft, commonly including spindle motors,
small four axis aircraft, traversing aircraft, and fixed wing aircraft.
It can also be used for DIY four axis aircraft with superior performance.
It can also be used for other technology productions that require small motors.

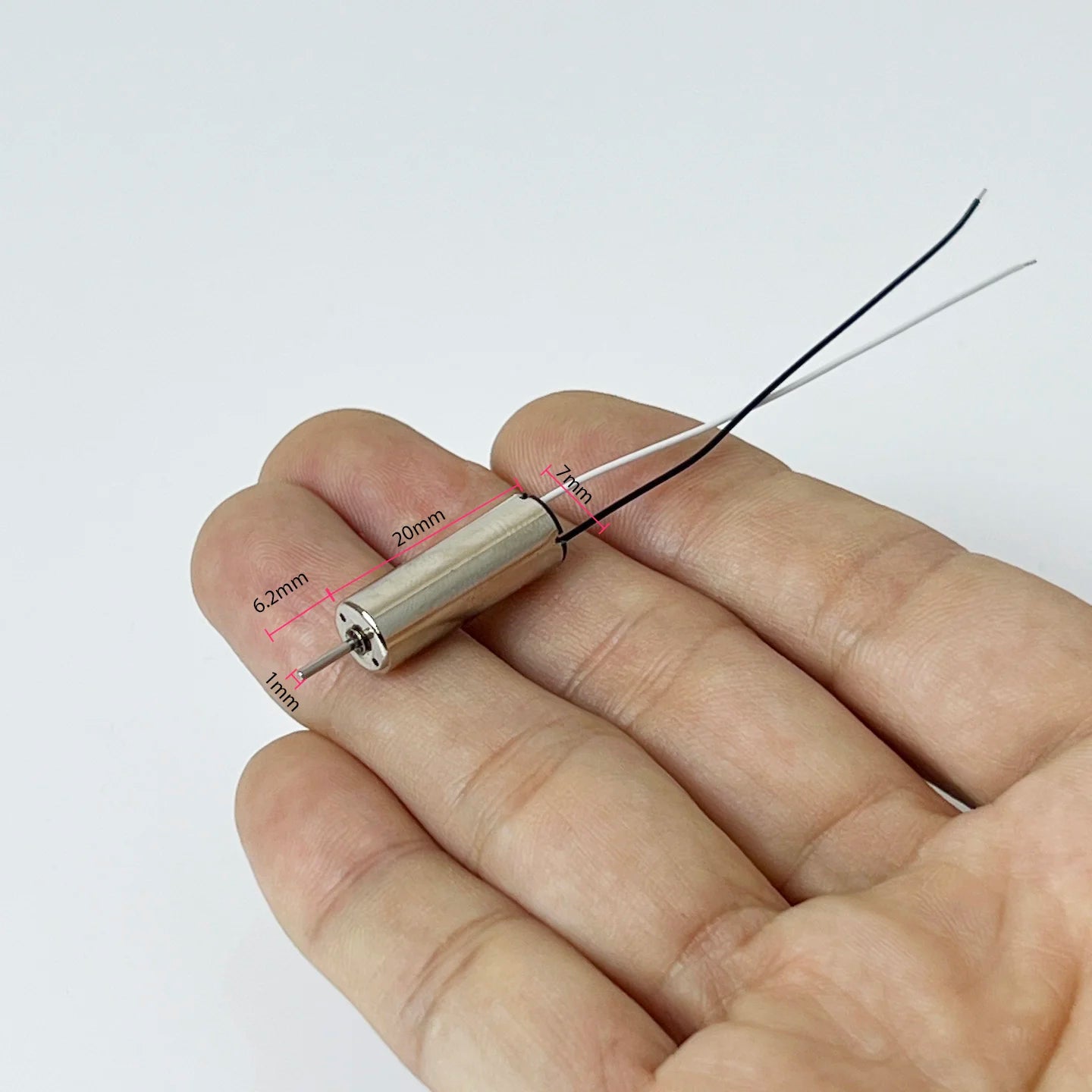

1.Motor body diameter: 7mm

2.Motor body length: about 20mm

3.Output shaft diameter: 1.0mm

4.Output shaft length: 6.2mm

5.Cable length: about 60mm

6.Weight: 3.8g about

7. Test data:

Voltage: DC 3.0V   No-load Speed: about 40000RPM

Voltage: DC 3.7V  No-load Speed: about 50000RPM  no-load current: about 100mA


Package Include:

2pcs A Motor + 2pcs B Motor
