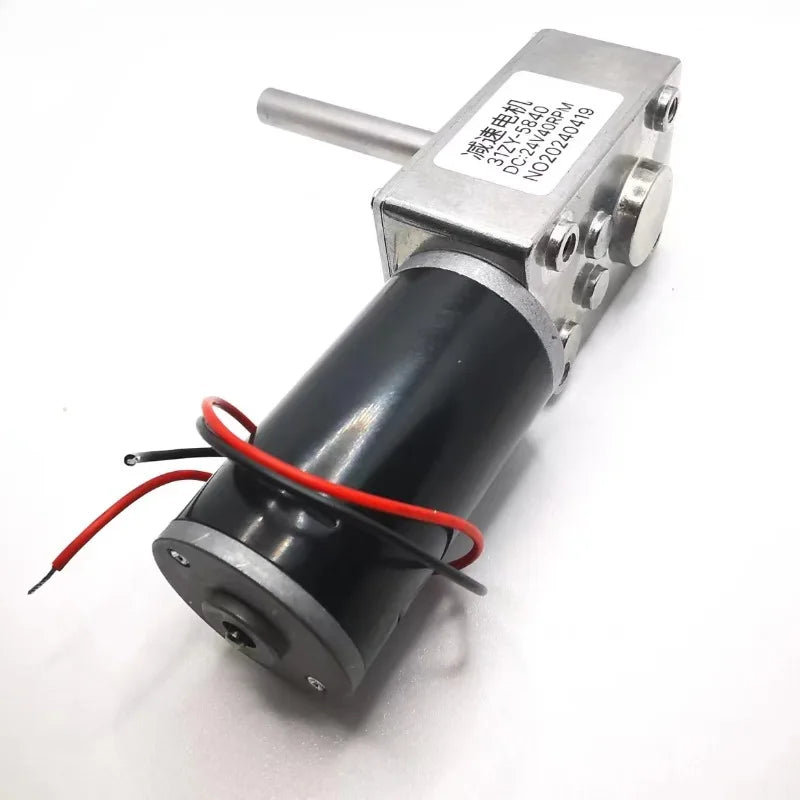

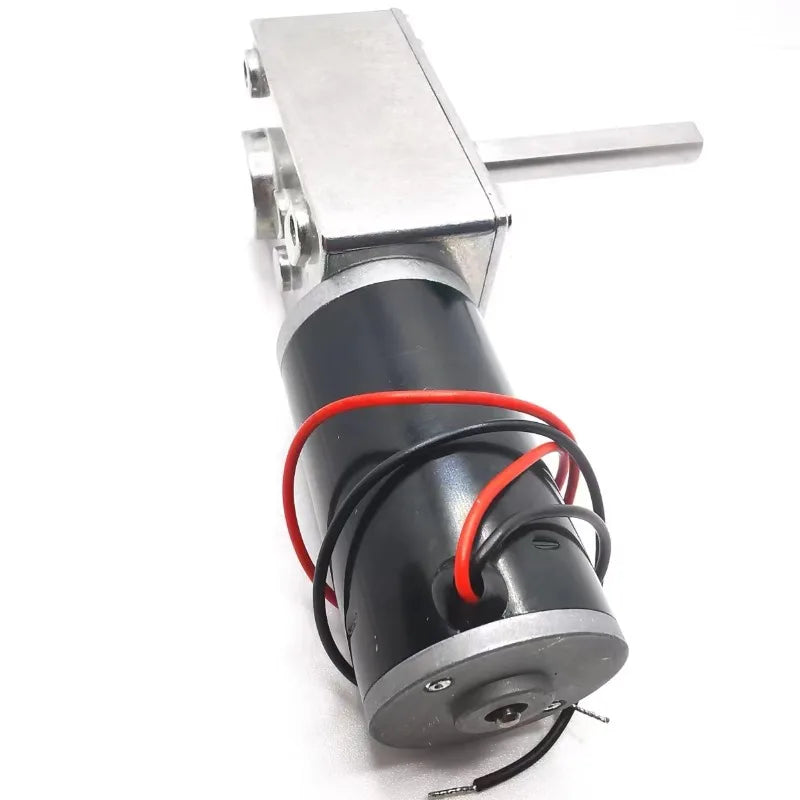

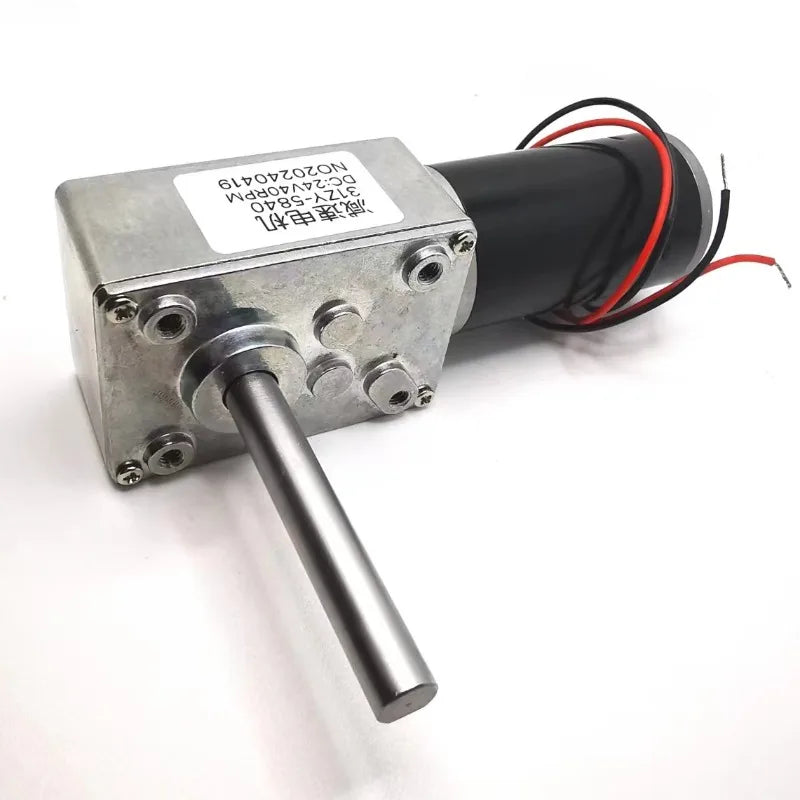

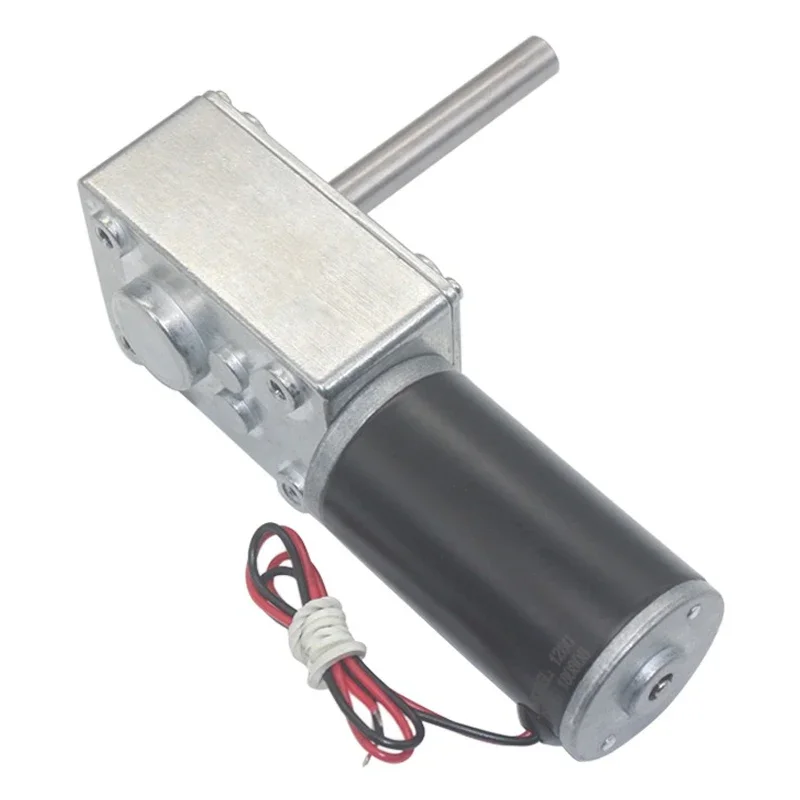

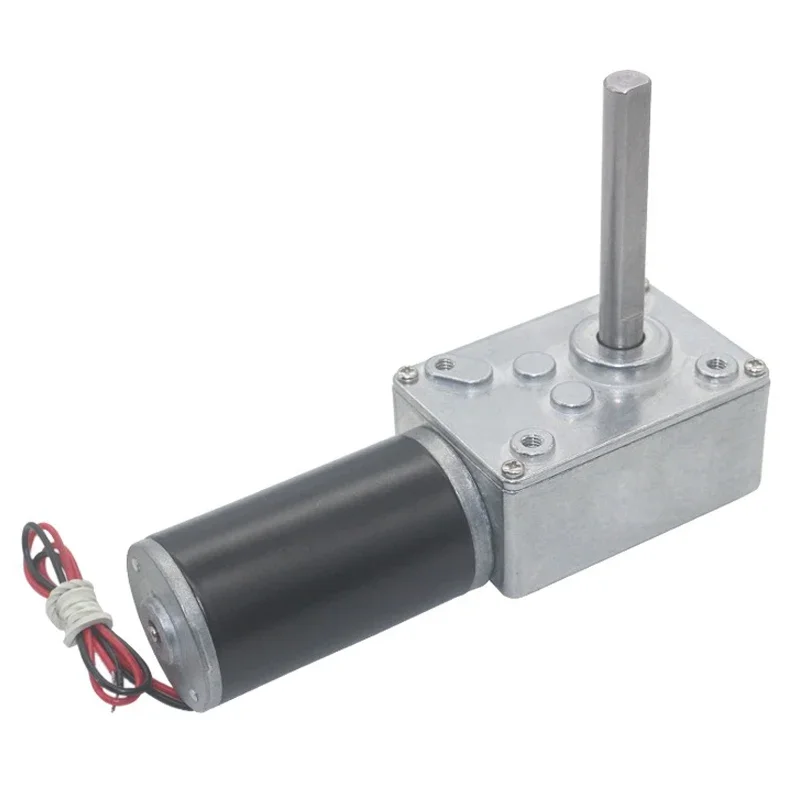

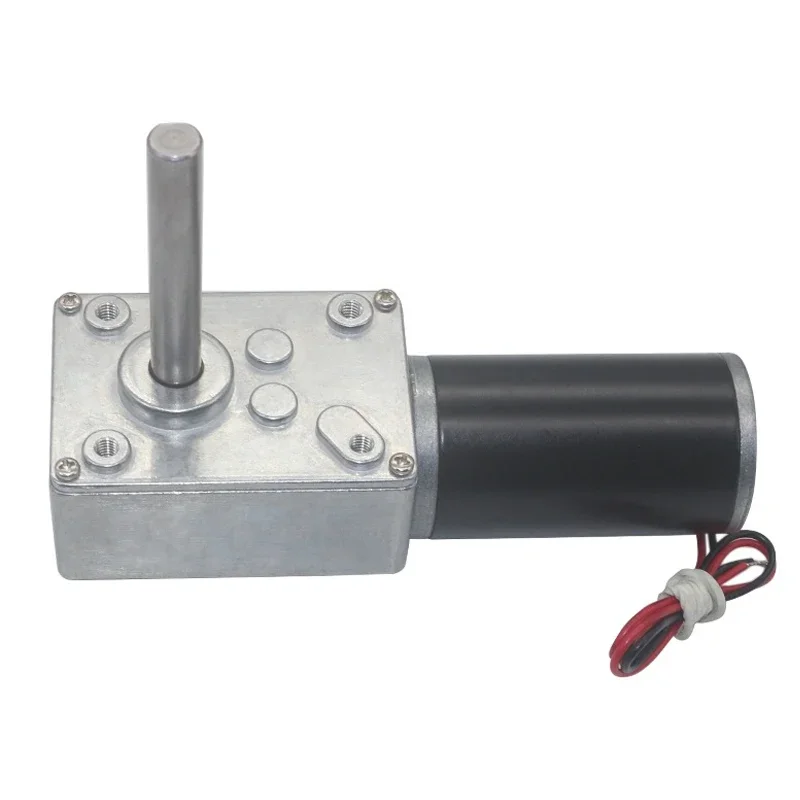

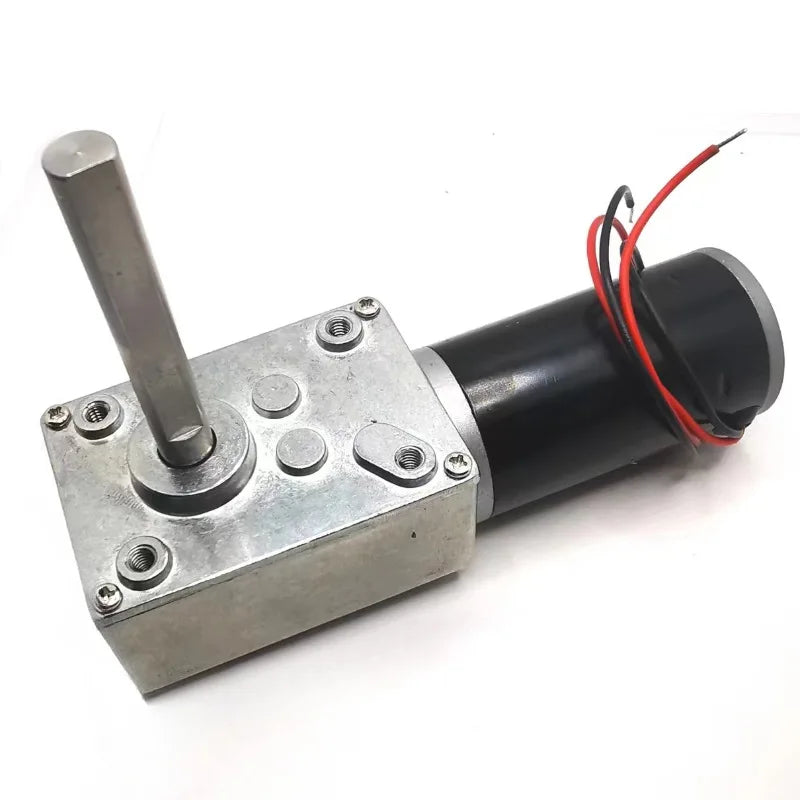

5840-31ZY-51 Geared Motor 12V~24/7RPM~470RPM High Torque 70KG/CM High Power Worm Gear DC Motor Turntable Door Self-Locking
5840-31ZY-51 Geared Motor 12V~24/7RPM~470RPM High Torque 70KG/CM High Power Worm Gear DC Motor Turntable Door Self-Locking
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: NONE
Certification: NONE
Choice: yes
Commutation: Brush
Construction: Permanent Magnet
Continuous Current(A): 0.9-1.2A
Does it include a Battery?: No
Does it include wireless functionality?: No
Efficiency: IE 1
Forward and reverse function: Yes
High-concerned chemical: None
Model Number: 5840-31ZY-51mm
Origin: Mainland China
Output Power: ＜18.65,14.4-21W
Self-locking function: Yes
Torque: 1.6-70kg.cm
Type: Gear Motor
semi_Choice: yes

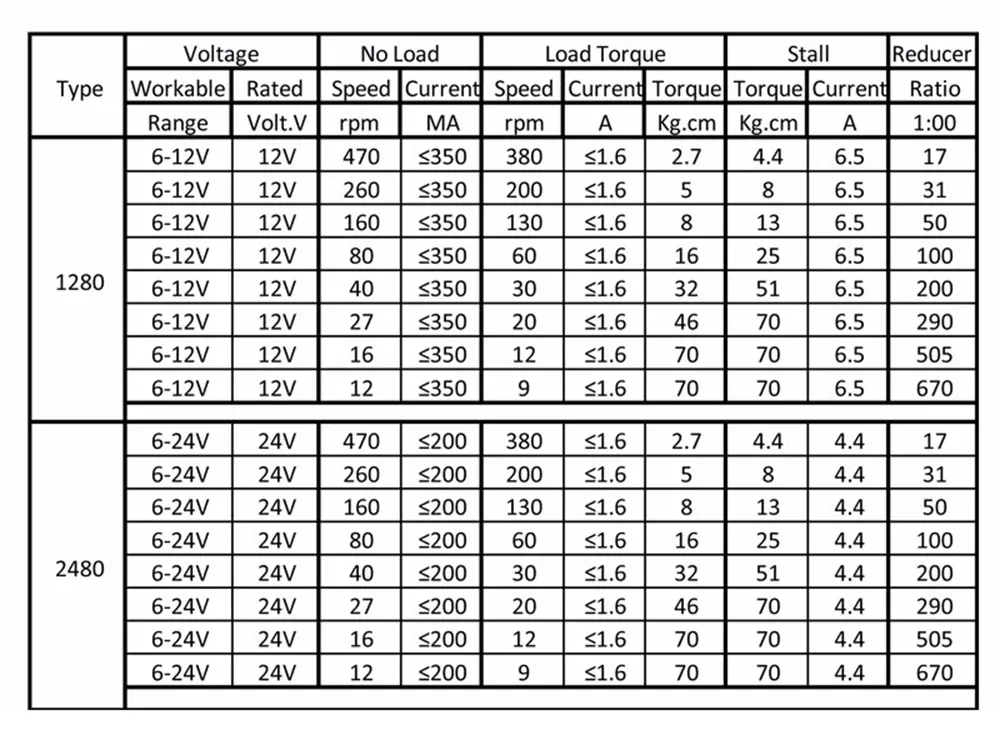

Specifications:
Rated Voltage: DC 12V / 24V
No-load Speed: 7rpm, 10rpm, 12rpm, 16rpm, 27rpm, 40rpm, 80rpm, 160rpm, 260rpm, 470rpm
Max Power: 21W
Max Torque: 70kg.cm

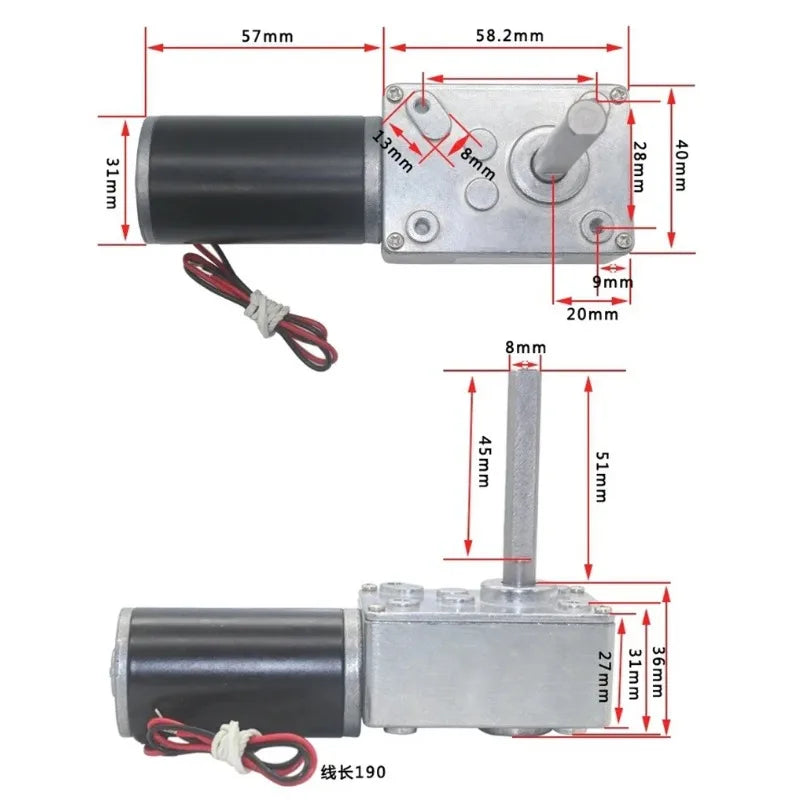

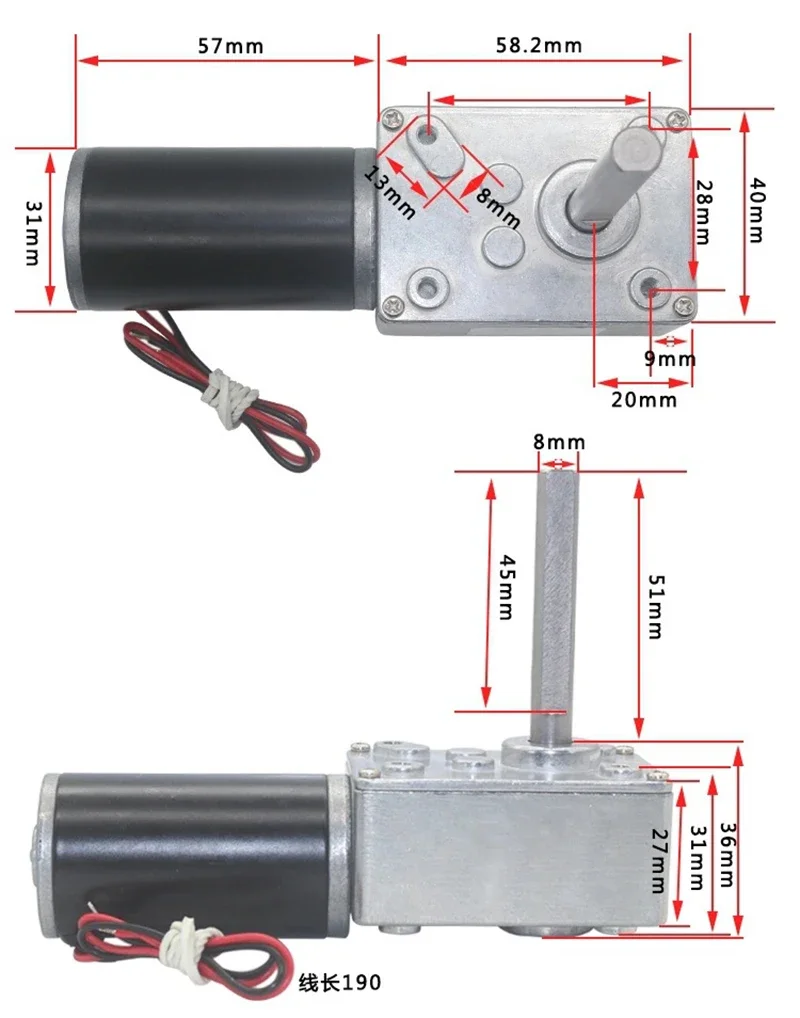

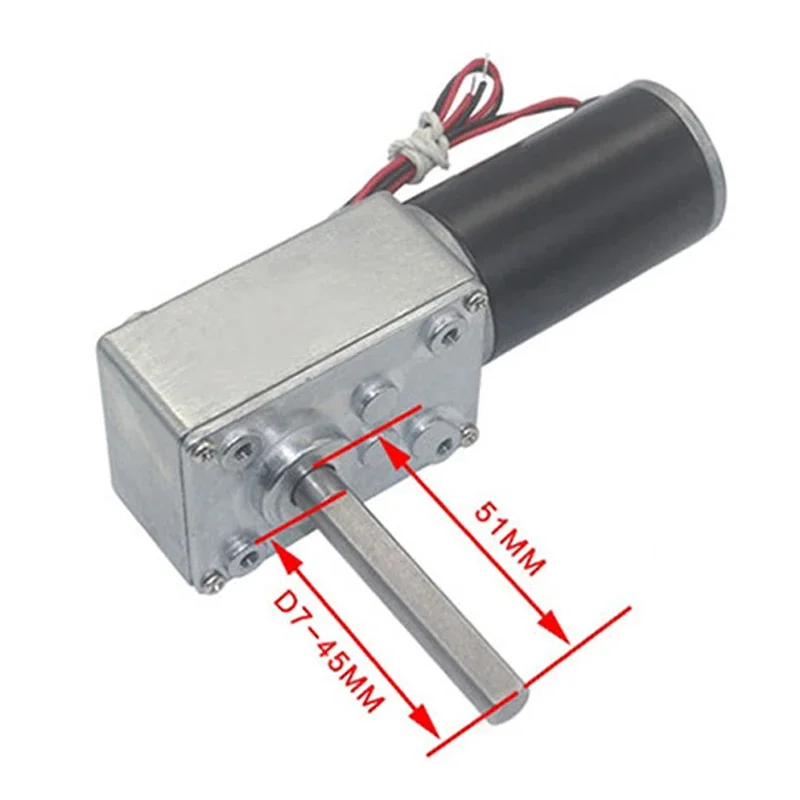

Shaft diameter : 8mm, D type
Shaft length: 51mm
Features:
1. Made of high quality material, durable and long service life.
2. 31mm high quality copper tube motor, small volume and big torsion
3. Ball bearing design enhances the wear resistance of shaft
4. All metal gears are impact resistant, long life and low noise
5. Generally used in curtain machines, advertising equipment, window openers and smart devices
