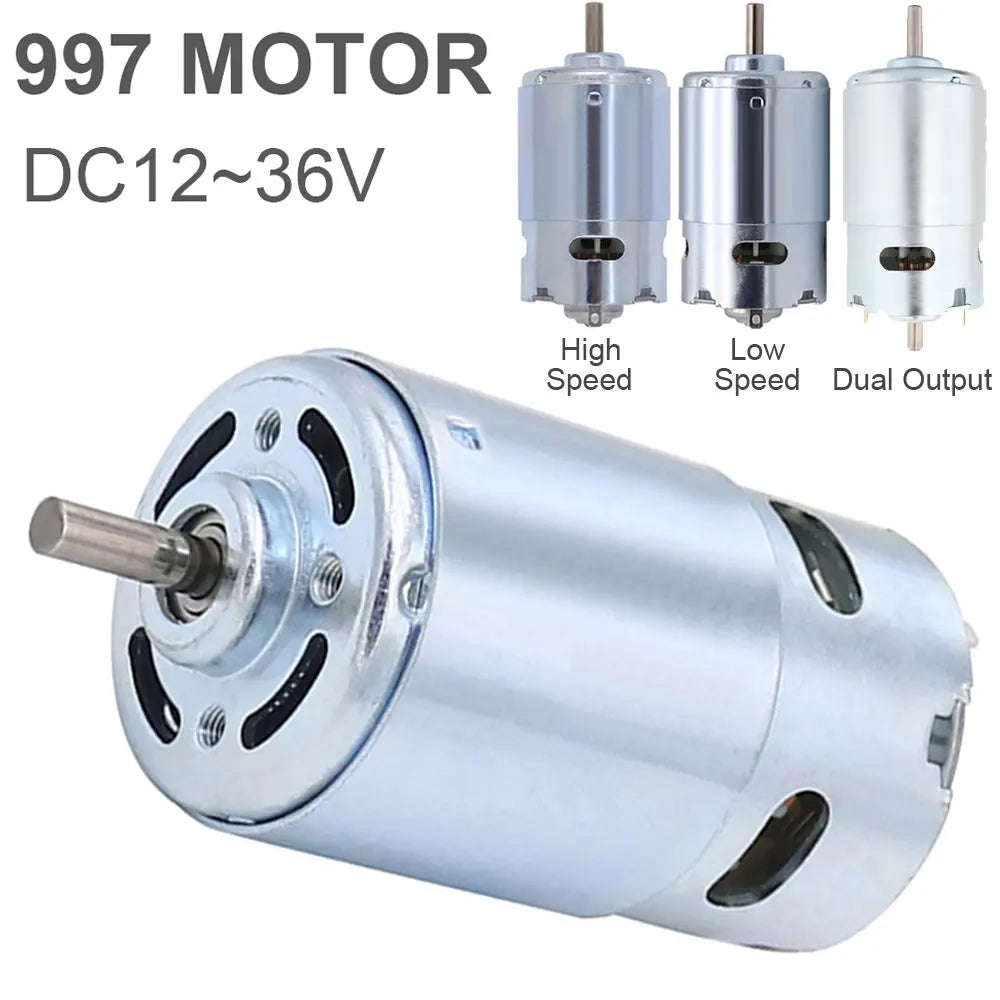

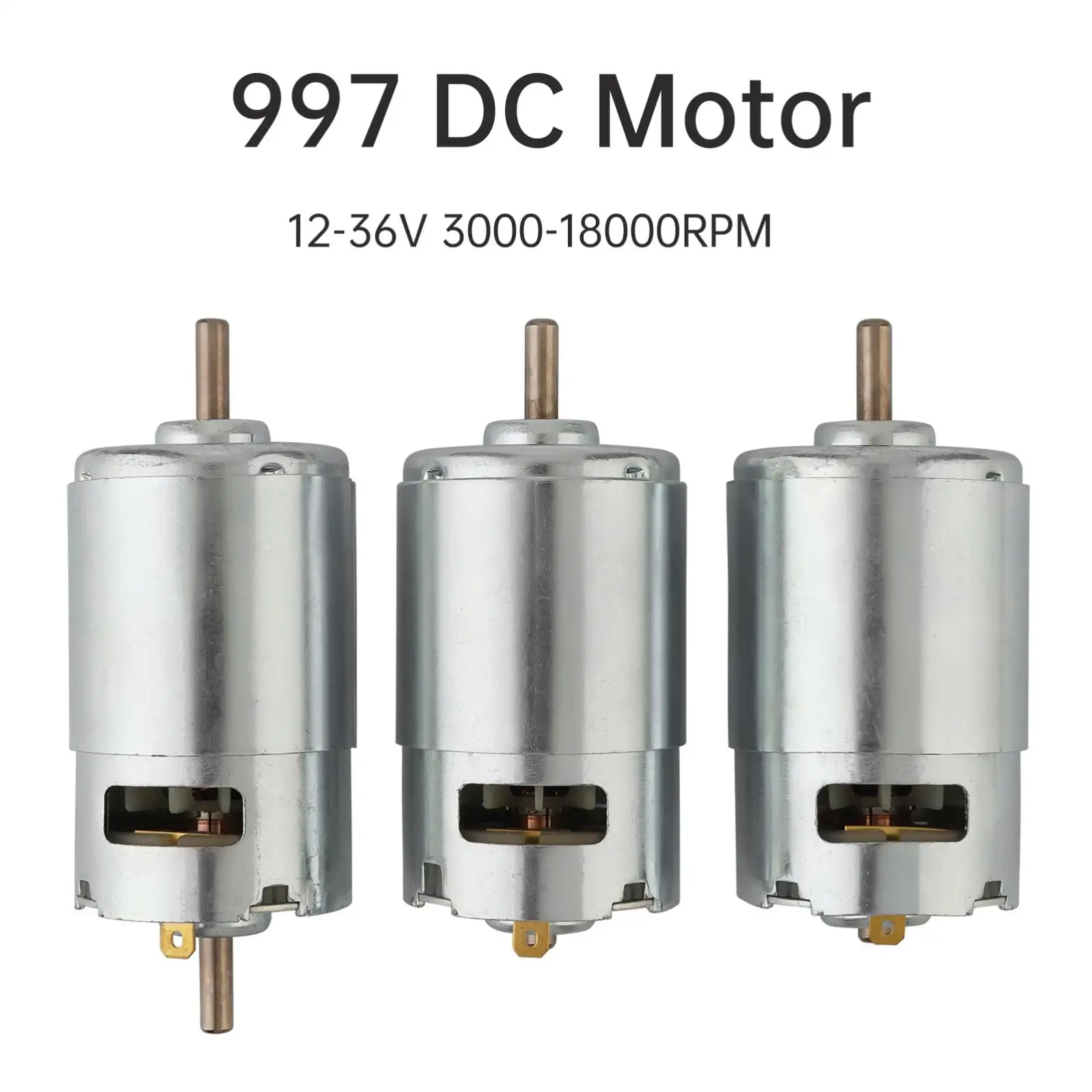

Model Number: 997

No load Speed: 3000-18000RPM

Output Power: 60-400W

Commutation: Brush

Voltage: DC 12-36V

Type: Micro Motor

Features:

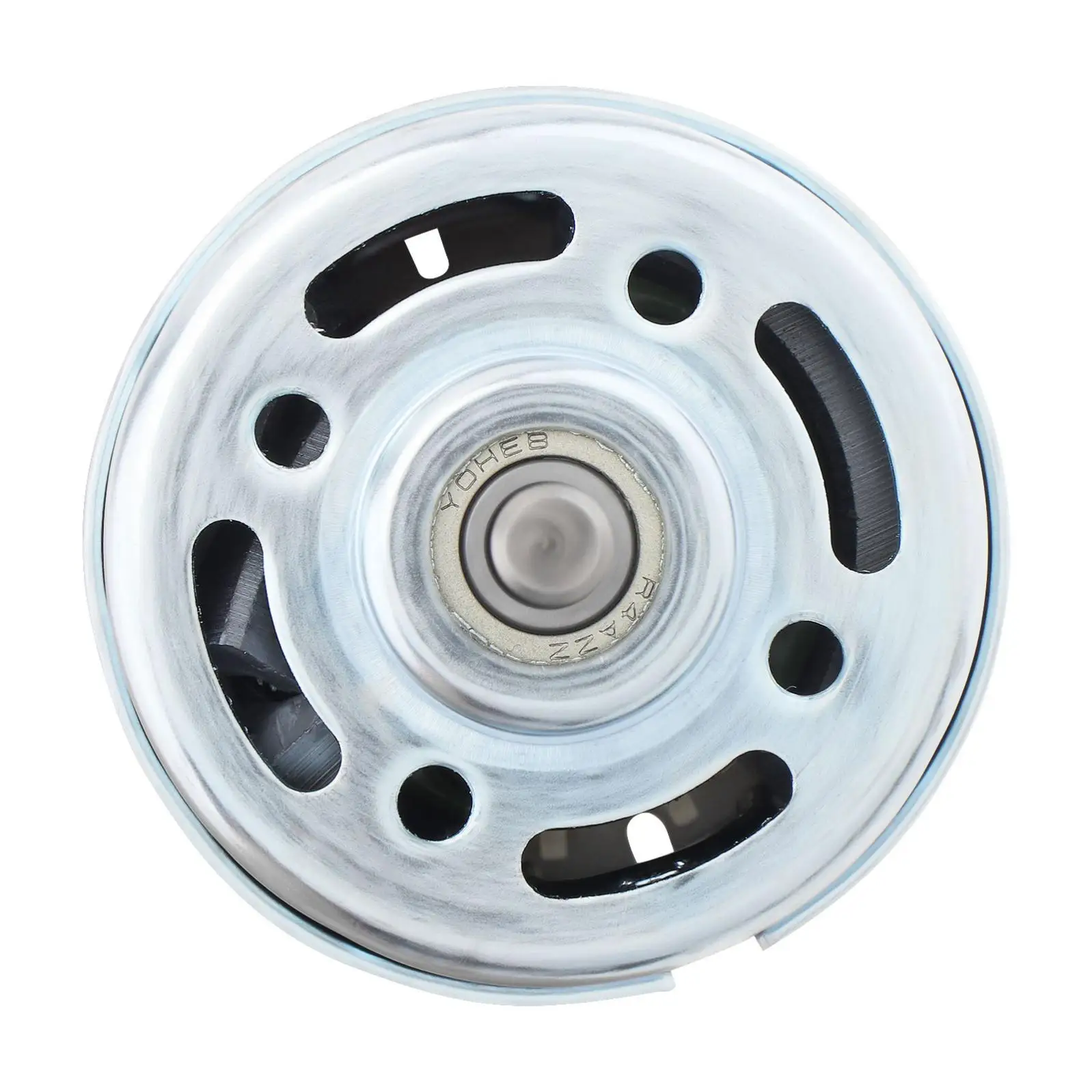

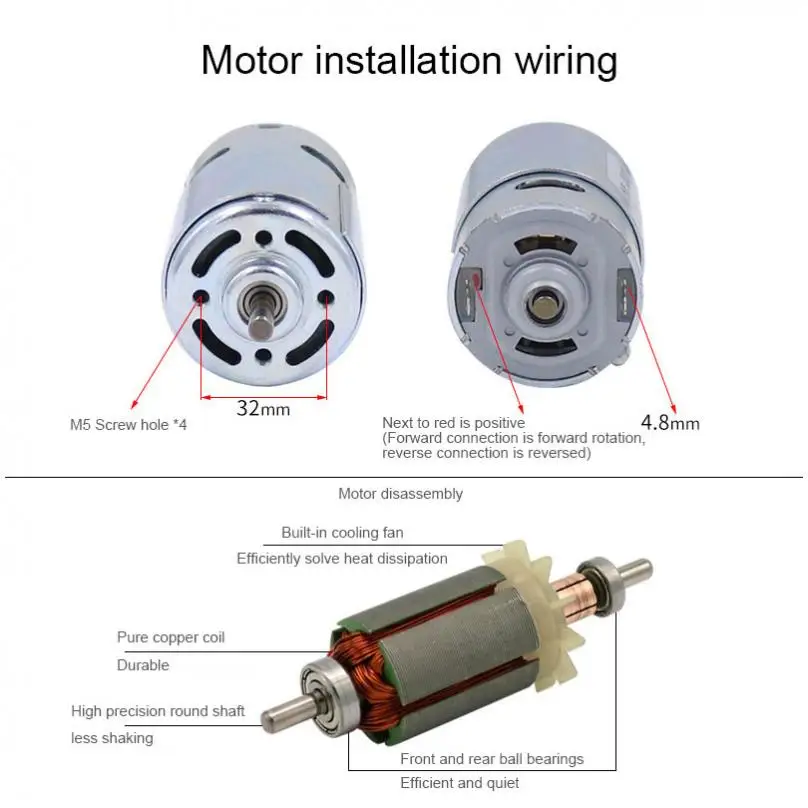

DC12-36V universal, front and rear ball bearings, pure copper rotor, shaft diameter 5mm.
Large torque, high precision less shaking, high speed, efficient mute and efficient heat dissipation.
It can also be used as a generator. The faster the speed is, the higher the voltage and current will be.
Rated voltage: DC12V -36V. (voltage can be used from 12 to 36V, the higher the voltage, the higher the speed)
Used for DIY: Saw, Drill, Lathe, Abrasive belt machine, Grinder, Cutting machine, Milling machine, Aircraft model, etc.

Rated Voltage: DC12-36V(Recommended power supply 480W 24V 20A)

No Load Current: 0.51-1.06A (Starting current 10-20A)

Motor Speed:

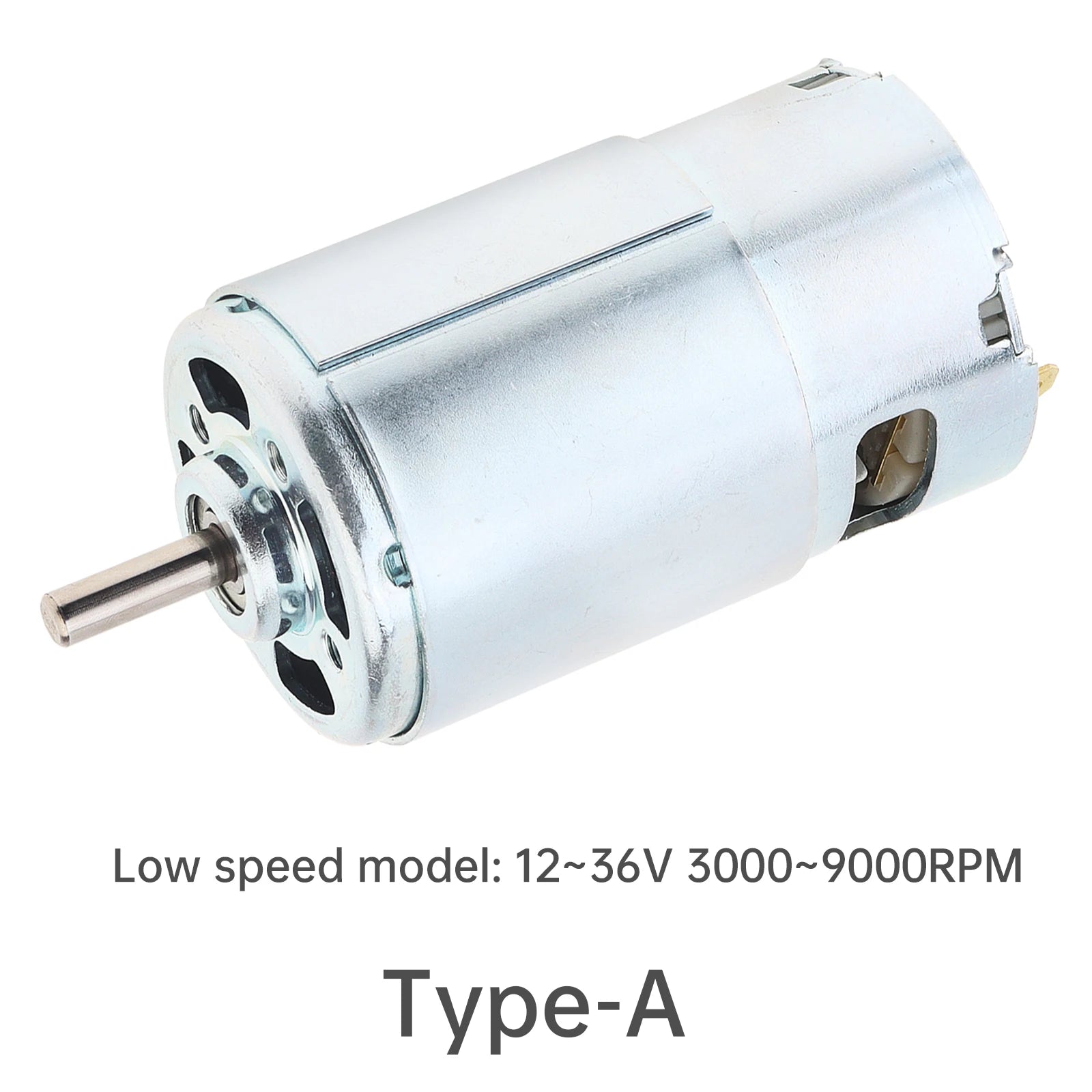

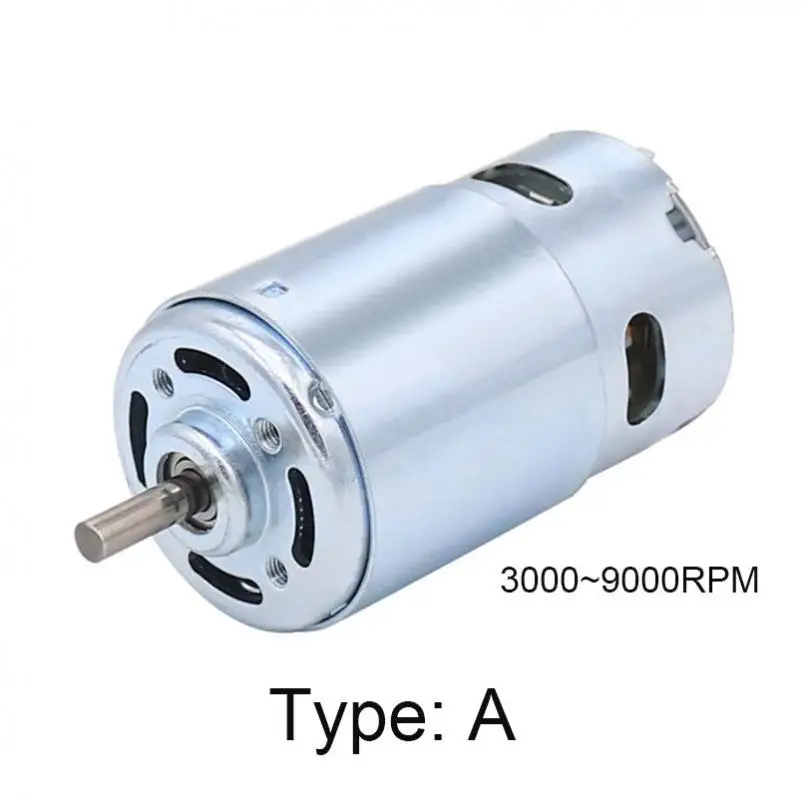

Type A: 3000RPM(12V); 6000RPM(24V); 9000RPM(36V)

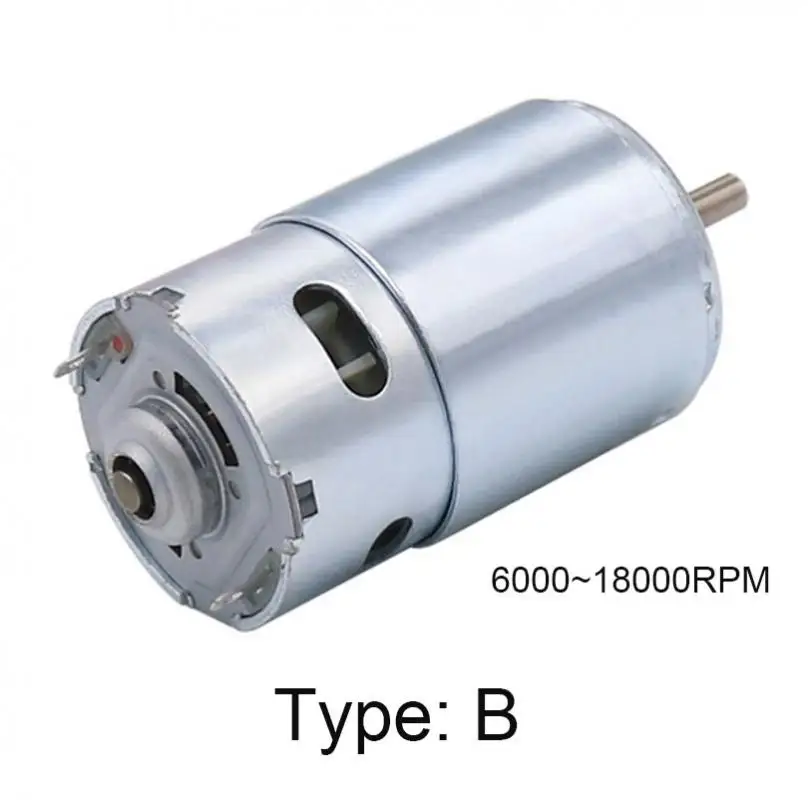

Type B: 6000RPM(12V); 12000RPM(24V); 18000RPM(36V)

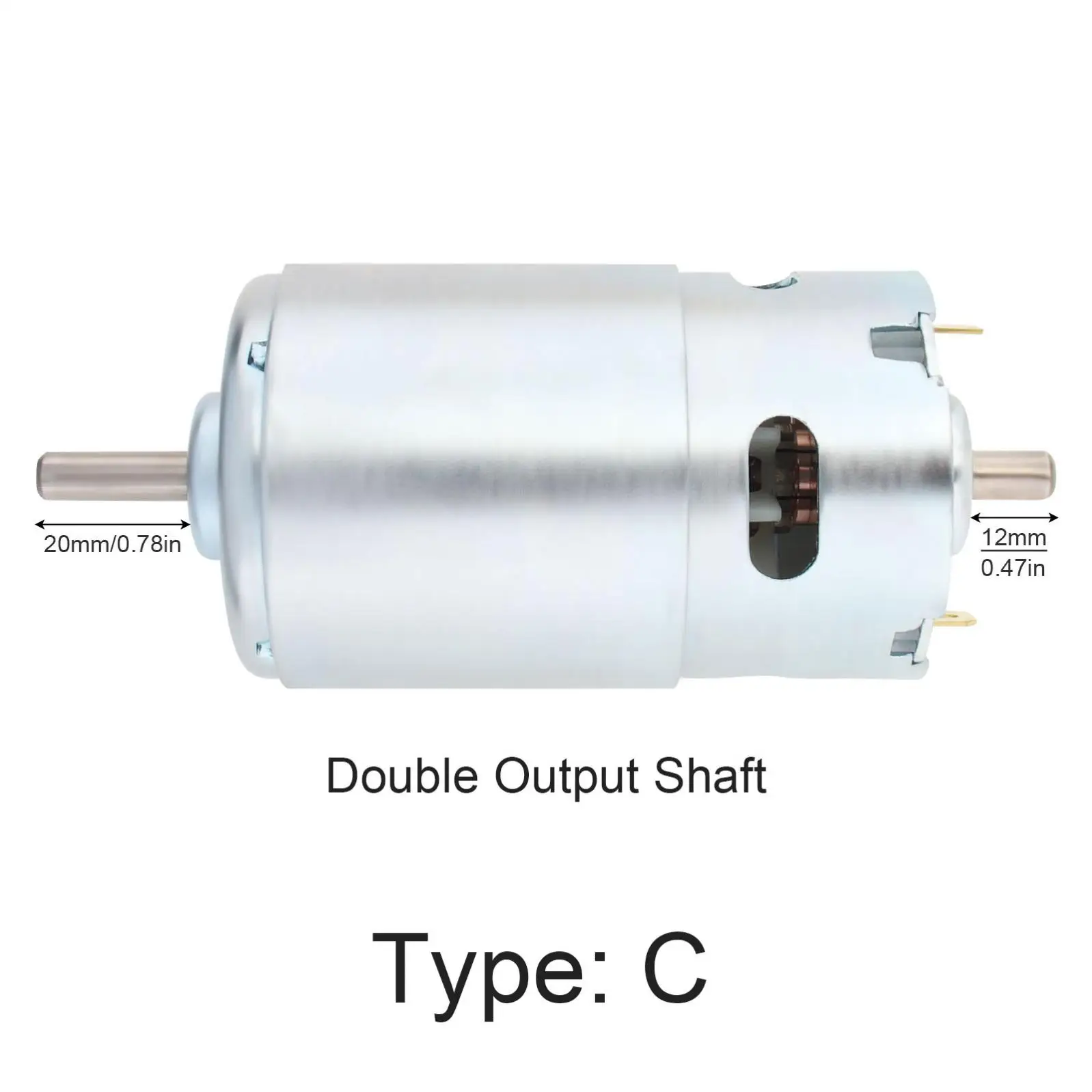

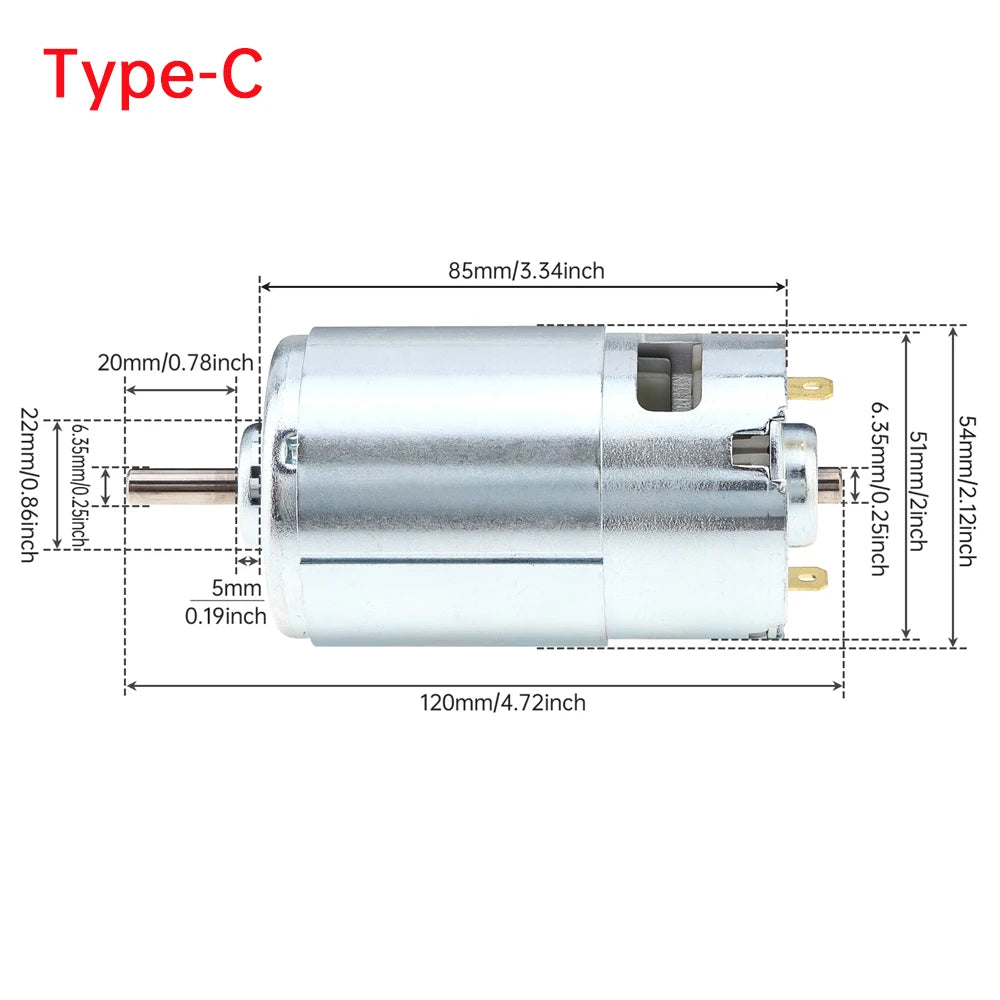

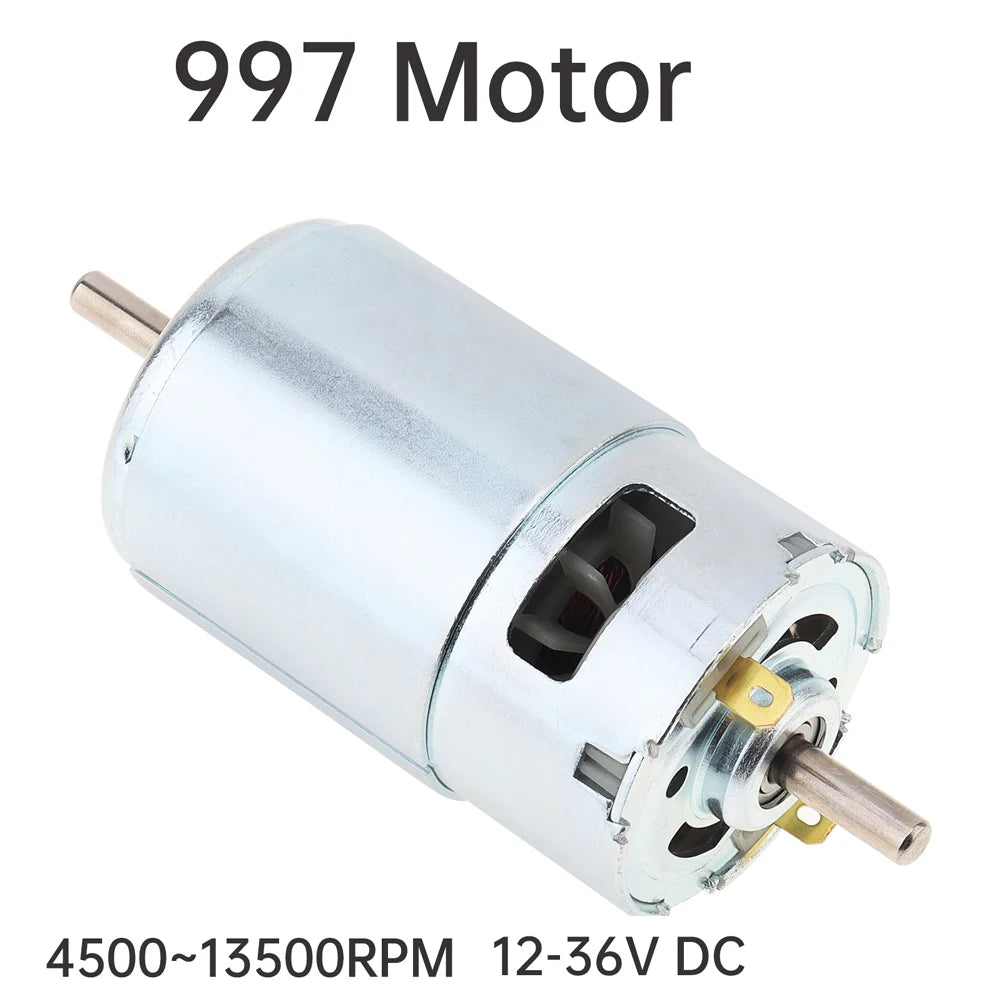

Type C: 4500RPM(12V); 6000RPM(24V); 13500RPM(36V)

Torque: Max.26kg/cm

Note:
The current below 10A may not start the motor or have no force; the current above 20A may reduce the service life of the motor or burn out.
Attention should be paid to the temperature of the motor when it is first started. The temperature is too high to indicate that it is not suitable for use.

Product Weight: 700 G / 24.69 Ounces

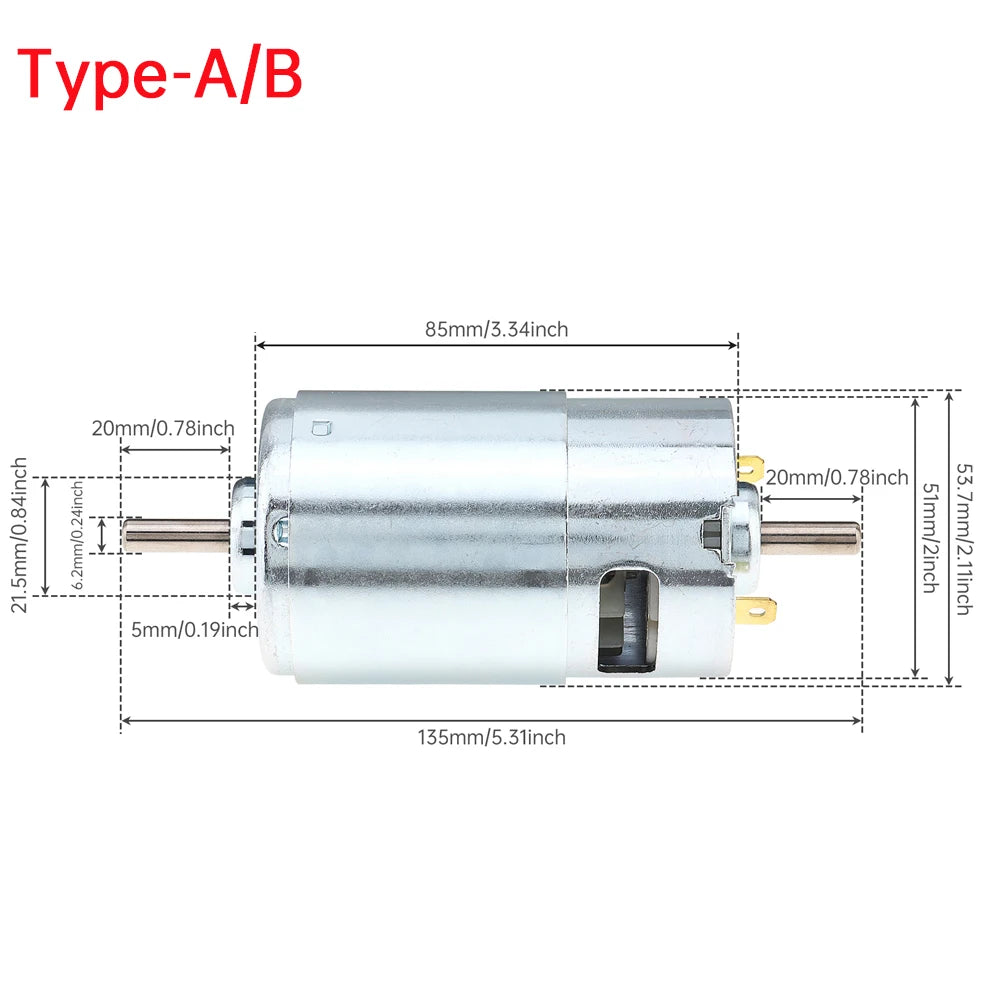

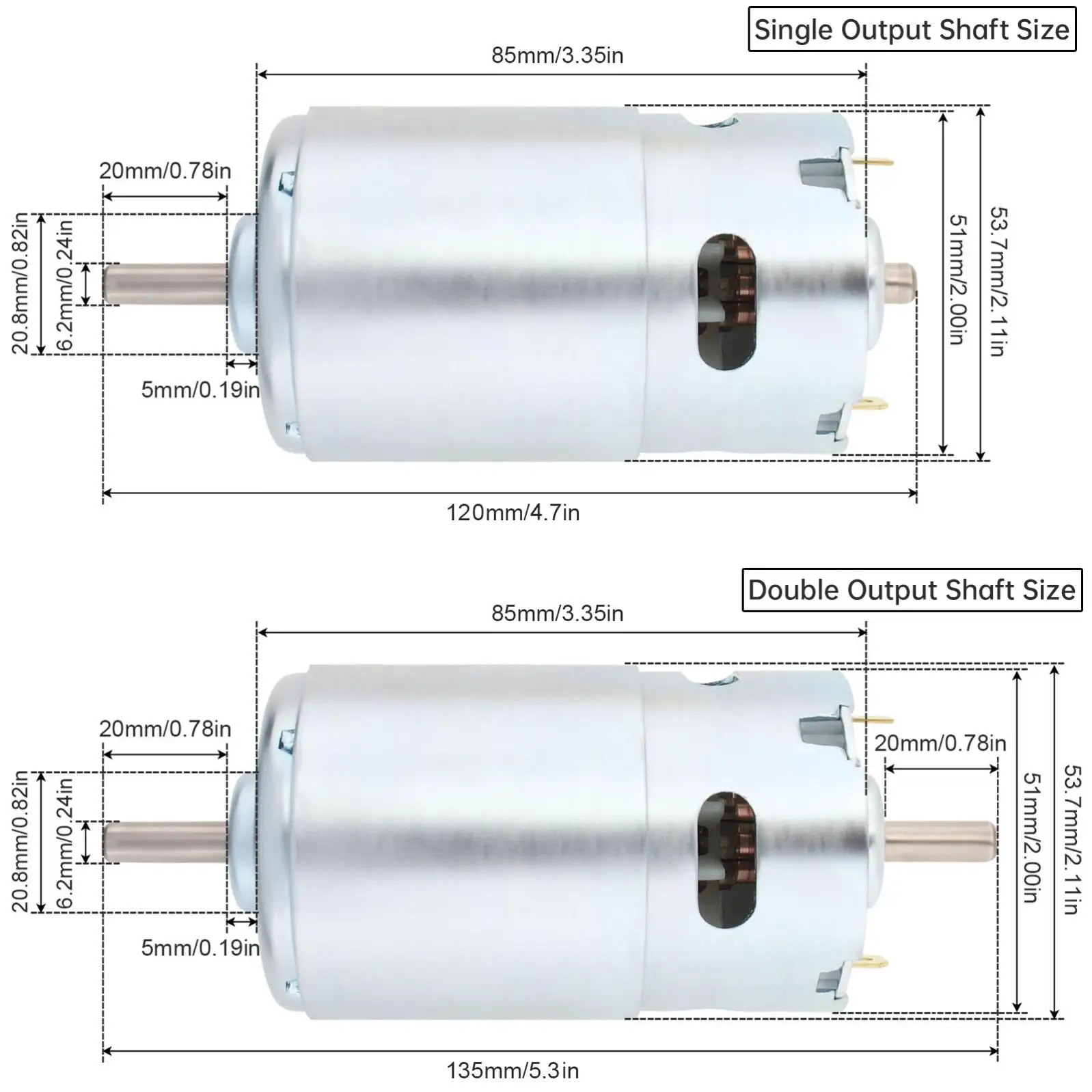

Product Dimensions (L*W*H): 12.0*5.4*5.4 CM / 4.72*2.13*2.13 Inches

Package Weight: 723.0 G / 25.50 Ounces

Package Dimensions (L*W*H): 13.0*6.0*6.0 CM / 5.12*2.36*2.36 Inches

Retail Packaging: Yes, General Box

Package Including:

1 x 997 DC Motor
