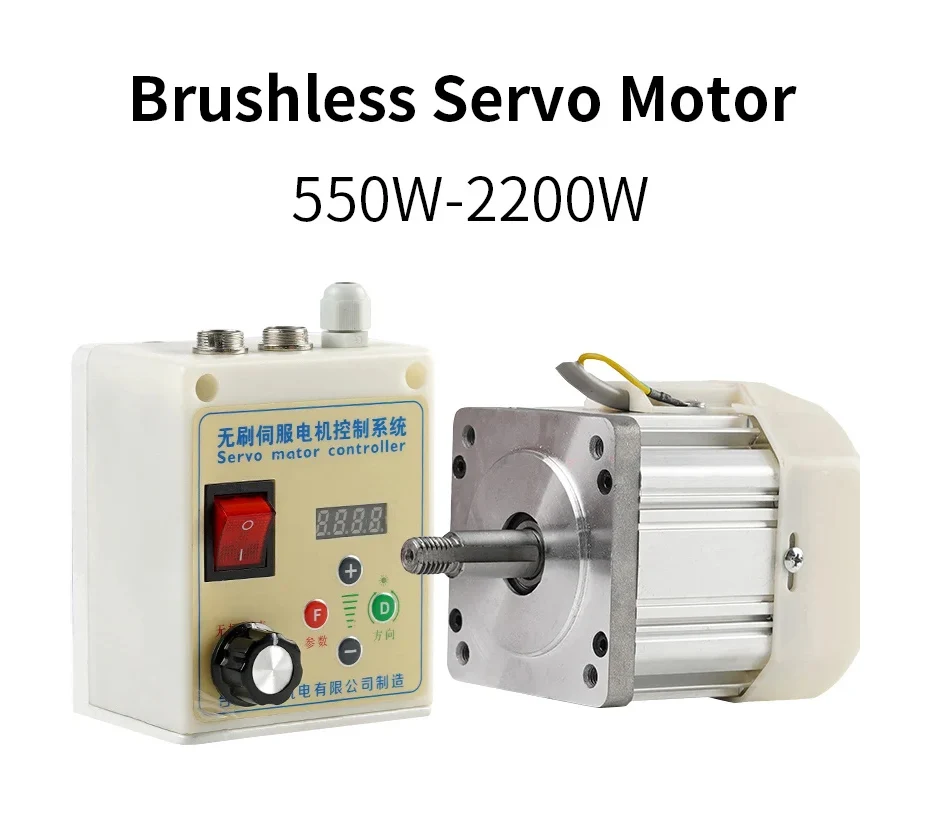

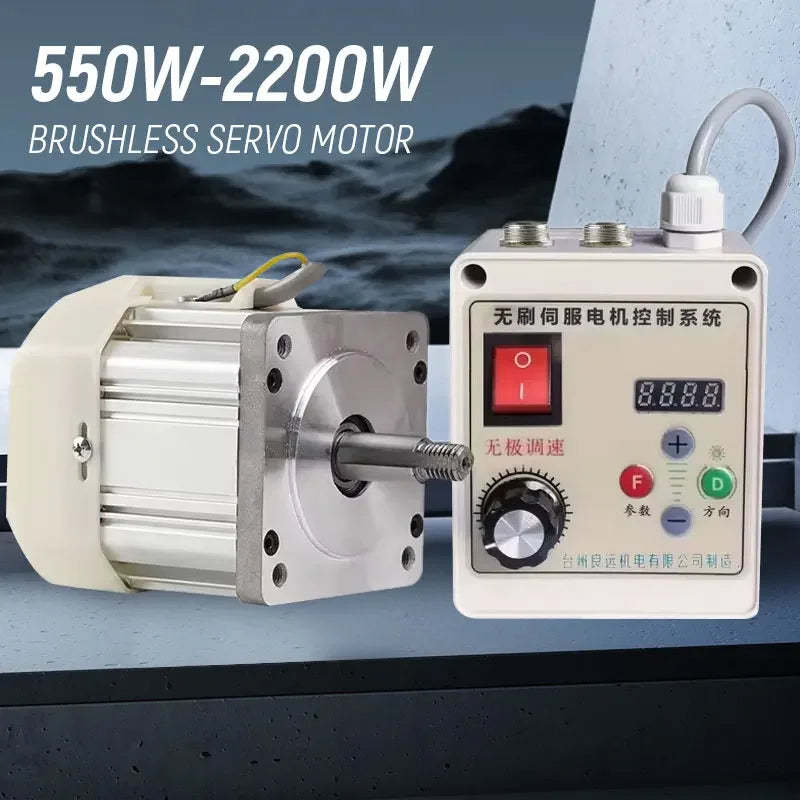

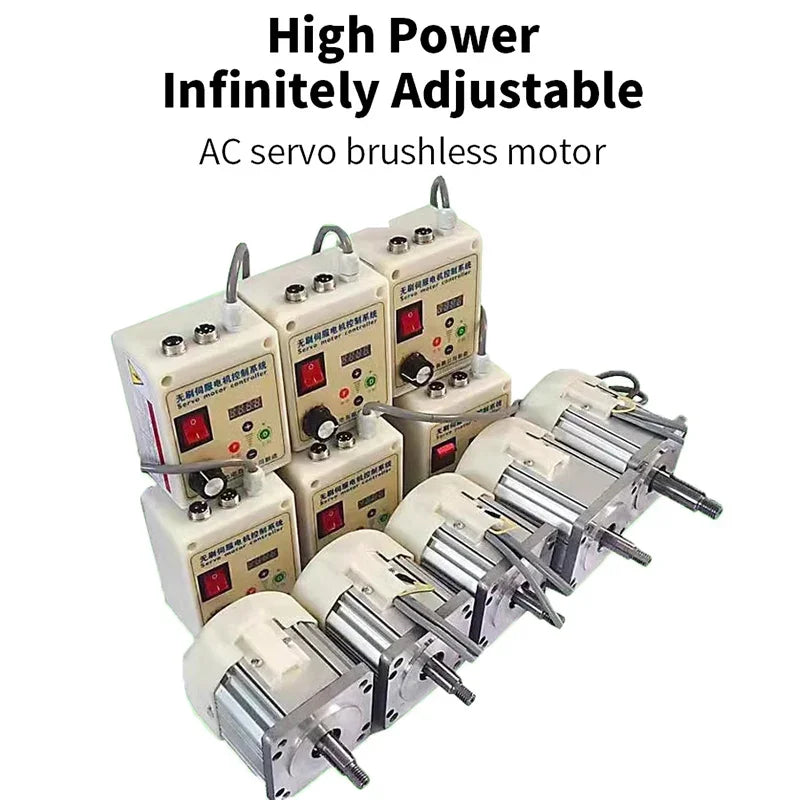

Parameters:

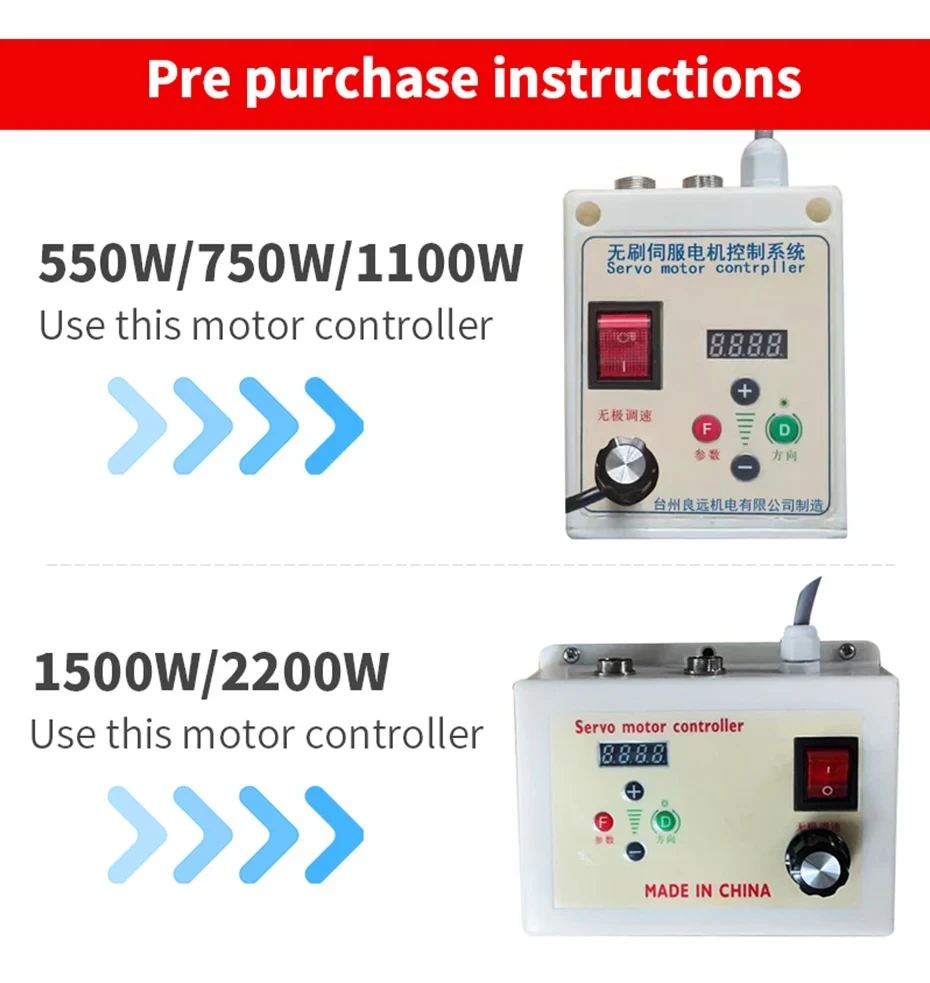

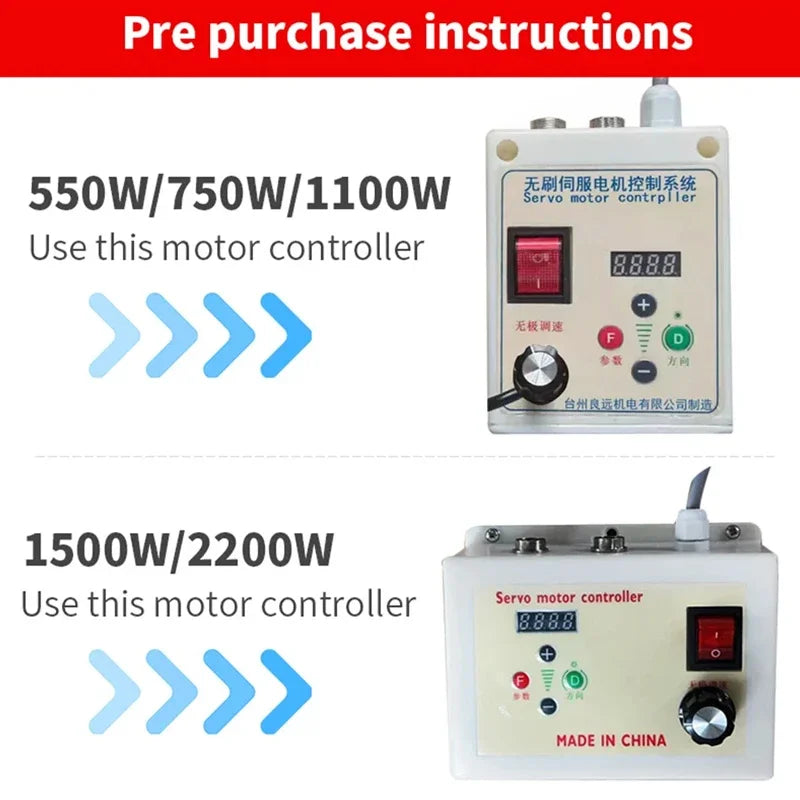

1. Rated power: 550W/750W/1100W/1500W/2200W

2. Rated voltage: AC 220V/110V 50-60Hz

3. Speed range (RPM): 200-7000 (550W); 200-6500 (750W); 200-6000 (1100W); 200-5000 (1500W); 200-4500 (2200W)

4. Rated torque (Nm): 1.85 (550W); 2.62 (750W); 3.55 (1100W); 5.02 (1500W)

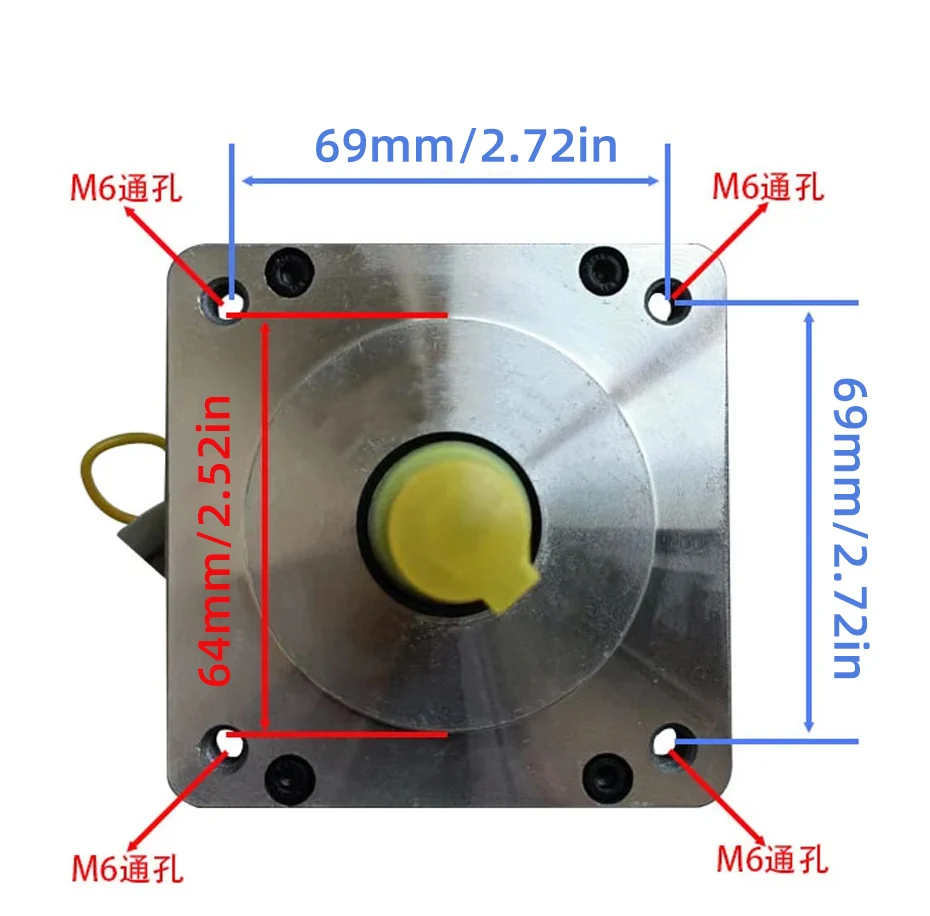

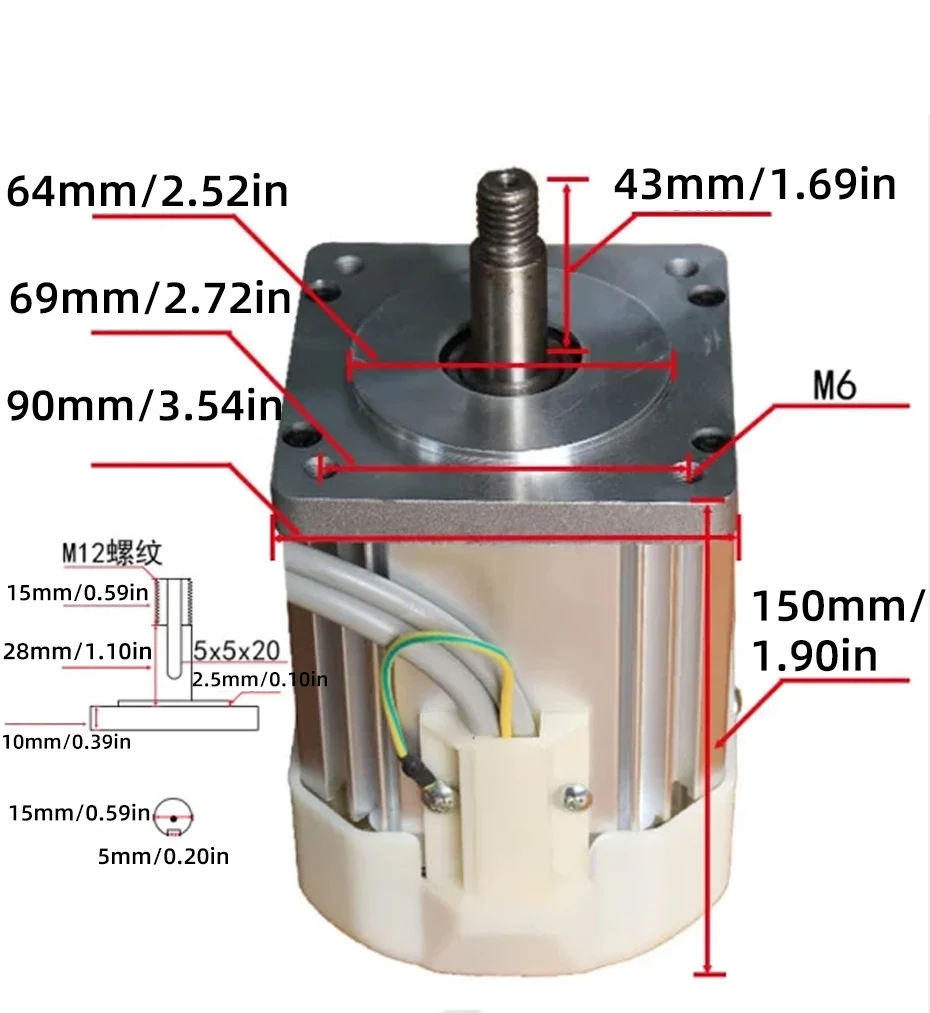

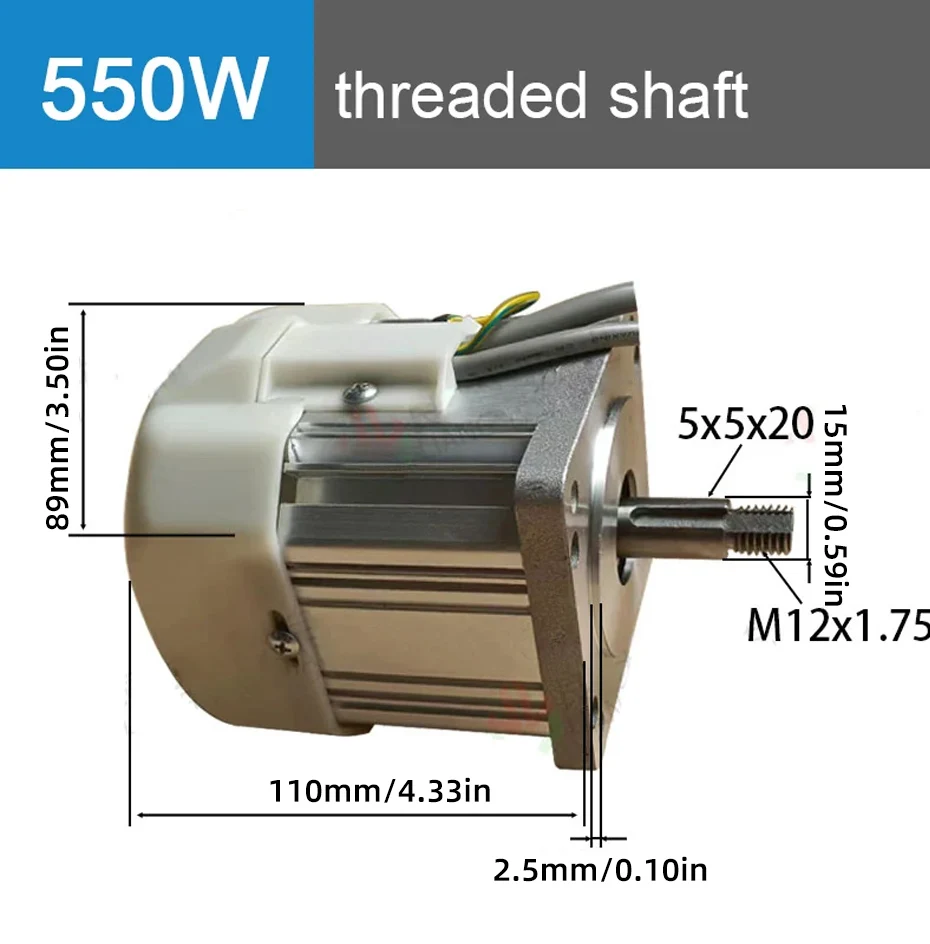

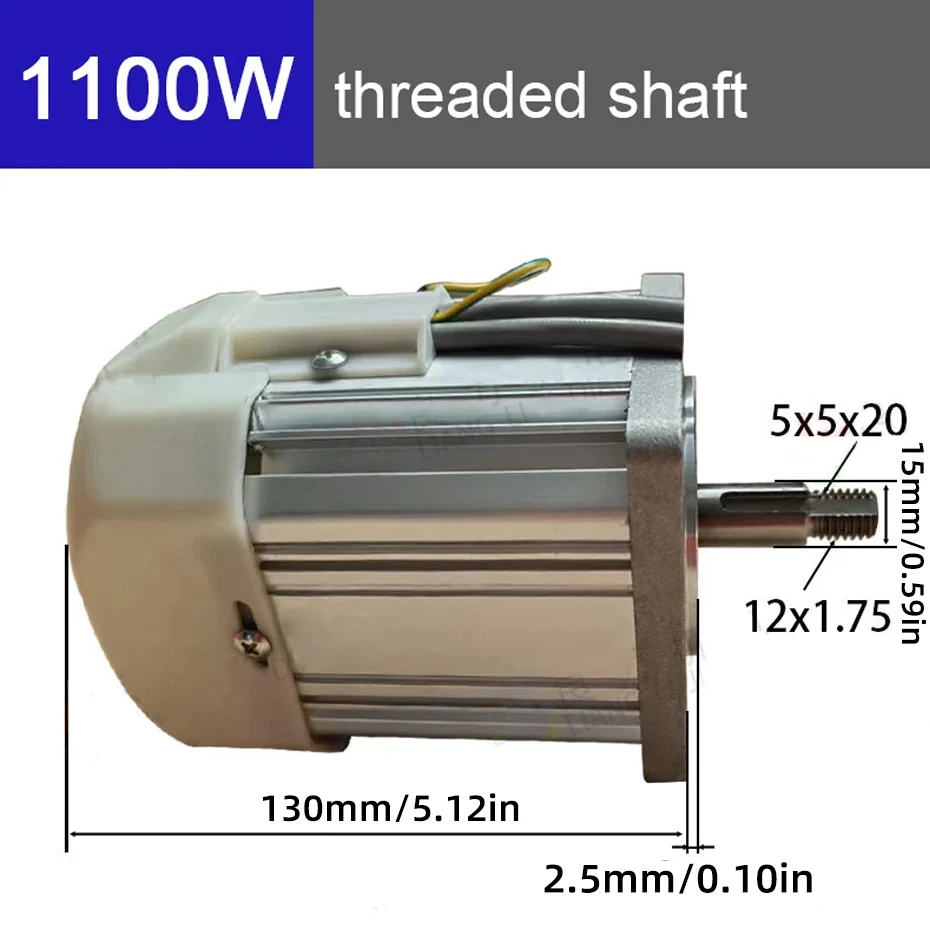

5. Installation size: 69mm

6. Shaft diameter: 15mm

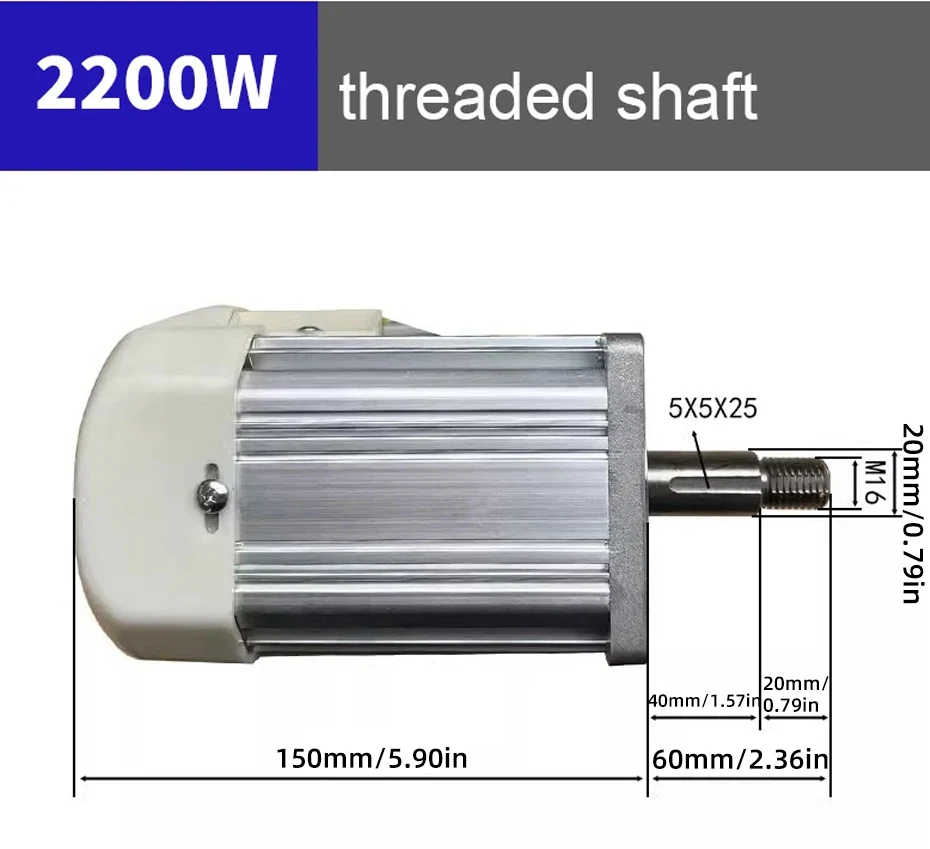

7. Out shaft length: 27+15mm

8. Mounting thread: M6 through hole

9. Key slot: 5*5*20mm

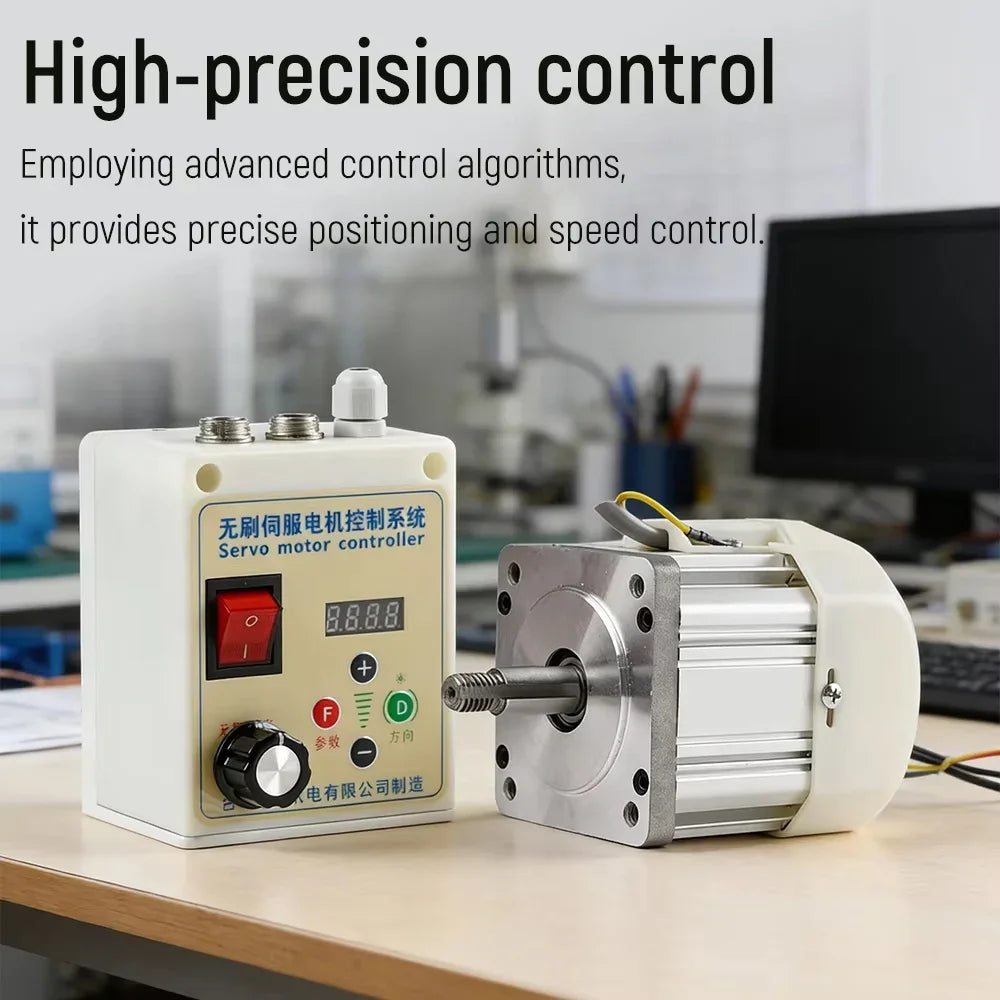

Features:

1. Support one-key forward and reverse rotation, support soft start (both start and stop ease).

2. The motor output shaft has 15mm thread, which can be equipped with synchronous pulley and ER special chuck, which is widely used in belt sander, polishing machine, small lathe, milling machine, etc.

3. Pure copper motor, strong power and efficient heat dissipation.

4. Strong anti-interference ability, low noise, with multiple protections such as overcurrent, overload and overvoltage

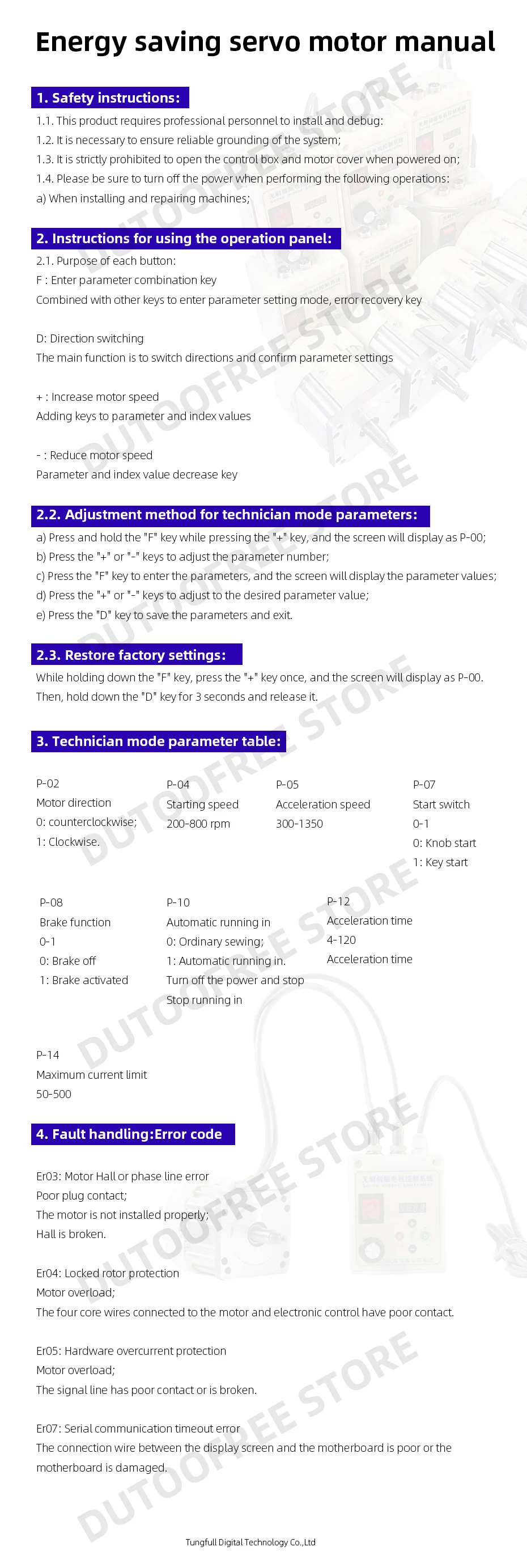

Energy saving servo motor manual

1. Safety instructions:

1.1. This product requires professional personnel to install and debug:

1.2. It is necessary to ensure reliable grounding of the system;

1.3. It is strictly prohibited to open the control box and motor cover when powered on;

1.4. Please be sure to turn off the power when performing the following operations:

a) When installing and repairing machines;

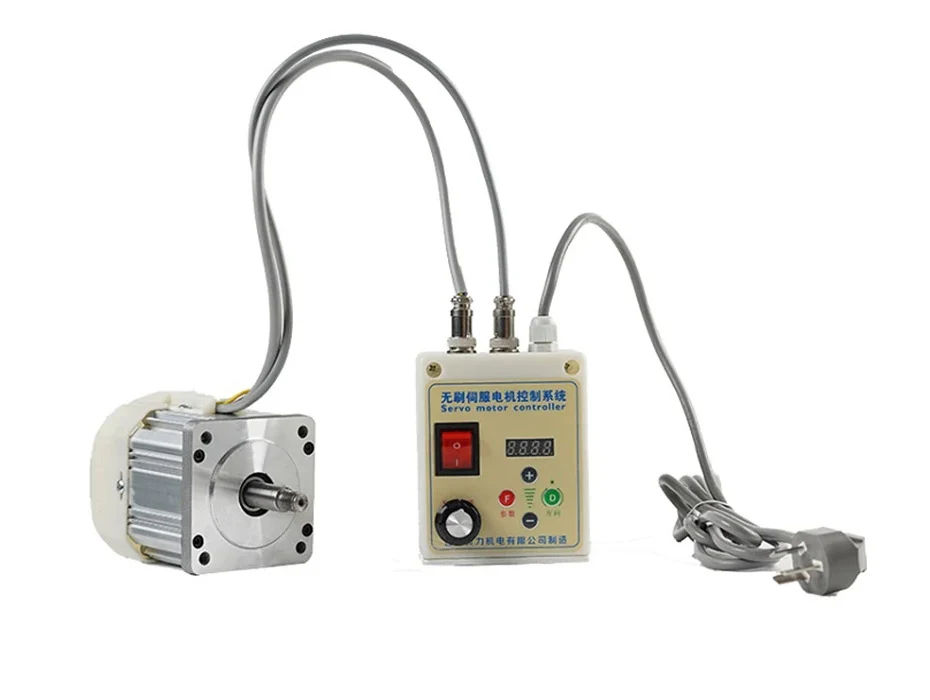

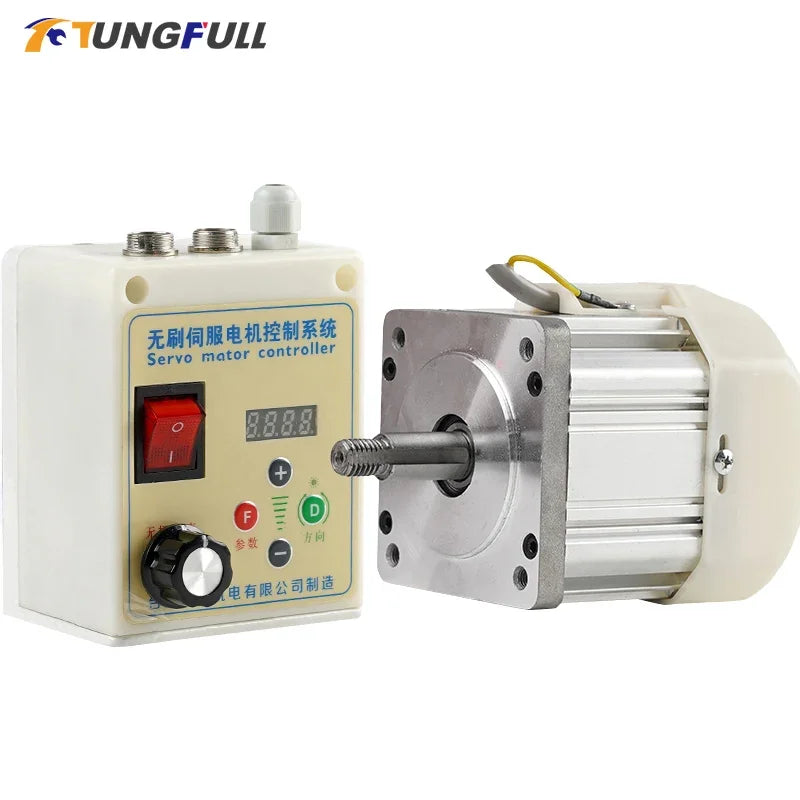

2. Instructions for using the operation panel:

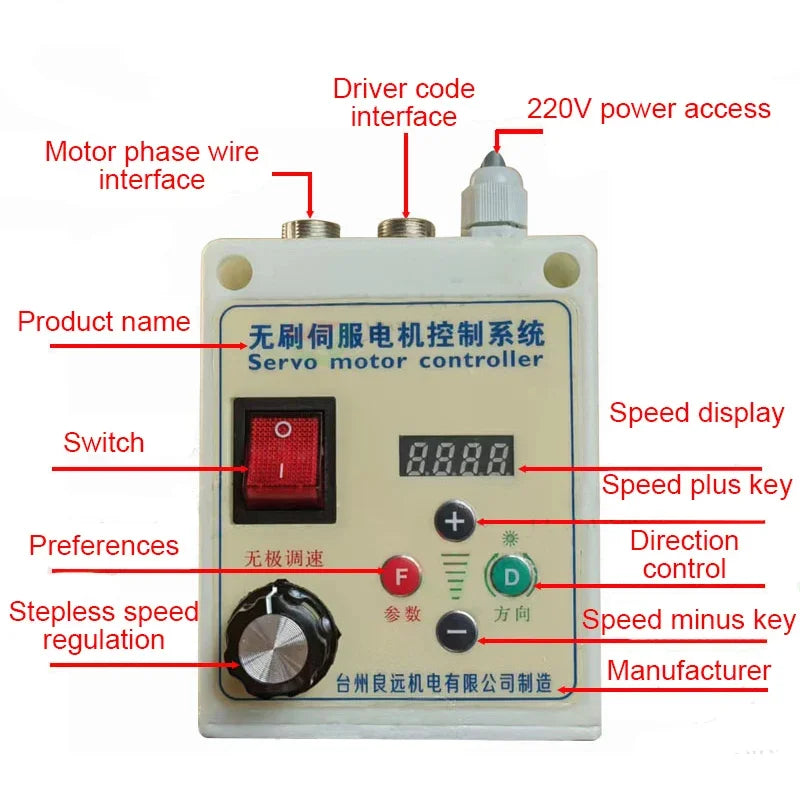

2.1. Purpose of each button:

F : Enter parameter combination key

Combined with other keys to enter parameter setting mode, error recovery key

D: Direction switching

The main function is to switch directions and confirm parameter settings

+ : Increase motor speed

Adding keys to parameter and index values
