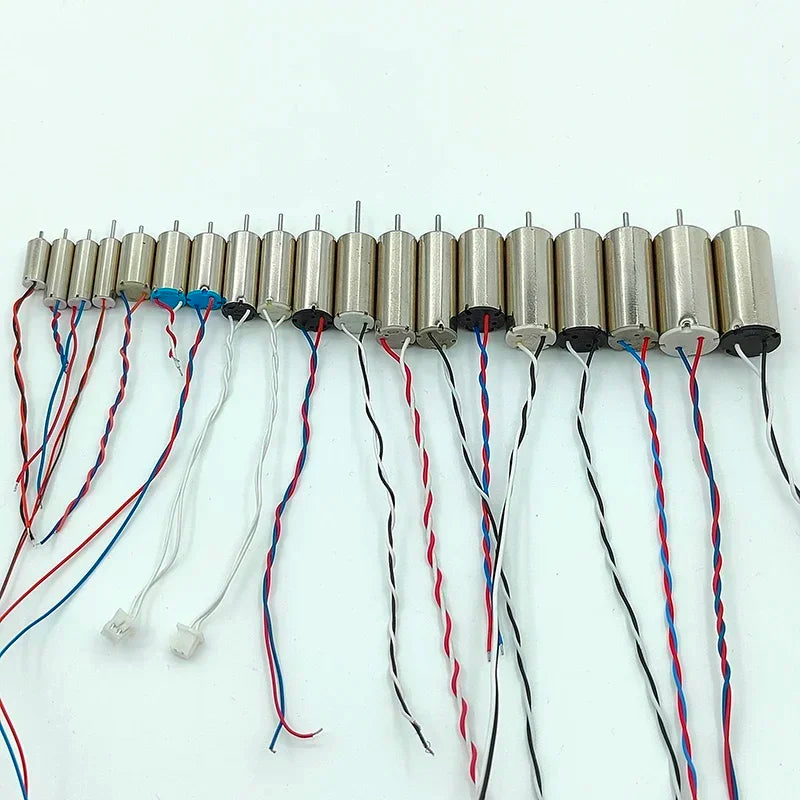

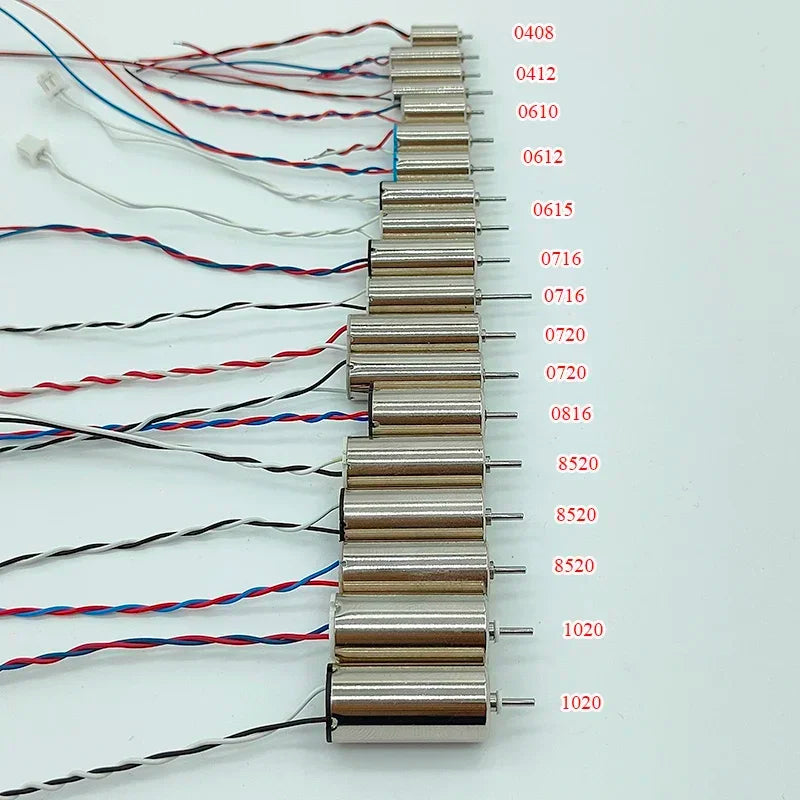

DC 3V 3.7V Mini Coreless Motor 408 412 610 612 615 716 720 816 8520 8523 1020 High Speed Hollow Cup Engine DIY RC Drone Aircraft
DC 3V 3.7V Mini Coreless Motor 408 412 610 612 615 716 720 816 8520 8523 1020 High Speed Hollow Cup Engine DIY RC Drone Aircraft
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: NONE
Certification: ce
Choice: yes
Commutation: Brush
Condition: New
Construction: Permanent Magnet
Does it include a Battery?: No
Does it include wireless functionality?: No
Efficiency: IE 1
High-concerned chemical: None
Model Number: Hollow Cup Motor
Origin: Mainland China
Output Power: ＜18.65
Protect Feature: Totally Enclosed
Type: Micro Motor,Mini Coreless Motor
Use: Home Appliance
Voltage: DC 3V 3.7V 7.4V
semi_Choice: yes
Specification:

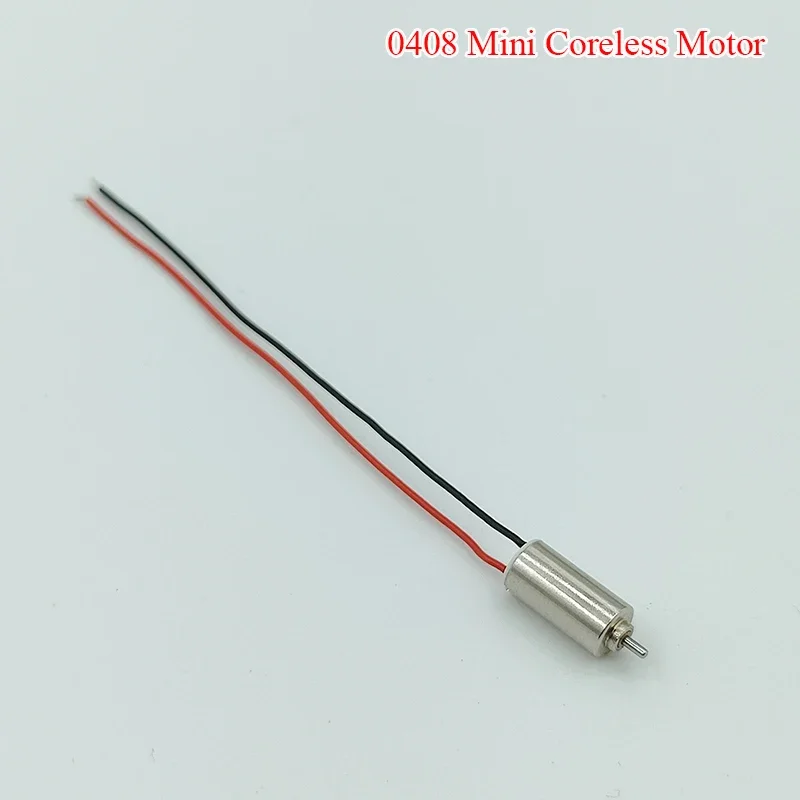

Model: 0408
1.Motor outer diameter: 4MM
2.Motor length: 8MM
3.Motor shaft diameter: 0.7MM
4.Output shaft length: 2.5MM
5.Line length: about 45MM
6.Weight: about 0.45 grams
7.Test data:
Voltage: 3.0V No-load current: 40mA No-load speed: 39500RPM
Voltage: 3.7V No-load current: 48mA No-load speed: 46000RPM
Voltage: 4.2V No-load current: 60mA No-load speed: 50500RPM
Voltage: 5.0V No-load current: 72mA No-load speed: 56000RPM
=============================================================================

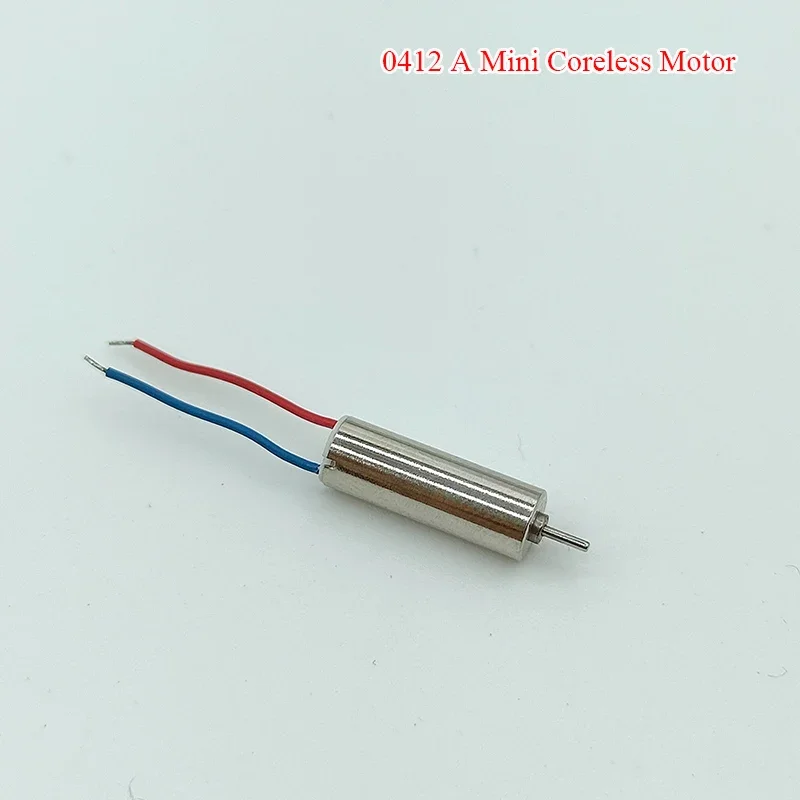

Model: 0412 A
1. Motor diameter: 4MM
2. Motor length: 12.7MM
3. Output shaft: 0.6MM
4. Output shaft length: 3MM
5. Lead length: 13 MA
6. Weight: 1 g
7. Voltage: 3.7V
8. No-load current: 35 MA (locked rotor current 440 MA)
9. Speed: 68000 RPM
===============================================================================

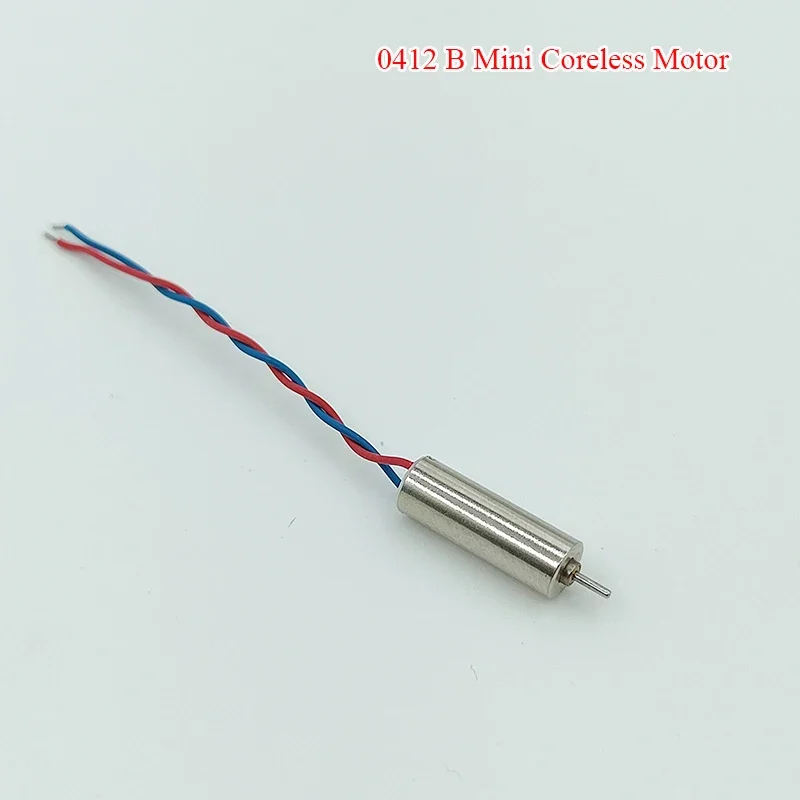

Model: 0412 B
1. Motor diameter: 4MM
2. Motor length: 12.7MM
3. Output shaft: 0.6MM
4. Output shaft length: 3MM
5. Lead length: 40 MA
6. Weight: 1 g
7. Voltage: 3.7V
8. No-load current: 35 MA (locked rotor current 450 MA)
9. Speed: 68000 RPM
=============================================================================

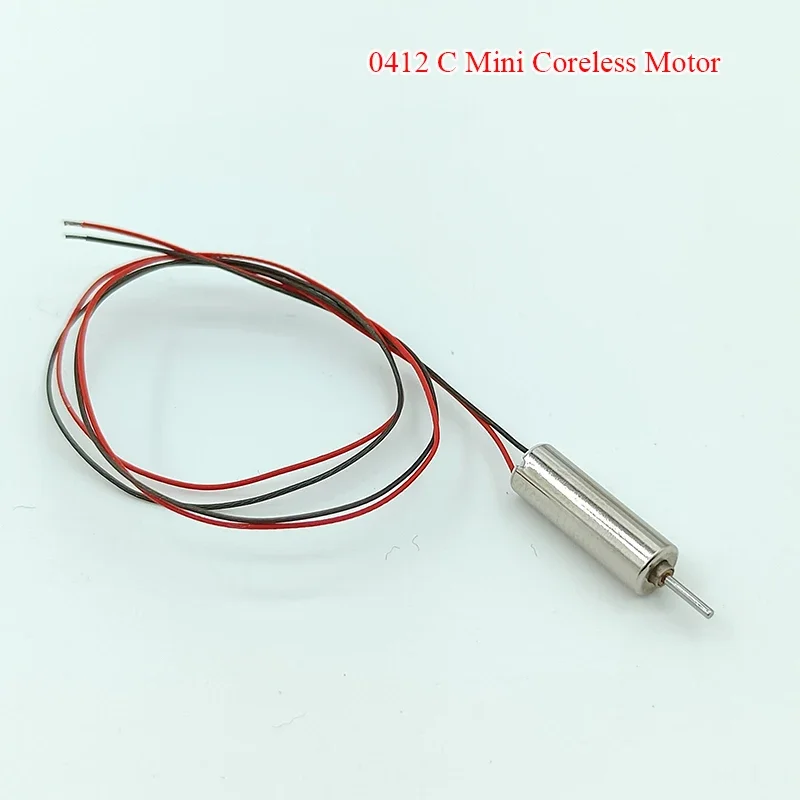

Model: 0412 C
1. Motor diameter: 4MM
2. Motor length: 12MM
3. Shaft length: 4mm
4. Shaft diameter: 0.7mm
5. Test data:
Voltage: 3.0V No-load current: 30mA No-load speed: 41000RPM
Voltage: 3.7V No-load current: 40mA No-load speed: 46000RPM
=============================================================================

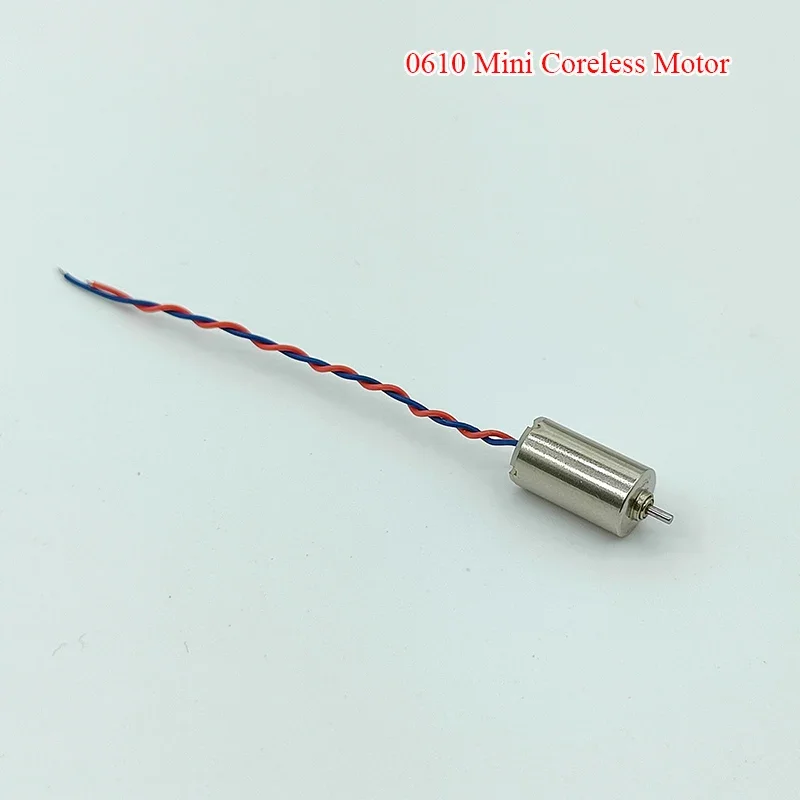

Model: 0610
1. Motor Diameter: 6mm
2. Motor length: 10.5mm
3. Motor Shaft Diameter: 0.8mm
4. Motor Shaft Length]: 2mm
5. Voltage: 3.7V
6. Speed: about 30,000 revolutions at 3.7V
7. Current: 3.7v space-time rotation current 0.1A, locked-rotor current 0.8A
8. Wire Length: about 5cm
=============================================================================

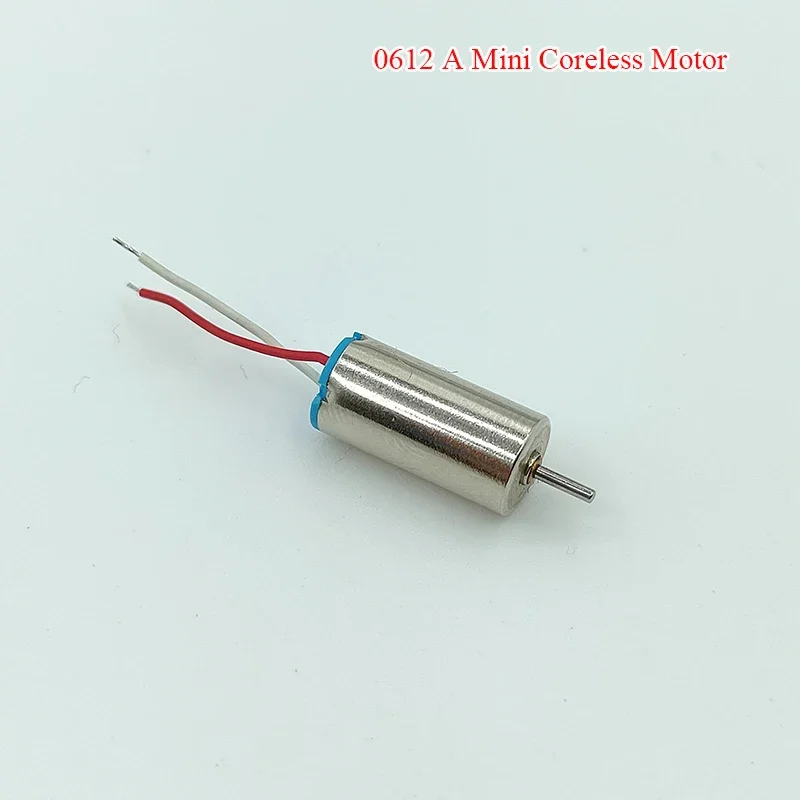

Model: 0612A
1. Motor diameter: 6MM
2. Motor length: 12.3MM
3. Output shaft: 0.8MM
4. Output shaft length: 4MM
5. Line length: 14MM
6. Weight: 1.4g
7. Test data:
Voltage: 3.0V No-load current: 45mA No-load speed: 48000RPM
Voltage: 3.7V No-load current: 50mA No-load speed: 60000RPM
=============================================================================

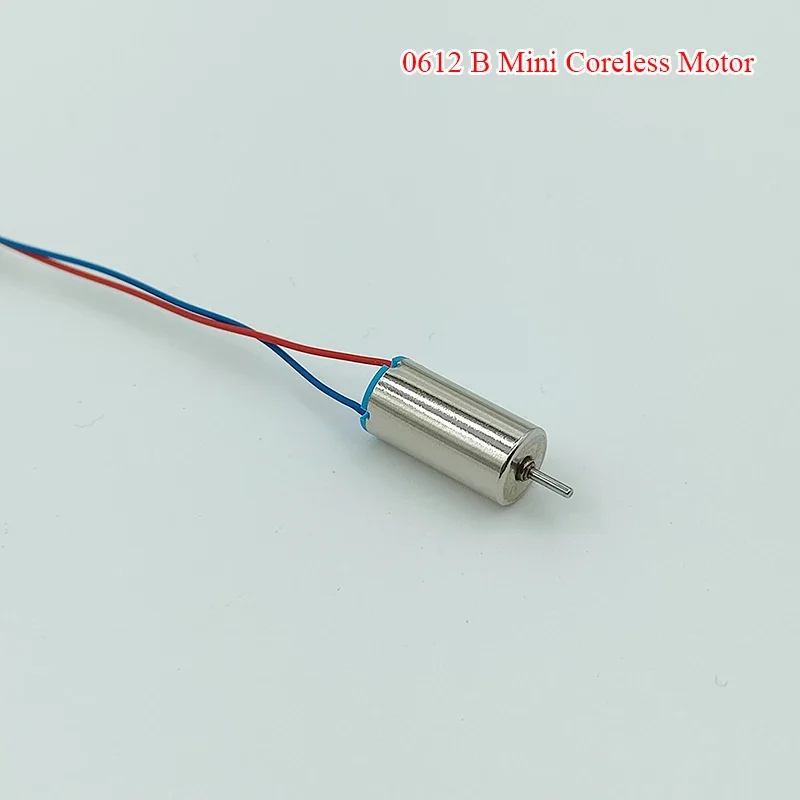

Model: 0612 B
1. Motor diameter: 6MM
2. Motor length: 12MM
3. Output shaft: 0.8MM
4. Output shaft length: 4MM
5. Test data:
Voltage: 3.7V No-load current: 10mA No-load speed: 32000RPM
Voltage: 5.0V No-load current: 20mA No-load speed: 42000RPM
=============================================================================

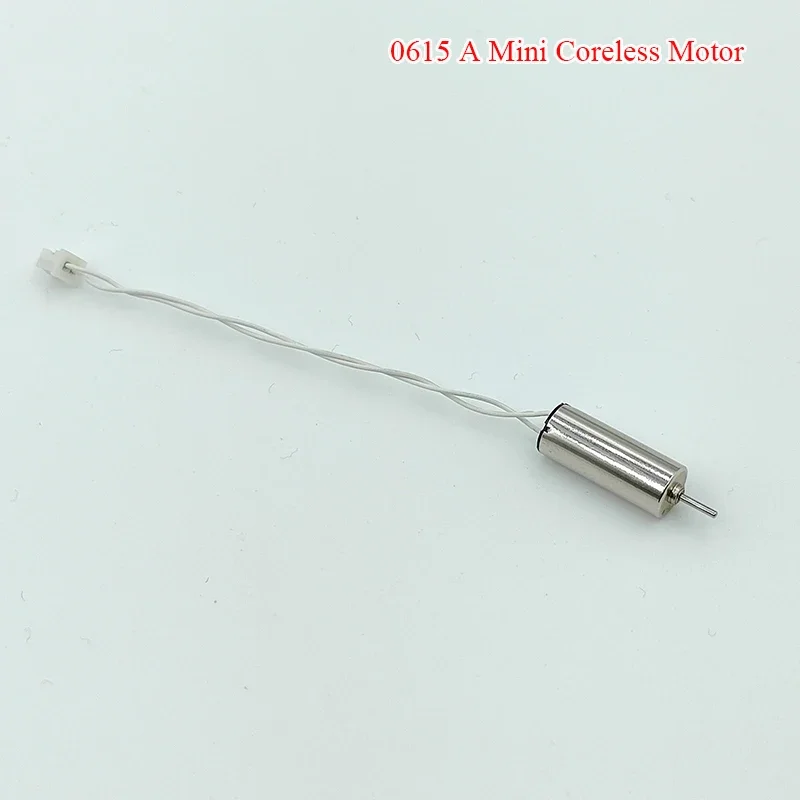

Model: 0615 A
1. Motor Diameter: 6mm
2. Motor Length: 15mm
3. Motor Shaft Diameter: 0.8mm
4. Length of output shaft: about 4mm
5. Rated voltage: 3.7v
6. Motor Parameters: About 43000 rpm and the current is 0.19A
=============================================================================

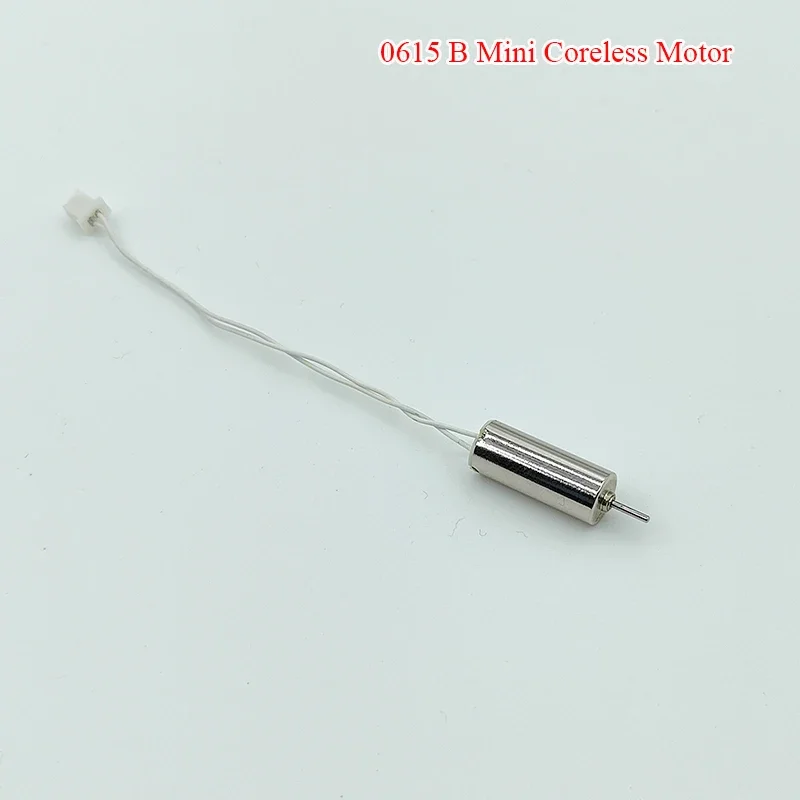

Model: 0615 B
1. Motor Diameter: 6mm
2. Motor Length: 15mm
3. Motor Shaft Diameter: 0.8mm
4. Length of output shaft: about 4mm
5. Rated voltage: 3.7v
6. Motor Parameters: About 43000 rpm and the current is 0.19A
=============================================================================

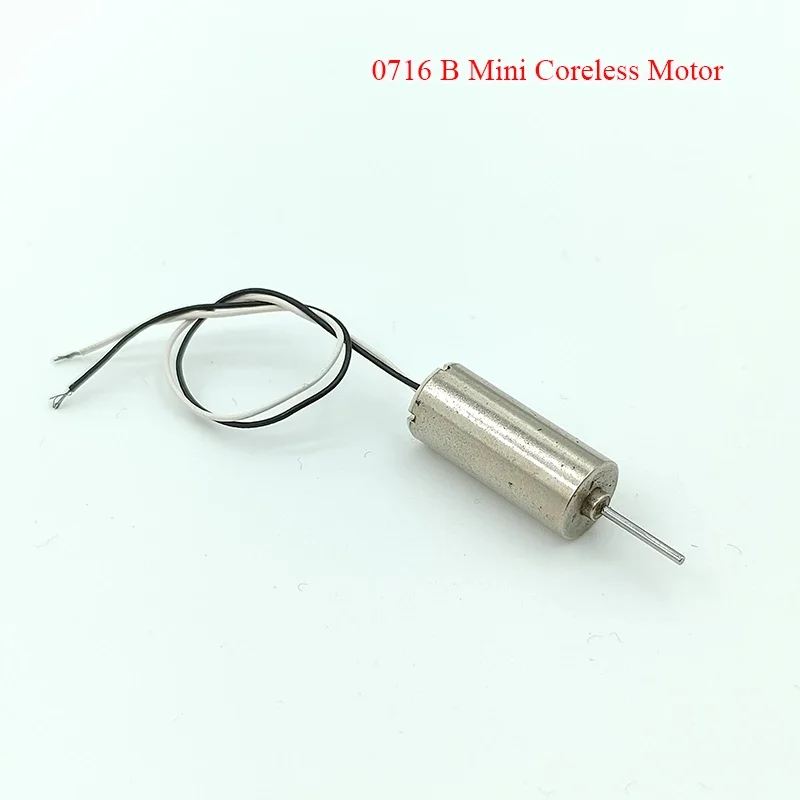

Model: 0716 B
1. Motor Diameter: 7mm
2. Motor Length: 16mm
3. Output shaft: 0.8MM
4. Output shaft length: about 4-5MM
5. Voltage: 3.7V
6. No-load speed: 45000 RPM
7. No-load current: 30-50MA
=============================================================================

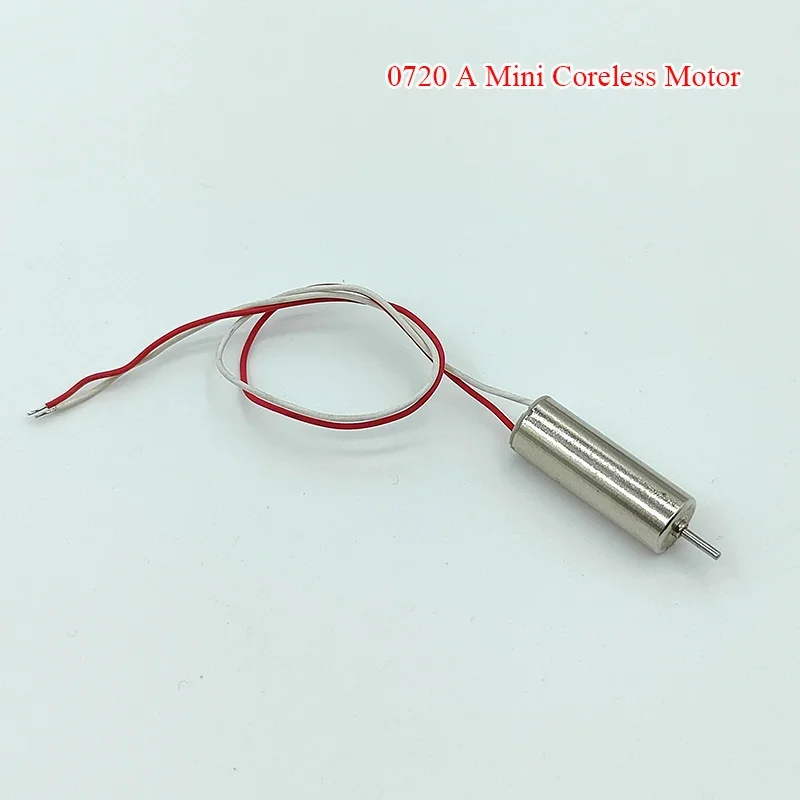

Model: 0720 A
1. Motor Diameter: 7mm
2. Motor Length: 20mm
3. Output shaft: 1MM
4. Output shaft length: about 4-5MM
5. Voltage: 3.7V
6. No-load speed: 55000 RPM
7. No-load current: 13-20MA
=============================================================================

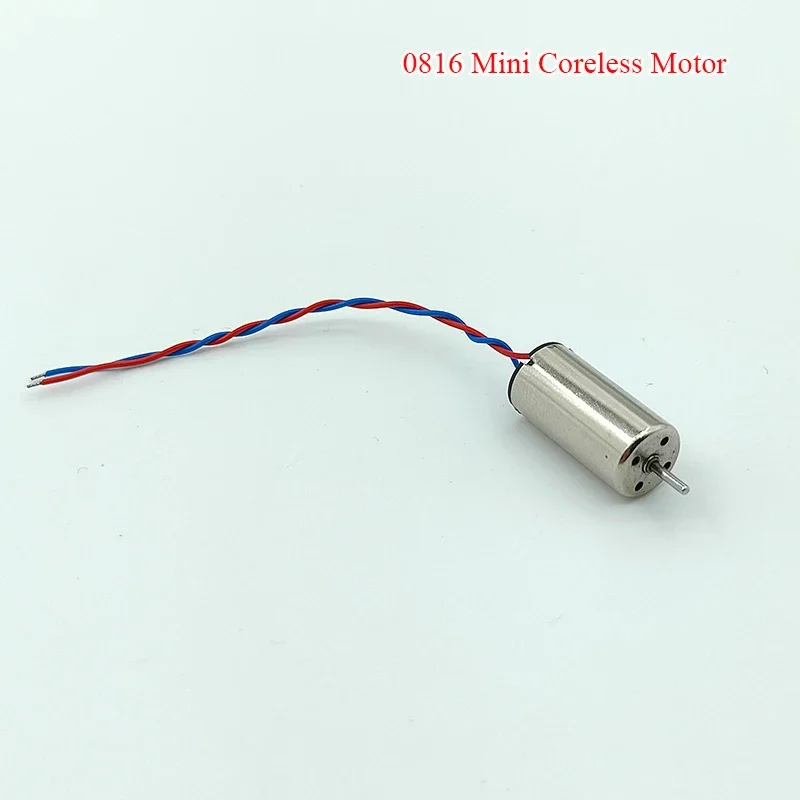

Model: 0816
1. Motor Diameter: 8mm
2. Motor Length: 16.5mm
3. Output shaft: 0.8MM
4. Output shaft length: 5MM
5. Voltage: 3.7V
6. No-load speed: 50000 RPM
7. No-load current: 17MA
=============================================================================

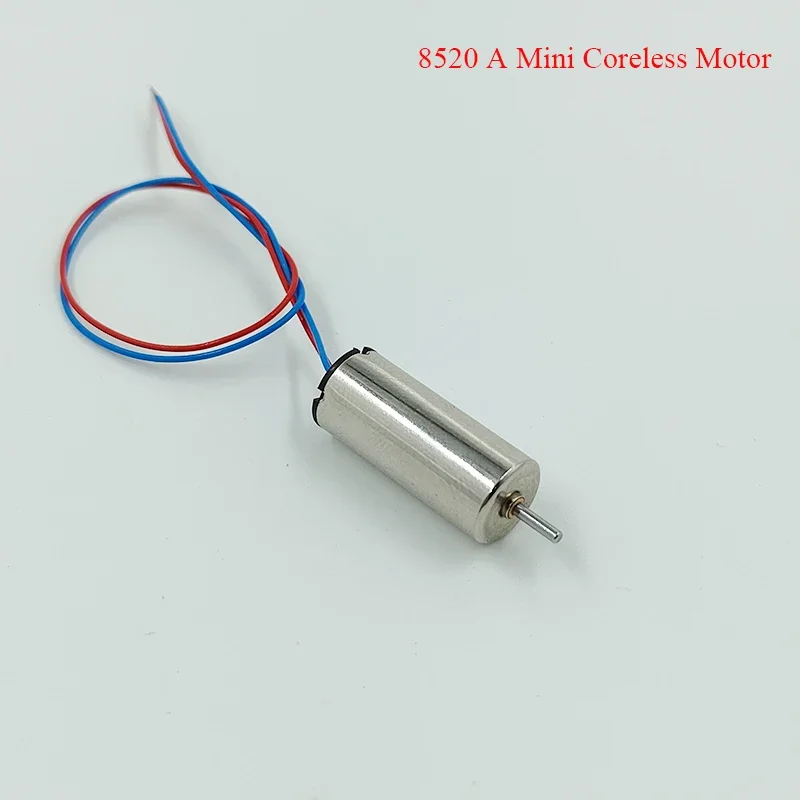

Model: 8520 A
1. Motor Diameter: 8.5mm
2. Motor Length: 20mm
3. Output shaft: 1.2mm
4. Output shaft length: 5.2mm
5. Rated Voltage: DC 3.4V
6. No-load speed: 51000 RPM
7. No-load current: 230mA
8. Test data:
Voltage: DC 3.0V No-load current: 200mA No-load speed: 47000RPM
Voltage: DC 3.7V No-load current: 260mA No-load speed: 56000RPM
=============================================================================

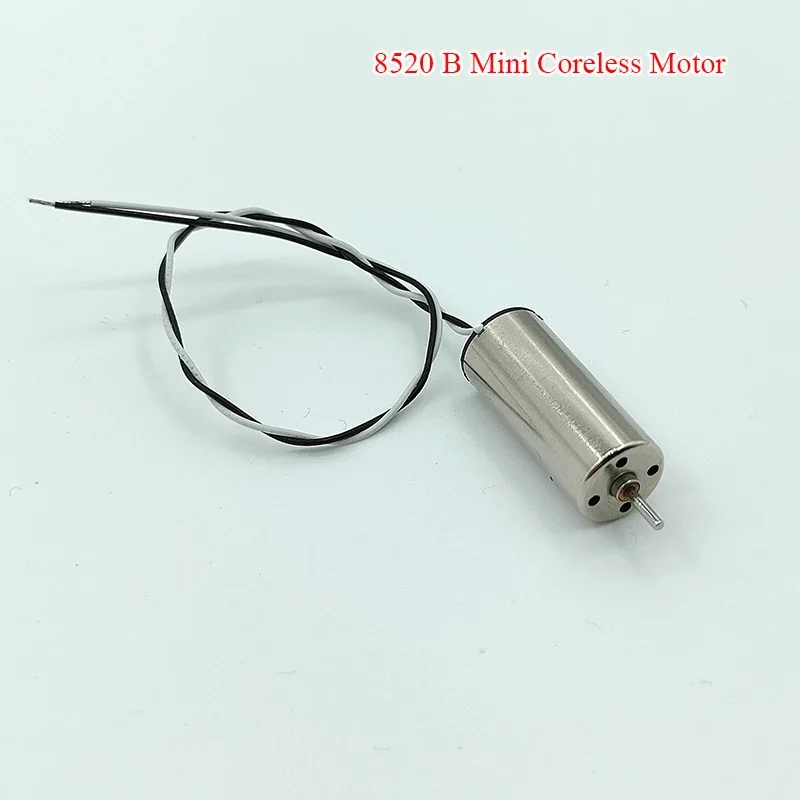

Model: 8520 B
1. Motor Diameter: 8.5mm
2. Motor Length: 20mm
3. Output shaft: 1mm
4. Output shaft length: 5.5mm
5. Test data:
Voltage: DC 3.7V No-load current: 80mA No-load speed: 37000RPM
Voltage: DC 4.2V No-load current: 100mA No-load speed: 42000RPM
=============================================================================

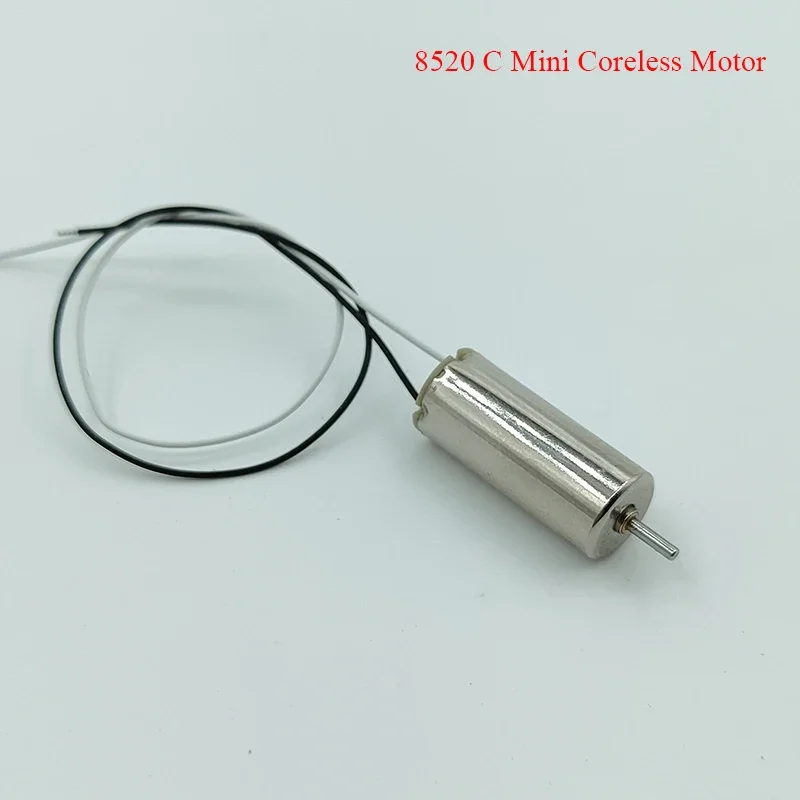

Model: 8520 C
1. Motor Diameter: 8.5mm
2. Motor Length: 20mm
3. Output shaft: 1.2mm
4. Output shaft length: 5.2mm
5. Rated Voltage: DC 3.4V
6. No-load speed: 51000 RPM
7. No-load current: 230mA
8. Test data:
Voltage: DC 3.0V No-load current: 200mA No-load speed: 47000RPM
Voltage: DC 3.7V No-load current: 260mA No-load speed: 56000RPM
=============================================================================

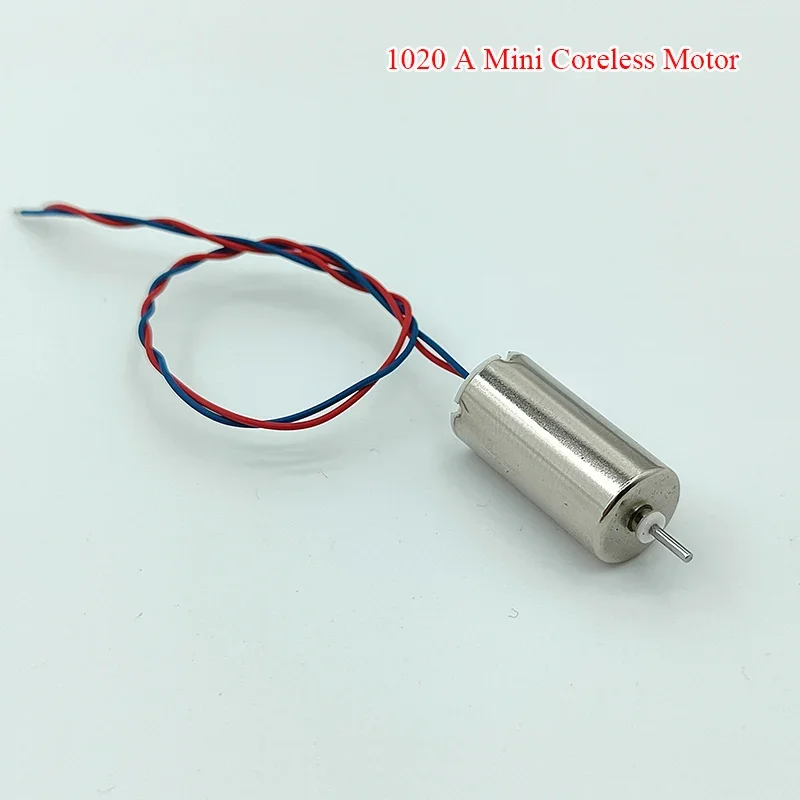

Model: 1020 A
1. Motor diameter: 10mm
2. Motor length: 20.7mm
3. Output shaft: 1.0mm
4. Output shaft length: 5mm
5. Line length: 150mm
6. Weight: 7.6g
7. Test data:
Voltage: 3.0V No-load current: 10mA No-load speed: 30000RPM
Voltage: 3.7V No-load current: 11.5mA No-load speed: 39500RPM
Voltage: 4.2V No-load current: 12.5mA No-load speed: 45000RPM
=============================================================================

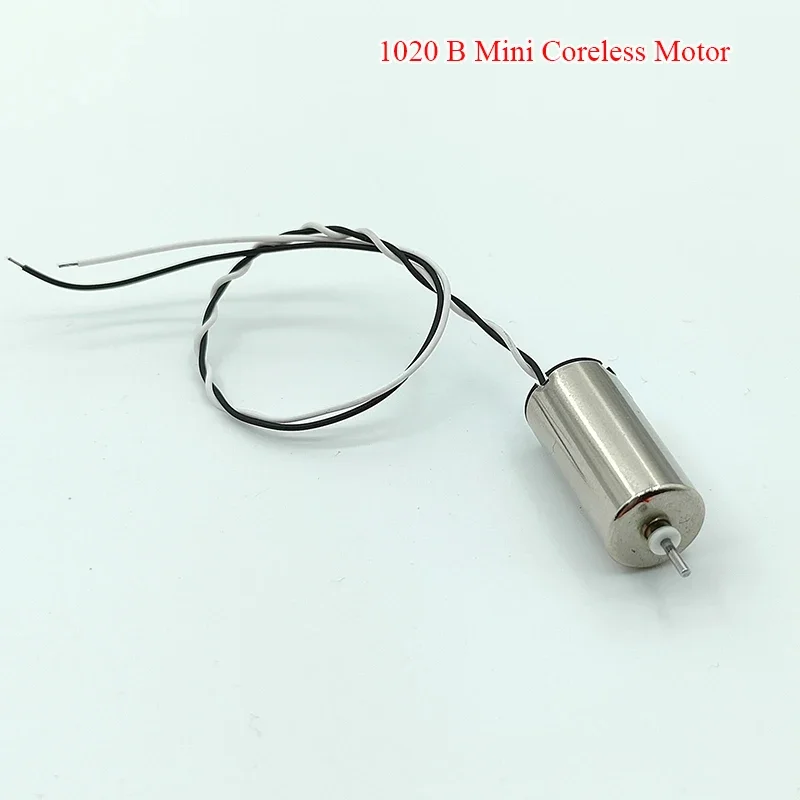

Model: 1020 B
1. Motor diameter: 10MM
2. Motor length: 20.7MM
3. Output shaft: 1.0MM
4. Output shaft length: 5MM
5. Line length: 150MM
6. Weight: 7.6g
7. Test data:
Voltage: 3.0V No-load current: 10mA No-load speed: 30000RPM
Voltage: 3.7V No-load current: 11.5mA No-load speed: 39500RPM
Voltage: 4.2V No-load current: 12.5mA No-load speed: 45000RPM
=============================================================================
Package Included:
Mini Coreless Motor x 1pcs
