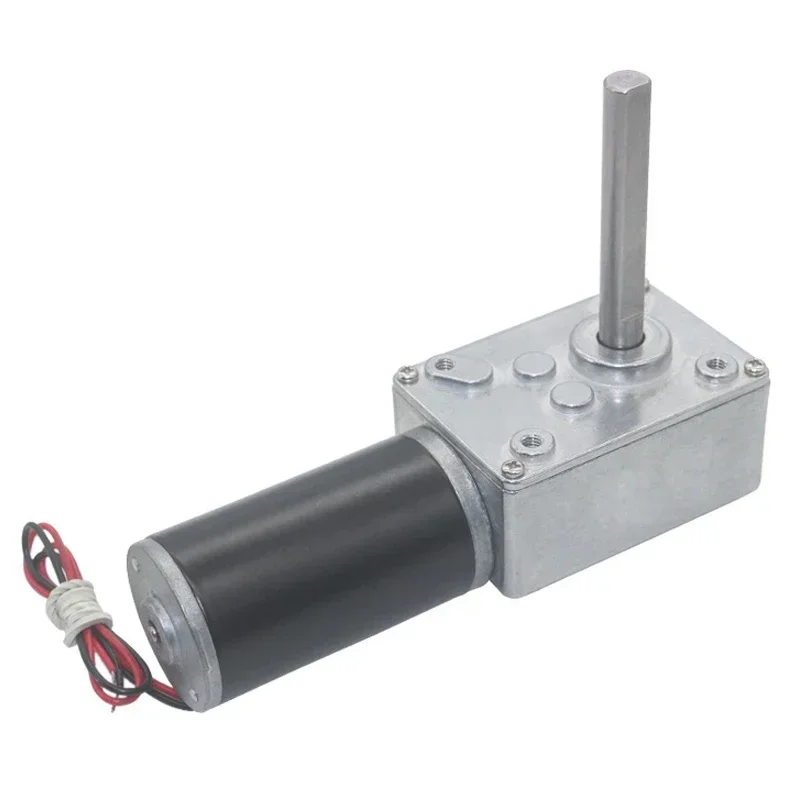

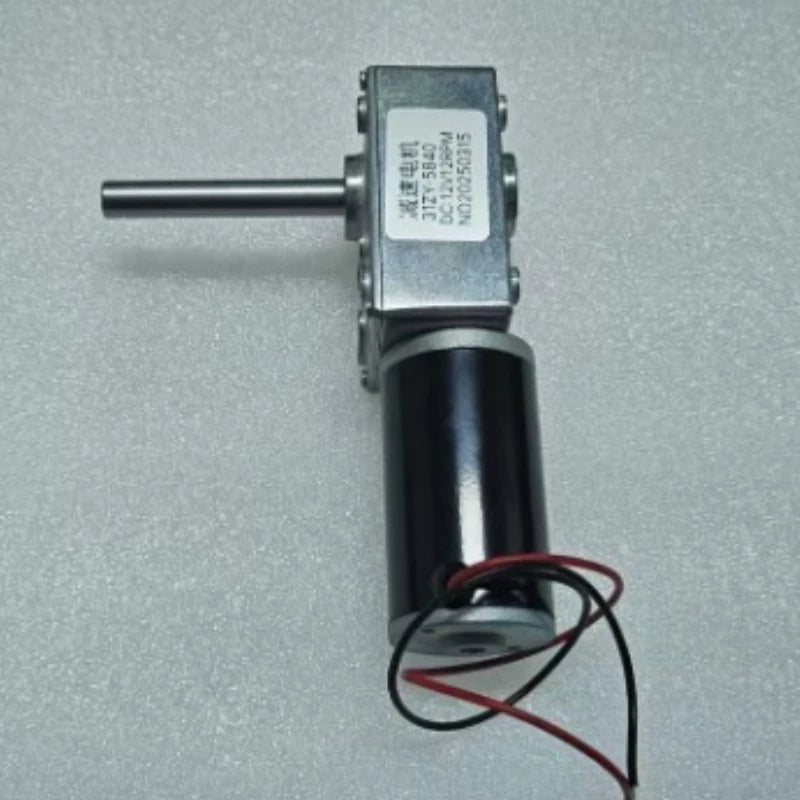

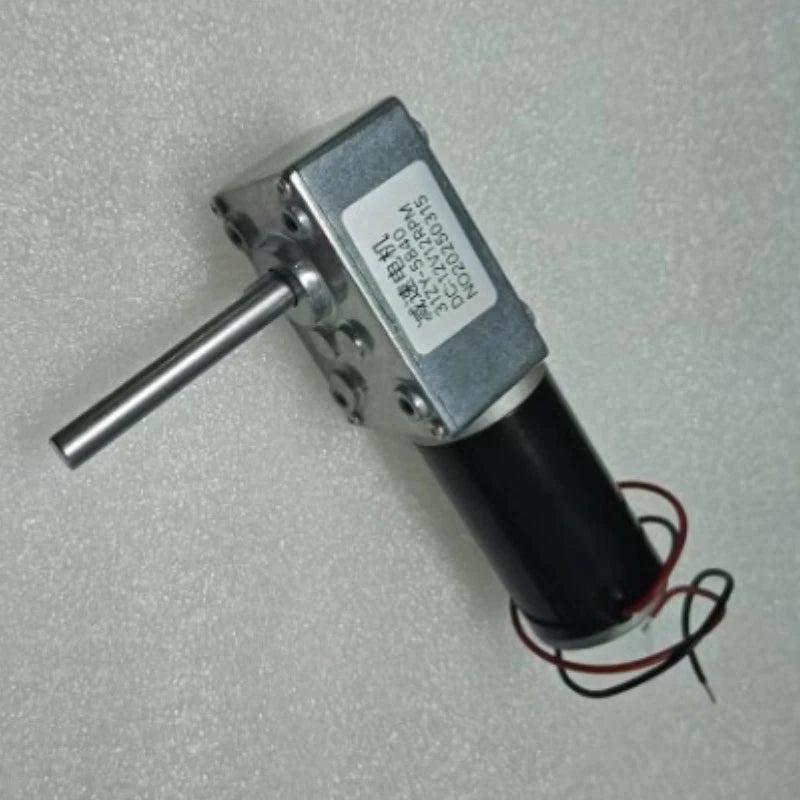

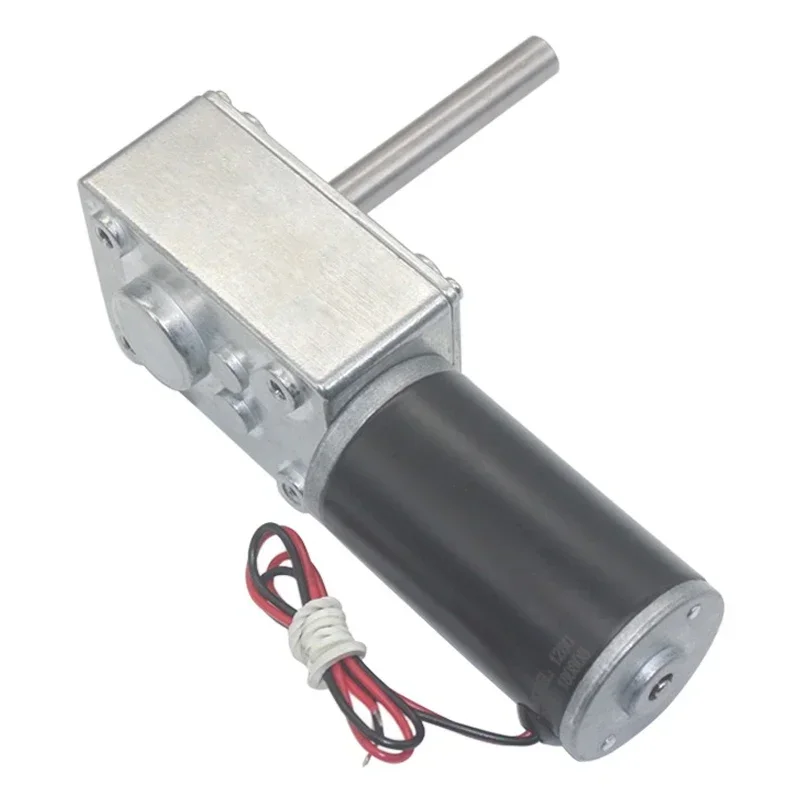

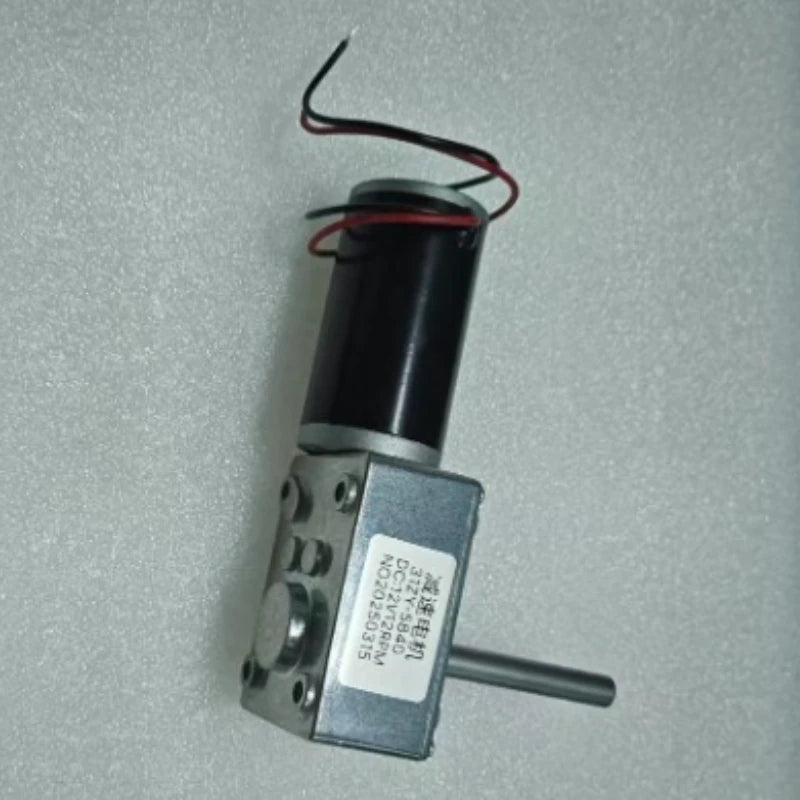

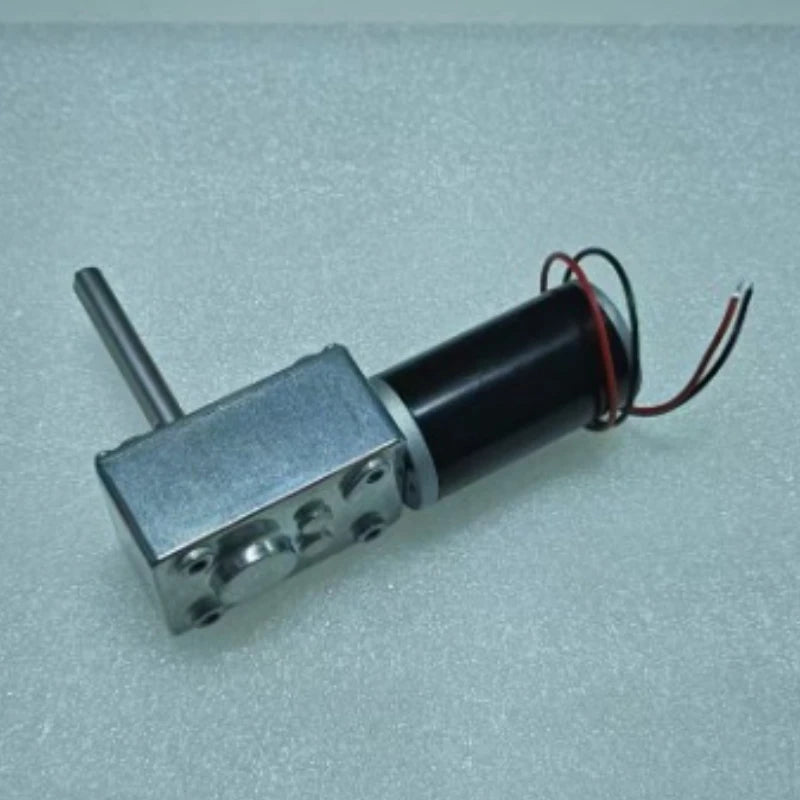

DC12V 24V Powerful Torque Gearmotor Turbo Worm Geared Motor 51mm D-Shaft High Power Reversed Low Speed 70kg.cm Worm Gear Motor
DC12V 24V Powerful Torque Gearmotor Turbo Worm Geared Motor 51mm D-Shaft High Power Reversed Low Speed 70kg.cm Worm Gear Motor
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: NONE
Certification: NONE
Choice: yes
Commutation: Brush
Construction: Permanent Magnet
Continuous Current(A): 0.9-1.2A
Efficiency: IE 1
High-concerned chemical: None

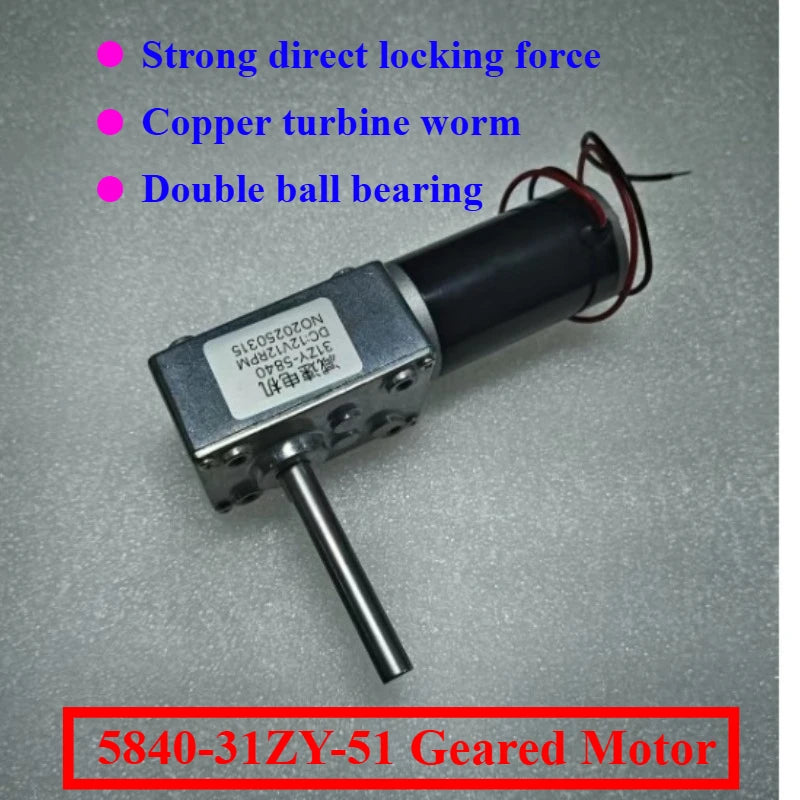

Model Number: 5840-31ZY-51mm
Origin: Mainland China
Output Power: ＜18.65
Torque: 1.6-70kg.cm
Type: Gear Motor

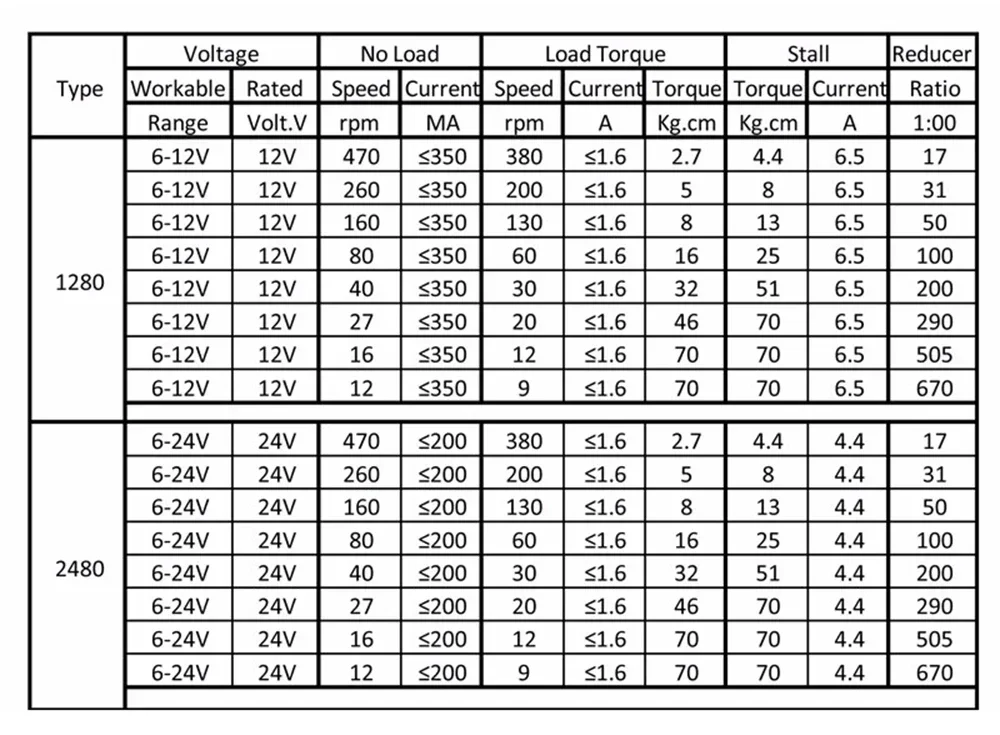

Specifications:
Rated Voltage: DC 12V / 24V
No-load Speed: 7rpm, 10rpm, 12rpm, 16rpm, 27rpm, 40rpm, 80rpm, 160rpm, 260rpm, 470rpm
Max Power: 21W
Max Torque: 70kg.cm

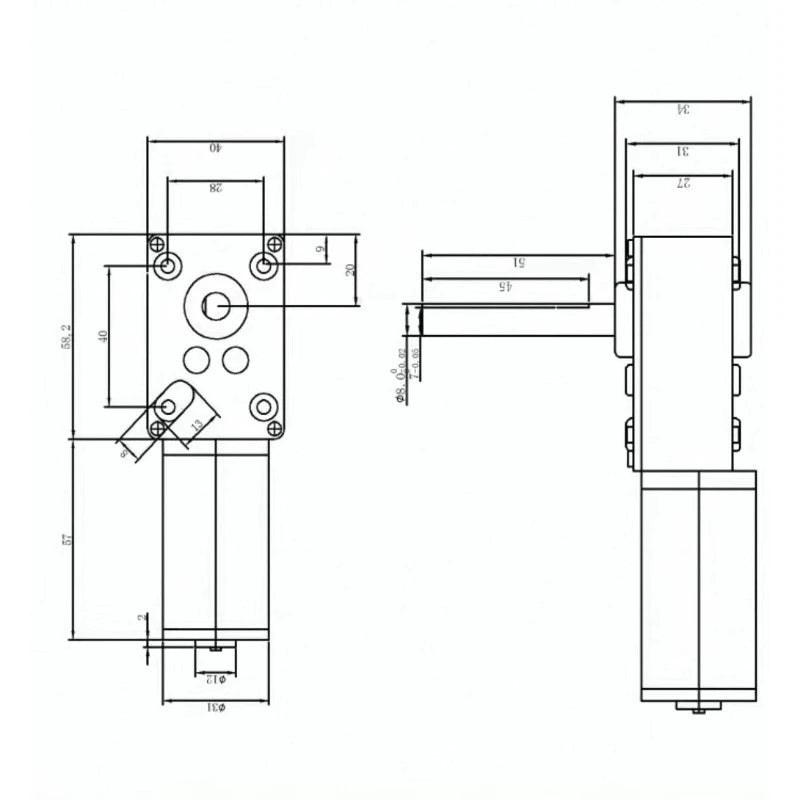

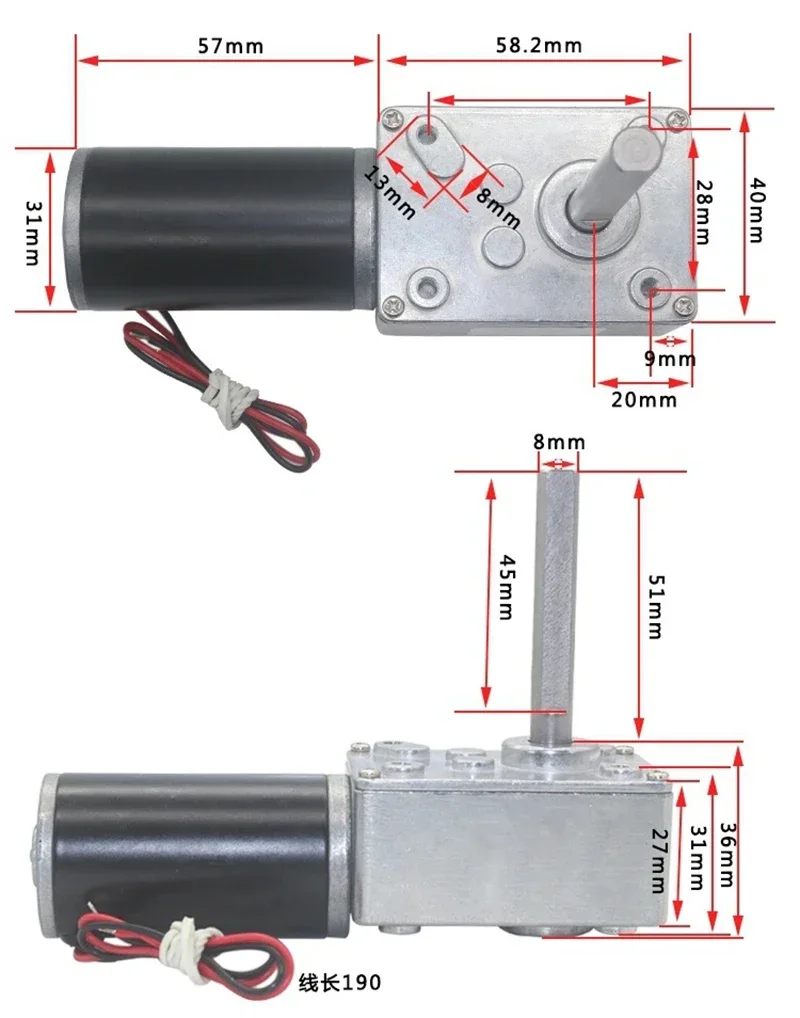

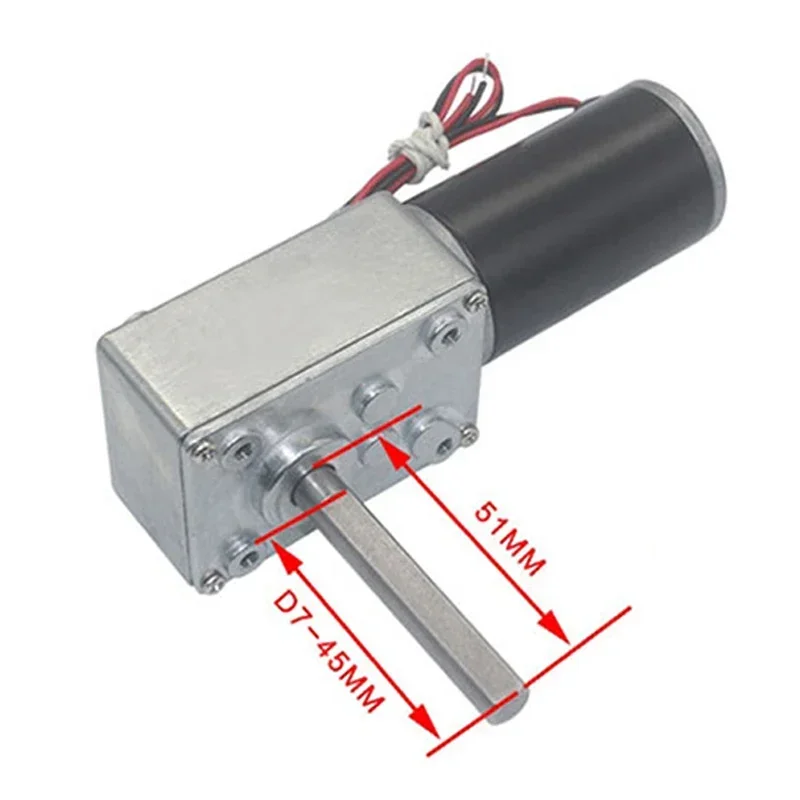

Shaft diameter : 8mm, D type
Shaft length: 51mm
Features:
1. Made of high quality material, durable and long service life.
2. 31mm high quality copper tube motor, small volume and big torsion
3. Ball bearing design enhances the wear resistance of shaft
4. All metal gears are impact resistant, long life and low noise
5. Generally used in curtain machines, advertising equipment, window openers and smart devices
