SPECIFICATIONS

Brand Name: NONE

Certification: CE

Color: black

Commutation: Brush

Construction: Permanent Magnet

Continuous Current(A): 0.35-0.5A

Does it include a Battery?: No

Does it include wireless functionality?: No

Efficiency: IE 1

High-concerned chemical: None

Model Number: A5882-45

Motor diameter: 45mm

Motor length: 157mm

Origin: Mainland China

Output Power: 18.65-37.5（include18.65and37.5）

Output Voltage: 30W

Output shaft diameter: 10mm

Output shaft length: 20mm

Protect Feature: Drip-proof

Torque: 250kgf.cm

Type: Gear Motor

Usage: BOAT,Fan,Home Appliance

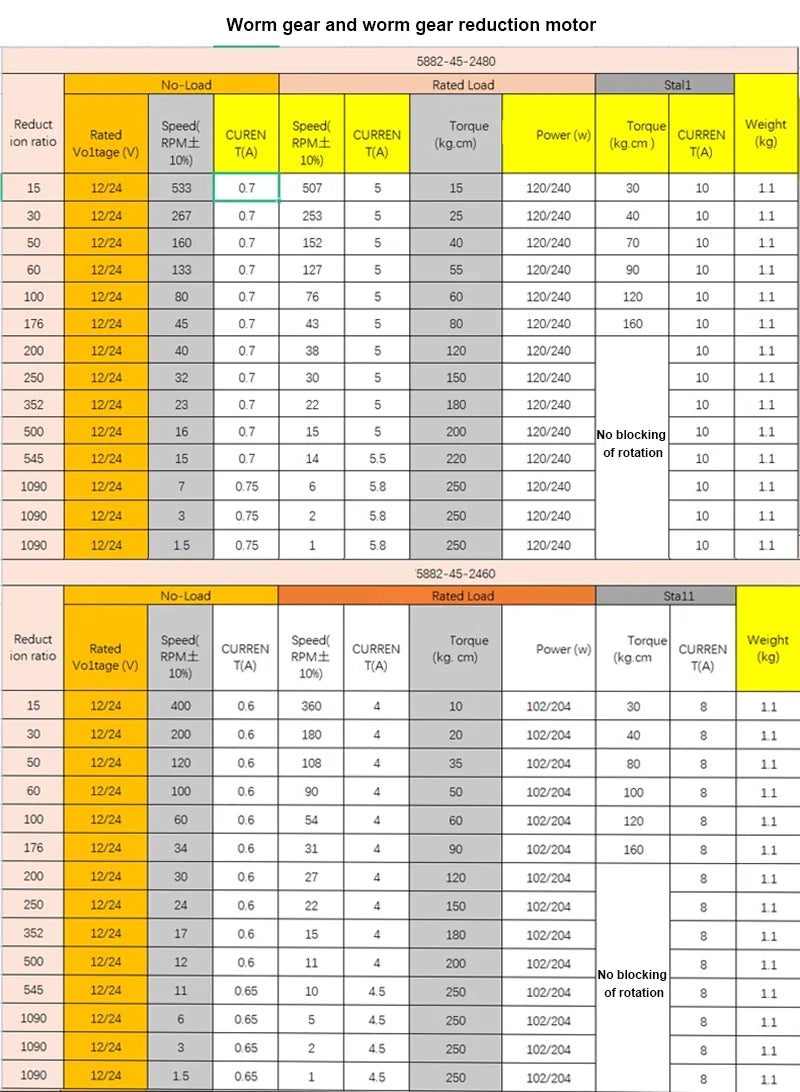

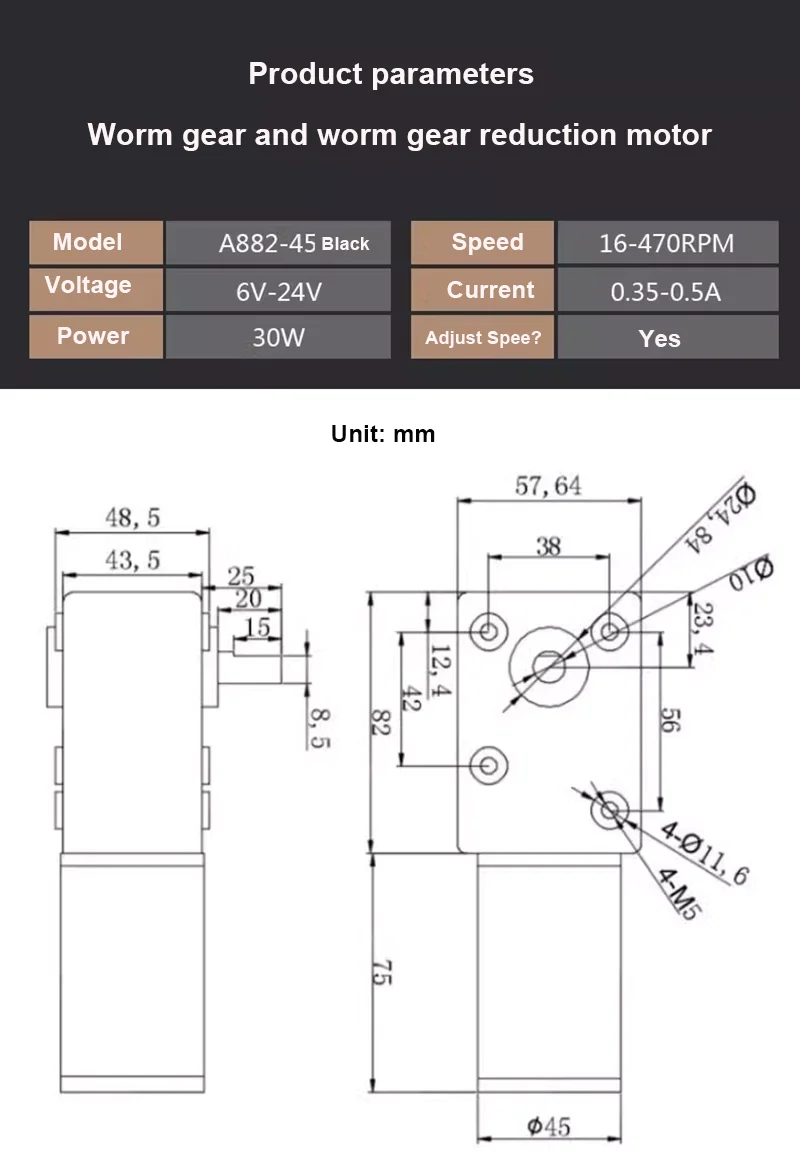

Product parameters

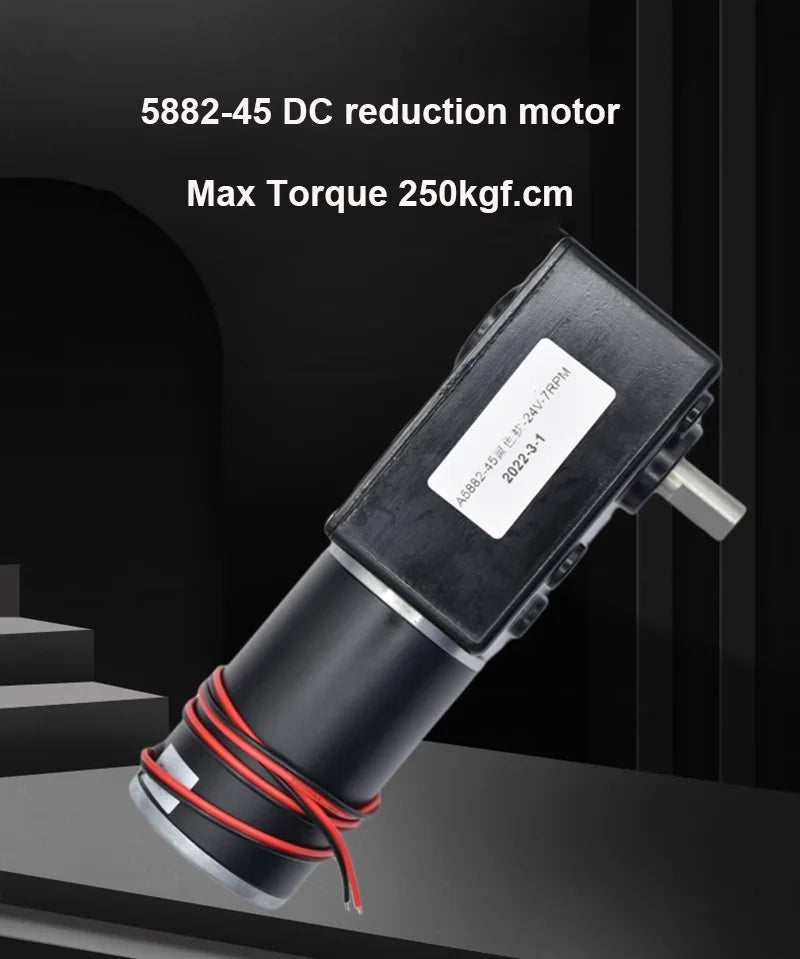

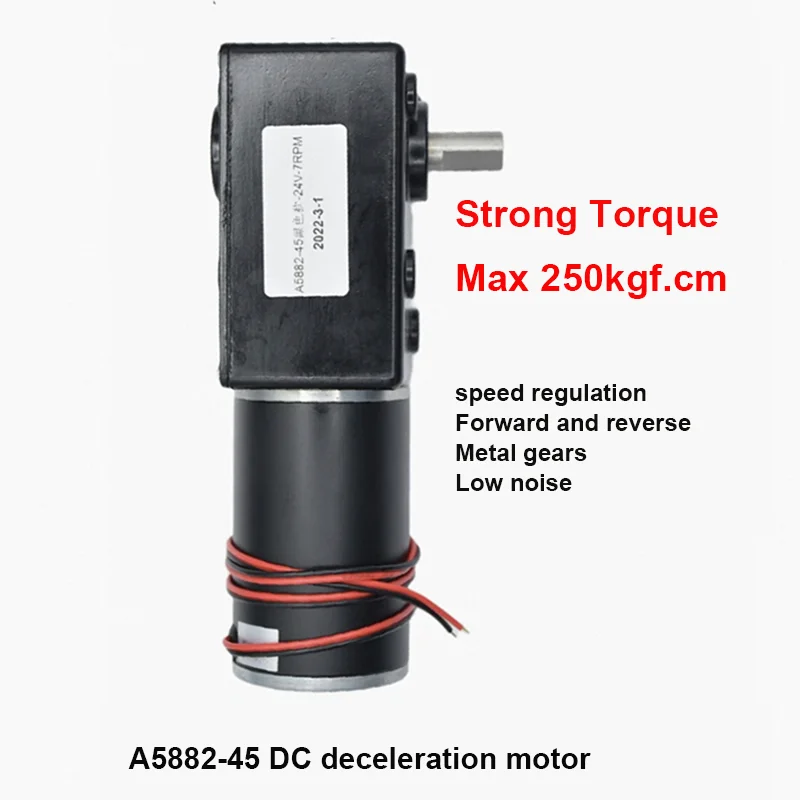

Worm gear and worm gear reduction motor

Model: A5882-45

Speed range: 16-470RPM

Voltage range: 6V-24V

Rated current: 0.35-0.5A

Load torque range: 15-250kgf.cm

Power: 30W

Can speed be adjusted: Yes

Output shaft length: 20mm

Output shaft diameter: 10mm

Motor length: 157mm

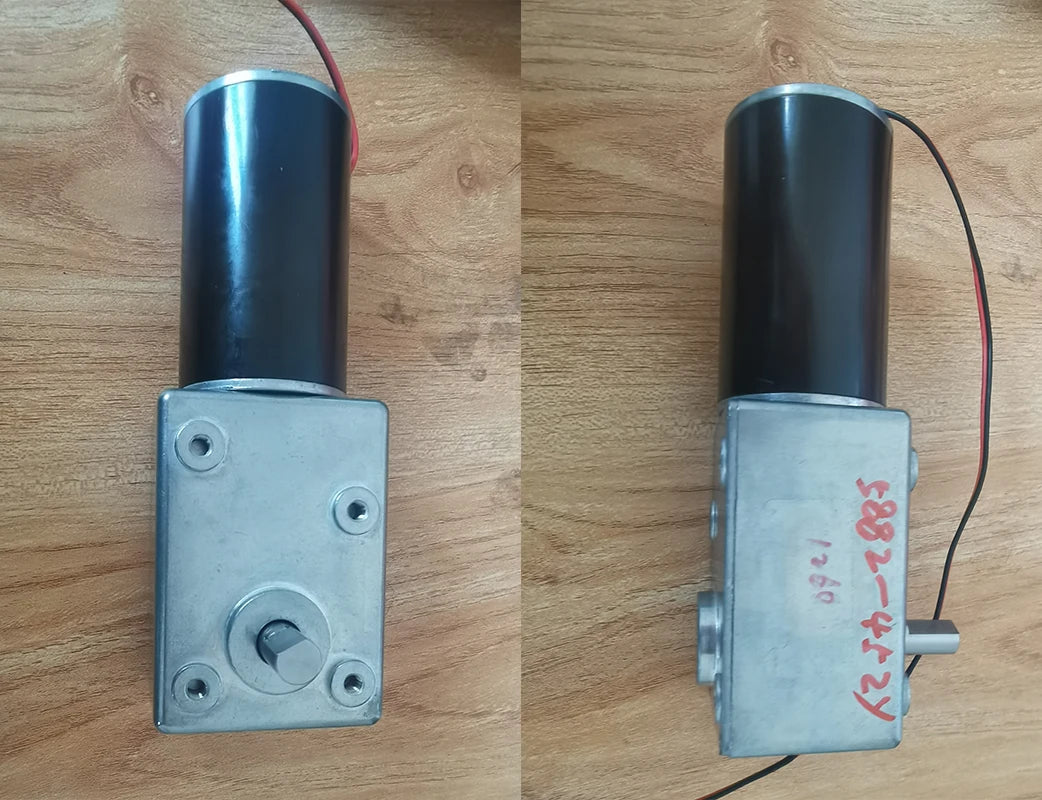

Note: The black leather shell has been discontinued, and the silver shell will be shipped after placing the order
