DIY Electric DC Reciprocating Linear Actuator Telescopic Push Rod 3-15cm Stroke 2-8cm Metal Gear Reduction Motor Speed Control

$137.34 USD

~~$0.00 USD~~ $137.34 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Choice: yes

Color: Silver

Commutation: Brush

Construction: Permanent Magnet

Continuous Current(A): 1.5A

Does it include a Battery?: No

Does it include wireless functionality?: No

Efficiency: IE 2

High-concerned chemical: None

Input Voltage: 220V//110V

Material: Aluminum alloy

Origin: Mainland China

Output Power: 37.5-74.6（include74.6）

Output Voltage: DC12-24V,DC12/24V

Protect Feature: Drip-proof

Speed: 0-45/90/120/200/230rpm

Stroke (Inch): 0.78-3.15in / 1.18-5.91in / 2.36-7.87in

Stroke(cm): 2-8cm/3-15cm/6-20cm

Thread: M8

Torque: 14.5 - 245NM smaller the stroke , the greater the thrust

Type: Gear Motor

Use: Home Appliance

semi_Choice: yes

US / Canada/Mexico/Japan → US Plug (110V)

Spain/France/European countries, → EU Plug (220V)

Israel/Korea → EU Plug (220V)

UK/Saudi Arabia → UK Plug (220V)

Frequently Asked Questions for Reciprocating Institutions

1: What are the components of this reciprocating mechanism?

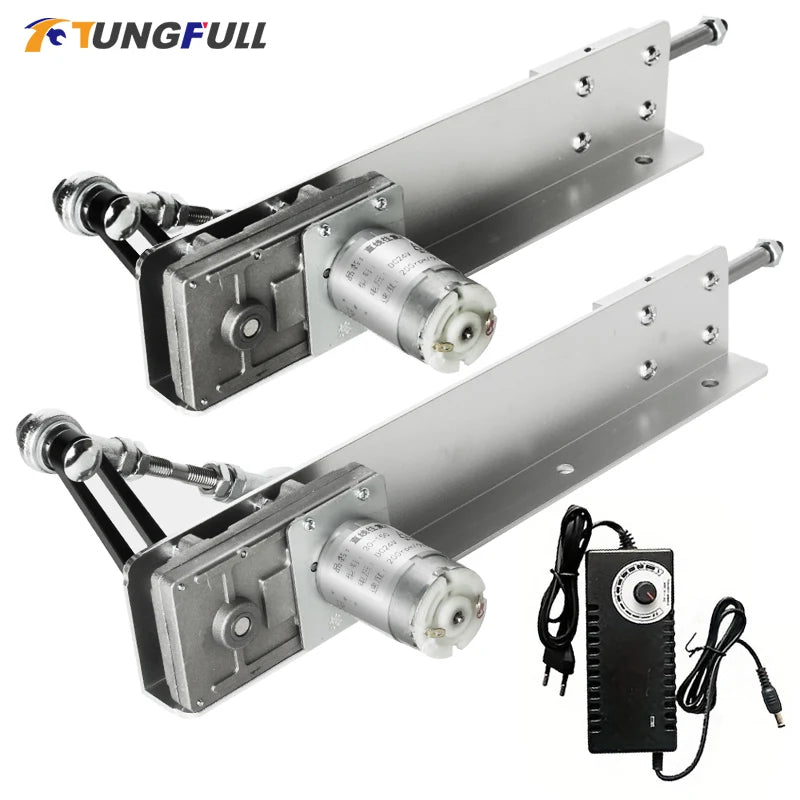

The reciprocating mechanism includes a geared motor, an adjustable speed power supply, and a reciprocating mechanism. The equipment is installed and shipped, and you can go back and plug in the 220v household electricity to run.

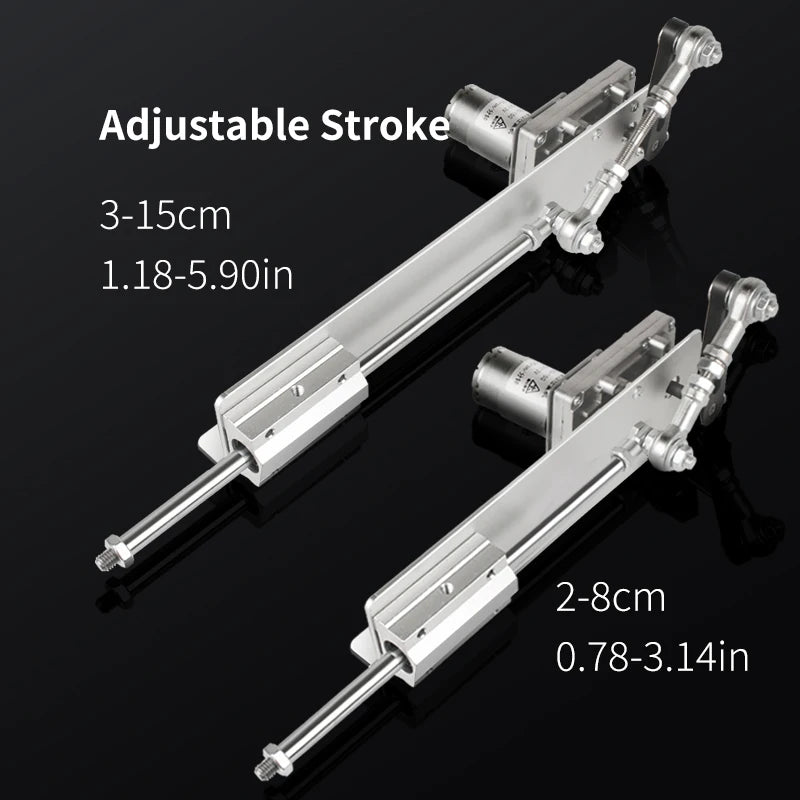

2: Reciprocating mechanism stroke selection

There are two types of reciprocating mechanisms, 1: the stroke is 2cm~8cm (can be adjusted freely) The other type has a stroke of 3cm~15cm (can be adjusted freely), you can choose the stroke you need within the adjustable range.

3: The number of times of reciprocating expansion and contraction per minute

The option marked in the option is the maximum speed of the motor with no load. For example: 24v100 rpm, which means: the fastest can be stretched 100 times per minute under this voltage. 12v45 rpm, which means: the fastest can be stretched 45 times per minute under this voltage.

(Through the speed control power supply, you can arbitrarily adjust the speed you need within the maximum speed)

4: How big is this push and pull?

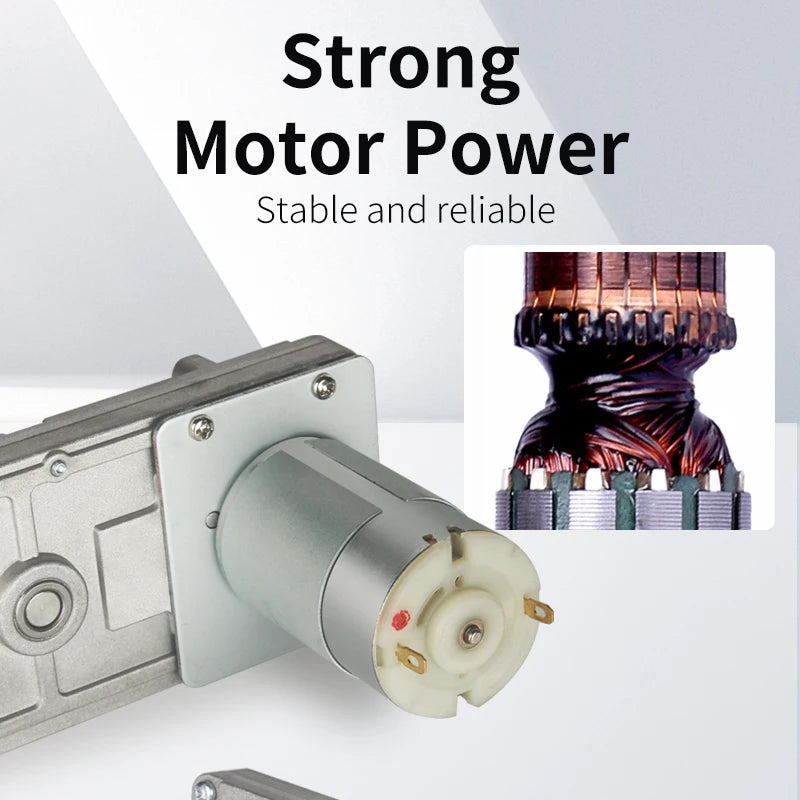

The push-pull force is mainly powered by the motor. The smaller the stroke, the greater the thrust. For details, please refer to the test data below.

24v stroke 2 cm, thrust about 25 kg

24v stroke 4cm, thrust about 10kg

24v stroke 6 cm, thrust about 7 kg

24v stroke 8 cm, thrust about 5 kg

24v stroke 10cm, thrust about 4kg

24v stroke 12cm, thrust about 3kg

24v stroke 15cm, thrust about 2kg

12v stroke 2 cm, thrust about 15 kg

12v stroke 4 cm, thrust about 7.5 kg
