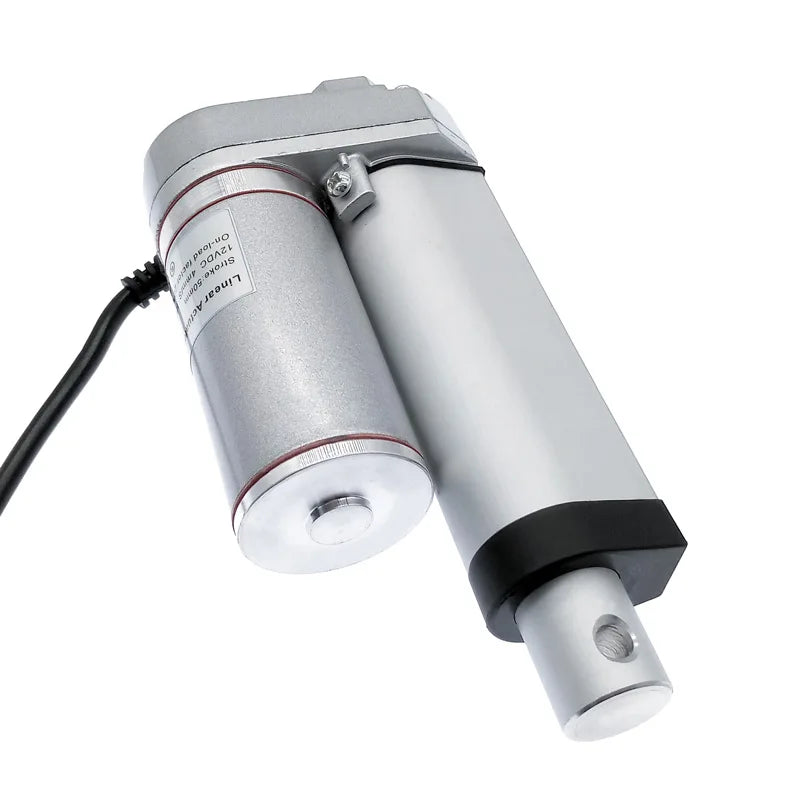

Electric Motor Dc 12V Linear Actuator 100mm 50mm 30mm Stroke 24V Window Opener 100N300N500N700N1000N1200N1500N
Electric Motor Dc 12V Linear Actuator 100mm 50mm 30mm Stroke 24V Window Opener 100N300N500N700N1000N1200N1500N
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: CNMAWAY
Certification: CCC
Commutation: Brush
Construction: Permanent Magnet
Continuous Current(A): 1~2A
Does it include a Battery?: No
Does it include wireless functionality?: No
Efficiency: IE 2
High-concerned chemical: None
Model Number: Stroke 100mm/50mm/30mm/20mm
Origin: Mainland China
Output Power: ＜18.65
Output Voltage: 12~35W
Protect Feature: Drip-proof

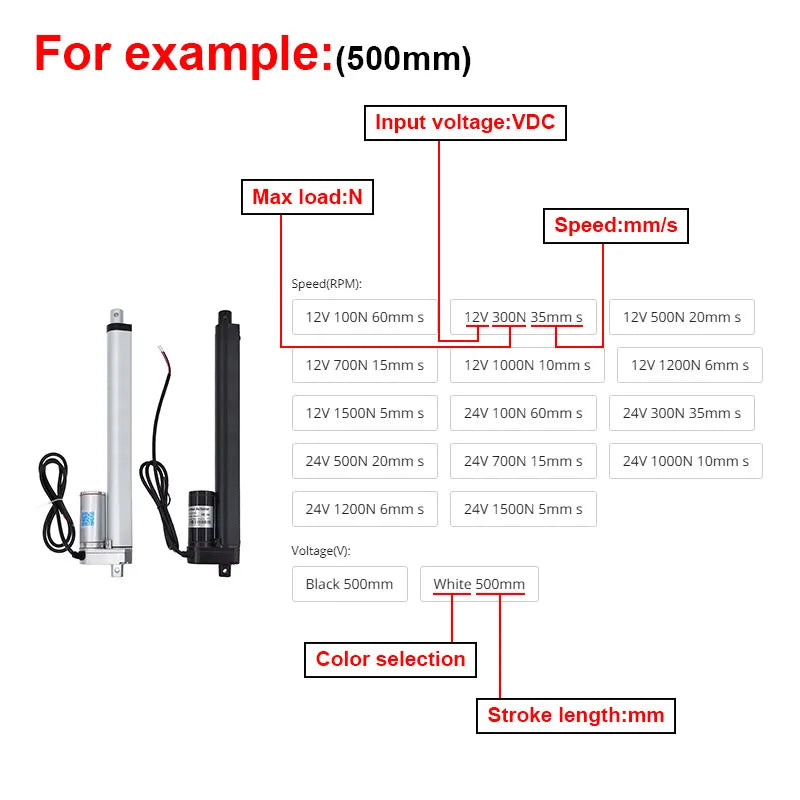

Speed(RPM): 4/6/10/15/20/35/60/90mm/s
Torque: 100N300N500N700N1000N1200N1500N
Type: Gear Motor
Use: Boat
Voltage(V): 12VDC/24VDC/36VDC/48VDC
Technical Parameters:
Rated power: 20W Maximum 30W
Stroke: 50mm/100mm/150mm/200mm/250mm/300mm/350mm/400mm/450mm/500mm
Permanent magnet DC motor drive;
Voltage: 12V,24V
Standard protection grade: IP54
Material: aluminum alloy
Ambient temperature -20°C to +75°C.
Low noise design, noise level less than 42dB.
Application: Television console.couch for massage.Electric bed.Medical chair.Electric equipment ....
The self-locking force of the linear actuator is about 80%
Size：
L= Minimum installation distance
S= Effective stroke
Size introduction:
Stroke Length: means the movement length of linear actuator.
Retracted Length: means the length when linear actuator 100% fully closed.
Extended Length: means the length when linear actuator 100% fully open.
Stroke length introduction:
50mm Stroke, Retracted Length=155mm, Extended Length=205mm
100mm Stroke, Retracted Length=205mm, Extended Length=305mm
150mm Stroke, Retracted Length=255mm, Extended Length=405mm
200mm Stroke, Retracted Length=305mm, Extended Length=505mm
250mm Stroke, Retracted Length=355mm, Extended Length=605mm
300mm Stroke, Retracted Length=405mm, Extended Length=705mm
... ...
