SPECIFICATIONS

Brand Name: HLTNC

Certification: CCC,ce,CE,CCC

Current: 3A

Current / Phase: 3A

DetentTorque(G.cm Max): 700

Does it include a Battery?: No

Does it include wireless functionality?: No

Dual Shaft: Optional

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: None

Holding Torque: 2.2Nm,22.44 kg.cm,311Ozin

Inductance: 5±20% mH

Insulation class: B

Insulation resistance: 100(500V DC)

Model Number: 57HS82

Motor Length: 82mm

Motor Weight: 1.2Kg

Origin: Mainland China

Phase: 2

Phase No.: 2

Resistance: 1.4±10%Ω

Shaft Length: 25mm

Shaft Diameter: 8mm

Step Angle: 1.8°± 5%

Step Angle(degrees): 1.8

Type: HYBRID

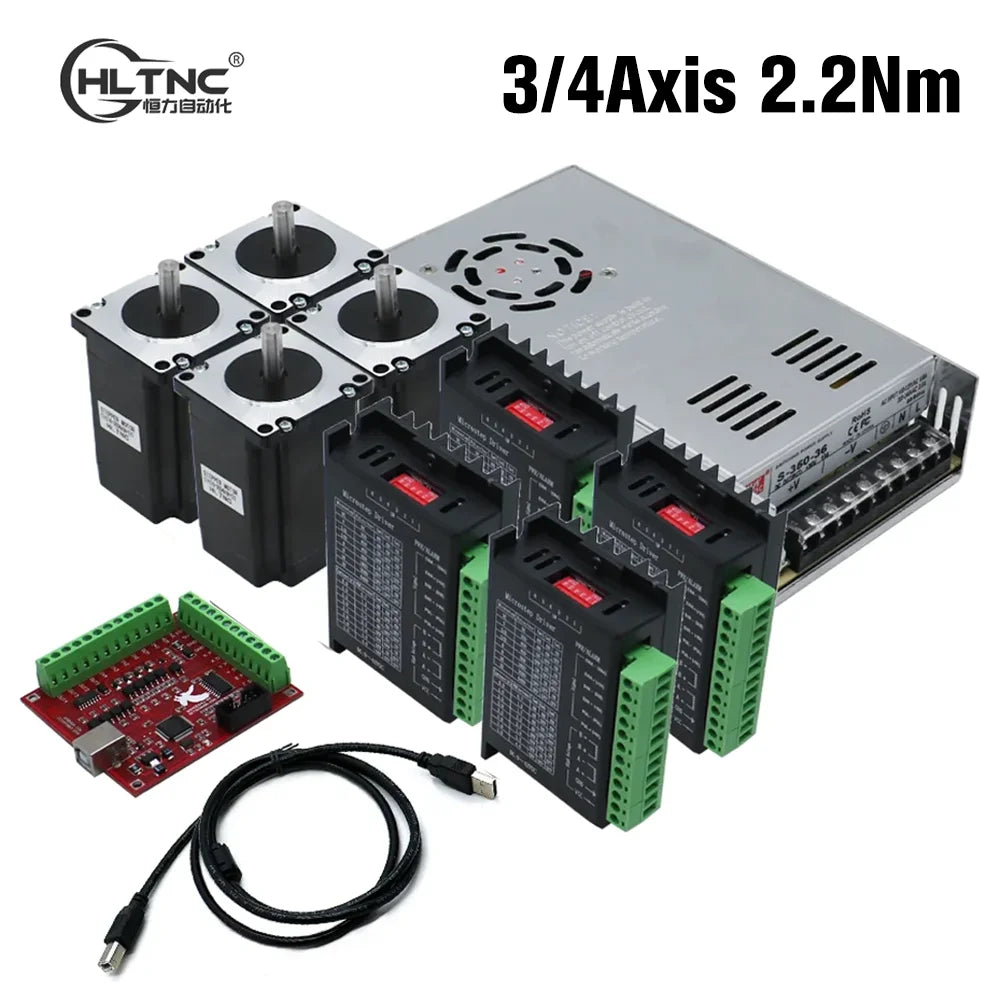

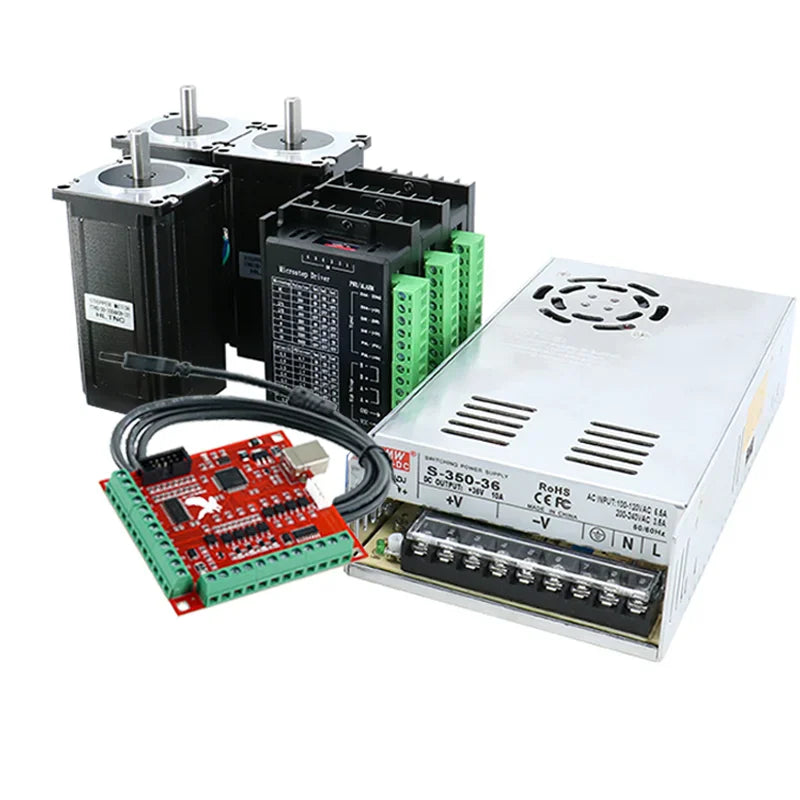

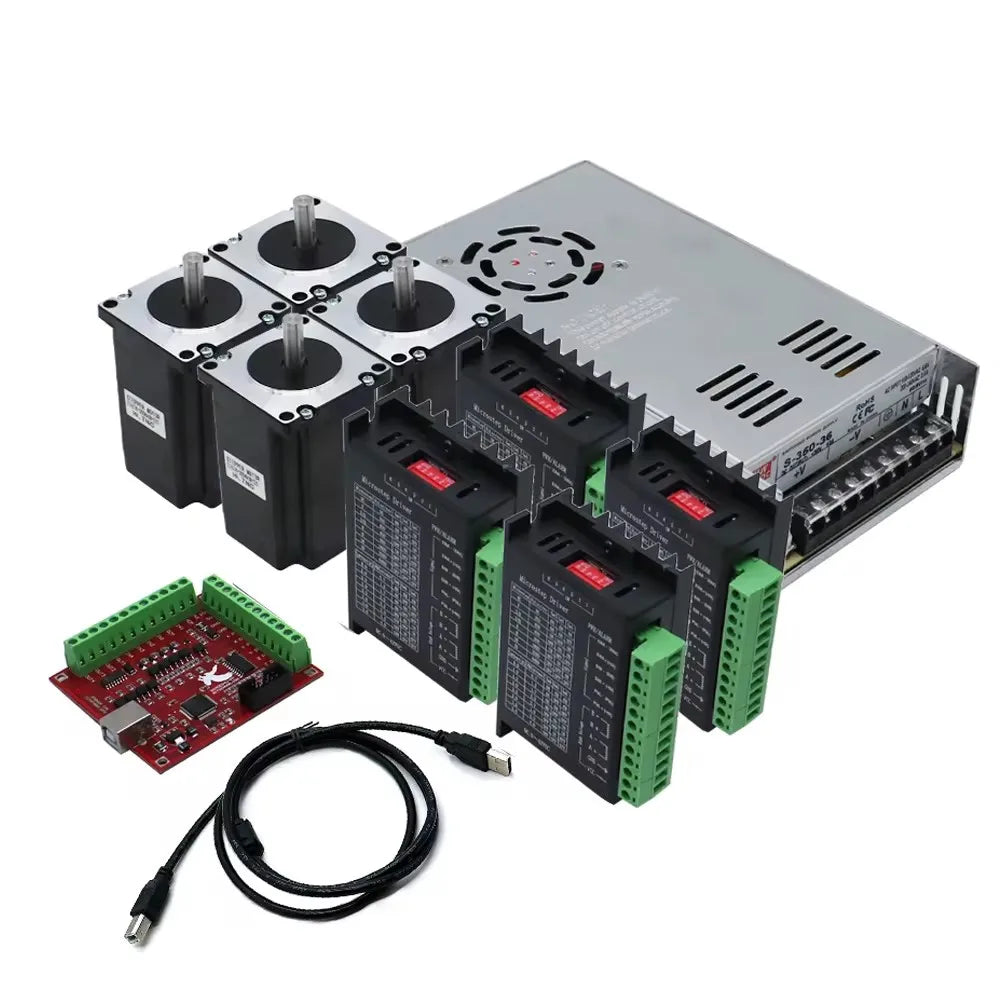

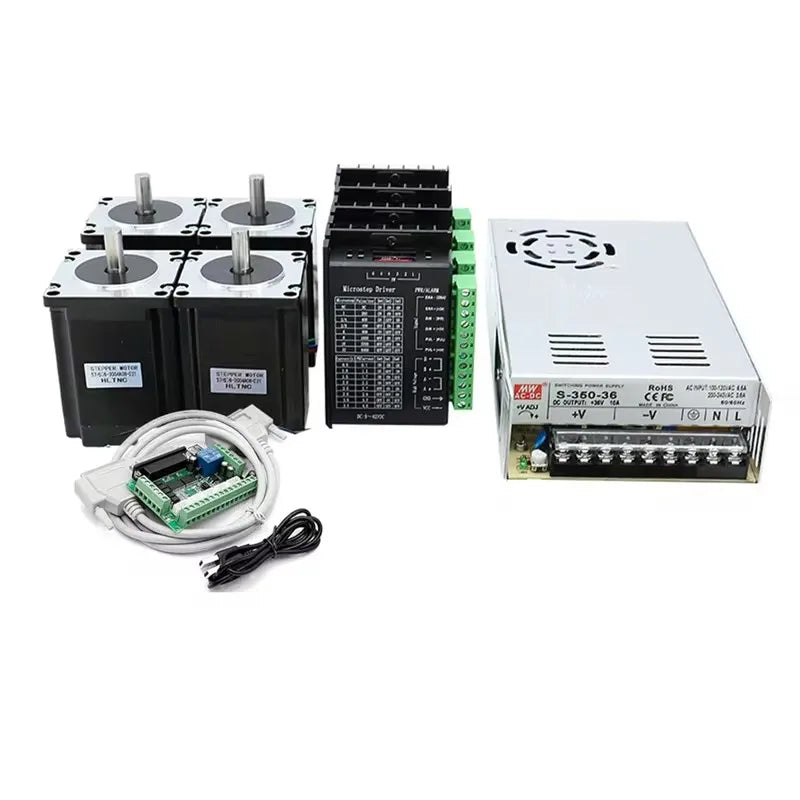

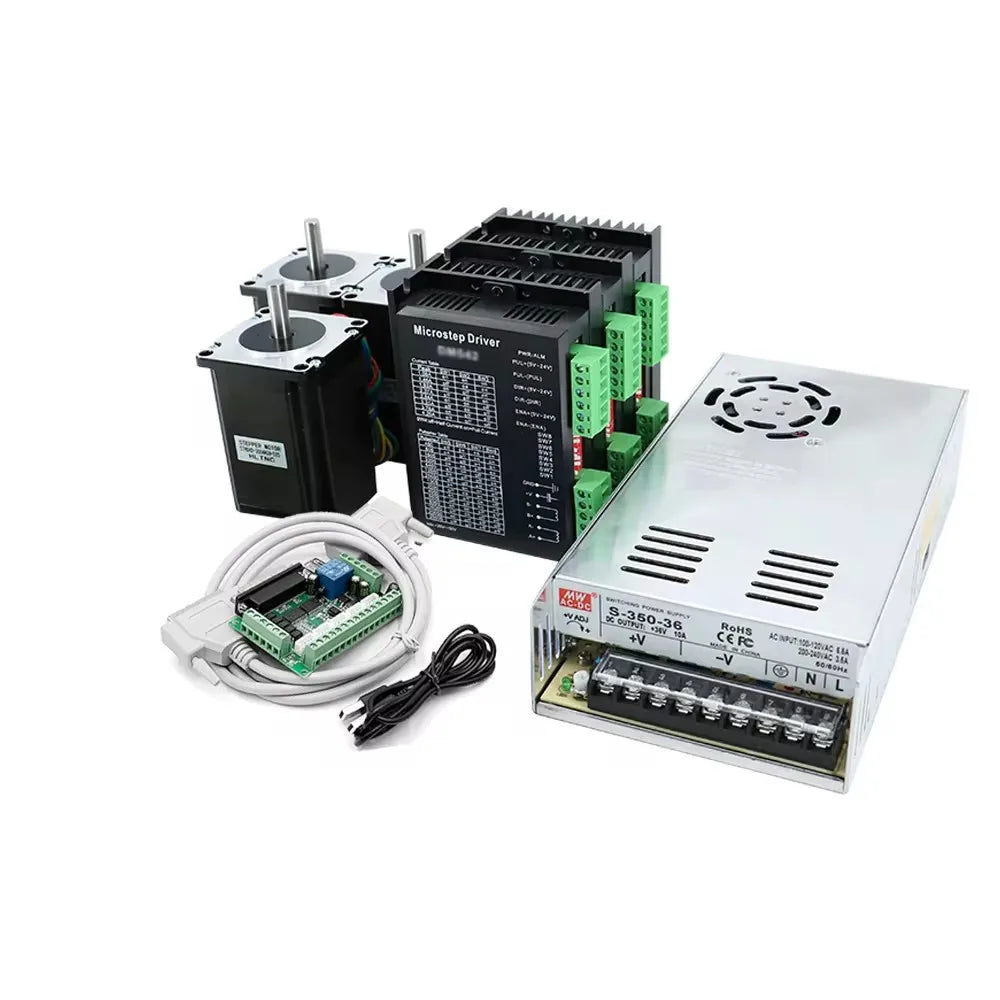

1.Nema 23 Stepper Motor × 4

2.TB6600/DM542/DM556 drivers x 4 (please select according to the options)

3.USB Mach3 CNC Controller x 1

4.350W 36V Switching Power Supply x 1

5.1 set of matching connecting wires

3.1 Nema 23 Stepper Motor

• Model: Nema 23 (57mm flange size)

• Holding Torque: 2.2N·m (315oz-in)

• Length: 82mm

• Step Angle: 1.8°

• Phase: 2-phase

• Rated Current per Phase: 3A

• Voltage: 3.6V

• Lead Wires: 4 wires

• Shaft Diameter: 6.35mm or 8mm (optional)

• Protection: IP54 (dust and water resistant)

• Certifications: CE, ROHS, ISO, UL

3.2 Stepper Motor Drivers (TB6600 / DM542 / DM556)

Common Specifications

• Input Voltage: DC 9-40V (TB6600); DC 20-50V (DM542/DM556)

• Output Current: 0.5-4A (TB6600); 0.5-5.6A (DM542/DM556)

• Control Mode: Step & Direction / CW/CCW (double pulse)

• Microstep Resolution: Adjustable via DIP switches (up to 16 microsteps for DM556)

• Protection Functions: Over-voltage, over-current, short-circuit, motor cable error protection

• Optically Isolated Inputs: 5V or 24V compatible

Driver Differences

• TB6600: Cost-effective, suitable for basic CNC applications, max pulse frequency 100KHz

• DM542: High precision, low noise, max pulse frequency 200KHz, ideal for medium-load projects

• DM556: Advanced digital driver, 20-50V input, 0.5-5.6A output, anti-resonance, soft-start, perfect for high-precision machining

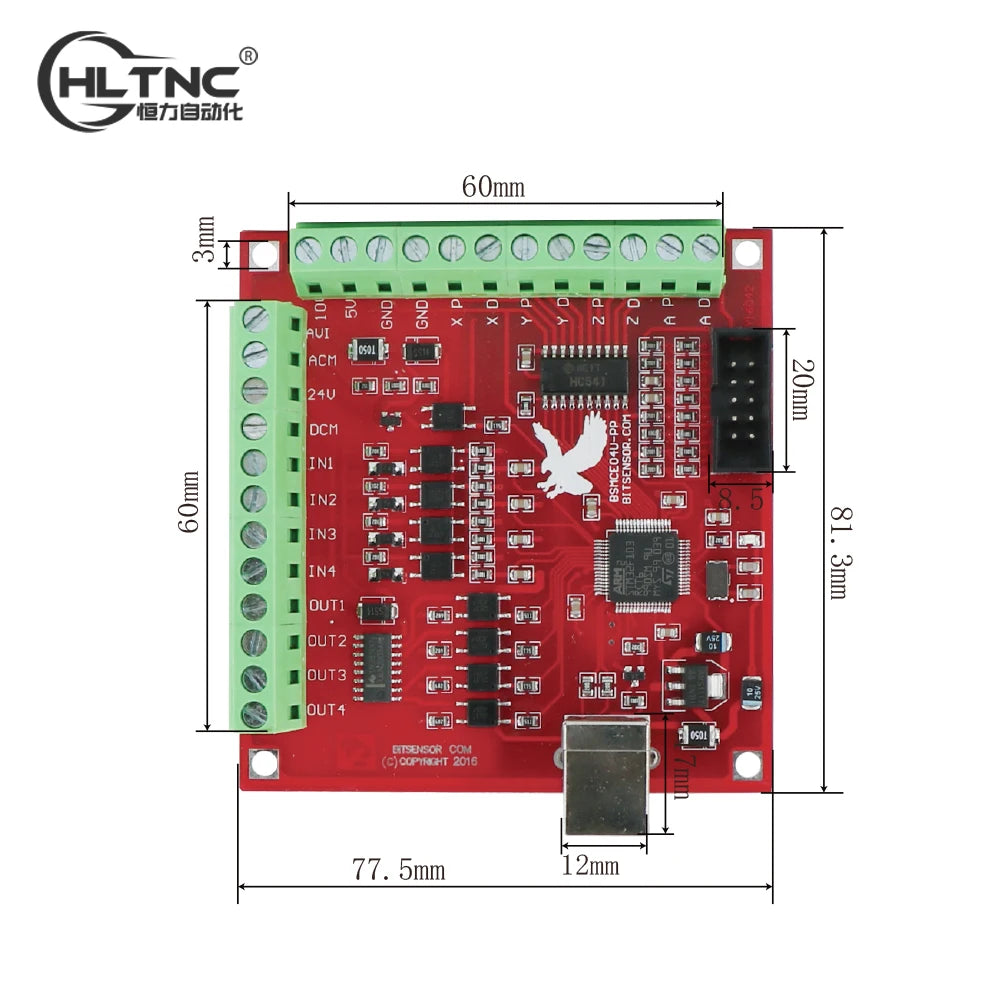

3.3 USB/LPT Mach3 Controller

• Interface: USB 2.0 + LPT Parallel Port (compatible with most PCs)

• Control Axis: 3 or 4 axis (support X, Y, Z, A axes)

• Compatibility: Works with Mach3 software (Windows XP/7/10 recommended)

• Signal Output: Step, Direction, Enable signals for stepper drivers

• Input Signals: Limit switch, emergency stop, spindle control support

• Power Supply: 5V DC (powered by USB or external adapter)

3.4 350W 36V Power Supply (PSU)

• Rated Power: 350W

• Output Voltage: 36V DC

• Output Current: 9.7A

• Input Voltage: AC 115V/230V (selectable by switch)

• Efficiency: Up to 89%

• Protection Functions: Short-circuit, overload, over-voltage, over-temperature protection

• Cooling: Built-in DC fan for forced air cooling

• Operating Temperature: -25°C to +70°C

We also have stepper motor with other torque ,click the model to see more details

H        E        N        G        L        I        Z        I        D        O        N        G        H        U       A

Packing Content

✅ Ready to use out of the box, worry free and effortless

A set includes all necessary hardware: 4 Nema 23 stepper motors, drivers, USB/LPT dual interface controllers, and a 350W high-power power supply. You only need to prepare the CNC machine mechanical structure and computer to quickly start your first carving project.

✅ Powerful power, worry free carving

Adopting high-performance Nema 23 stepper motor (torque 2.2N. m, body 82mm), the output force is strong and stable. Whether it's finely carved PCB circuit boards, hardwood reliefs, or cutting acrylic and soft aluminum, they can all be easily handled, effectively avoiding stepping and lagging.

✅ Drive core, silent and high-precision (with outstanding highlights)

The kit can be optionally equipped with a high-performance subdivision driver (such as DM556), which provides lower running noise, smoother motion trajectory, and higher subdivision accuracy compared to the basic TB6600. This is a wise choice for users who pursue excellent carving quality.

✅ Dual interface compatibility, worry free connection

Original USB+LPT dual interface design! Perfectly solves the problem of modern laptops and desktops without outdated parallel ports (LPTs). Plug and play greatly enhances the compatibility and portability of the device.

✅ Stable power supply, cornerstone of performance

Equipped with a standard 350W 36V high-power industrial grade switching power supply, it provides sufficient energy reserve for multiple motors to operate at high speed simultaneously, with stable voltage, effectively protecting your equipment and preventing carving failures caused by insufficient power supply.

✅ Strong scalability, future oriented

Support 3-axis standard carving and reserve a 4-axis interface. If you need to upgrade to a rotating axis for cylinder carving in the future, there is no need to replace the control system, protecting your investment.

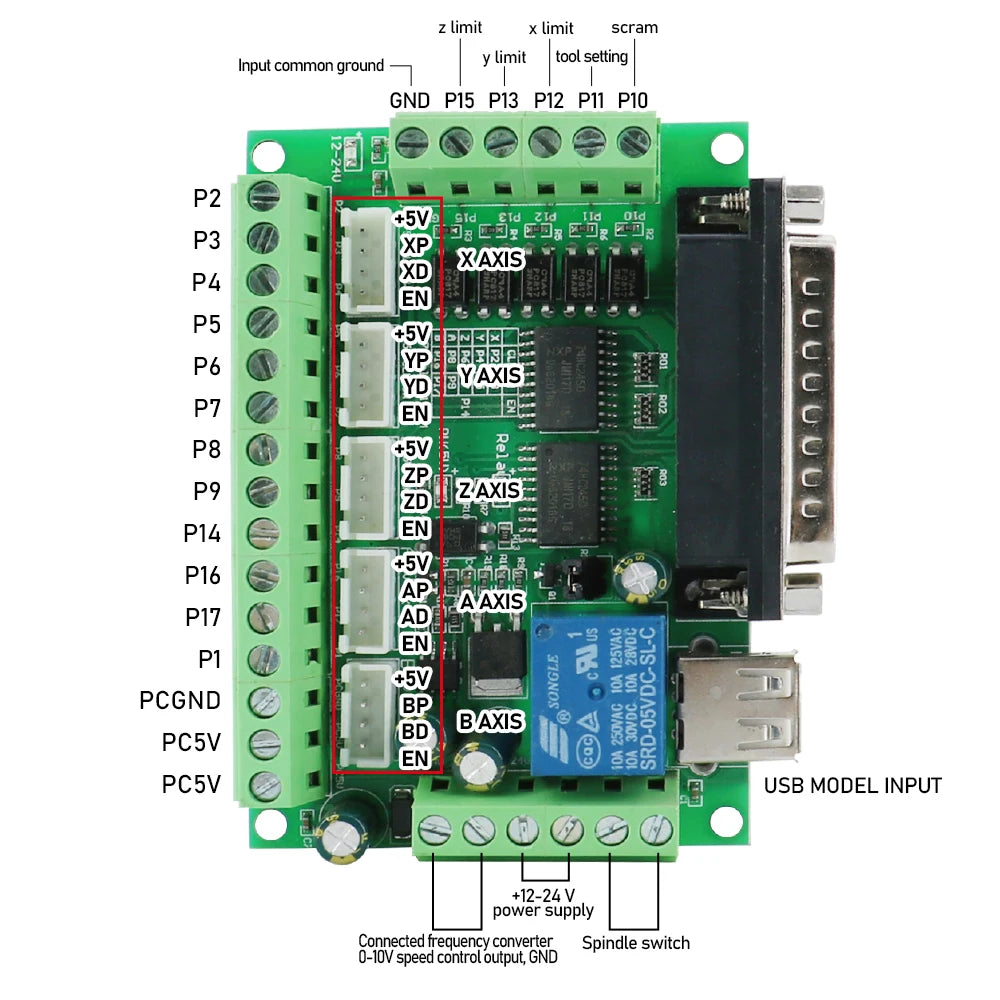

5 Axis LPT DB25 Board

 Features

1. Support MACH3 and other software that support parallel port control

2. the USB Power supply is separated from the peripheral power supply

to ensure the safety of the computer

3.Peripheral wide voltage input, 12-24v, and anti-reverse connection function

4.All input signals are isolated byy the optical coupler, which can be connected

to emergency stop, tool setter, limit position, etc., to ensre the safety of PC

5. One 0-10v analog voltage output isolated by optocoupler can control the VFD with corresponding analog interface.control spindle speed,The output port is P1 port

7.Open all 17ports,which can be connected with a driver with an optocoupler,and can control a 5 sets stepper motor.

8.P1 is used as PWM output, which can control the spindle speed controller with optocoupler input.

9.It can be connected to a driver with common cathode or common anode, and the input level is 5v.

57HS82 2.2N Stepper Motor

Dual Shaft Motor

Single Shaft Motor

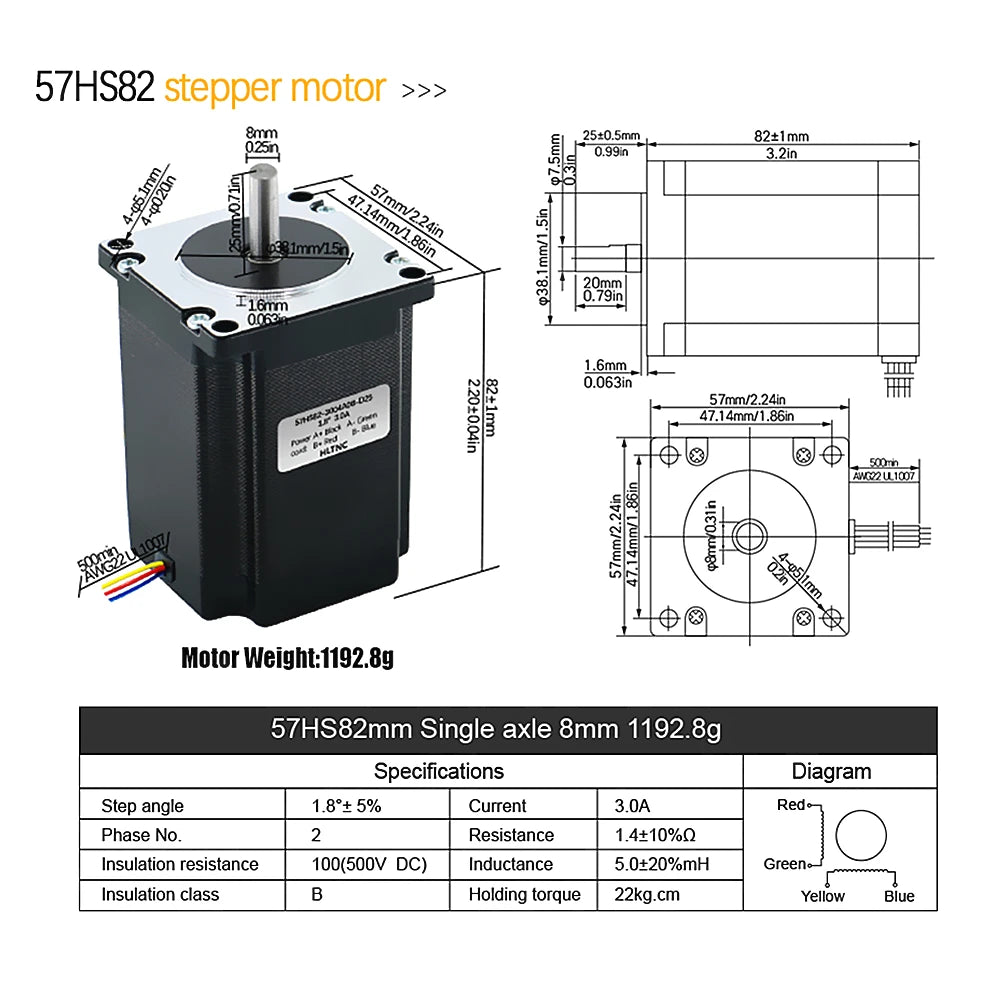

Hybrid Stepper Motor Type 57HS82
Specifications				Diagram
Step Angle	1.8°± 5%	Current	3.0A
Phase No.	2	Resistance	1.4±10% Ω
Insulation Resistance	100Mohm(500V DC)	Inductance	5±20% mH
Insulation Class	B	Holding Torque	22kg.cm (2.2Nm)

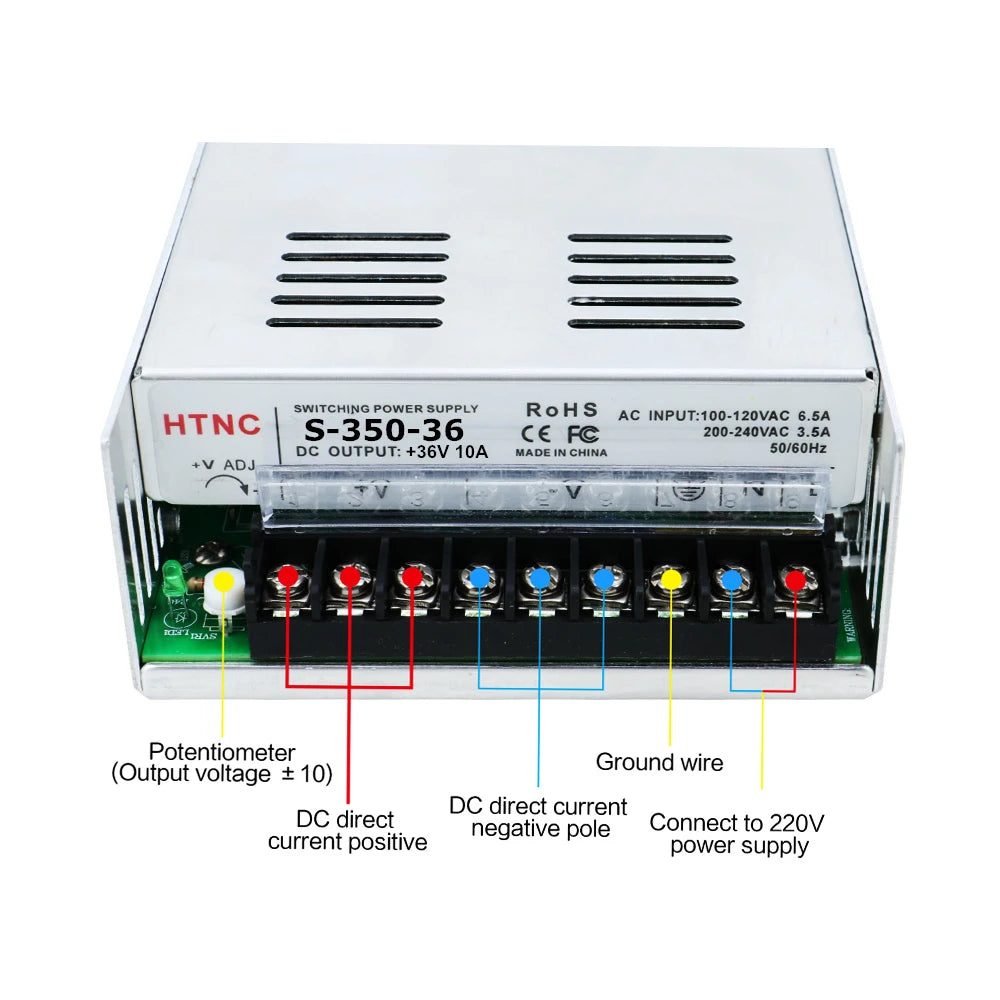

350W 36V Power Supply
Type	S-350-36
Voltage DC	36V
Rated Current	9.7A
Current Range	0-9.7A
Rated Power	349.2W
Ripple and Noise	240mVp-p
Voltage Adjustment Range	32-40V
Voltage Accuracy	± 1.0%
Linear Adjustment Rate	± 0.5%
Load Adjustment Rate	± 0.5%
Start-up and Rise Time	200ms 50ms
Retention Time	20ms

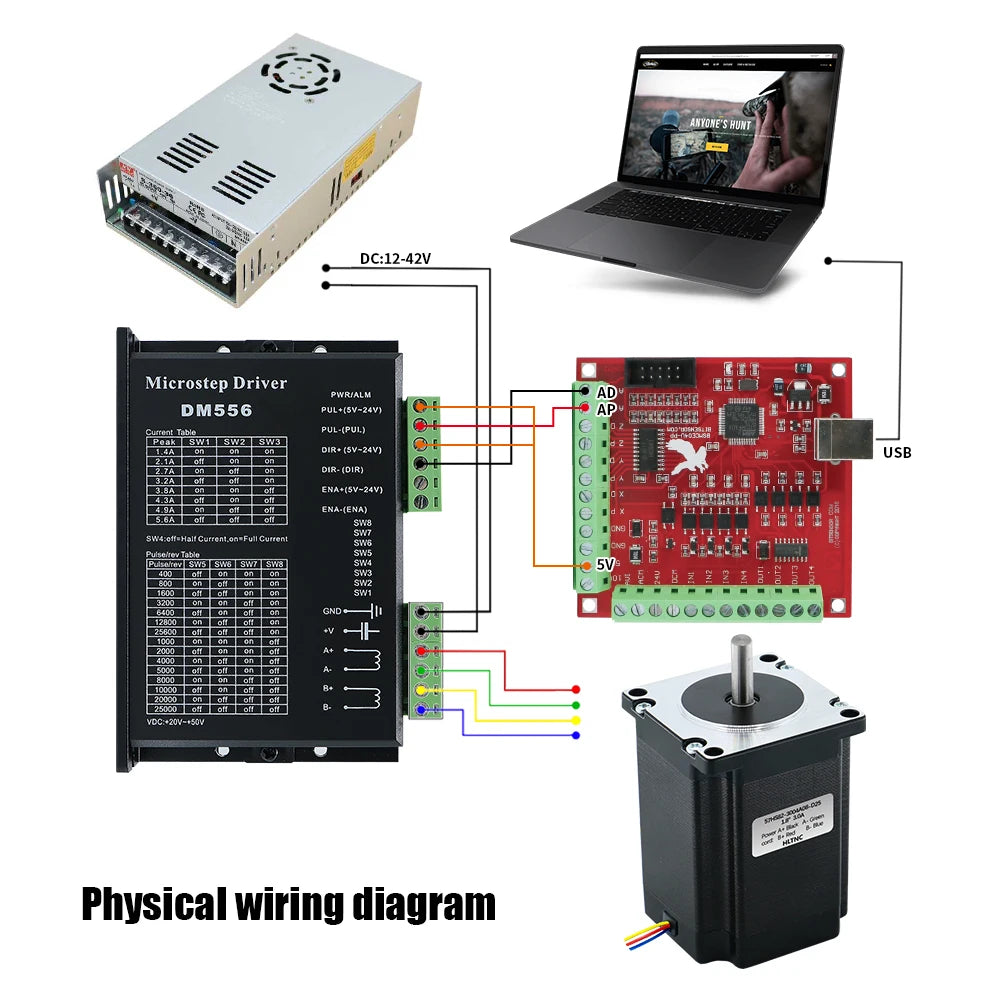

Connection Diagram

Frequently Asked Questions (Q&A):

Q: What knowledge do I need to possess in order to use it?

A: Basic understanding of CNC principles and Mach3 (or related) software operation is required. There are a large number of free tutorials online, and the learning curve is smooth.

Q: How many machines can this system drive?

A: Suitable for most desktop level small and medium-sized CNC machine tools (such as 6040, 6090, etc.). For large or heavy machine tools, it is recommended to consult customer service for confirmation.

Q: How to choose the driver model?

A: TB6600: A cost-effective choice that meets basic needs. DM542/DM556: a mid to high end option with lower noise, smoother low-speed operation, and higher precision. It is recommended for users who have requirements for carving quality.
