SPECIFICATIONS

Brand Name: HLTNC

Certification: ce,ISO,ROHS,CE,CCC

Choice: yes

Current / Phase: 3A

Detent Torque: 700 g.cm Max

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: None

Holding Torque: 2.2 N.m,22 Kg.cm, 22Kg.cm

Model Number: 57HS82

Motor Length: 82 mm

No of leads: 4

Origin: Mainland China

Phase: 2

Phase Inductance: 5.0mH

Phase Resisitance: 1.4Ω

Rated voltage: 4.2V

Rotor Intertia: 510g.cm2

Size: 57x57x82mm

Step Angle(degrees): 1.8 Degree

Type: HYBRID,Hybrid

semi_Choice: yes

Model: Nema 23 (57mm)

Step angle: 1.8 °

Torque: 2.2 N.m (315 Oz in)

Body length: 82mm

Number of wires: 4 wires

Number of phases: 2 phases

Insulation Class: Class B

Applicable scenarios: CNC engraving machines/routers/automation equipment/precision instruments



Model No	Step Angle (°)	Rated Voltage (V)	Rated Current (A)	Phase Resistance (Ω)	Phase Inductance (mH)	Holding Torque (Kg.cm)	Detent Torque (G.cm Max)	Rotor Inertia (g.cm^2)	Motor Length (mm)	Lead Wires No.	Motor Weight (Kg)
57hs56-3004	1.8	2.85	3	0.95	2.8	12	400	300	56	4	0.7
57hs76-3004	1.8	2.7	3	0.9	3.5	20	680	480	76	4	1
57hs82-3004	1.8	3	3	1.4	5	22	700	510	82	4	1.2
57hs100-3004	1.8	3	3	1	4.5	25	1000	680	100	4	1.4
57hs112-4004	1.8	3.6	4	0.9	4	30	1200	800	112	4	1.7
57hs112-3004	1.8	3.9	3	1.3	6.5	30	1200	800	112	4	1.7

All the motor have dual shaft version. Click Model to see details.

🚀 Precise power, control every moment | HLTNC Nema 23 high-performance stepper motor 🚀



🔥 Inject strong power into professional CNC engraving and routing equipment! 🔥

If you pursue ultimate carving accuracy, stable operating performance, and powerful torque output, this HLTNC Nema 23 stepper motor will be your ideal choice! Specially designed for high load CNC equipment, it can easily handle precision carving, 3D cutting, and complex routing processing, helping you efficiently complete every creative project!

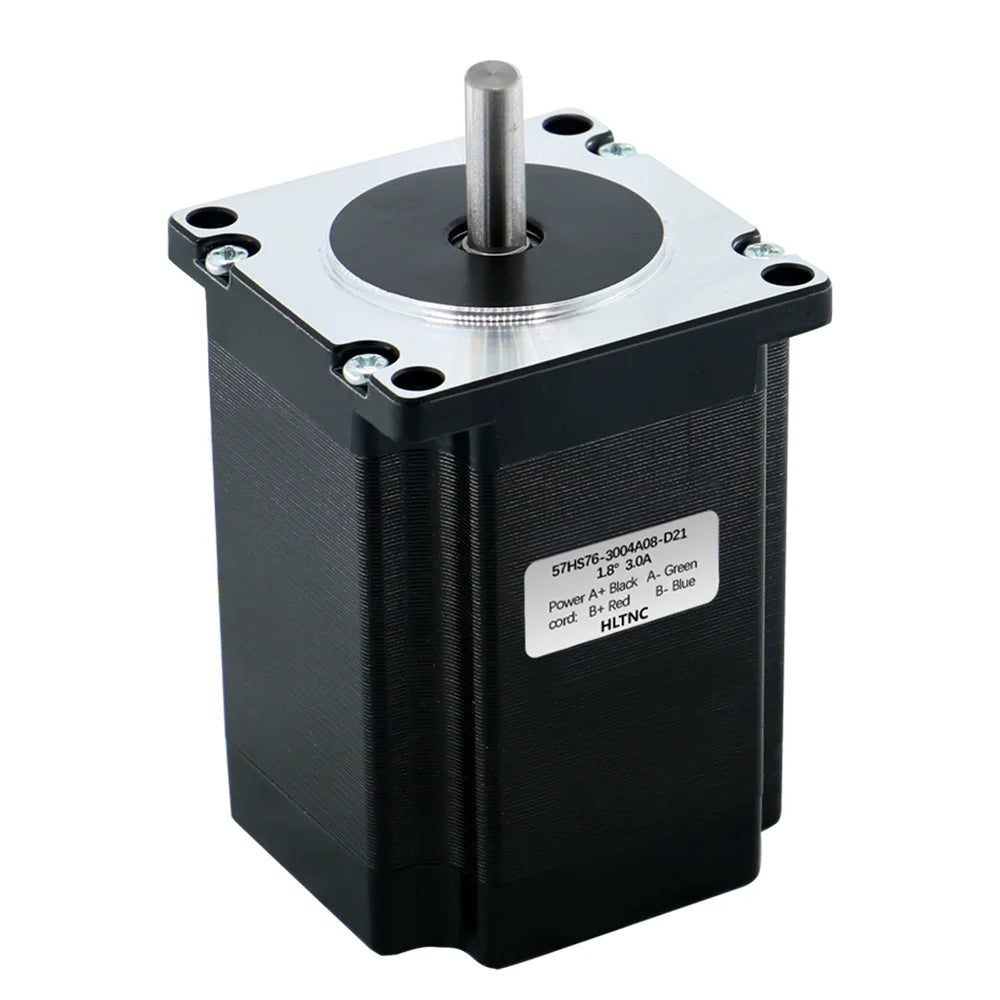

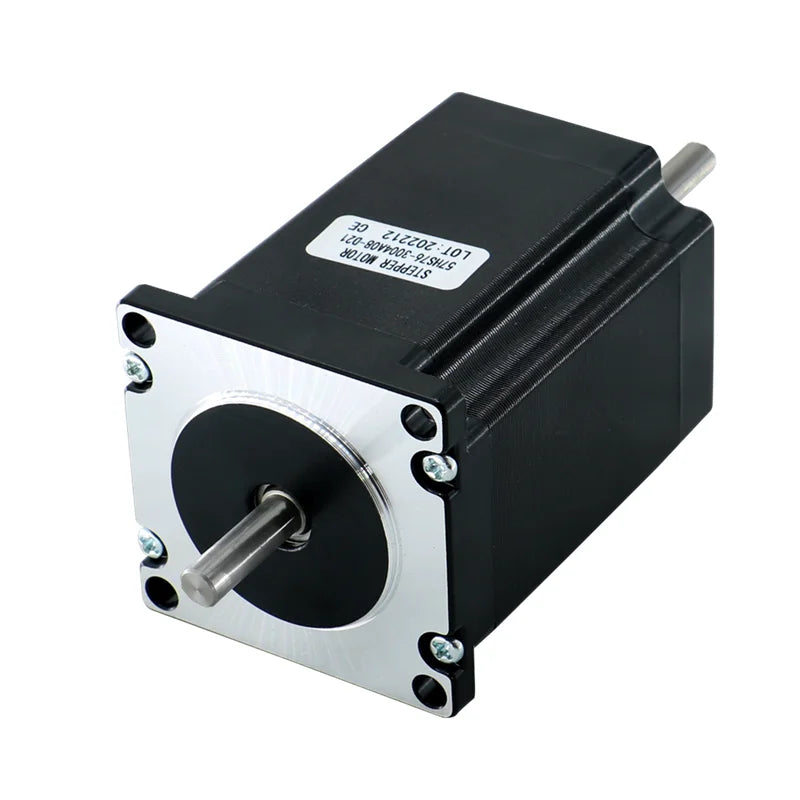

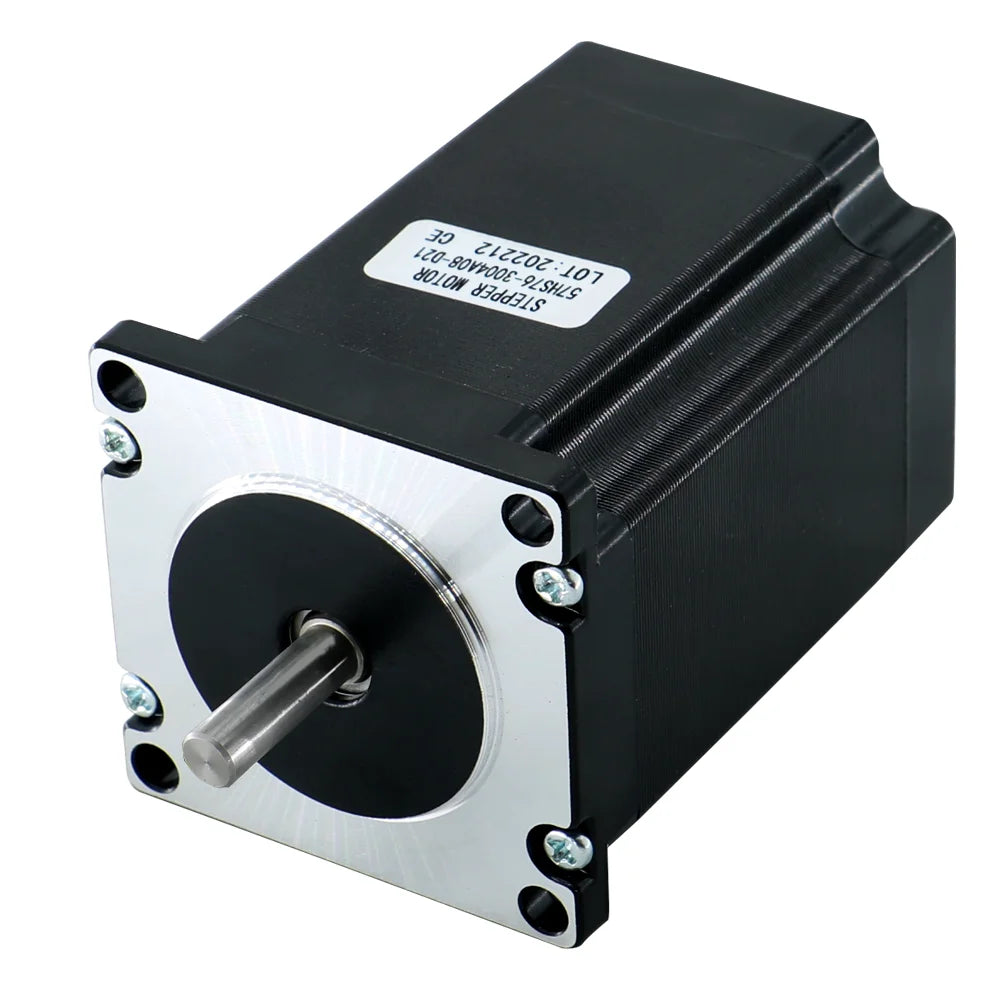

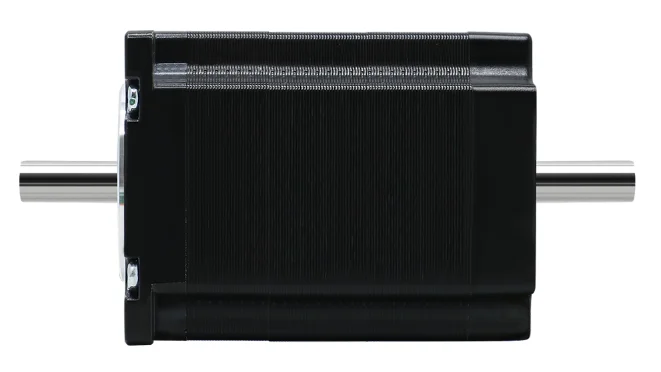

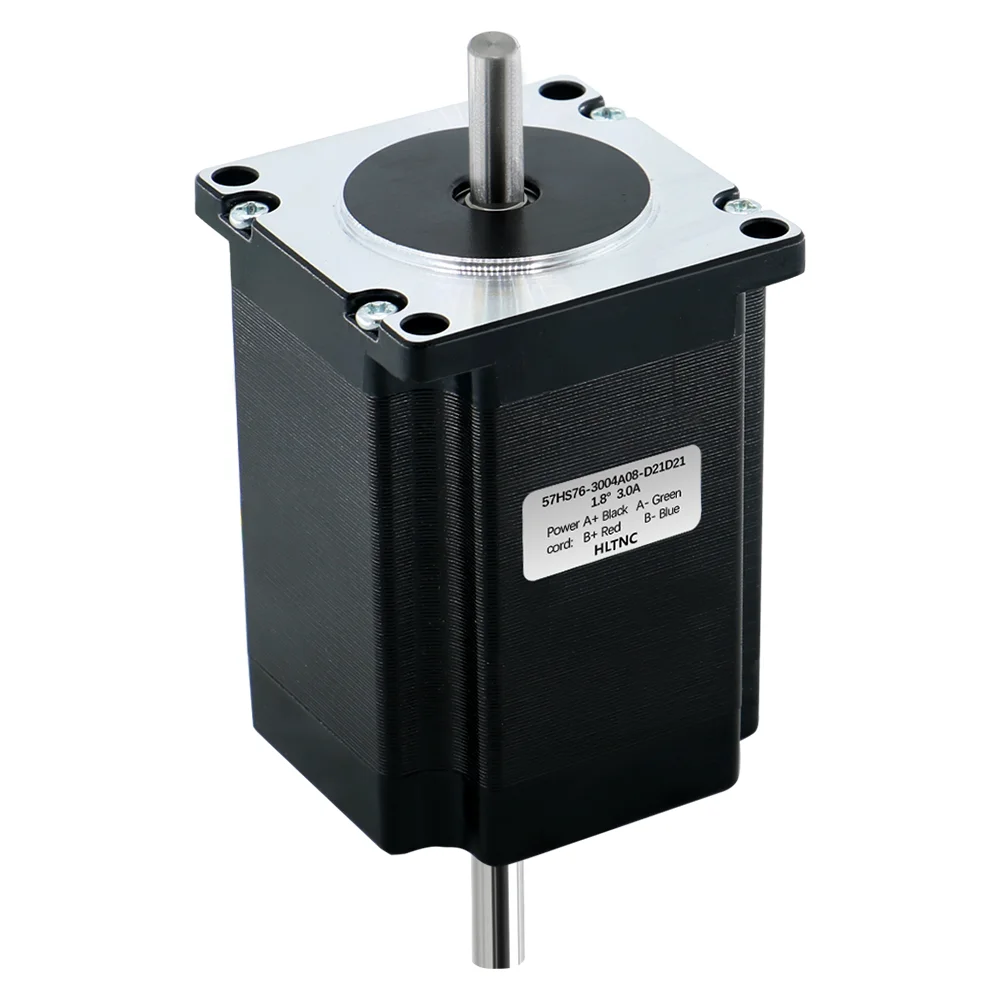

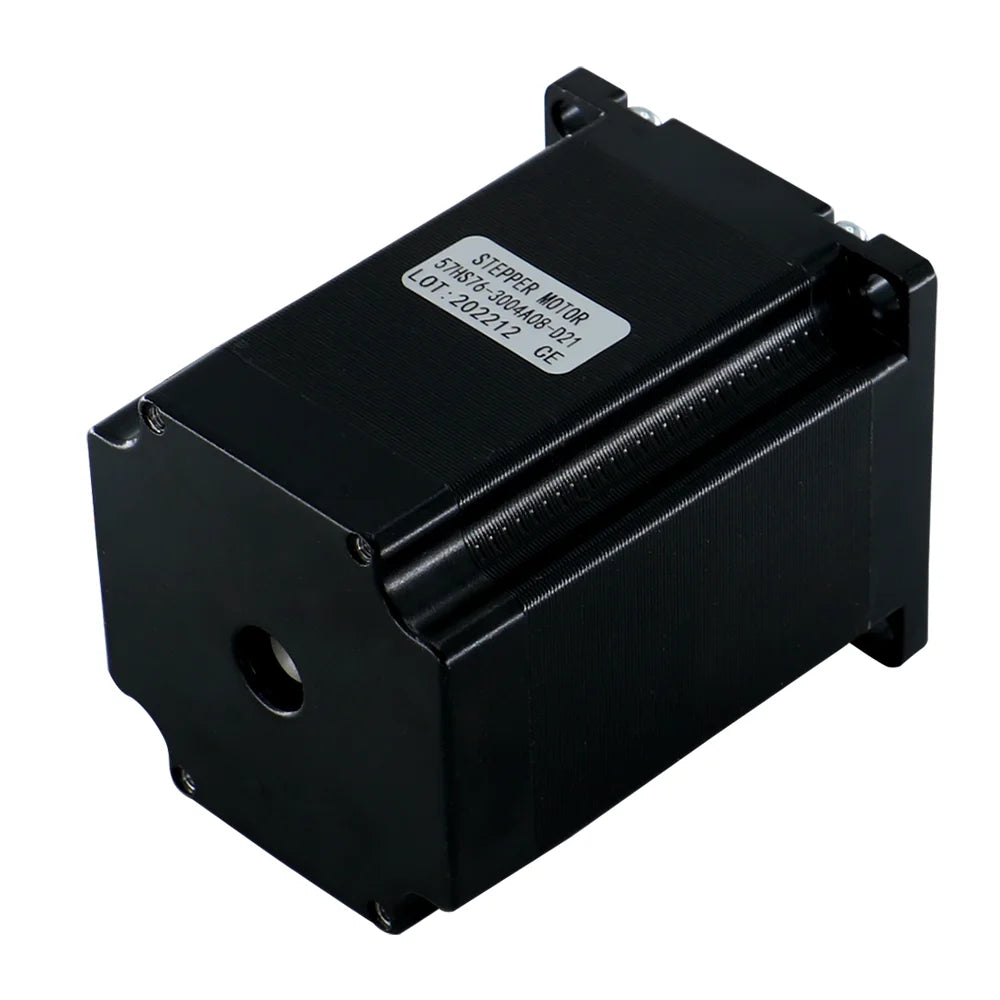

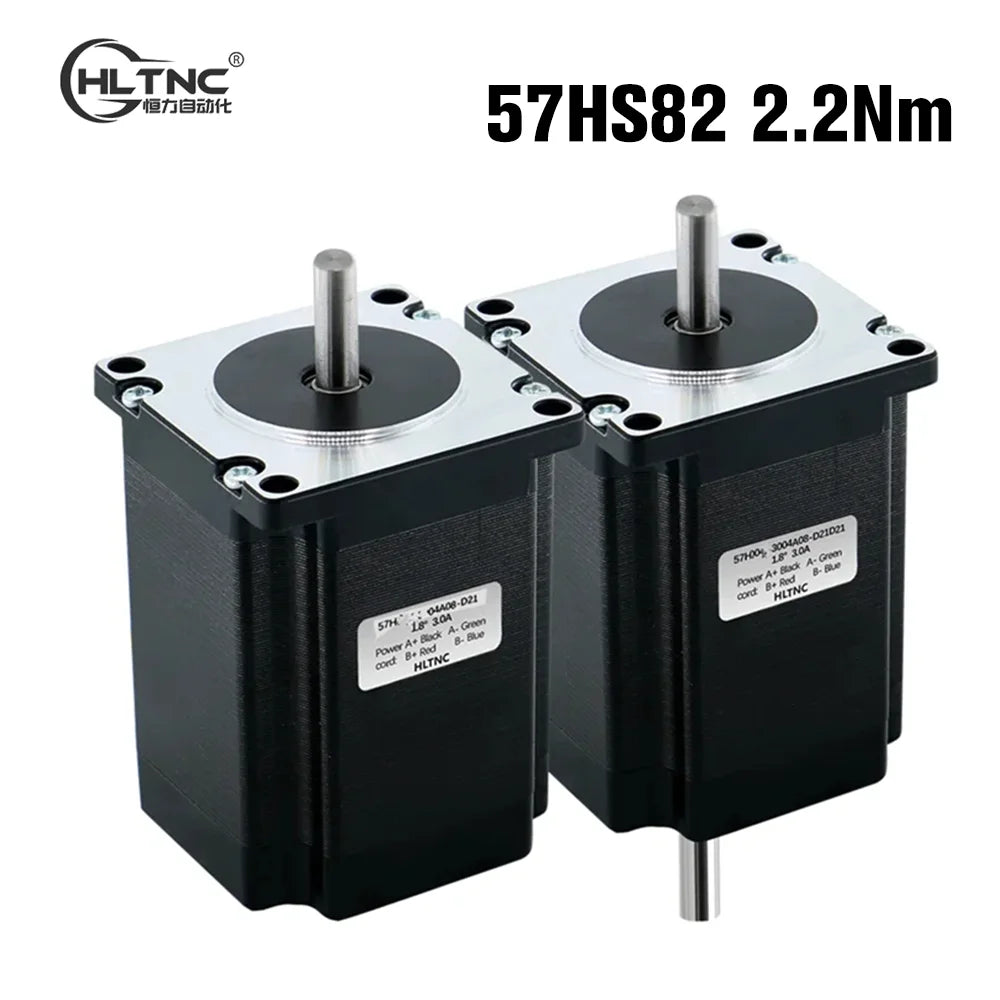

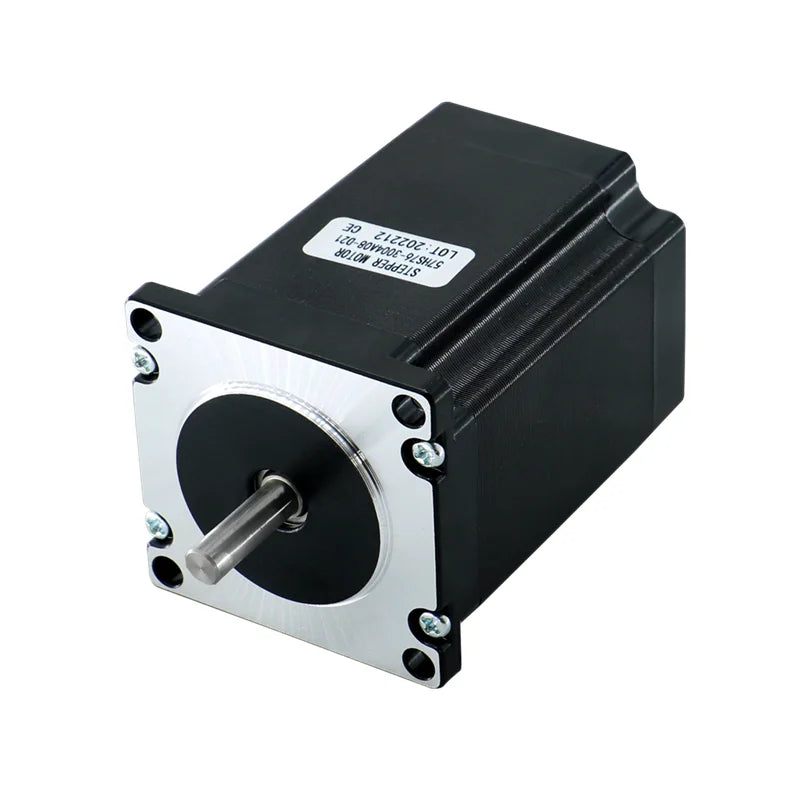

1x 57HS82 2.2Nm Nema23 Stepper Motor（Single or Dual Shaft）





💪 Core advantage, born for professional performance

🎯 Strong torque: up to 2.2 N.m (315 Oz in) holding torque, providing stable and powerful driving force, ensuring that the equipment does not lose steps or get stuck during high-speed operation!



⚡ Precise control: adopting a 2-phase 4-wire design, compatible with mainstream drivers and control systems, achieving high subdivision and low vibration operation, making every carving detail clear and smooth!



🔧 Durable and sturdy: The standard Nema 23 installation size (57mm frame), combined with an 82mm long body, provides faster heat dissipation, longer lifespan, and continuous high-intensity work without generating heat!



🛠 Wide compatibility: Perfectly compatible with various CNC engraving machines, 3D printers, laser cutting equipment, and automation control systems, plug and play, worry free and effortless!

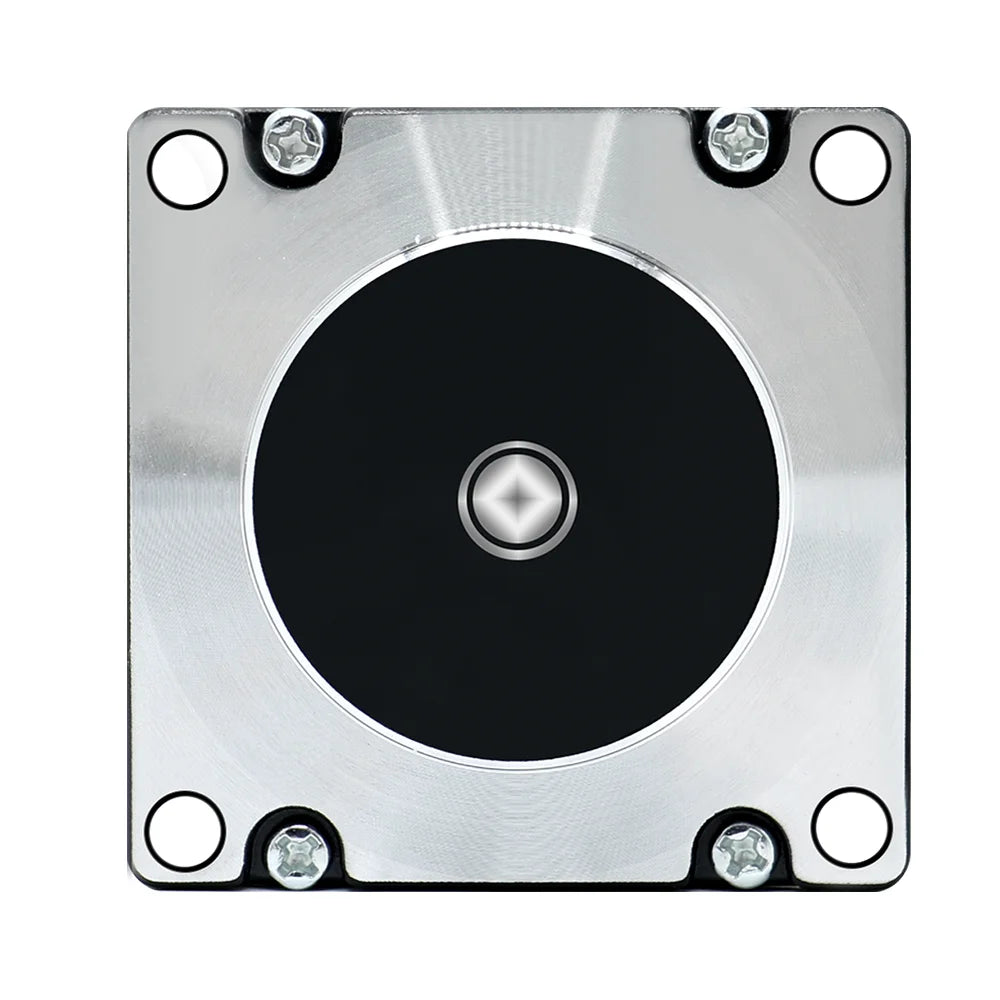

57HS82-3004A8-B25 HYBRID STEPPER MOTOR

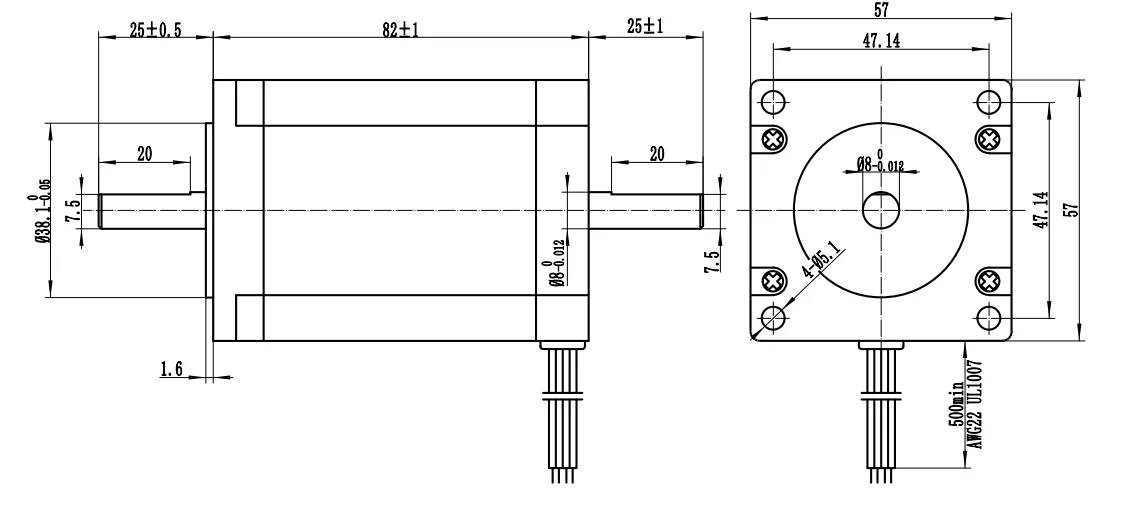

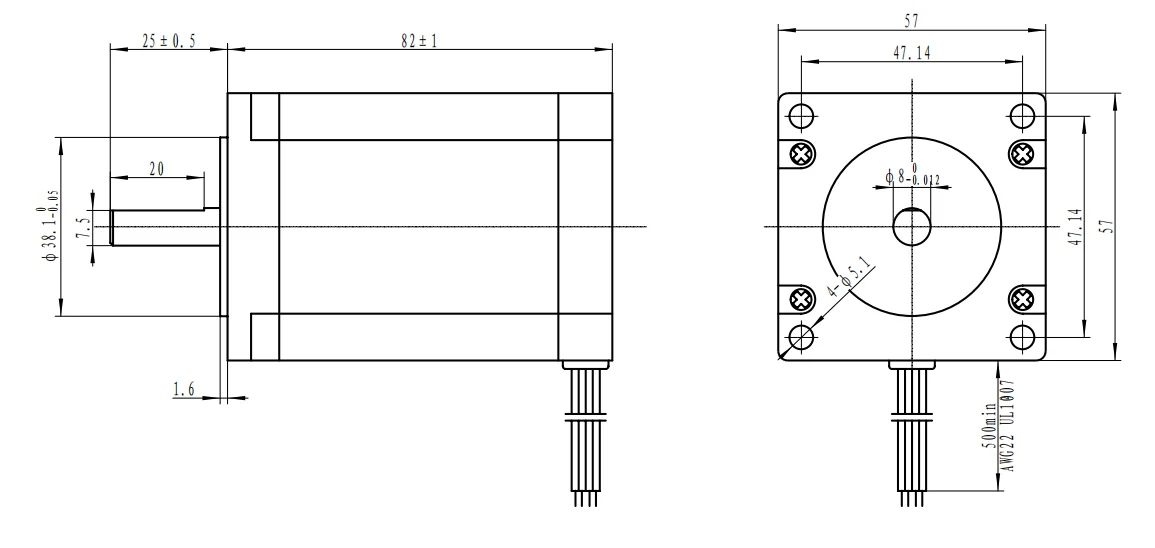

Specifications				Diagram
Step Angle	1.8 ° ± 5%	Current	3.0A
Phase No.	2	Resistance	1.4±10% Ω
Insulation resistance	100MOhm （500V DC）	Inductance	5.0± 20%mH
Insulation Class	B	Holding Torque	2.2N.m

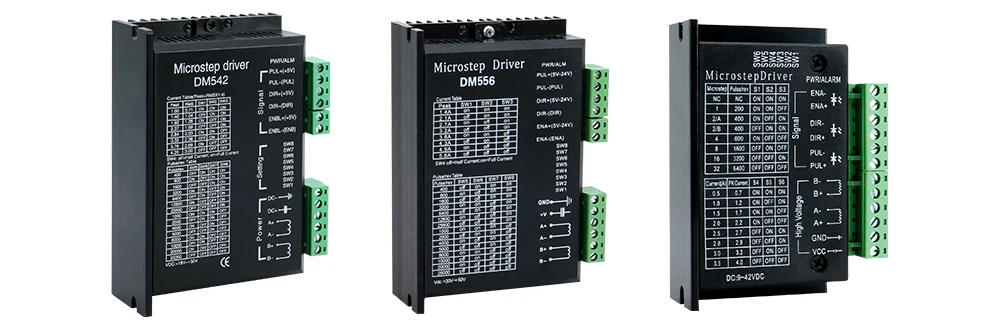

DM542	DM556	TB6600



click the model to see more details
