HLTNC CNC Nema34 86mm 4.5N 8.5N 12N Closed Loop Stepper motor Kit + 400W 60V PSU + HBS86H Hybrid Servo Driver + Encoder Cable

HLTNC CNC Nema34 86mm 4.5N 8.5N 12N Closed Loop Stepper motor Kit + 400W 60V PSU + HBS86H Hybrid Servo Driver + Encoder Cable

$392.32 USD
$0.00 USD $392.32 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

SPECIFICATIONS

Brand Name: HLTNC

Cable length: 3m

Certification: CCC,ce,CE,CCC

Does it include a Battery?: No

Does it include wireless functionality?: No

Driver: HBS86H

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: None

Holding Torque: 4.5N 8.5N 12N

Model Number: 86HB250

Motor Length: 80mm 118mm 156mm

Motor Shaft Diameter: 14mm with 5mm key

Motor Type: Closed Loop

Origin: Mainland China

Phase: 2

Phase Number: 2

Power Supply: 400W 60v

Rated Current: 6A

Reted Voltage: 3V

Shaft Length: 35

Step Angle: 1.8+5%

Step Angle(degrees): 1.8

torque: 4.5N/8.5N/12N

1 Pc Nema34 Closed Loop Motor

1 Pc HBS86H driver

1 Pc 3Meter Extended Encoder Cable


Hot Sale Complete CNC Kit! Stop Wasting Money & Time on Matching Parts! HLTNC Nema34 Closed Loop Stepper Motor Kit is all-in-one — no need to buy motor, driver, power supply or encoder cable separately, solve compatibility troubles and installation hassle in one go!

✅ 3 Torque Options for Heavy-Duty CNC! Perfect for DIY enthusiasts, small workshops & professional machinists. Designed for CNC engravers, mills and heavy-load equipment. Add to Cart Now & Enjoy Fast Worldwide Shipping! 🚢

Packing List

1 Pc Nema34 Closed Loop Motor

1 Pc HBS86H driver

1 Pc 3Meter Extended Encoder Cable

1.Nema34 Motor, Large Torque

2.Closed Loop System, High Precision

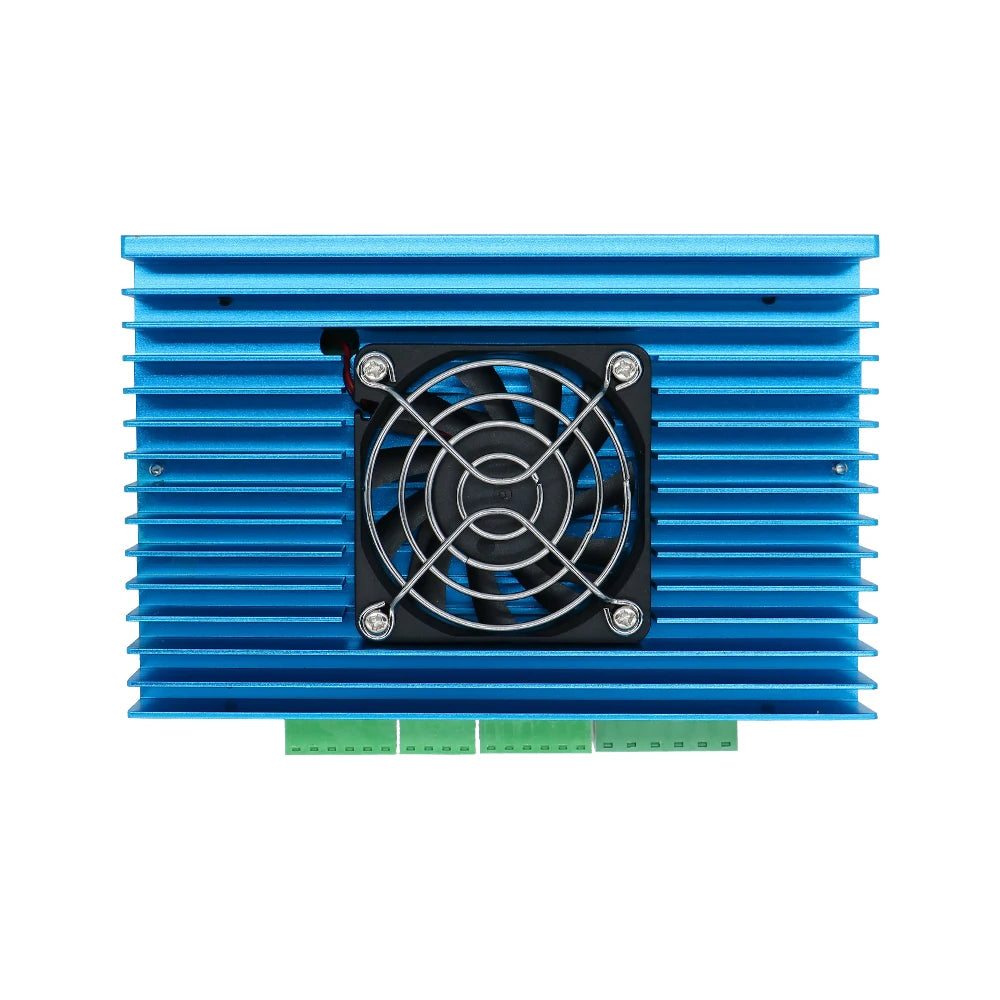

3.Driver With Cooling Fans, Cool Down Quickly
Core driving component: Closed Loop Stepper Motor
Key feature: This is the core advantage of the kit. Unlike traditional open-loop stepper motors, it has a built-in encoder (position sensor).
Advantages:
High precision and reliability: The driver reads the actual position of the motor shaft in real time (through encoder feedback) and compares it with the commanded position. If a step loss is detected (such as the motor not rotating to the predetermined position due to excessive load), the driver will automatically correct it to ensure precise movement and avoid accumulated errors. This greatly improves the reliability and machining accuracy of the system.
Anti step loss: effectively solves the problem of step loss that may occur in traditional open-loop stepping under overload, rapid acceleration, and other situations.
Reportable status (optional): Some closed-loop systems can report error status (such as overload, overheating) to the controller.

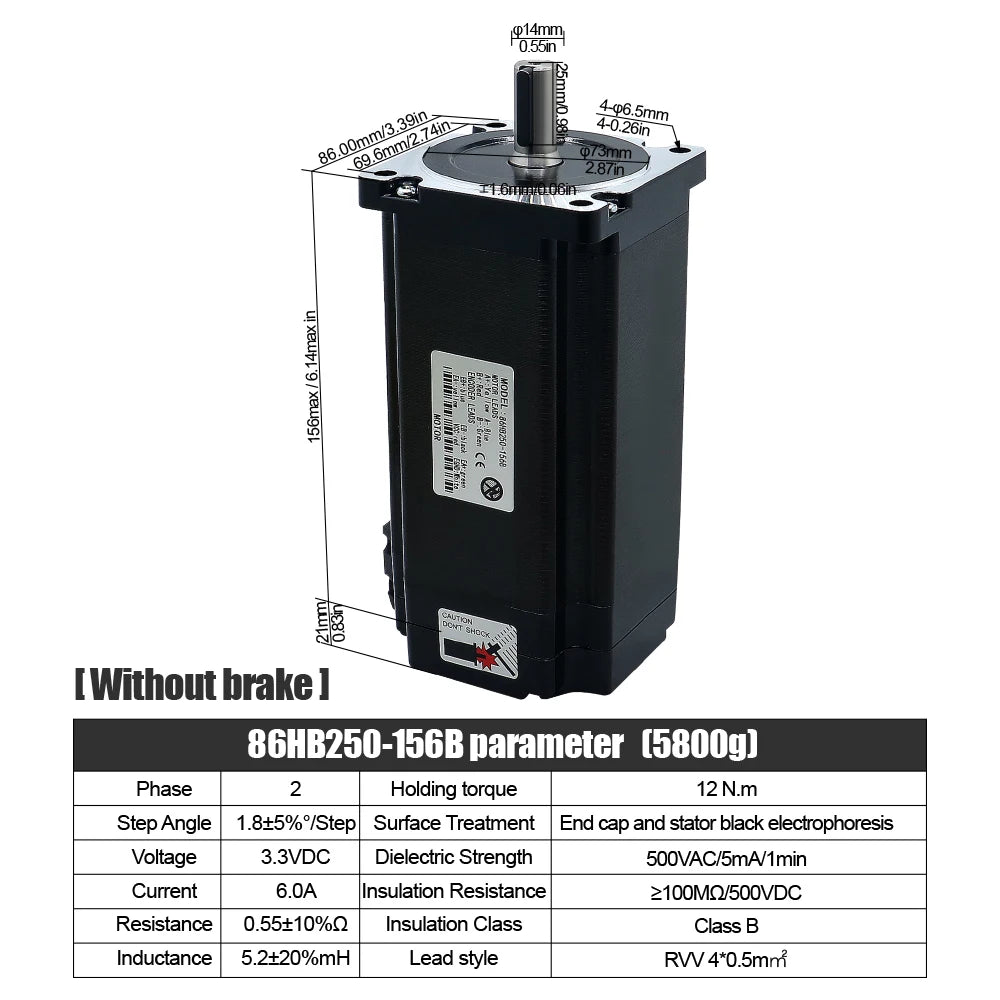

Motor specification: Nema34 86mm
Standard size: "Nema34" refers to the installation flange size and shaft diameter that comply with NEMA (National Electrical Manufacturers Association) Standard 34. This is a very common and standard size in industrial automation.
Body length: "86mm" refers to the length of the motor body. Under the same framework number (Nema34), the length of the fuselage is usually positively correlated with the torque output capability of the motor. Multiple torque options are provided here🌟 Core Advantages (Why Choose Our Complete CNC Kit?)
⚡ All-in-One Complete Kit: Everything You Need Included! Nema34 86mm Closed Loop Stepper Motor + 400W 60V PSU (Power Supply) + HBS86H Hybrid Servo Driver + Encoder Cable. No extra purchase, no compatibility issues — plug-and-play, save your time and money! 🛠️
⚡ Nema34 86mm Heavy-Duty Design: 86mm frame size, built for heavy-load CNC projects! 3 torque options to choose: 4.5Nm (light CNC), 8.5Nm (medium CNC), 12Nm (heavy-duty CNC/mills). Perfectly matches different CNC load needs, no overpaying for unused power! ⚙️
⚡ Closed Loop Technology: No More Step Loss! Built-in high-precision encoder provides real-time position feedback, eliminating positioning errors, material waste and unstable operation. Far more accurate and stable than open-loop motors — ideal for high-precision CNC machining! 🎯
⚡ High-Quality HBS86H Servo Driver: Professional hybrid servo driver, supports high torque output, low noise, low heat generation and energy-saving. With over-current, over-voltage, over-heat protection, ensuring long-term stable operation even for heavy use! 🛡️
⚡ 400W 60V Stable PSU: High-power power supply provides stable voltage, no voltage fluctuation, effectively protecting the motor and driver. Suitable for long working hours, perfect for industrial and professional CNC setups! ⚡
⚡ Easy Installation & Wide Compatibility: Pre-matched encoder cable, plug-and-play design — even beginners can install it in 10 minutes. Compatible with most CNC control systems (including Mach3), perfect for CNC engravers, CNC mills and other heavy-load CNC equipment! 🖥️


Holding

Torque

Step

Angle

Motor

Length

Shaft

Diameter

Shaft

Length

  Current

/Phase

   Resistance

/Phase

 Inductance

/pahse

Positioning

Torque

Rotor

Inertia

Lead

Wire

Motor

Weight


4.5N.m

1.8

80

14

35

5

0.34

3.2

1300

1400

4

2.8

8.5N.m

1.8

118

14

35

6

0.53

5.4

2500

2700

4

4.15

12N.m

1.8

156

14

35

6

0.72

5.5

4000

4000

4

5
Multiple torque options: 4.5N. m/8.5N. m/12N. m
Product series: Three torque values (4.5 Nm, 8.5 Nm, 12 Nm) indicate that this kit offers motor models with different torque specifications for users to choose from.
Wide applicability: covering a range of applications from moderate to high loads. Users can choose the appropriate torque model based on the actual load requirements of their equipment, such as the axis load size of CNC machine tools. 12N. m belongs to the Nema34 specification model with higher torque.

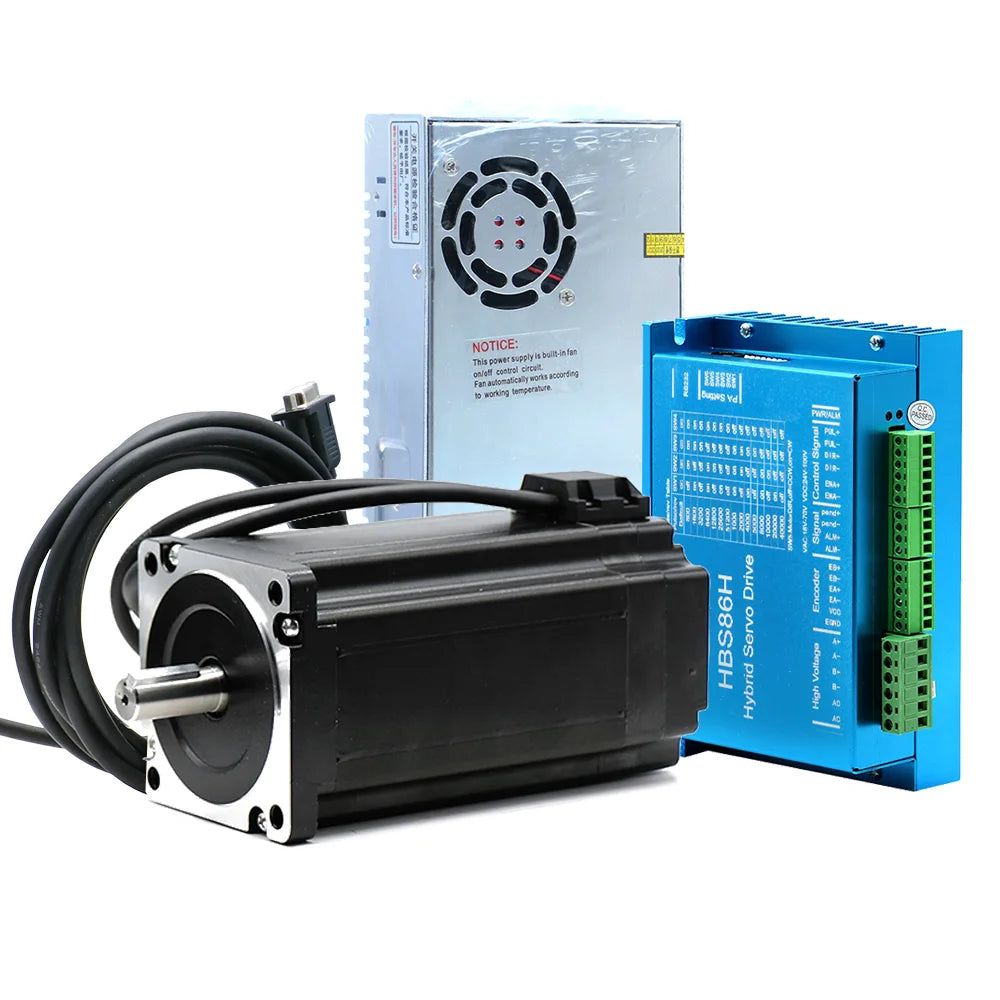

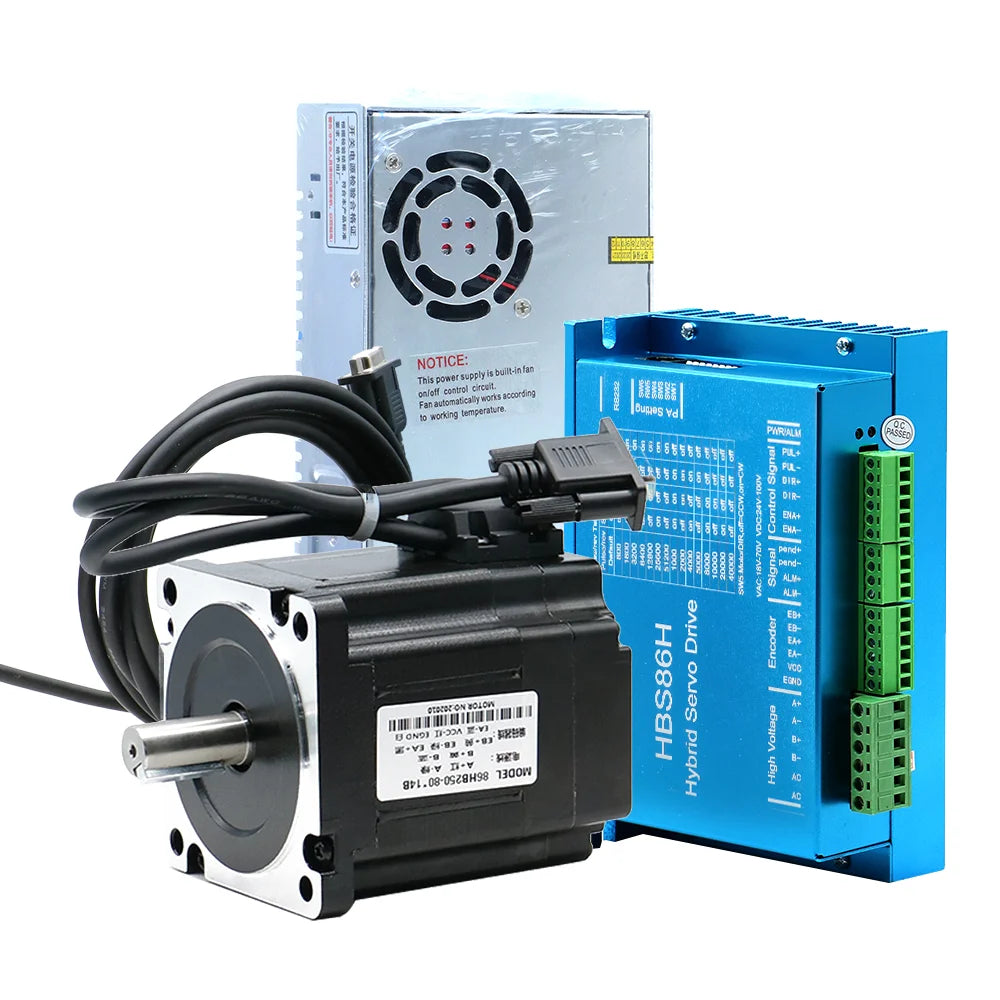

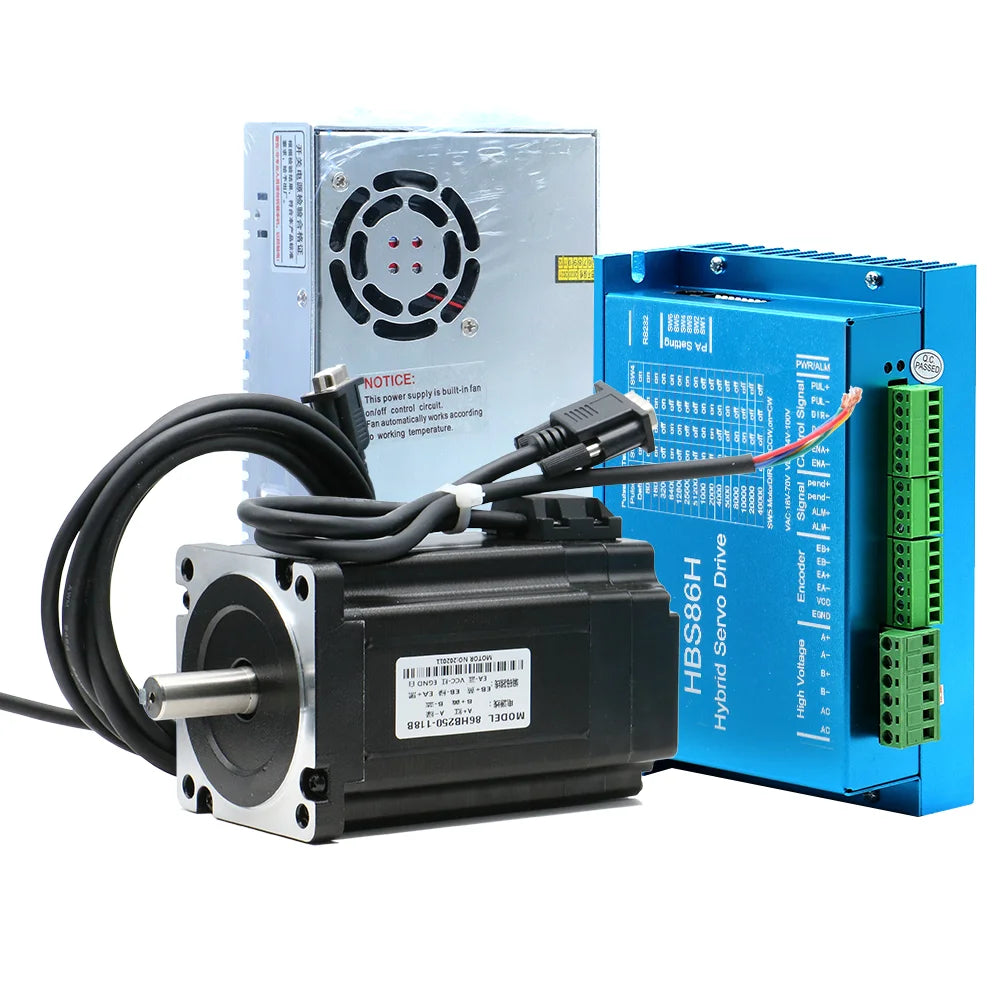

Kit format
Ready to use: The product is provided in the form of a "kit", which means it includes the main key components required for operation:
Closed loop stepper motor (with encoder)
Special drive (HBS86H)
Power supply (400W 60V PSU)
Encoder cable
Worry free compatibility: These components are pre selected by suppliers to ensure compatibility and plug and play between motors, drivers, power supplies, and cables. Users no longer need to worry about purchasing and matching separately, reducing the threshold for use and the risk of errors.
High performance driver: HBS86H Hybrid Servo Driver
Hybrid servo technology: This is the core selling point of this drive. Although it drives a stepper motor, it adopts advanced control algorithms similar to servo drive (usually FOC - Field Oriented Control).
Key advantages (compared to traditional stepper drivers):
Smoother and quieter: significantly reduces motor operating noise and vibration, especially at medium and low speeds.
More efficient: dynamically adjust current output, reduce heat generation, and improve energy efficiency.
Higher speed potential: typically capable of driving motors to higher speeds than traditional drivers.
Stronger overload capacity: Instantaneously providing greater current to cope with sudden load changes.
Retain the closed-loop advantage: fully support the anti step loss and position correction functions of closed-loop stepper motors.

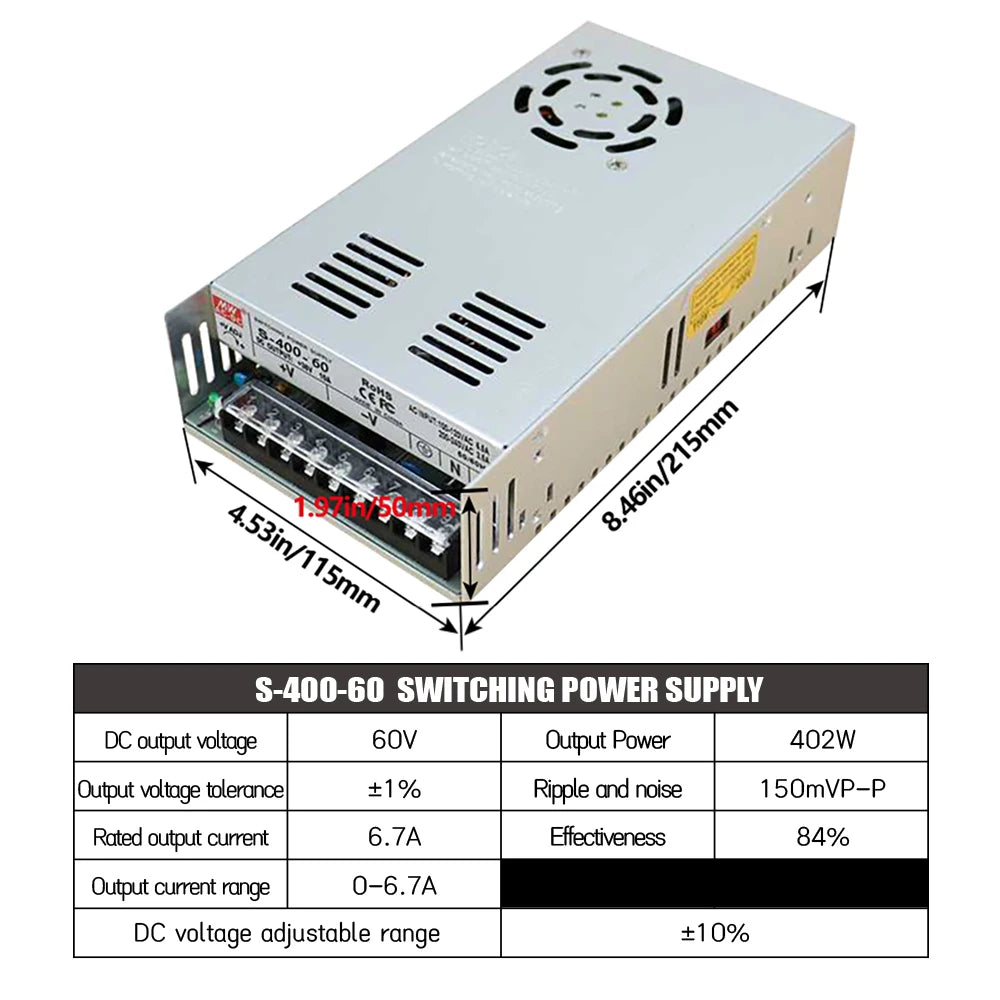

Special power supply: 400W 60V DC PSU
Power matching: Provides a continuous output power of 400 watts, which, after matching, can provide sufficient energy for the motors and drivers (especially higher torque models) in the kit.
Voltage matching: A 60V DC output voltage is a commonly used and recommended voltage for driving Nema34 stepper motors (especially hybrid servo drives), which helps to maximize the motor's performance (especially torque retention at high speeds).
Reliable guarantee: Provide stable and clean DC power supply for the entire system.
Standard Encoder Cable
Necessary connection: A dedicated cable is used to connect the encoder port of the motor to the encoder feedback port of the driver. This is the key physical link to achieve closed-loop control.
Convenience: As a standard package, users do not need to purchase additional items

    HBS86H adopts the latest ARM chip and applies vector based closed-loop control algorithm to completely overcome the problem of step loss in open-loop stepper motors, while significantly improving the high-speed performance and torque output of the motor, reducing the heating and low-speed resonance problems of the motor. In addition, when the motor is continuously overloaded, the driver will output an alarm signal, which has the same reliability as the AC servo system. At the same time, the installation size of the motor is fully compatible with traditional 86 series stepper motors. The traditional stepper drive scheme is easy to upgrade, and the cost increase is not much compared to open-loop stepper motors, only equivalent to 30-50% of traditional AC servo systems.

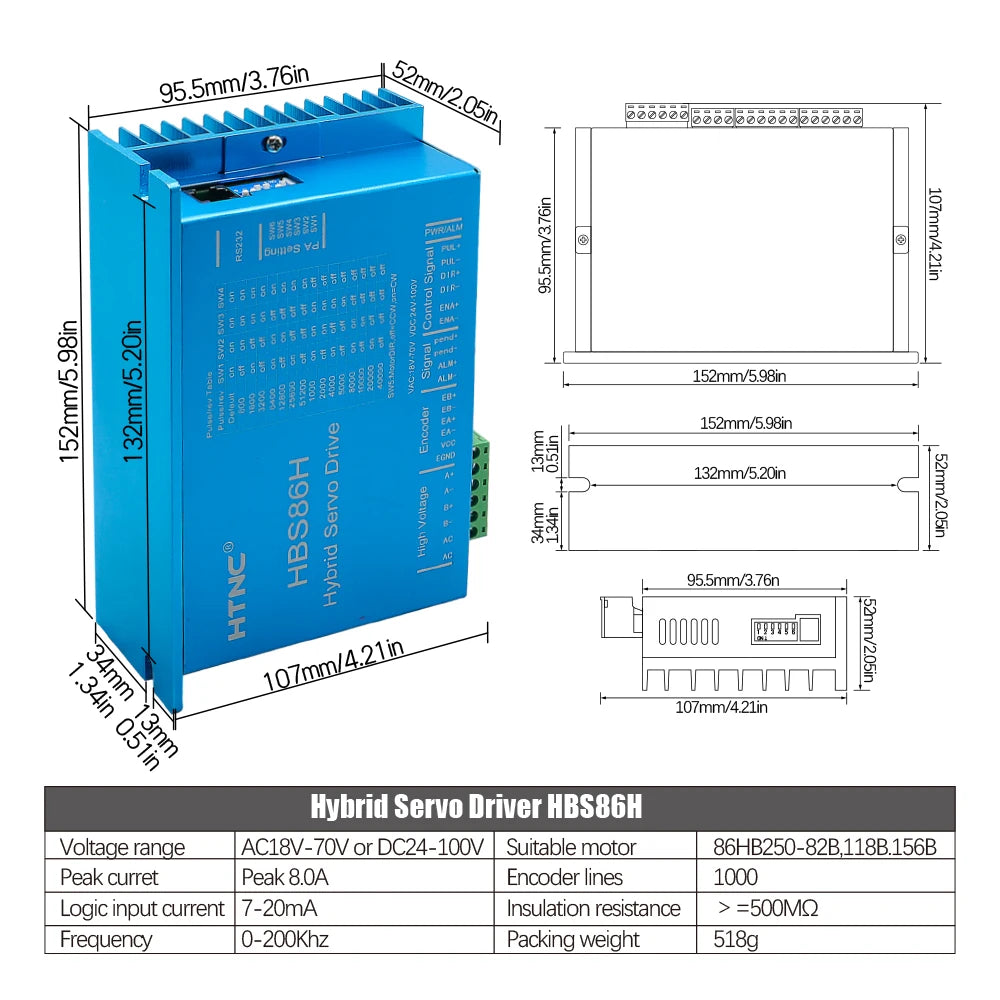

HBS86H Driver Size Display





Product Parameter


Comprehensive Understanding, Buy More At Ease



Name

Closed Loop Hybrid

Stepping Motor Driver

Warning Signal

Support


Model

HBS86H

Pulse Vlotage

5v-24v10 Ohm


Voltage

VAC18v-70v

VDC24v-100v

Respone Voltage

Maximum 200khz05mH

Phase Current

8a/pha

Pulse Method

Single Pulse(Default)

Subdivision

2-256Maximum

51200Steps/Laps

Cooling Method

Cooling Fan


Processor

32DSP

Shell Size

151x97.5x52mm


Instruction

Minimum Value

Typical Value

Maximum

Unit


Maximum Peak Current

-

-

8

A

Input Power Supply Voltage

24

80

80

VDC

Logic Input Current

7

10

16

mA

Pulse Frequency

-

200

-

kHZ


Insulation Resistance

500

-

-

  MOhm

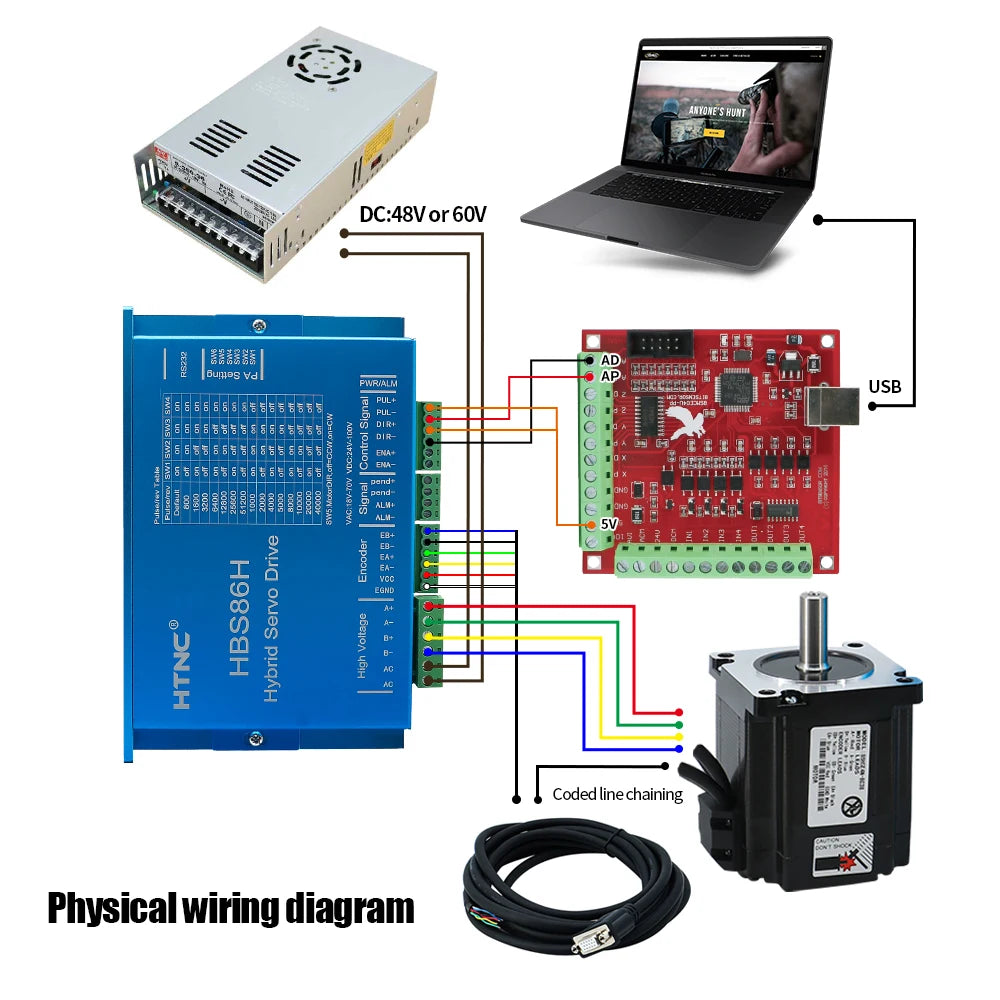

Please note that:

1) When wiring, pay attention to wiring strictly according to the motor color one by one;

2) Drivers must not be connected to 220V, as they are powered by direct current. Pay attention to the direction;

3) The power supply for the encoder line is provided by the driver and does not need to be separately powered;

The control signal line and the motor phase line cannot be tangled together, and it is best to add a shielding layer to the signal line;

📋 Specifications at a Glance

  • Kit Includes: Nema34 86mm Closed Loop Stepper Motor + 400W 60V PSU + HBS86H Hybrid Servo Driver + Encoder Cable
  • Motor Model: HLTNC Nema34 86mm Closed Loop Stepper Motor
  • Torque Options: 4.5Nm, 8.5Nm, 12Nm
  • Motor Frame Size: 86mm (Nema34 Standard)
  • Driver Model: HBS86H Hybrid Servo Driver
  • Power Supply: 400W, 60V PSU
  • Accessory: High-Quality Encoder Cable (pre-matched for easy connection)
  • Technology: Closed Loop with High-Precision Encoder
  • Protection: Over-Current, Over-Voltage, Over-Heat Protection
  • Compatibility: CNC Engravers, CNC Mills, Most CNC Control Systems (e.g., Mach3)
  • Application: Heavy-Duty CNC Machining, DIY CNC Projects, Industrial Production

performance parameter

1. Built in microcontroller function, which can replace most PLCs and significantly reduce user costs;

2. Internally supports jog mode and optional open-loop/closed-loop functions

3. Built in smoothing filter function, external input can operate normally without acceleration or deceleration;

4. Adopting a brand new 32-bit motor control dedicated ARM intelligent chip;

The 5.4-inch LED digital display is equipped with 4 buttons for intuitive and convenient operation;

6. Adopt advanced vector current, velocity, and position closed-loop control algorithms;

7. The current can be set arbitrarily (within the range of 0-7A);

8. The motor comes standard with a 1000 wire high-precision photoelectric or magnetic encoder;

9. Optocoupler isolation differential signal input, with a maximum pulse response frequency of 200KHZ;

10. Any subdivision setting (200-51200), suitable for all occasions;

11. It has protection functions such as overcurrent, overvoltage, and tracking error deviation;


👥 For Every CNC Machinist & Enthusiast

✅ Beginners: All-in-one kit, no need to match parts, plug-and-play design — start your heavy-duty CNC projects easily without professional skills.

✅ Professionals: High torque, stable performance, complete accessories and multiple torque options. Tackle complex, heavy-load CNC machining, industrial parts production with confidence.

🛡️ Trusted After-Sales Guarantee

✔️ 30-Day Money Back Guarantee

✔️ 12-Month Quality Warranty (for all kit components)

✔️ 24/7 Customer Support (Reply Within 12 Hours)

✔️ Fast Shipping (Most Countries 7-15 Days Delivery)

💡 Don’t Miss This Complete CNC Upgrade! HLTNC Nema34 Closed Loop Stepper Motor Kit saves you time, money and hassle — all parts pre-matched, high torque, no step loss. Choose the right torque for your CNC, add to Cart Now Before It’s Out of Stock! 🛒
