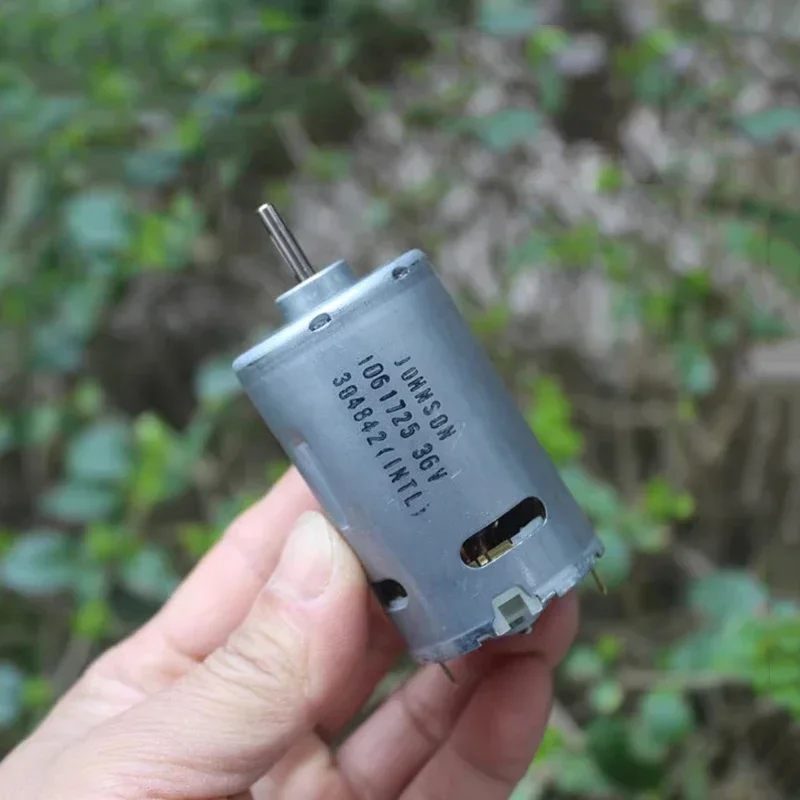

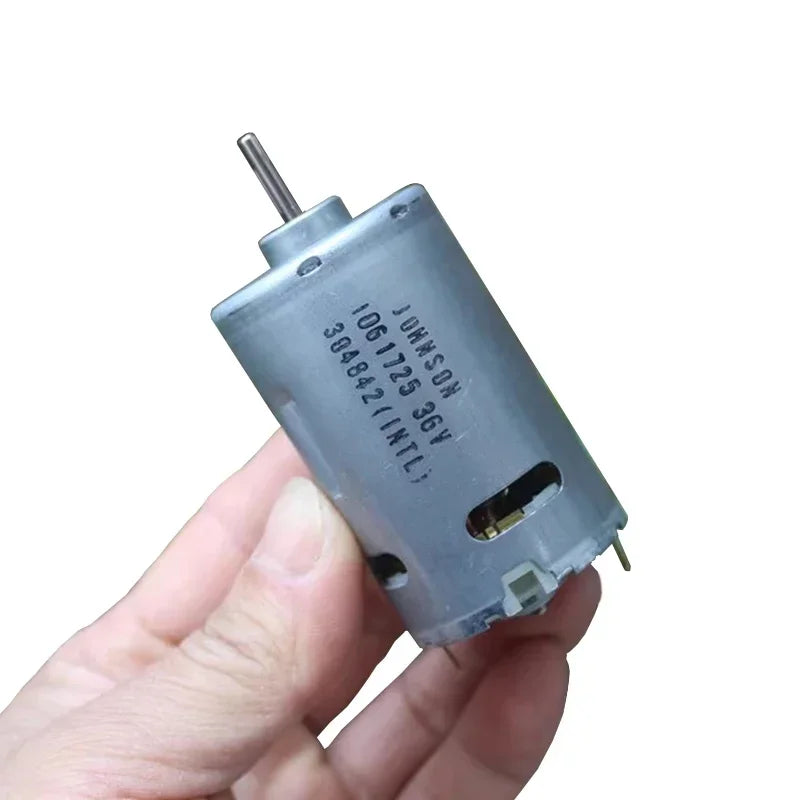

JOHNSON RS-555 Motor 1061725 DC 24V-36V 27700RPM High Speed Power Large Torque Micro 36mm Motor DIY Electric Drill Tools Engine
JOHNSON RS-555 Motor 1061725 DC 24V-36V 27700RPM High Speed Power Large Torque Micro 36mm Motor DIY Electric Drill Tools Engine
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand: JOHNSON MOTOR
Brand Name: NONE
Certification: CCC
Choice: yes
Commutation: Brush
Construction: Permanent Magnet
Efficiency: IE 1
High-concerned chemical: None
Model Number: Mini 555 Motor
Model number: 1061725
Motor size: 35.5mm*57mm
No-load speed: 27700RPM
Origin: Mainland China
Output Power: ＜18.65
Output shaft diameter: 3.17mm
Protect Feature: Explosion-proof
Rated voltage: DC 36V
Suitable voltage: DC 24V-36V
Type: Micro Motor
Use: Home Appliance
Weight: 200g
semi_Choice: yes
Specification:

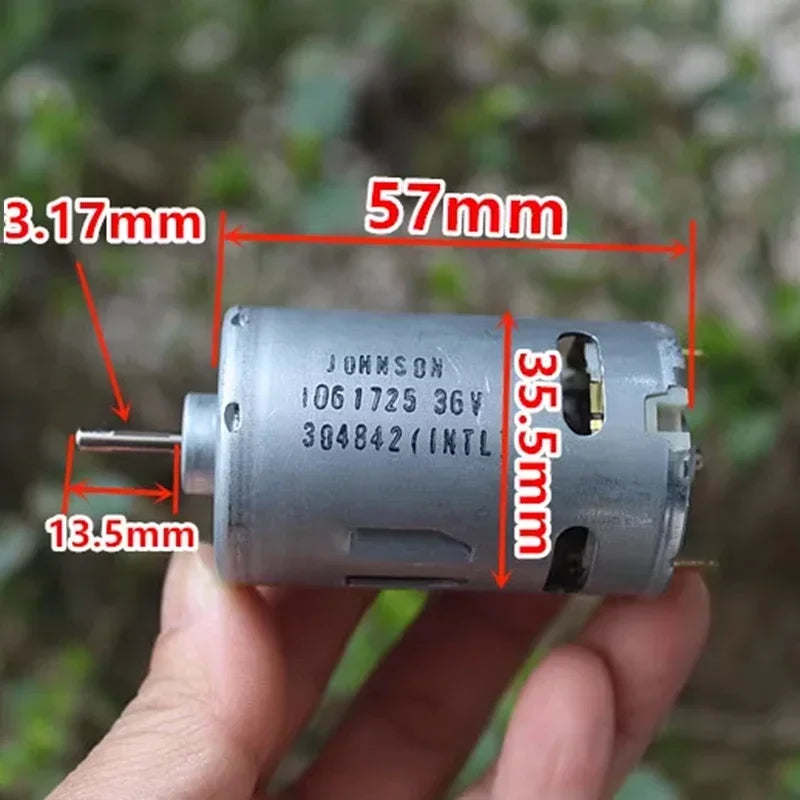

1.Model: JOHNSON RS-555 Motor
2.Motor size: 35.5mm*57mm
3.Output shaft diameter: 3.17mm
4.Output shaft length: 13.5mm (not include step height)
5.Rated voltage: DC 36V
6.No-load current: 0.5A
7.Rated power: 50W
8.No-load speed: 27700RPM
9.Suitable voltage: DC 24V-36V
10.Speed range: 18400RPM-27700RPM
11.Weight: 200g

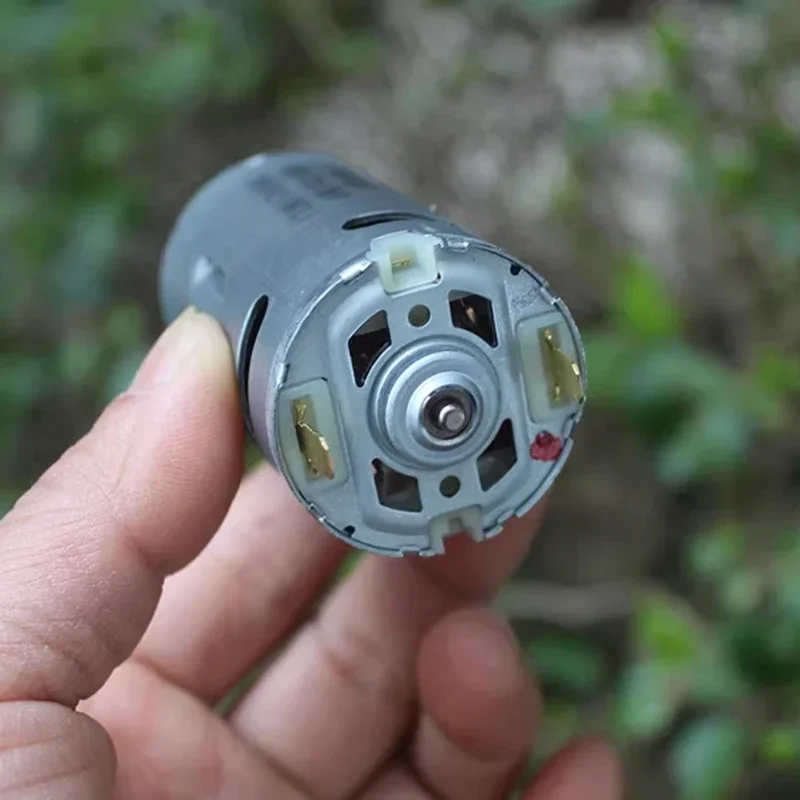

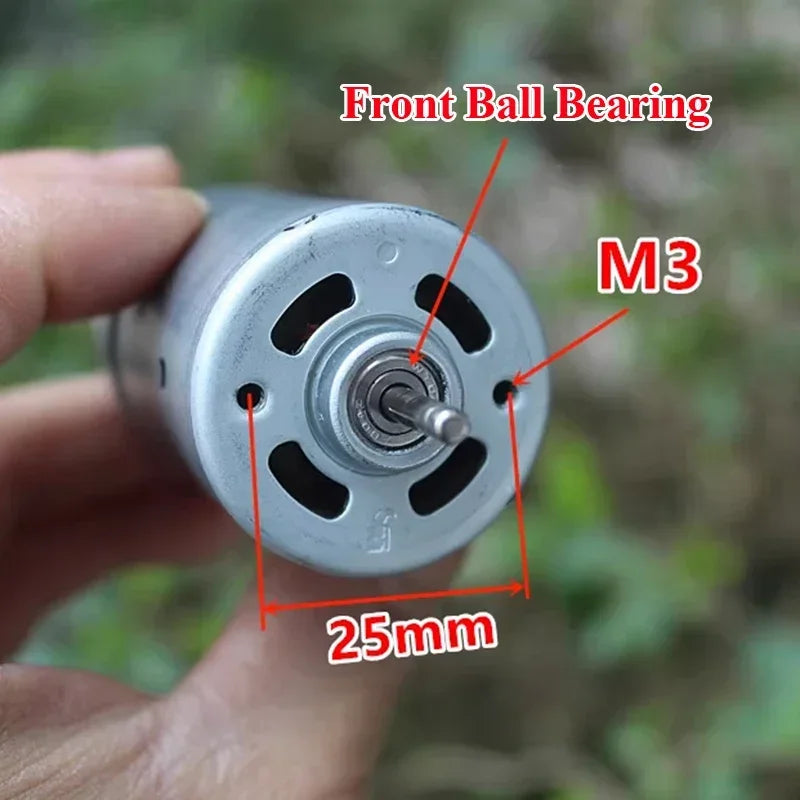

12.Feature: Motor with front ball bearings, with carbon brush.
=========================
Package List:
Motor x 1PCS
