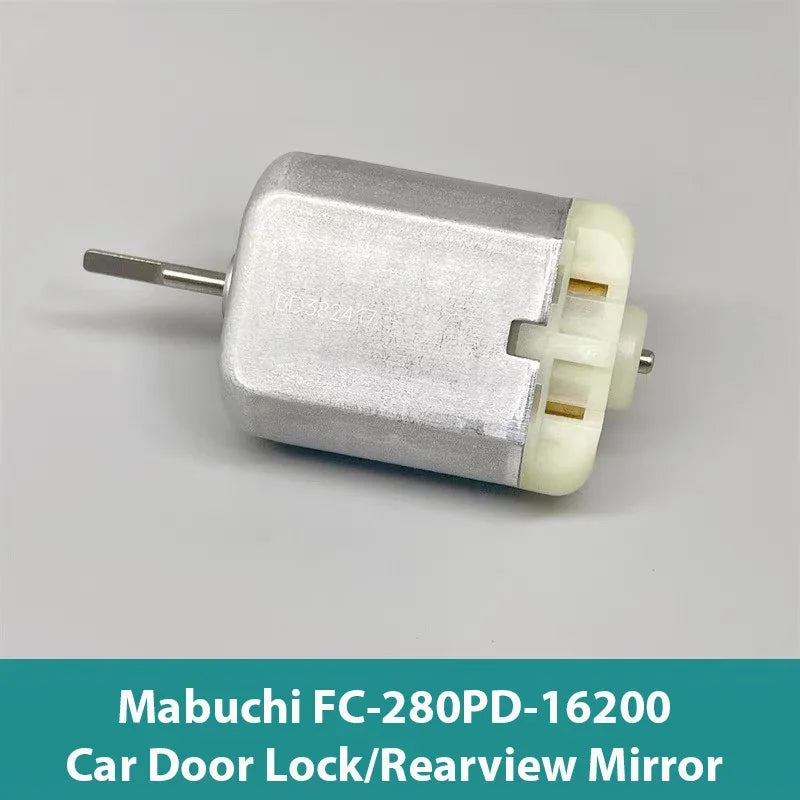

MABUCHI FC-280PD-16200 Mini 24mm 280 Electric Motor DC 12V Engine D-Shaft For Car Door Lock Rearview Folding Mirror Actuator
MABUCHI FC-280PD-16200 Mini 24mm 280 Electric Motor DC 12V Engine D-Shaft For Car Door Lock Rearview Folding Mirror Actuator
Precio habitual
$16.01 USD
Precio habitual
$0.00 USD
Precio de oferta
$16.01 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro

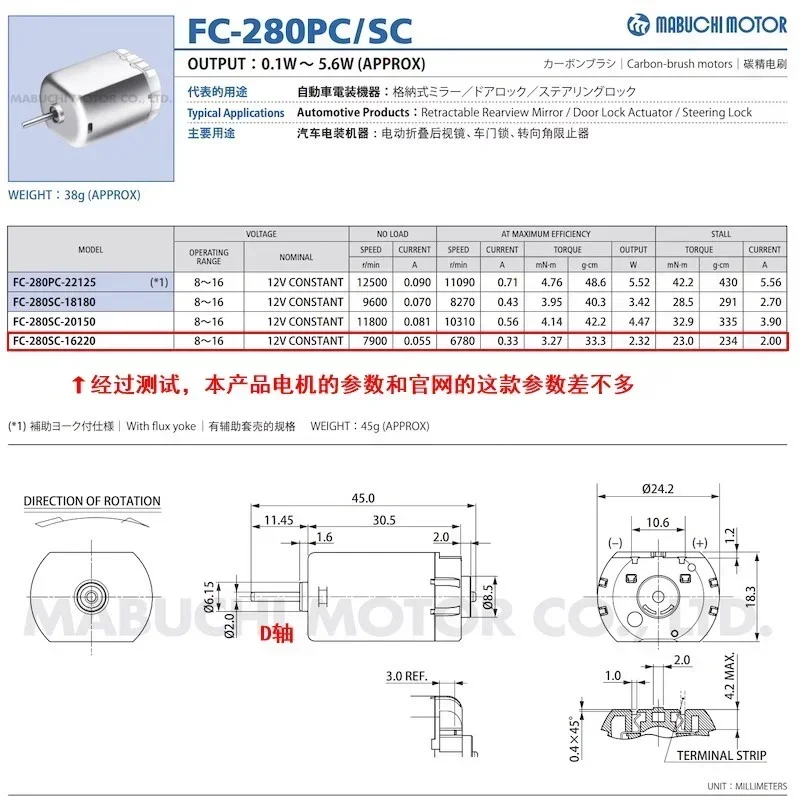

SPECIFICATIONS
Brand: Mabuchi
Brand Name: NONE
Certification: NONE
Choice: yes
Commutation: Brush
Construction: Permanent Magnet
Current Type: DC
Efficiency: IE 1
Nominal Rated Input Voltage: 12 V
Origin: Mainland China
Power Source: DC
Protect Feature: Explosion-proof
Type: Micro Motor
Use: Home Appliance,Toy
semi_Choice: yes
Specification:
[Brand]: Mabuchi motor

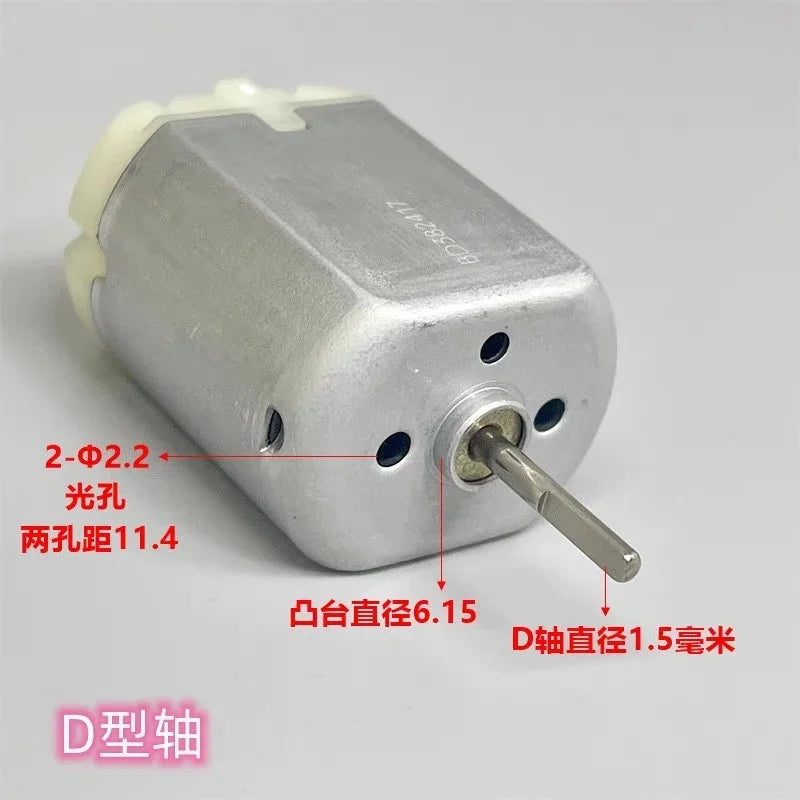

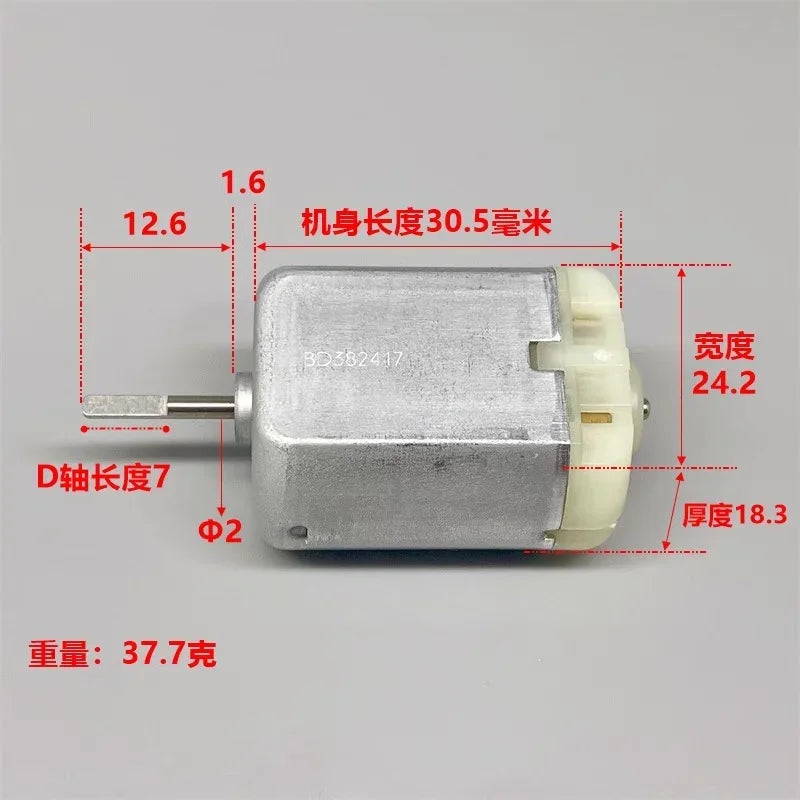

[Diameter]: 30.5mm
[Height * Width]: 24.2 * 18.3 mm
[Axis diameter]: 2mm (D-Shaft, 1.5mm flat)
Weight: 38g
Motor Model: FC-280PD-16200
Shaft Length: from the panel 14.2mm
Test voltage: 12.0v
No-load current: 55mA
No-load speed: 9300rpm
[Diameter]: 30.5mm
[Height * Width]: 24.2 * 18.3 mm
[Axis diameter]: 2mm (D-Shaft, 1.5mm flat)
Weight: 38g
Motor Model: FC-280PD-16200
Shaft Length: from the panel 14.2mm
Test voltage: 12.0v
No-load current: 55mA
No-load speed: 9300rpm
Package Include:
Mini Motor x 1pcs
