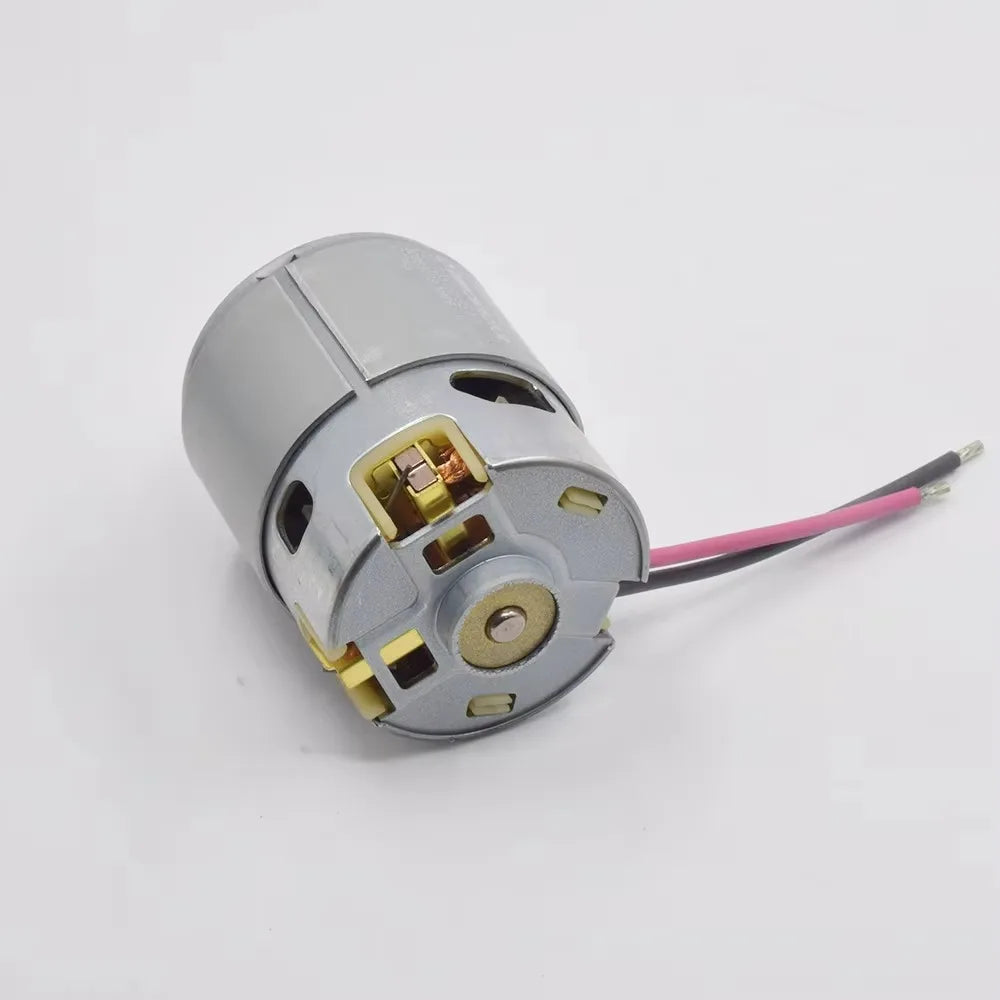

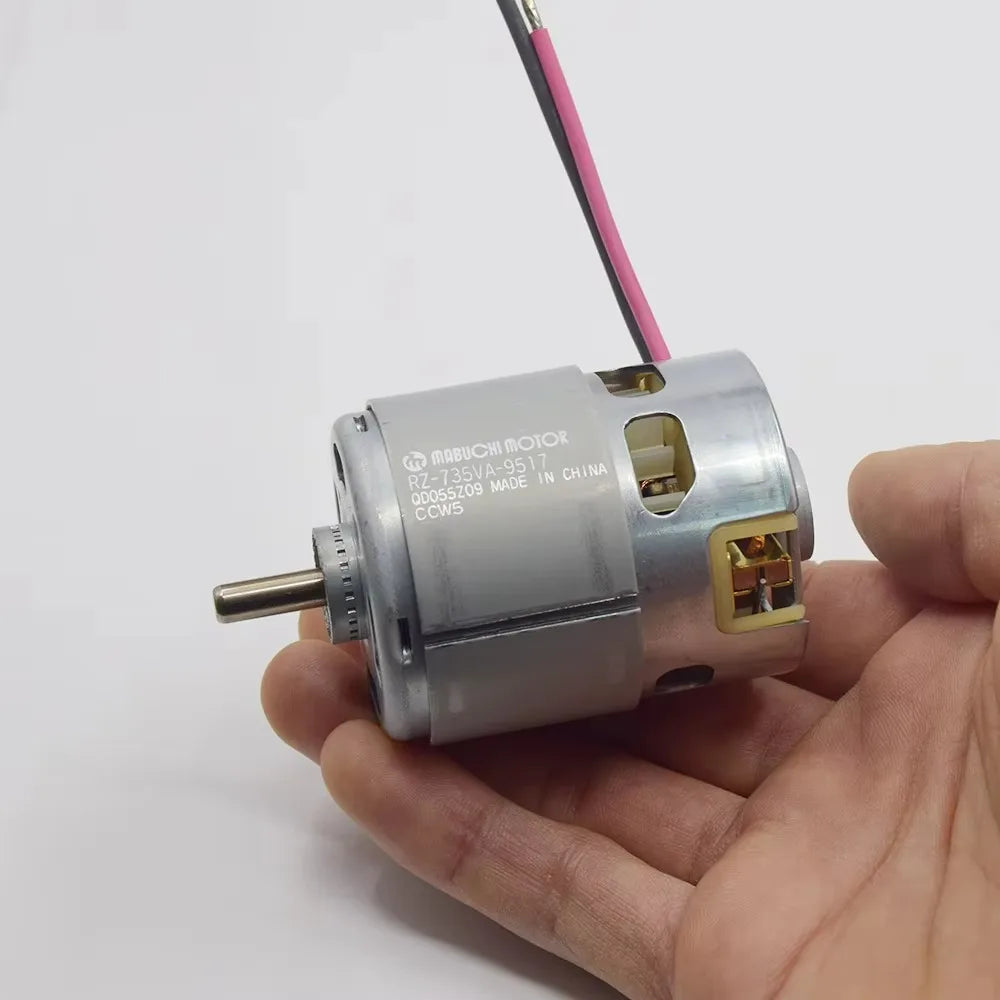

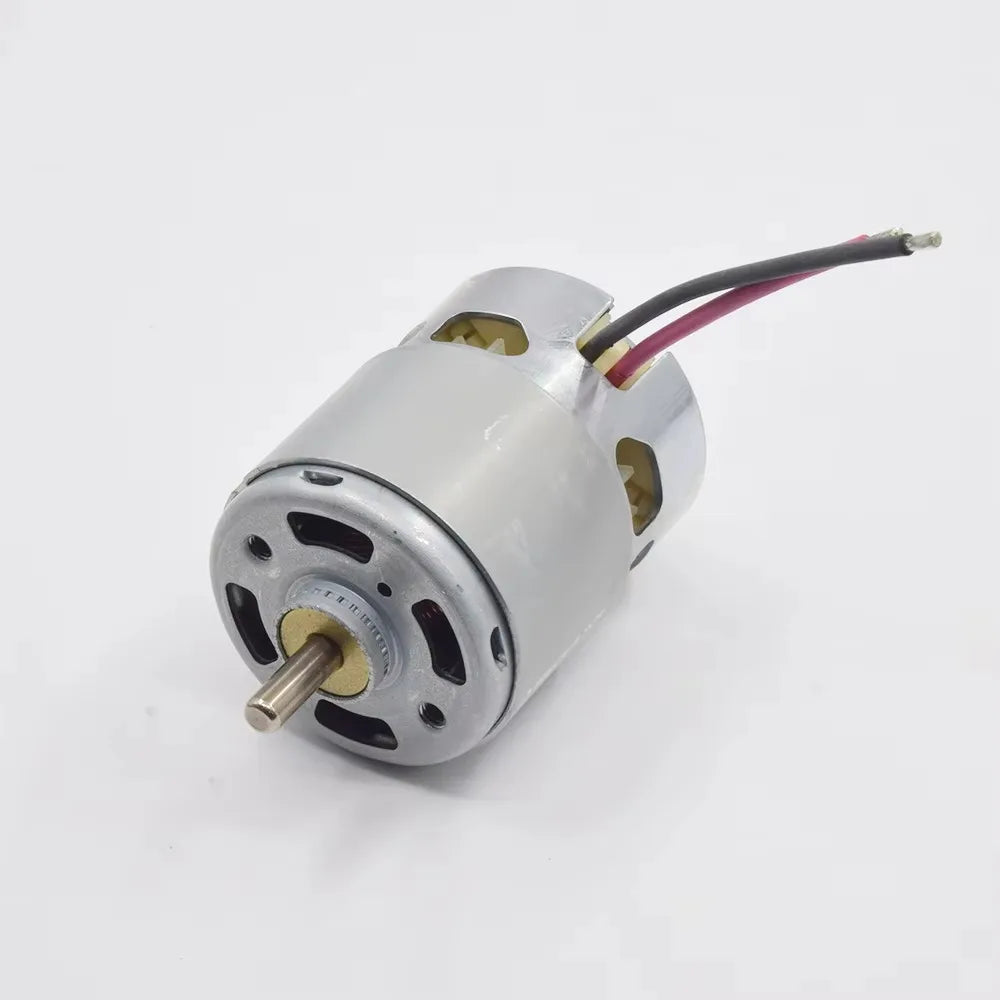

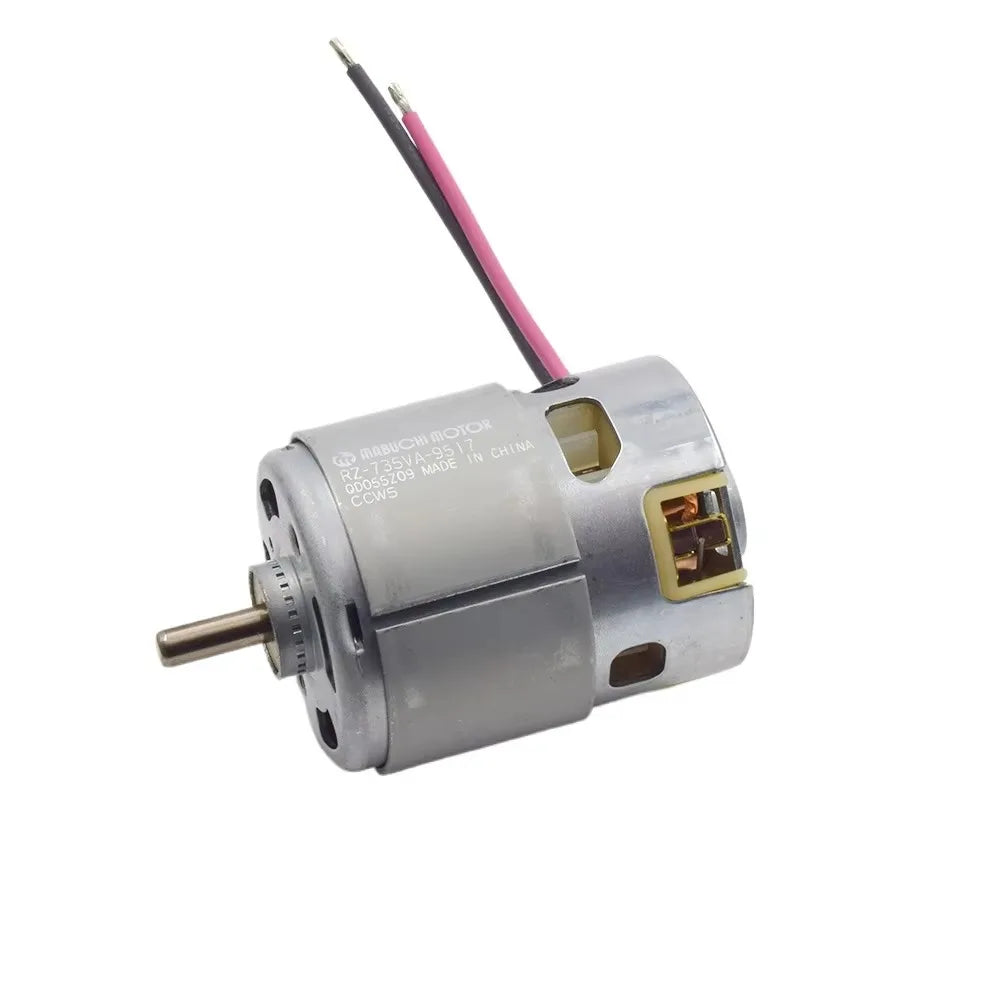

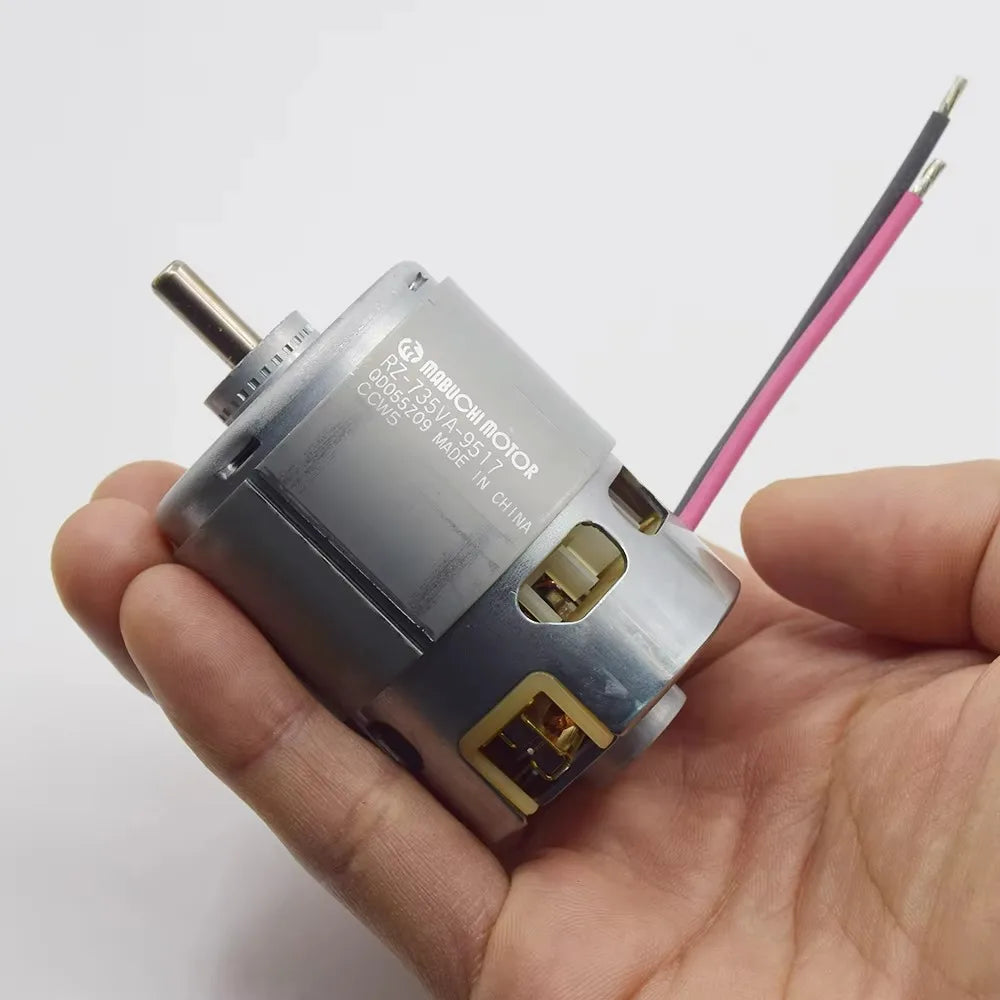

MABUCHI RZ-735VA-9517 Mini Power Drill Engine DC 12V 14.4V 18V 20400RPM High Speed Garden Tools Motor Long Shaft Screwdriver

MABUCHI RZ-735VA-9517 Mini Power Drill Engine DC 12V 14.4V 18V 20400RPM High Speed Garden Tools Motor Long Shaft Screwdriver

$45.34 USD
$0.00 USD $45.34 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

SPECIFICATIONS

Brand Name: NONE

Certification: CCC

Commutation: Brush

Condition: New

Construction: Permanent Magnet

Country/Region of Manufacture: Unknown

Custom Bundle: No

Efficiency: IE 1

High-concerned chemical: None

MPN: Does Not Apply

Model: RZ-735VA

Model Number: RZ-735VA

Modified Item: No

Non-Domestic Product: No

Origin: Mainland China

Protect Feature: Drip-proof

Rated Voltage: DC 18v

Type: Micro Motor,DC Motor

UPC: Does not apply

Use: Home Appliance,Electric Tool


Product Description

Brand: MABUCHI MOTOR

Model: RZ-735VA Series Motor

Uses: electric drill, horticultural tools, air compressors, models, electric cars for children, etc.
Shaft diameter: 5mm

Voltage: DC 6V-24V

Features: compensated carbon brush, high life, high speed, low noise, high horse power, no maintenance.

BOSCH, DEWALT, MAKITA, and the charging machine used on this motor.High starting current of high power motor

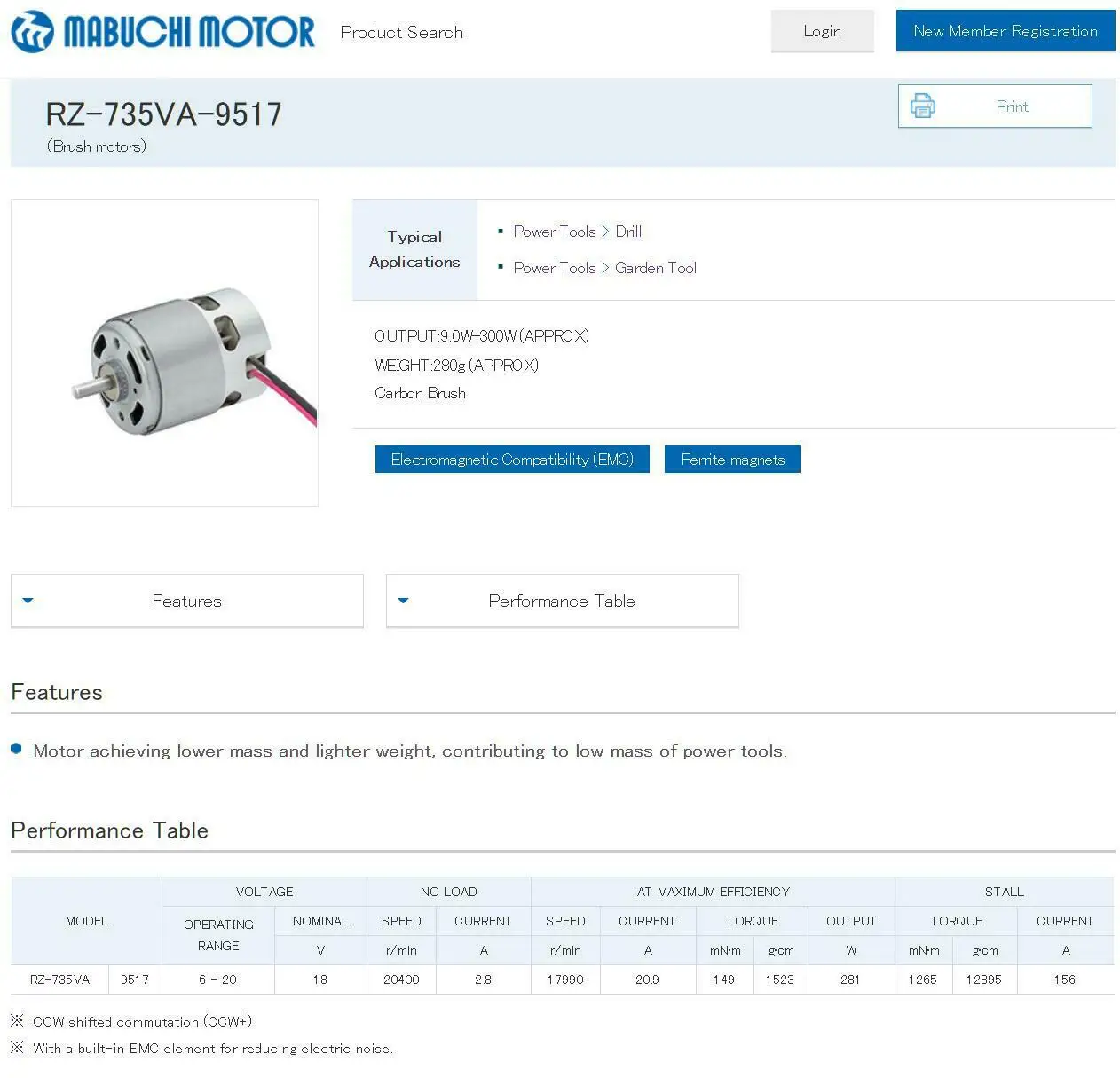

Offical Data Reference: Shaft length is not same.






Model: RZ-735VA-9517

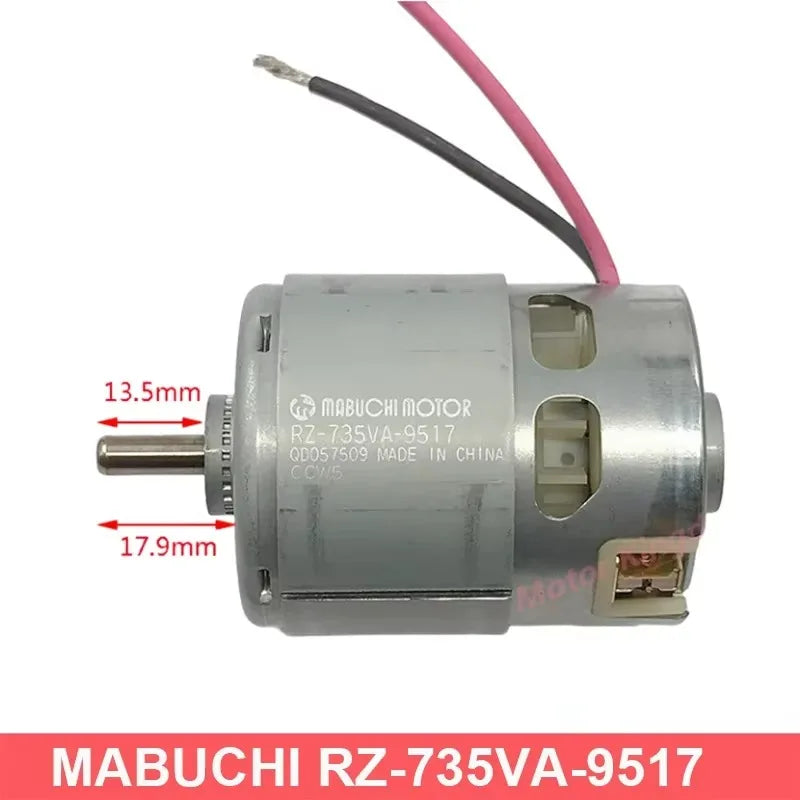

(Short shaft: output about 6.6mm, long shaft: output about 13.6mm)

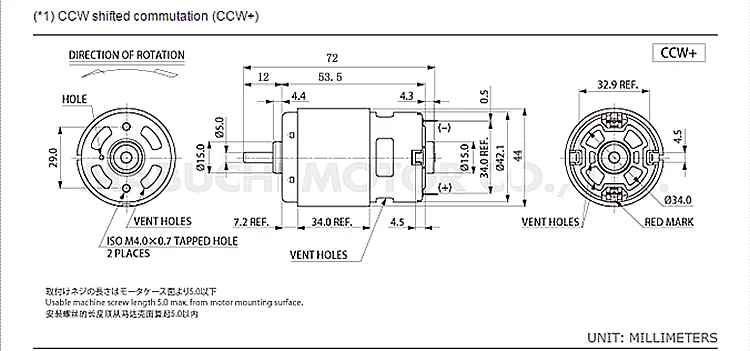

Outer diameter of motor: 42 MM (43.9 MM for magnetic coil with screen)
Motor length: 53.4 MM
Motor shaft diameter: 5 mm
Shaft length:  Short 11 MM (measured from the panel)/ Long Shaft 18mm(measured from the panel)
Tips: the long shaft motor with front ball bearing.
Wire length: about 60 mm
Motor weight: 284g
Rated voltage: DC18V
No load current: 2.8 A
No load speed: 20400 RPM
Load current: 20.9 A
Load speed: 17990 RPM
Working torque: 1.52 kg.cm
Power: 281 W
Locked rotor current: 156 A
Locked rotor torque: 12.89 kg.cm
No load current and speed of other voltages:
DC12V no-load current: 2.5 A No load speed: 13200 rpm
DC14.4V no-load current: 2.6 A No load speed: 16000 rpm

Package Include:



Motor x 1pc
