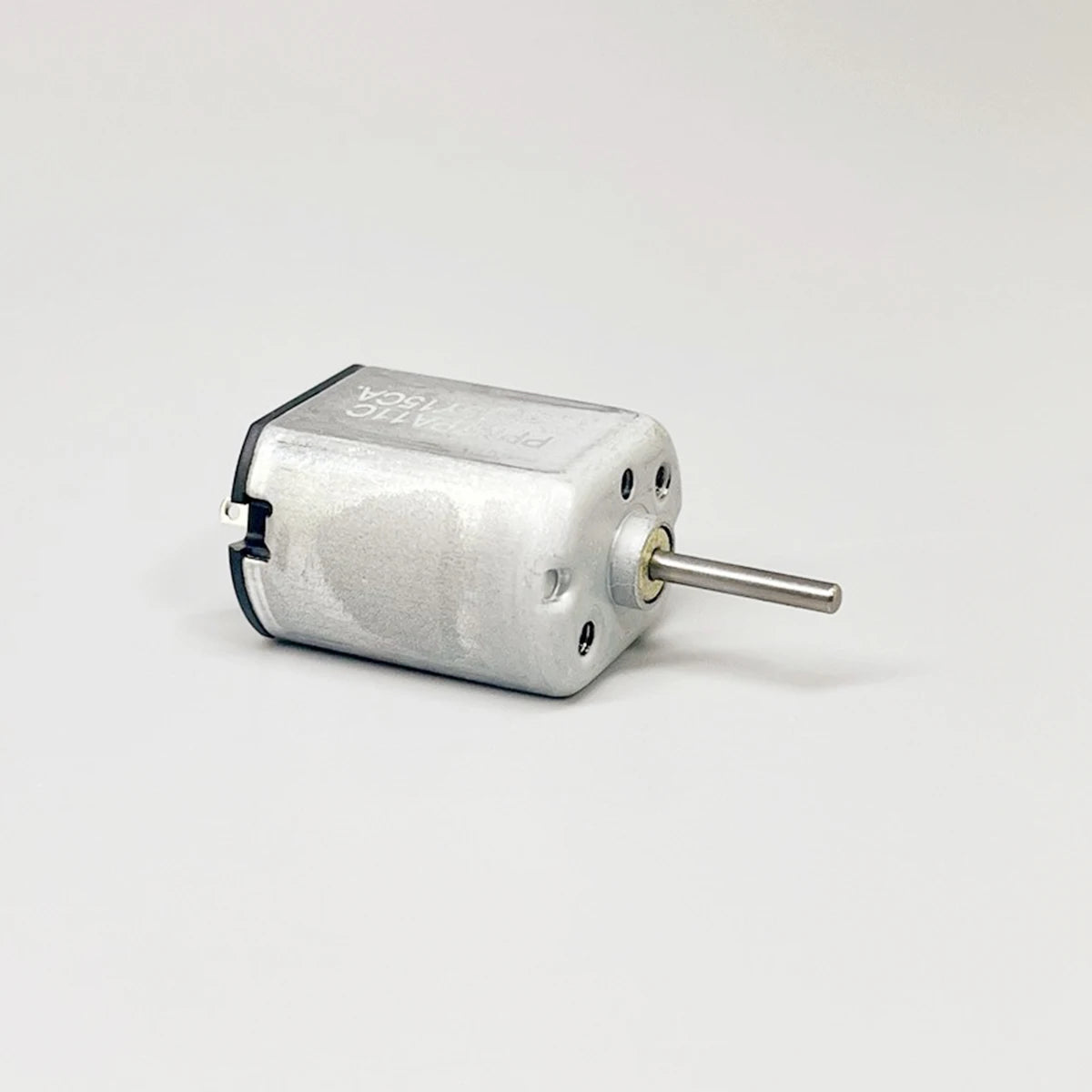

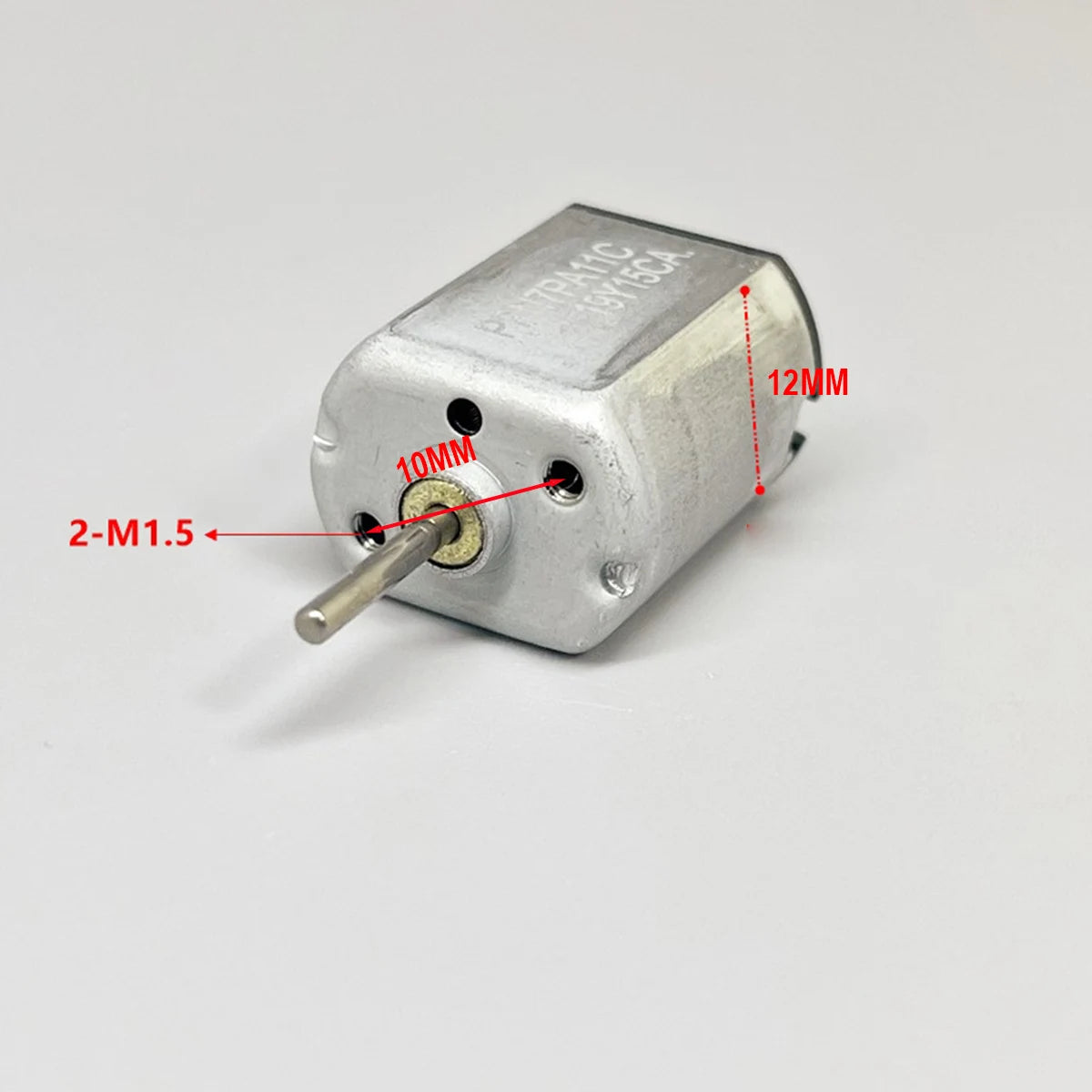

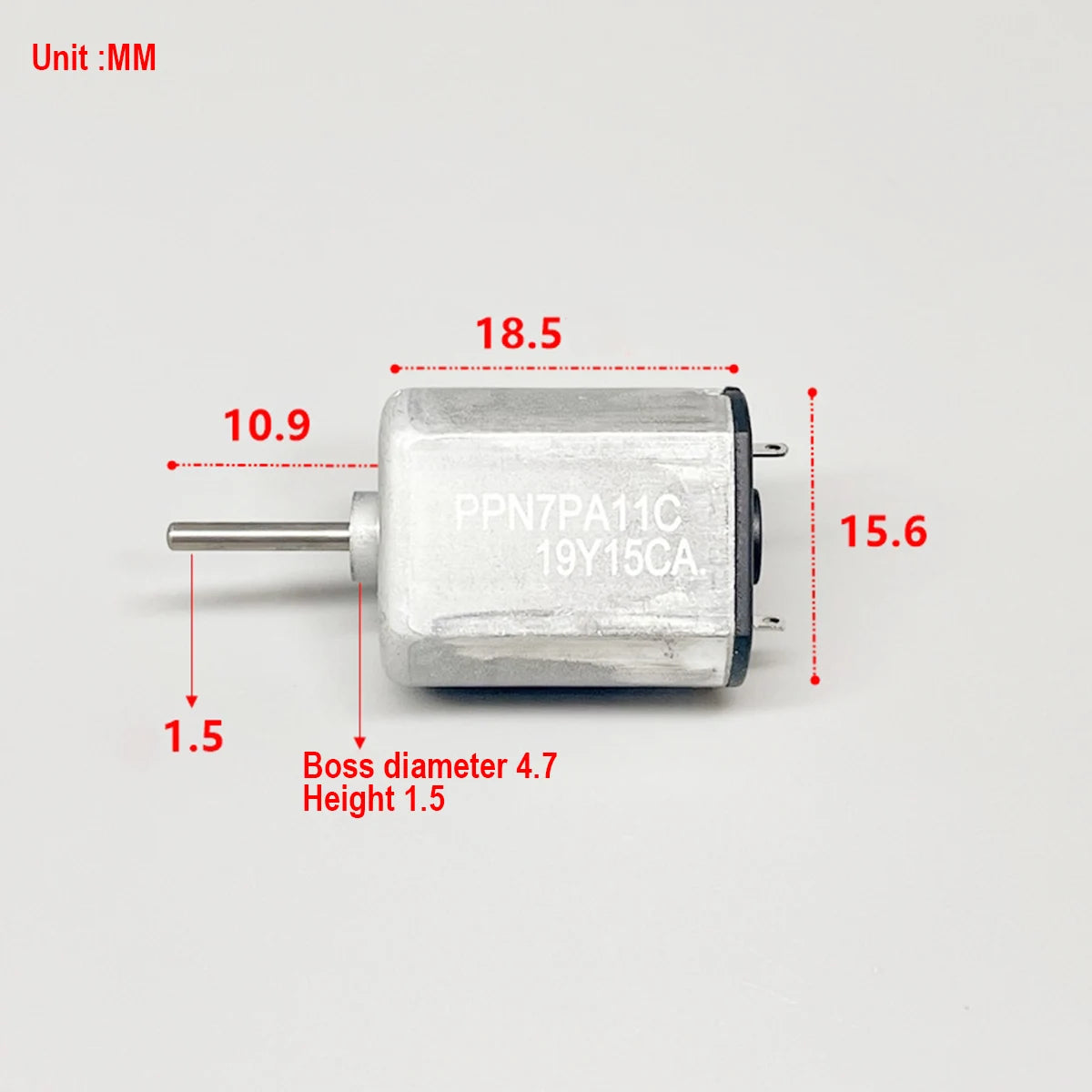

This compact 030 micro motor runs on 3V to 6V and spins up to 13,700 RPM at full voltage. It measures just 18.6 x 15.4 x 11.8 mm and weighs 10g, making it ideal for small-scale projects and devices.
Key features
Operates across 3V to 6V voltage range
Reaches 13,700 RPM at 6V; scales down to 6,800 RPM at 3V
1.5mm shaft diameter with 10.9mm length
Current draw ranges from 35mA to 50mA depending on voltage
Weighs just 10g for minimal impact on weight-sensitive builds
Suits hobbyists, makers, and engineers building compact motorised mechanisms and prototypes.
