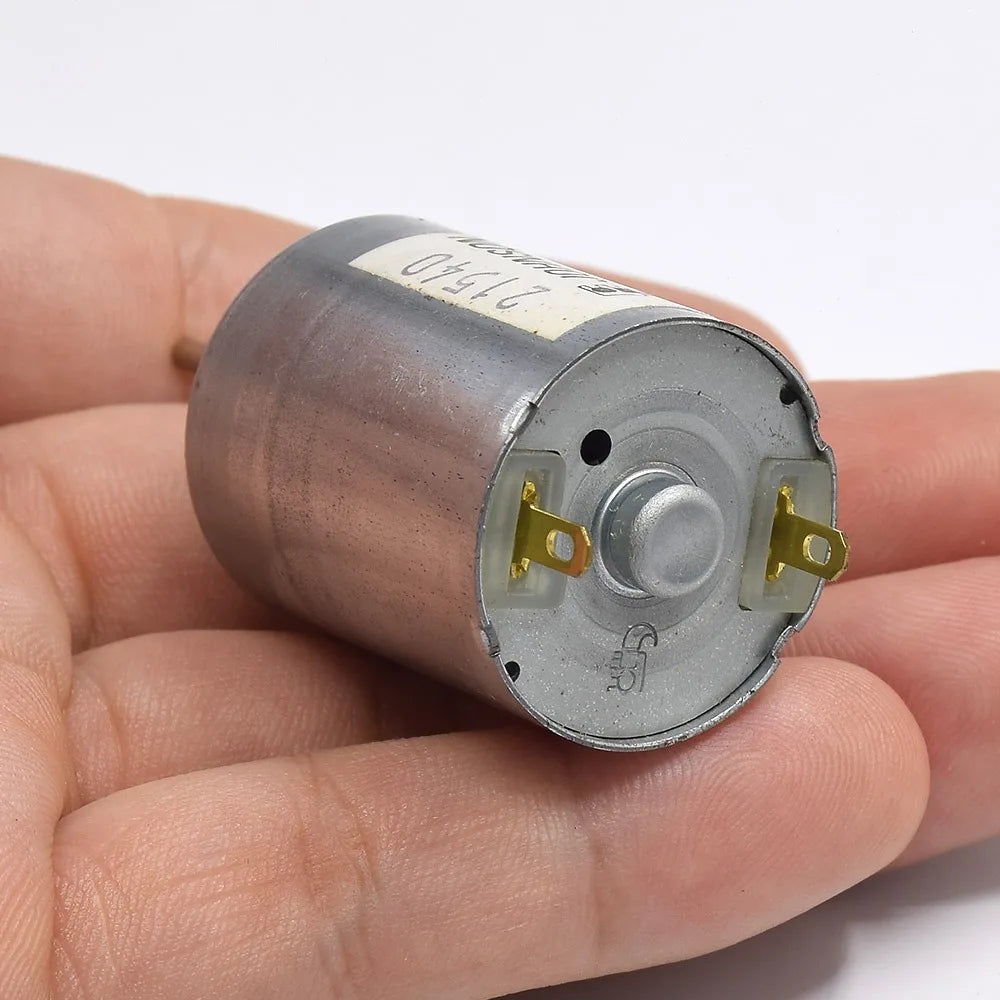

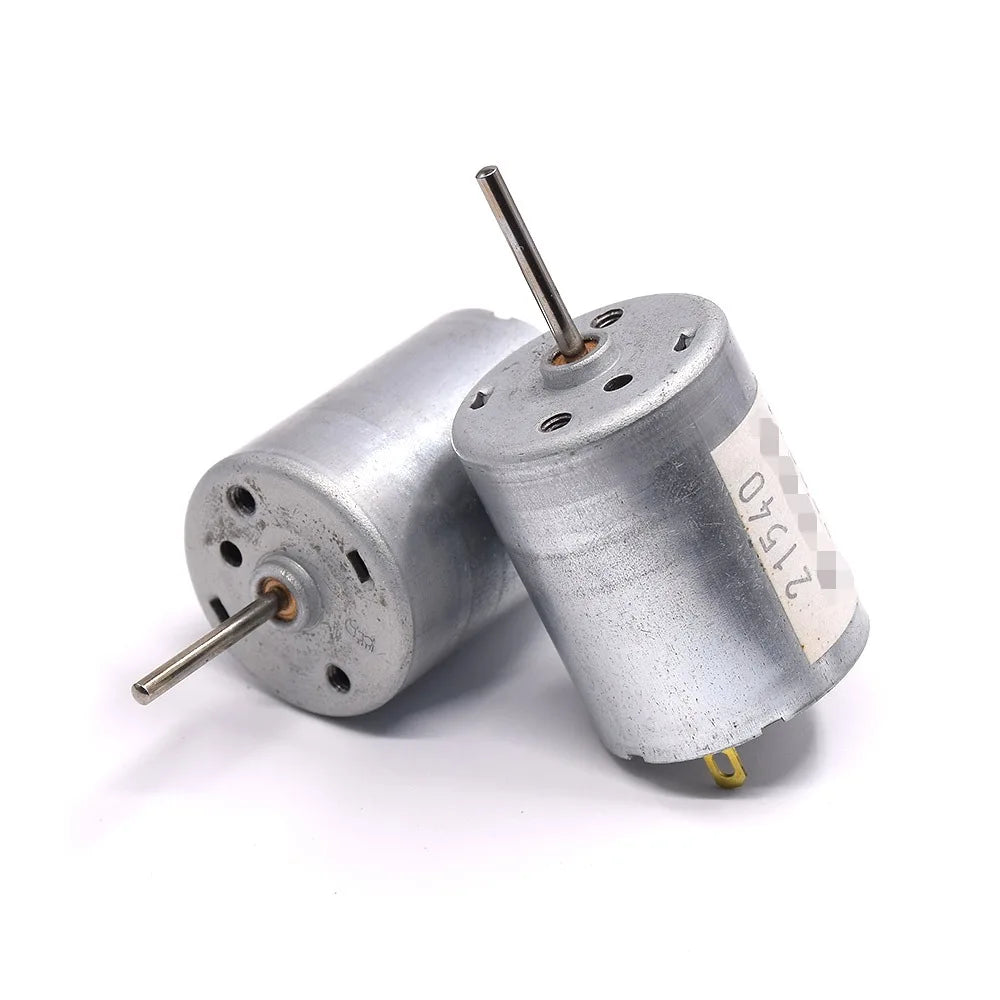

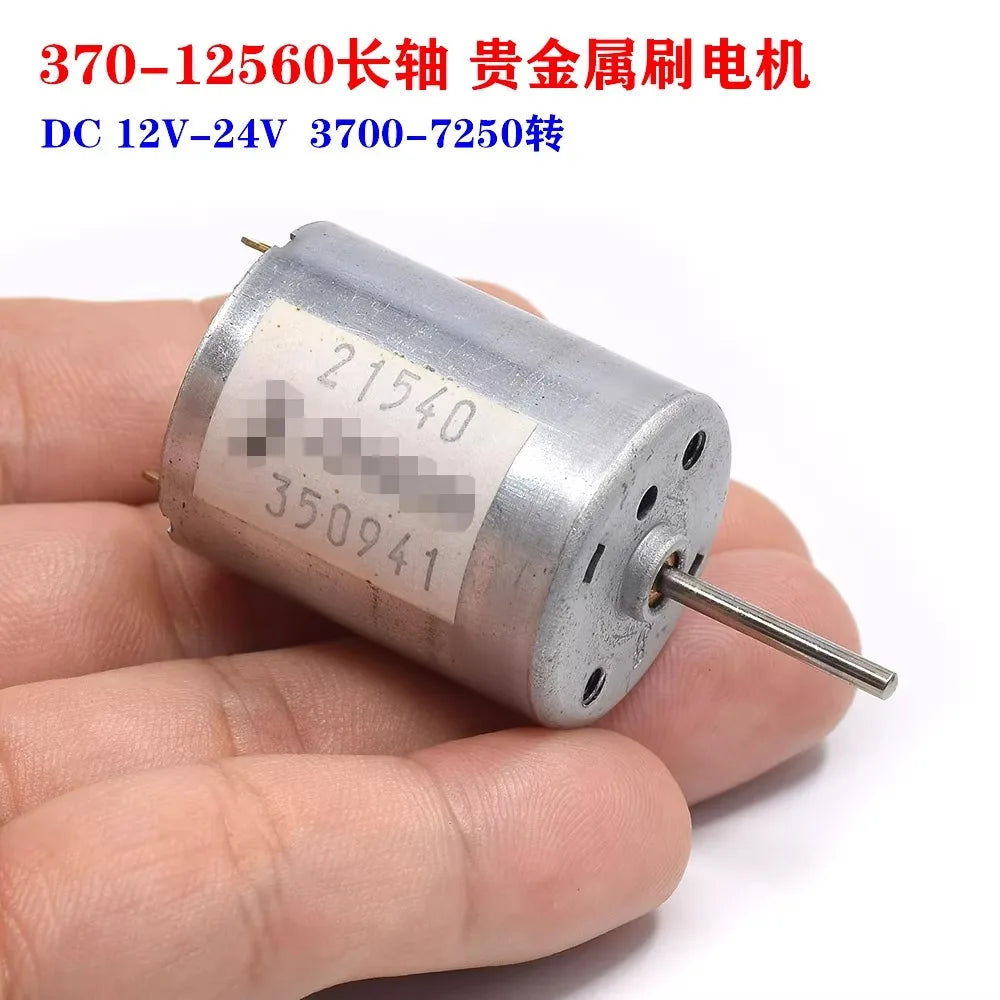

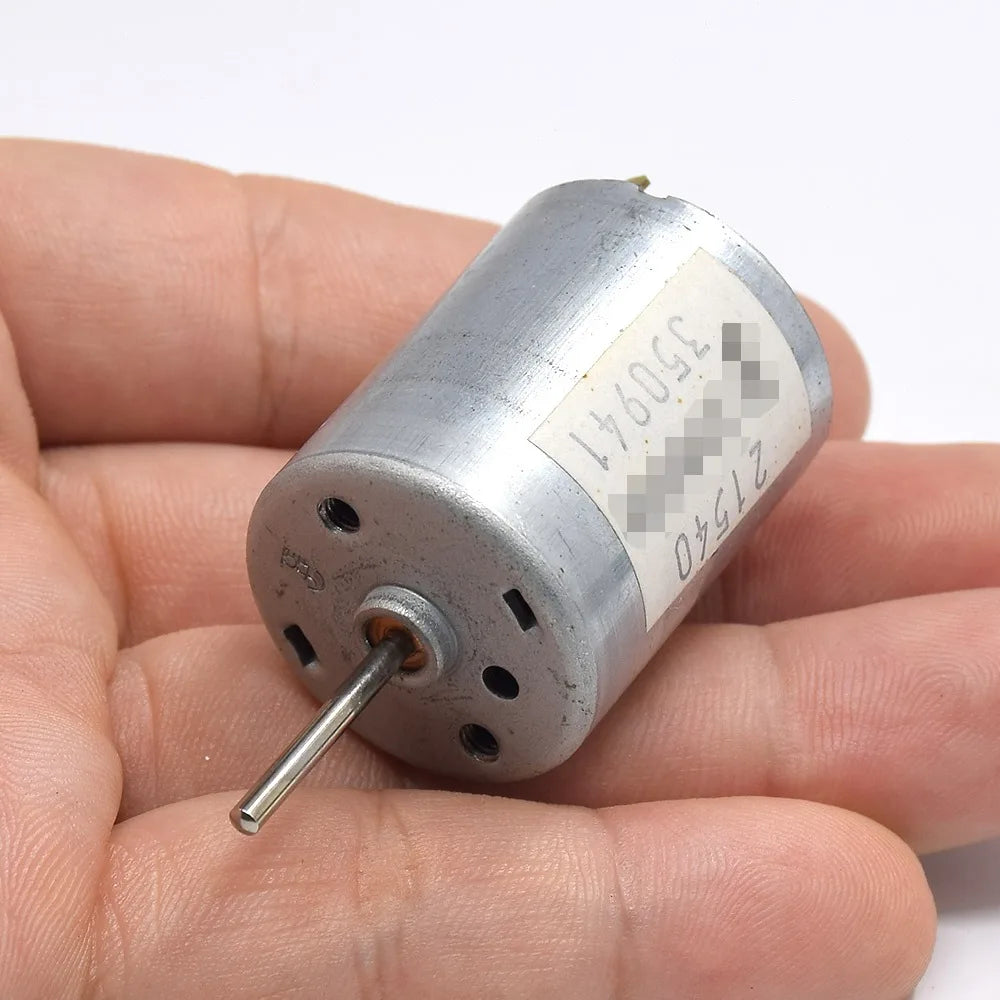

A compact 24mm diameter DC motor with an 18mm shaft, designed to run on 12V to 24V power. Lightweight at 50g, it delivers increasing speed and torque as voltage rises.
Key features
Operates across 12V, 18V, and 24V—reaches 3,700 rpm at 12V and 7,250 rpm at 24V
2.0mm output shaft, 18mm long, sized for precision mechanical work

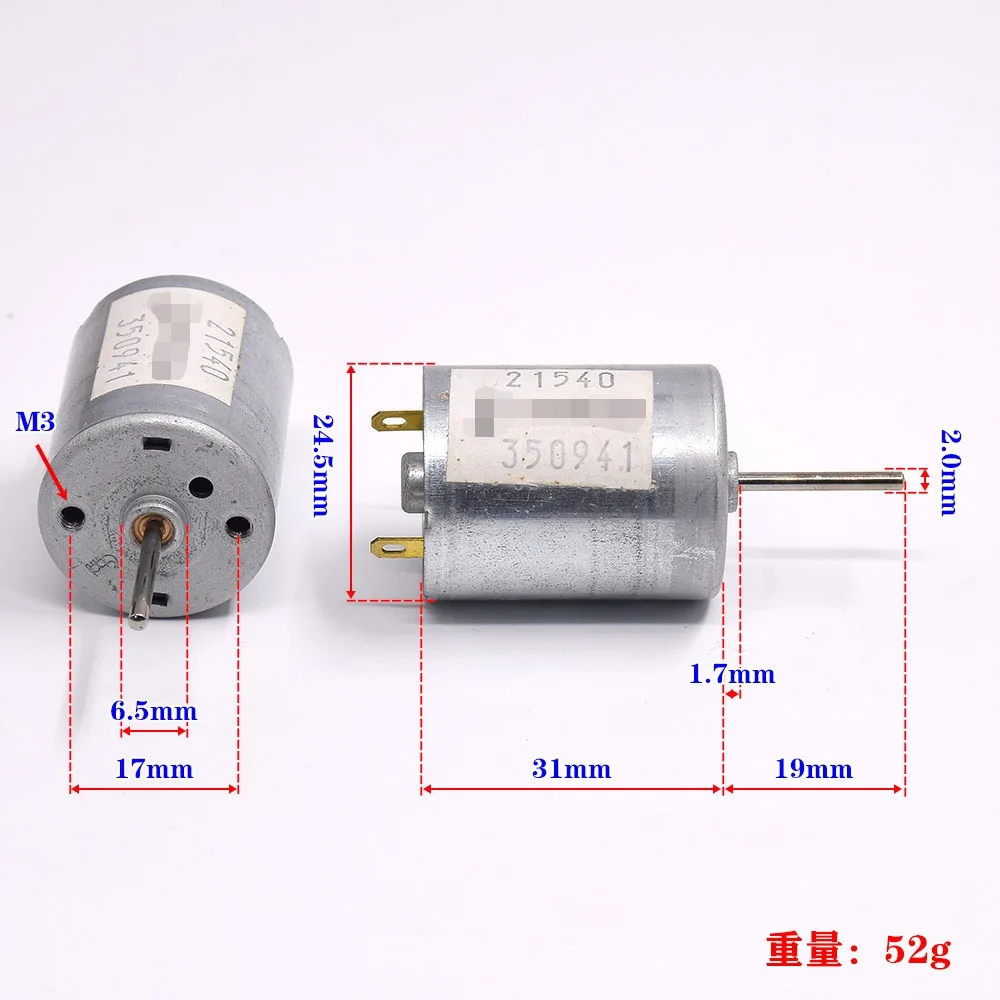

Motor body 24.4mm diameter, 30.8mm tall—fits tight spaces
Draws 10mA at 12V, 30mA at 24V—efficient current draw across the range
Supplied as a bare motor component, ready to integrate into your assembly
Ideal for robotics, model engineering, automation projects, or any application needing a variable-speed micro drive.
