Mini 5-Pole Micro FK-130 Electric Motor DC 12V 18V 24V High Speed Engine Dual 2mm Shaft DIY RC Rail Train Toy HO Slot Car Boat
Mini 5-Pole Micro FK-130 Electric Motor DC 12V 18V 24V High Speed Engine Dual 2mm Shaft DIY RC Rail Train Toy HO Slot Car Boat
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Actual Rated Input Voltage: 12V
Base RPM: 21600RPM
Brand: TE Motor
Brand Name: NONE
Certification: NONE
Choice: yes
Commutation: Brush
Construction: Permanent Magnet
Current Type: DC
Efficiency: IE 1
High-concerned chemical: None
MPN: Does Not Apply
Model: 130-10190/42
Nominal Rated Input Voltage: 6 V, 9 V, 12 V, 24 V
Origin: Mainland China
Output Power: ＜18.65
Protect Feature: Explosion-proof
Shaft Diameter: dual 2mm shaft
Shaft Type: Straight
Special Motor Construction: Carbon Brush Motor
Type: Micro Motor
UPC: Does not apply
Use: Home Appliance
semi_Choice: yes
Specification:
1.Model: 130 Motor
2.Voltage range: DC12V-24V
3.Test data:
Voltage:12V No-load speed:10500RPM Current:60mA
Voltage:24V No-load speed:21000RPM Current:65mA

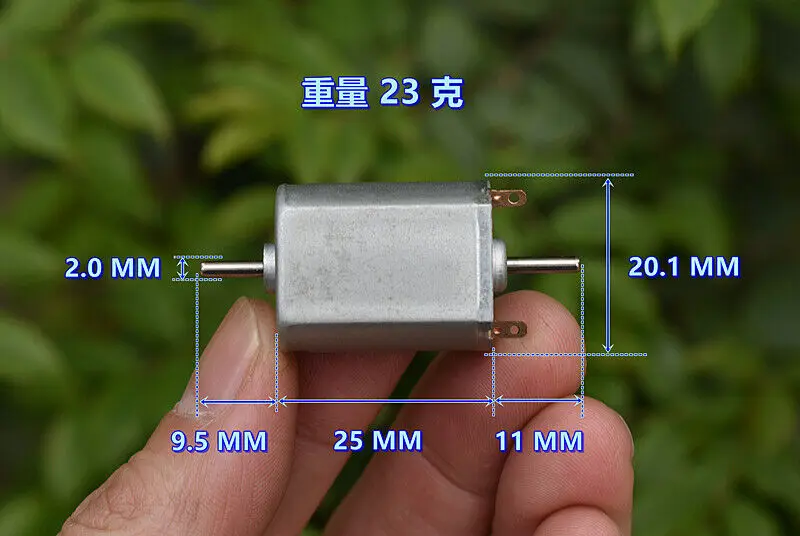

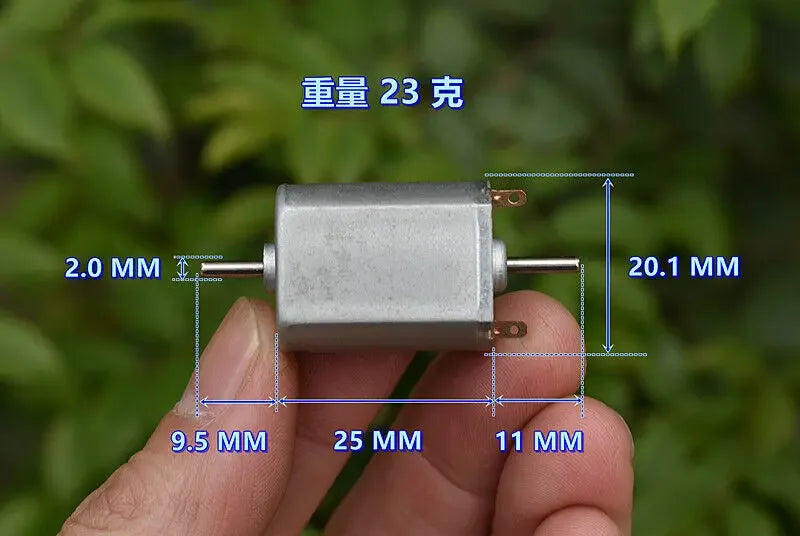

4.Motor size: 20.1mm*15.4mm
5.Motor height: 25mm
6.Output shaft diameter: 2.0mm
7.Output shaft length: 9.5mm/11mm
8.Weight: 23g
Package:
Motor x 1
