Specification:

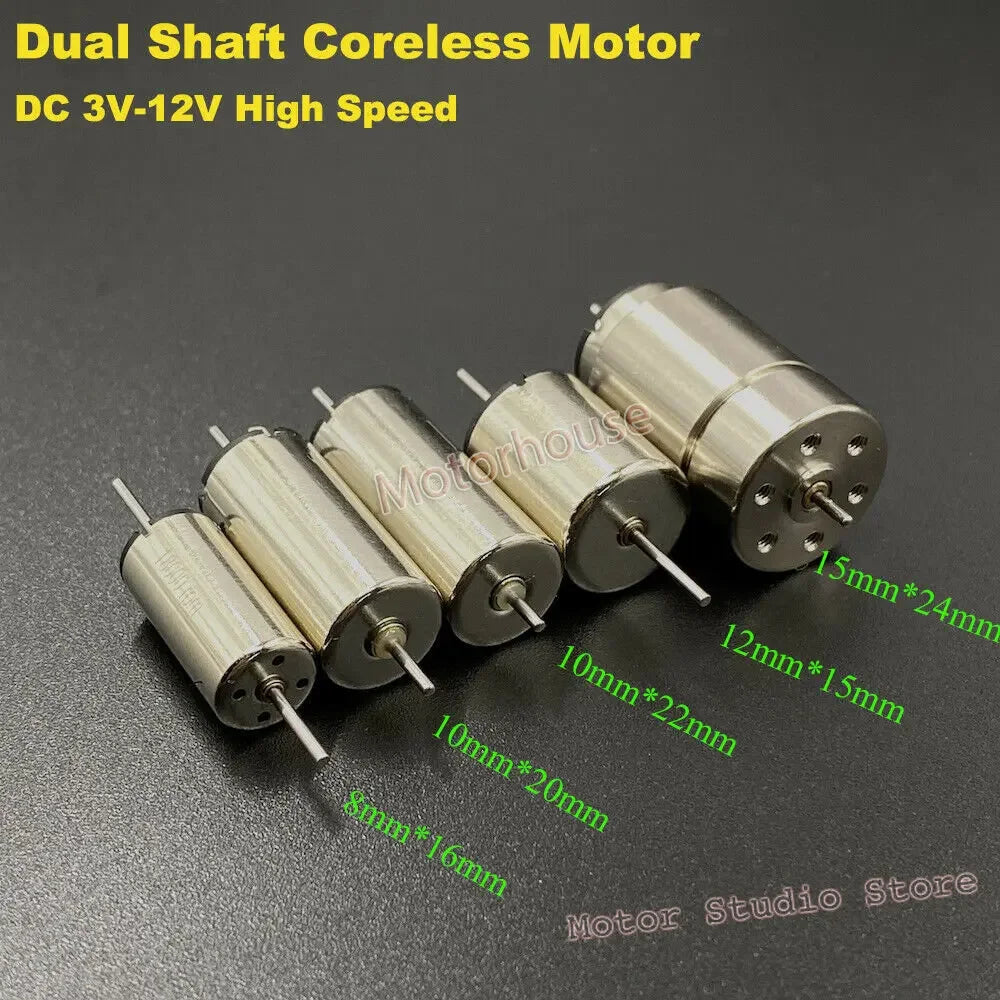

8mm*16mm coreless motor

1.Model: 816 mini coreless motor

2.Motor diameter: 8.1mm

3.Motor length: 16.7mm

4.Output shaft diameter: 1.0mm

5.Output shaft length: 8mm/9mm

6.Weight: About 4.1g

7.Voltage range: DC 6V-12V
8. Rated voltage: DC 12V
9. No-load speed: 13500RPM/ 18000RPM

10.Application: Mainly used for micro hobby toy model, toy rail train and other machines.

10mm*20mm coreless motor

1.Model: 10mm*20mm coreless motor

2.Motor diameter: 10mm

3.Motor length: 20mm

4.Output shaft diameter: 1.0mm

5.Output shaft length:6mm(Front output shaft)/7.25mm(Rear output shaft)

6.Weight: 7g

7.Voltage range: DC 6V-12V

8.Test data:

Voltage:6V No-load speed:9000RPM

Voltage:12V No-load speed:18000RPM

9.Application: Mainly used for micro hobby toy model, toy Rail train and other machines.

10mm*22mm coreless motor

1.Model:10mm*22mmcoreless motor

2.Motor diameter: 10mm

3.Motor length: 22mm

4.Output shaft diameter: 1.0mm

5.Output shaft length:4.5mm(Front output shaft)/ 7.25mm(Rear output shaft)

6.Weight: About 7g

7.Voltage range: DC 6V-12V

8.Test data:

Voltage:6V No-load speed:1100RPM

Voltage:9V No-load speed:17000RPM

Voltage:12V No-load speed:23000RPM

9.Application: Mainly used for micro hobby toy model, toy Rail train andother machines.

12mm*15mm coreless motor

1.Model: 1215 coreless motor

2.Motor diameter: 12mm

3.Motor length: 15mm

4.Output shaft diameter: 1.0mm

5.Output shaft length: 9.5mm/9.5mm

6.Weight: About 8g

7.Voltage range: DC 6V-12V

8.Test data:

Voltage:6V No-load speed:85000RPM

Voltage:12V No-load speed:17000RPM

9.Application: Mainly used for micro hobby toy model, toy Rail train andother machines.

15mm*24mm coreless motor

1.Model: 15mm*24mm coreless motor

2.Weight: 22g

3.Voltage range: DC 6V-12V

4.Motor size: 15mm*24mm

5.Output shaft diameter: 1.0mm

6.Output shaft length: 4.5mm/6mm

7.Test data:

Voltage:6.0V No-load speed:5400RPM Current:6mA

Voltage:12V No-load speed:10800RPM Current:9mA

Package Include:

Motor x 1pc
