Mini telescopic linear actuator small micro 6V/12V/24VDC electric reciprocating lifting linear actuator stroke range 10-200mm
Mini telescopic linear actuator small micro 6V/12V/24VDC electric reciprocating lifting linear actuator stroke range 10-200mm
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: Hoodland
Certification: CE
Choice: yes
Color: Silver
Commutation: Brush
Construction: Permanent Magnet
Continuous Current(A): 0.25A
Does it include a Battery?: No
Does it include wireless functionality?: No
Efficiency: IE 2
High-concerned chemical: None
Model Number: IP60
Origin: Mainland China
Output Power: ＜18.65,3W
Protect Feature: Drip-proof
Torque: 150N
Type: Micro Motor
Usage: BOAT,Car,Electric Bicycle,Fan,Home Appliance
semi_Choice: yes
Technical Parameters
Voltage (V) |
DC 6/12/24V |
||||

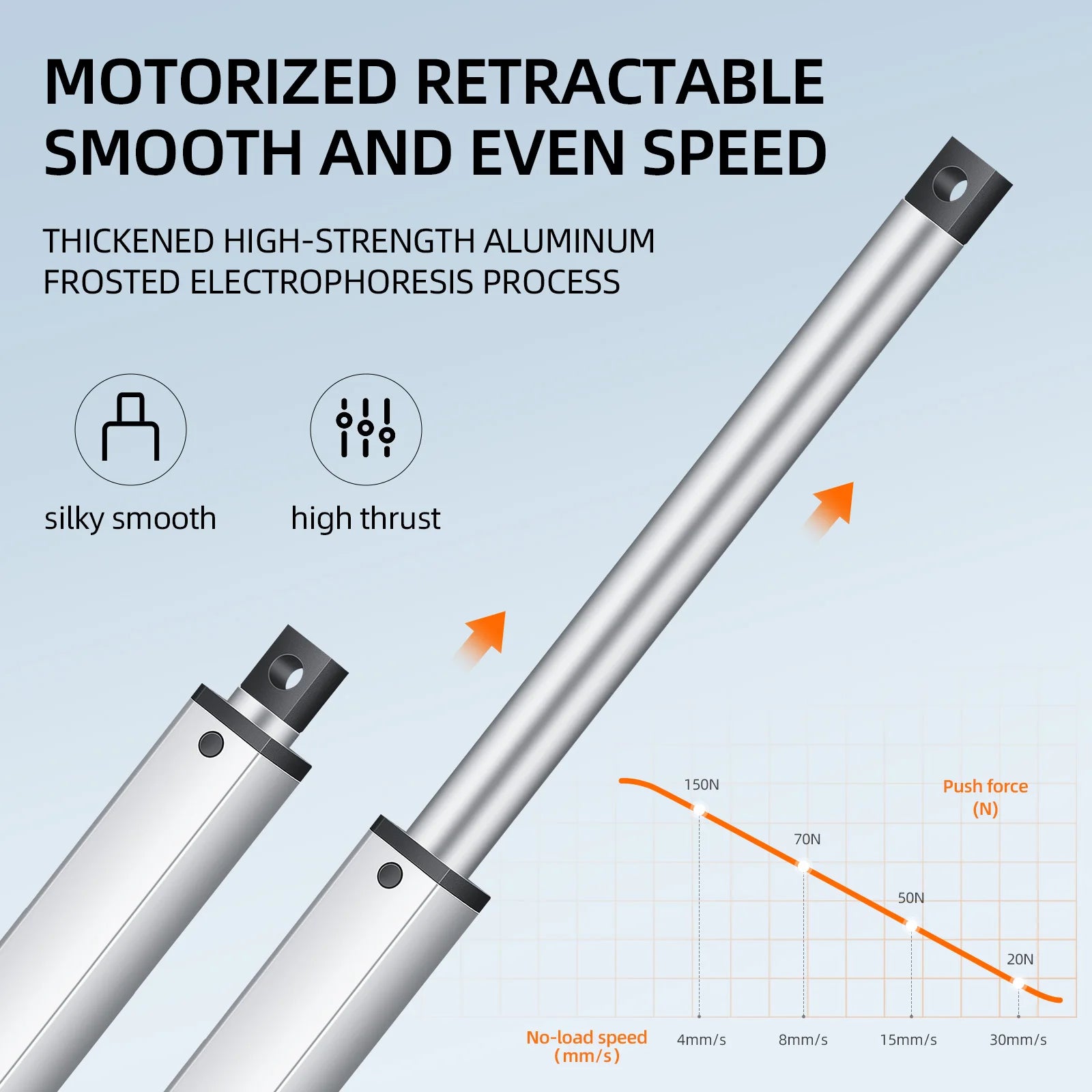

No-load speed (mm/s) |
4 |
8 |
15 |
30 |
150 |
Load push capacity (N) |
150 |
70 |
50 |
20 |
7 |
Load pull capacity (N) |
150 |
70 |
50 |
20 |
7 |
Statoc damping (N) |
150 |
70 |
50 |
20 |
7 |

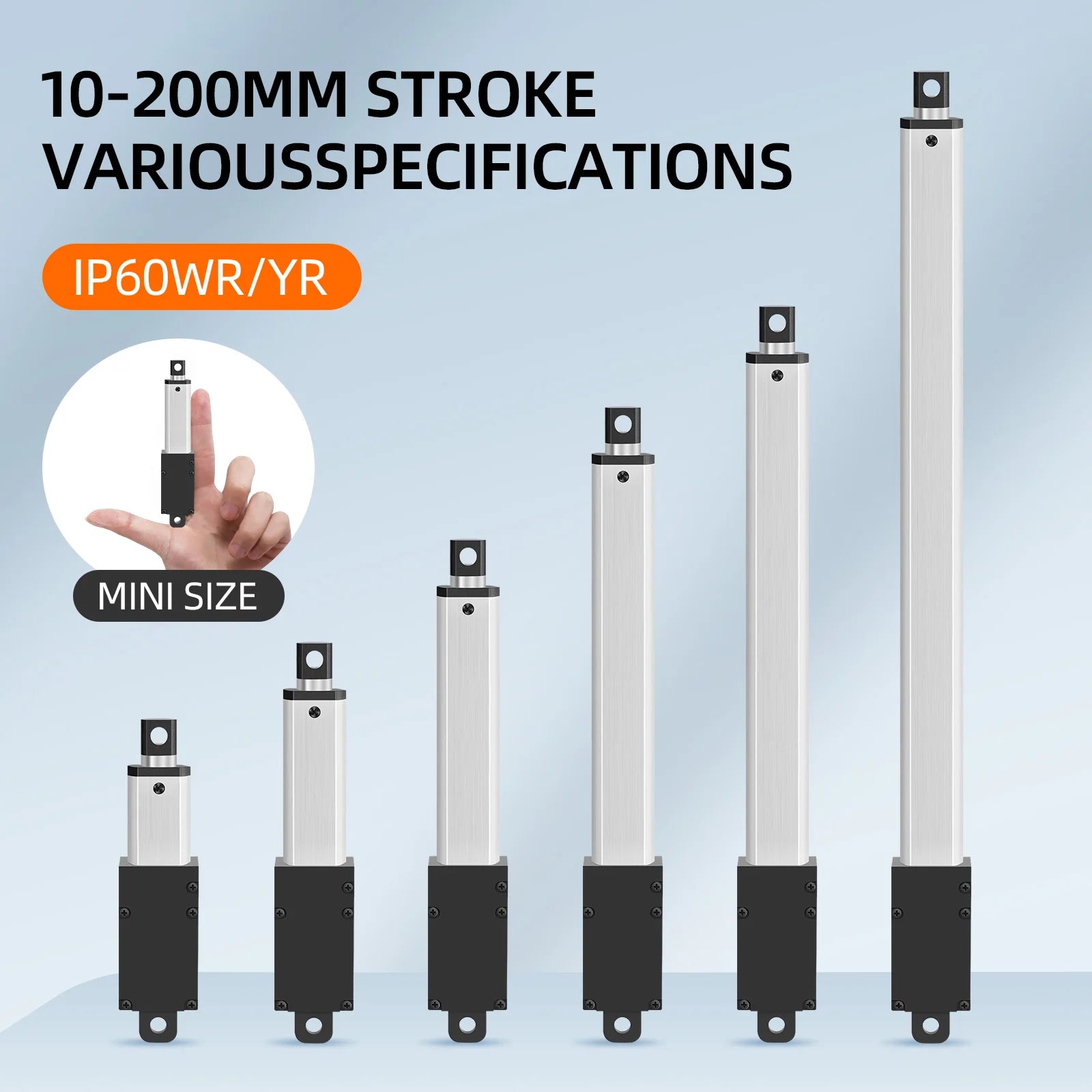

Stroke length (mm) |
10mm,15mm,30mm,50mm,75mm,100mm,150mm,200mm |
||||
Operating temperature |
-20~65℃ |
||||
IP Grade |
IP43 |
||||
Limit switch |
Built-in |
||||
Operating frequency |
10% max 2min continuous use |
||||
Inner tube |
Aluminum tube |
||||
Color |
Silver gray |
||||
Lead screw type |
T type |
||||
What's in the box

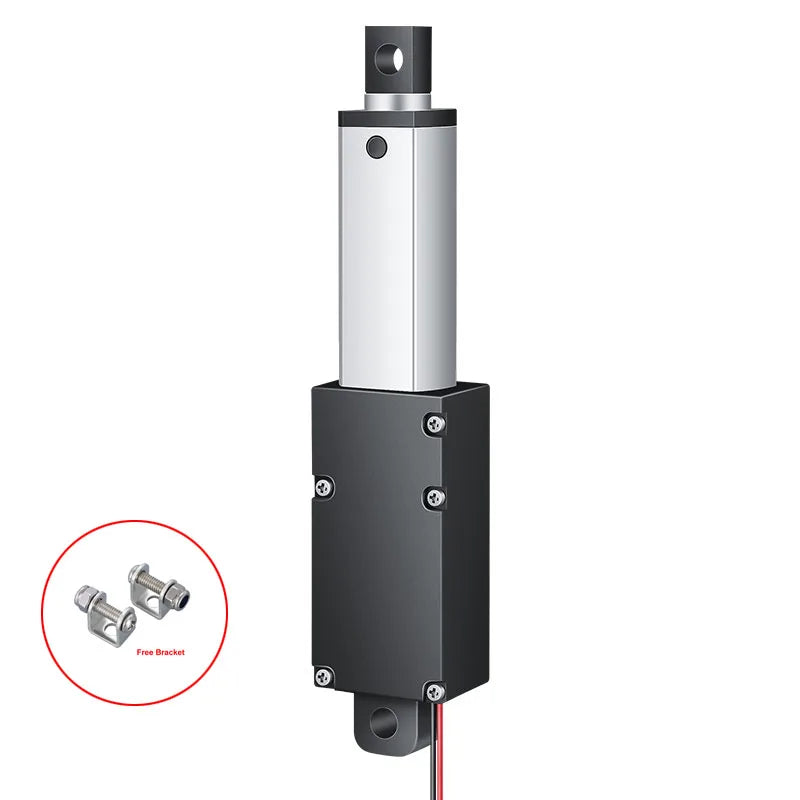

1 x Mini Electric Linear Actuator
2 x Mounting Bracket

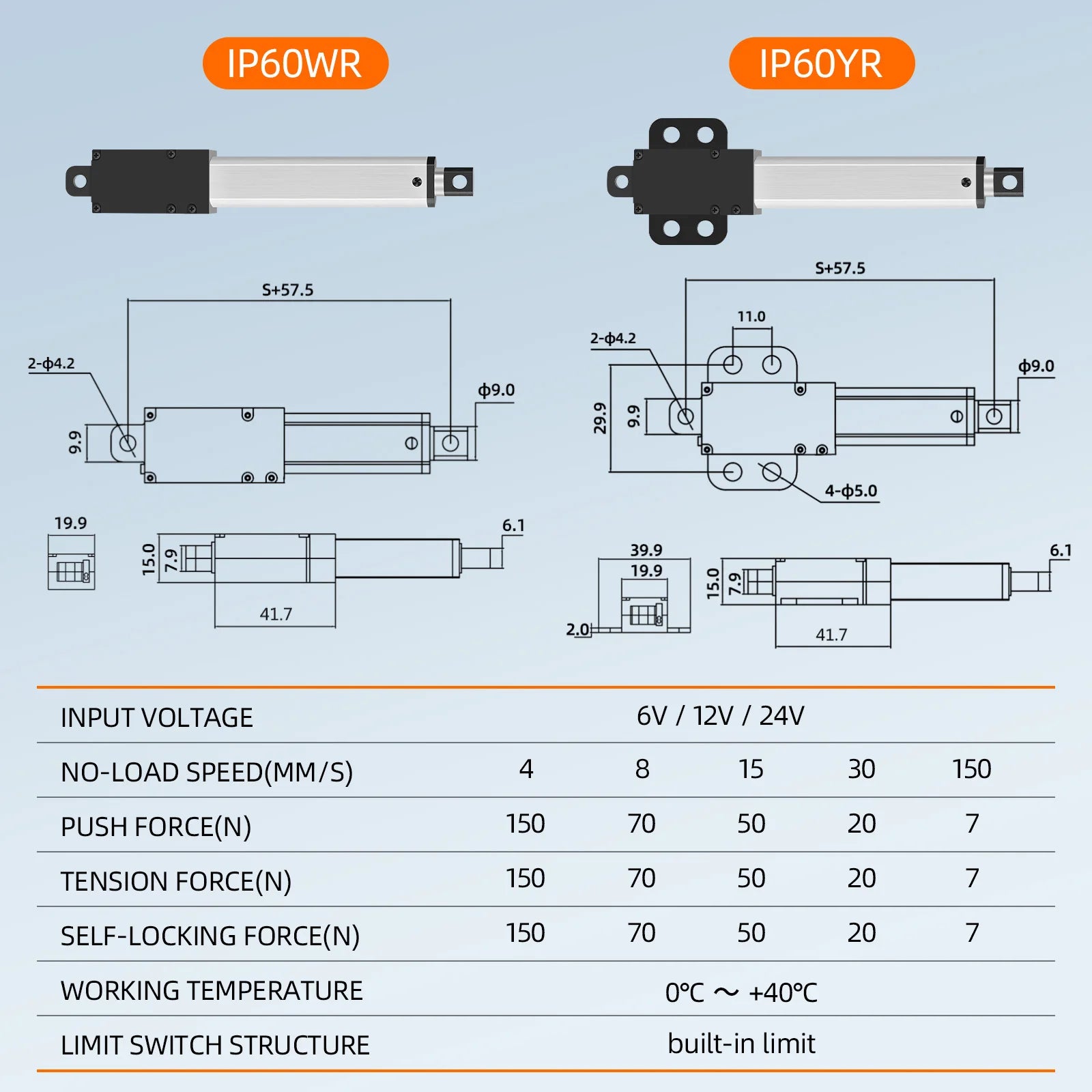

Dimensions
2-hole center distance measurement
Stroke length(mm) |
Extend Length(mm) |
Retracted Length(mm) |
10 |
77.5 |
67.5 |
15 |
87.5 |
72.5 |
20 |
97.5 |
77.5 |
30 |
117.5 |
87.5 |
40 |
137.5 |
97.5 |
50 |
157.5 |
107.5 |
75 |
207.5 |
132.5 |
100 |
257.5 |
157.5 |
150 |
357.5 |
207.5 |
200 |
457.5 |
257.5 |
