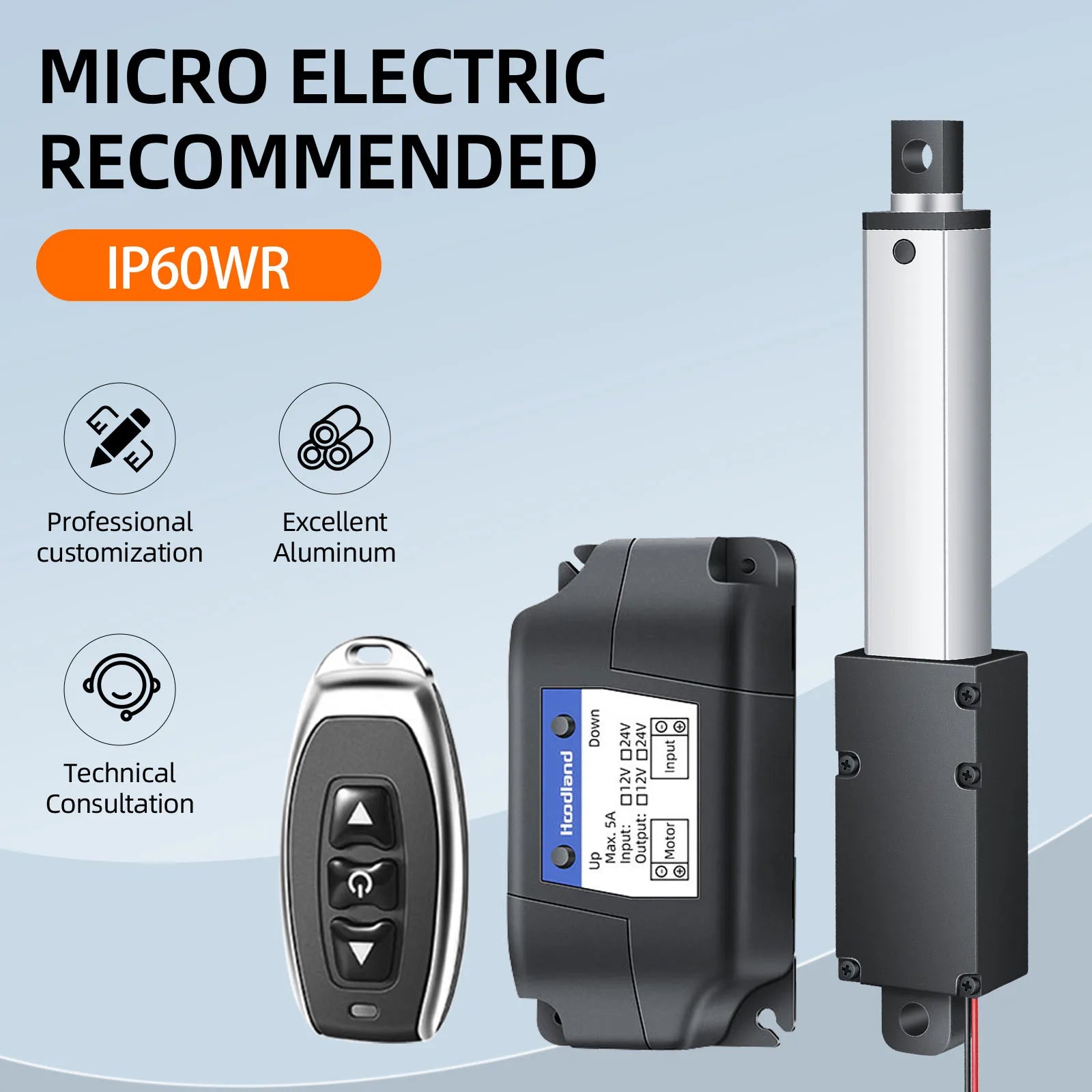

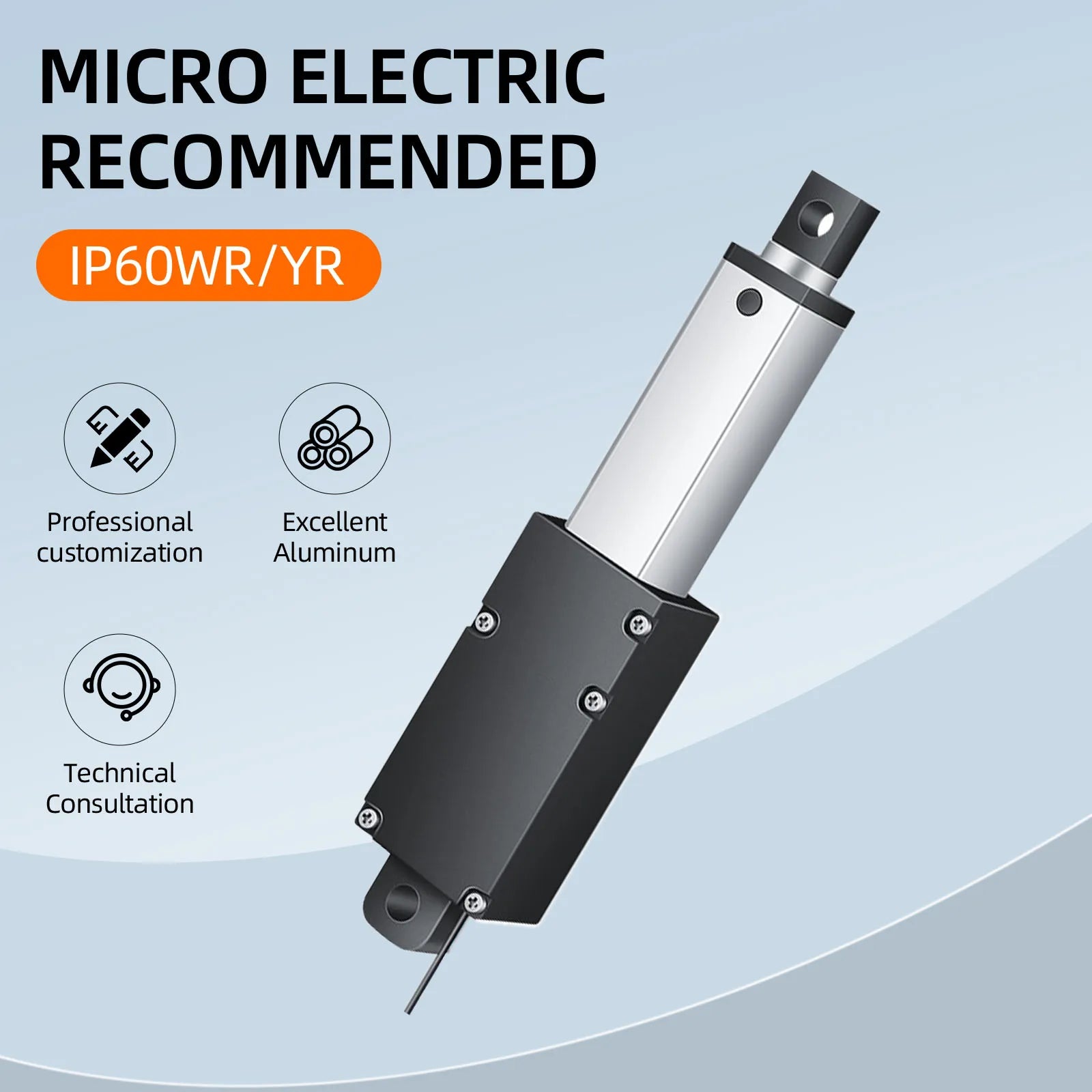

Mini Electric Linear Actuator – DC 6/12/24V with Wireless Remote

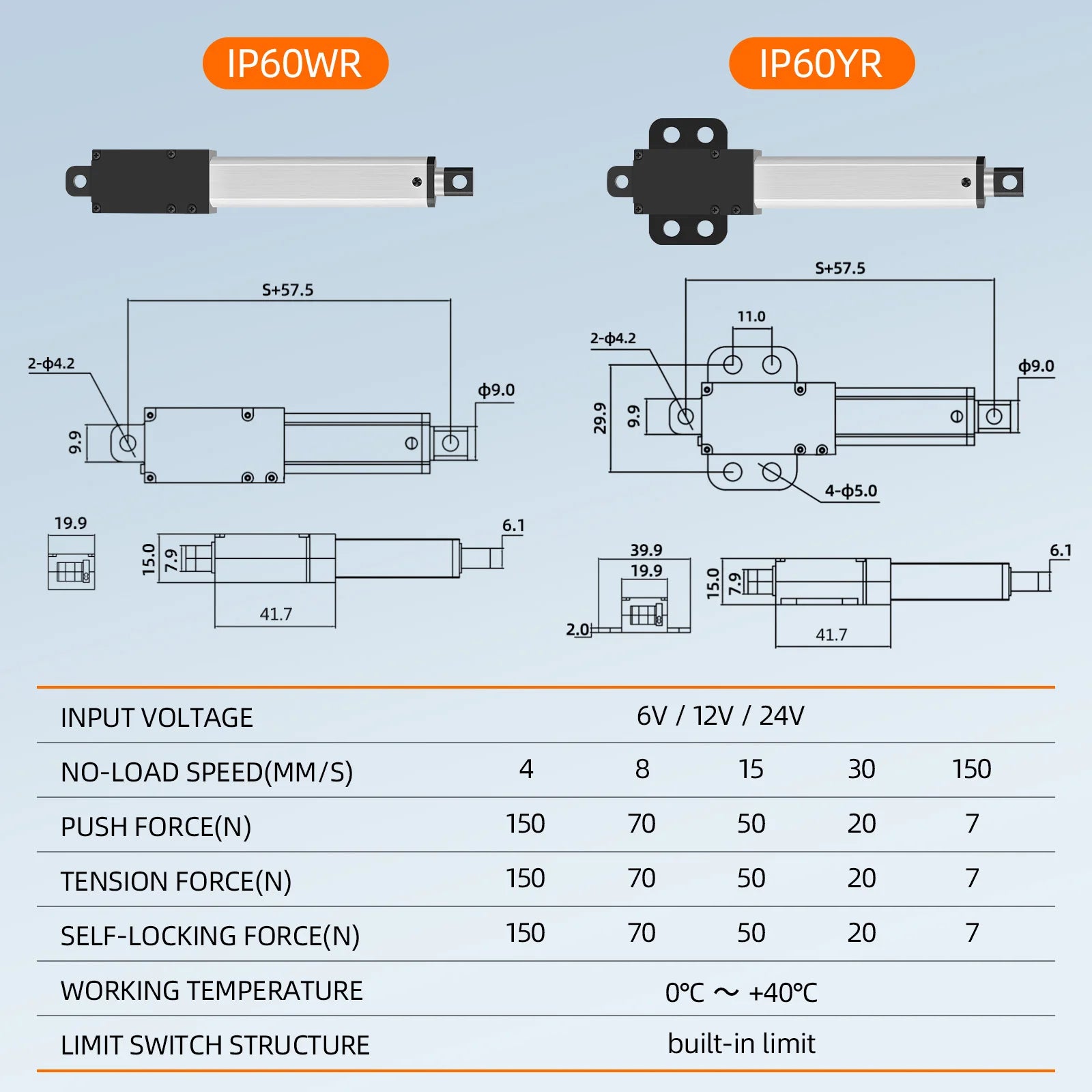

Technical parameters
No-load speed (mm/s)
4
8
15
30
150
Push / pull force (N)
150
70
50
20
7
Static holding (N)
150
70
50
20
7
Voltage: DC 6V / 12V / 24V
Stroke lengths: 10, 15, 20, 30, 40, 50, 75, 100, 150 or 200 mm
Operating temperature: 0–40°C
IP rating: IP43

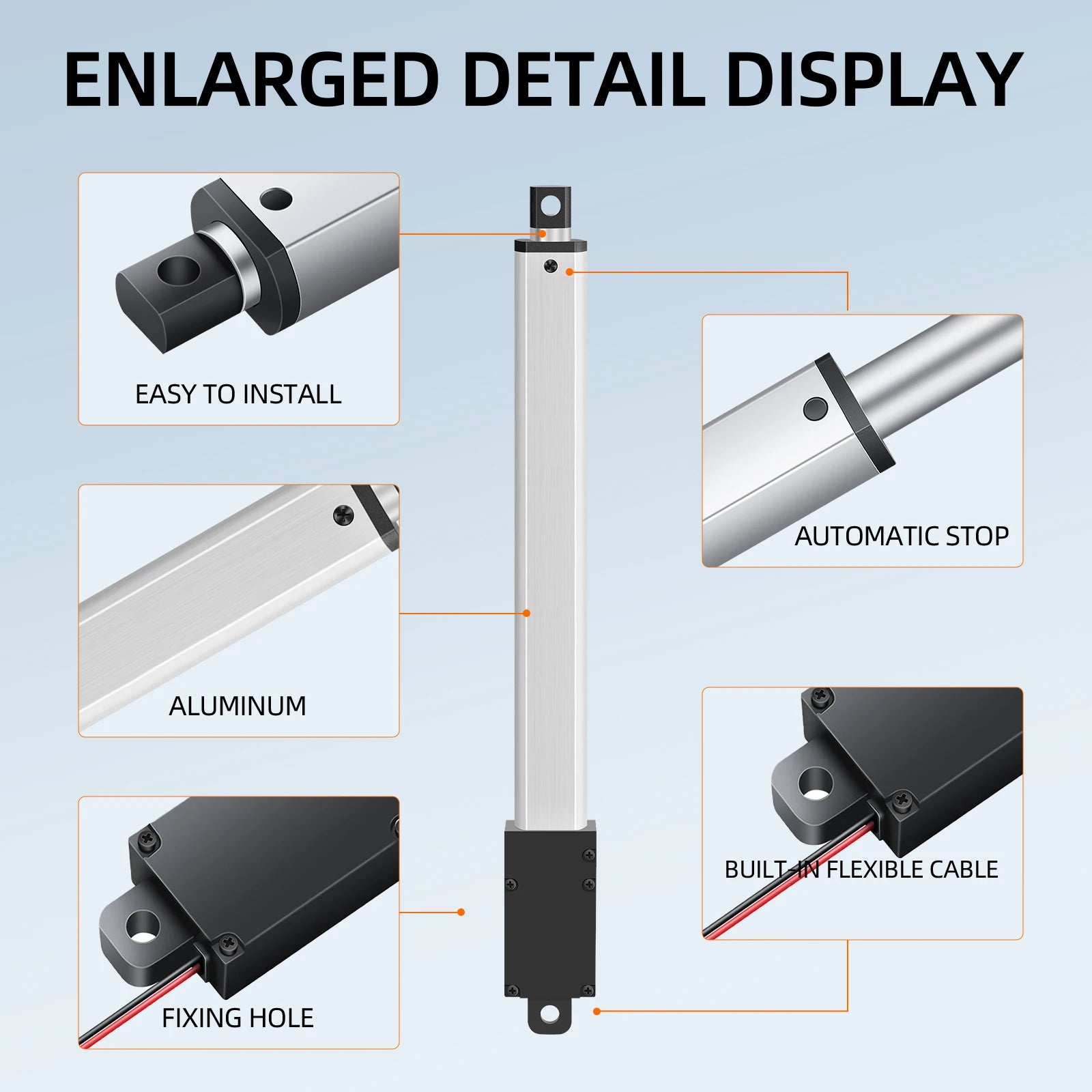

Built-in limit switches
Duty cycle: 10% — maximum 2 minutes continuous
Aluminium inner tube, T-type lead screw
Colour: silver grey

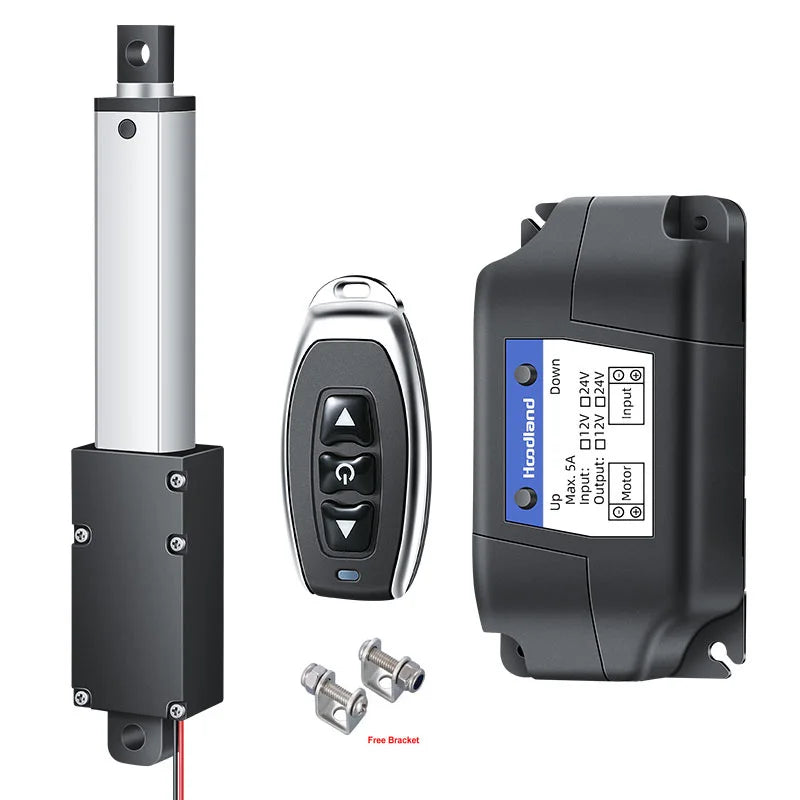

In the box: 1 x linear actuator, 2 x mounting brackets, 1 x wireless remote controller.

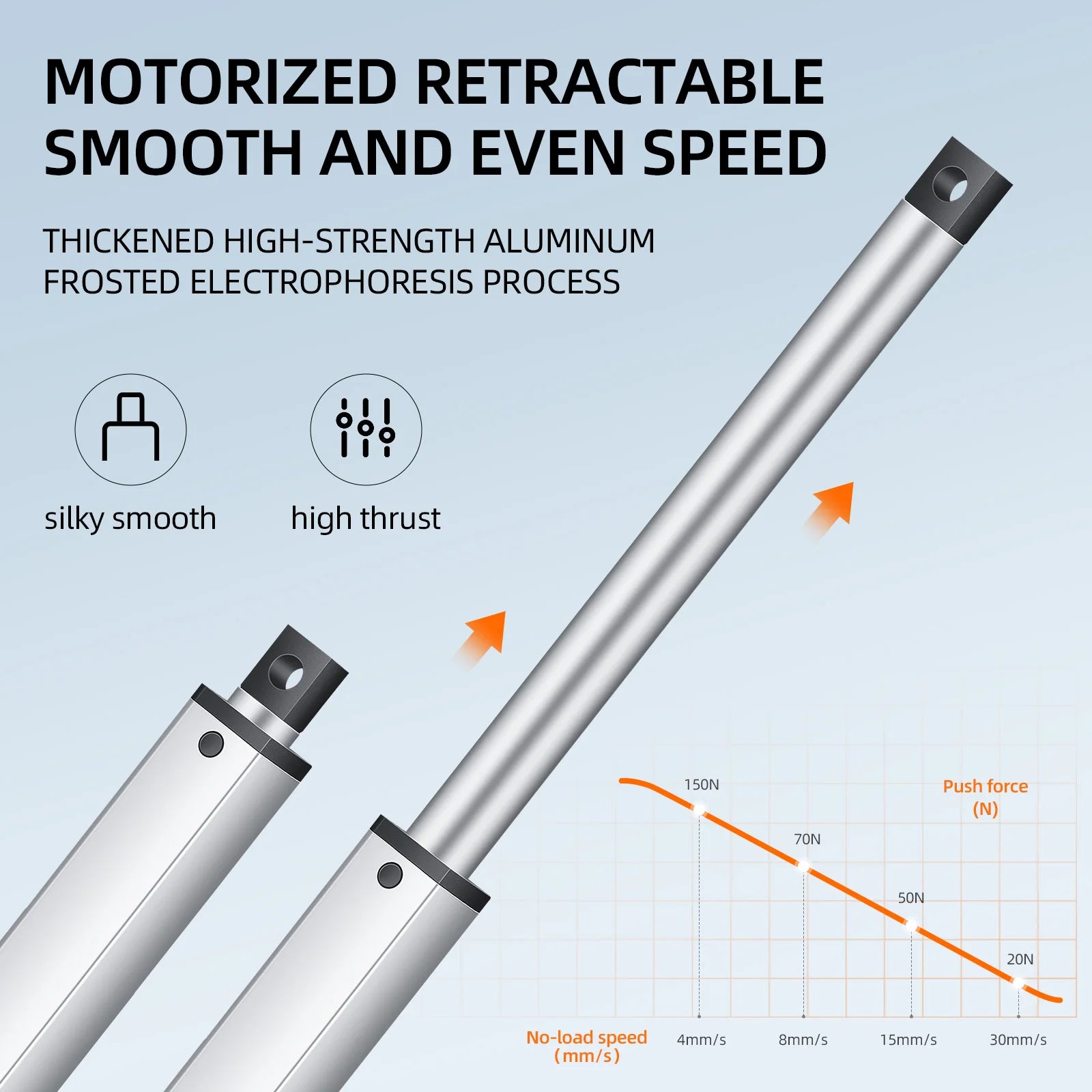

Faster stroke speeds give lower force — pick the speed and stroke that suit your load. The 10% duty cycle means it is for intermittent use, not continuous running. IP43 is splash resistant only, not weatherproof.
