MY6812 150W 120w 100W DC 12V/24V high speed motor , small dc brush motor, Brush Motor with belt pulley for Electric Motor
MY6812 150W 120w 100W DC 12V/24V high speed motor , small dc brush motor, Brush Motor with belt pulley for Electric Motor
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: Dobtian
Certification: ce
Choice: yes
Color: black
Commutation: Brush
Construction: Permanent Magnet
Continuous Current(A): <0.9A
Does it include a Battery?: No
Does it include wireless functionality?: No
Efficiency: IE 3
High-concerned chemical: None
Maximum speed (RPM): 3500±5%
Model Number: 150w/120w/100w
Origin: Mainland China
Output Power: 18.65-37.5（include18.65and37.5）,100W/120W/150W
Protect Feature: Drip-proof
Rated current: <8, 5A
Rated speed (RPM): 2500±5%
Rated torque: 0.56 nm
Torque: 0.56
Type: Micro Motor
Usage: BOAT,Fan,Home Appliance
Voltage: 12V/24V
efficiency: > 68%
MY6812 150W 120w 100W DC 12V/24V high speed motor , small dc brush motor, Brush Motor with belt pulley for Electric Motor
Feature:
1. This product is a small brush motor, made of premium aluminum material.
2. With metal belt pulley, strong, durable for long time use.
3. The motor length of 100mm is 68mm in diameter, the shaft length is 28mm, the shaft diameter is 8mm, the distance between the 2 fixed holes of the motor is 36mm, and the sprocket wheel is the 9 teeth sprocket wheel of the 25H model.
4. The shaft diameter: 8mm (single milling slot 1mm).

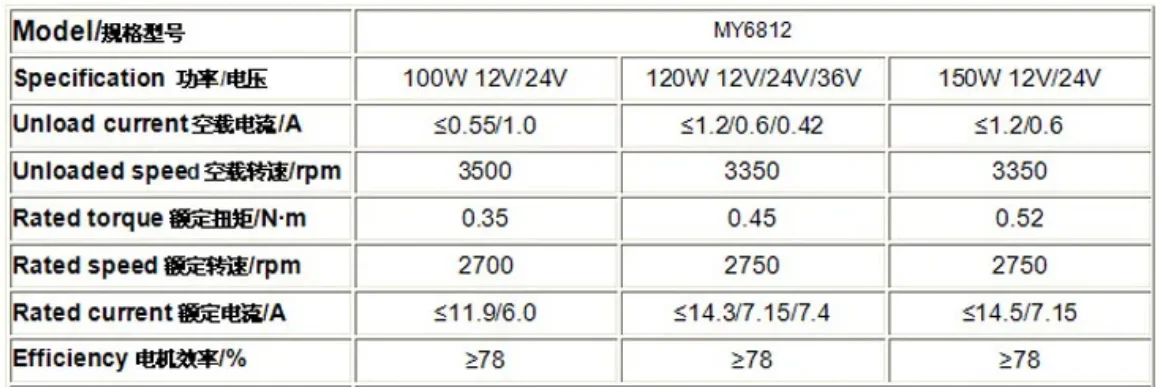

Specification:
Condition: 100% Brand New
Item Type: Brushed Motor
Model: MY6812
Material: aluminum
Color: as picture shown
Rated power: 150W (kW)
Rated voltage: 12 V/24V

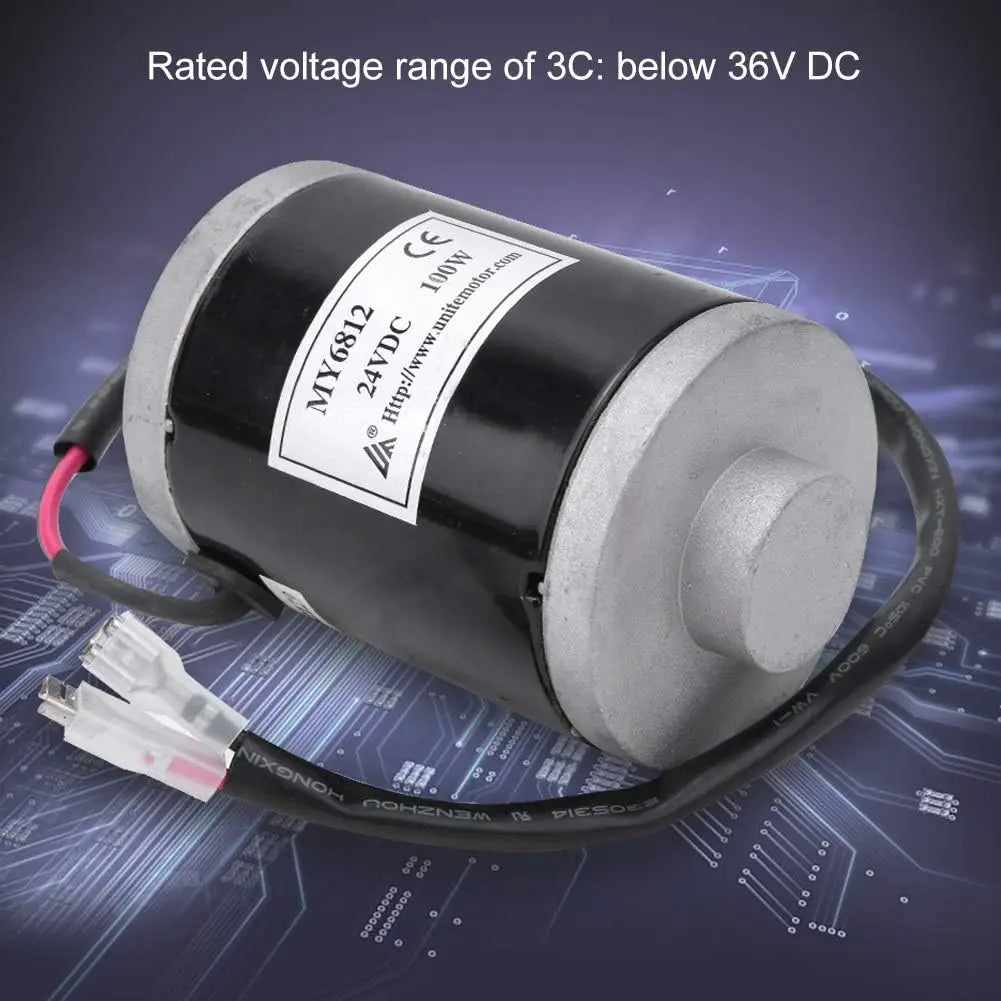

Rated voltage range of 3C: below 36V DC
Rated current: <8, 5A
Rated speed (RPM) : 2500±5%
Maximum speed (RPM) : 3500±5%
No-load current: < 0.9A
Rated torque: 0.56 nm
transmission :belt pulley , metal
shaft diameter :8 mm (milled groove one-sided 1 mm)
efficiency : > 68%
Package List:
1 x Brushed Motor
