NICHIBO 42mm RS-775VC Motor DC 18V-36V 24V 11800RPM High Speed Power Front Ball Bearing 775 Motor for Electric Tool Drill Saw

$42.14 USD

~~$0.00 USD~~ $42.14 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Choice: yes

Commutation: Brush

Construction: Permanent Magnet

Does it include a Battery?: No

Does it include wireless functionality?: No

Efficiency: IE 1

High-concerned chemical: None

Model Number: 775VC Motor

Origin: Mainland China

Output Power: 74.6-735（include735）

Protect Feature: Explosion-proof

Type: Micro Motor

semi_Choice: yes

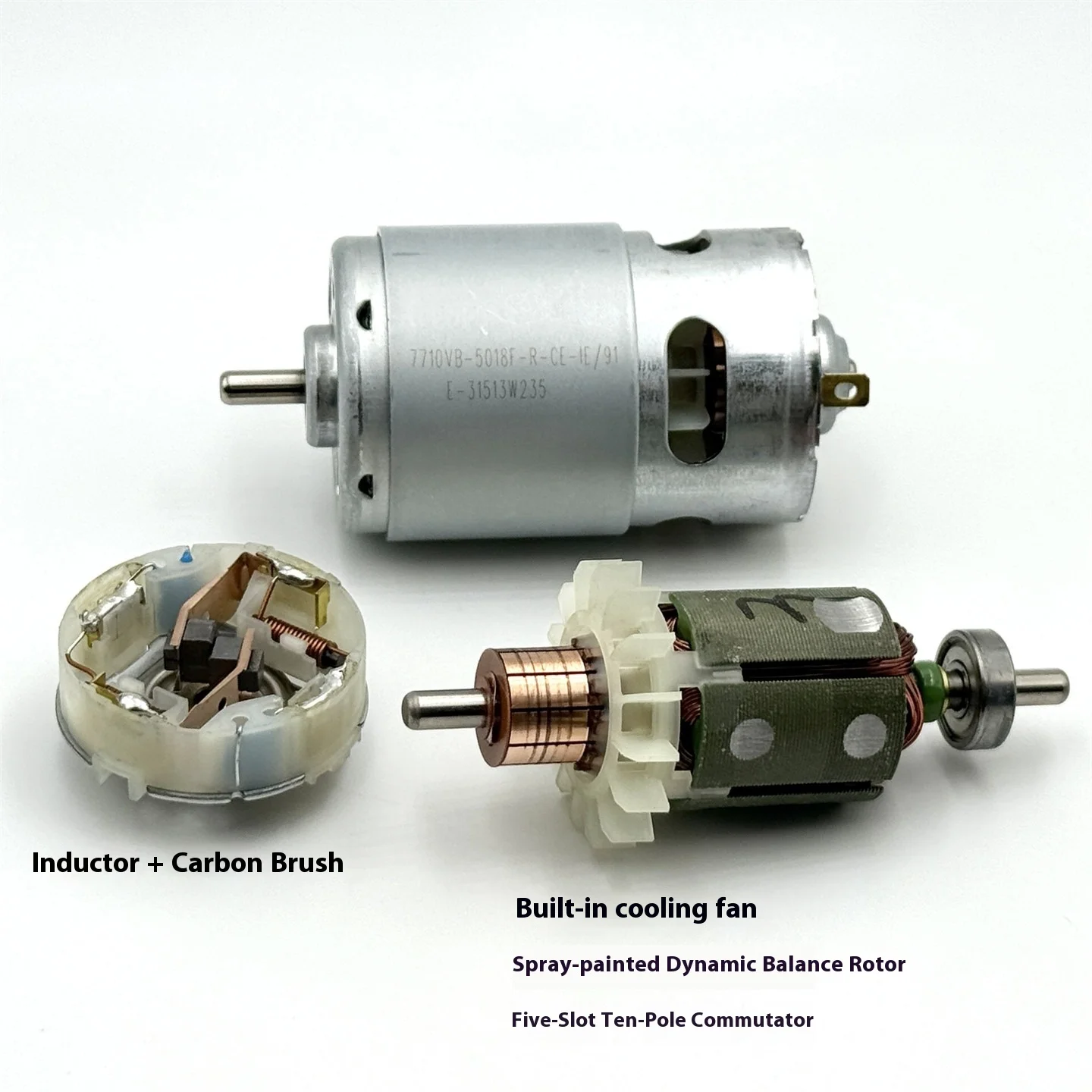

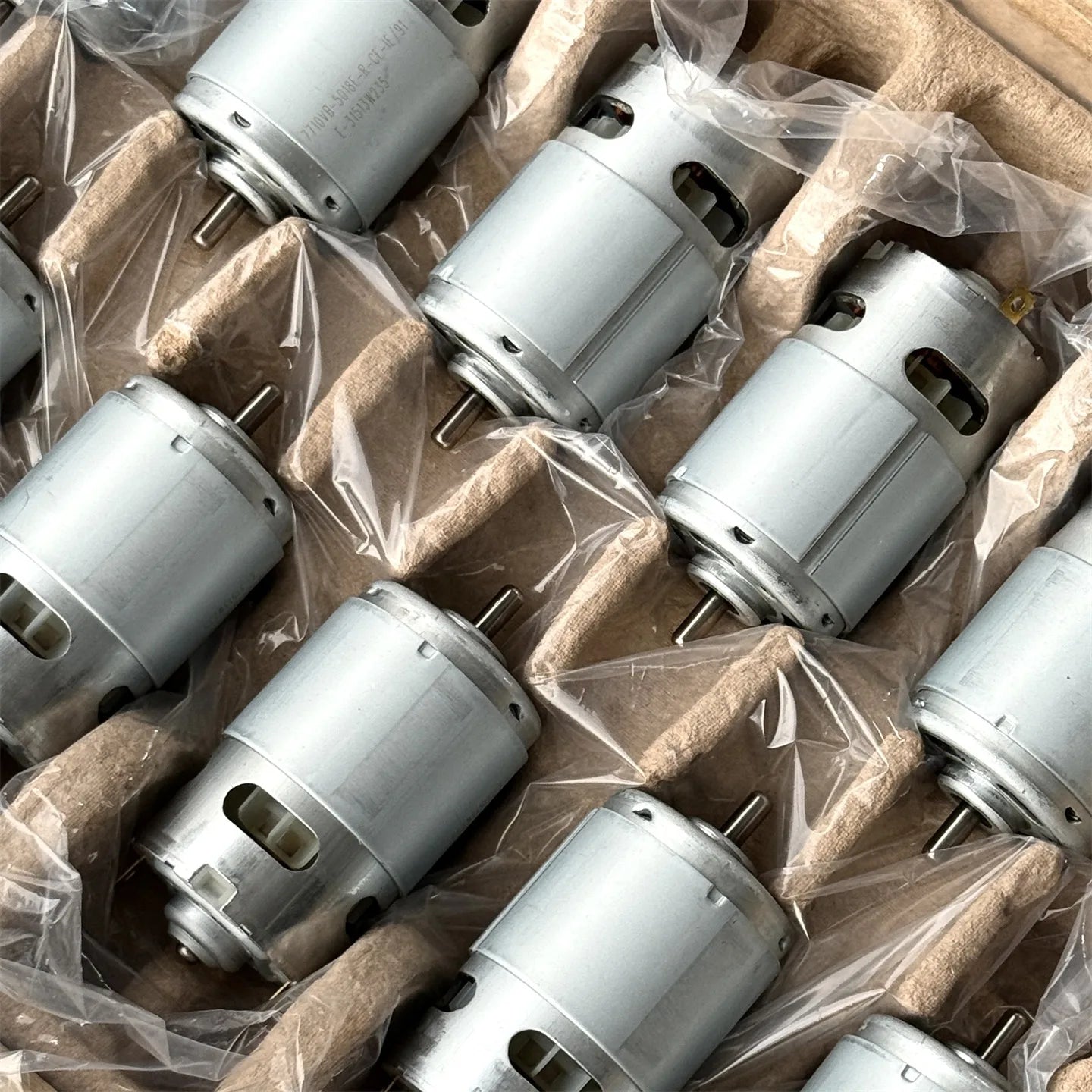

This batch of 7710VB-5018/91 motors is of the NICHIBO (Taiwan Yumao) brand. It can be regarded as the high-end version of the 775 motor (with the same external dimensions as the 775 motor, and internally adopting a 5-slot rotor and 10-pole commutator design). Moreover, they are all brand-new with original packaging (packed in pulp pallets, 30 pieces per pallet and 10 pieces per tray). The front of the motor is equipped with a ball bearing, and the interior features strong magnets, carbon brushes, a sprayed + dynamically balanced rotor, a bakelite commutator, and a built-in cooling fan, ensuring excellent quality.

Widely used in: Power tools, impact wrenches, juicers, electric drills, vacuum cleaners, cutting machines, lawn mowers, toy models, car models, boat models, toy stroller modifications, etc.

Actual Test Results:
