SPECIFICATIONS

Adapted Stern Board Height: 380-440mm

Applicable Boat Length: Less than 4m

Applicable Boat Weight: About 500kg

Assembly Required: Yes

Bore*Stroke: 44*33mm

Brand Name: Bymaocar

Control System: Tiller Control

Cooling System: Wind Cooling

Displacement: 55cc

Gear Shift: Clutch

Gross Weight: 13kg

High-concerned chemical: None

Ignition System: CDI

Lift Type: Manual

Material: Aluminum Alloy, Plastic, and Nylon

Max Output: 2.9kw

Max Speed: 4500-5500 rpm

Model: 4.0 Horsepower Jet Pump

Mount Type: Free Standing

Net Weight: 9.7kg

Number of Cylinders: 1

Number of Items: 1

Origin: Mainland China

Packing Volume: 95*42*29cm

Recommended Lubricant: Four-stroke Lubricant

Refueling Method: No. 92 Unleaded Gasoline

Size: 365*220*855mm

Speed: About 4-6km/2.48-3.7Miles/h (Depending on the Environment, Water Area, and Ship Load, the Speed may Vary)

Standard Fuel Tank: Built-in 1.1L

Start Mode: Manual Start

Style: Modern

Surface Treatment: Painting

Thrust Force: 500kg

Tilt Angle System: Manual Tilt

Transmission Ratio: 2.08 (27:13)

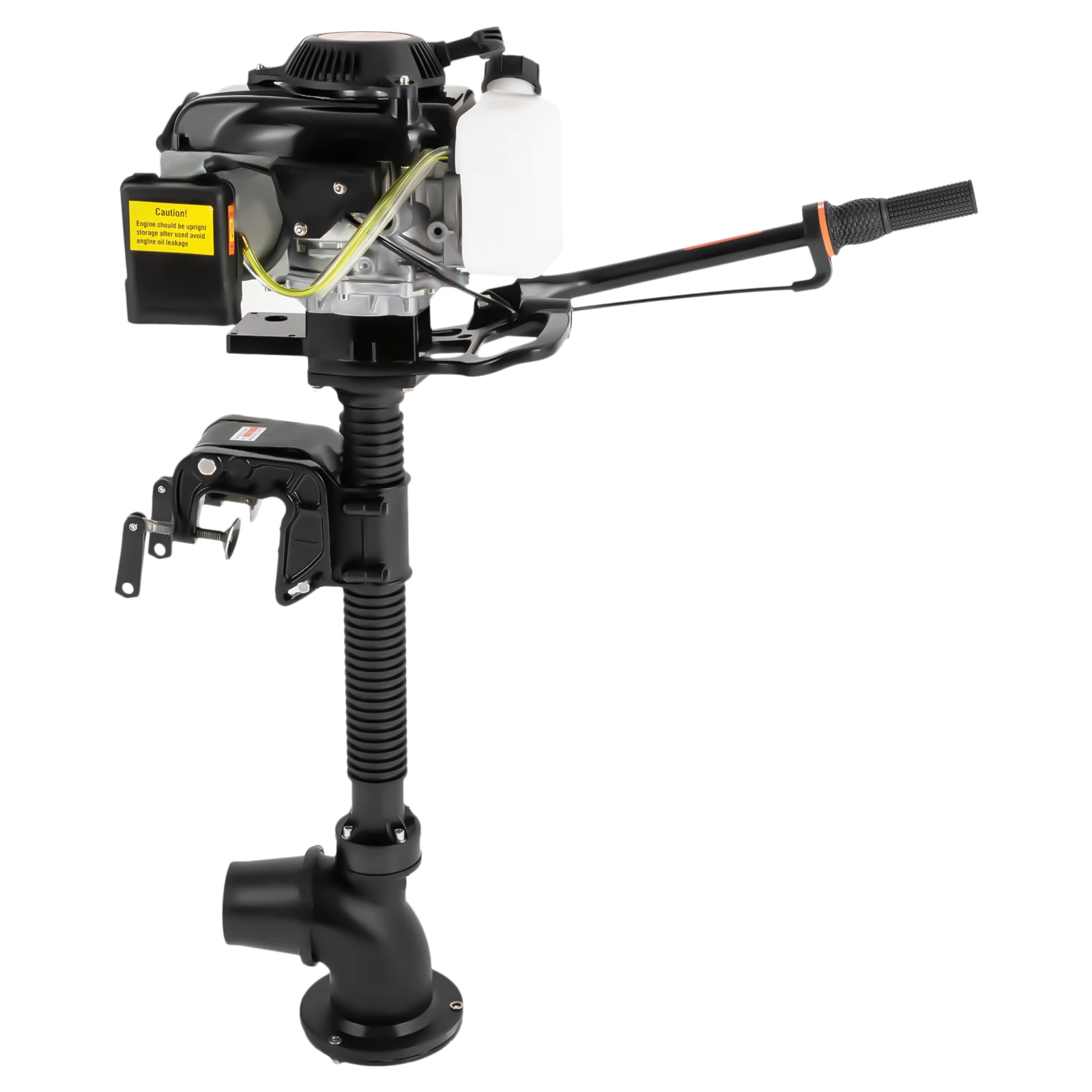

4HP 4-Stroke Jet Pump Outboard Motor, 55CC, 2900W, Air-Cooled, 360° Rotation, Infinite Speed, CDI Ignition, 1102LBS Thrust, Fuel-Efficient, Ergonomic Handle, for Freshwater Boats Under 13.12ft

Description

Good tools are indispensable for work or travel on water. Our outboard engine can help you solve this problem. Made of high-quality plastic, Nylon, and aluminum alloy, and adopting a painting process, this item lays a foundation for your long-term use. 2900W power, 55cc 4-stroke engine, and 4500-5500 r/min speed can provide enough power. We believe this outboard engine will be a good assistant for your work on water.

Key Features

Premium Material: High-quality plastic, nylon & aluminum alloy, solid, wear/impact-resistant and rustproof for long-term use.

Strong Power: 4HP 55cc 4-stroke engine (2900W, 4500-5500rpm) delivers sufficient power for smooth operation.

Versatile Performance: 360° rotation, 180° reverse gear, CDI ignition & manual tilt for easy direction control.

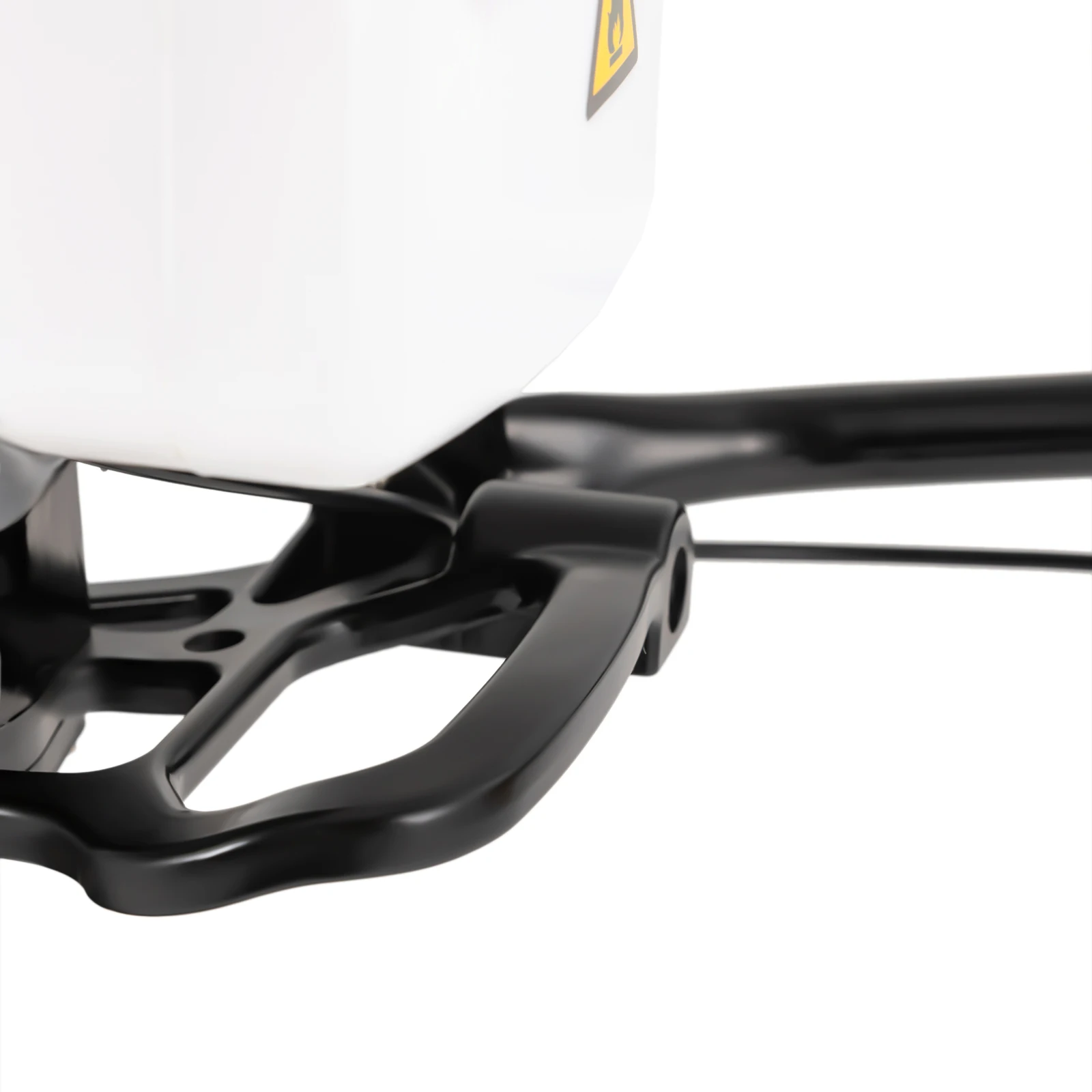

User-Friendly Design: Stepless speed change, gasoline-powered cordless design, ergonomic anti-slip handle for outdoor convenience.

Easy Installation & Complete Kit: Simple structure, detailed manual, and full accessories (funnel, tools, storage bag) for hassle-free use.

Details

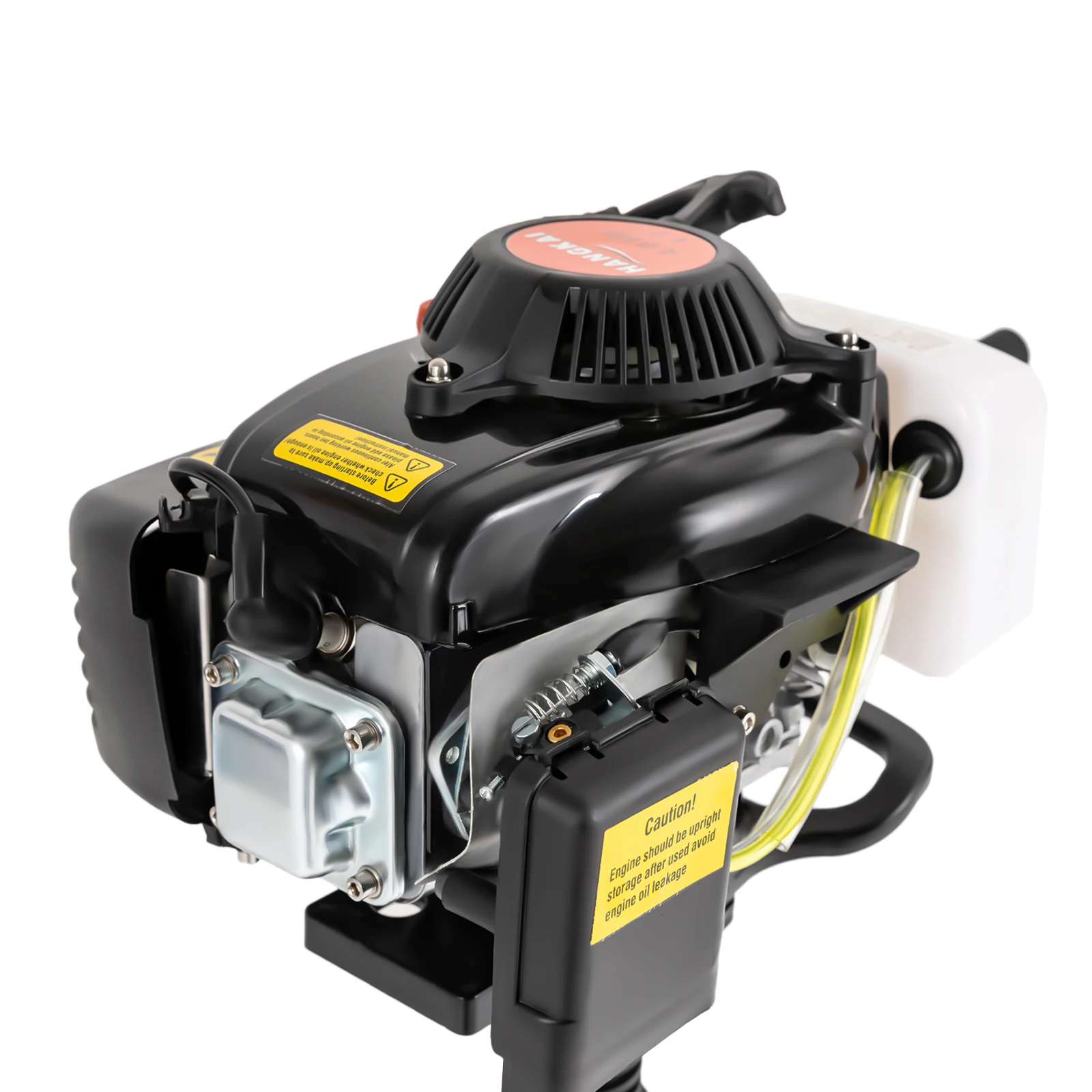

Oil Filler: The filler with a large opening is convenient for you to add oil in time.

Translucent Fuel Tank: The 37.2oz translucent fuel tank avoids frequent refueling and meets the needs of long-distance travel and work and you can check the gasoline quantity and add.

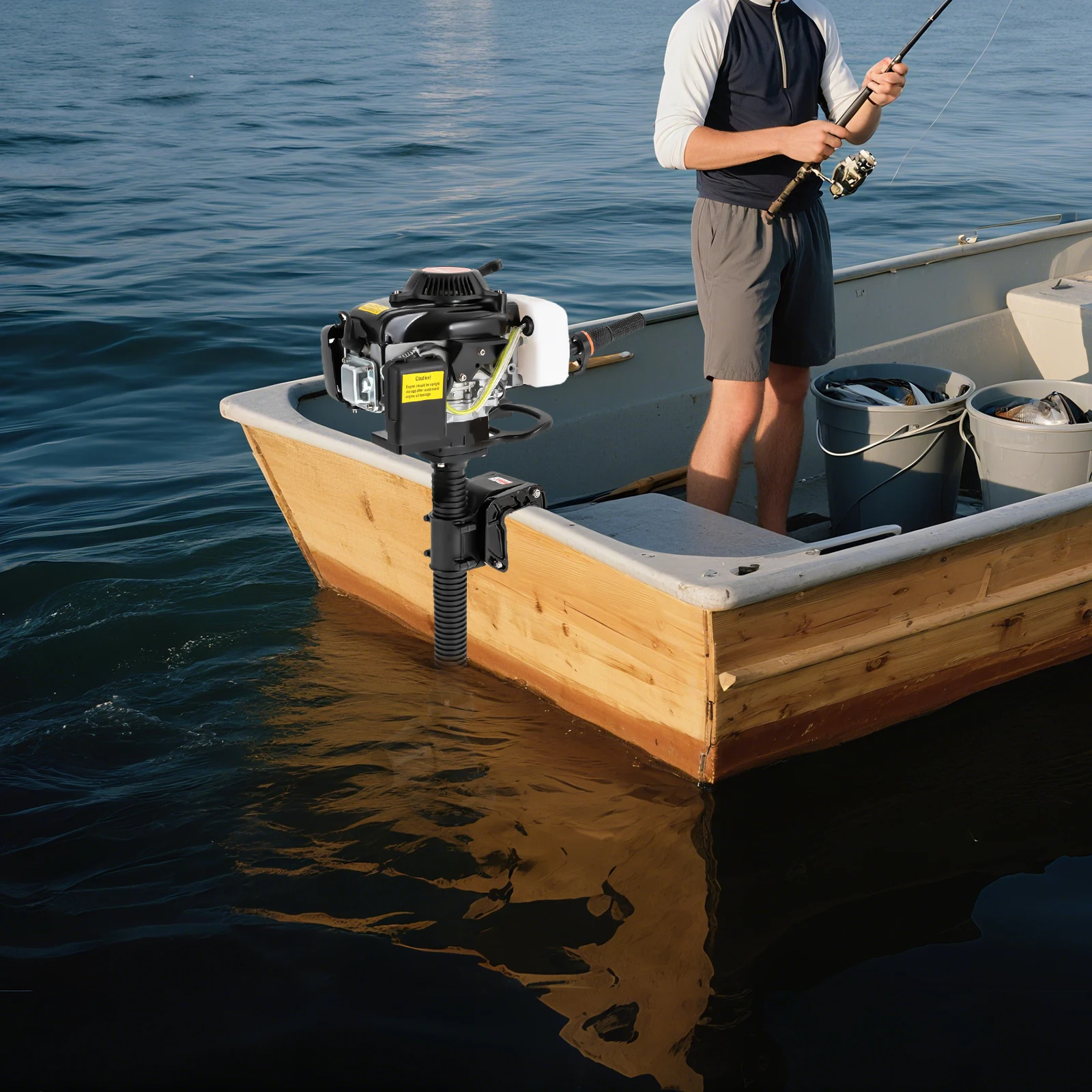

Application

The outboard engine is applicable to all kinds of boats with a length of less than 13.12ft and a weight of about 1102 lbs, such as rubber boats, wooden boats, fishing boats, and the adapted stern board height is 14.96-17.32inch. It can be widely used infreshwater, water sports, water tourism, fishery production, water rescue, and other fields.

Specification

Material: Aluminum Alloy, Plastic, and Nylon

Surface Treatment: Painting

Model: 4.0 Horsepower Jet Pump

Displacement: 55cc

Style: Modern

Transmission Ratio: 2.08 (27:13)

Number of Cylinders: 1

Gear Shift: Clutch

Lift Type: Manual

Packing Volume: 95*42*29cm/37.40*16.54*11.42in

Ignition System: CDI

Cooling System: Wind Cooling

Control System: Tiller Control

Start Mode: Manual Start

Max Output: 2.9kw

Max Speed: 4500-5500 rpm

Refueling Method: No. 92 Unleaded Gasoline

Gross Weight: 13kg/28.66lbs

Net Weight: 9.7kg/21.38lbs

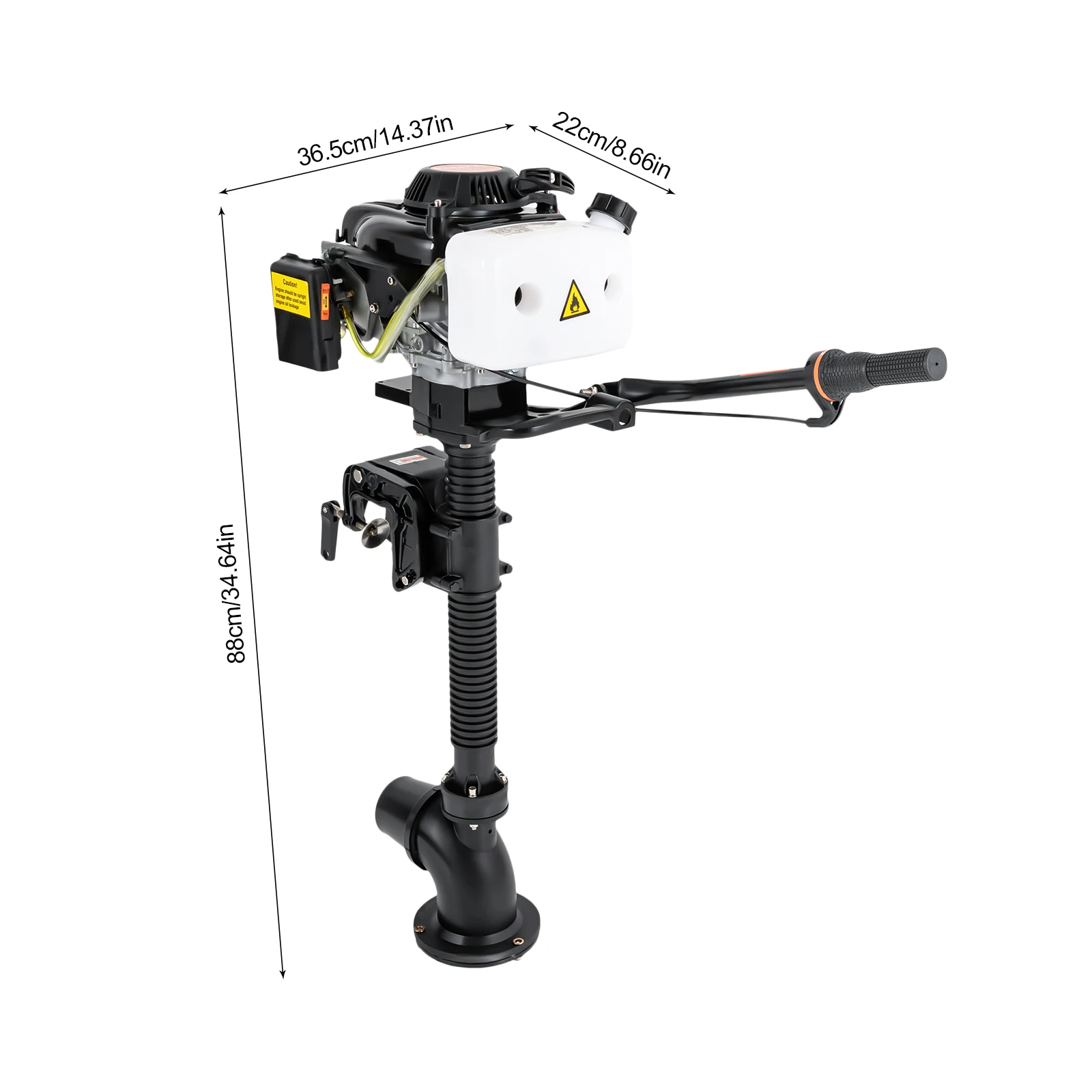

Size: 365*220*855mm/14.37*8.66*36.22in

Bore*Stroke: 44*33mm/1.73*1.3inch

Recommended Lubricant: Four-stroke Lubricant

Tilt Angle System: Manual Tilt

Standard Fuel Tank: Built-in 1.1L/37.2oz

Number of Items: 1

Assembly Required: Yes

Mount Type: Free Standing

Applicable Boat Length: Less than 4m/13.12ft

Applicable Boat Weight: About 500kg/1102.31lbs

Adapted Stern Board Height: 380-440mm/14.96-17.32inch

Thrust Force: 500kg/1102 lbs

Speed: About 4-6km/2.48-3.7Miles/h (Depending on the Environment, Water Area, and Ship Load, the Speed may Vary)

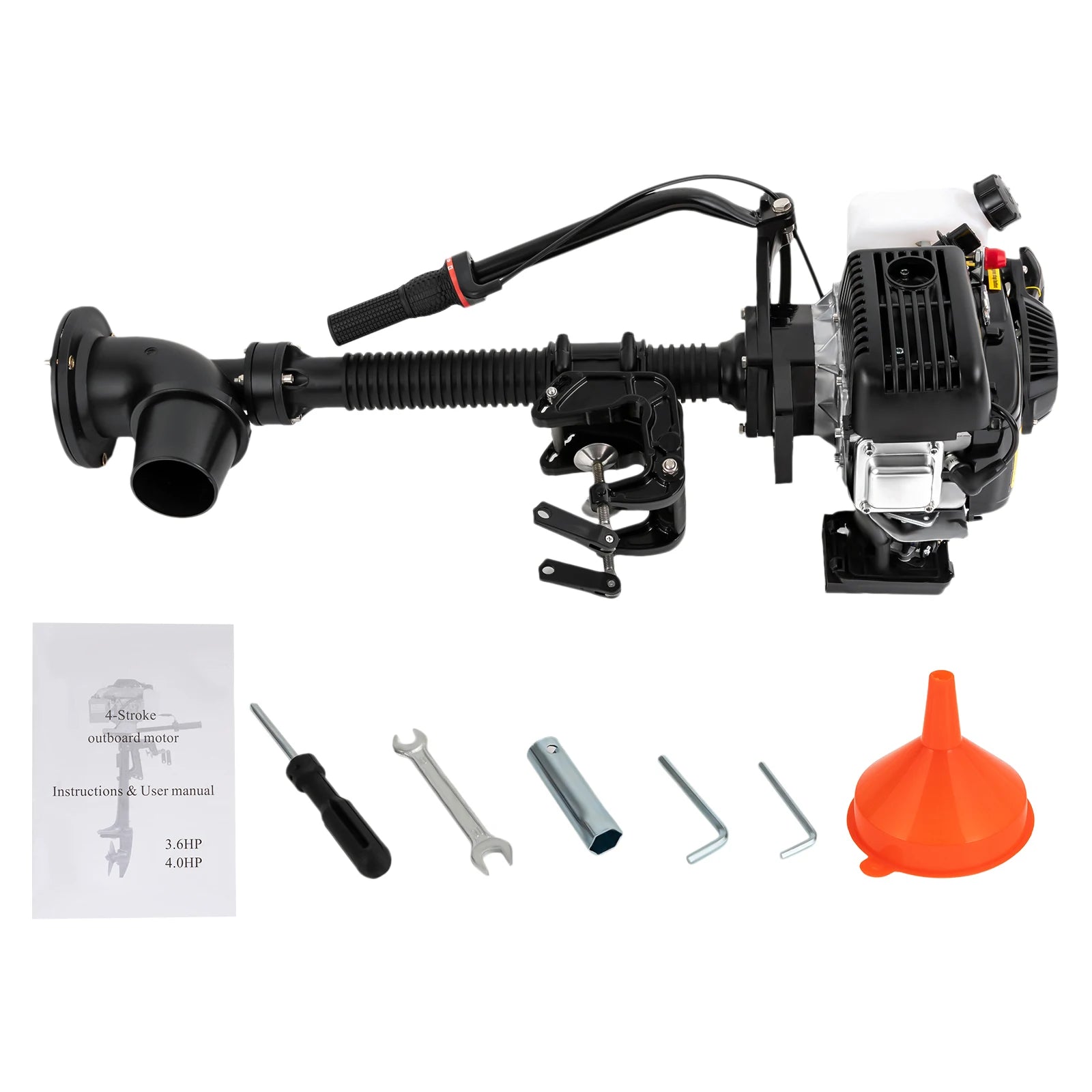

Package Included

1* Outboard Engine

1* Tool Kit

1* Split Pin

1* Funnel

1*English Manual

Notes

1. Please install and use it in strict accordance with the instructions, and pay attention to the safety precautions inside.

2. Please do not start the product on shore.

3. Please use four-stroke special engine oil (automobile and motorcycle engine oil), and add oil according to the scale indication on the oil dipstick (the rotating cover), and it is recommended to add about 350ml.

4. Please note that the fuel tank of the four-stroke outboard engine can only be filled with No. 92 unleaded gasoline.

5. Please gently press the oiler on the carburetor until the oil flows to the top of the transparent oil pipe.

6. Machines below 6 horsepower haven't reverse gear and can rotate 360 degrees, and the machine head can rotate 180 degrees to realize reverse gear.

7. The running-in period is about 8-10 hours. Do not drive at high throttle during the running-in period. Change the engine oil and gear oil after the running-in period, and the second change time is about 30 hours.

8. Please note that the driving speed is different depending on the type of boat and the current condition of the load.

9. Please note that the product will produce a certain volume during operation, about the sound of a motorcycle, which is normal.

10. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
