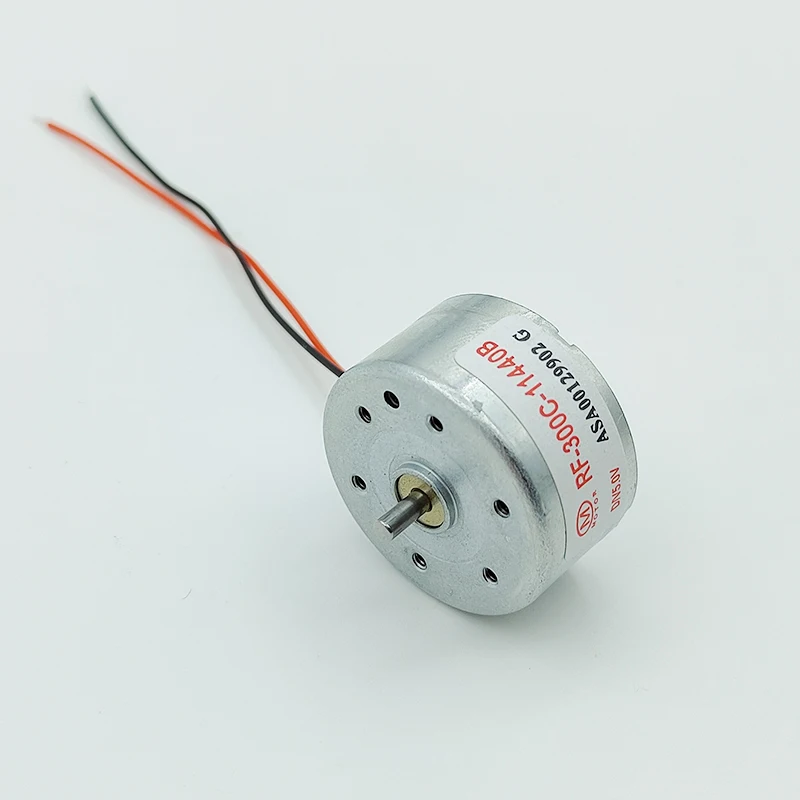

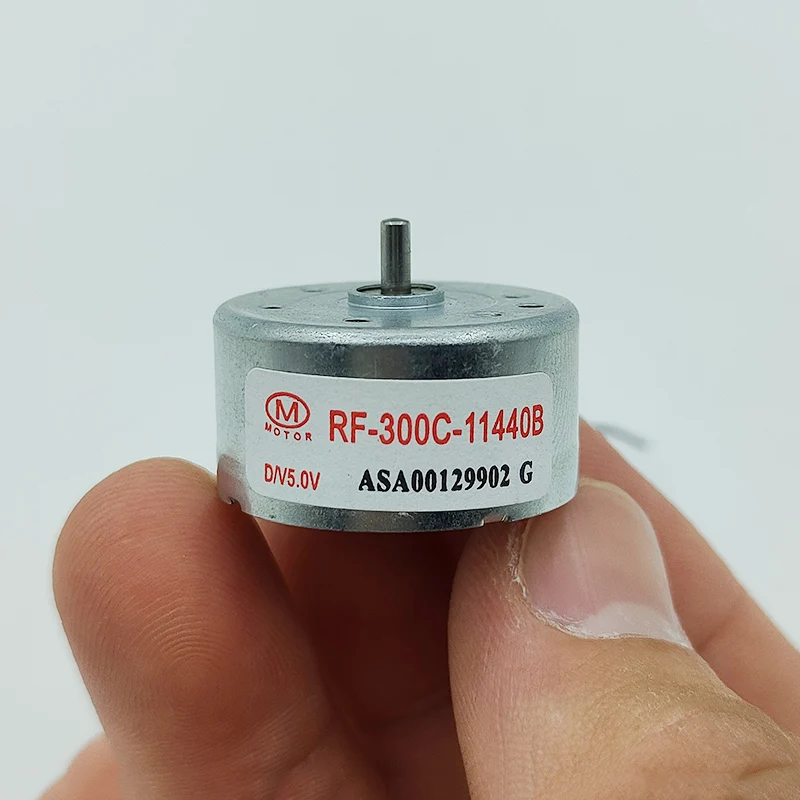

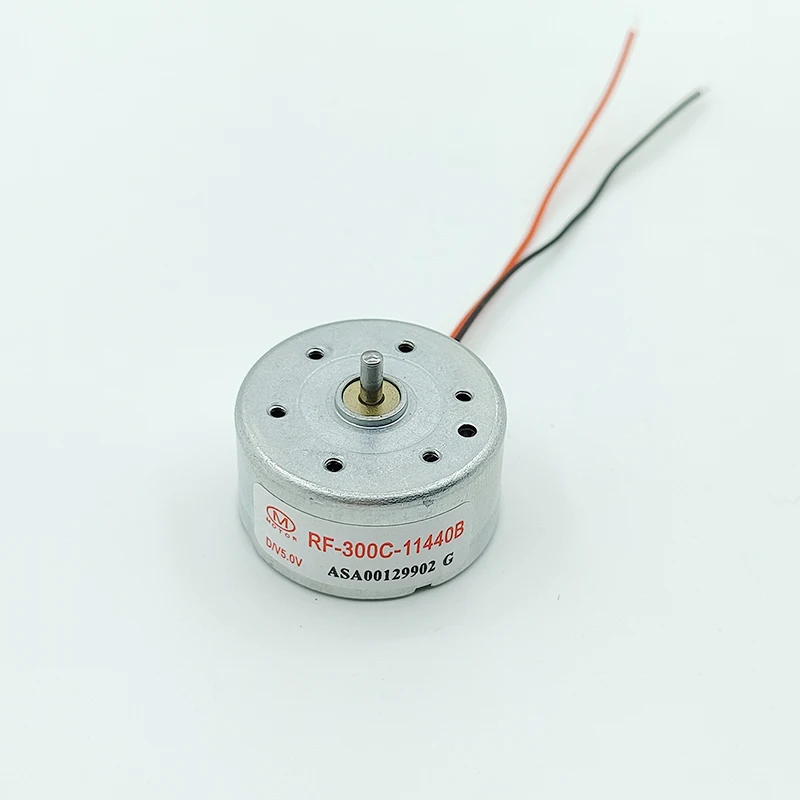

RF-300C-11440 Micro 300 Motor DC 1.5V-6V 5V 6500RPM Mini 24mm Round Spindle Motor Silent DIY CD DVD Player Loder Toy Fan Engine

RF-300C-11440 Micro 300 Motor DC 1.5V-6V 5V 6500RPM Mini 24mm Round Spindle Motor Silent DIY CD DVD Player Loder Toy Fan Engine

$19.04 USD
$0.00 USD $19.04 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

SPECIFICATIONS

Brand Name: NONE

Certification: ce

Choice: yes

Commutation: Brush

Condition: New-open box

Construction: Permanent Magnet

Does it include a Battery?: No

Does it include wireless functionality?: No

Efficiency: IE 1

High-concerned chemical: None

Model Number: RF-300C

Model number: RF-300C-11440 / RF-300C-11440B

Motor diameter: 24.1mm

Motor height: 12.45mm

No-load speed: 6500RPM

Origin: Mainland China

Output Power: ＜18.65

Output shaft diameter: 2mm

Output shaft length: 4.65mm (not include step height)

Protect Feature: Explosion-proof

Rated voltage: DC 5.0V

Speed range: 1850RPM-7600RPM

Suitable voltage: DC 1.5V-6.0V

Type: Micro Motor

Usage: Home Appliance

Weight: 20g

semi_Choice: yes

Specification:

1.Motor model: RF-300C

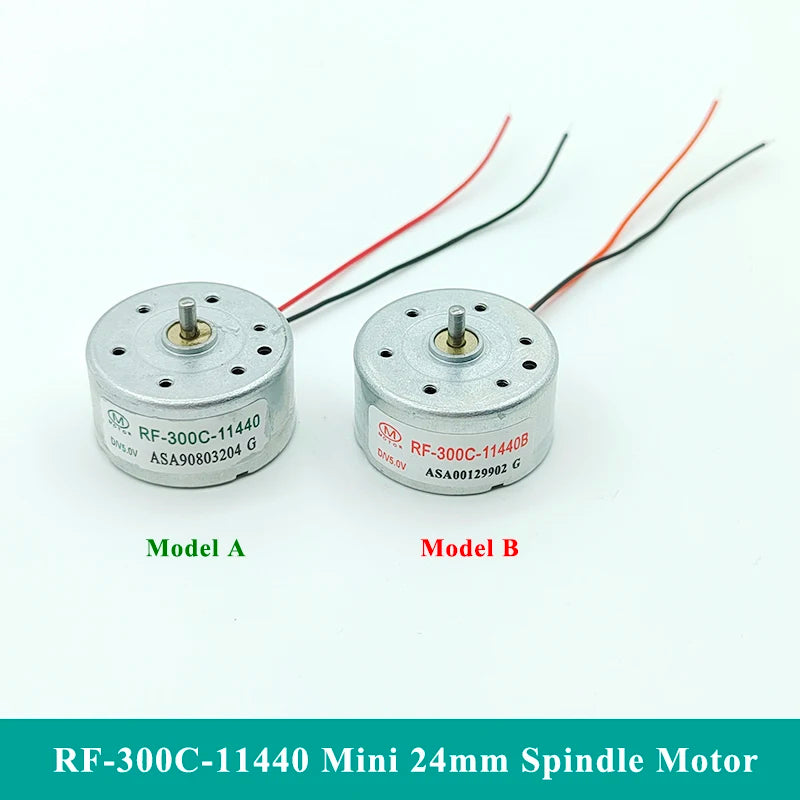

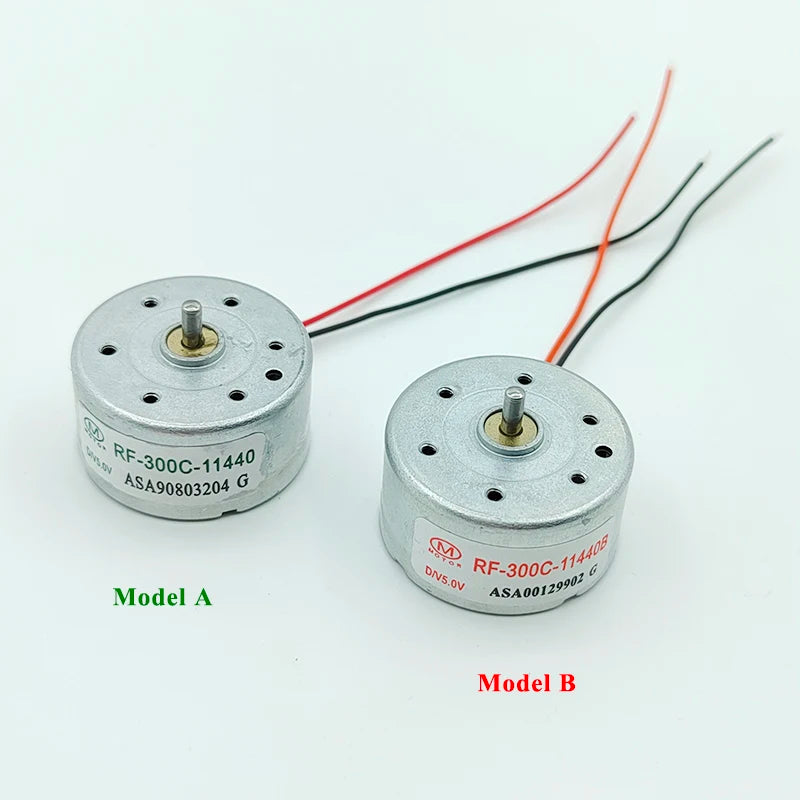

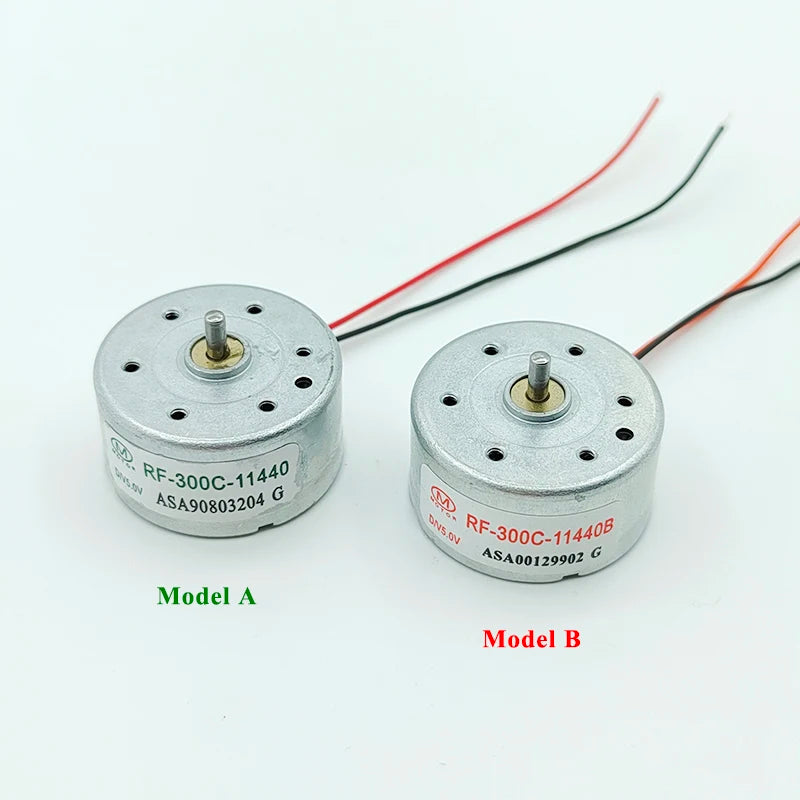

2.Model number: RF-300C-11440(Green label) / RF-300C-11440B(Red label)

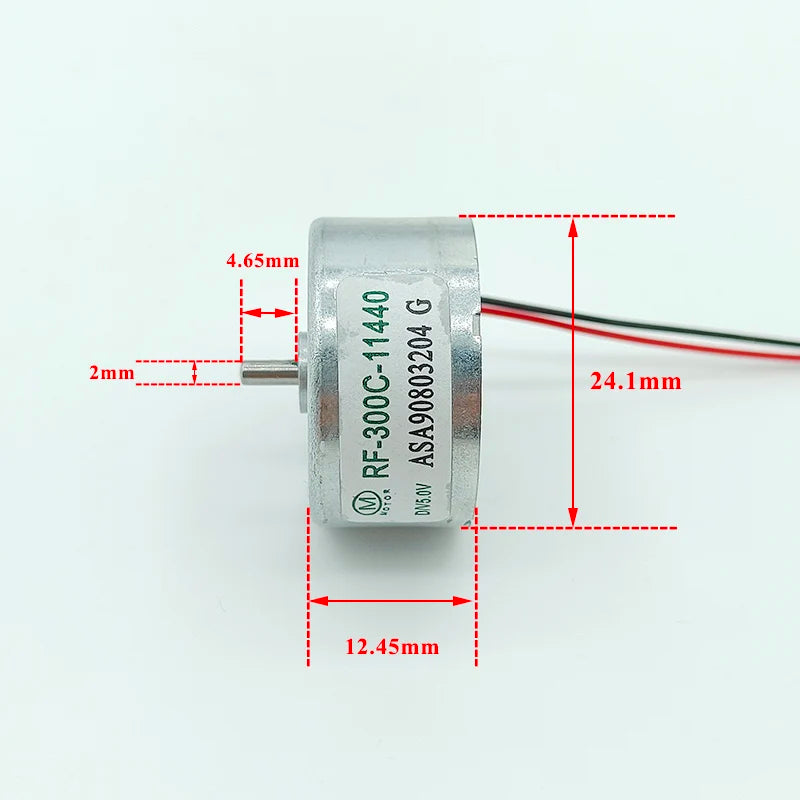

3.Motor size: 24.1mm*12.45mm

4.Output shaft diameter: 2.0mm

5.Output shaft length: 4.65mm (not include step height)

6.Step diameter: 6.38mm Step height:0.93mm

7.Weight: 20g

8.Suitable voltage: DC 1.5V-6.0V

9.Test data:

   Voltage:1.5V   No-load speed:1850RPM

   Voltage:3.0V   No-load speed:3800RPM

   Voltage:5.0V   No-load speed:6500RPM

   Voltage:6.0V   No-load speed:7600RPM

===================================================================================

Package List:

Motor x 1pcs
