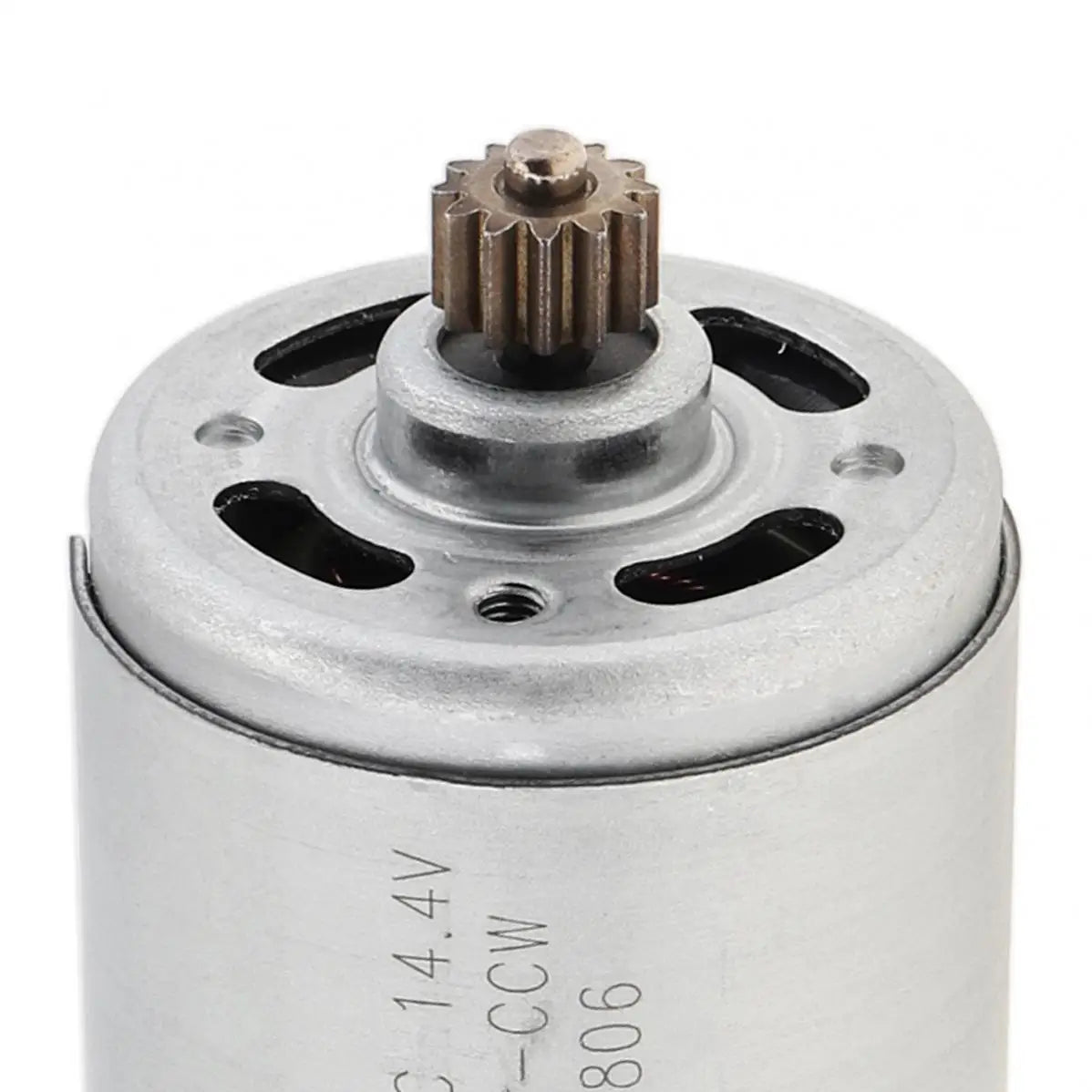

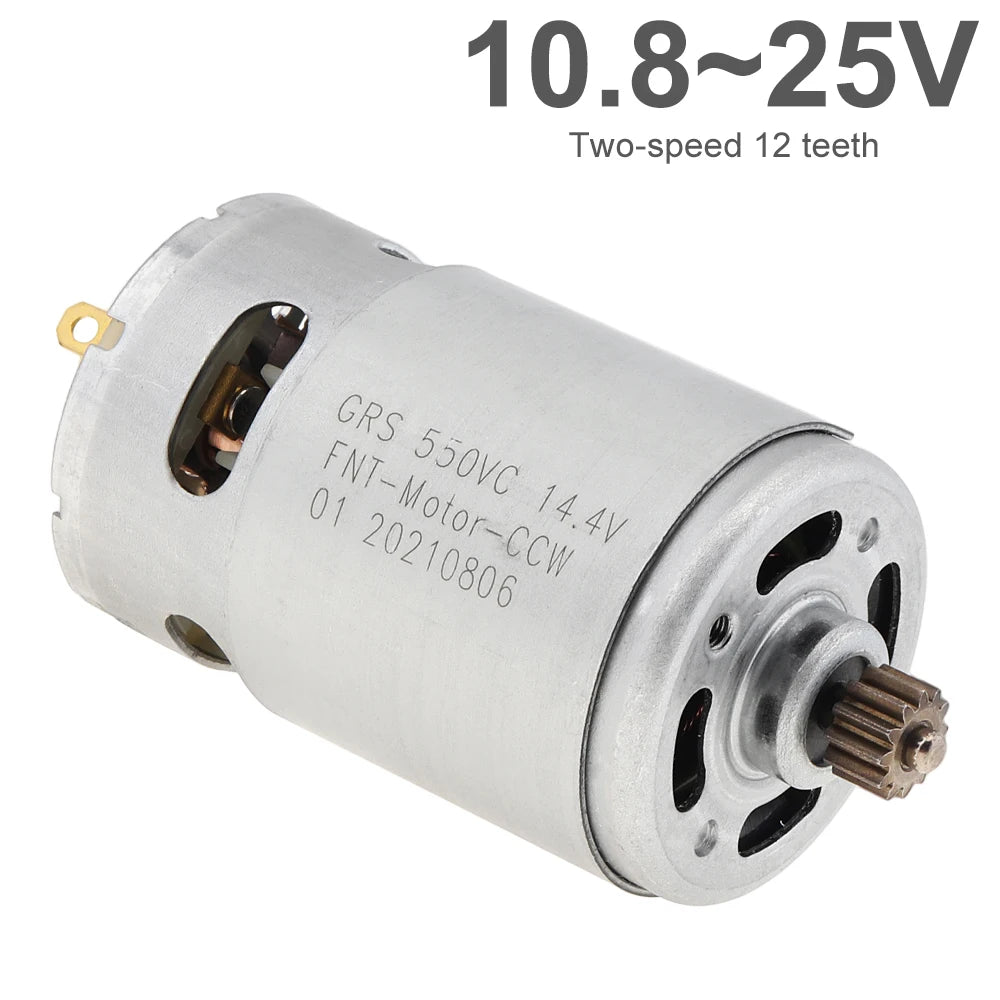

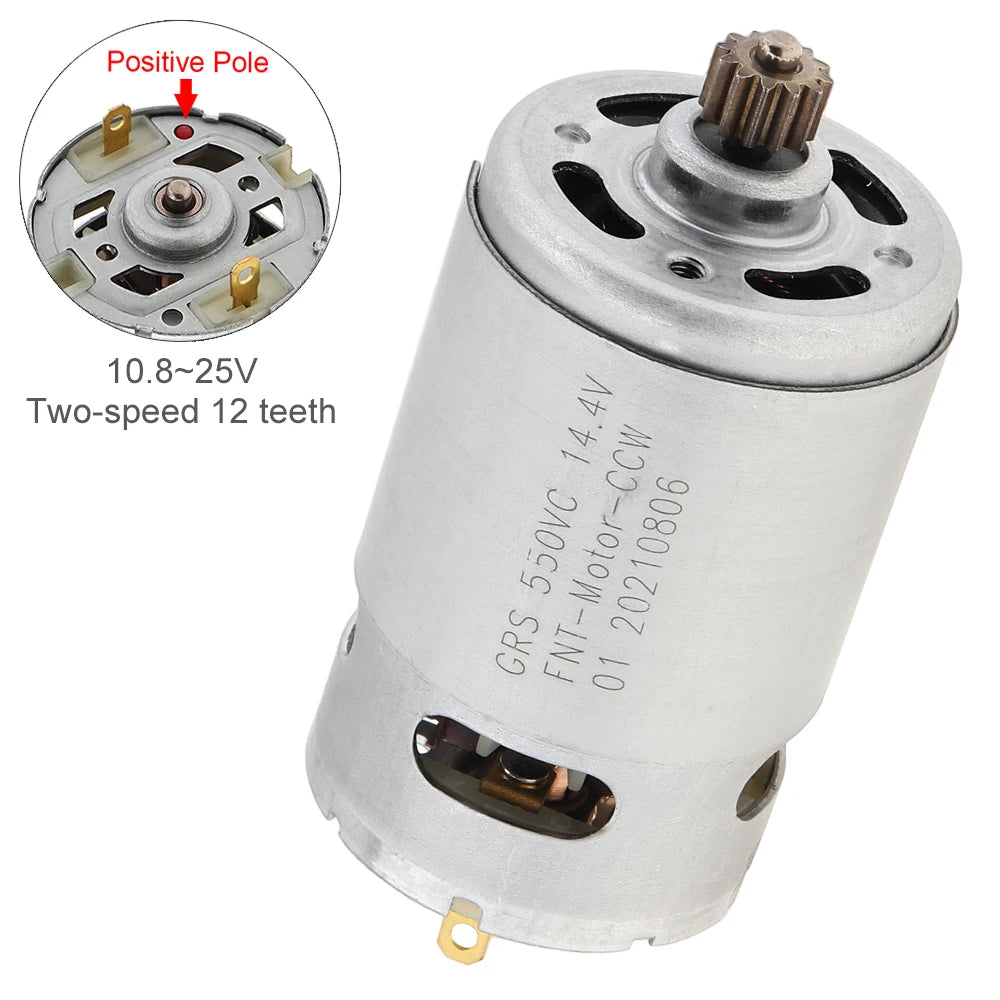

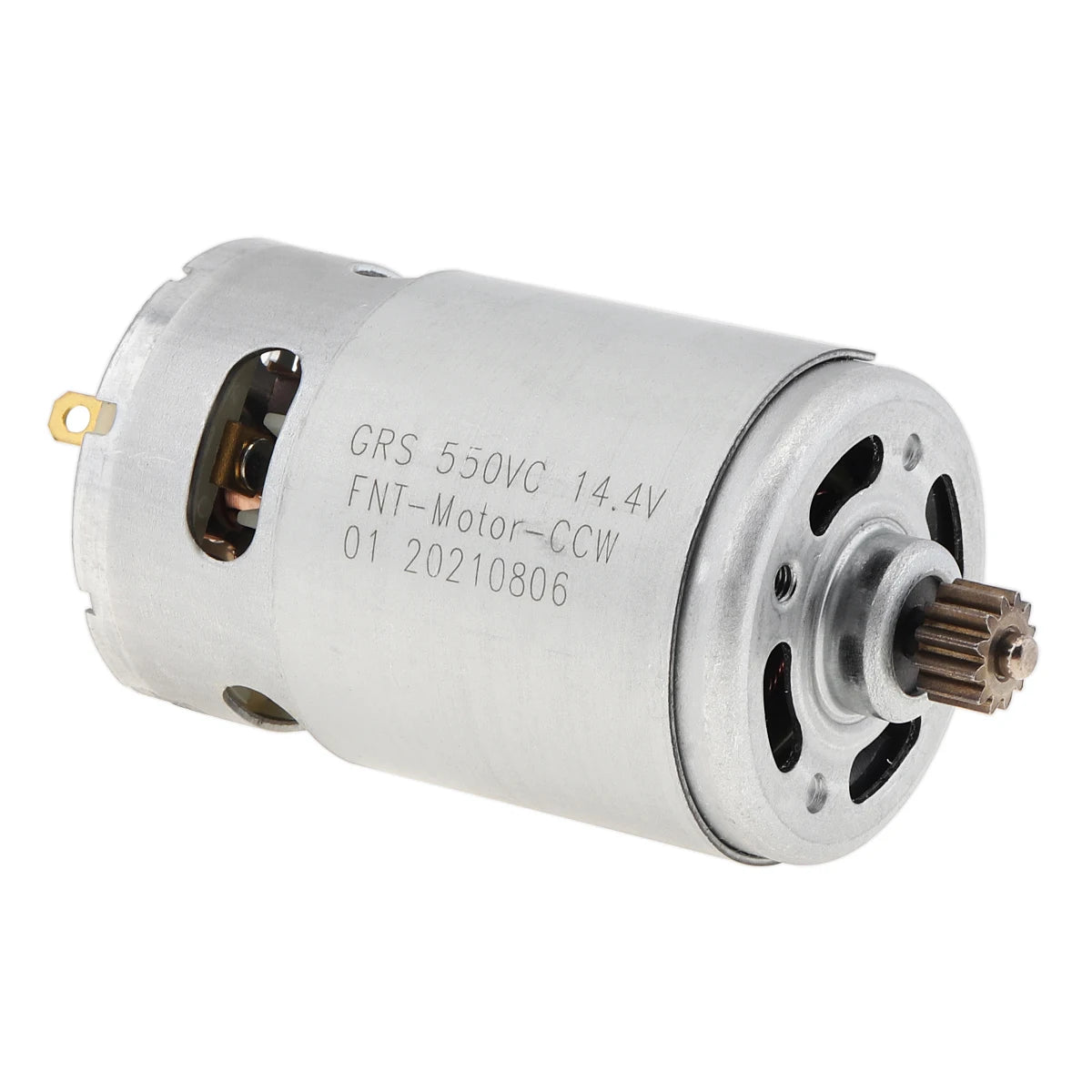

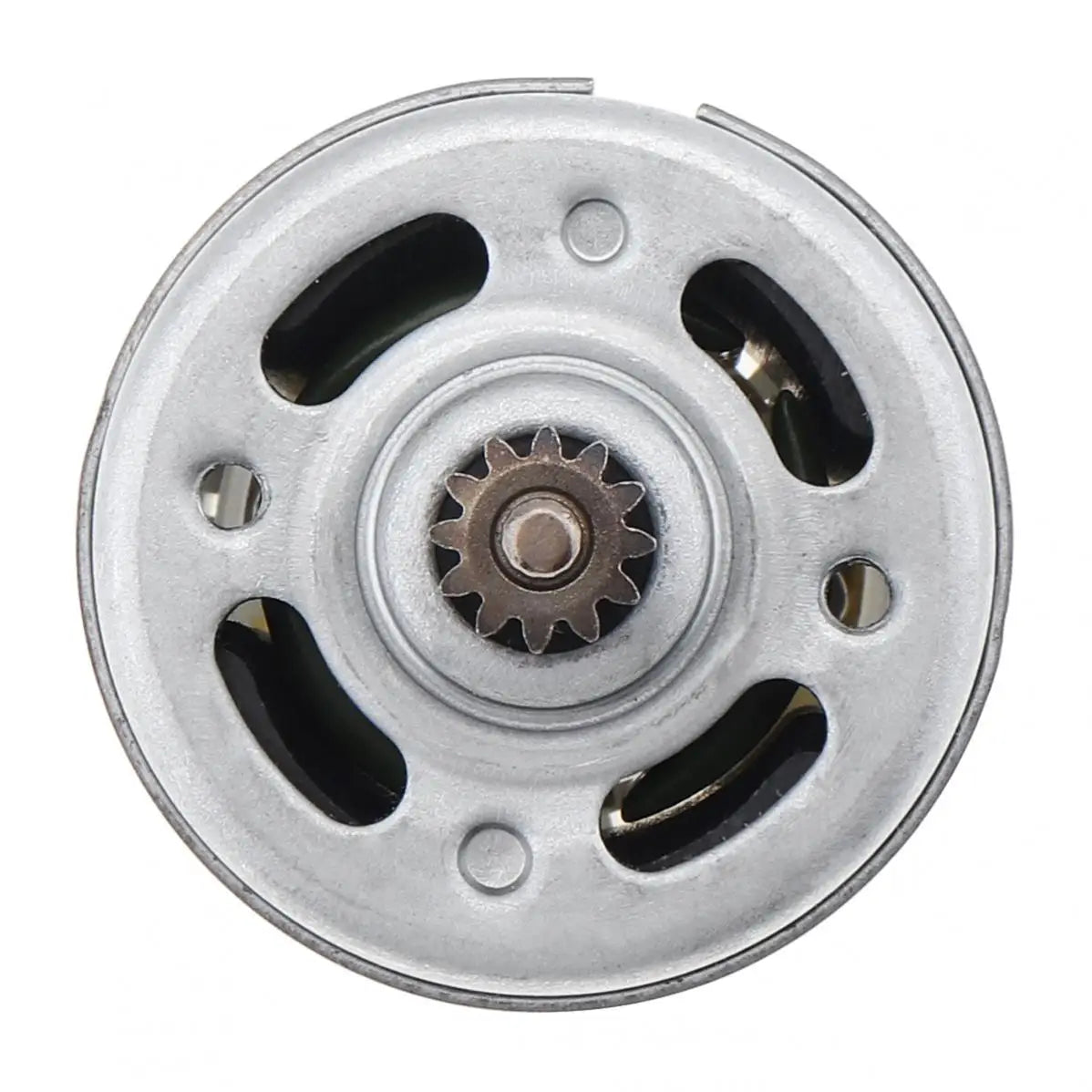

RS550 12 Teeth DC Motor 10.8V/12V/14.4V/16.8V/18V/21V/25V Screwdriver Drill ELectric Motor with High Torque Gear Box

RS550 12 Teeth DC Motor 10.8V/12V/14.4V/16.8V/18V/21V/25V Screwdriver Drill ELectric Motor with High Torque Gear Box

$21.86 USD
$0.00 USD $21.86 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

SPECIFICATIONS

Brand Name: ChgImposs

Certification: NONE

Choice: yes

Commutation: Brush

Does it include a Battery?: No

Does it include wireless functionality?: No

High-concerned chemical: None

Model Number: EPC_MTR_A01

Origin: Mainland China

Output Power: 18.65-37.5（include18.65and37.5）

Output Voltage: 60W

Type: Micro Motor

semi_Choice: yes



Description

  • Model Number: RS550

  • No load Speed: 21500 - 25000RPM

  • Type: Micro Motor

  • Commutation: Brush

  • Output Power: 60W

  • Voltage: 10.8-25V

  • Material: Metal

  • Features:
    - Low noise, high power, long life.
    - Double ball bearings in front and rear, more power.
    - Easy to operate, the front can be fixed with 2 M4 screws, very convenient.
    - Various types, can meet your different needs.
    - High torque high speed DC motor, electric drill machine tool, adaptable to lithium rechargeable drill.

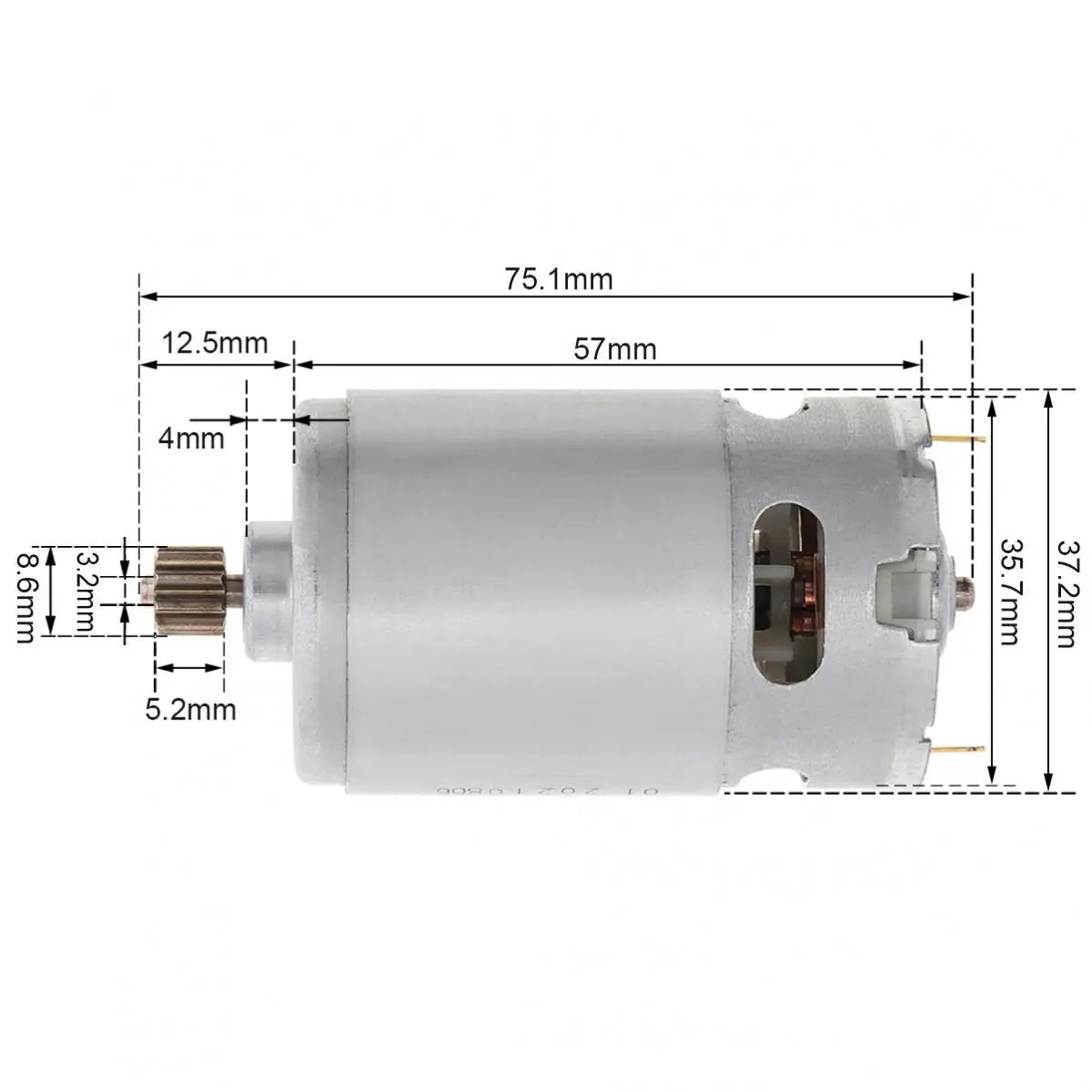

  • Motor length: 75.1mm

  • Motor diameter: 37.2mm

  • Motor shaft length: 12mm

  • Motor shaft diameter: 3.2mm

  • Motor gear diameter: 8.6mm

  • Motor gear thickness: 5.2mm

  • Motor installation hole distance: 25mm

  • Product Weight: 215 G / 7.58 Ounces

  • Product Dimensions (L*W*H): 80*40*40 MM / 3.15*1.57*1.57 Inches

  • Package Weight: 219.0 G / 7.73 Ounces

  • Package Dimensions (L*W*H): 140*85*50 MM / 5.51*3.35*1.97 Inches

  • Retail Packaging: Yes, General Box

Package include

  • Package Including:

  • 1 x 12 Teeth DC Motor
