HDMI Retimer IC — TDP158 / SN75DP159 Chip for Xbox One S and One X Repair

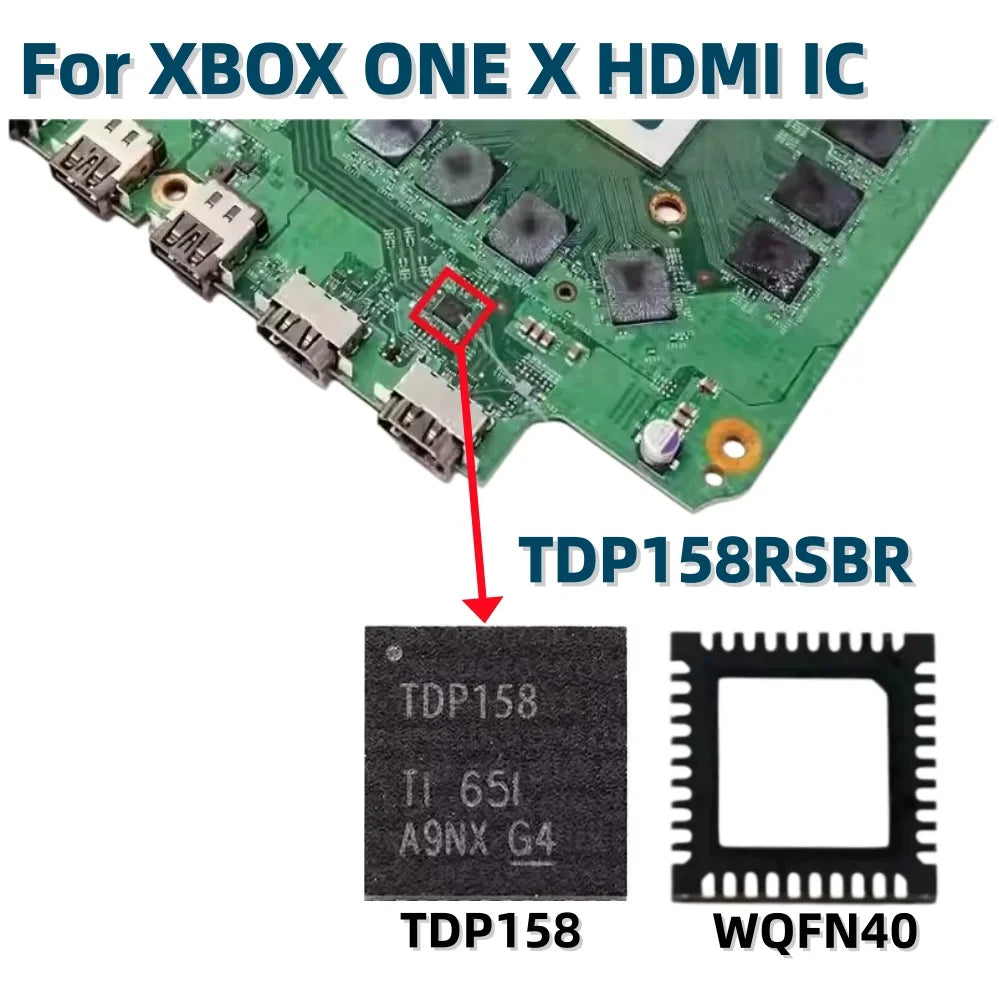

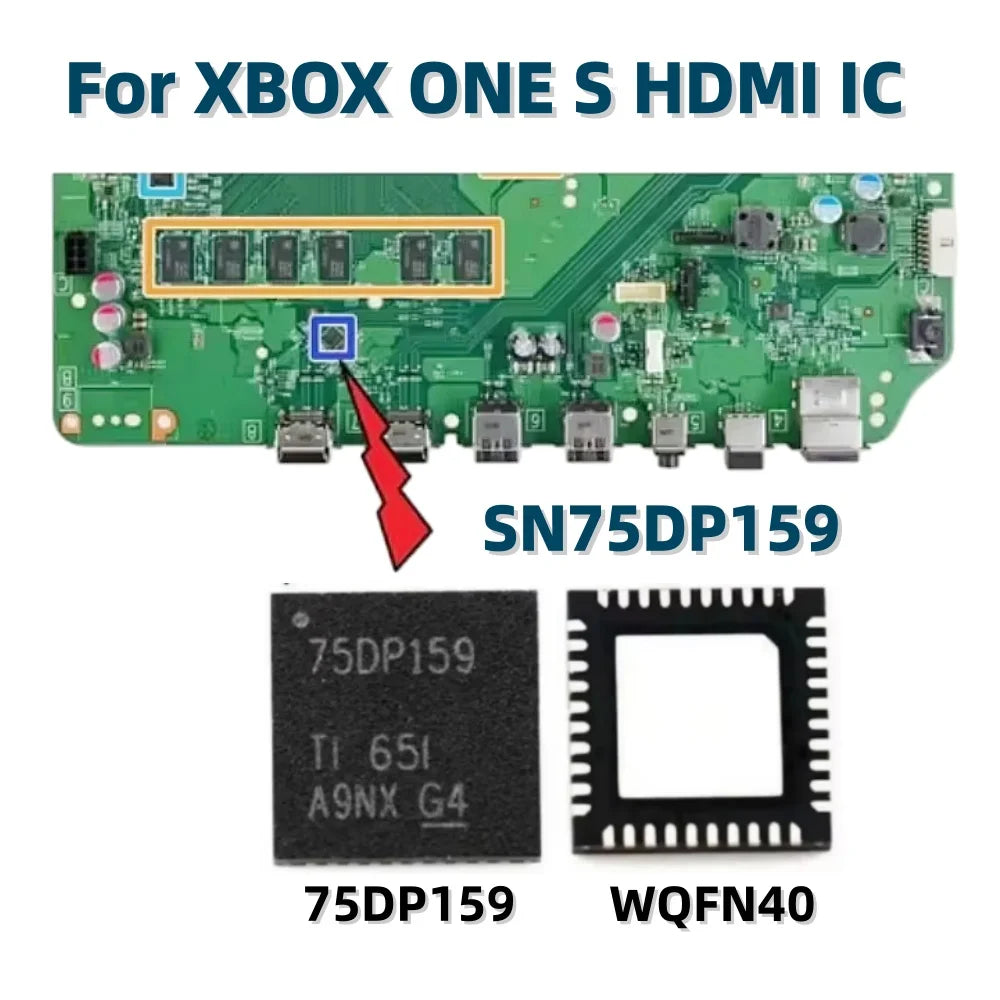

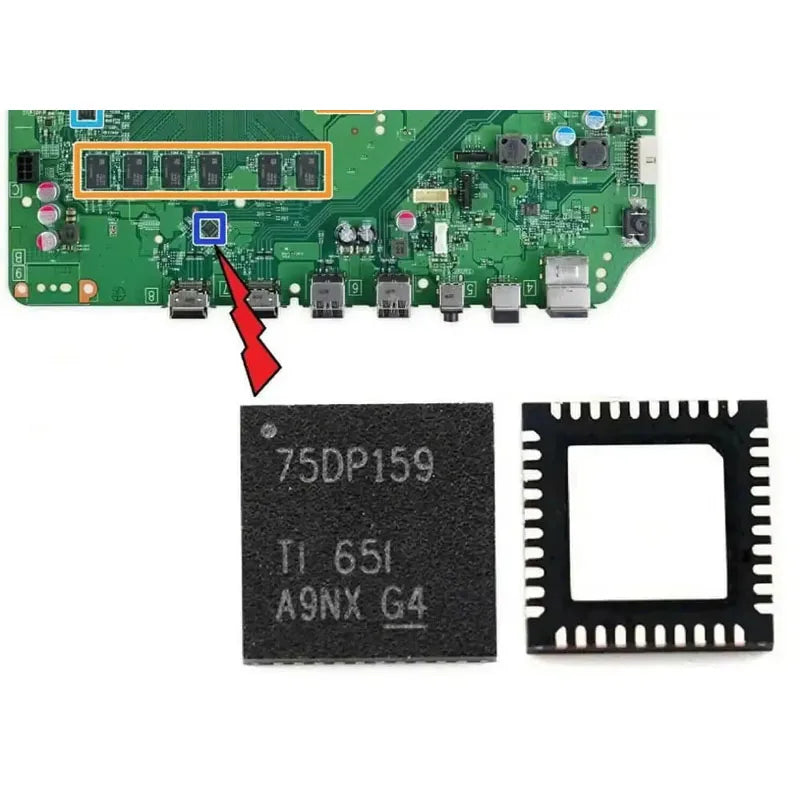

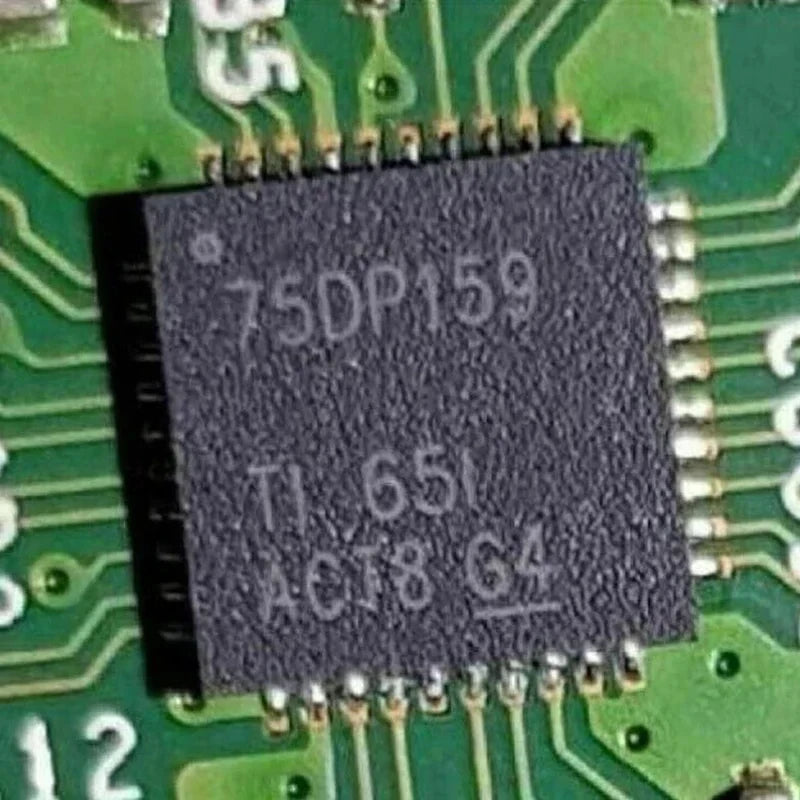

Replacement HDMI retimer chips (TDP158 and SN75DP159, QFN-40 5x5mm) for board-level repair of Xbox One S and Xbox One X consoles with no HDMI output. Sold in packs of 1 to 5.
Key Features
- TDP158 and SN75DP159 options

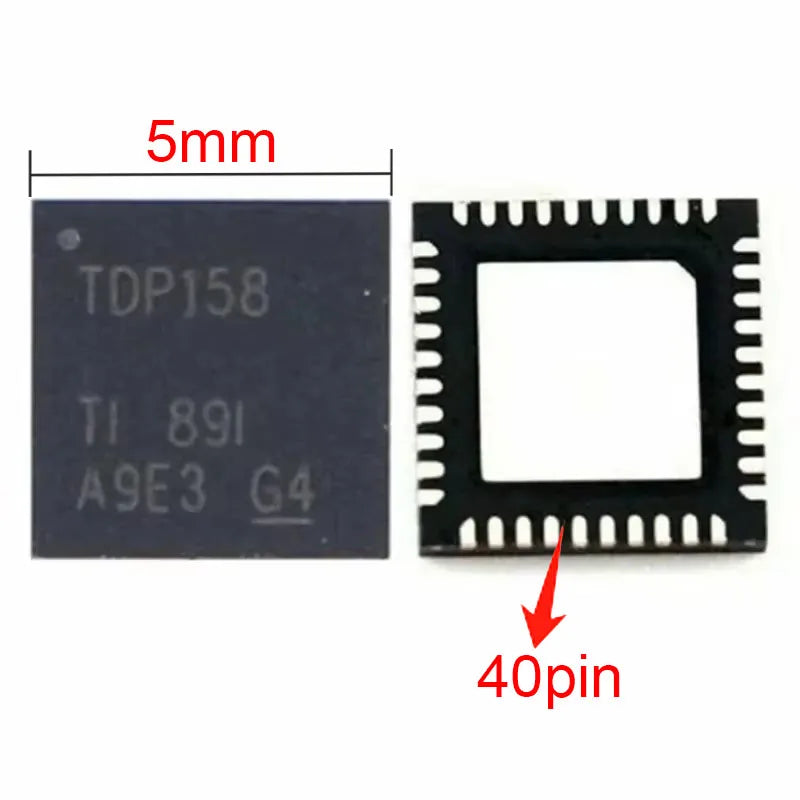

- QFN-40, 5mm x 5mm
- For Xbox One S / One X HDMI repair
- 1 to 5 piece packs
Before you order

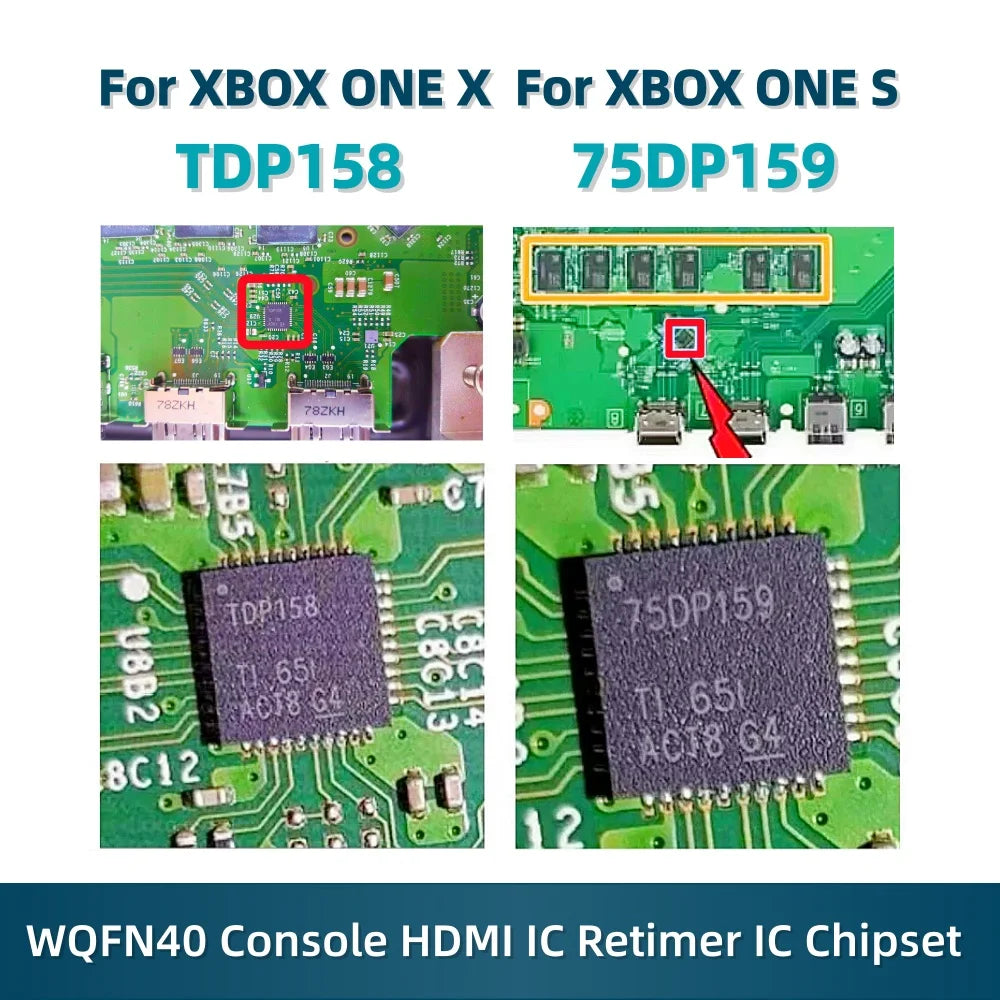

Check which chip your board actually uses. The TDP158 and the SN75DP159 are not the same part and are not always interchangeable — identify the marking on your existing chip before ordering. Check the pack quantity too.
Confirm the retimer is actually the fault. No HDMI output has several causes on these consoles, and replacing the retimer on a board with a different fault wastes both the chip and the board.
This is advanced repair work
Replacing a QFN-40 chip requires hot air rework, flux, good extraction and real practice. It is not a beginner job, and a failed attempt usually ends the board.
Work with fume extraction or good ventilation — solder and flux fumes are harmful. Discharge static before handling the board and the chip. Clean all flux residue off with isopropyl alcohol afterwards.
Microsoft and Xbox are trademarks of Microsoft Corporation. These are third-party components for repair, not genuine Microsoft parts, and opening a console voids any remaining warranty.
