Feature:

A complete engine kit to convert your bike;

Rugged metal body for durability;

Super efficient fuel, Fast and smooth;

Comes with all the necessary hardware for easy installation;

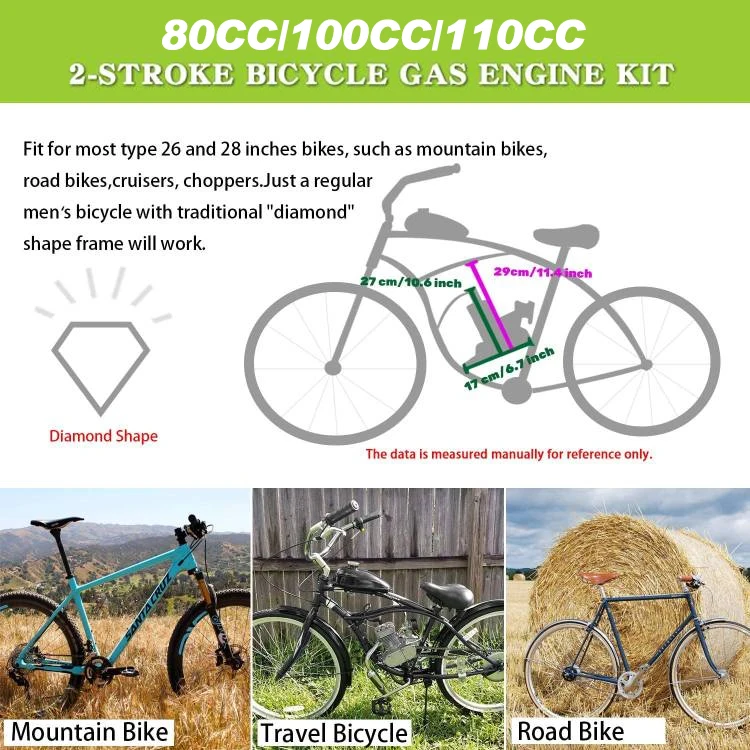

Suitable for most 26 "and 28" regular bicycles, such as mountain bikes, road bikes, cruises, helicopters.

Specification:

[100CC]

Color:Silver / Black

Engine mode: Single cylinder, air cooling, 2 stroke

Power Mode: CDI

Chain Model: 415

Chain Length: 110 links

Compression ratio: 6: 01

Driving Ratio: 18: 01

Tank Capacity: 2L

Type of ignition plug: Z4C 14MM

Clutch Type: friction / dry plate

Cooling mode: Natural air cooling

Start method: Electric/Kick

Cooling Mode:Natural air cooling

Speed limitation: 50km / hour

Oil volume Consumption:3L/100km

Bore and stroke:49mm & 40.2mm

Rated power:3KW / 5000r / min (4 horsepower / 5000r / min)

Maximum power:3.8KW / 6000r / min (5.5-6.5 horsepower / 6000r / min)

Inlet Manifold Inner Diameter of Central Hole: 14.7 mm / 0.58 inches

Inlet Manifold Overall Length: 57.65 mm / 2.27 inches

Inlet Manifold Overall Width: 54.8 mm / 2.16 inches

Inlet Manifold Outer Diameter: 19 mm / 0.75 inches

Exhaust Outlet Inner Diameter: 21 mm / 0.83 inches

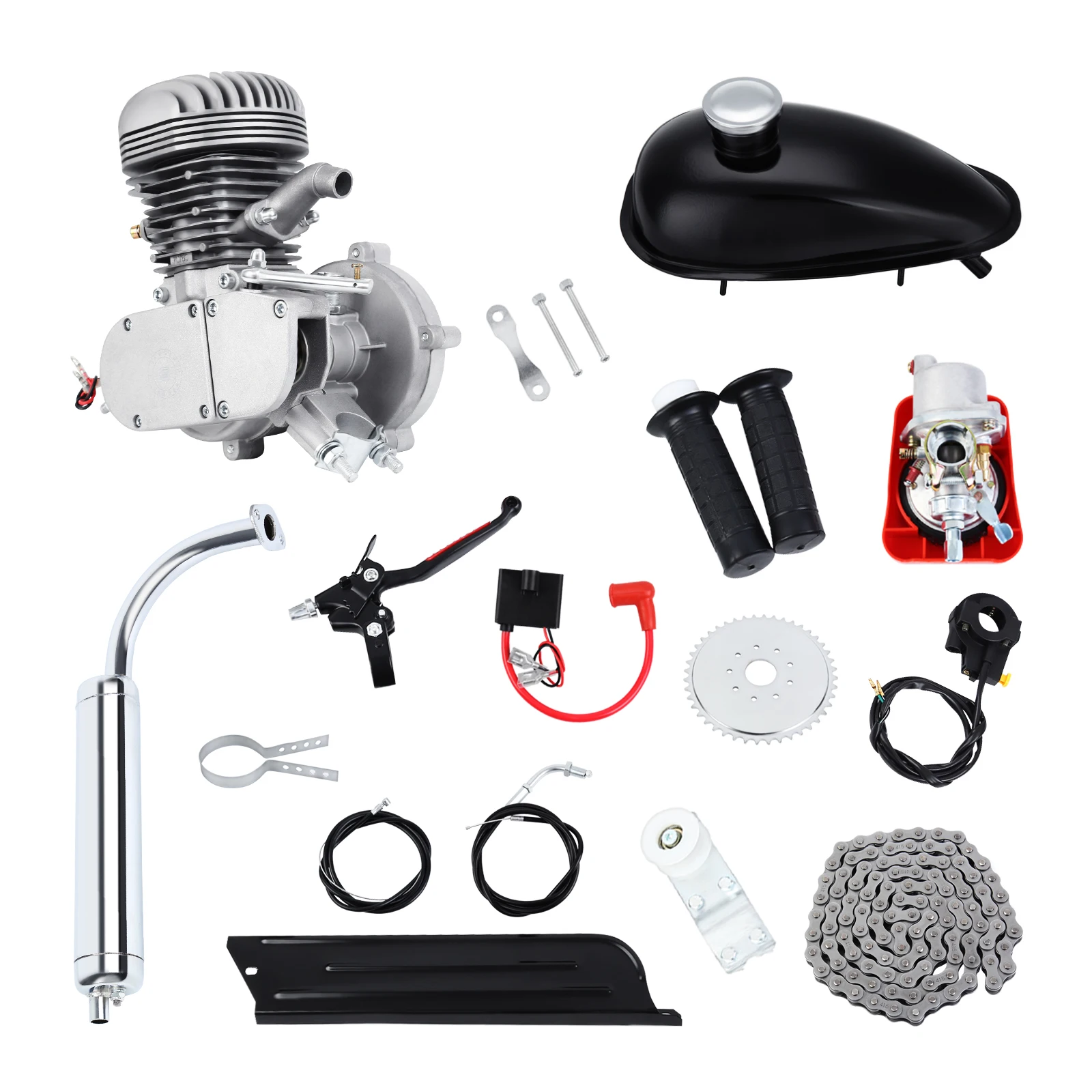

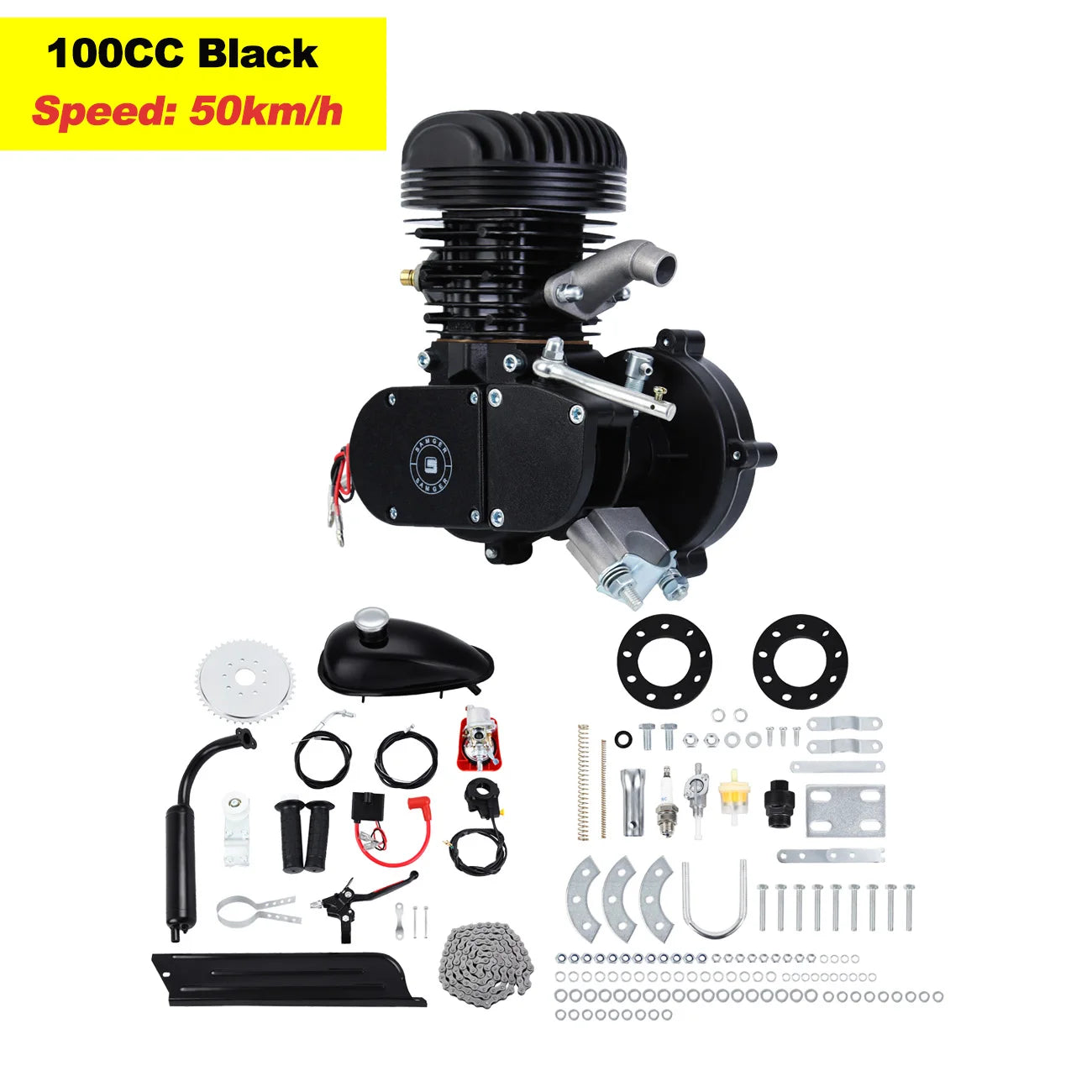

Package included:

1x 100cc 2-stroke engine(Color& Type Depending on your choice)

1x Pinion clamp with hardware

1x Exhaust Muffler

1x button clutch

1x heavy chain

1x bearing / brake chain tensioner

1x Carburetor

1x CD ignition coil

1x Lock switch (on the throttle)

1x Chain Protector

1x Spark Plug

1x Black fuel tank with mounting brackets

1x Exhaust Pipe Clamp

1x plug removal tool

1x Manual

(notes: The kit includes all the parts and instructions necessary to convert your bike.)

Questions:

1.About fuel and oil:

-- The gasoline engine needs to use the mixed mix of gasoline and oil.The oil is used as a lubricant. Without it, the performance and longevity of the motor will be reduced.

-- Fuel Type: No.90/92/95

-- Mixing Ratio of Fuel and engine Oil:10:1(Mixing ratio of fuel and engine oil: 18: 1 for new assemblies, 20: 1 after running 500 km)

-- Lubrication Oil: 2-stroke gasoline engine oil (or oil for 10W / 40,10W / 30)

2.About the engine line connection:

-- The white line don't need to connect,it only need to connect blue to blue ,black to black.(White line's function as same as the blue one,but pls note the white line can not connected for the lighting.)

3.Please refer to the manual for further information.If you have any questions,please contact us for the technical solutions.
