1306 Mini Brushless Motor 3000KV 2S-3S 7.4V-11.1V High Speed Disk Brushless Motor DIY Multi-rotor Aircraft Airplane UAV Model
1306 Mini Brushless Motor 3000KV 2S-3S 7.4V-11.1V High Speed Disk Brushless Motor DIY Multi-rotor Aircraft Airplane UAV Model
Regular price
$16.70 USD
Regular price
$0.00 USD
Sale price
$16.70 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NONE
Certification: NONE
Choice: yes
High-concerned chemical: None
Origin: Mainland China
semi_Choice: yes
Specification:

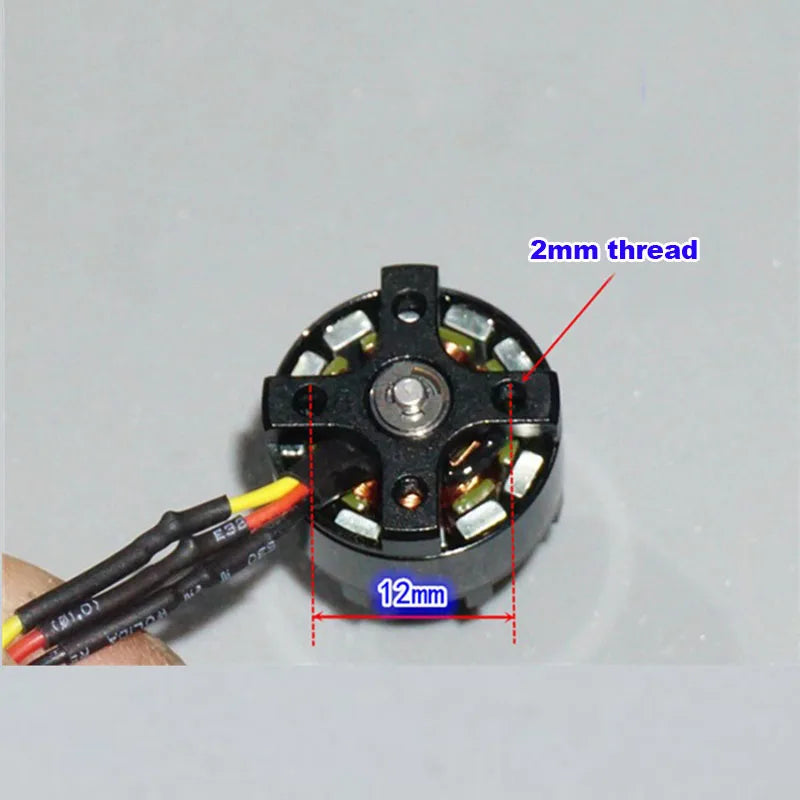

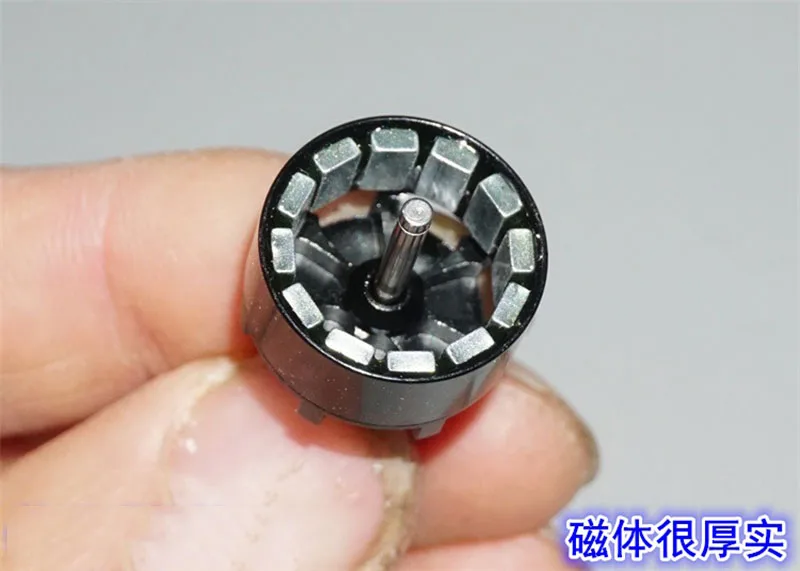

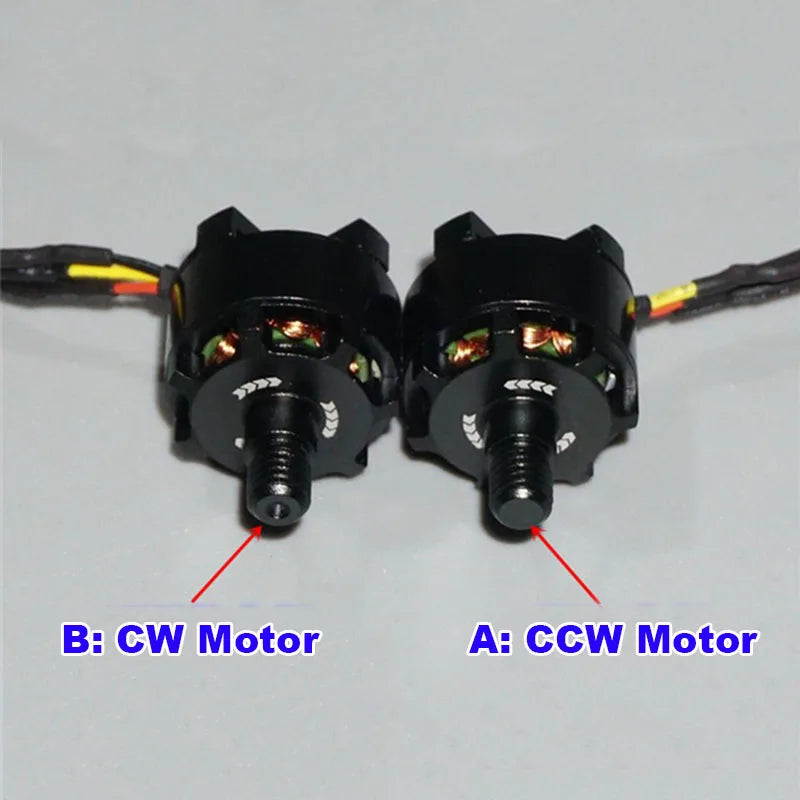

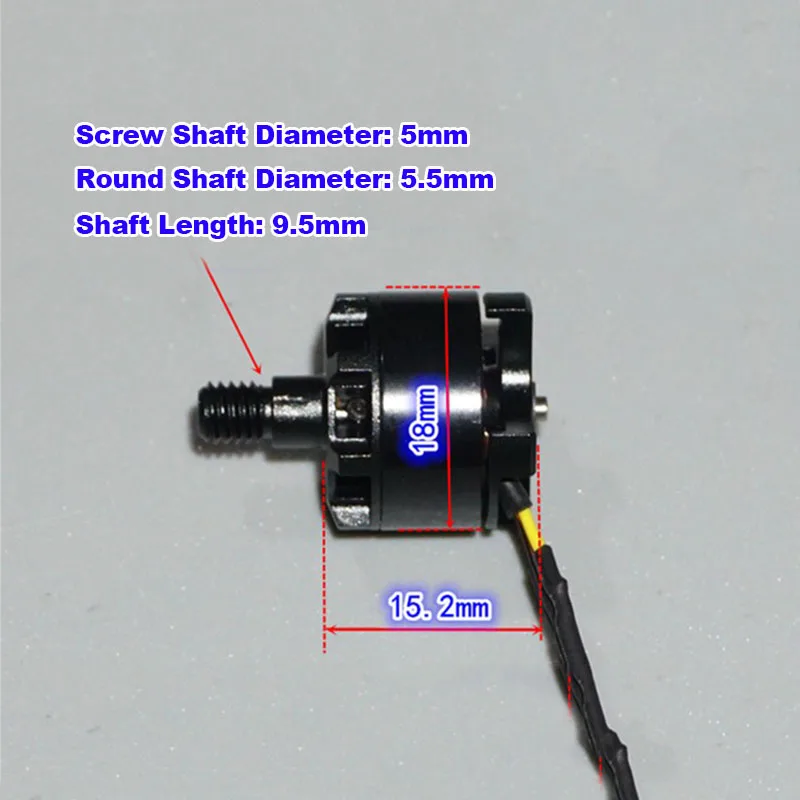

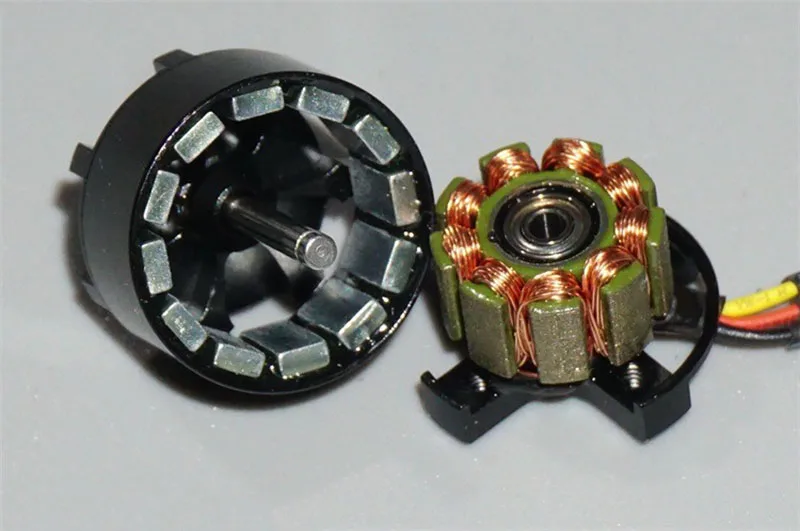

1306 high-speed model aircraft brushless motor, KV value of 3000, commonly used in high-speed crossing aircraft models or as fixed wing aircraft models. It has dynamic balance correction, thickened neodymium magnets, and three-phase lead wires made of silicone wire. The motor shaft has two types of standard threads: positive thread and reverse thread, with a threaded shaft of 5mm
The motor is suitable for working with 2-3S lithium batteries, with a maximum operating current estimated to be around 8A, and the blade matching is about 3-3.5 inches,, The maximum pulling force of a 3S battery is about 300g, and the maximum pulling force of a 2S battery is about 200g.
Tested voltage: DC11.1V， The no-load current is approximately 0.5 A, and the no-load speed is approximately 33500 revolutions per minute.
The total length of the motor output line is about 55mm,
and the motor weighs only 12 grams.
The motor is suitable for working with 2-3S lithium batteries, with a maximum operating current estimated to be around 8A, and the blade matching is about 3-3.5 inches,, The maximum pulling force of a 3S battery is about 300g, and the maximum pulling force of a 2S battery is about 200g.
Tested voltage: DC11.1V， The no-load current is approximately 0.5 A, and the no-load speed is approximately 33500 revolutions per minute.
The total length of the motor output line is about 55mm,
and the motor weighs only 12 grams.
Package Include:
Motor x 1pcs
