1PC Mini 24mm RK-370 Carbon Brush Motor DC 5V 6V 7.4V High Speed Small Engine For Toy Water Gun RC Car
1PC Mini 24mm RK-370 Carbon Brush Motor DC 5V 6V 7.4V High Speed Small Engine For Toy Water Gun RC Car
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: NONE
Certification: NONE
Choice: yes
High-concerned chemical: None
Origin: Mainland China
Output Power: ＜18.65
semi_Choice: yes

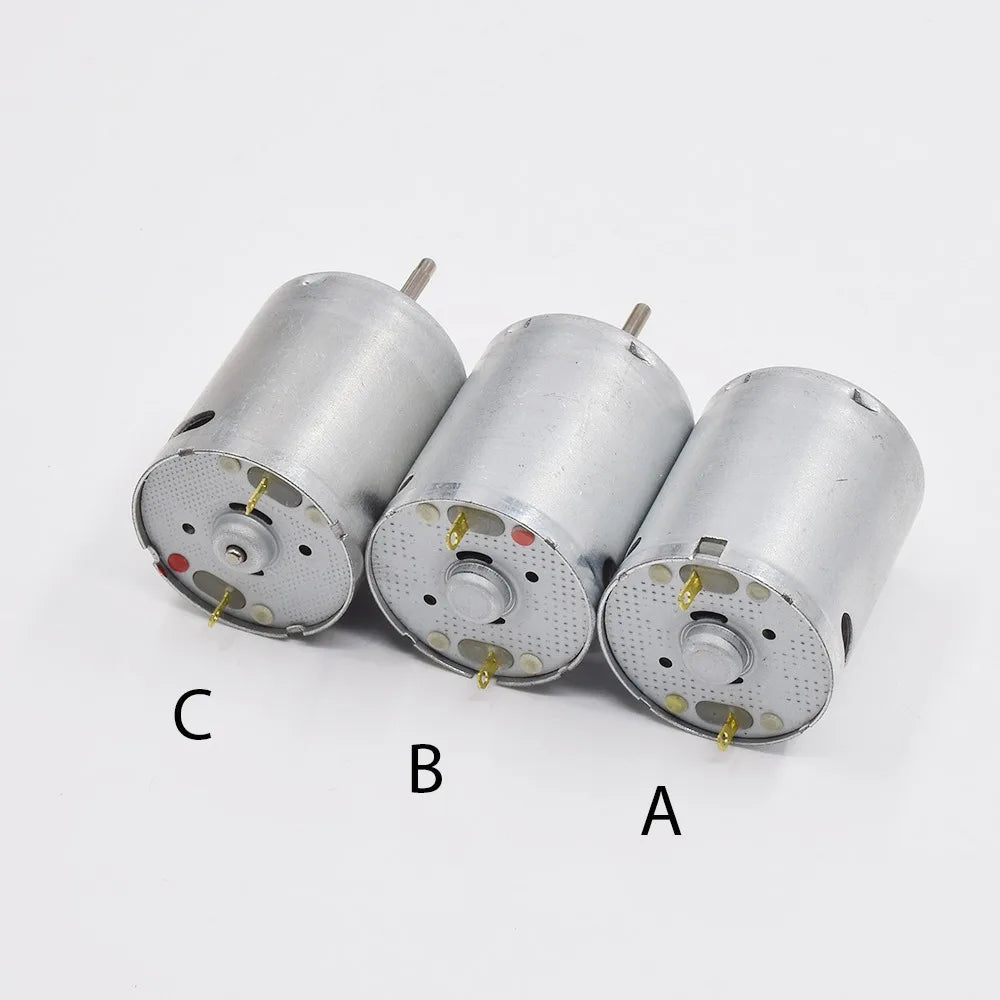

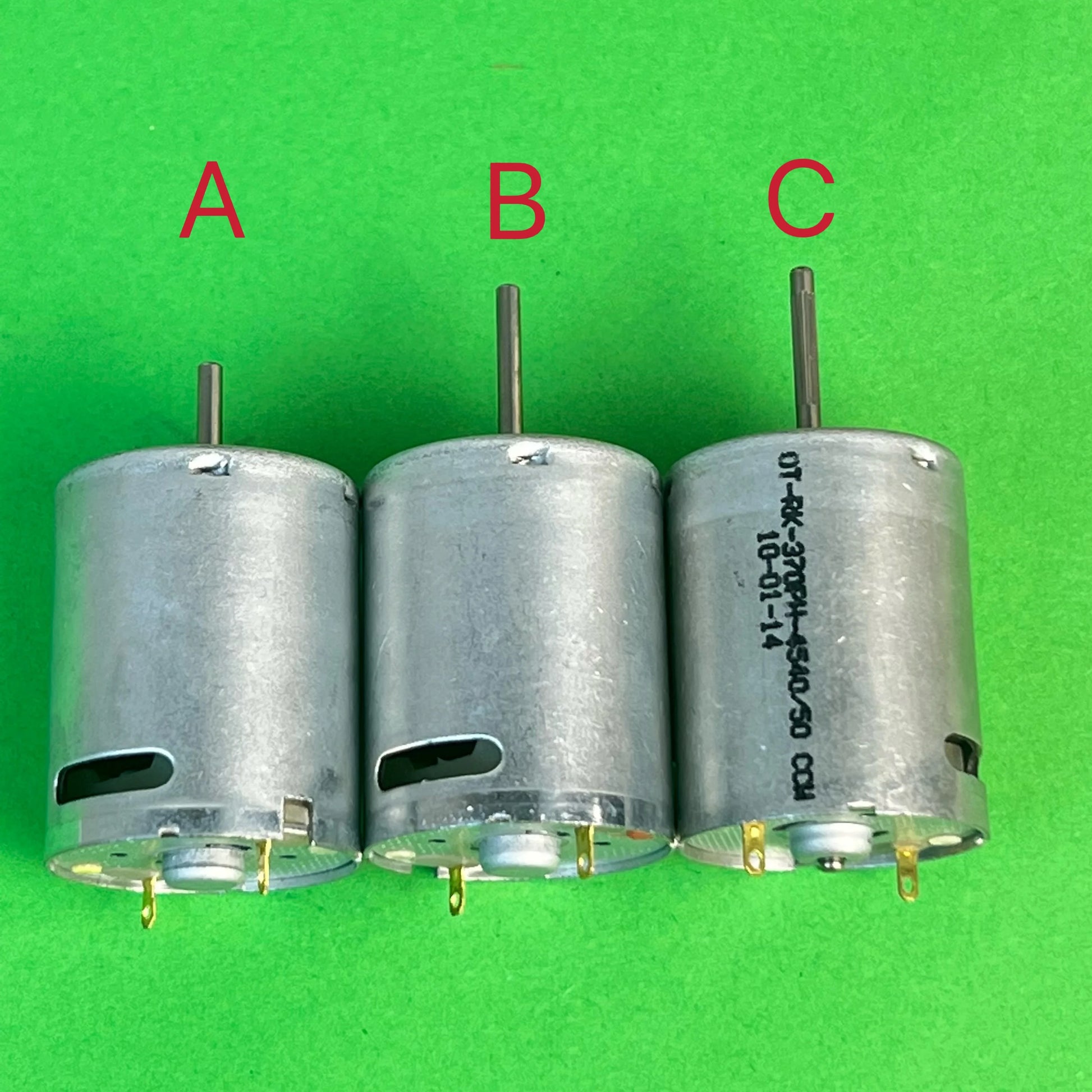

Specification:

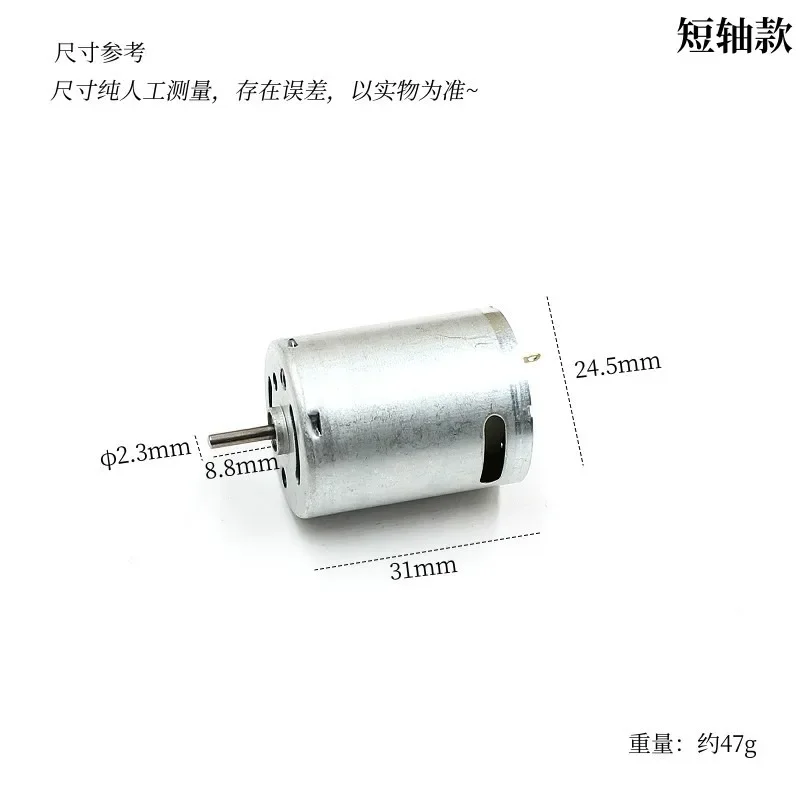

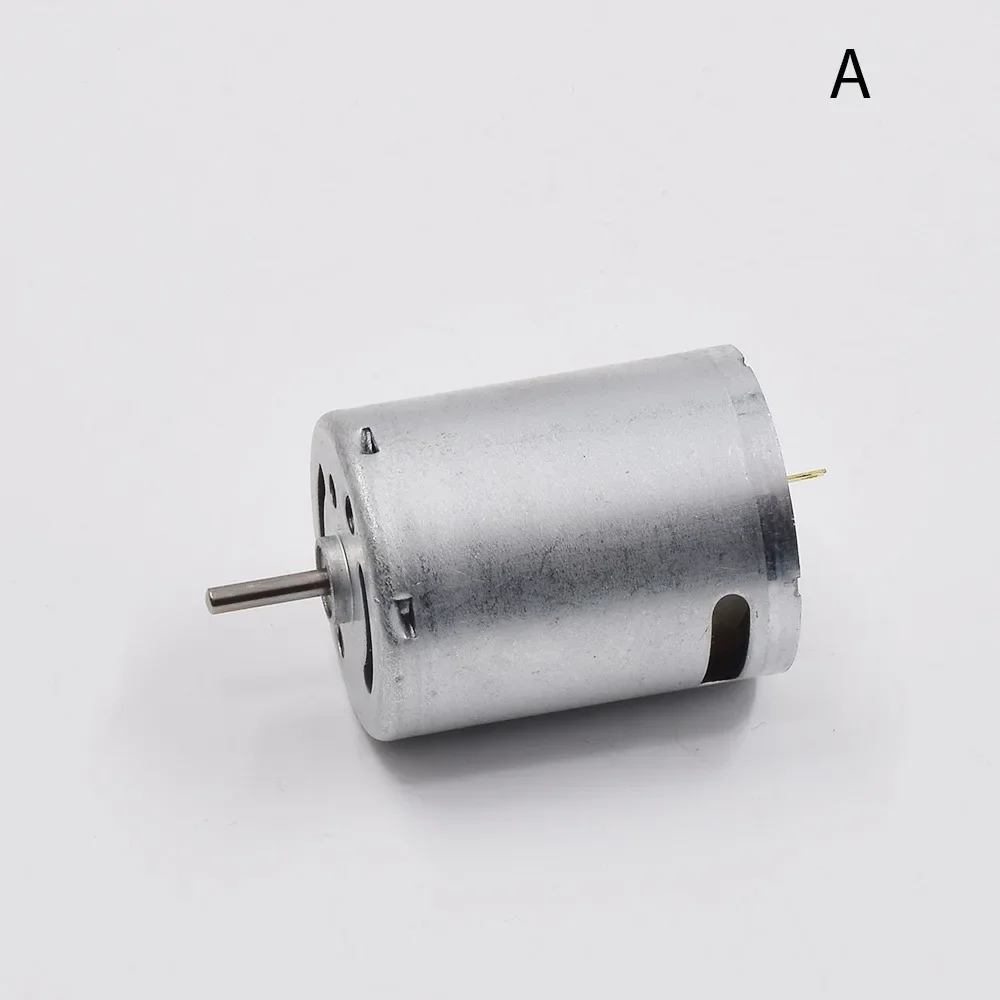

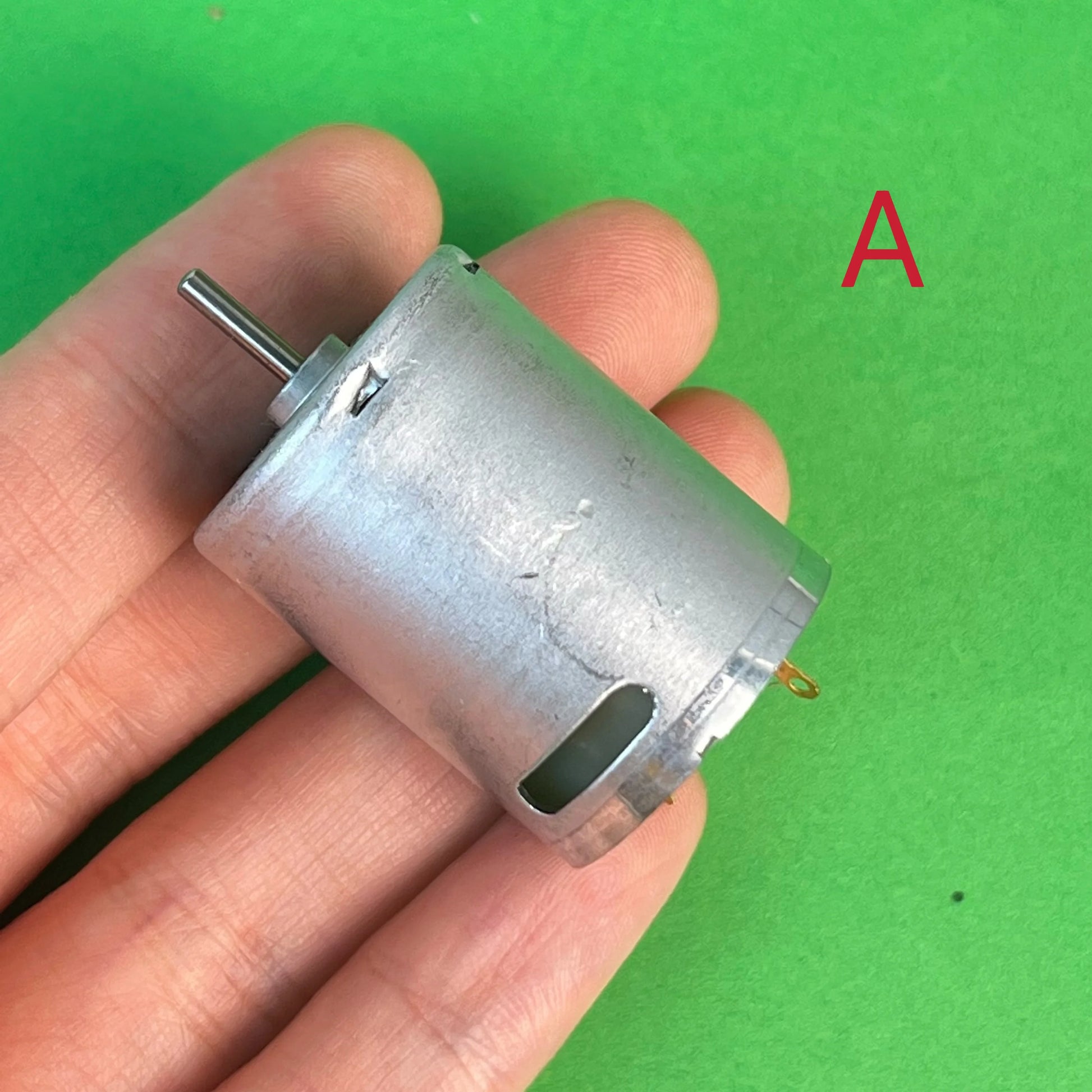

Model A: Short Shaft
----------------------------------------------------------------------------
1.Motor diameter: 24.5mm
2.Motor height: 30.8mm
3.Output shaft diameter: 2.3mm
4.Output shaft length: 8.8mm
5.Weight: 47g
6.Rated Voltage: DC 7.4V Speed: 31000RPM

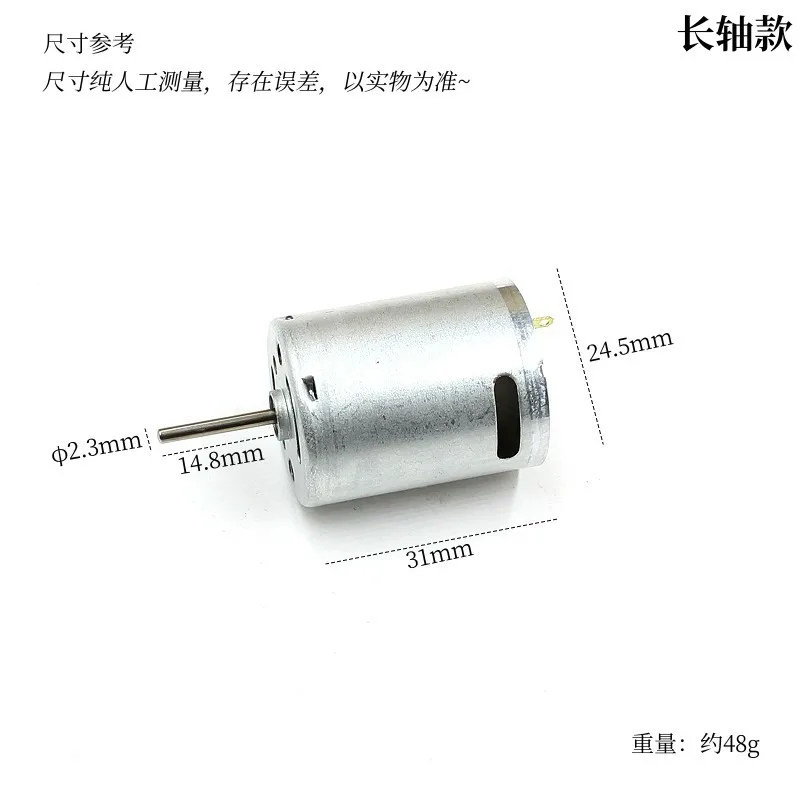

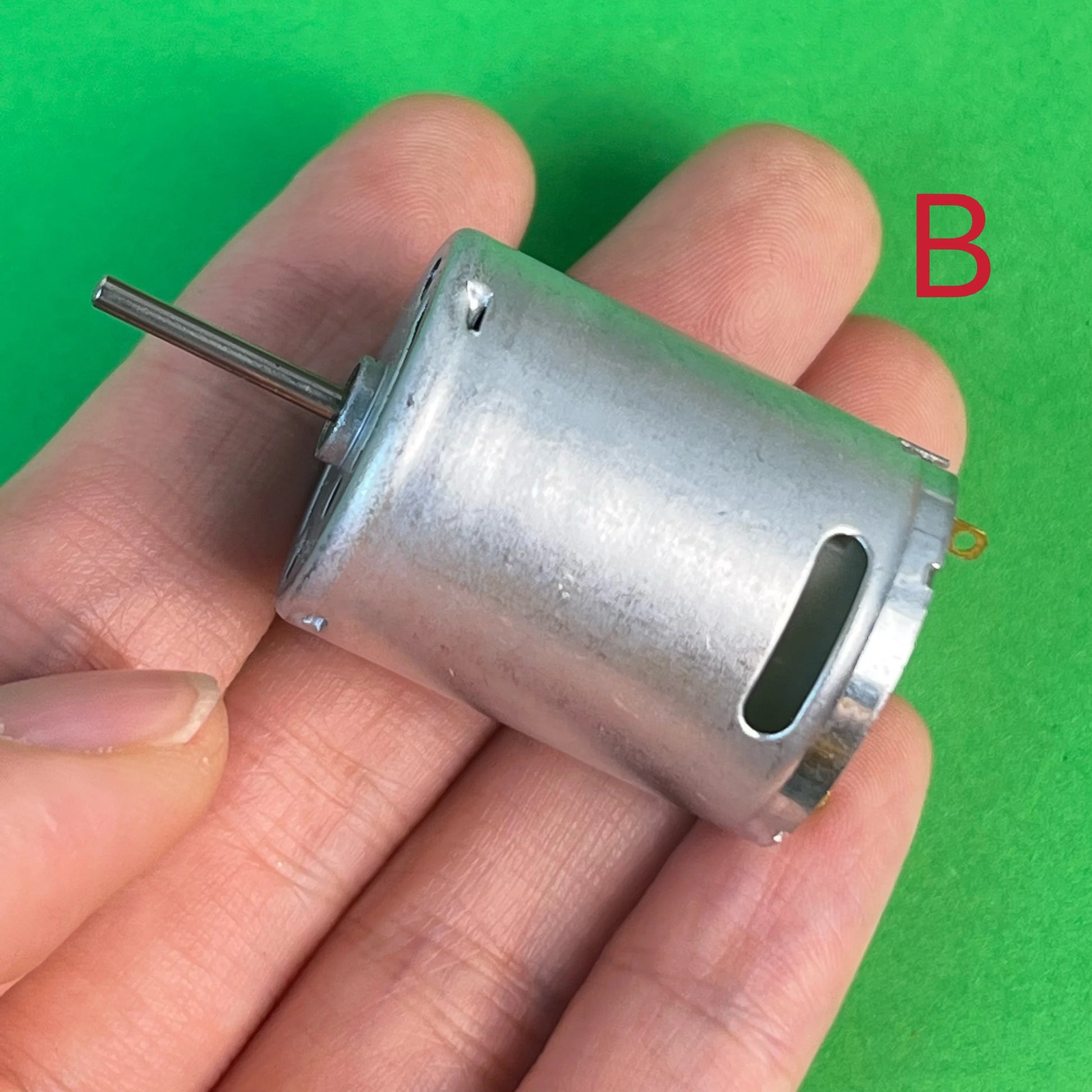

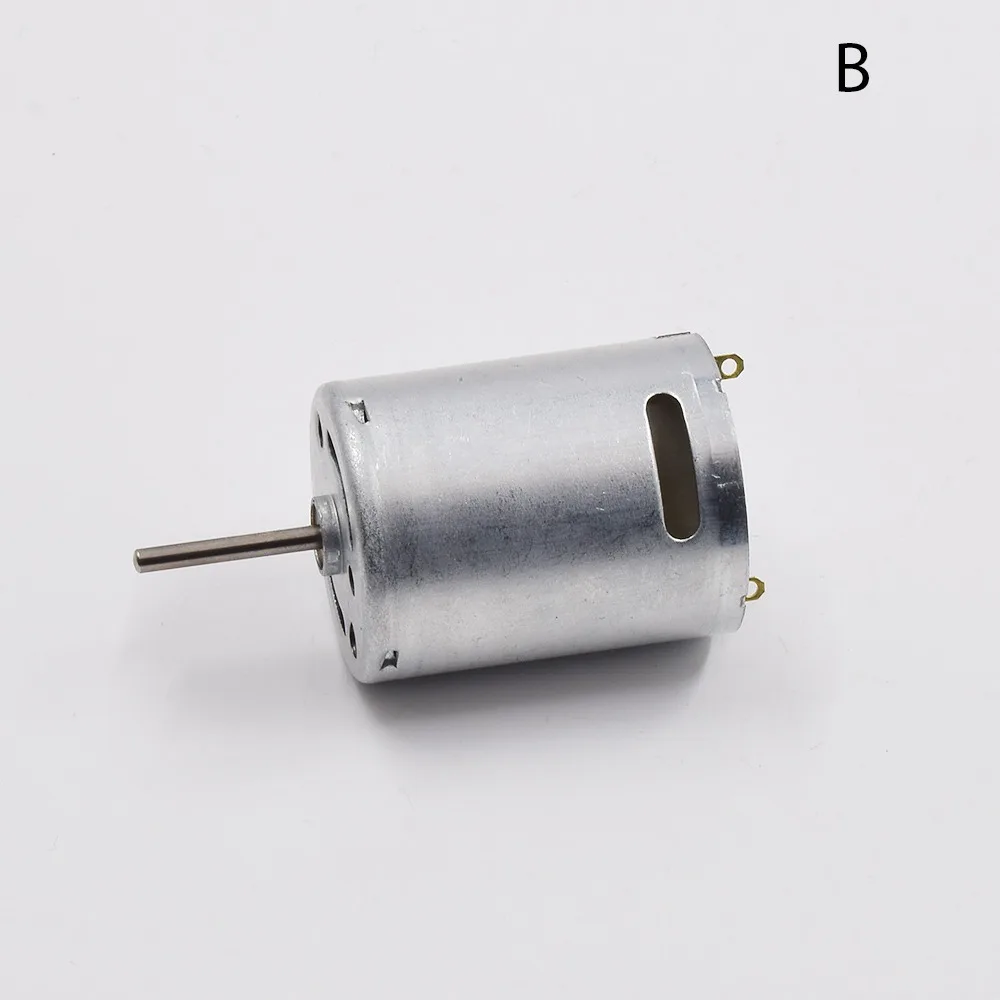

Model B: Long Shaft
----------------------------------------------------------------------------
1.Motor diameter: 24.5mm
2.Motor height: 30.8mm
3.Output shaft diameter: 2.3mm
4.Output shaft length: 14.8mm
5.Weight: 47g
6.Rated Voltage: DC 7.4V Speed: 31000RPM

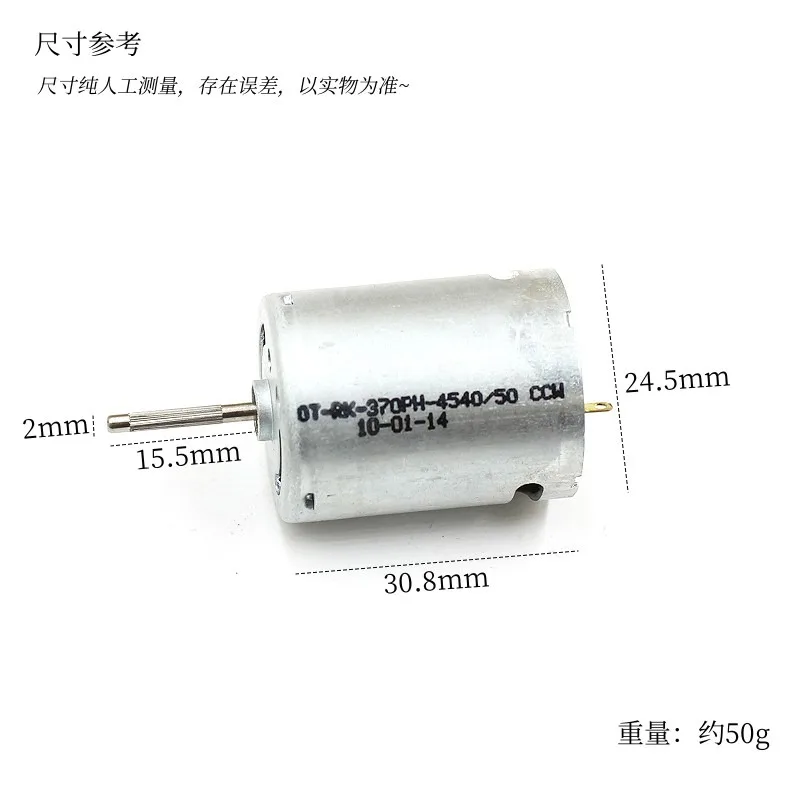

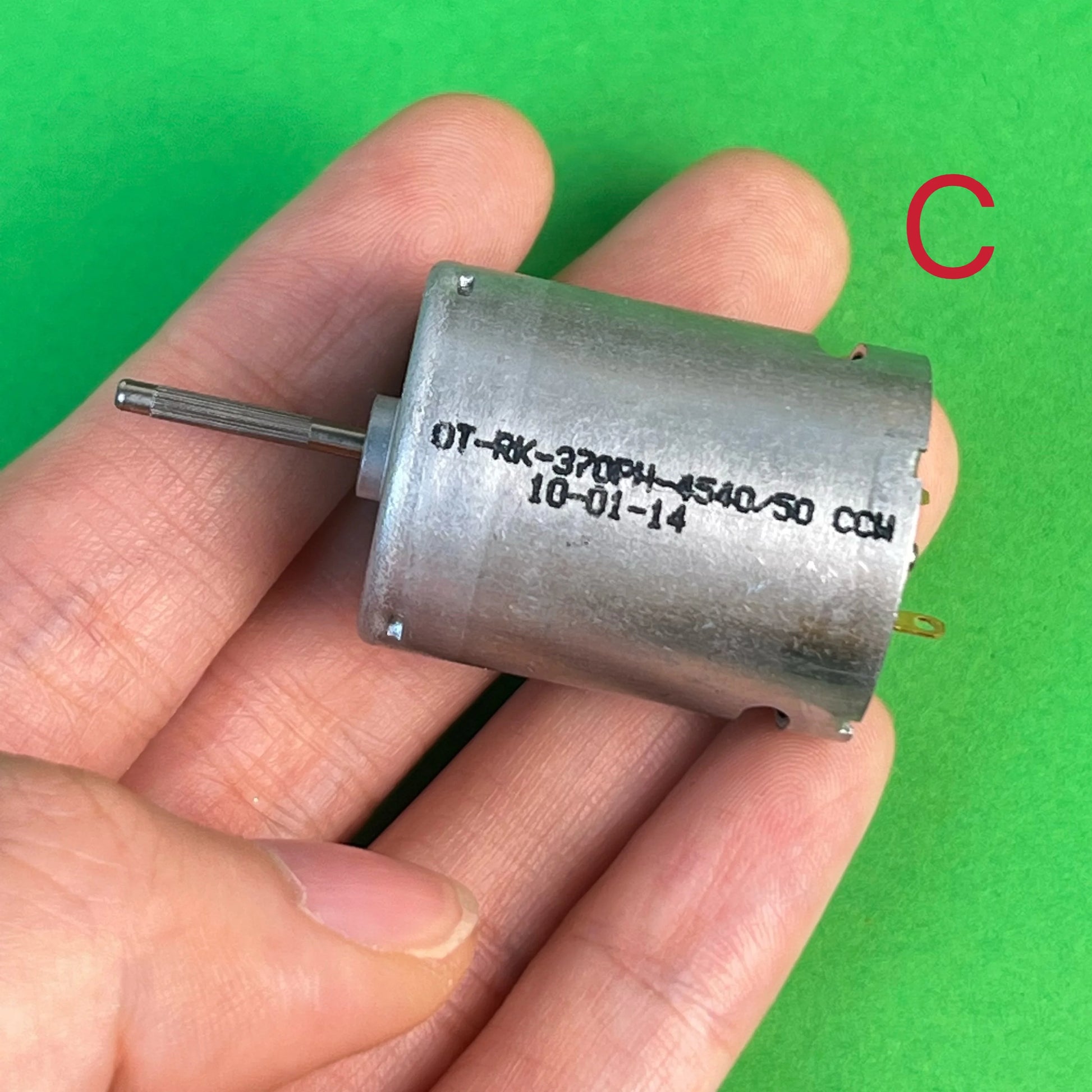

Model C: Knurling Shaft
----------------------------------------------------------------------------
1:Model: OT-RK-370PH-4540
1.Motor diameter: 24.5mm
2.Motor height: 30.8mm
3.Output shaft diameter: 2.0mm( Mid Knurling Shaft )
4.Output shaft length: 15.5mm
5.Weight: 50g
6.Rated Voltage: DC 7.4V Speed: 24500RPM
Operating current is approximately 690ma
Starting current: not less than 5A
(The motor requires a high current battery to drive, and low current cannot drive the motor)
