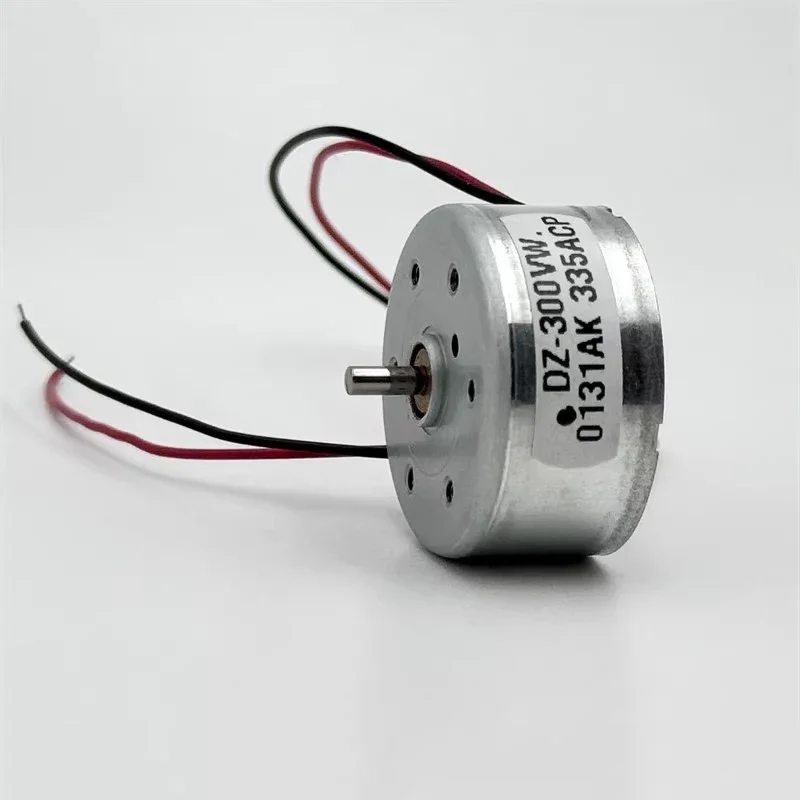

3V-6V 3.7V 5V 6V 7550RPM Micro DC Motor 24mm Round Spindle 2mm Shaft (RF-300) for DIY Toys/Solar Power Models/Fan Projects
3V-6V 3.7V 5V 6V 7550RPM Micro DC Motor 24mm Round Spindle 2mm Shaft (RF-300) for DIY Toys/Solar Power Models/Fan Projects
Couldn't load pickup availability
SPECIFICATIONS
Brand: DAZHEN Motor
Brand Name: NONE
Certification: CE
Choice: yes
Commutation: Brush
Construction: Permanent Magnet
Does it include a Battery?: No
Does it include wireless functionality?: No
Efficiency: IE 1
High-concerned chemical: None
Model Number: DZ-300VW

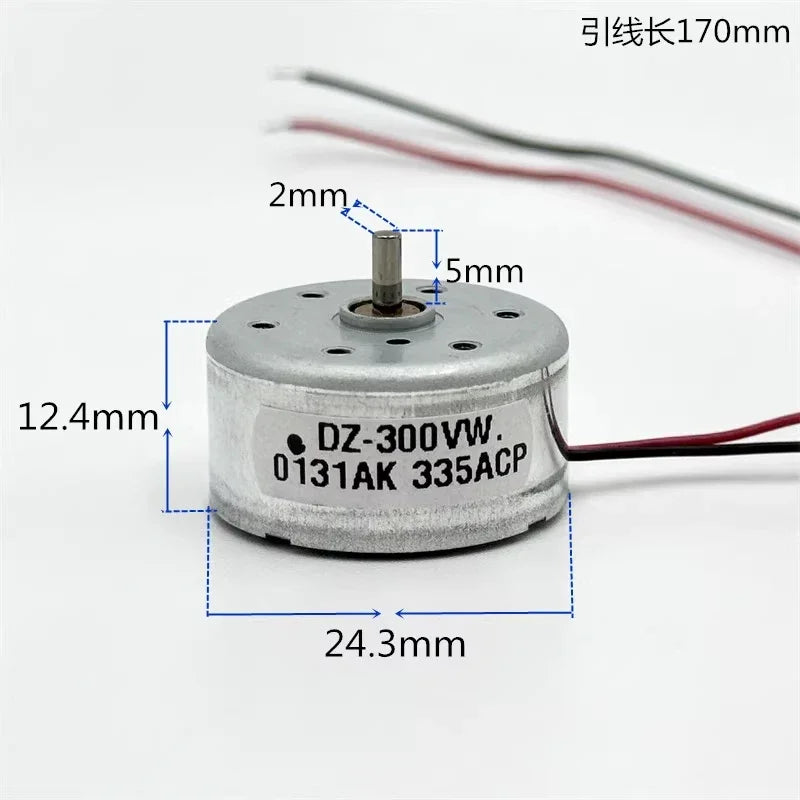

Motor size: 24.3mm*12.4mm
Origin: Mainland China
Output Power: ＜18.65
Output shaft diameter: 2mm
Protect Feature: Explosion-proof
Suitable voltage: DC 1.5V-6.0V
Type: Micro Motor
Use: Home Appliance
semi_Choice: yes
Specification:
1.Brand: DAZHEN Motor
2.Model: DZ-300VW (Mini 300 Motor)
3.Motor size: 24.3mm*12.4mm
4.Output shaft diameter: 2mm
5.Output shaft length: 5mm
6.Cable length: 170mm
7.Weight: 20g
8.Suitable voltage: DC 1.5V-6.0V
9.Test data:
Voltage:3.0V No-load speed:3750RPM Current:7mA
Voltage:3.7V No-load speed:4650RPM Current:10mA
Voltage:5.0V No-load speed:6300RPM Current:12mA
Voltage:6.0V No-load speed:7550RPM Current:18mA
=========================
Package List:
Motor x 1PCS
