SPECIFICATIONS

Brand Name: NONE

Certification: ce

Hign-concerned Chemical: None

Origin: Mainland China

48-72V 3000W Brushless Motor Kit with Controller and Throttle for Electric Scooter E Bike Engine Motorcycle DIY Part Conversion Kit

High Applicability: This product is universal for 48V/60V/72V in many styles, thus having high adaptability.This product is made of aluminum housing and pure copper coils, with high-temperature resistance, low noise, anti-corrosion, and anti-rust properties.The compact motor size (4.21*5.28 inches) and light weight make them easy to carry and store. You can easily put them in the trunk as a power supplement at any time.

High Efficiency: The product's high speed (6000rpm) and high torque (5.4N.m) allow you to save time by effectively increasing work efficiency.The simple product structure and the comprehensive mounting parts in the package can help you make connections quickly and accurately.

Brushless Motor: The brushless motor is more efficient in converting electrical energy into mechanical energy because there does not have friction loss. And since brushless motors have permanent magnets on the rotor, it is easier to produce high torque than the coils on traditional brushed motors.

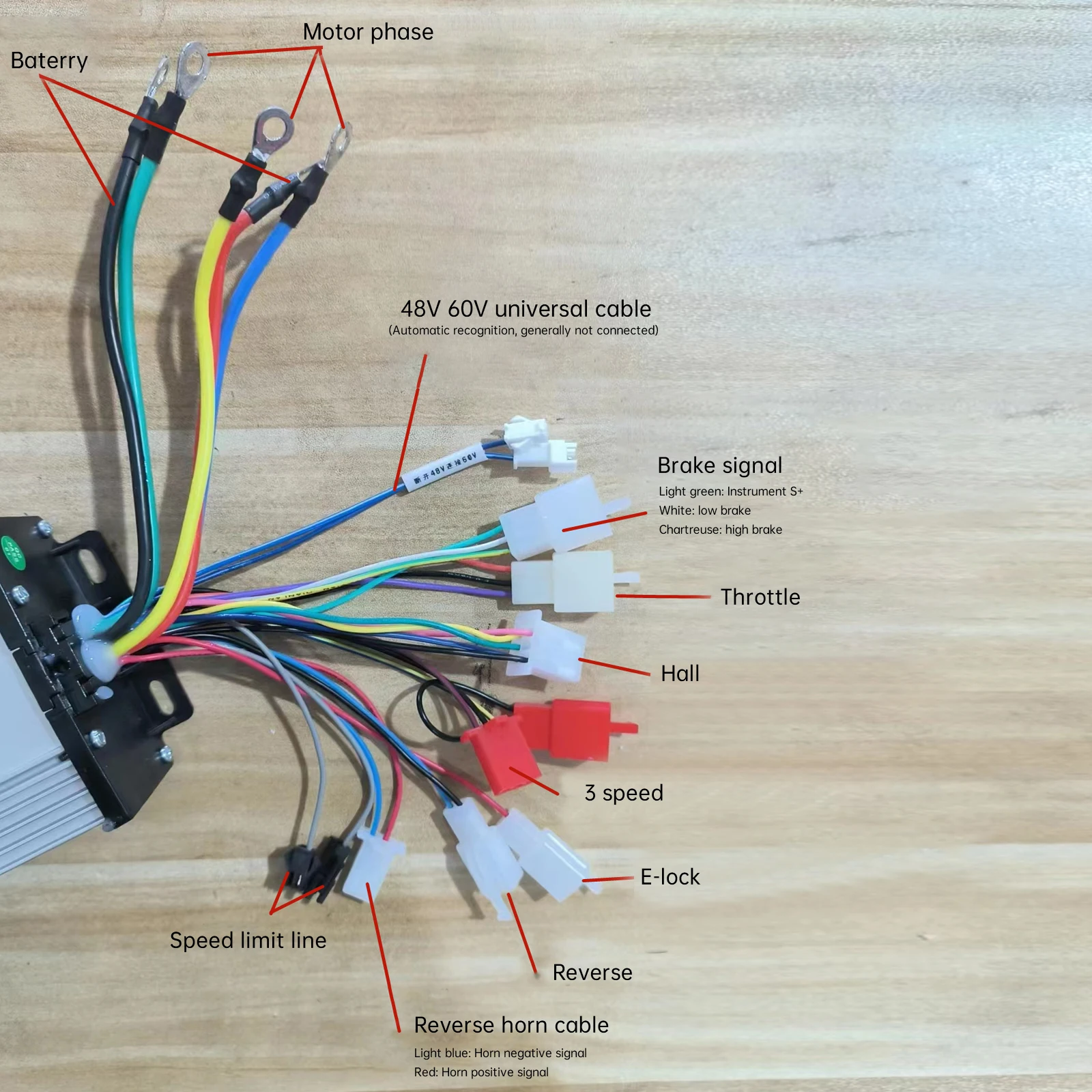

Reversible: The product can be operated clockwise or counterclockwise by the motor's reversing wire or the handle reversing switch, so as to meet your various usage needs.The controller has an electronic brake, 3 speeds (low, medium, and high speed), reverse function, indicator light, and power lock function, which makes the use more precise and easy.The product has an IP33 protection level and an E-class insulation level, which can provide higher safety for your use.

Application

This product is suitable for electric motorcycles, beach bikes, go-karts, modified bicycles, mechanical equipment, etc.The diamond-shaped handle surface can effectively enhance friction, thus making the grip more comfortable and stable.The feet on the bottom of the motor can effectively improve the stability of the motor, thus ensuring a more stable and efficient operation of the product.

Specification

Color: Silver, Black

Model: BM1109

Material: Aluminum, Pure Copper

Assembly Required: Yes

Brushless Motor Voltage: 48-72V

Load Weight: Approx. 100-200kg/220.46-440.92lbs

No-load Current: ≤8.8A

Rated Current: ≤43A

No-load Speed: 6000rpm

Rated Speed: 4900rpm

Rated Torque: 5.4 N.m

Motor Efficiency：≥80％

Controller Voltage: 48-72V

Power: 3KW

Protection grade: IP33

Insulation grade: E

Gross Weight: 6.9kg/ 15.21 lbs

Net Weight: 6.2kg/ 13.67 lbs

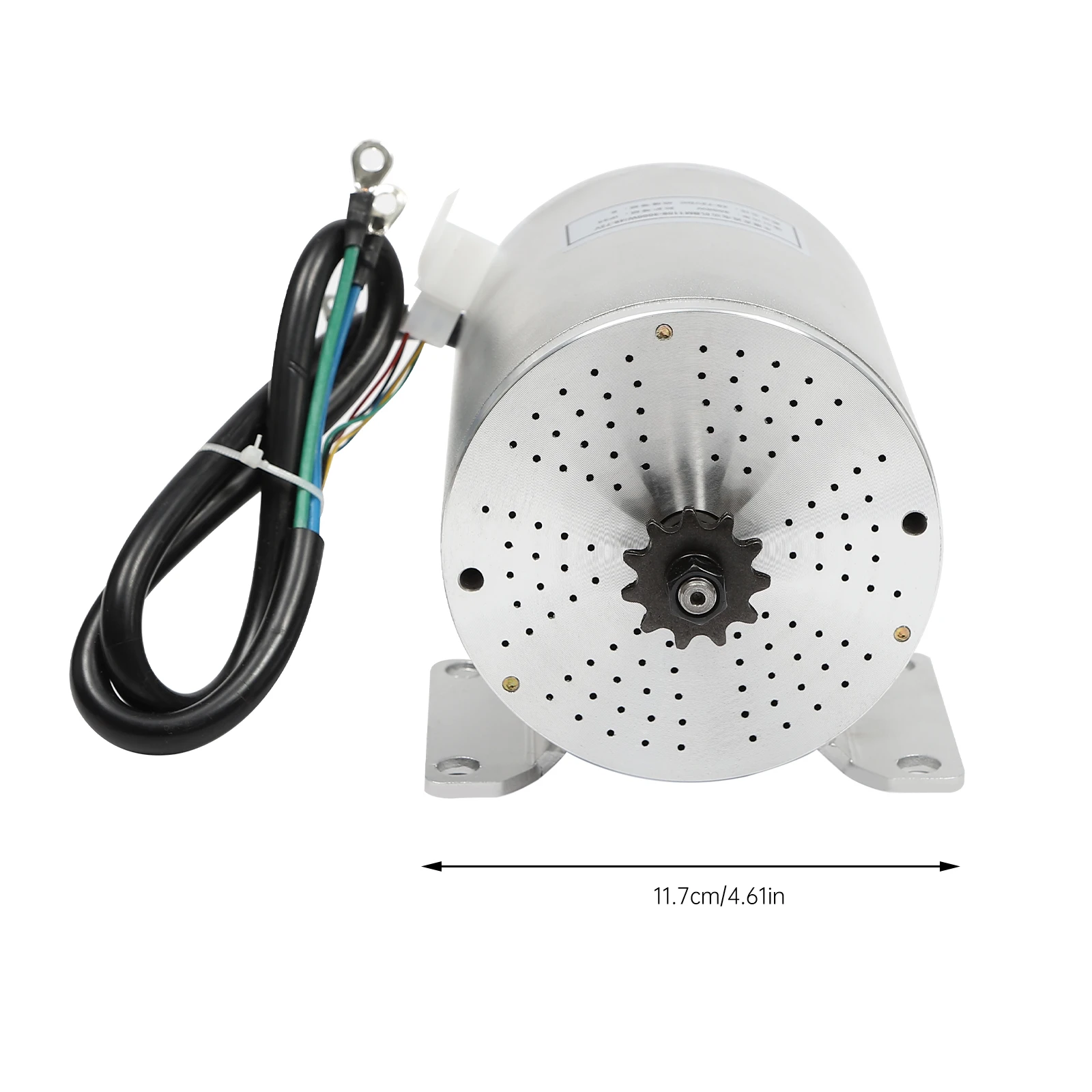

Leg Spacing: 11.7cm/4.61in

Leg Height: 5mm/0.2in

Interface Length: 29mm/1.14in

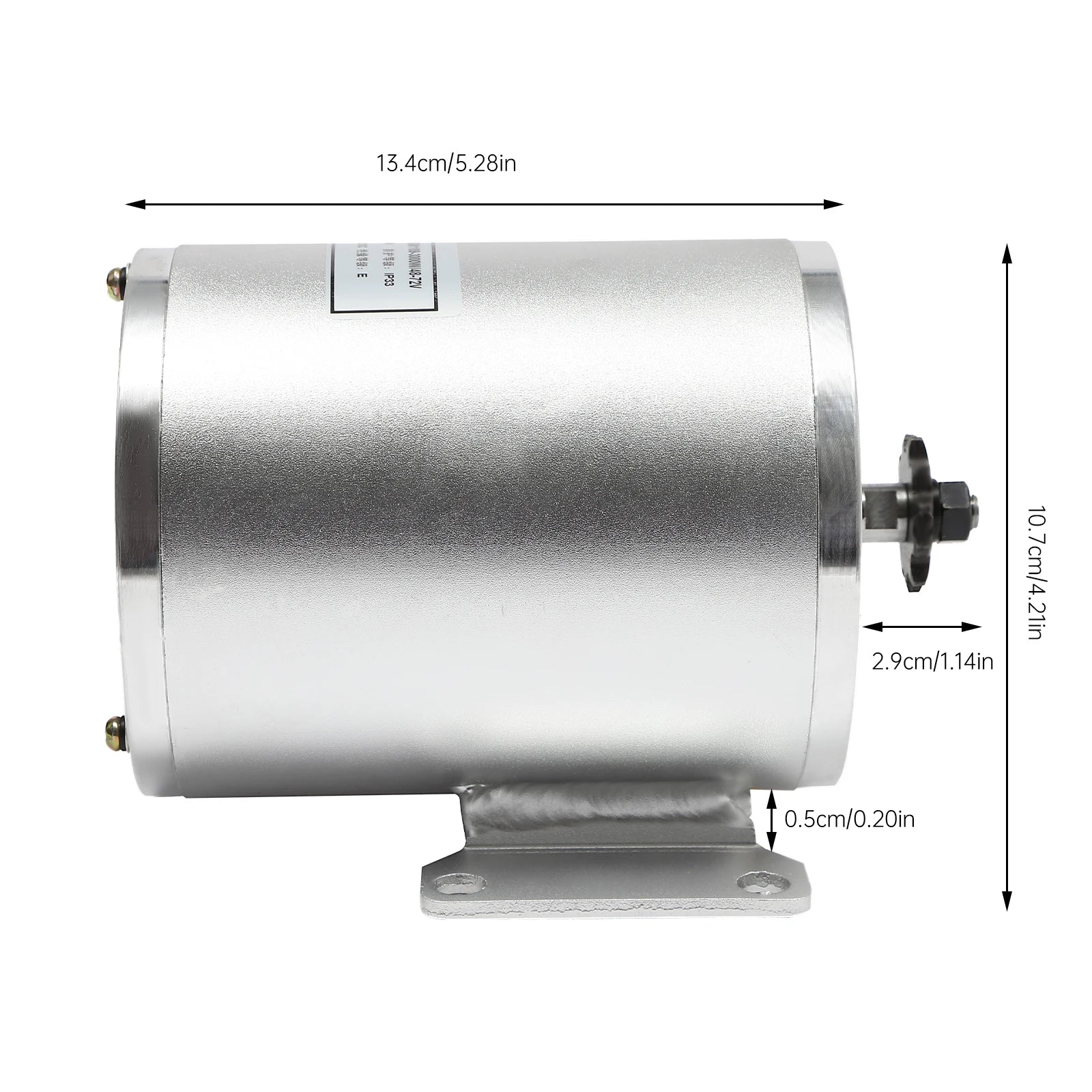

Motor Size(φ*L): 10.7*13.4cm/4.21*5.28in

Package Size: 34*23.5*17.5 cm/13.39*9.25*6.89 in

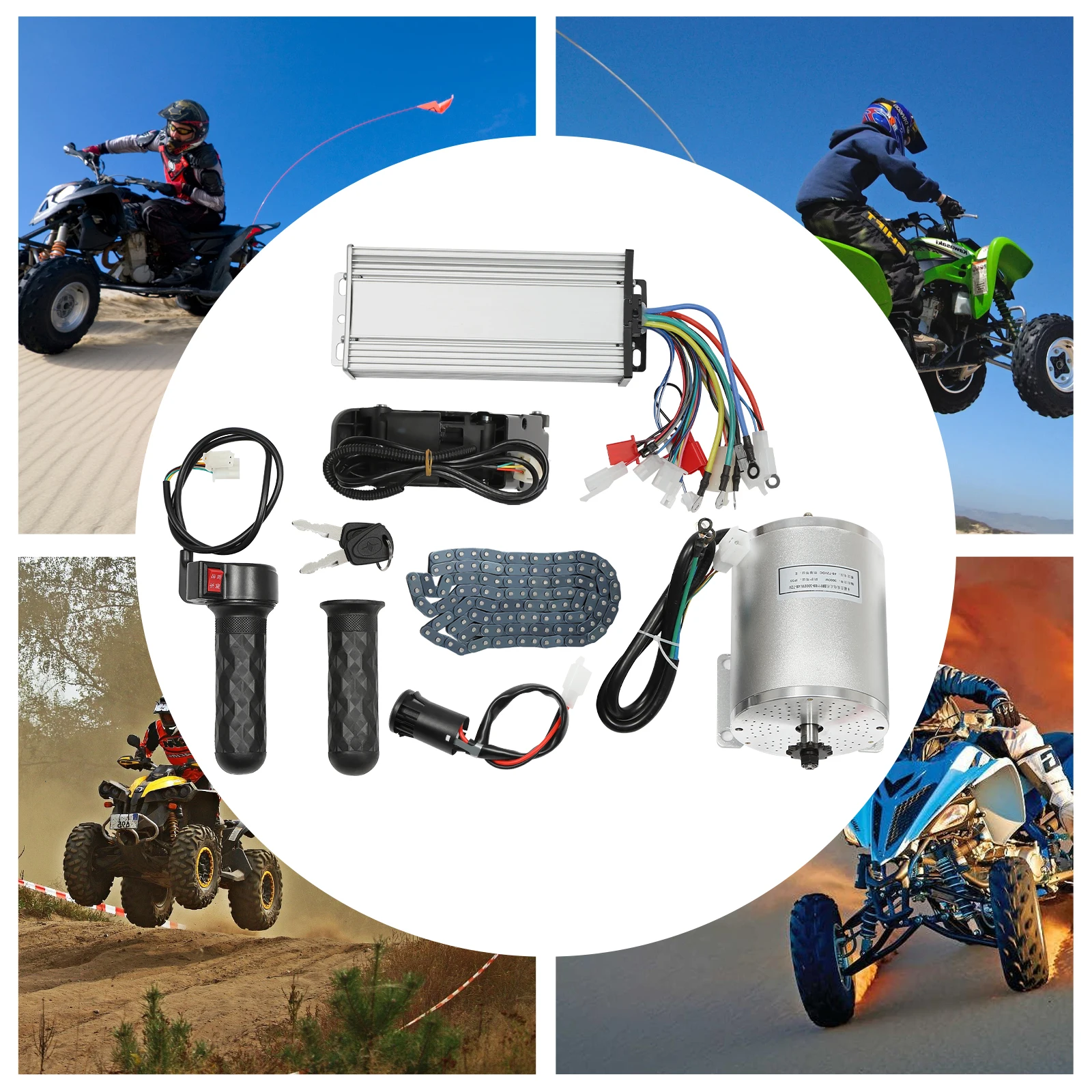

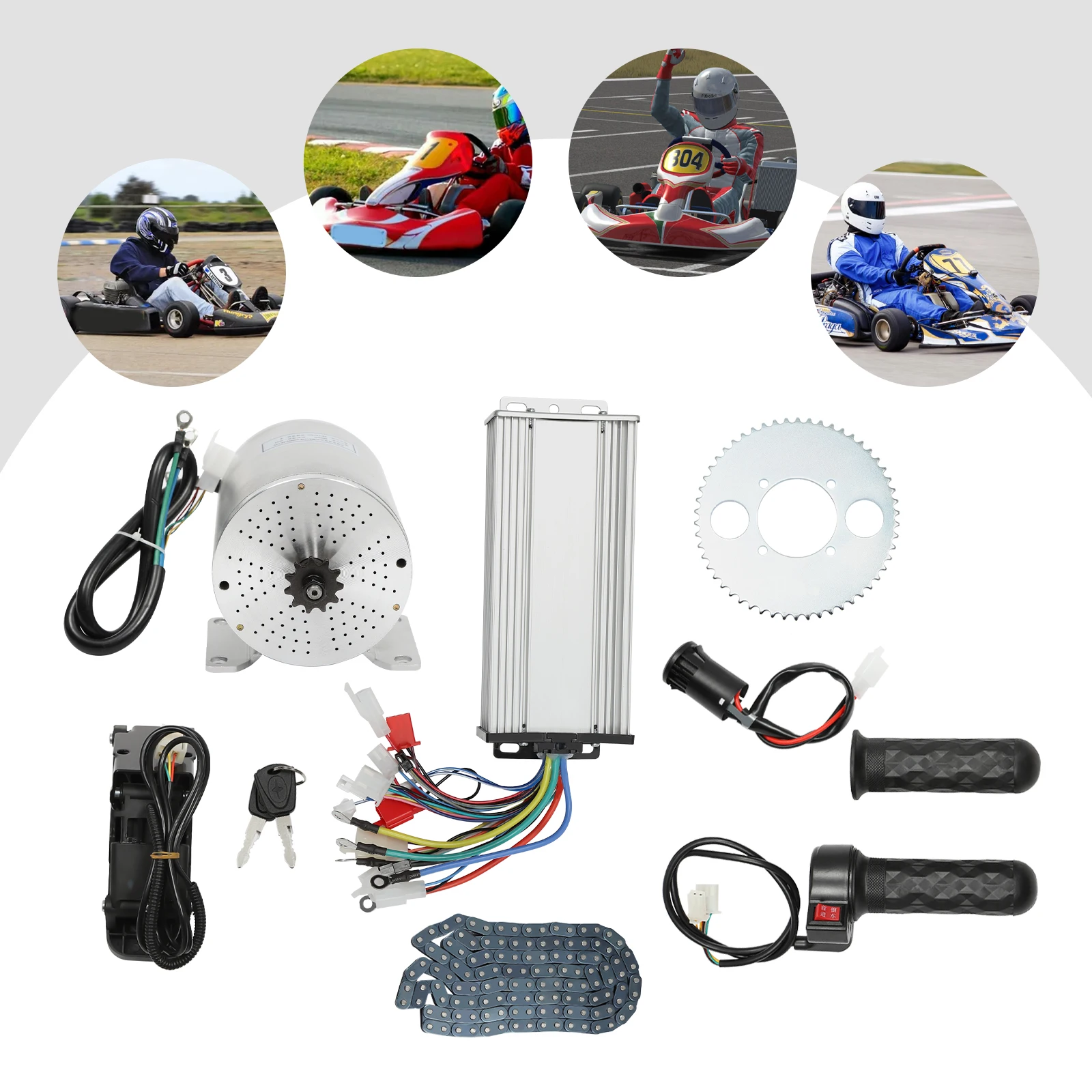

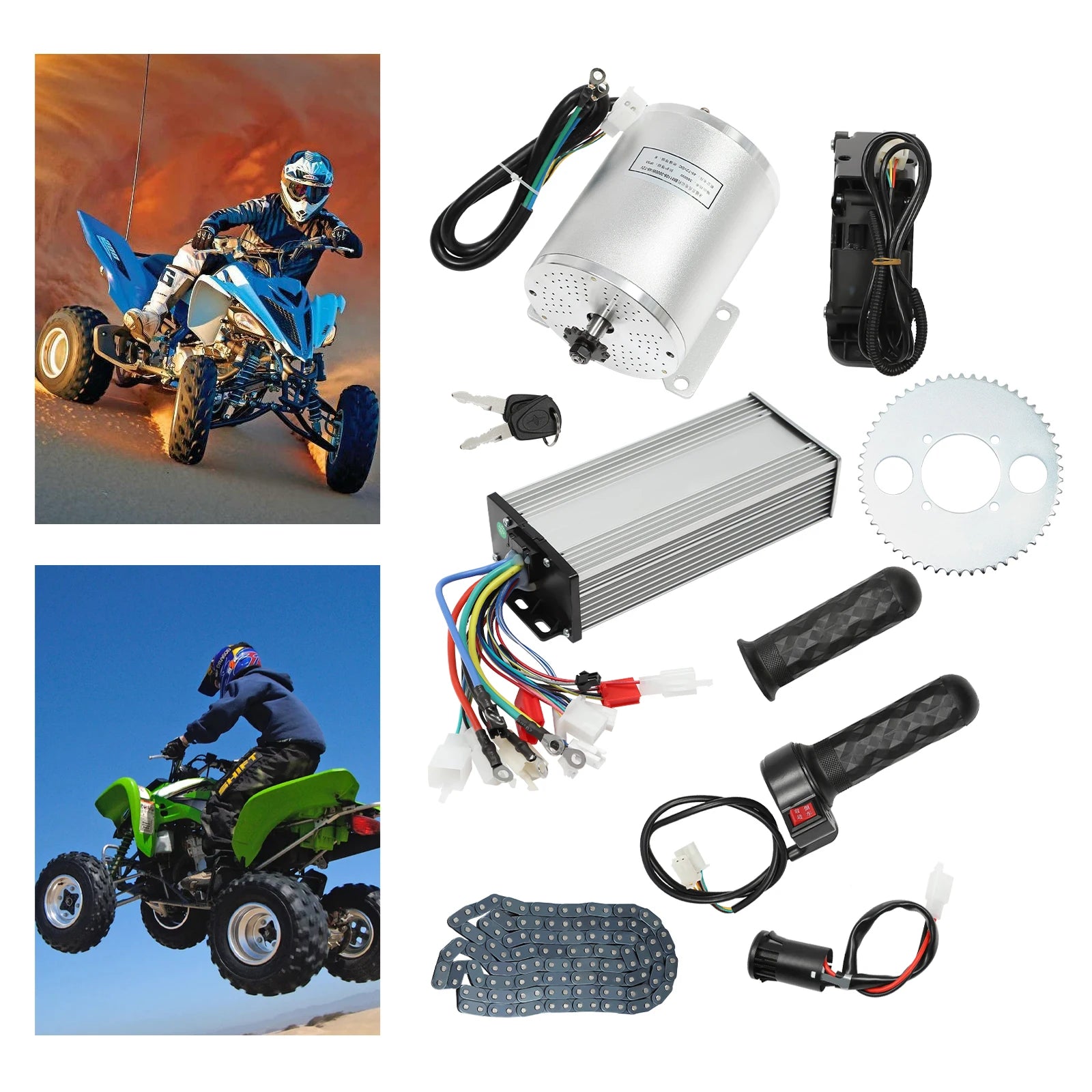

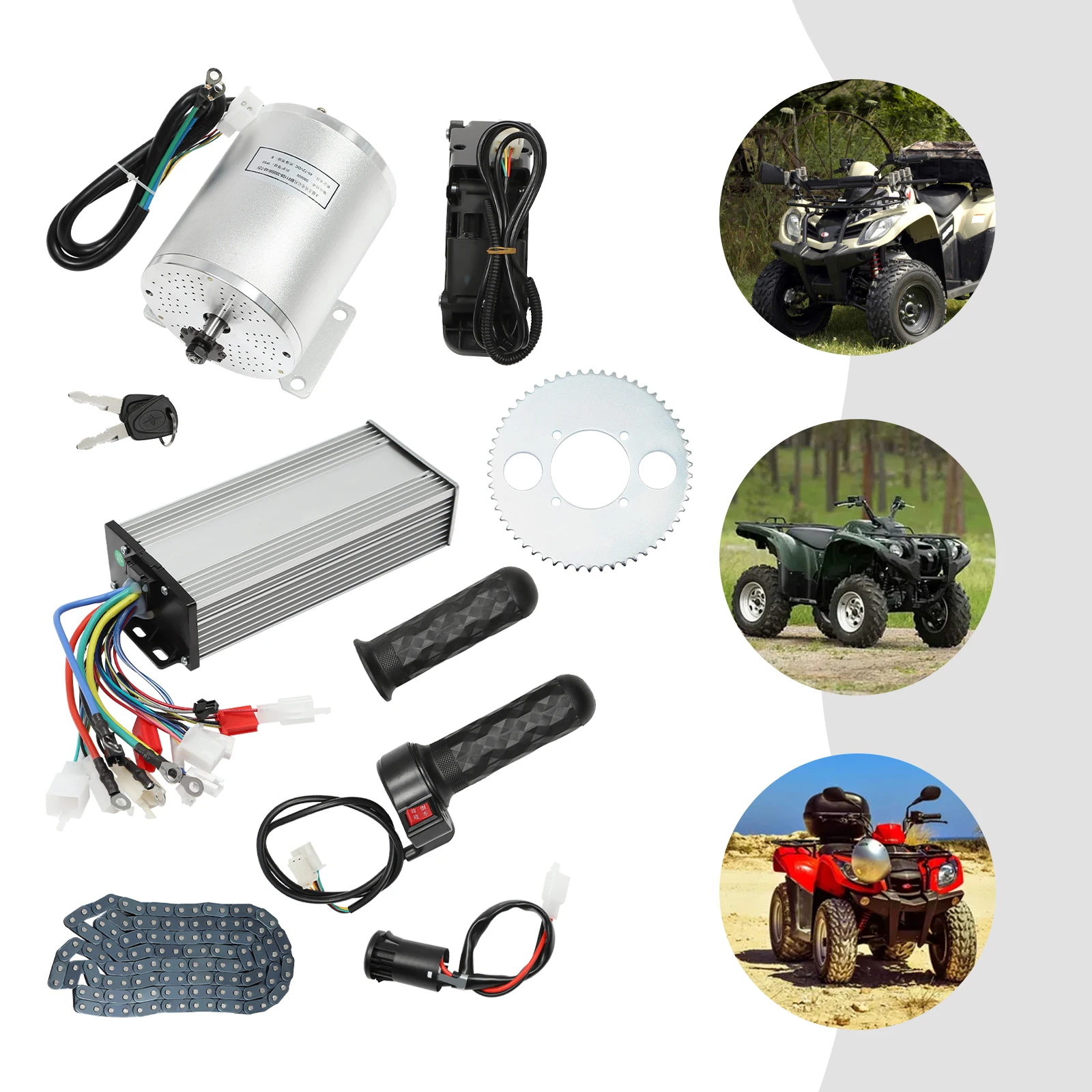

Package Included

1 * Motor

1 * Controller

1 * Foot Pedal Throttle

2 * Lock Keys

1 Pair * Handlebars

1 Set of T8F Chain and T8F Chain Ring

All Accessories for Installation

Notes

1. Motor speed will depend on your load weight and other conditions.

2. Please do not let the motor run in reverse for a long time, it is not friendly to the motor life.

3. Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
