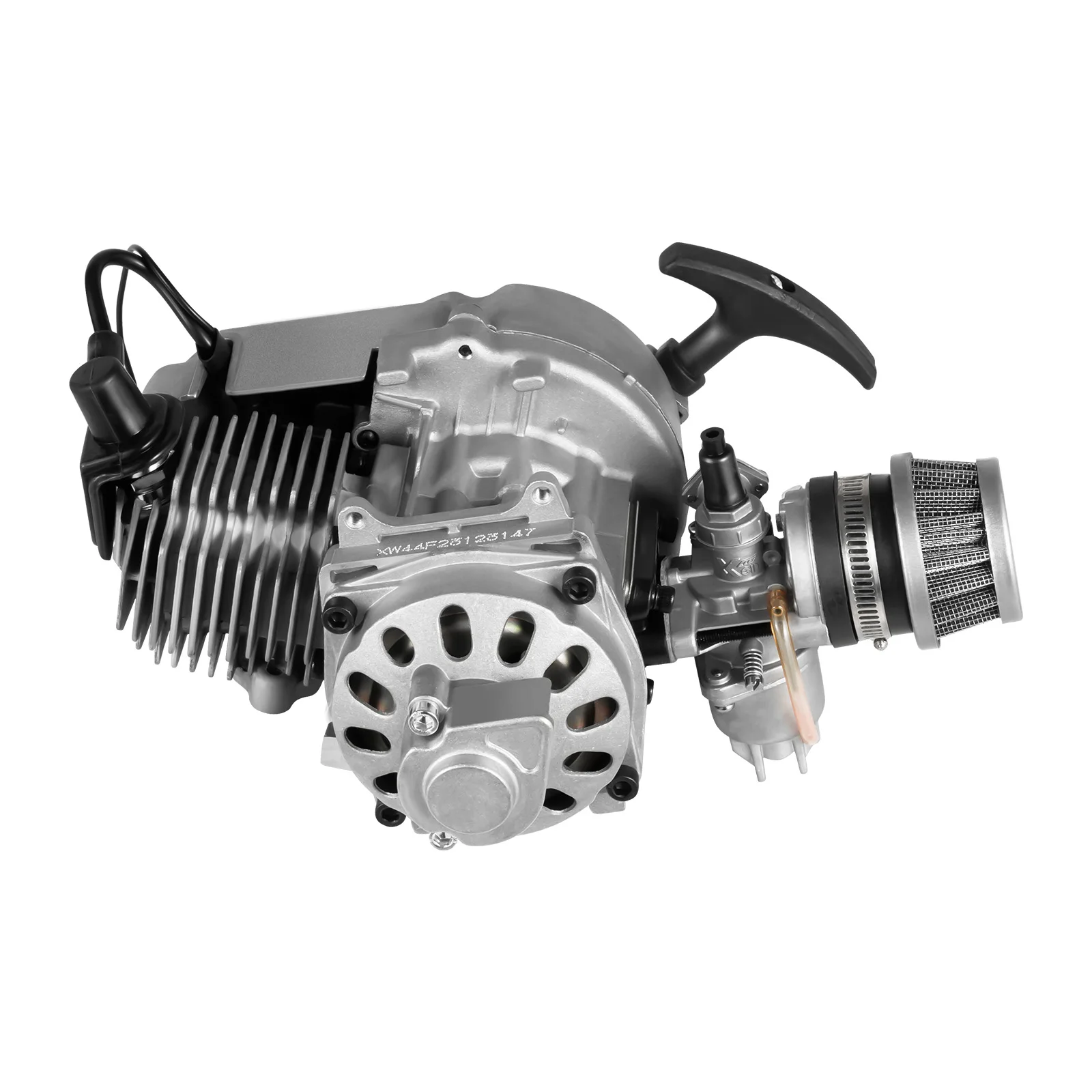

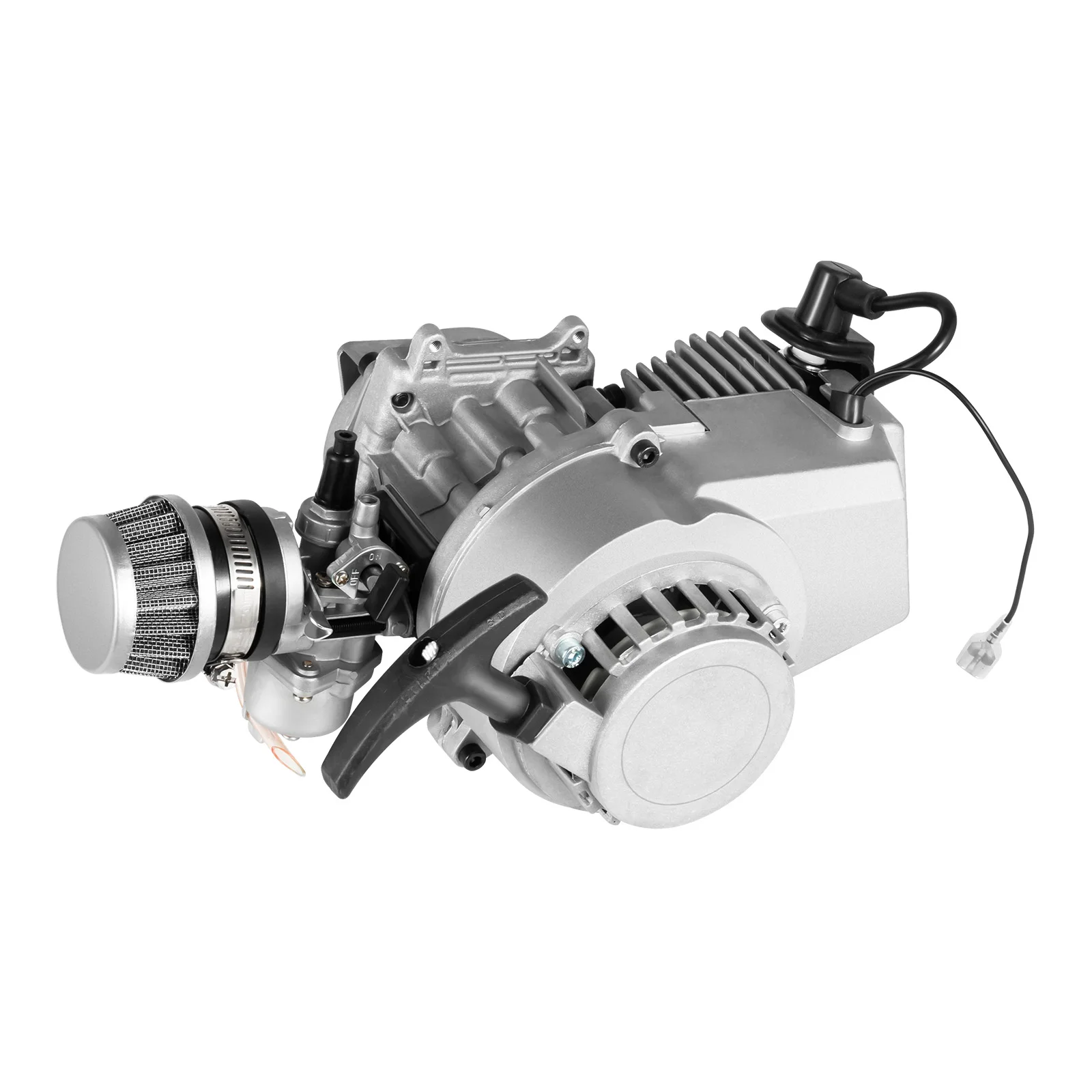

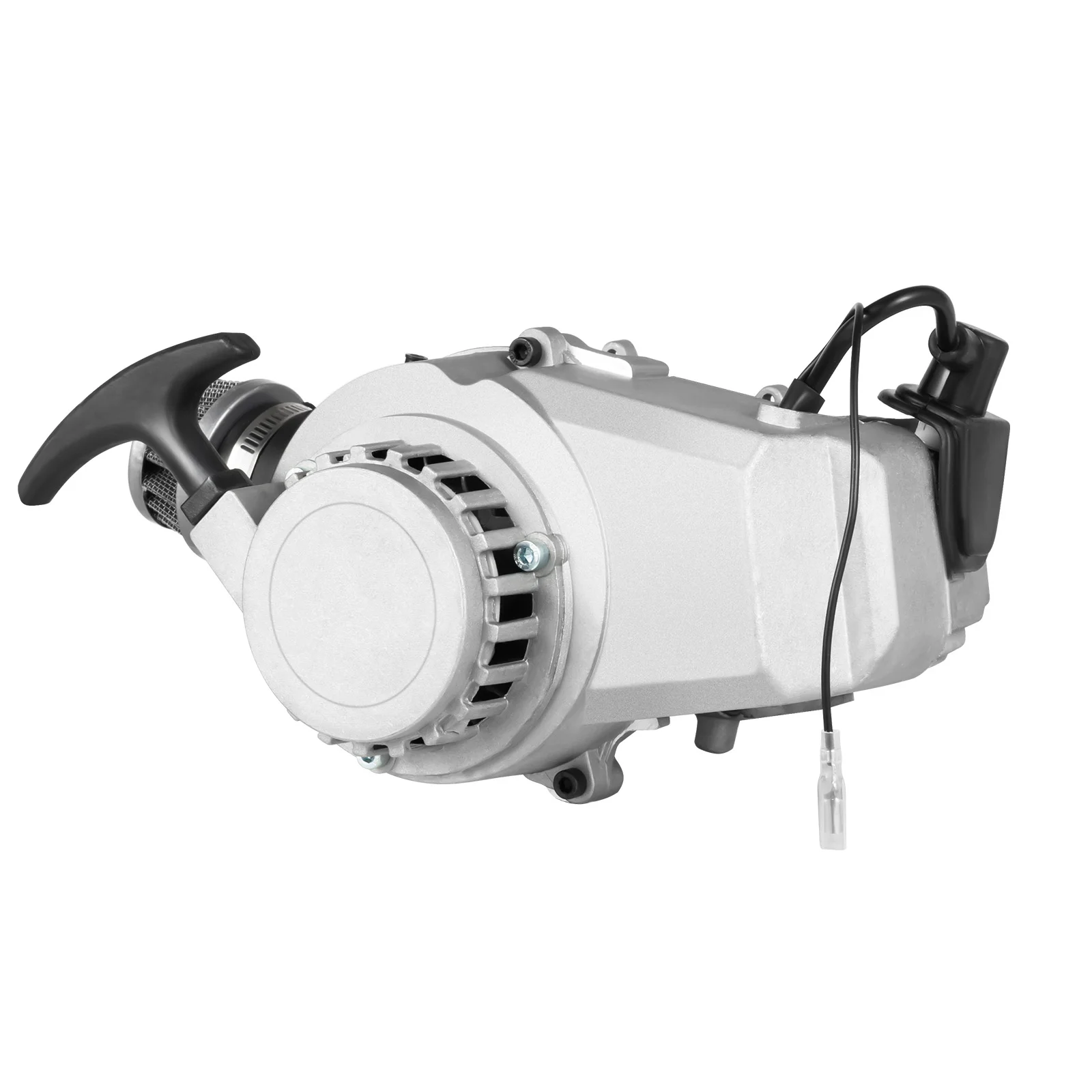

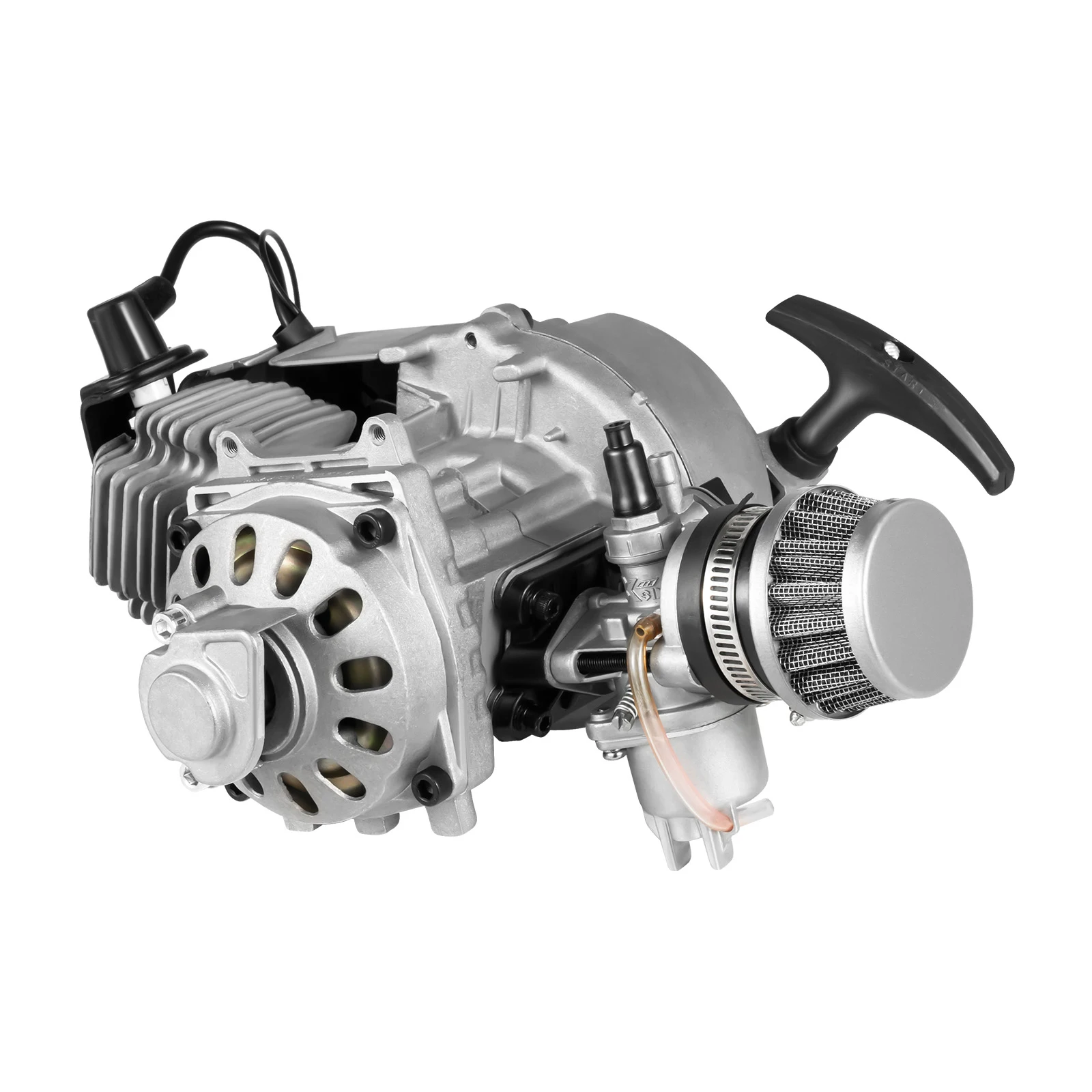

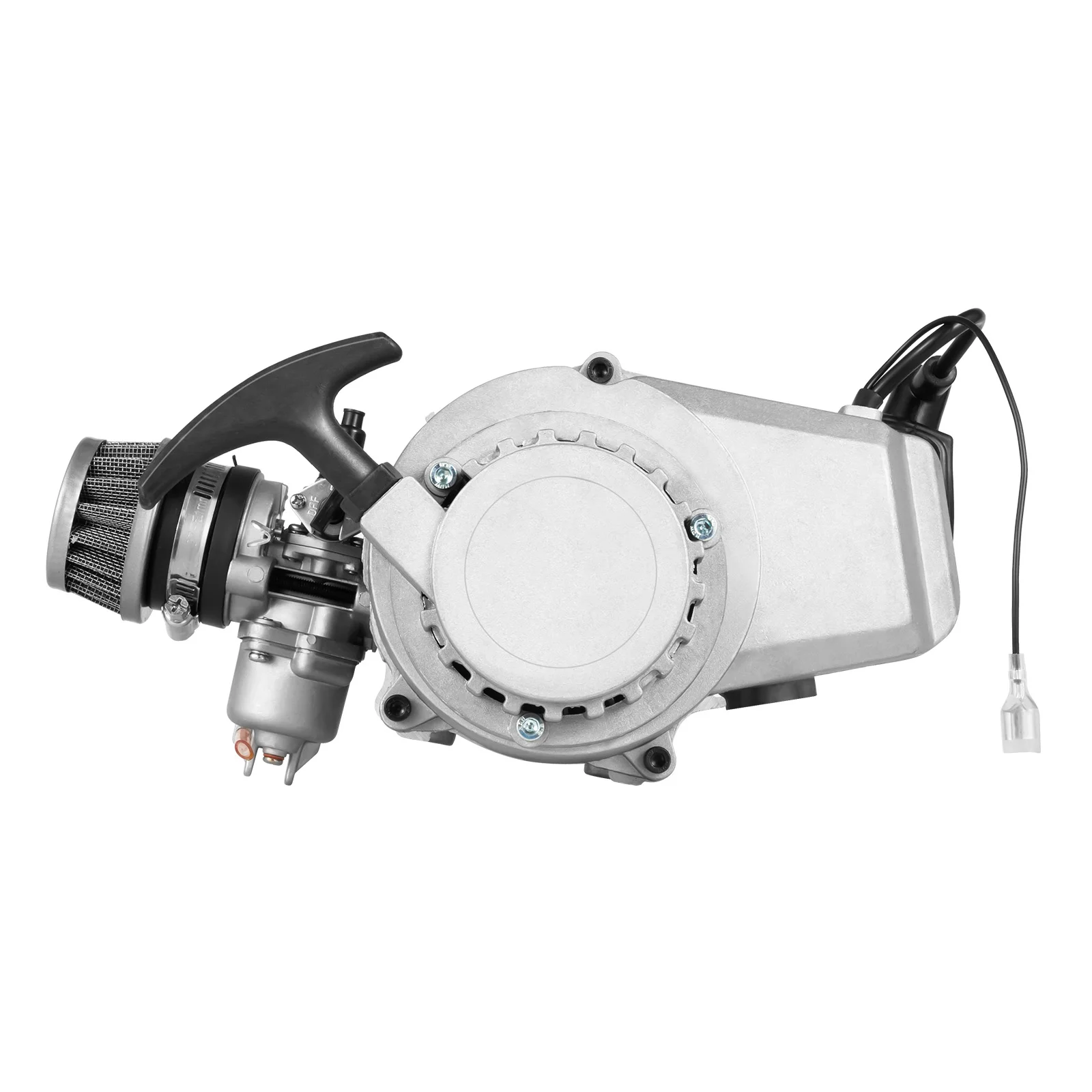

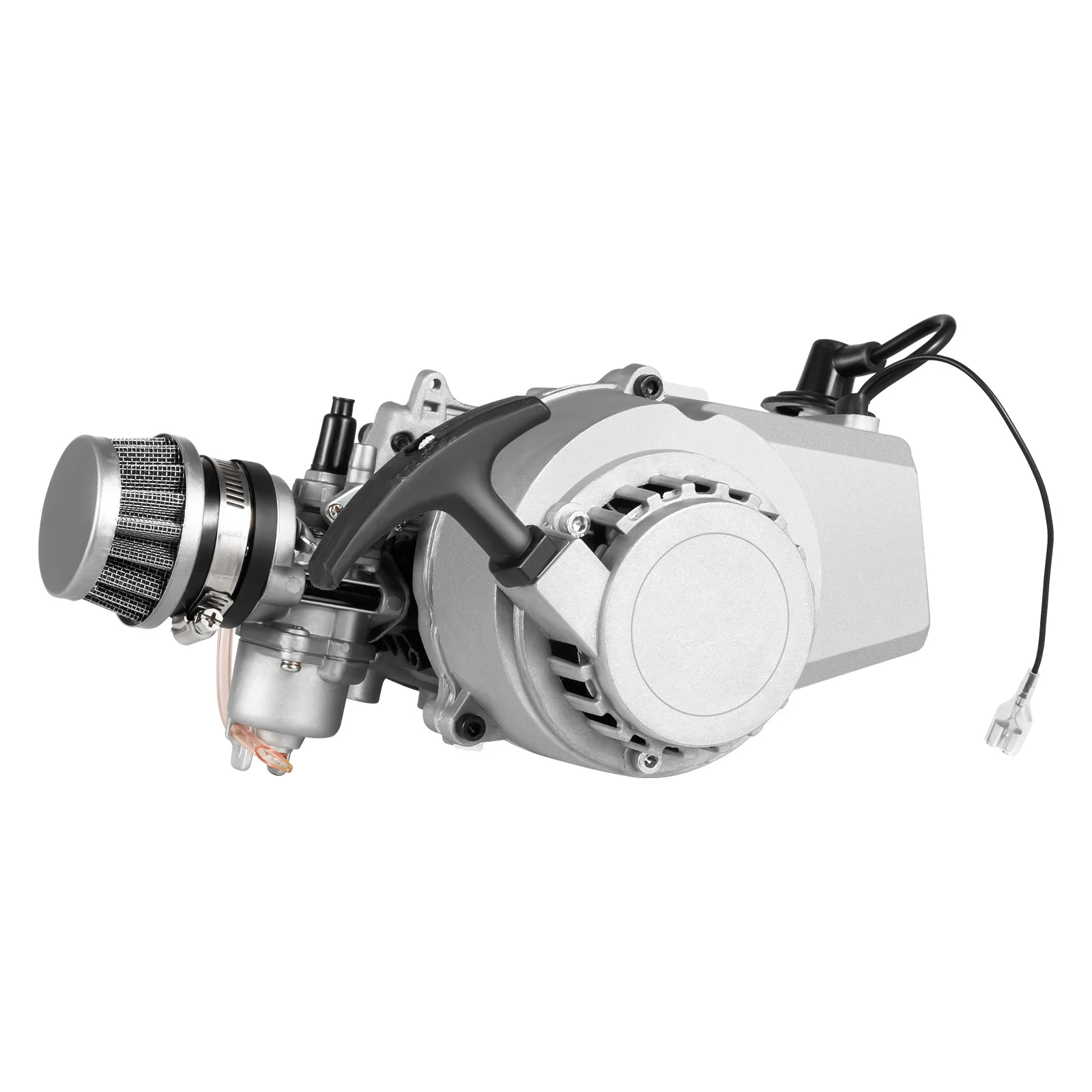

49cc 2-Stroke Motor Engine Kit, Air Cooling Pull Start with Fuel Tank for Mini Pocket Quad Dirt Bike ATV Scooter

49cc 2-Stroke Motor Engine Kit, Air Cooling Pull Start with Fuel Tank for Mini Pocket Quad Dirt Bike ATV Scooter

Regular price $115.64 USD
Regular price $0.00 USD Sale price $115.64 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

SPECIFICATIONS

Brand Name: NONE

Displacement (ml): 49.85CC

Engine Type: 2 Stroke, Air-cooling

External Testing Certification: ce

Hign-concerned Chemical: None

Item Type: engines

Item Weight: 3.85

Material: Aluminum

Max. Horsepower: 3PS

Max. Torque: 2.7N.M/6500rpm

No-load Speed: 12500rpm

No. of Cylinders: 1 Cylinder

Origin: Mainland China

This 2-stroke bicycle engine kit is equipped with a powerful and efficient 0.32gal large-capacity fuel tank. With its outstanding performance parameters, this well-designed engine can reach a Max. speed of 48km/h. In addition, it has extraordinary load-bearing capacity (396.8 lbs). It is fit for 49cc 2-stroke pocket bike, mini dirt bike, beach bike, ATV or scooter.


Key Features

Powerful Engine: The 2-stroke engine can provide higher intake and exhaust efficiency, saving energy and fuel (Fuel Consumption: Min. ≤610g/kW.h). It can provide stronger power (Max. Power: 1.9kw/7000rpm) during driving and ensure that your drive will be very smooth and powerful.

Effective Cooling System: By adopting an air cooling system, the temperature of the engine can be quickly reduced, effectively preventing overheating and ensuring smooth and long-lasting driving.

Easy to Operate: The engine features a electronic ignition system, which leads to higher energy and ignition efficiency. So you can start the engine quickly and safely.

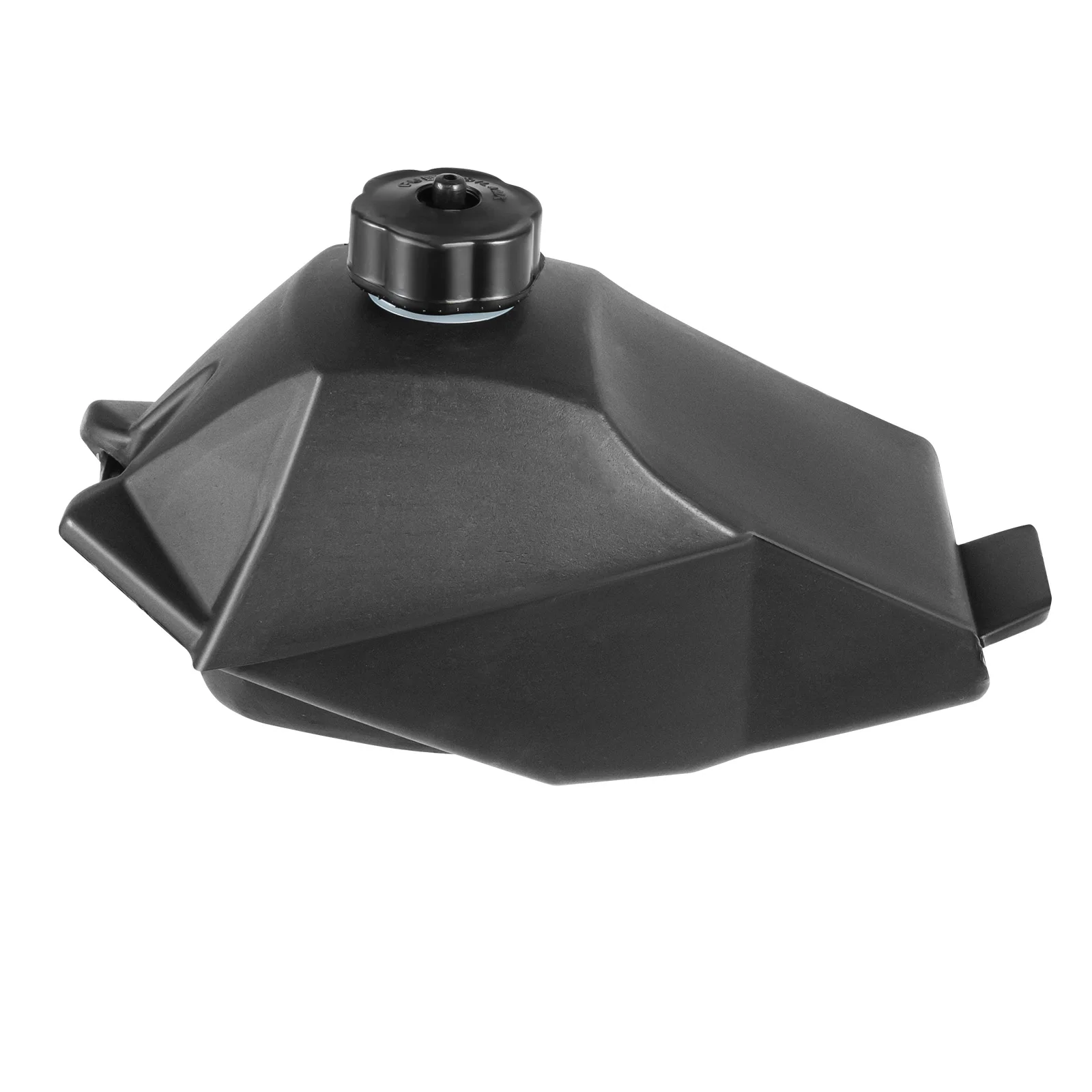

Large Capacity: Designed with a large capacity fuel tank (0.32 gal), this engine can work for a long time and meet the needs of long-distance driving (15-20km with full oil). It ensures reliable performance without frequent refilling.

User-friendly Design: Compared to other engine kits, this one has the upgraded CVT gearbox, which effectively improves the operational efficiency and response speed of the entire system. It is also equipped with a stable bearing to ensure its operation process smoothly.

Protective Shipping: Our product comes with protective pearl cotton to prevent any damage during transportation, ensuring that it arrives in perfect condition.

Satisfaction Guarantee: No matter what problem you encounter or have any questions, please contact us. We will reply and solve the problem for you as soon as possible.

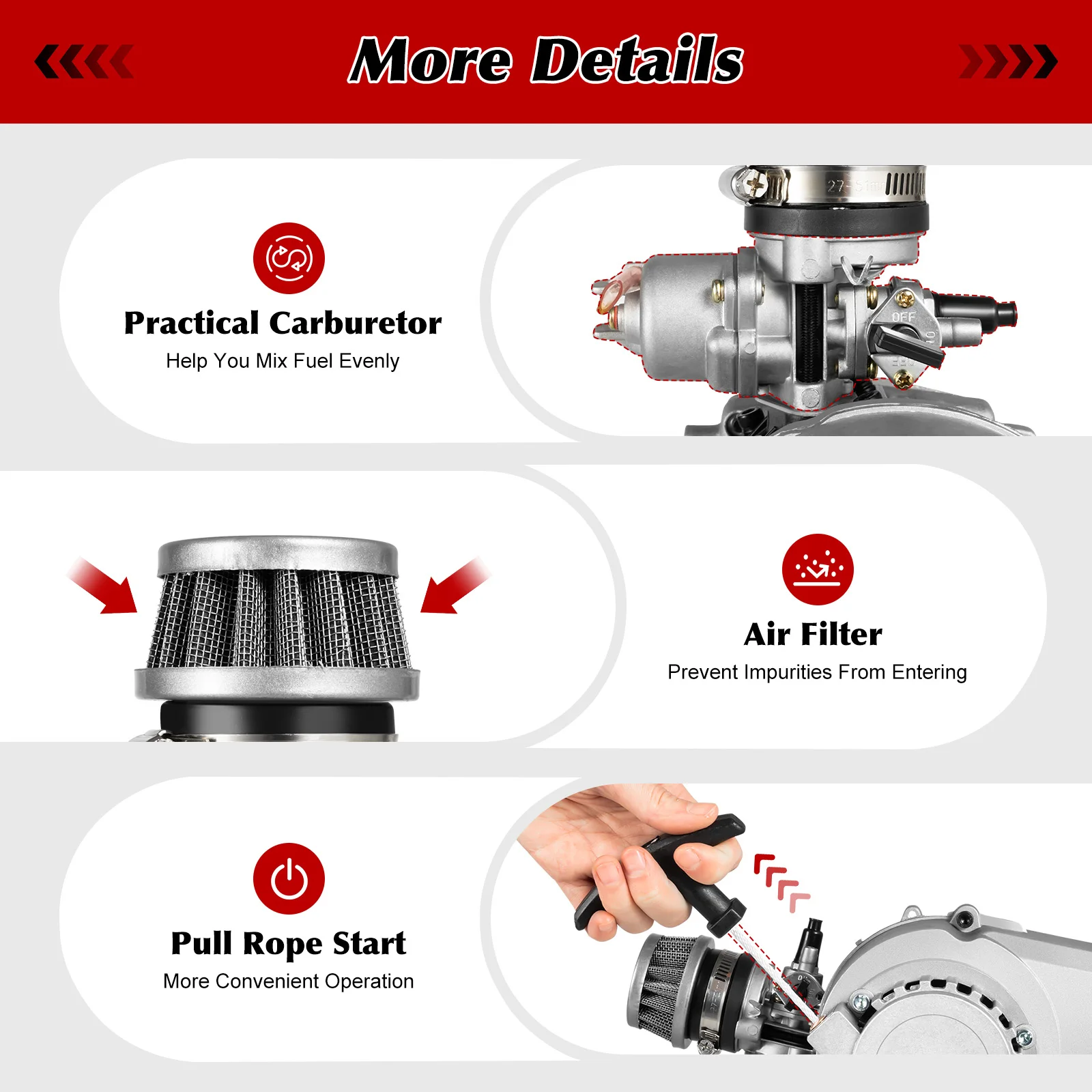

Details

Practical Carburetor: It is equipped with a carburetor, which can mix oil and gas evenly.

Air Filter: It is equipped with an air filter, which can effectively prevent impurities from entering the cylinder.

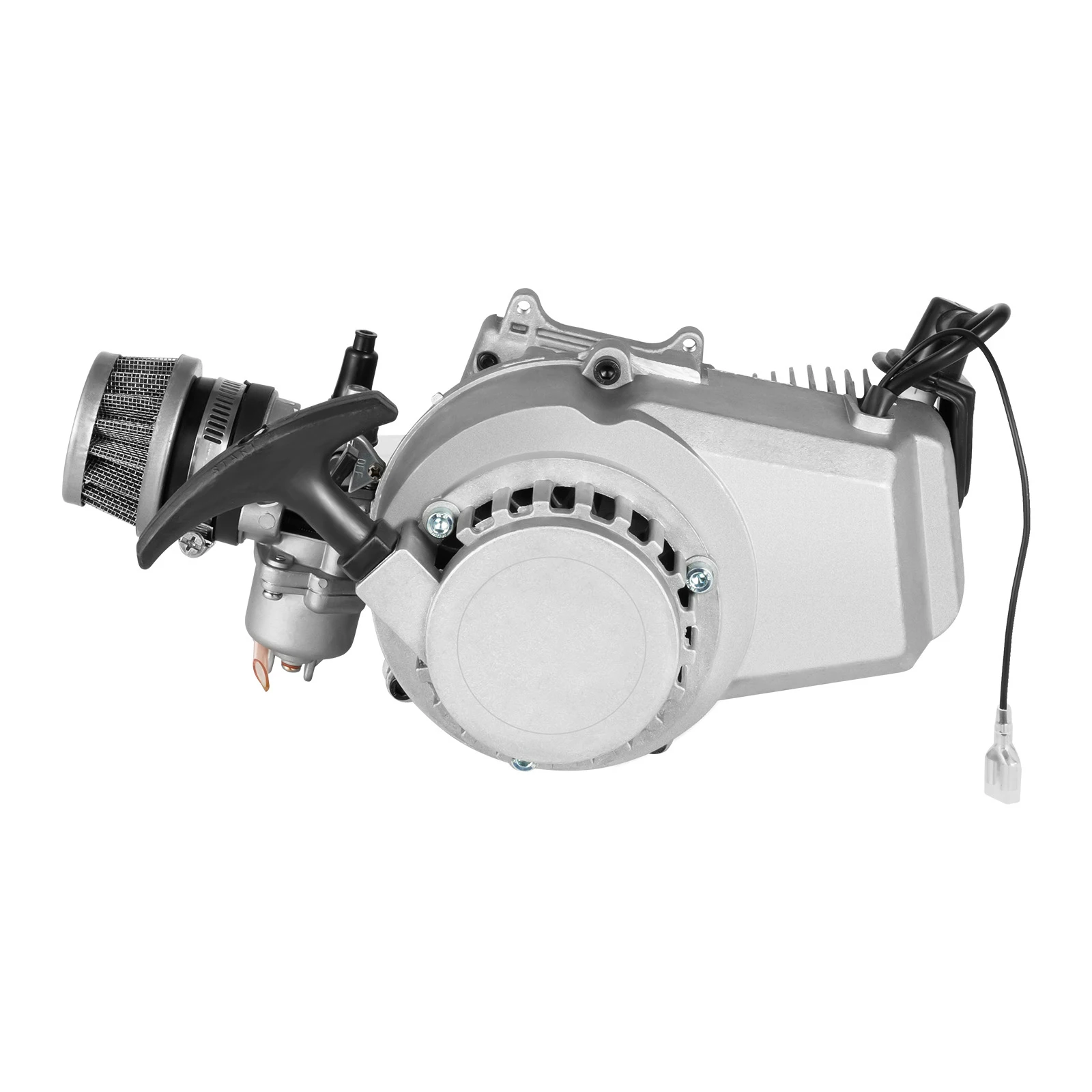

Pull Rope Start: Compared to electric starting, the rope starting engine has a simpler structure and more convenient operation.

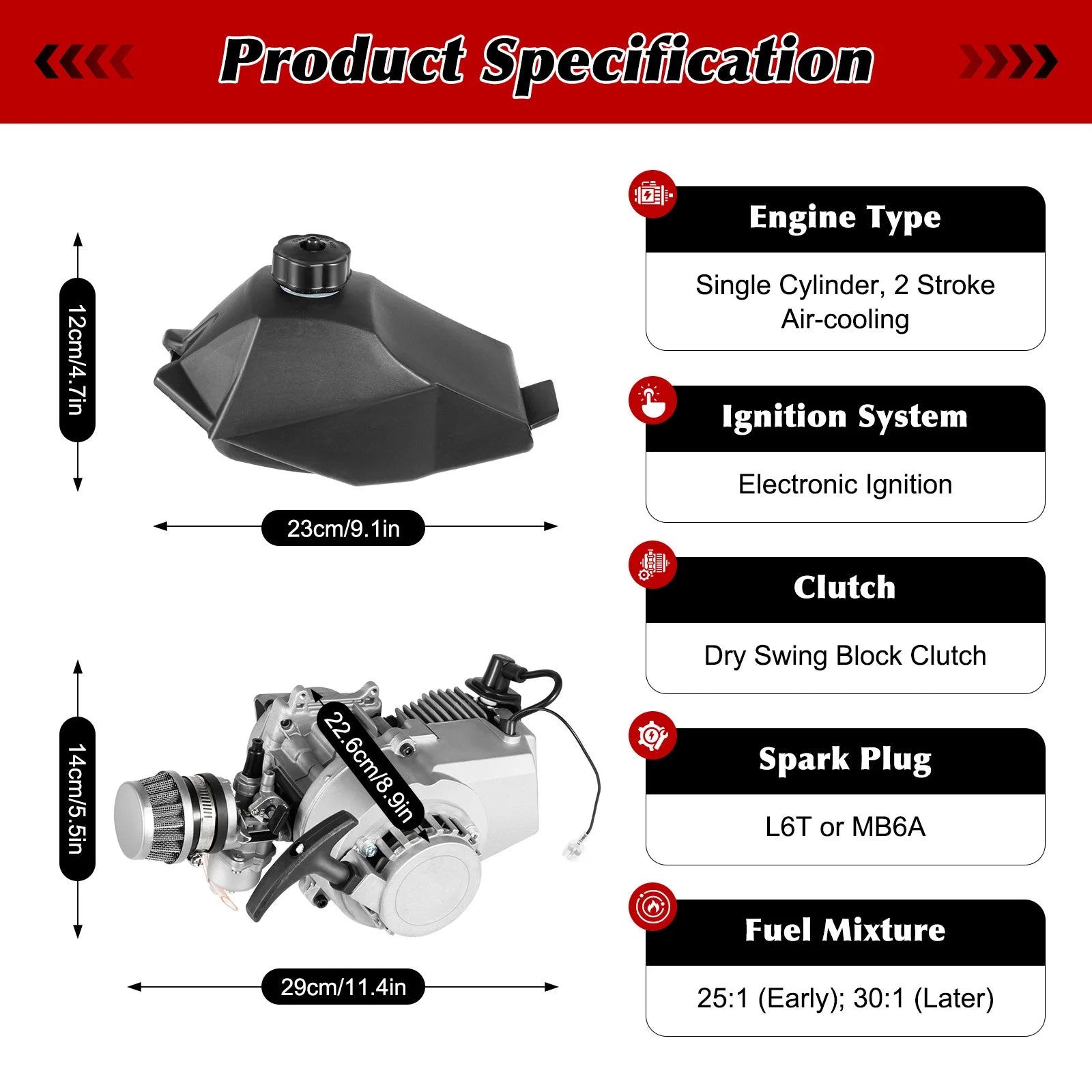

Specification

Engine Type: Single Cylinder, 2 Stroke, Air-cooling
Material: Aluminum
Color: Silver, Black
Ignition System: Electronic Ignition
Start Mode: Pull Rope Start
Shifting Way: Sprocket
Clutch: Dry Swing Block Clutch
Displacement: 49.85CC
Max. Power: 1.9kw/7000rpm
Rated Power: 1.7kw/6000rpm
Continuous Power: 1.6kw/5500rpm
Overload Power: 1.83kw/6500rpm
No-load Speed: 12500rpm
Max. Speed: 48km/h
Max. Torque: 2.7N.M/6500rpm
Max. Horsepower: 3PS
Max. Load Capacity: 180kg/396.8lbs
Min. Fuel Consumption: ≤610g/kW.h
Spark Plug: L6T or MB6A
Spark Plug Gap: 0.5mm/0.02in
Bore * Stroke: Φ44*32.8mm/1.7*1.3in
Carburetor Type: H117B
Reduction Ratio: 1:1
Noise Level: 100.7dB (SPL); 116.9dB (SWL)
Fuel Mixture (90# Gasoline : 2-stroke Engine Oil): 25:1 (Early); 30:1 (Later)
Fuel Tank Capacity: 1.2L/0.32gal
Fuel Tank Size: 23*12*12cm/9.1*4.7*4.7in
Engine Dimensions: 29*14*22.6cm/11.4*5.5*8.9in
Package Size: 34*21*23.5cm/13.4*8.3*9.3in
Net Weight: 3.85kg/7.9lbs
Gross Weight: 4.3kg/9.5lbs

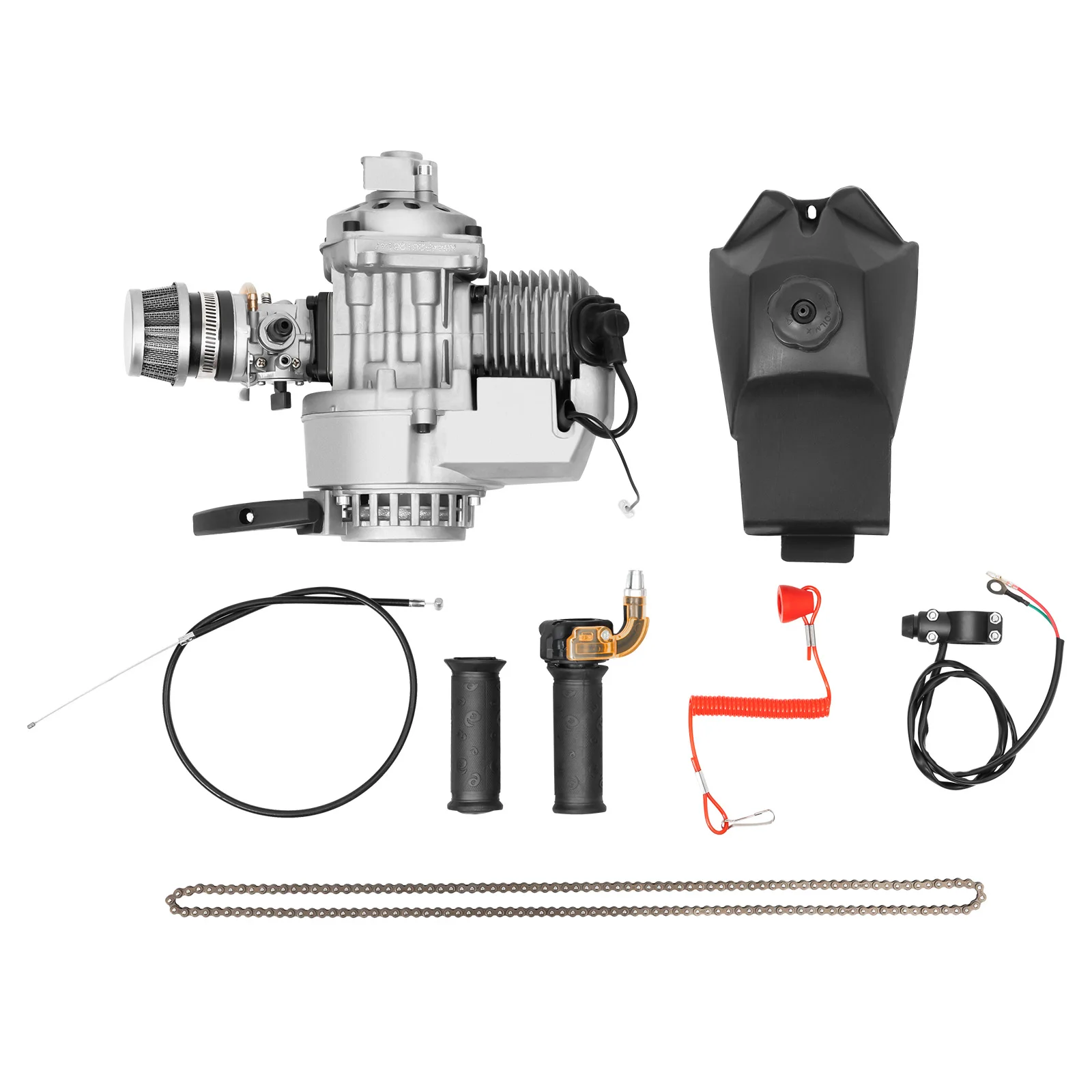

Package Included

1* Engine
1* 25H-136L Chain
1* Kill Switch
1* Throttle Grip
1* Left Grip Cover
1* Fuel Tank
1* Throttle Cable
Other Accessories for Installation

Notes

1.Please check the parameters carefully before making payment.
2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
