SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: None

Item Type: engines

No. of Cylinders: 1 Cylinder

Origin: Mainland China

Specifications

Applicable Models: For 49CC Two-stroke Motorcycles

Condition: New

Material: Aluminum, Iron

Color: Black, Silver

Style: Modern

Ignition System: Electronic Ignition

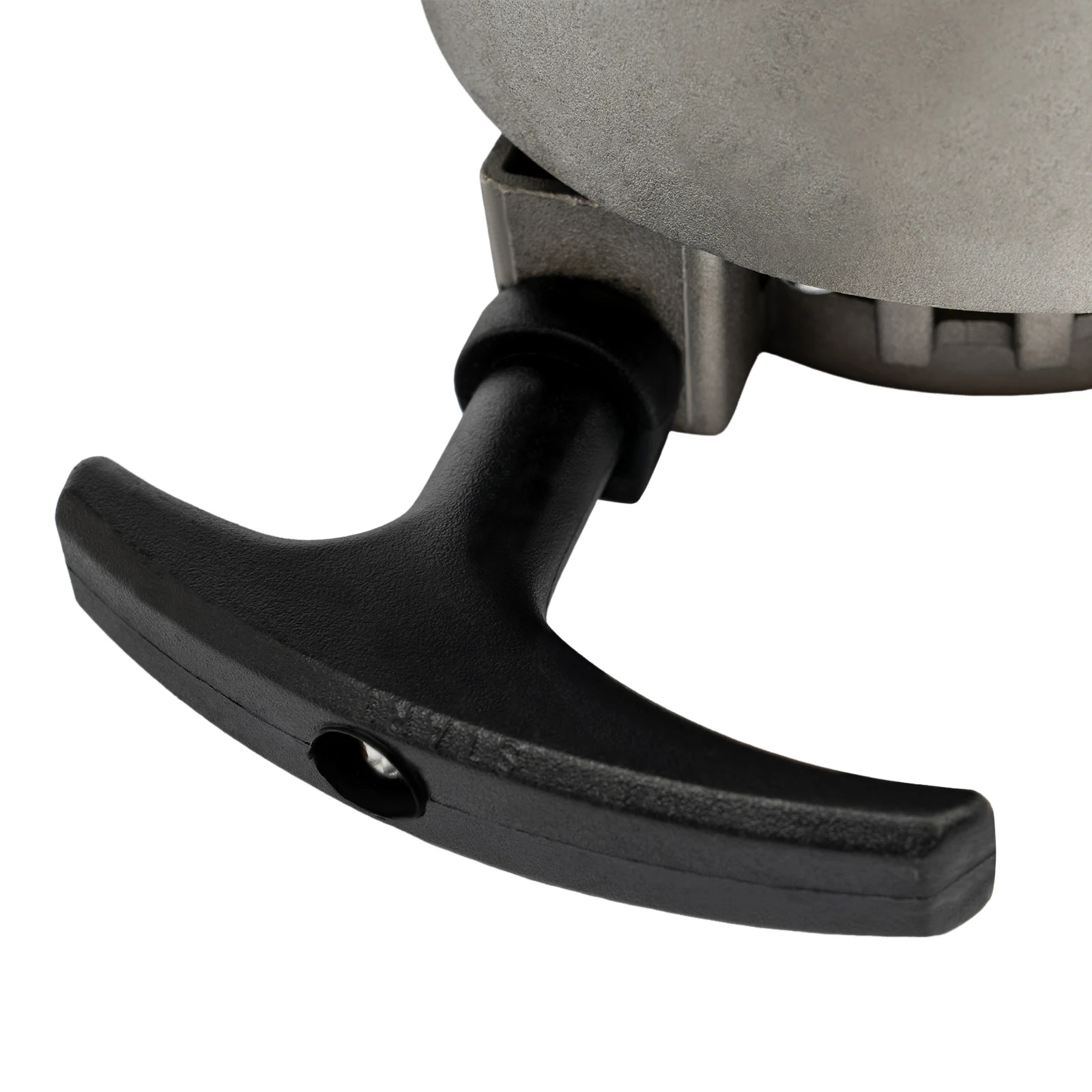

Start Mode: Hand-pulled Self-Returning Rope Starter

Engine Type: 2-Stroke Single Cylinder Engine, Air Cooling

Displacement: 49cc

Maximum Power (5~15min): 1.9kw/7000rpm

Rated Power (12h Power): 1.7kw/6000rpm

Continuous Power (300h or More Power): 1.6kw/5500rpm

Overload Power (1h Power): 1.83kw/6500rpm

Maximum Torque: 2.7N.M/6500rpm

Maximum Horsepower: 3PS

Cylinder Diameter: 44mm/1.73in

Stroke: 32.8mm/1.29in

Minimum Fuel Consumption Rate: <610g/1.34lbs/KW.h

Fuel: 90 Unleaded Gasoline(Not Included)

Lubrication Oil: FC Grade 2-stroke Gasoline Engine Oil(Not Included)

Gasoline to Oil Volume Mixing Ratio: 25:1(Break-in Period), 30:1(Late Break-in Period)

Spark Plug Clearance: 0.5mm/0.02in

Fuel Tank Capacity: 1.2L/0.32gal

Deceleration Ratio: 1:1

No-load Speed: 12500rpm

Noise: 100.7dB(A)(Sound Pressure Level); 116.9dB(A)(Sound Power Level)

Gross Weight: 3.7kg/8.16lbs

Net Weight: 3.4kg/7.5lbs

Package Size: 34*14*25cm/13.39*5.51*9.84in

Key Features

High-quality Material: This product is made of iron and aluminum, with high hardness, anti-corrosion, and anti-rust properties, so it can be used for a long time.

Large Fuel Tank: It is equipped with a 0.32gal fuel tank, which can last for a longer distance after filling up with gas and fuel, supporting long-distance riding and making it more convenient for outdoor use.

Strong Power: It is a two-stroke 3-horsepower single-cylinder engine with a no-load speed of up to 12500 rpm and 1.9kw max. power, allowing you to enjoy a faster riding speed.

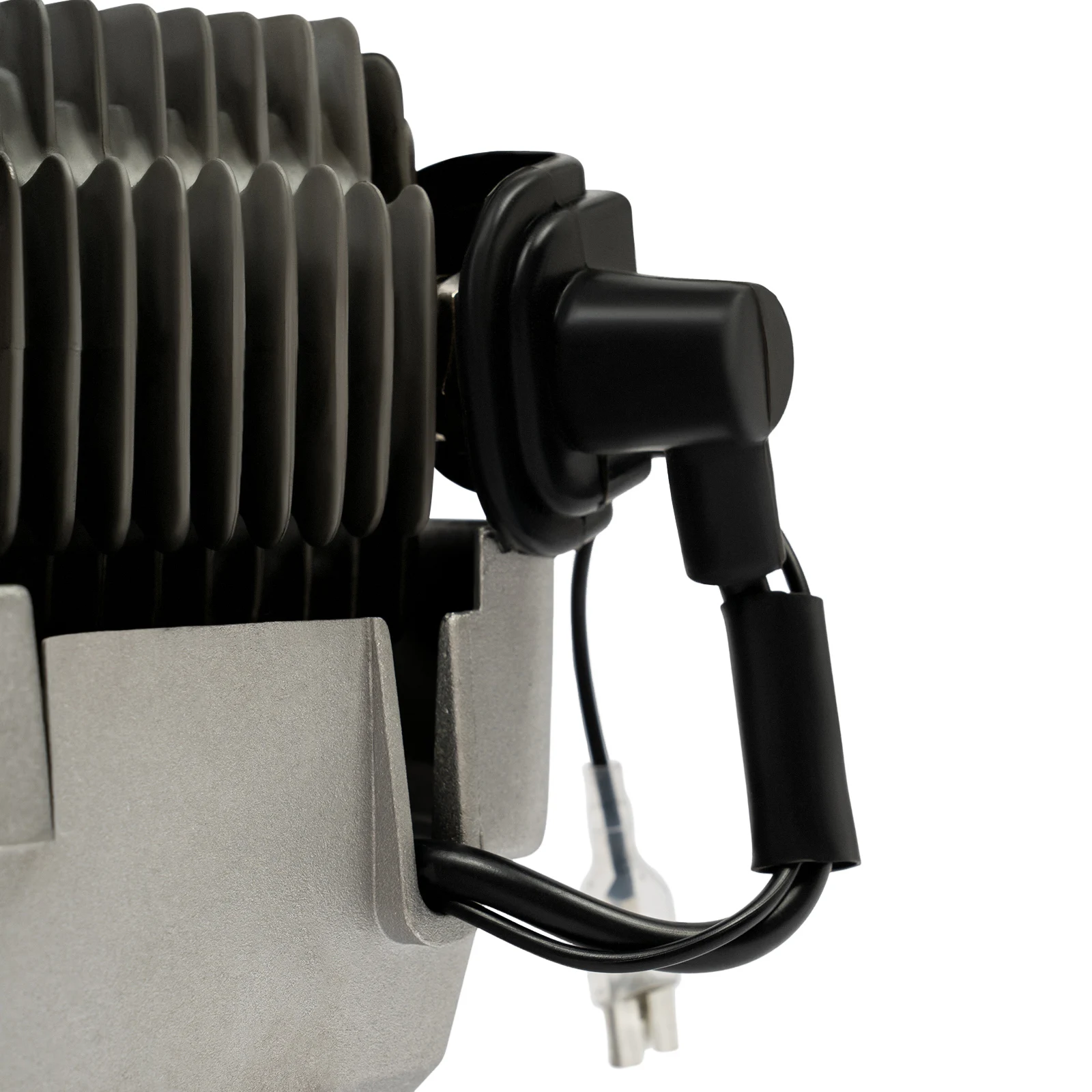

Good Heat Dissipation: The air cooling system and heat dissipation holes can reduce the temperature of the engine in time, prolong its service life, and reduce potential safety hazards.

Highlights

Brand New, With High Quality

Exquisite Workmanship

Good Performance

Long Service Life

Strong Power

Easy Installation

Easy to Start

Notes

1. Please check whether this item can fit in your car before purchasing.

2. We strongly recommend professional installation.

3. Please allow for slight color differences caused by shooting light and errors caused by manual measurement, and make sure you don't mind before ordering. If you have any questions, please contact us, and we will reply and solve your problem as soon as possible

Fits (As a Reference)

For 49CC Two-stroke Motorcycles

Package Included

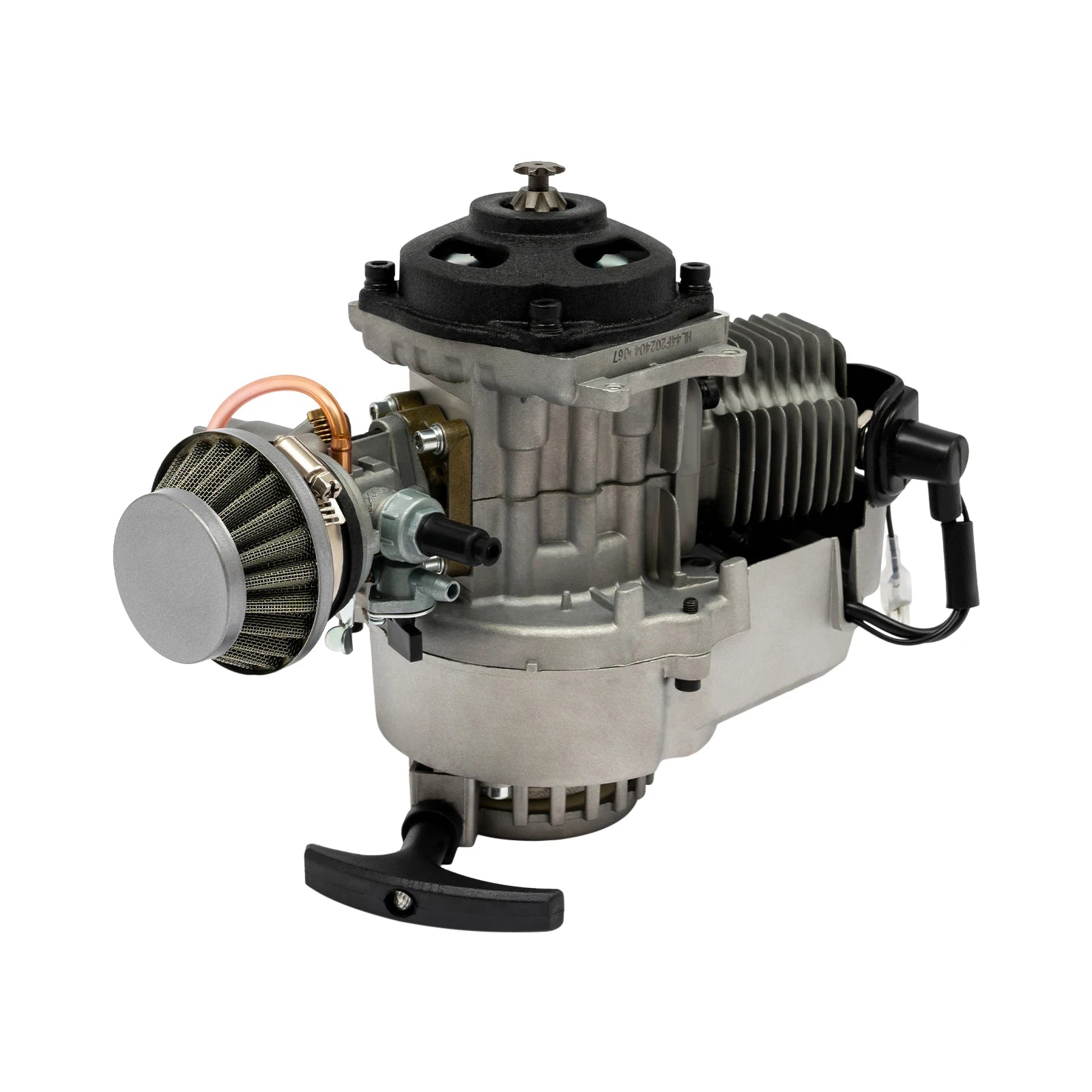

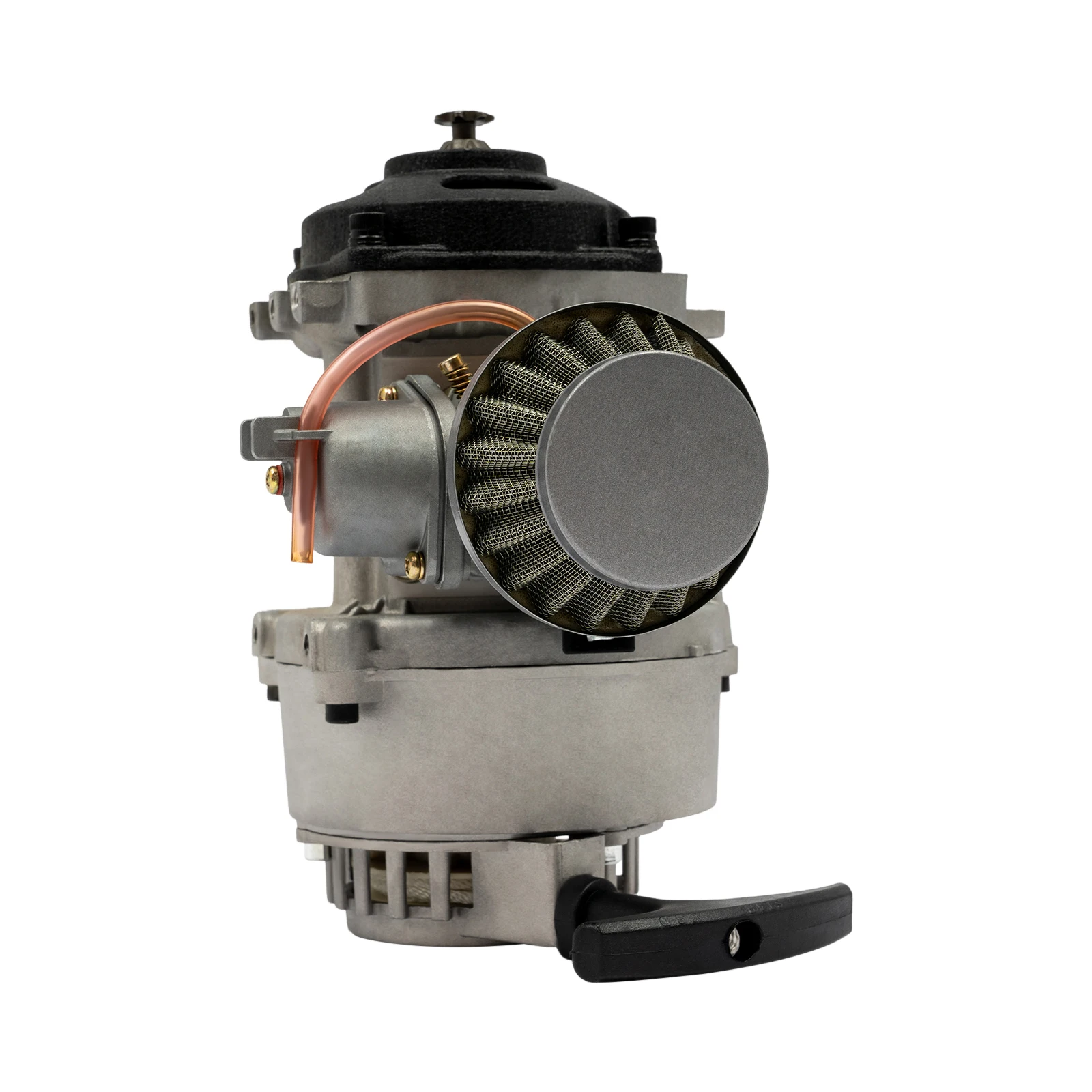

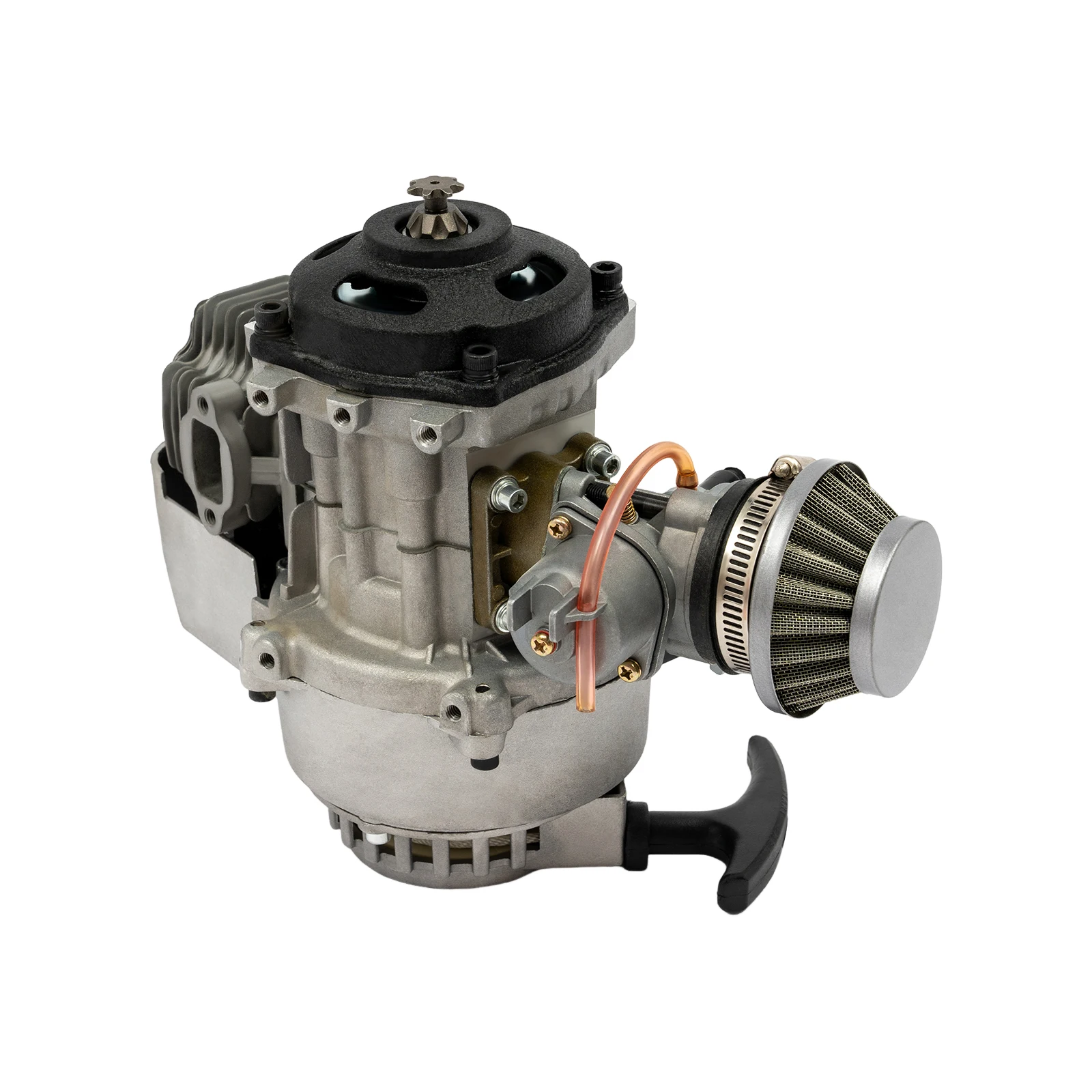

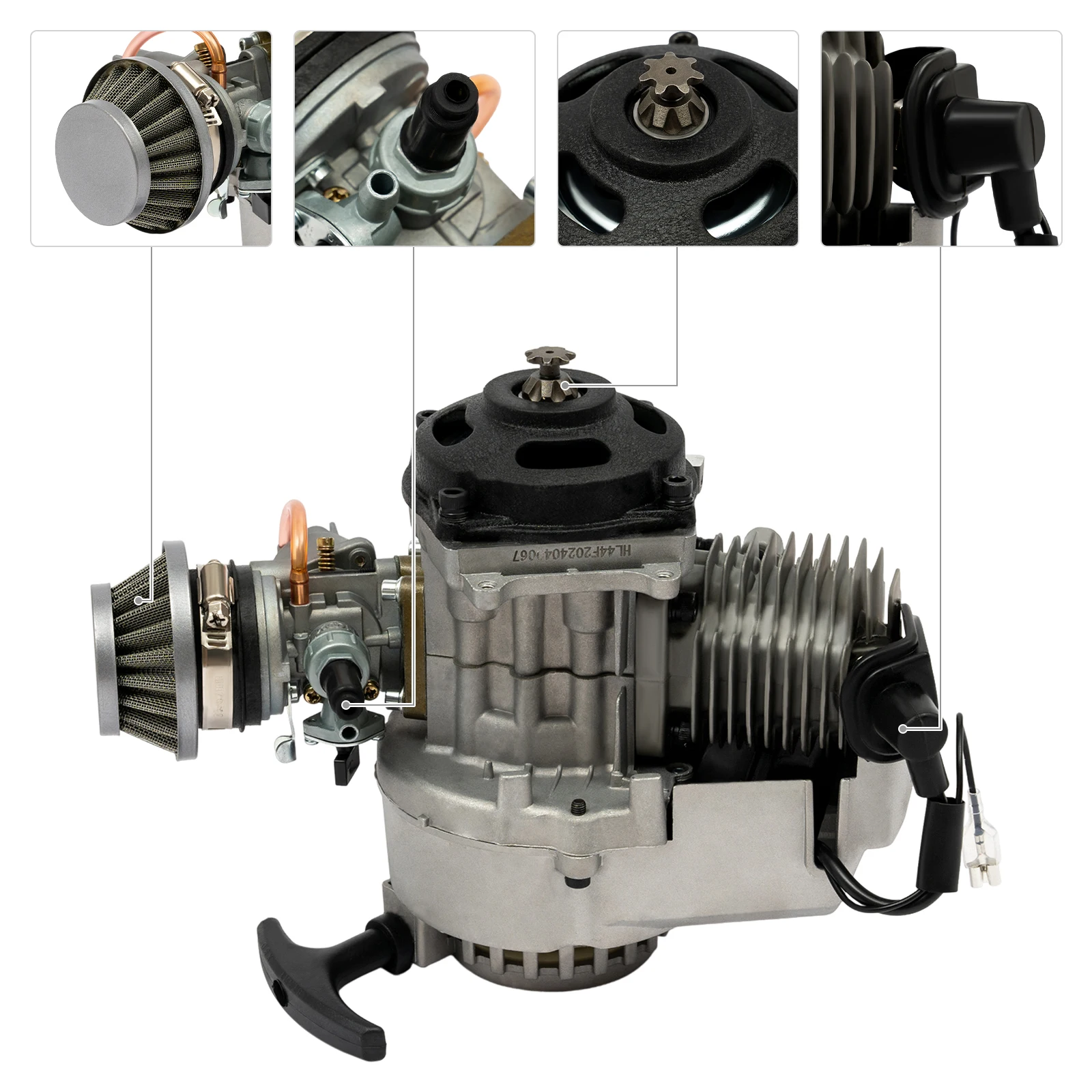

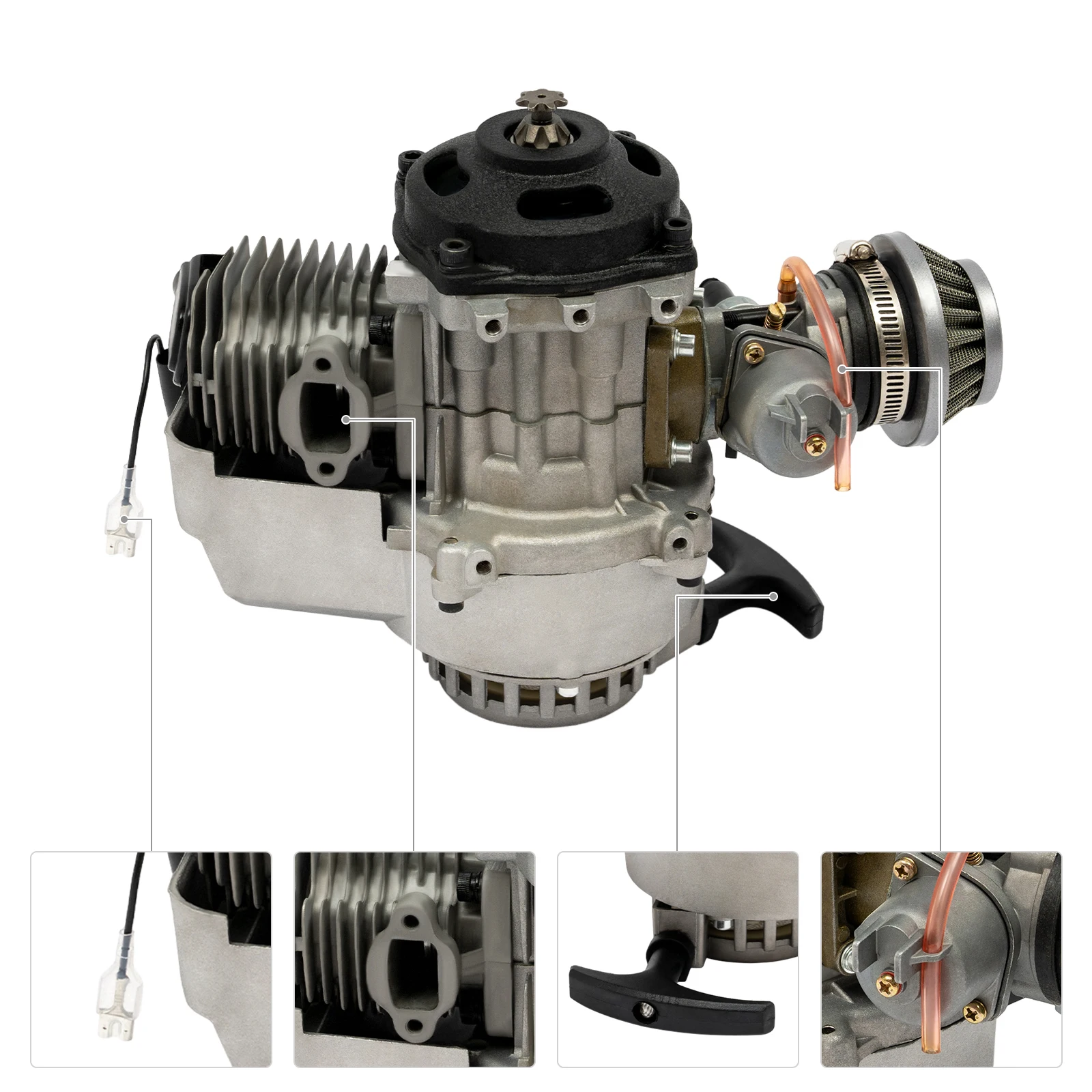

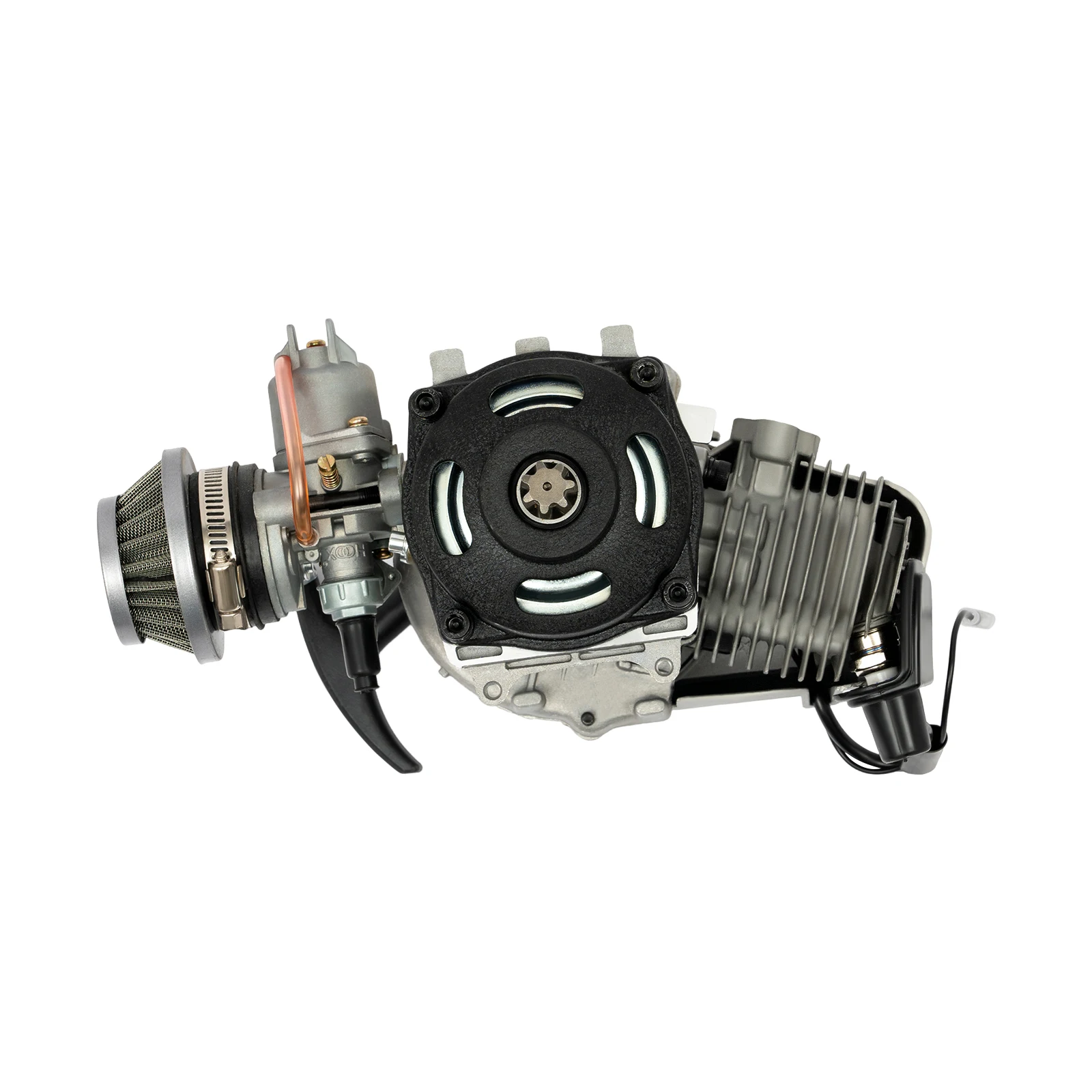

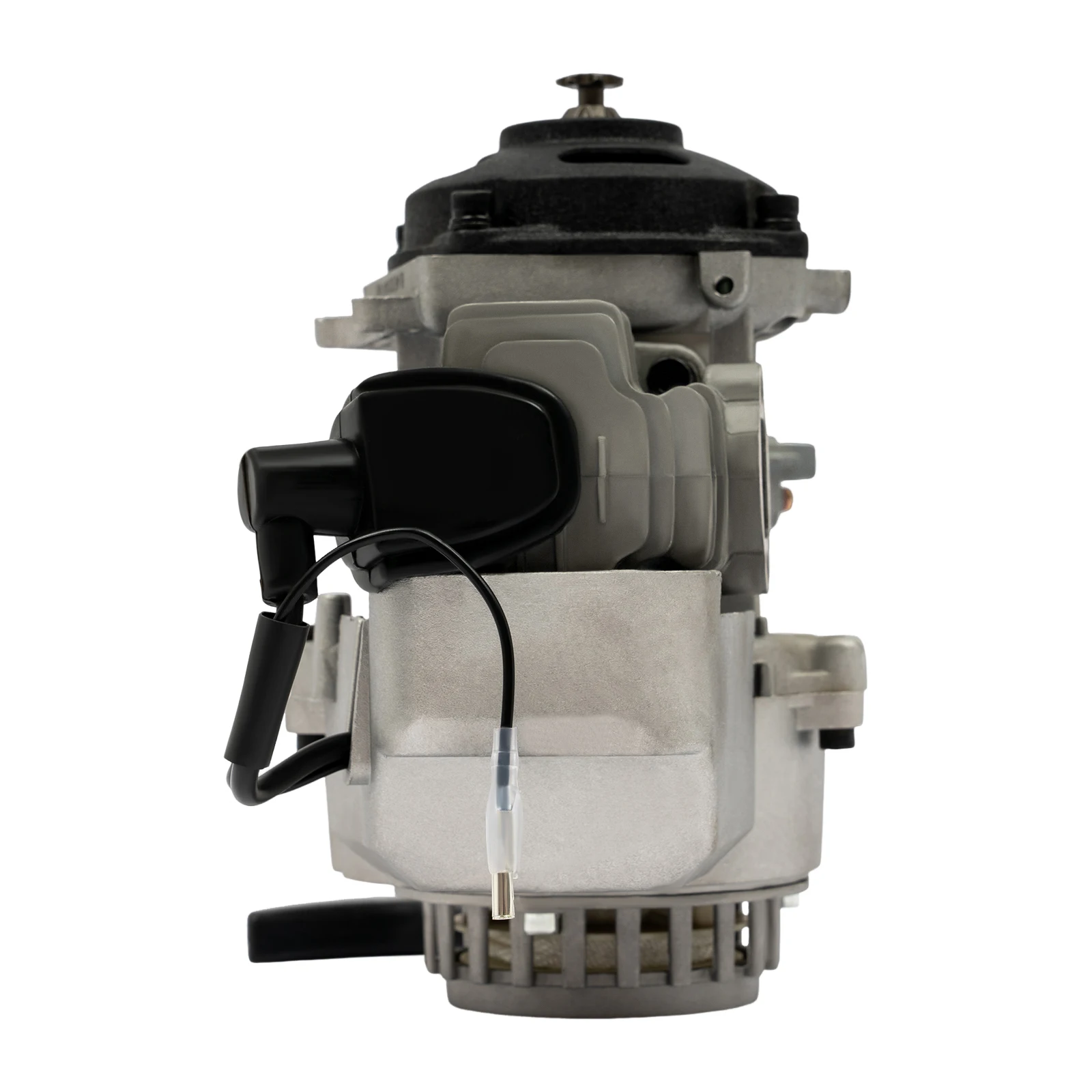

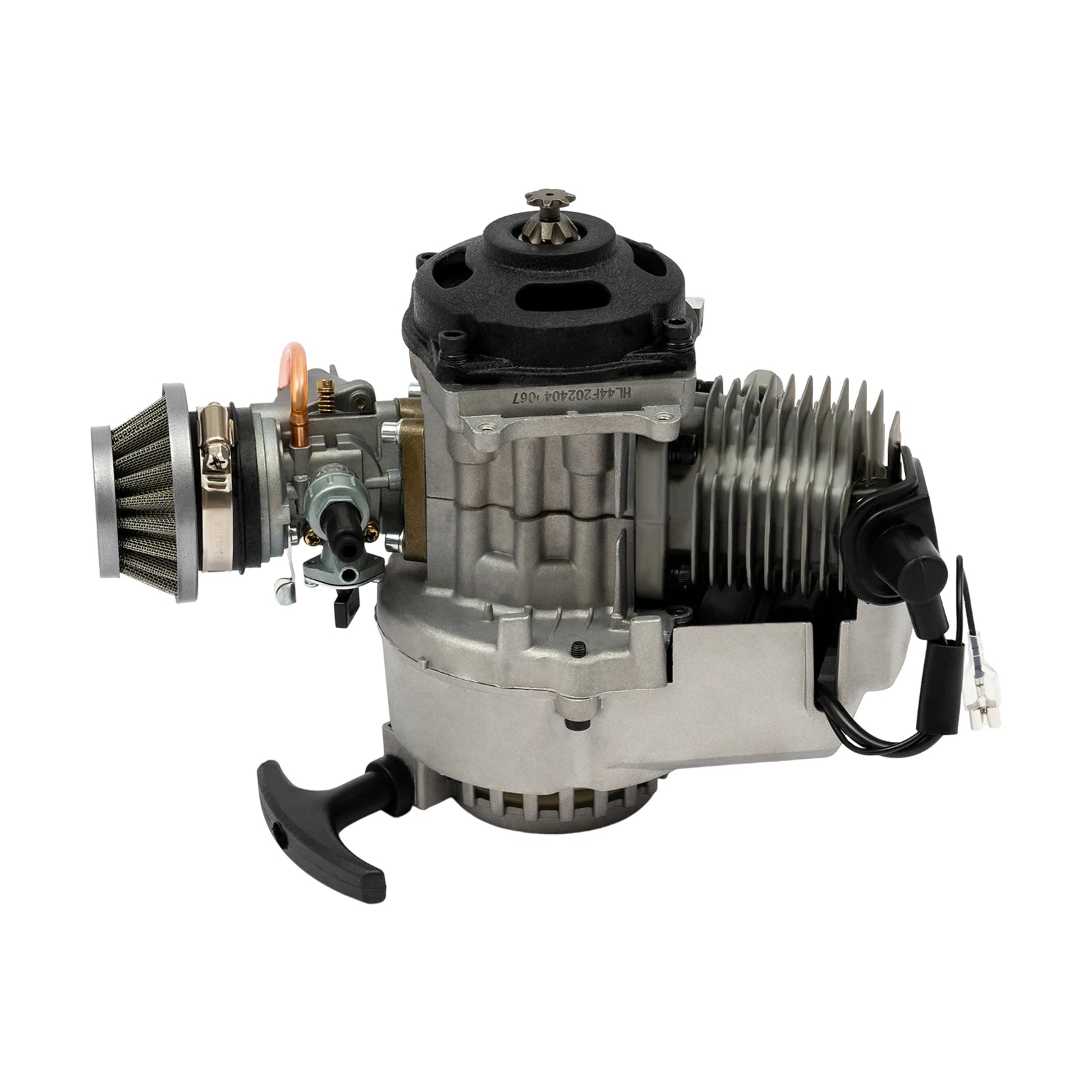

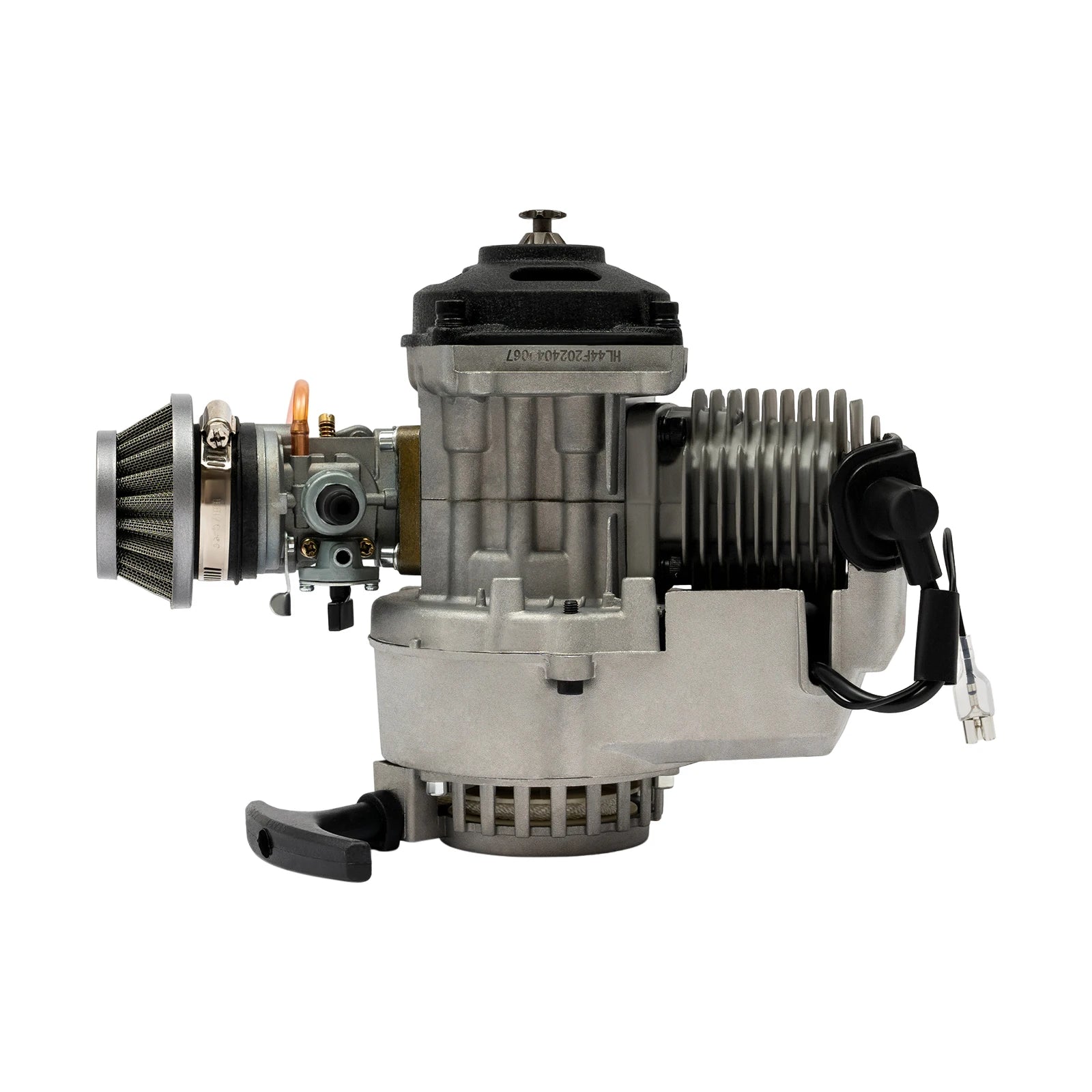

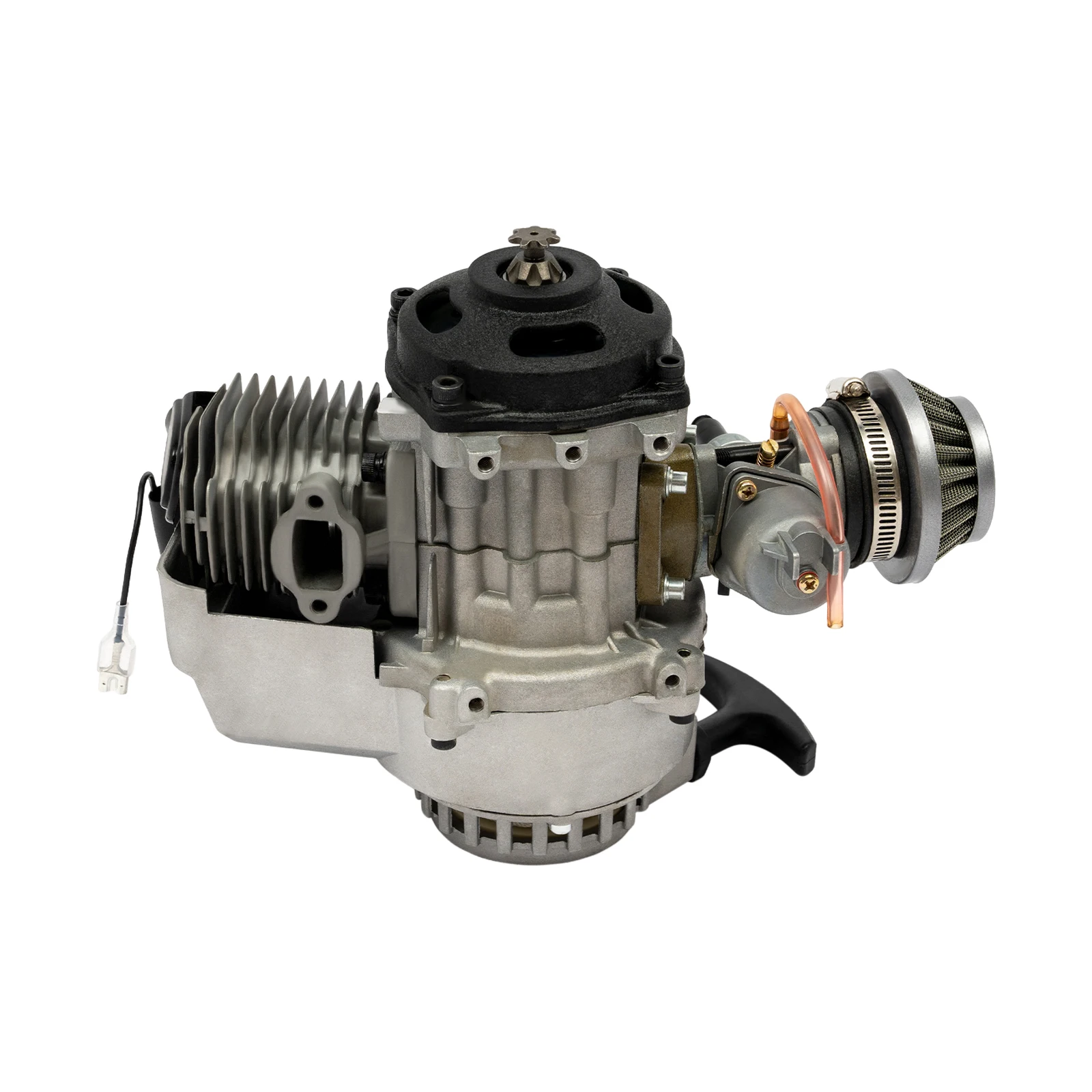

1* 49CC Mini Motorcycle Engine
