DC 3V-3.7V Mini Coreless Motor 408,412,612,615,716,720,816,8520,8523,1020 High Speed Strong Magnetic RC Drone Aircraft Engine

$18.24 USD

~~$0.00 USD~~ $18.24 USD

Sale Sold out

Shipping calculated at checkout.

SPECIFICATIONS

Brand Name: NONE

Certification: ce

Choice: yes

Commutation: Brush

Construction: Permanent Magnet

Continuous Current(A): not clear

Efficiency: IE 1

High-concerned chemical: None

Model Number: coreless motor

Origin: Mainland China

Output Power: ＜18.65

Output Voltage: not clear

Protect Feature: Totally Enclosed

Torque: not clear

Type: Micro Motor

Use: Home Appliance

Voltage: DC 3V 3.7V 7.4V

semi_Choice: yes

Specifications:

Tips:

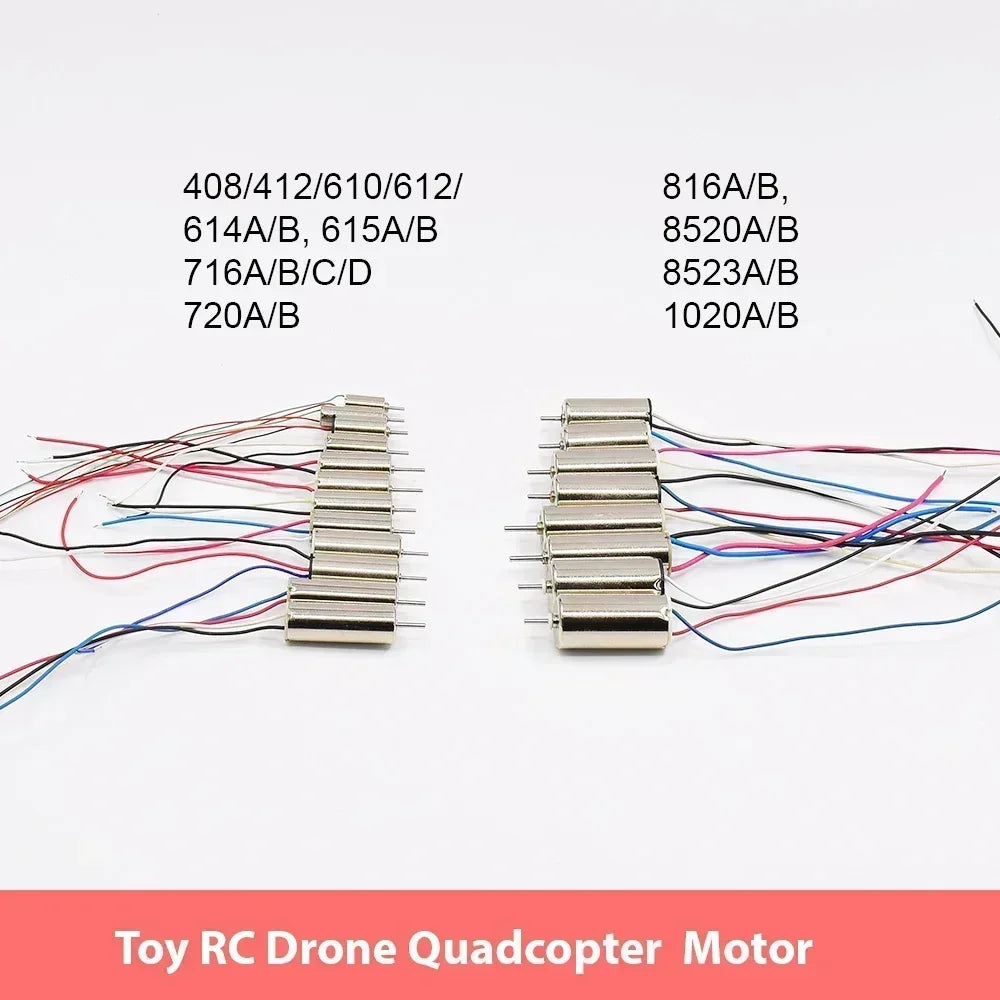

The numbers of different models stand for motor diameter and motor body length.
For example, 412 is 4mm * 12mm, 8520 is 8.5mm * 20mm.

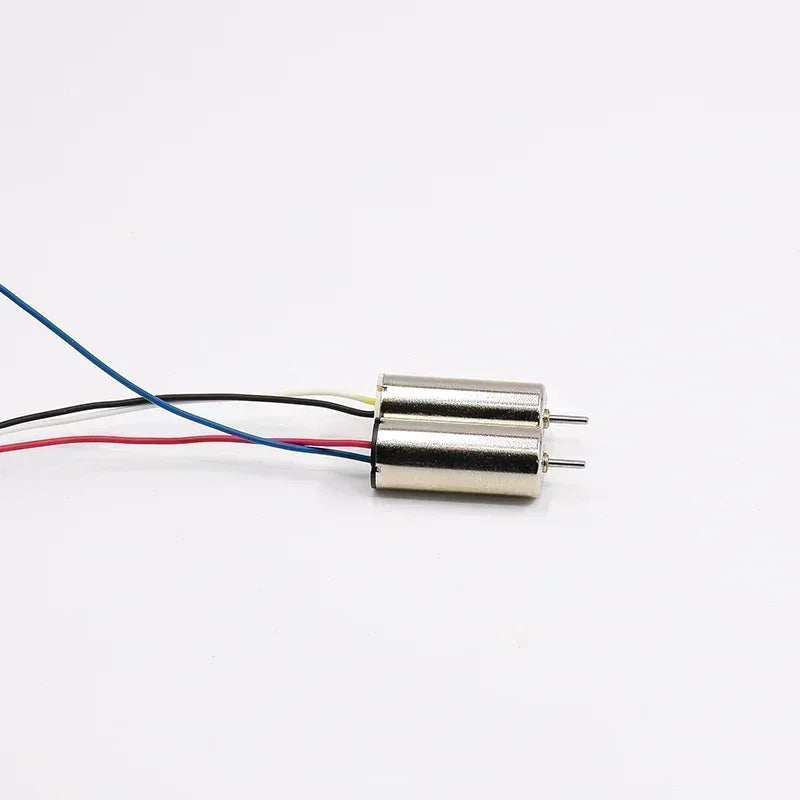

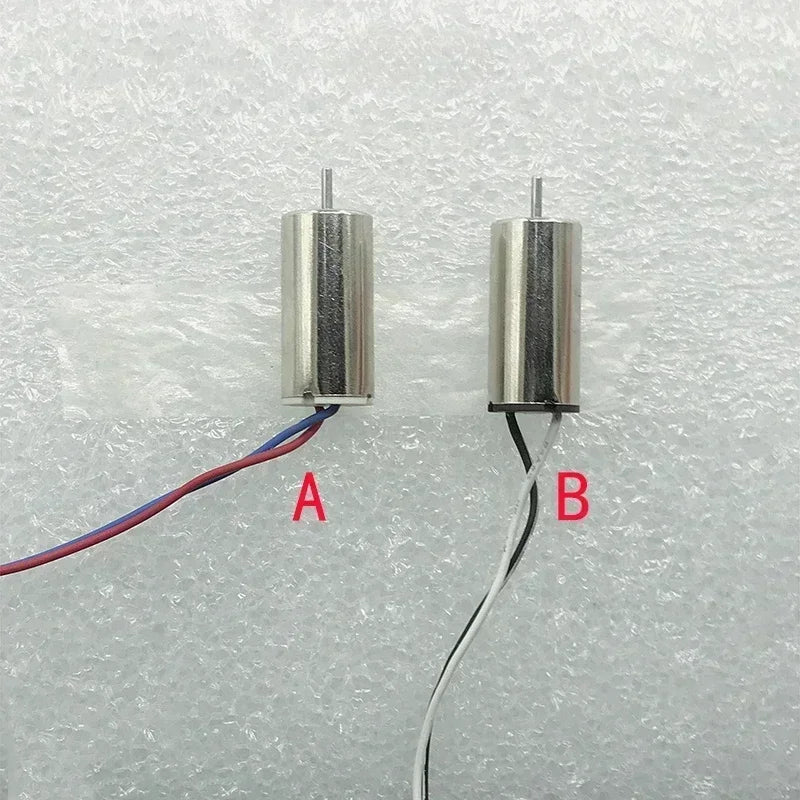

Type A is Red& Blue cable motor(default CW direction),
Type B is Black&White cable(default CCW direction).

Model: 0408 Corless Motor

[Motor Diameter]: 4mm

[Motor Body Length]: 8mm
[Motor shaft diameter]: 0.7mm

[Motor shaft length]: 4mm
[Cable length]: about 180mm

[Speed]: about 65,000 rpm at 3.7V

Model: 412 Corless Motor

[Motor Diameter]: 4mm

[Motor Body Length]: 12.2mm
[Motor shaft diameter]: 0.7mm

[Motor shaft length]: 4.2mm
[Cable length]: about 190mm

[Speed]: about 65,000 rpm at 3.7V

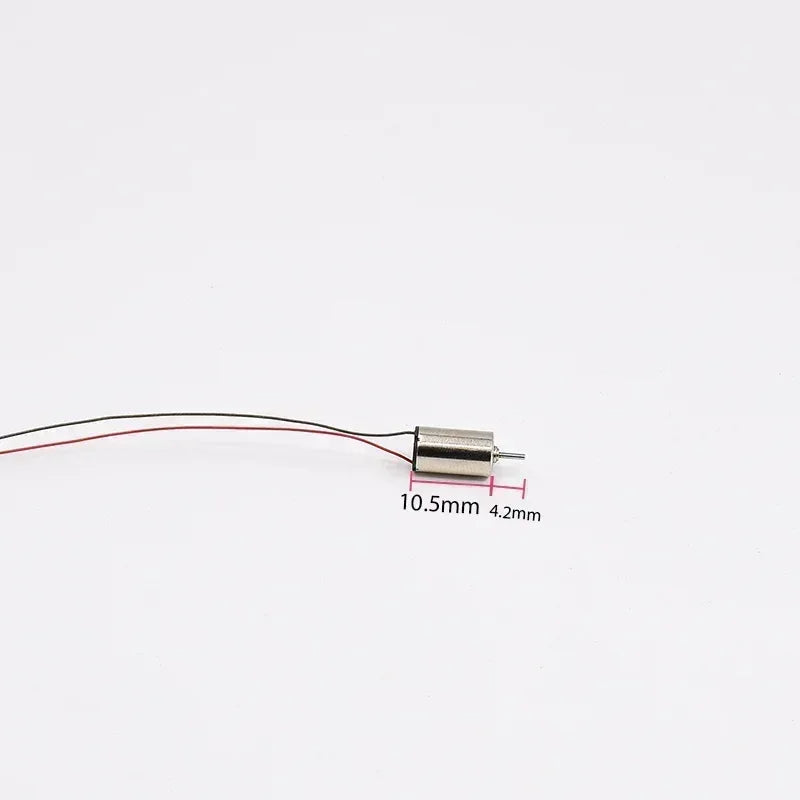

Model: 610 Corless Motor

[Motor Diameter]: 6mm

[Motor Body Length]: 10.5mm
[Motor shaft diameter]: 0.8mm

[Motor shaft length]: 4.2mm
[Cable length]: about 200mm

[Speed]: about 65,000 rpm at 3.7V

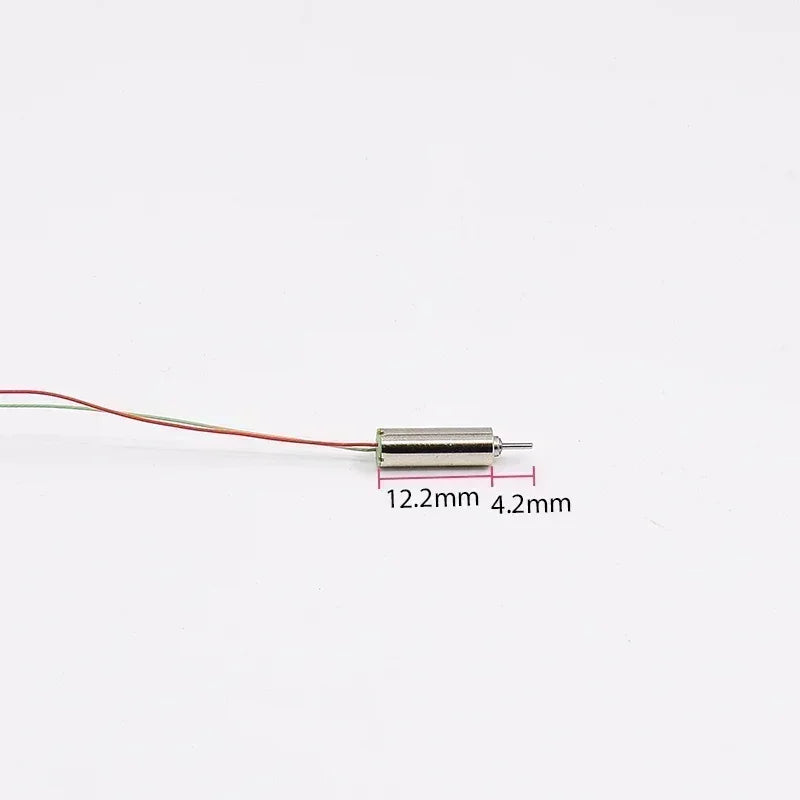

Model: 612 Corless Motor

[Motor Diameter]: 6mm

[Motor Body Length]: 12.2mm
[Motor shaft diameter]: 0.8mm

[Motor shaft length]: 4.2mm
[Cable length]: about 45mm

[Speed]: about 60,000 rpm at 3.7V

Model: 614A(red white cable), 614B(red black cable)

Outer diameter of motor: 6 MM
Motor length: 14 MM
Motor shaft diameter: 0.8 MM
Output shaft length: 6 MM
Motor weight: approximately 2 grams
Line length: approximately 55 MM
Voltage: DC3.7V
No load current: 72MA (locked rotor current 2.3 A)
No load speed: 60000 rpm
Voltage: DC4.2V
No-load current: 100MA (locked rotor current 2.7 A)
No load speed: 67000 rpm

Model: 615 Corless Motor( 615A / 615B )

[Motor Diameter]: 6mm

[Motor Body Length]: 15.3mm
[Motor shaft diameter]: 0.8mm

[Motor shaft length]: 4.3mm
[Cable length]: about 40mm

[Speed]: about 60,000 rpm at 3.7V

Model: 716 Corless Motor
( 716A / 716B motor shaft diameter 0.8mm )

[Motor Diameter]: 7mm

[Motor Body Length]: 16.8mm
[Motor shaft diameter]: 0.8mm

[Motor shaft length]: 4.3mm
[Cable length]: about 75mm

[Speed]: about 55000 rpm at 3.7V

( 716C / 716D motor shaft diameter 1mm )

[Motor Diameter]: 7mm

[Motor Body Length]: 16.8mm
[Motor shaft length]: 4.3mm

[Motor shaft diameter]: 1mm
[Cable length]: about 100mm

[Speed]: about 55000 rpm at 3.7V

( 720A / 720B motor shaft diameter 1mm )

[Motor Diameter]: 7mm

[Motor Body Length]: 20mm
[Motor shaft length]: 5.2mm

[Motor shaft diameter]: 1mm
[Cable length]: about 125mm

[Speed]: about 50000 rpm at 3.7V

Model: 816 Corless Motor
[Motor Diameter]: 8mm

[Motor Body Length]: 16.7mm
[Motor shaft diameter]: 1mm

[Motor shaft length]: 5mm
[Cable length]: about 130mm

[Speed]: about 55000 rpm at 3.7V

Model: 8520 Corless Motor
[Motor Diameter]: 8.5mm

[Motor Body Length]: 20.1mm
[Motor shaft diameter]: 1mm

[Motor shaft length]: 5.2mm
[Cable length]: about 130mm

[Speed]: about 48000 rpm at 3.7V

Model: 8523 Corless Motor
(Notes this 8523 motor was taken from drone, motor body may have scratch, but motor work ok.)
[Motor Diameter]: 8.5mm

[Motor Body Length]: 20.1mm
[Motor shaft diameter]: 1.2mm

[Motor shaft length]: 7mm
[Cable length]: about 50mm to 90mm

[Speed]: about 46000 rpm at 3.7V
