SPECIFICATIONS

Accuracy Class: 0.001

Battery Included: No

Brand Name: diymore

Choice: yes

DIY Supplies: Electrical

Data Record: Yes

Display Type: Digital Only

High-concerned chemical: None

Model Number: Voltage Current Tester

Origin: Mainland China

Power Source: DC

Power Supply: DC

Voltage range: Other

Features:

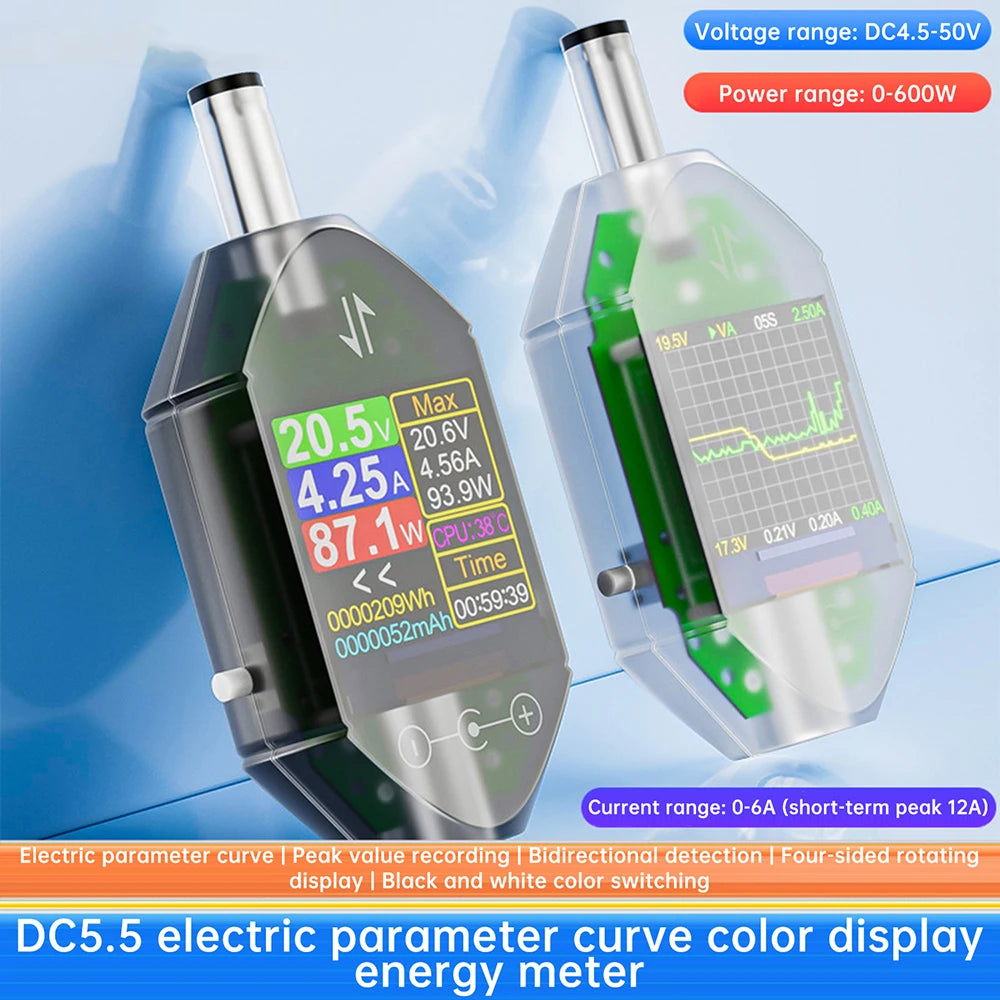

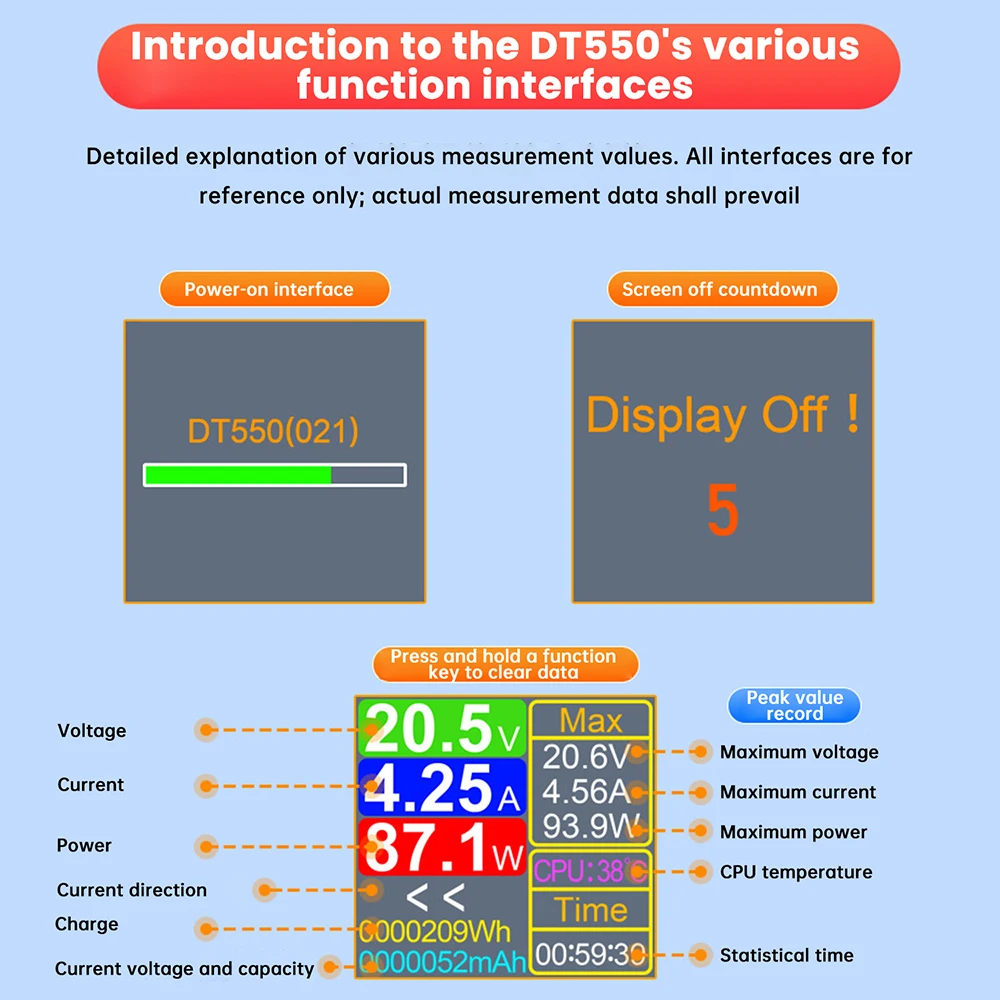

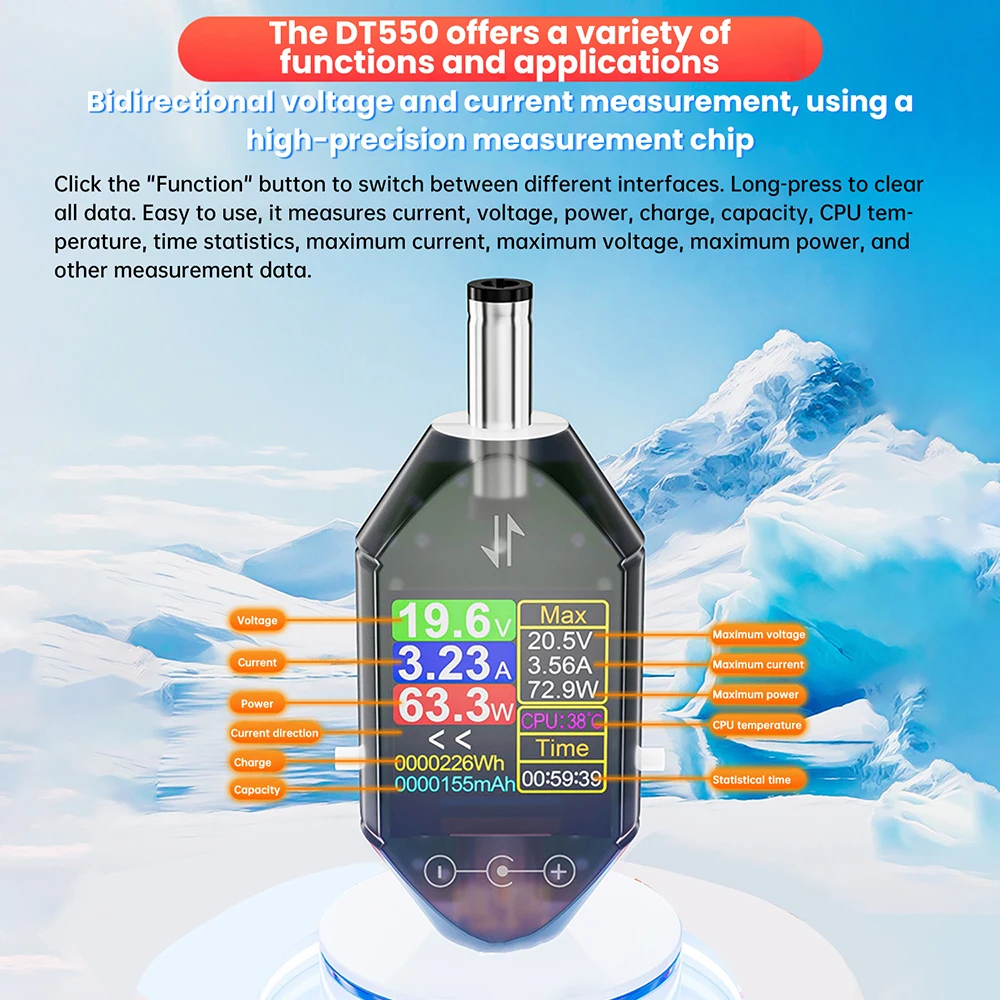

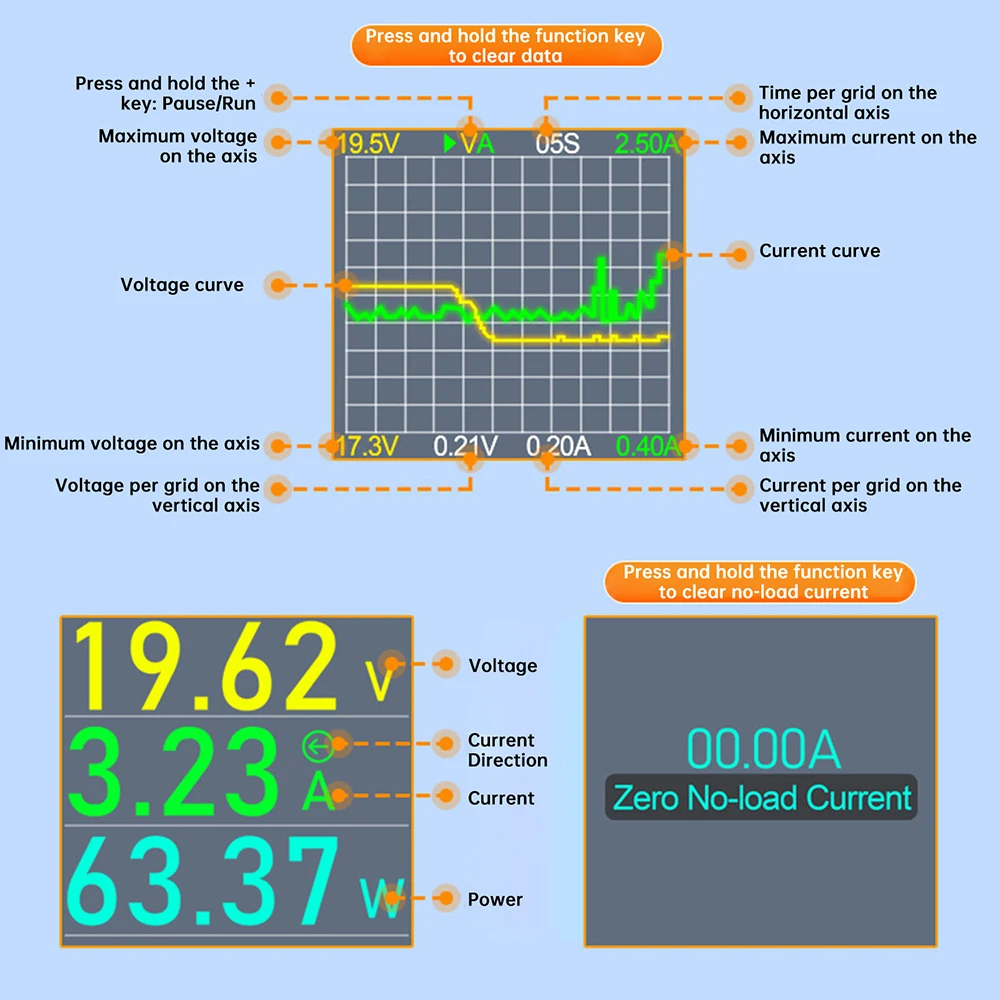

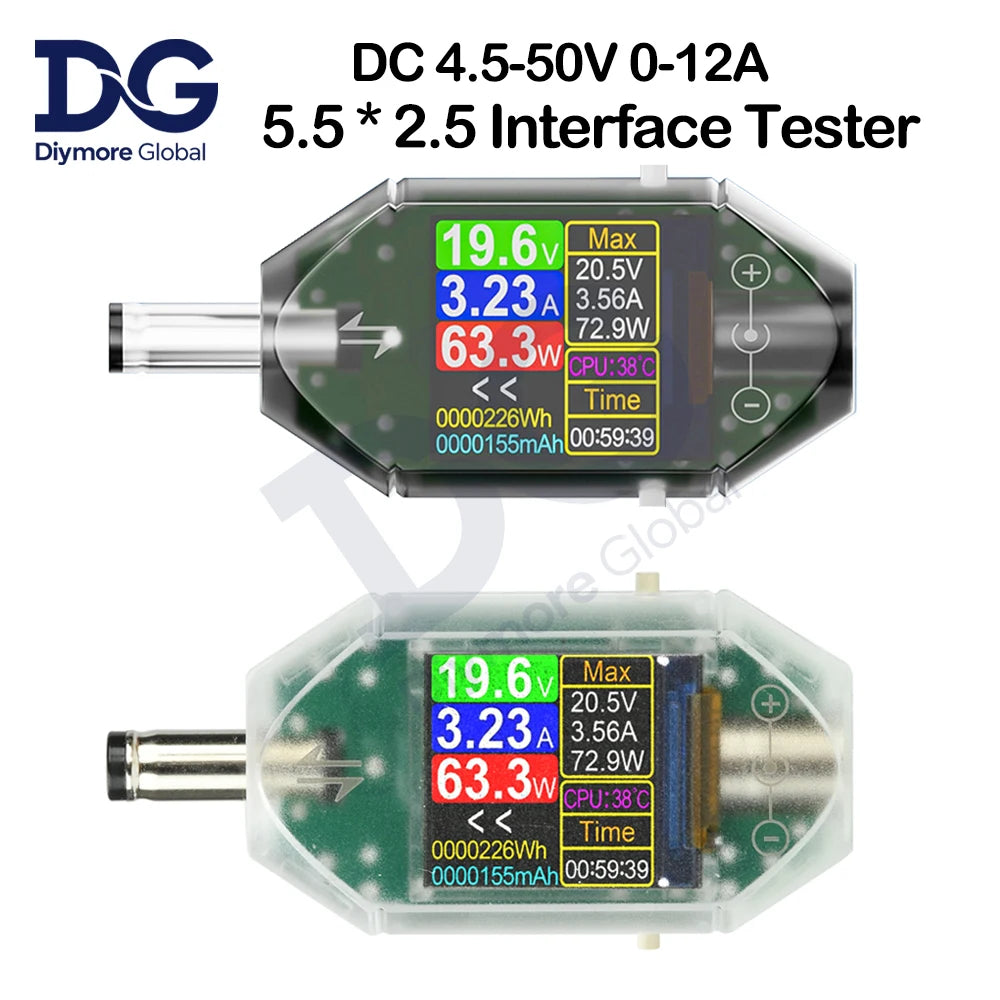

1. Measures voltage, current, power, energy consumption, capacity, CPU temperature, elapsed time, maximum voltage/current/power, and other metrics

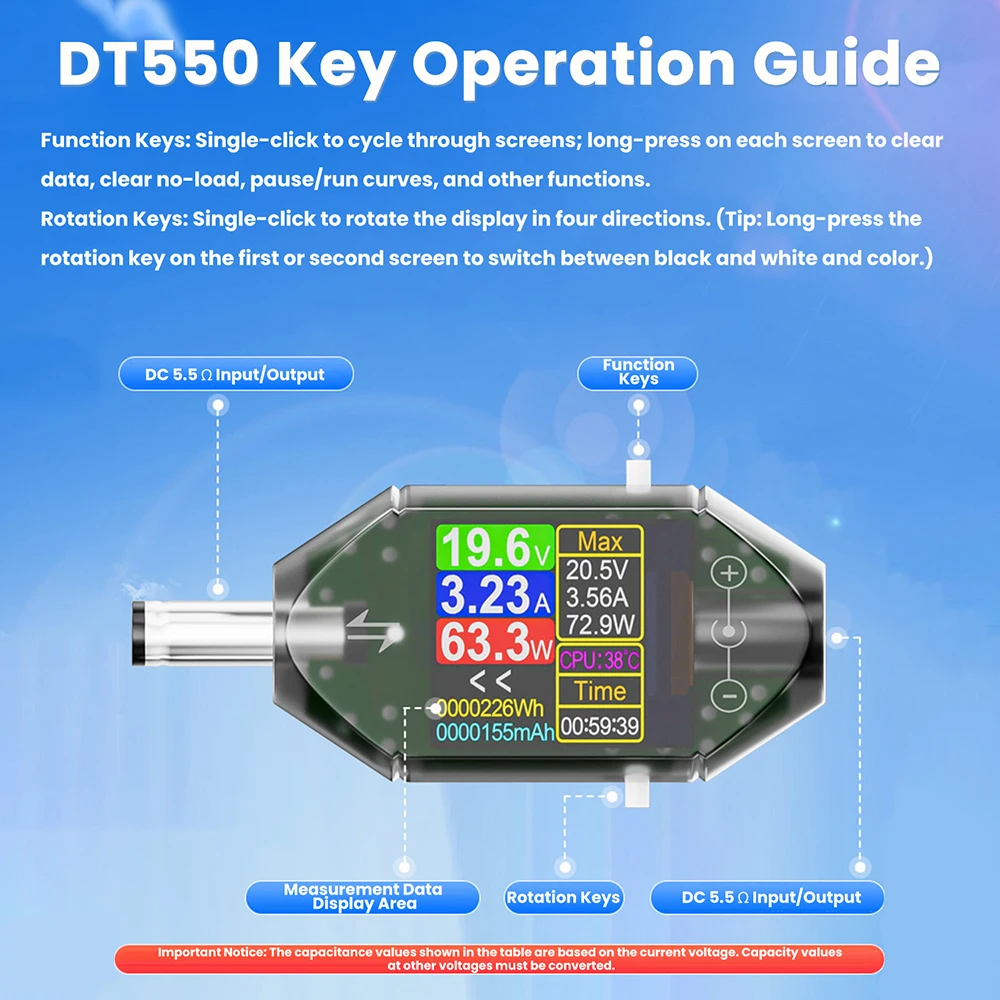

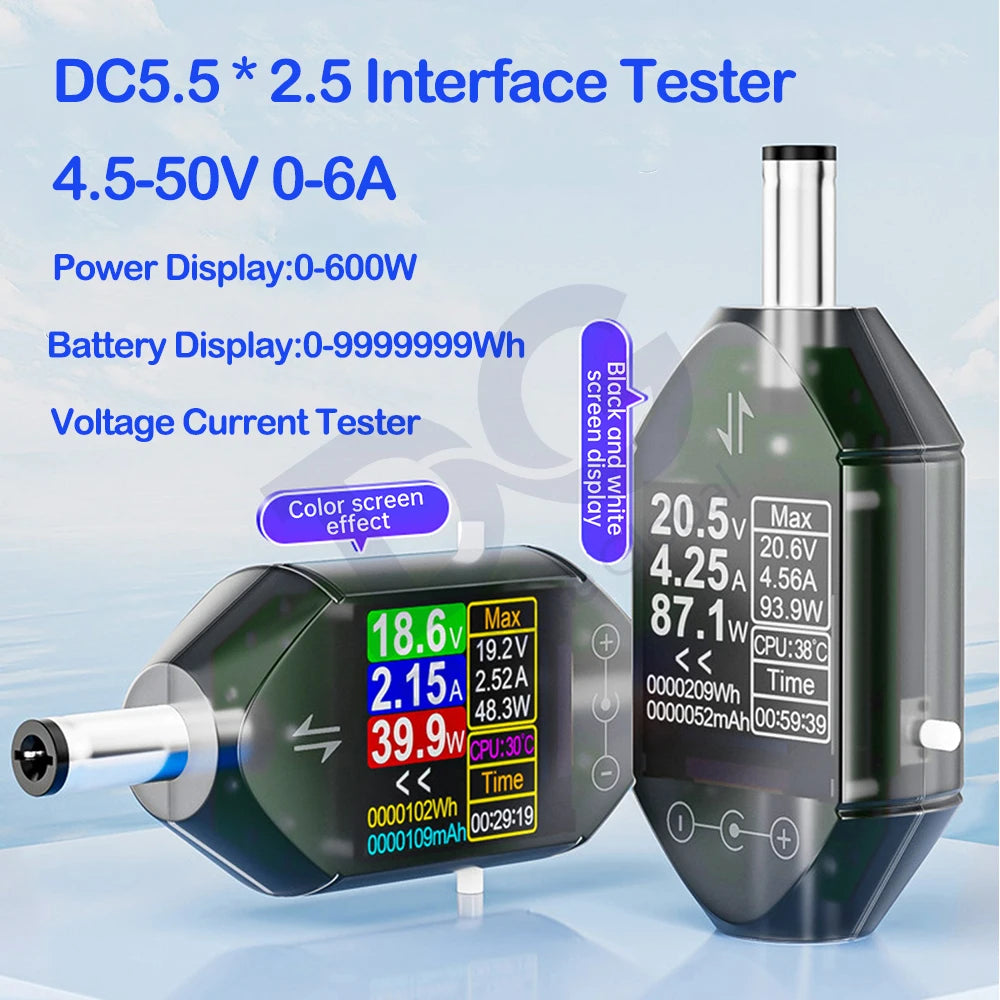

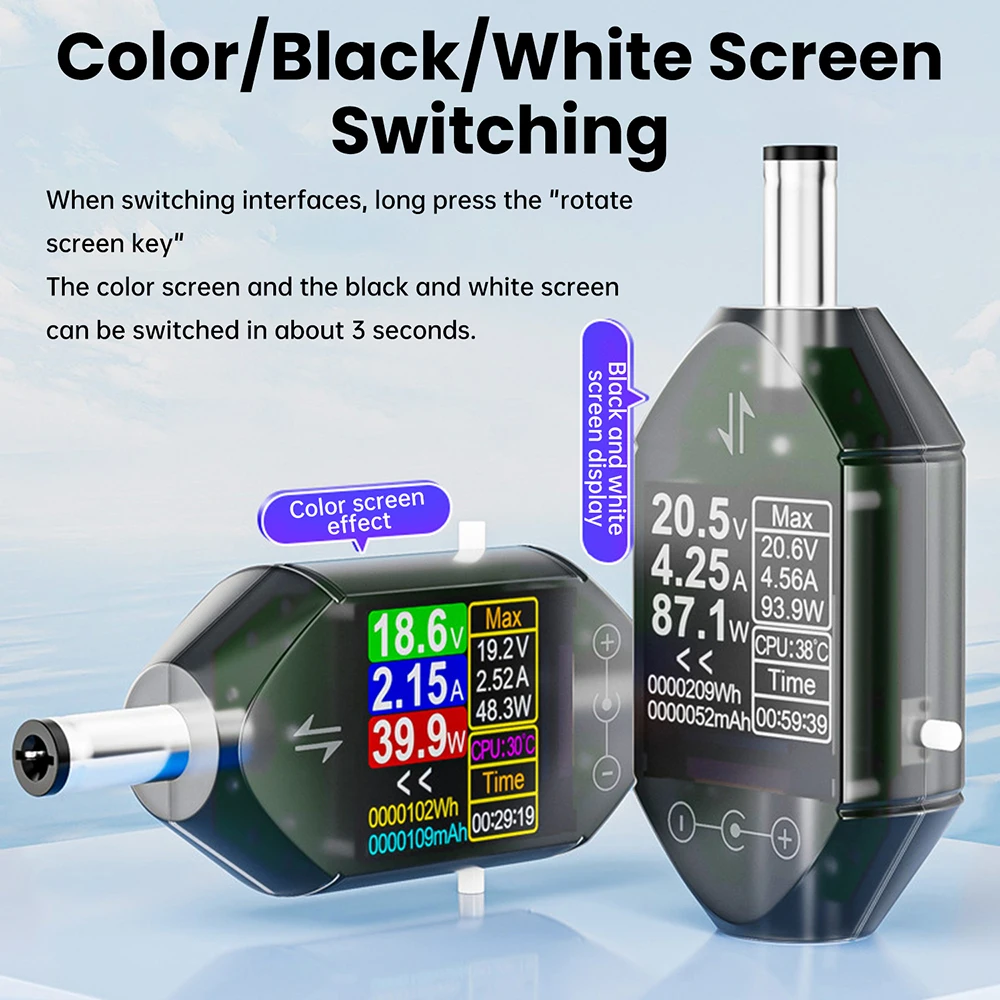

2. Color/monochrome display toggle: Press and hold the “Rotate Screen” button for approximately 3 seconds while switching interfaces to toggle between color and monochrome display

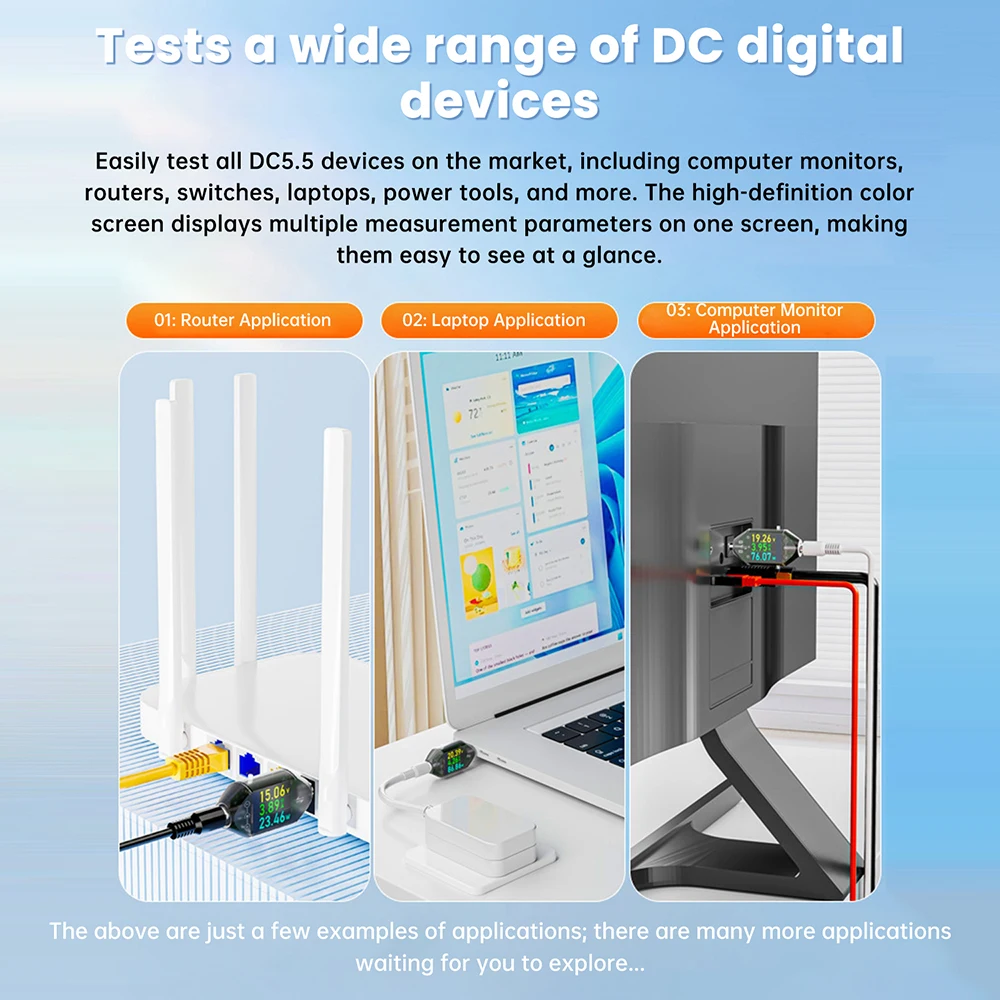

3. Universally compatible with all DC-powered digital devices: Computer monitors, routers, switches, laptops, power tools, and any other DC-port devices on the market

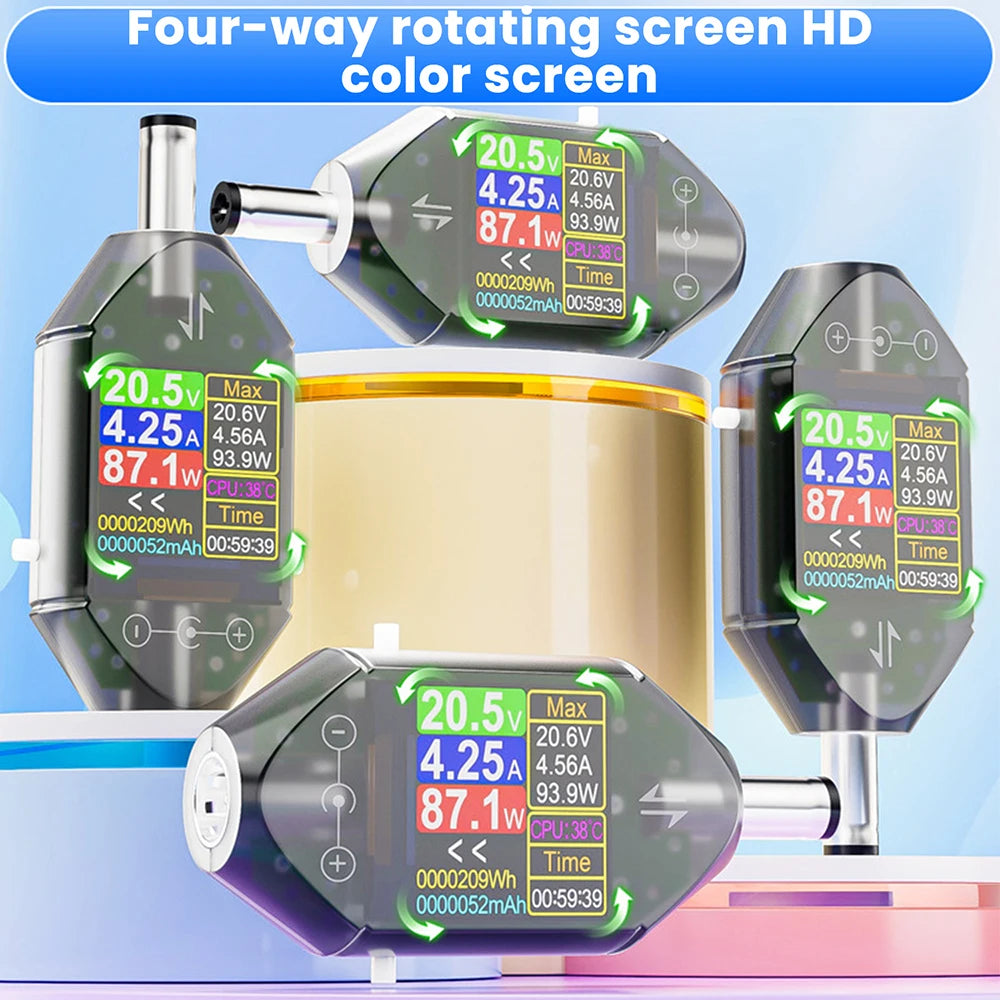

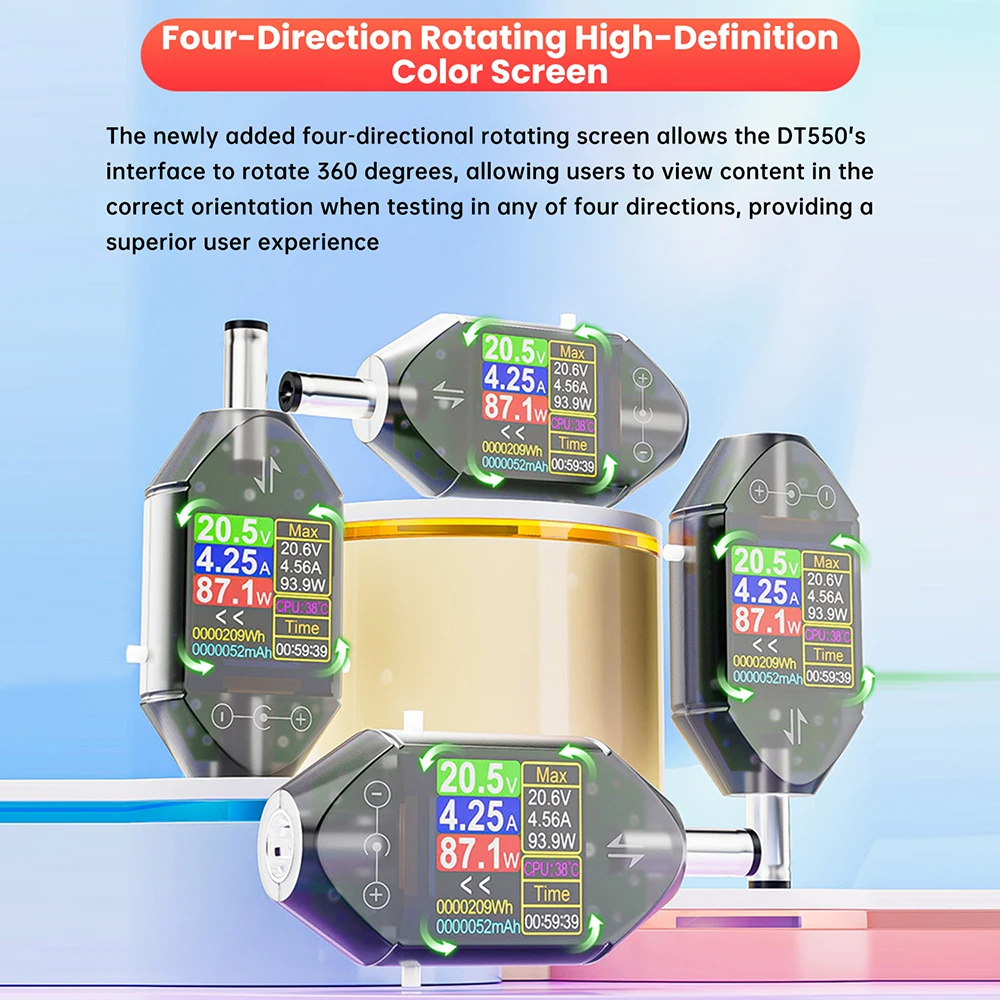

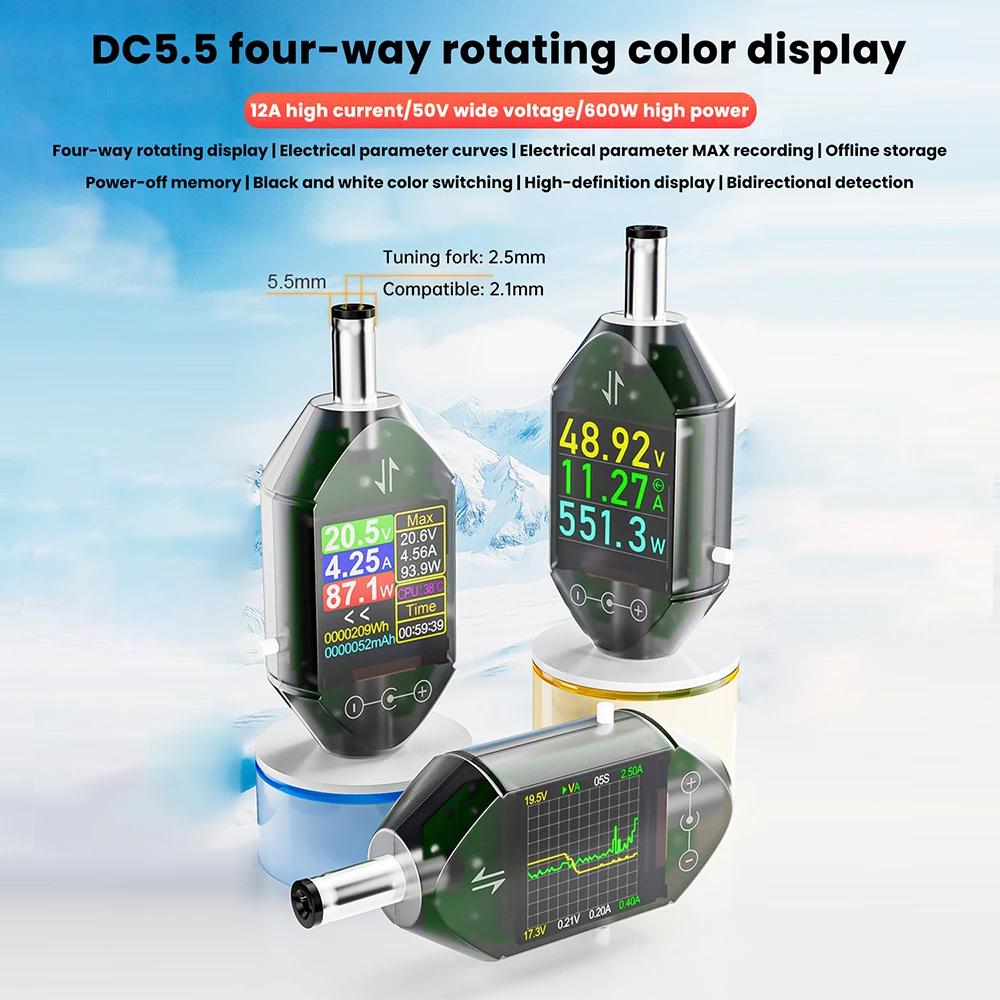

4. Four-Direction Rotatable Display: Supports 360° rotation for optimal viewing during testing in any orientation.

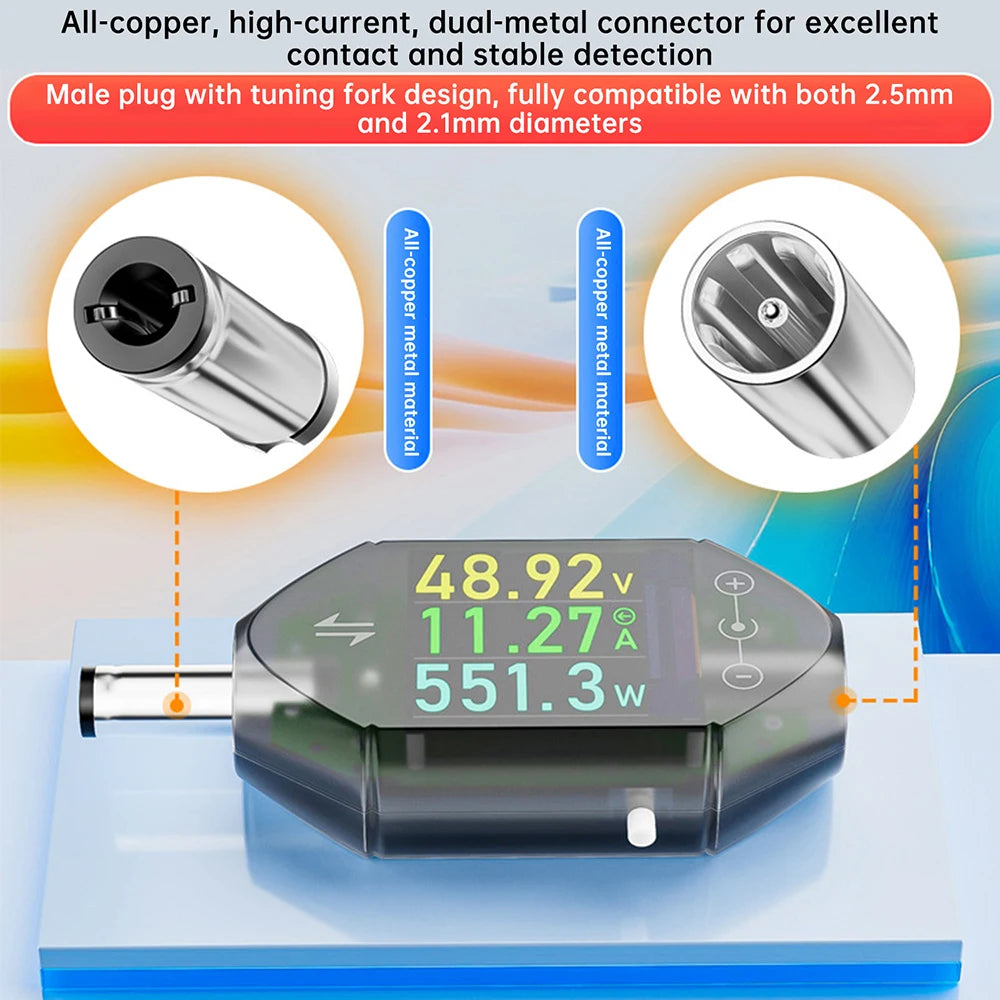

5. Features a 2.5mm jack with a tuning fork design, also compatible with 2.1mm connectors for versatile functionality.

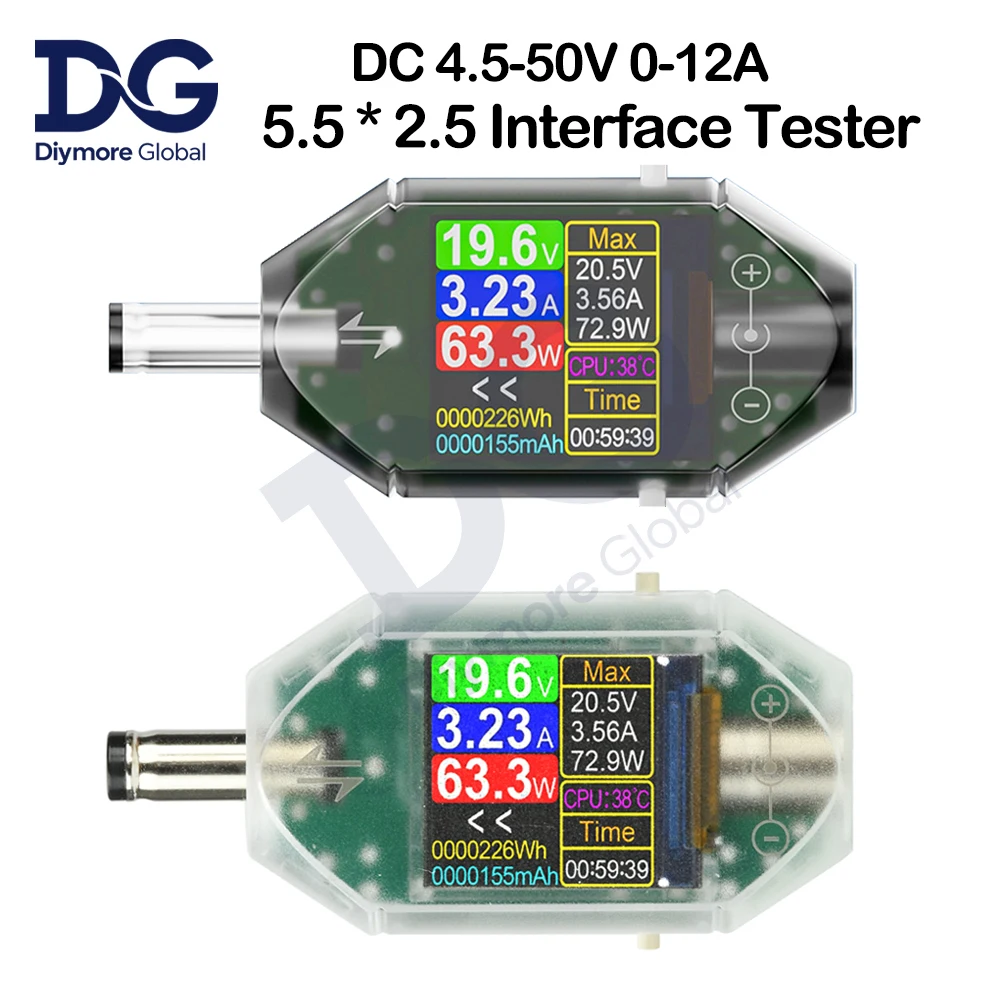

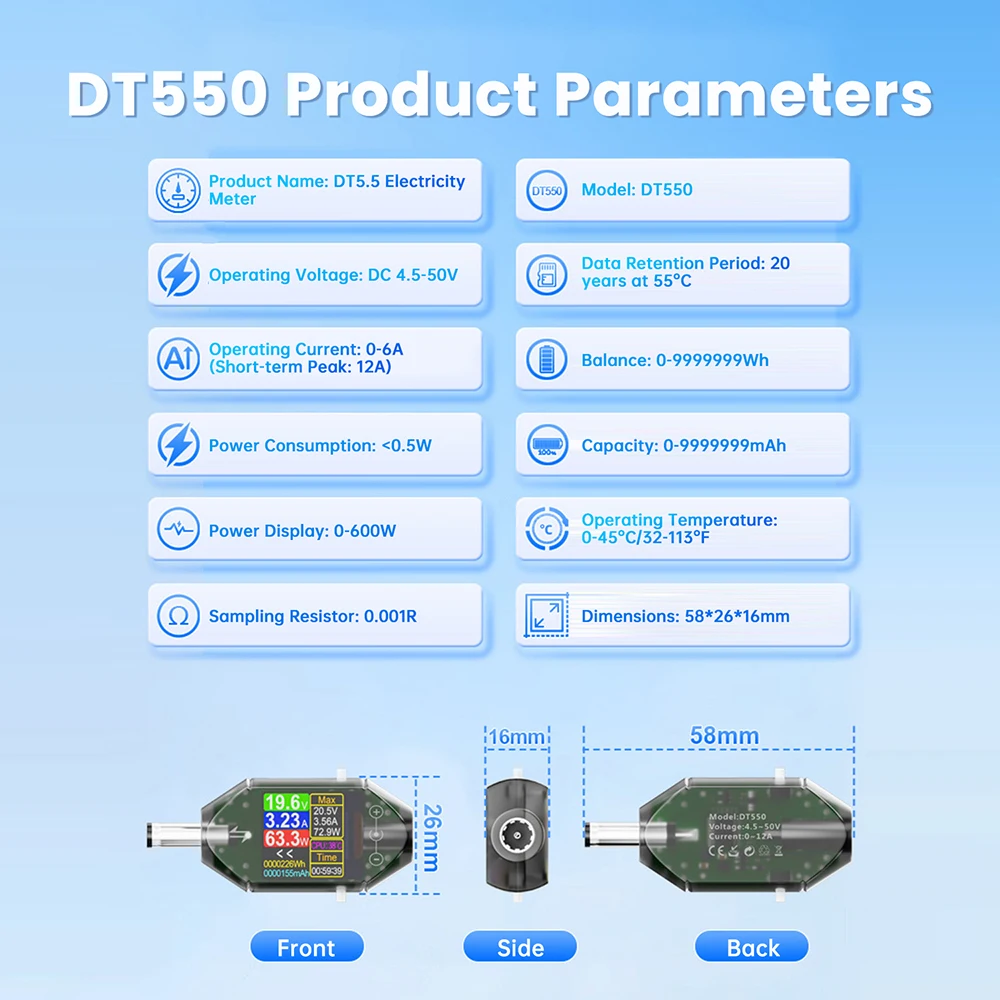

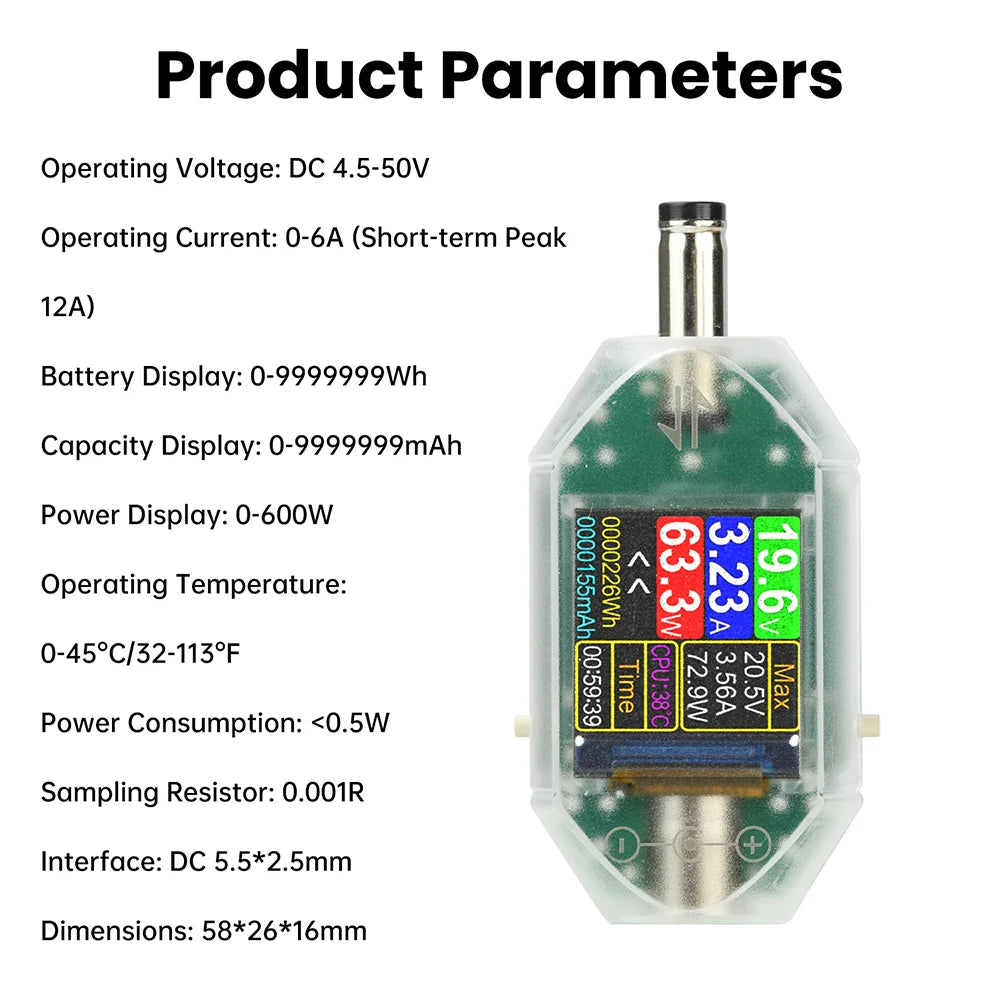

Operating Voltage: DC 4.5-50V
Operating Current: 0-6A (Short-term Peak 12A)
Energy Display: 0-9999999Wh
Capacity Display: 0-9999999mAh
Power Display: 0-600W
Operating Temperature: 0-45℃/32-113℉
Power Consumption: <0.5W
Sampling Resistance: 0.001Ω
Interface: DC 5.5*2.5mm

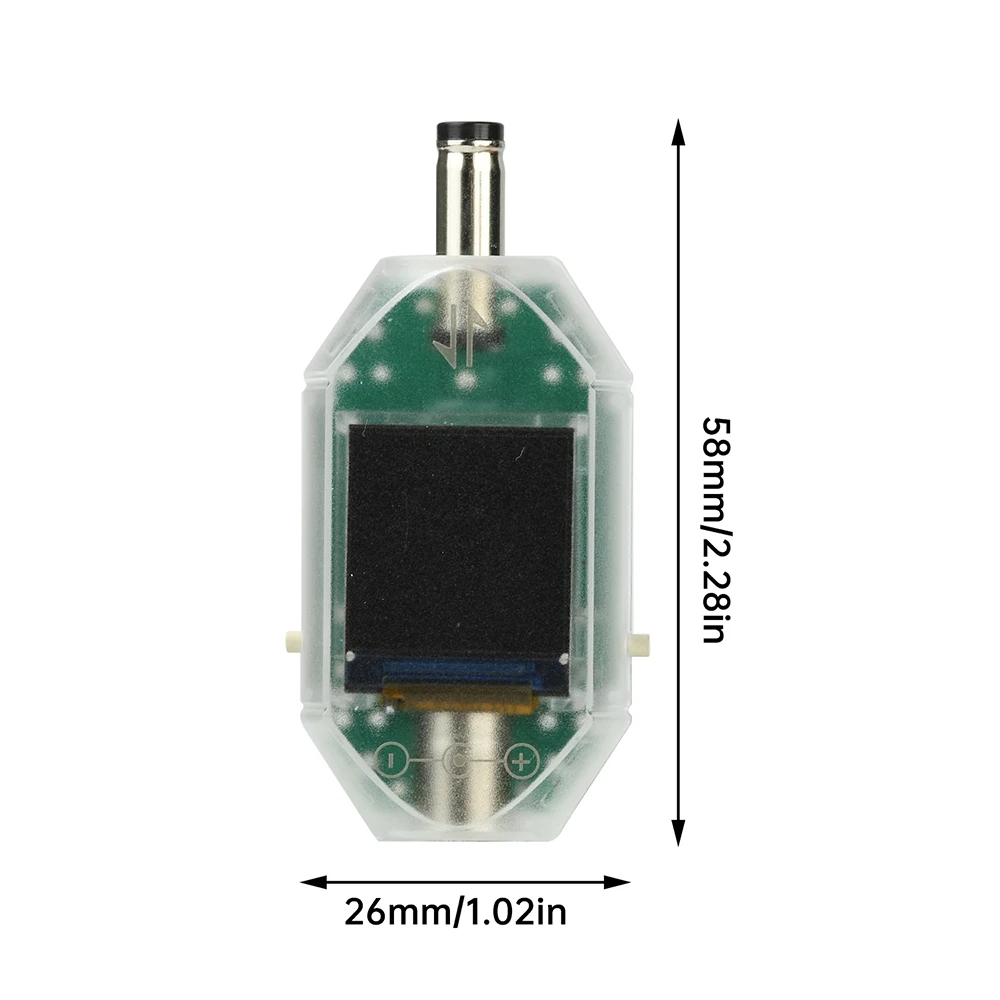

Product Dimensions: 58*26*16mm

Package include:
Tester*1
