SPECIFICATIONS

Brand Name: ECGSOLAX

Certification: CE

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

High-concerned chemical: None

Is Smart Device: Yes

Origin: Mainland China

Output Frequency: 50/60Hz

Output Type: DUAL

is_customized: Yes

Introduction:

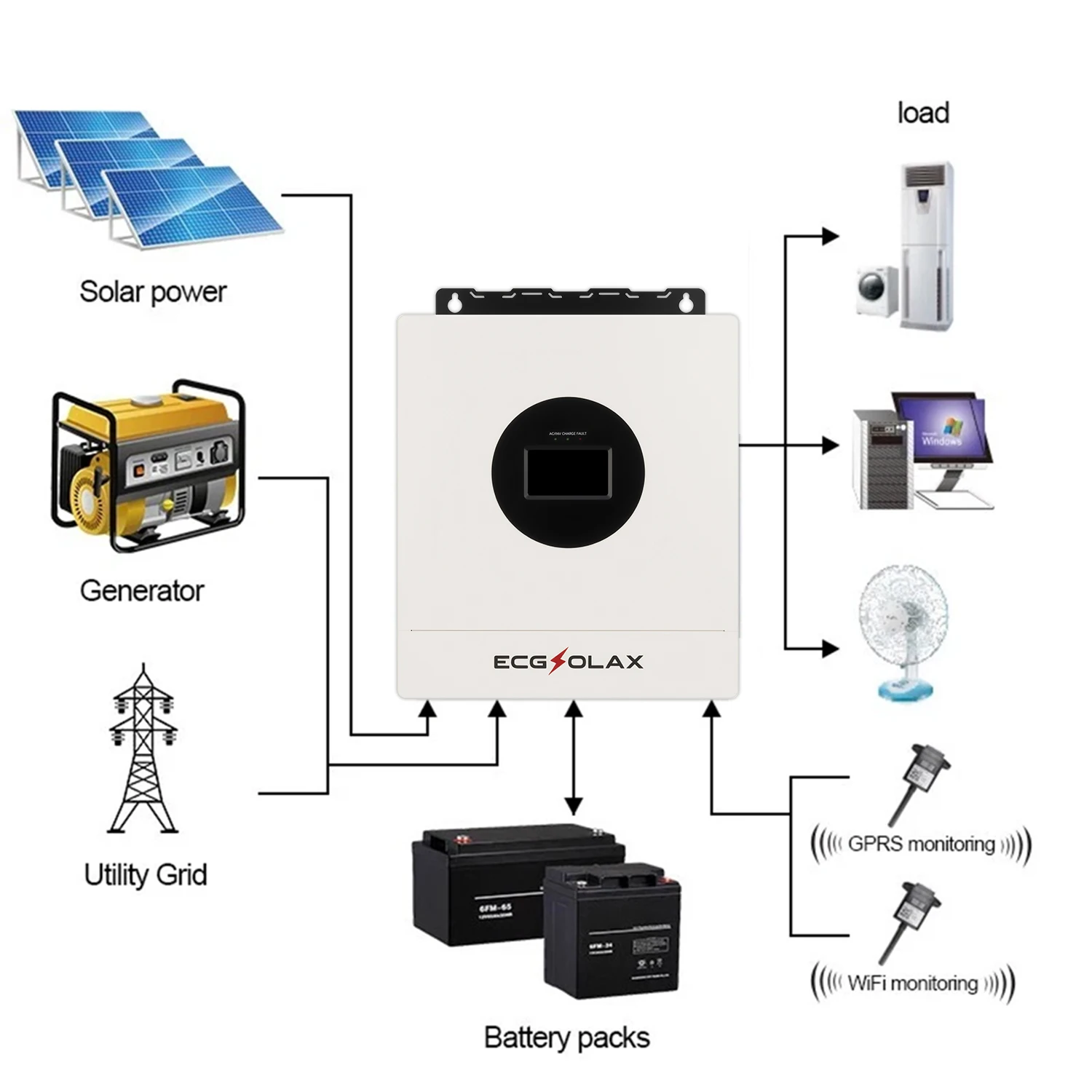

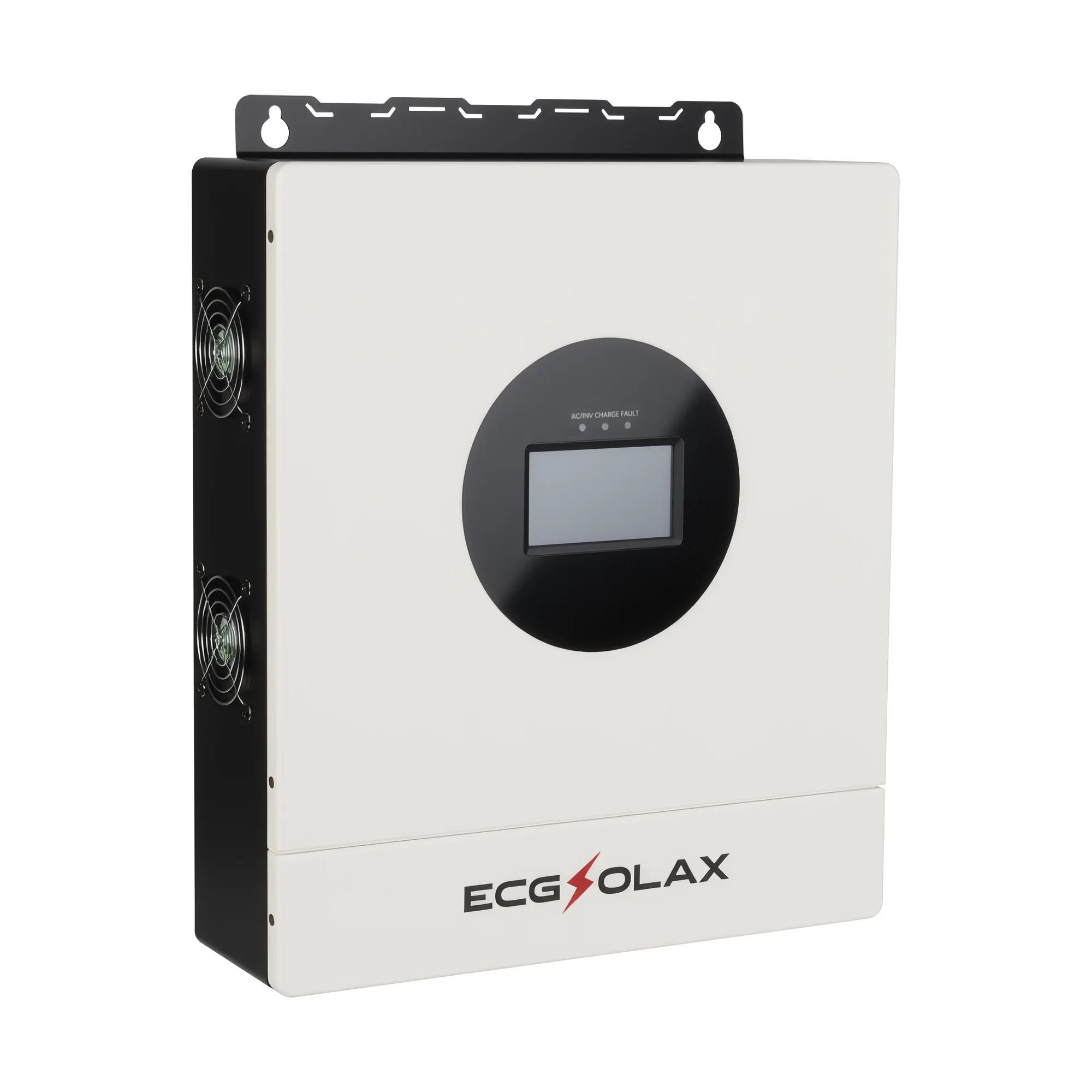

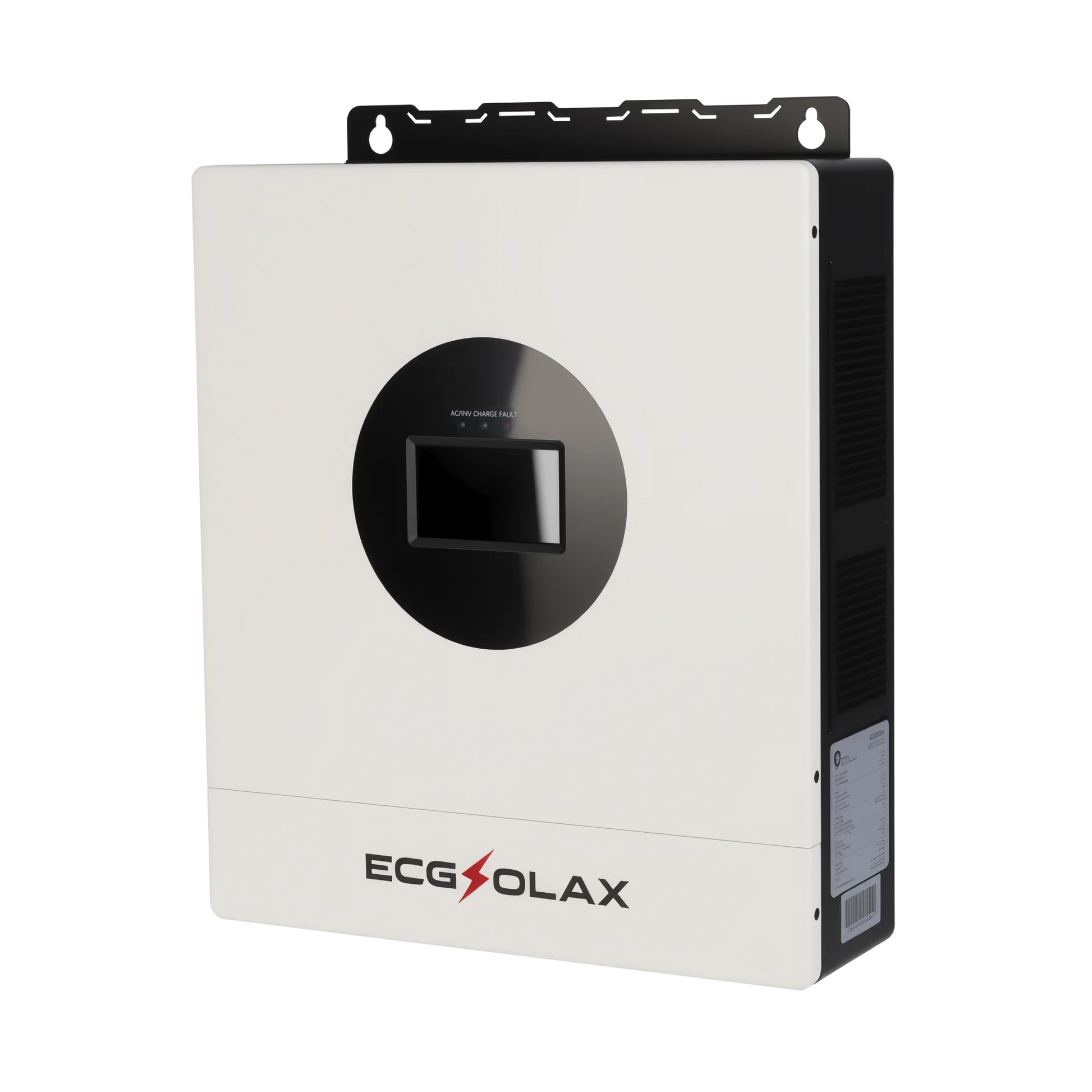

The hybrid energy storage inverter series integrates and manages photovoltaic systems, storage batteries, the power grid, and connected loads. It delivers stable, safe, and clean electricity for residential, commercial, and industrial applications, meeting diverse energy needs

Features:

1. Supports various types of energy storage batteries, such as lead-acid batteries and lithiumion batteries.

2. Supports single-phase and split-phase pure sine wave output.

3. Supports voltage adjustment for each phase within the range of 100~130V.

4. Supports single-channel photovoltaic input and features the function of simultaneously tracking MPPT maximum power charging/carrying capacity for one channel. The MPPT efficiency reaches up to 99.9%, and the maximum current per channel is 27A.

5. Has two output modes of mains bypass and inverter output, with uninterrupted power supply function.

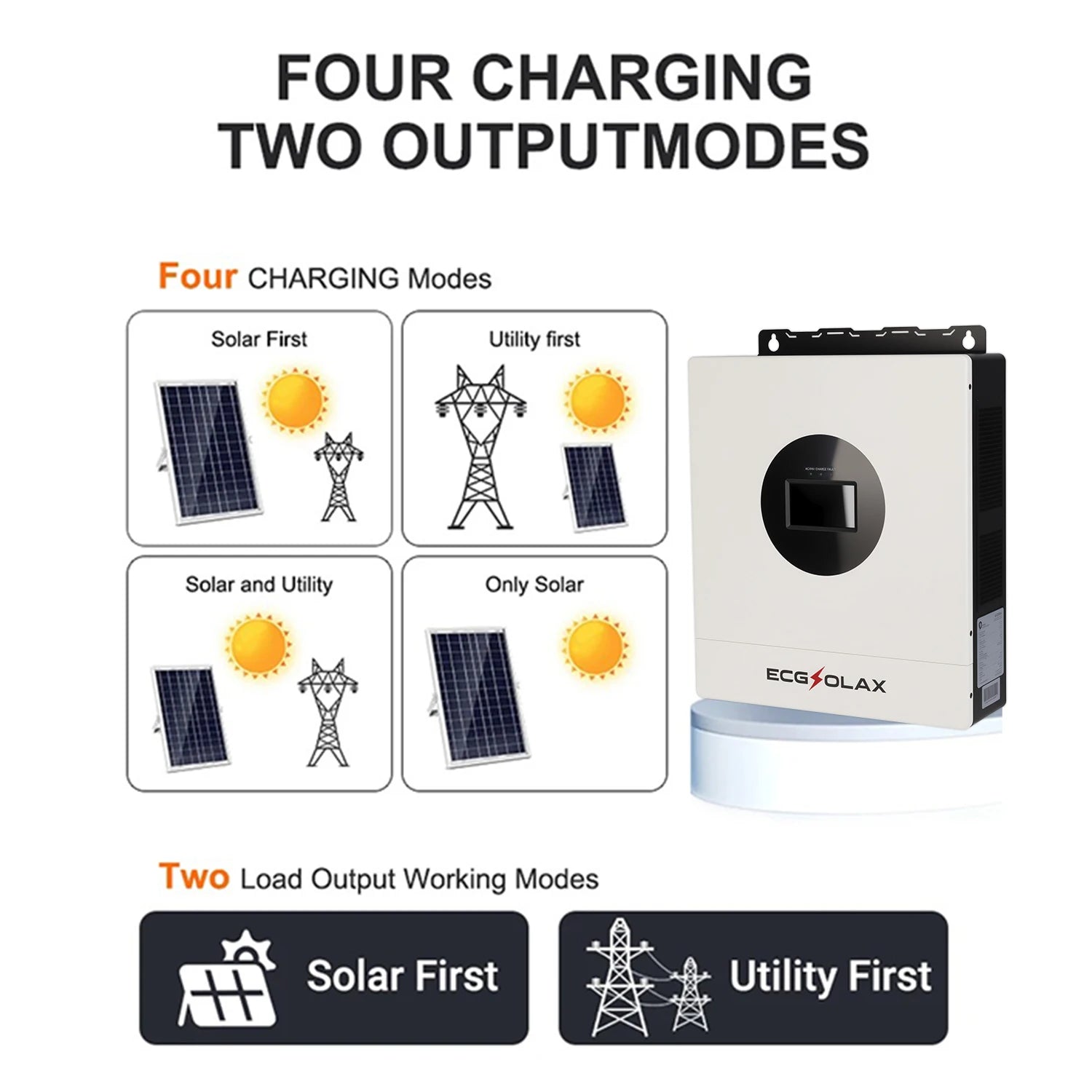

6. Offers four charging modes: PV only, Mains priority, PV priority, and Mains & PV hybrid charging.

7.Supports timed battery charging and timed battery discharging.

8.The single unit energy saving mode function reduces no-load energy loss.

9.Equipped with multiple protection functions to comprehensively protect the safety of photovoltaic panels, batteries, loads, and the controller itself.

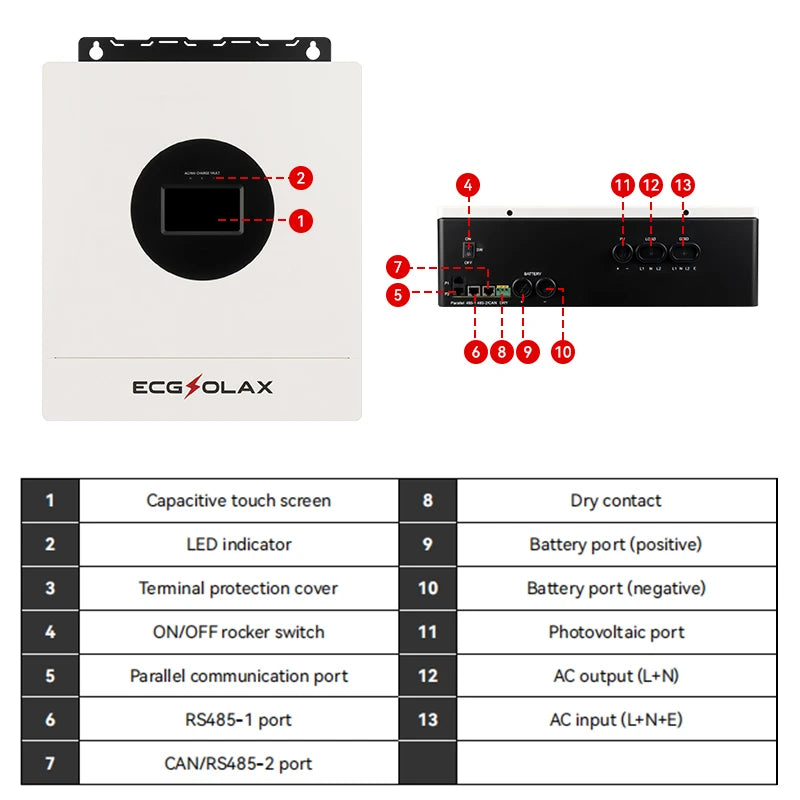

10. Features a capacitive intelligent touch screen, menu based operation, and intuitive and convenient parameter setting.

11. Supports 256 event records and 1024 day historical data storage.

12. Built-in Bluetooth and WIFI interfaces, providing native cloud platform access capabilities. It can automatically synchronize time after connection

Specification:
