General Micro 130 Motor Engine DC 1.5V-12V 3V 3.7V 4000RPM-28000RPM Children's Assemble Toy Scientific Experiment Slot Car DIY

$17.60 USD

~~$0.00 USD~~ $17.60 USD

Sale Sold out

Shipping calculated at checkout.

SPECIFICATIONS

Brand Name: NONE

Certification: ce

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

High-concerned chemical: None

No-load speed: 4000RPM-28000RPM

Origin: Mainland China

Output Power: ＜18.65

Voltage: 1.5V-12V

semi_Choice: yes

Specification:

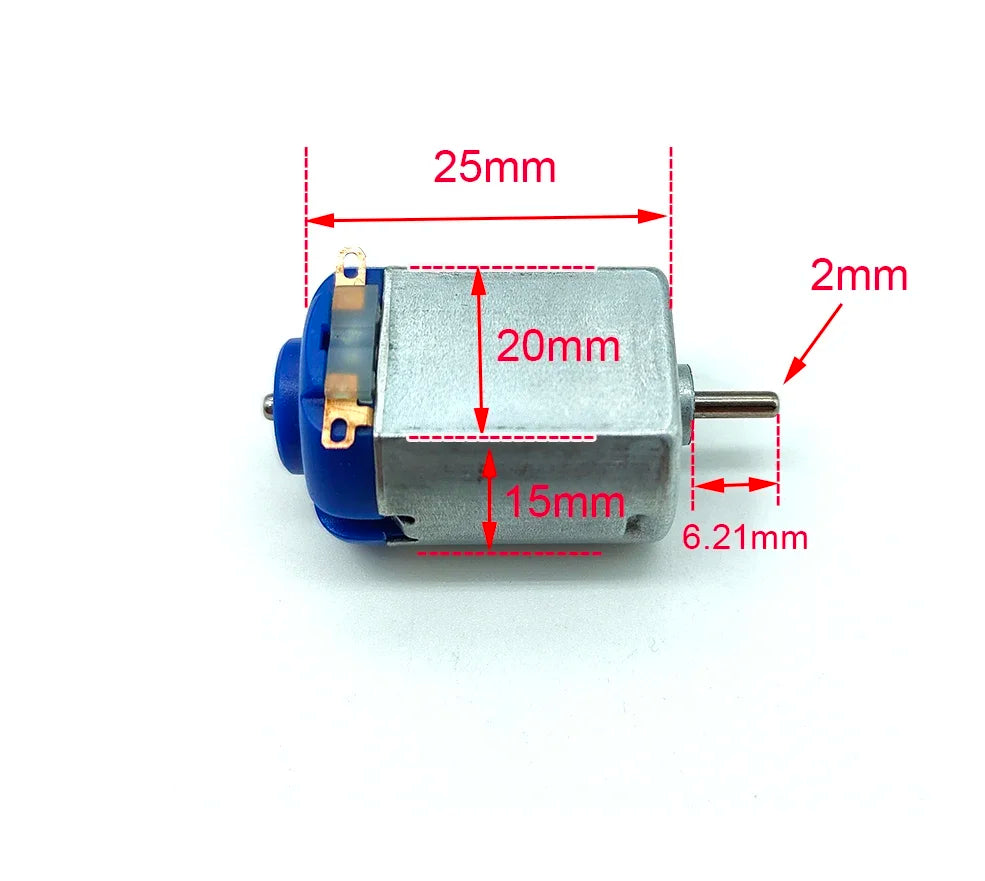

1. Motor specification: 25mm*20mm*15mm (length * width * height)

2. Shaft diameter: 2mm

3.Shaft length: 7.8mm（including step） 6.21mm(Not including step)

4. Weight: 20g

5. Voltage range: DC 1.5V-9.0V

6. Test data:

Voltage: DC1.5VNo-load current: 80mA No-load speed: 4000RPM

Voltage: DC3.0VNo-load current: 110mA No-load speed: 9000RPM

Voltage: DC3.7VNo-load current: 115mA No-load speed: 10000RPM

Voltage: DC7.5VNo-load current: 140mA No-load speed: 20000RPM

Voltage: DC9.0VNo-load current: 140mA No-load speed: 23000RPM
