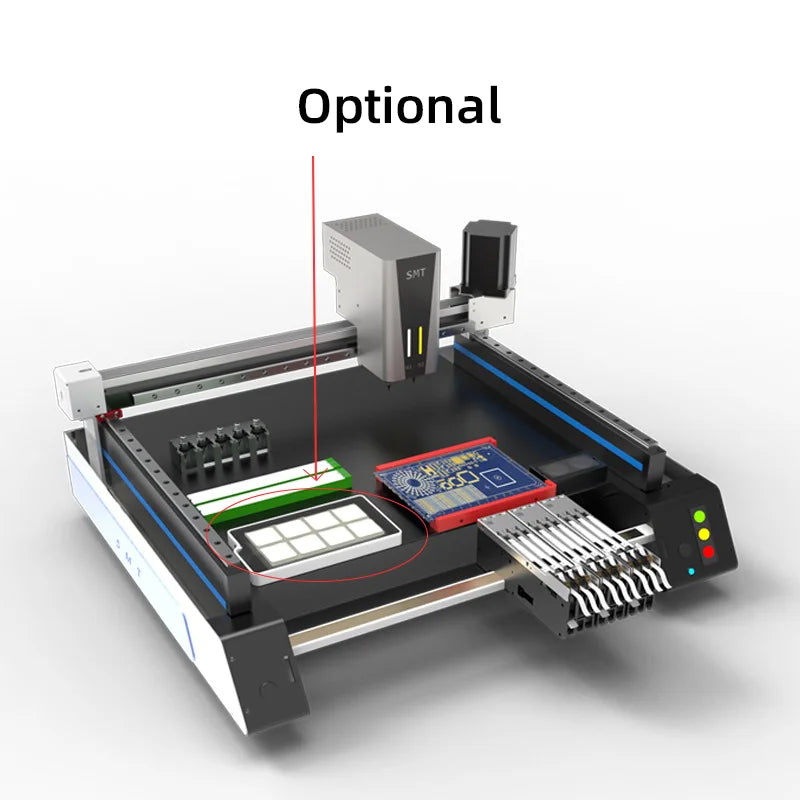

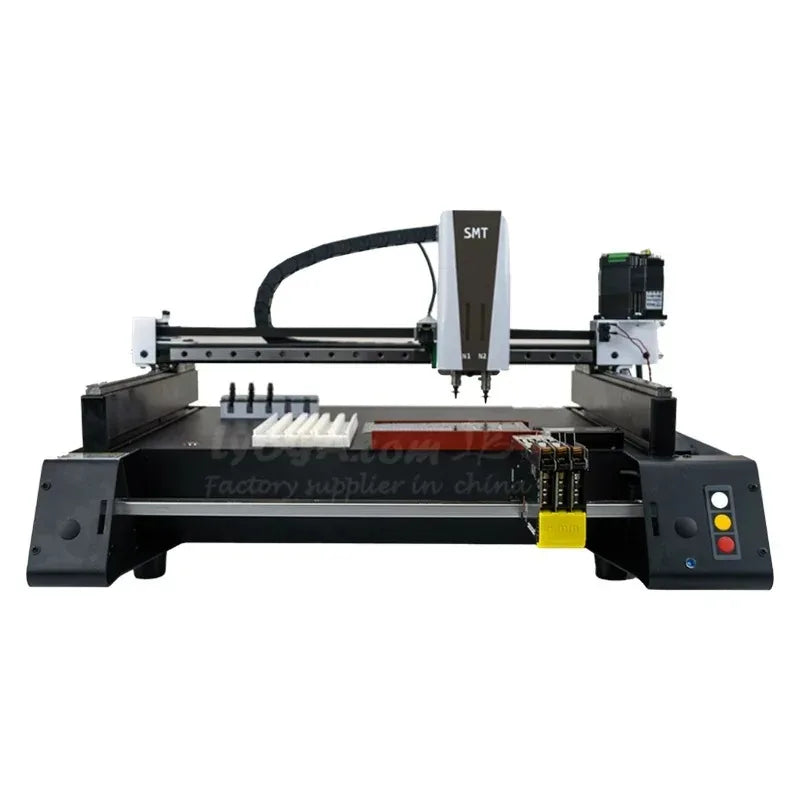

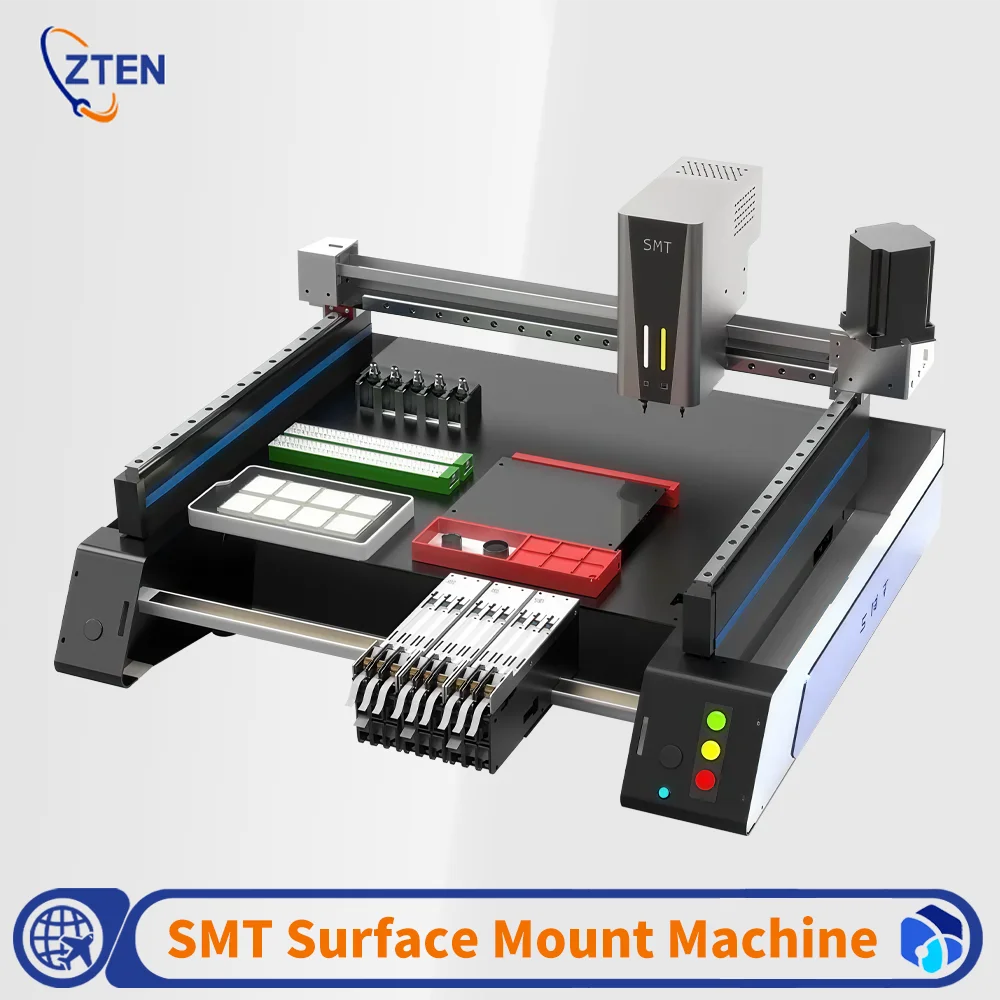

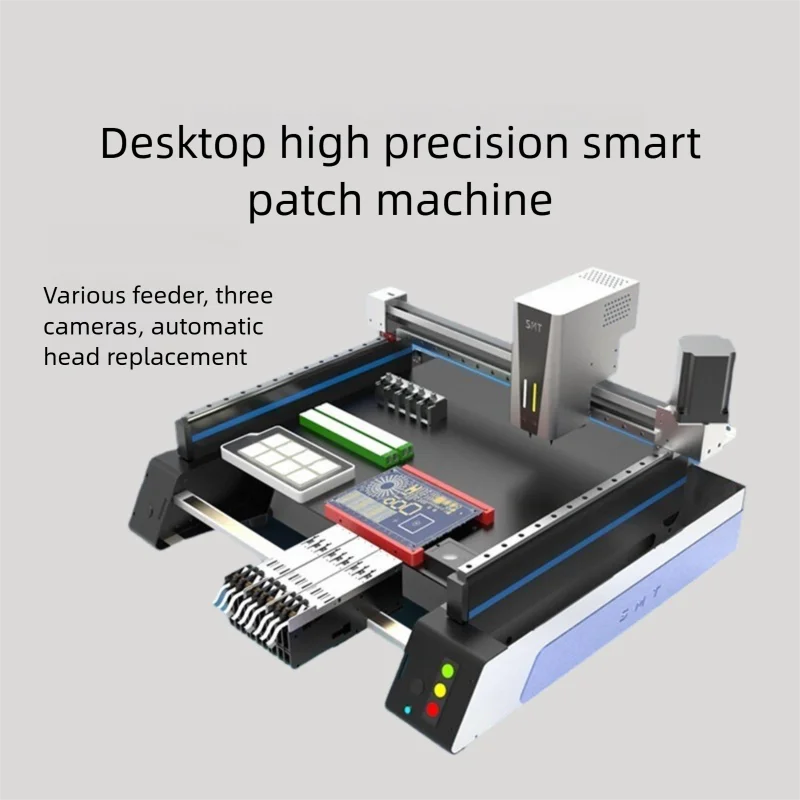

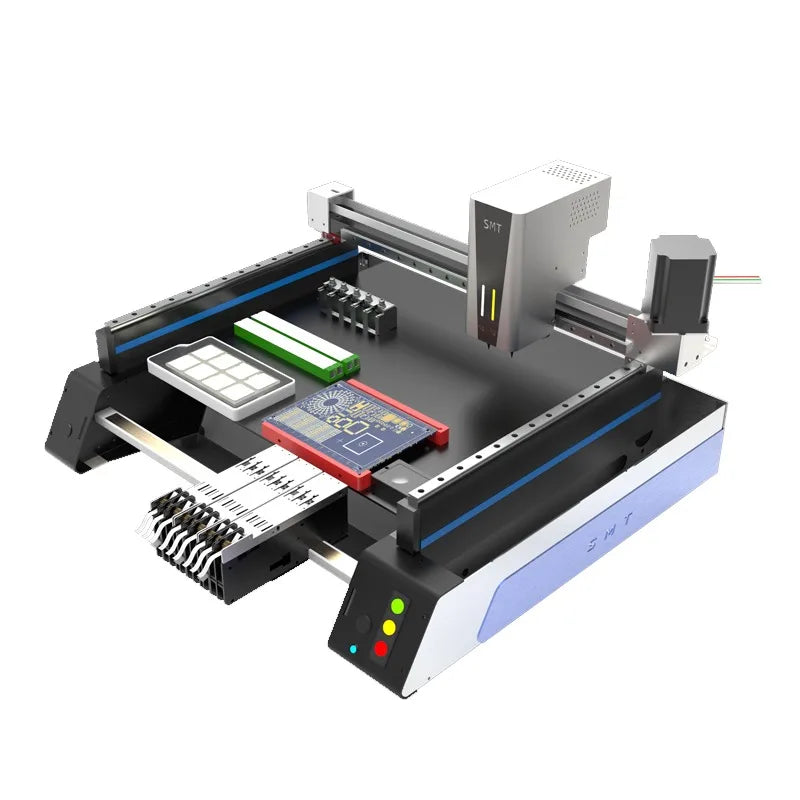

A high-speed benchtop SMT chip mounter for placing surface-mount components on PCBs, with triple vision cameras for accurate alignment. For LED and SMD prototyping and small-batch production.
Highlights
Fully automatic placement with triple vision cameras
36-position (8mm) feeder capacity; 2 nozzles
Positioning accuracy 0.05mm; mount height 0-7mm; 0-360 degree angle
Horizontal design; 110V / 220V
In the box

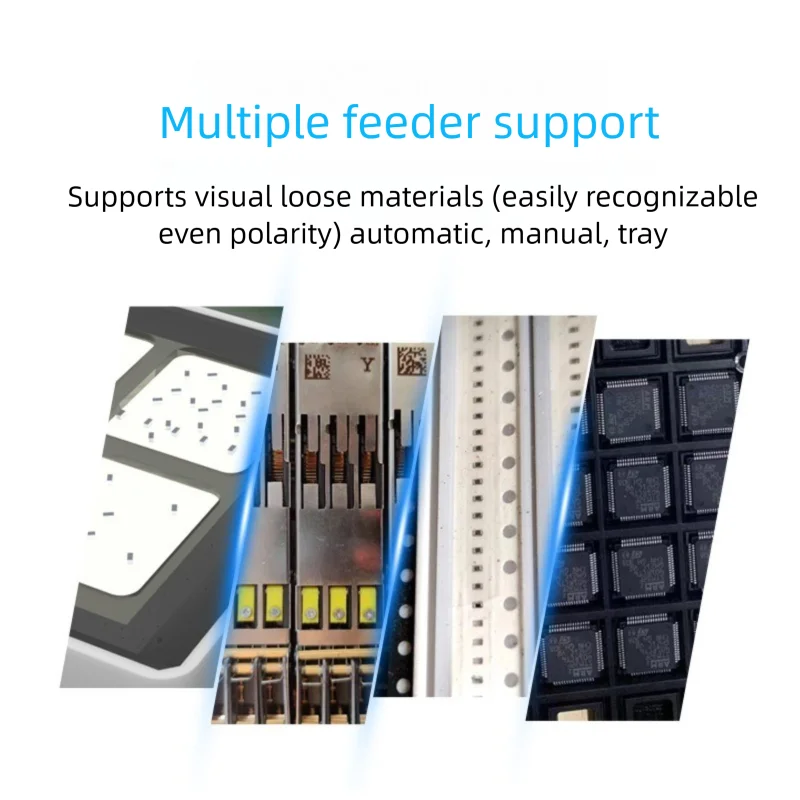

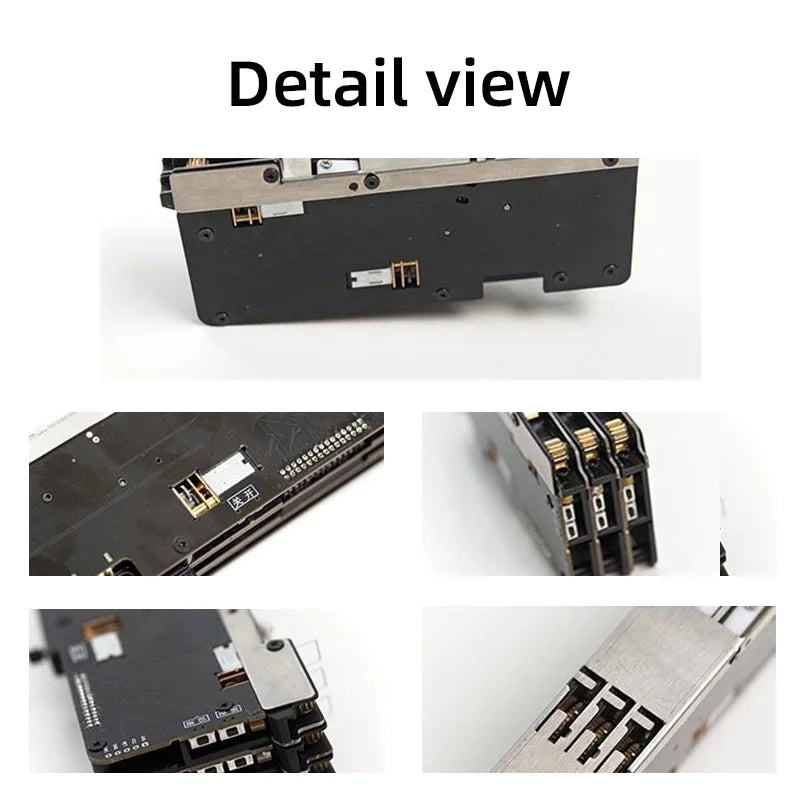

Machine, one 8mm triple-position electric feeder, three loose-component feeders, two nozzles, calibration board, vacuum pump, data cable
Good to know
Requires a Windows 10 PC to run. Confirm your voltage before ordering.
