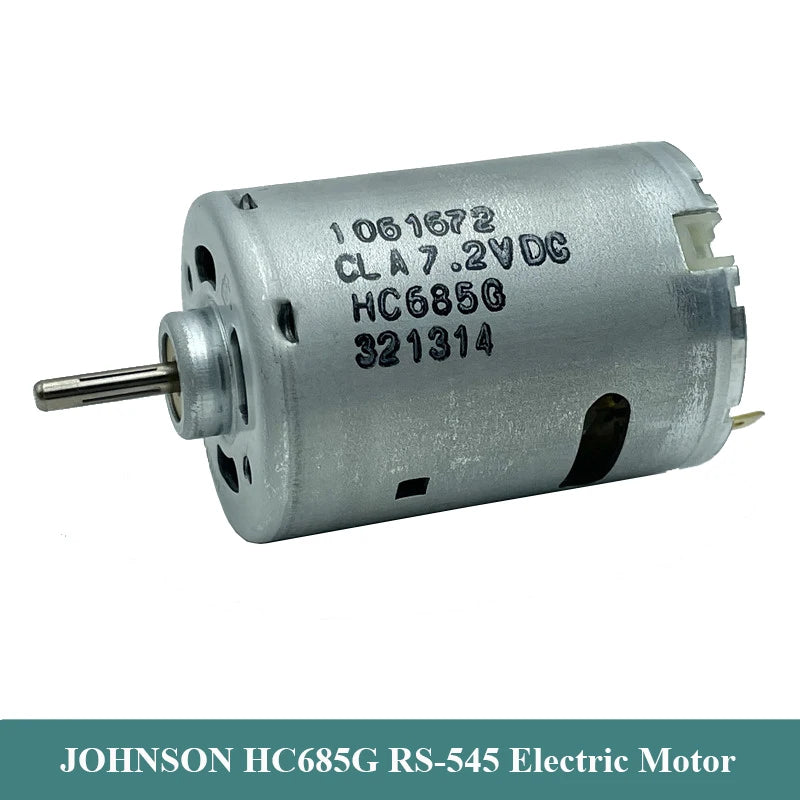

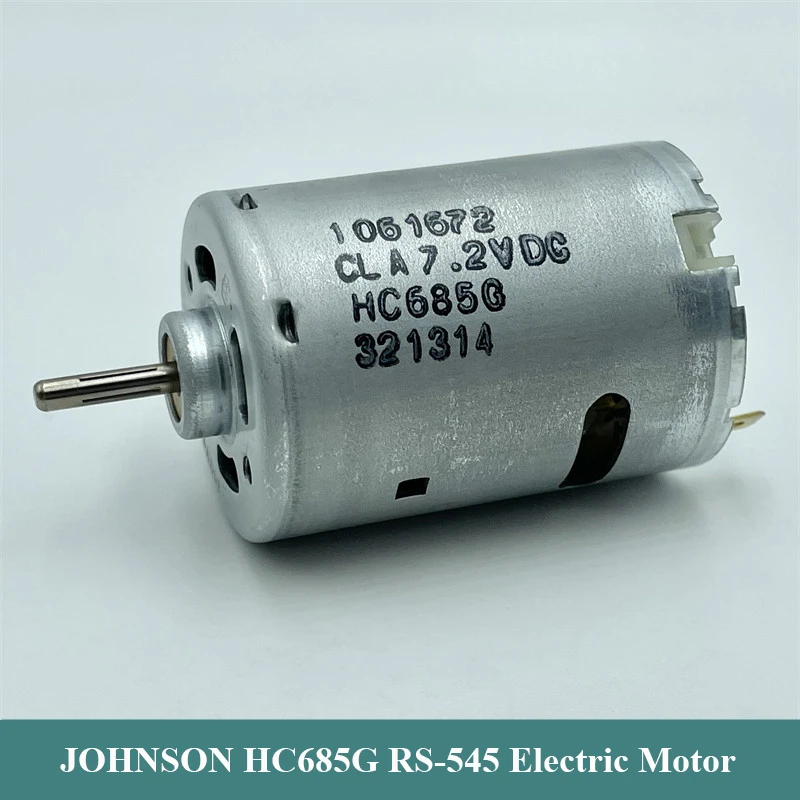

JOHNSON HC685G Micro 36mm RS-545 Motor DC 3.7V 5V 6V 7.2V 7.4V High Speed Power Electric Drill Garden Tool Engine Cooling Fan
JOHNSON HC685G Micro 36mm RS-545 Motor DC 3.7V 5V 6V 7.2V 7.4V High Speed Power Electric Drill Garden Tool Engine Cooling Fan
Couldn't load pickup availability
SPECIFICATIONS
Brand: Johnson Motor
Brand Name: NONE
Certification: ce
Choice: yes
Commutation: Brush
Condition: New
Construction: Permanent Magnet
Current: 1.85A-2.65A
Does it include a Battery?: No
Does it include wireless functionality?: No
Efficiency: IE 1
High-concerned chemical: None
Model Number: RS-545 Motor
Model number: 1061672/HC685G
Motor diameter: 35.8mm
Motor height: 50mm
Origin: Mainland China
Output Power: ＜18.65
Output shaft diameter: 3.17mm
Protect Feature: Explosion-proof
Speed range: 11600RPM-23500RPM
Type: Micro Motor
Use: Home Appliance
Voltage range: DC 3.7V-7.4V
Weight: 160g
semi_Choice: yes

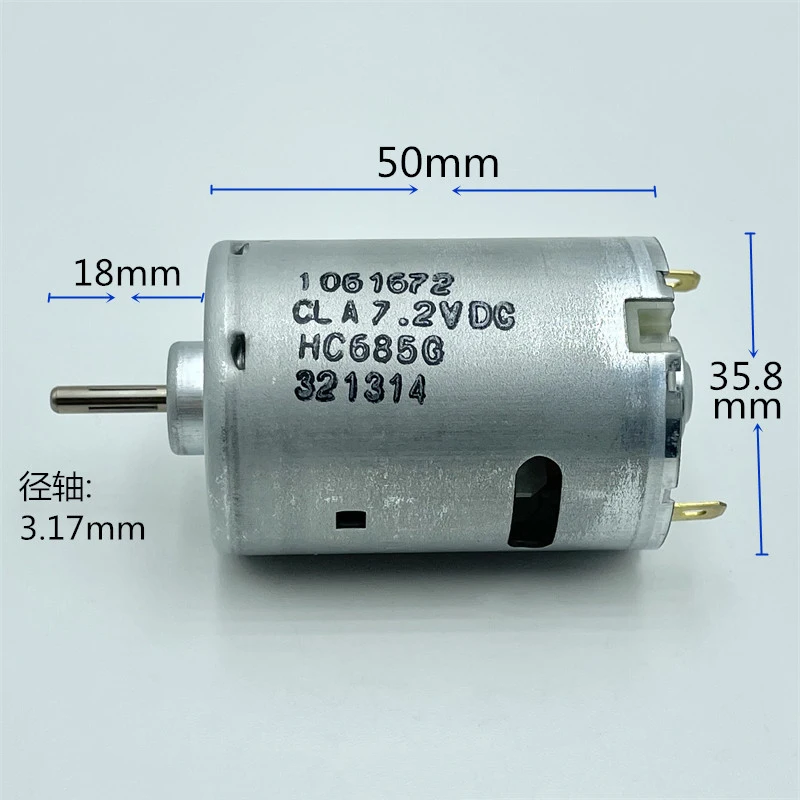

Specification:
1.Brand: Johnson Motor
2.Model number: 1061672/HC685G (RS-545 Motor)
3.Motor diameter: 35.8mm
4.Motor height: 50mm
5.Output shaft diameter: 3.17mm
6.Output shaft length: 18mm(include step height)
7.Weight: 160g
8.Voltage range: DC 3.7V-7.4V
9.Test data:
Voltage:3.7V No-load speed:11600RPM Current:1.85A
Voltage:5.0V No-load speed:15600RPM Current:2.16A
Voltage:6.0V No-load speed:19200RPM Current:2.40A
Voltage:7.2V No-load speed:23000RPM Current:2.60A
Voltage:7.4V No-load speed:23500RPM Current:2.65A
=============================================================================
Package List:
Motor x 1pcs
