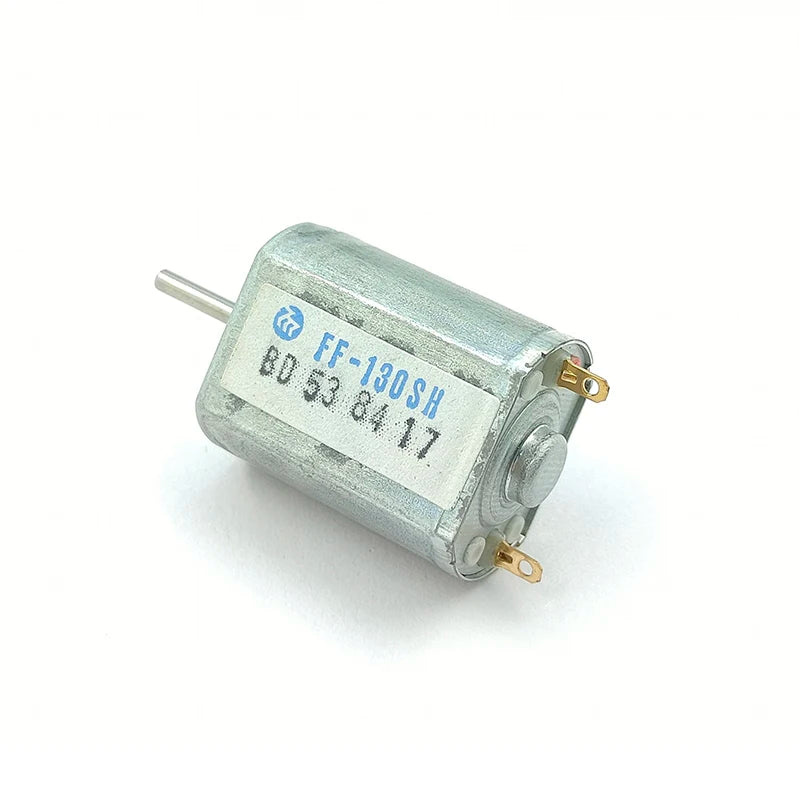

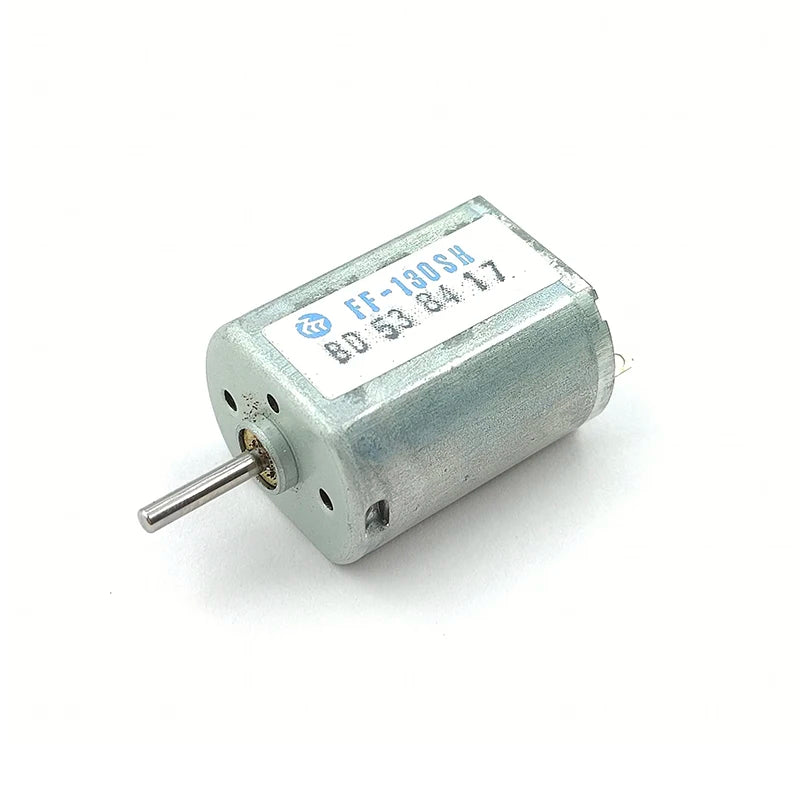

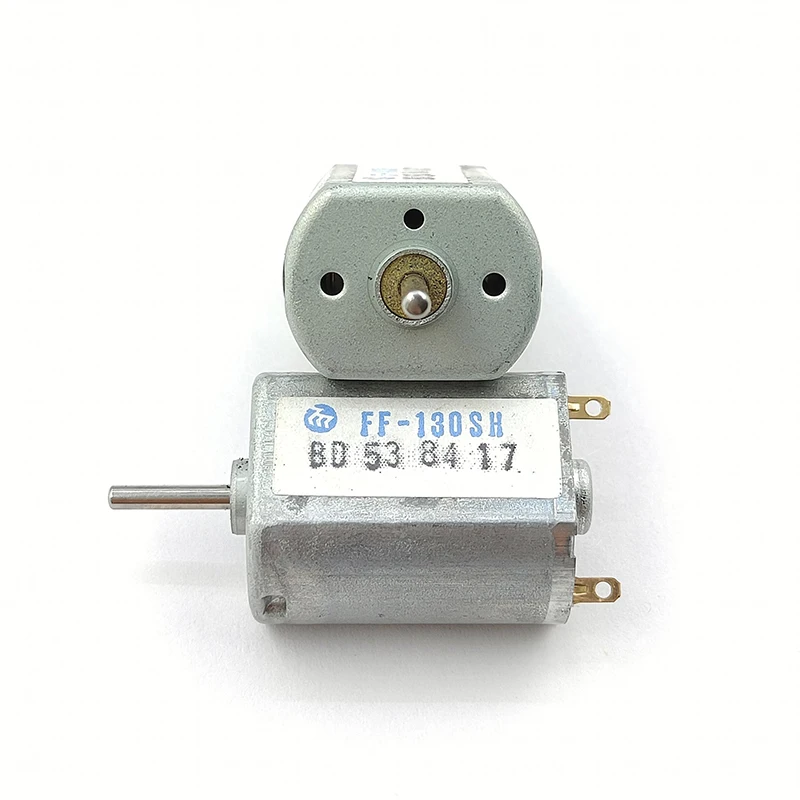

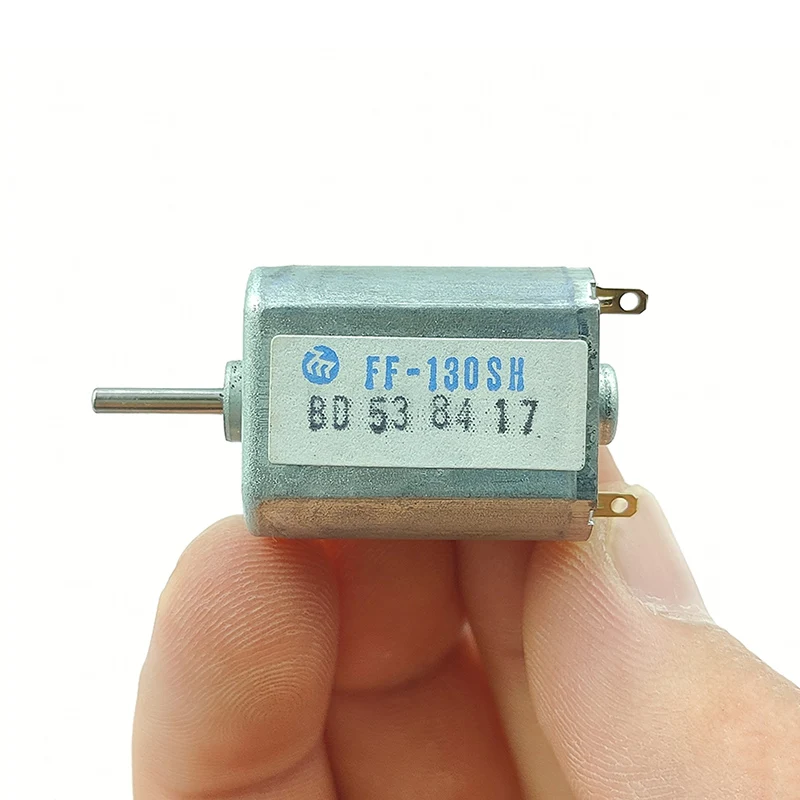

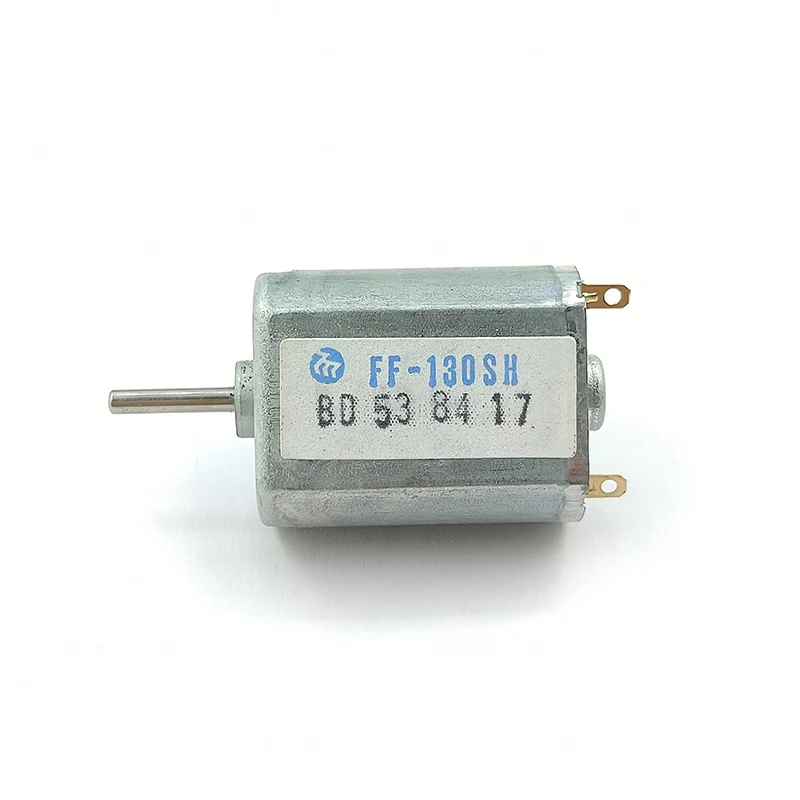

Mabuchi FF-130SH-14230 Mini 130 Motor DC 3V-12V 6V 7500RPM Micro 20mm Electric Motor DIY Home Appliances Car AV Device Toy Model
Mabuchi FF-130SH-14230 Mini 130 Motor DC 3V-12V 6V 7500RPM Micro 20mm Electric Motor DIY Home Appliances Car AV Device Toy Model
Couldn't load pickup availability
SPECIFICATIONS
Brand: MABUCHI
Brand Name: NONE
Certification: CE
Choice: yes
Commutation: Brush
Construction: Permanent Magnet
Does it include a Battery?: No
Does it include wireless functionality?: No
Efficiency: IE 1
High-concerned chemical: None
Model Number: FF-130SH-14230
Motor size: 20.4mm*15.5mm*25mm
No-load speed: 7500RPM
Origin: Mainland China
Output Power: ＜18.65
Output shaft diameter: 2mm
Protect Feature: Explosion-proof
Rated voltage: DC 6.0V
Speed range: 3900RPM-14500RPM
Suitable voltage: DC 3.0V-12.0V
Type: Micro Motor
Usage: Home Appliance
semi_Choice: yes
Specification:
1. Brand: MABUCHI MOTOR
2. Model: FF-130SH-14230

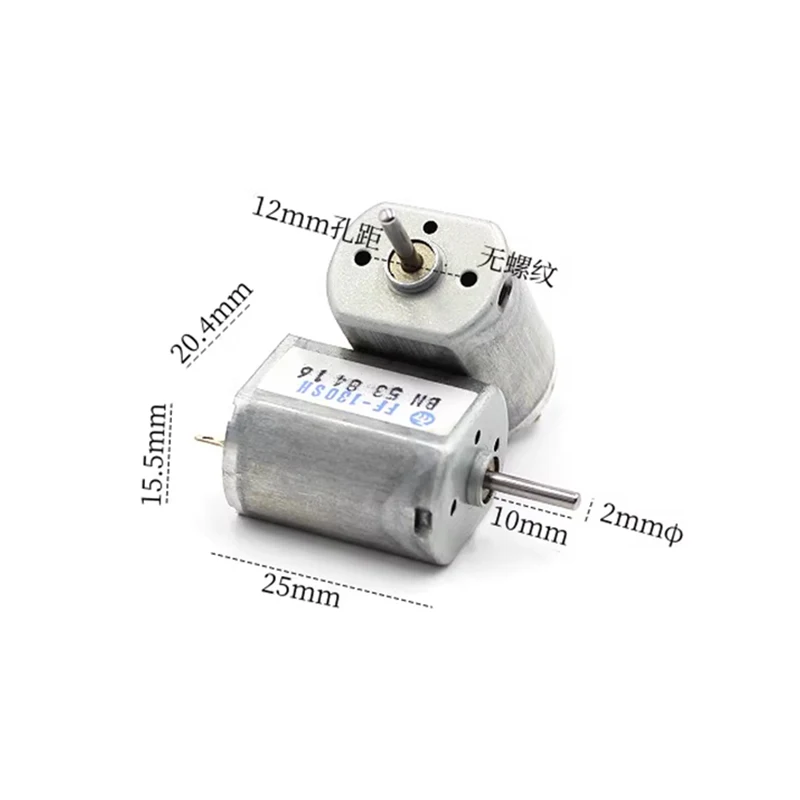

3. Motor size: 20.4mm*15.5mm*25mm
4. Output shaft diameter: 2mm
5. Output shaft length: 10mm
6. Weight: 24g
7. Suitable voltage: DC 3.0V-12.0V

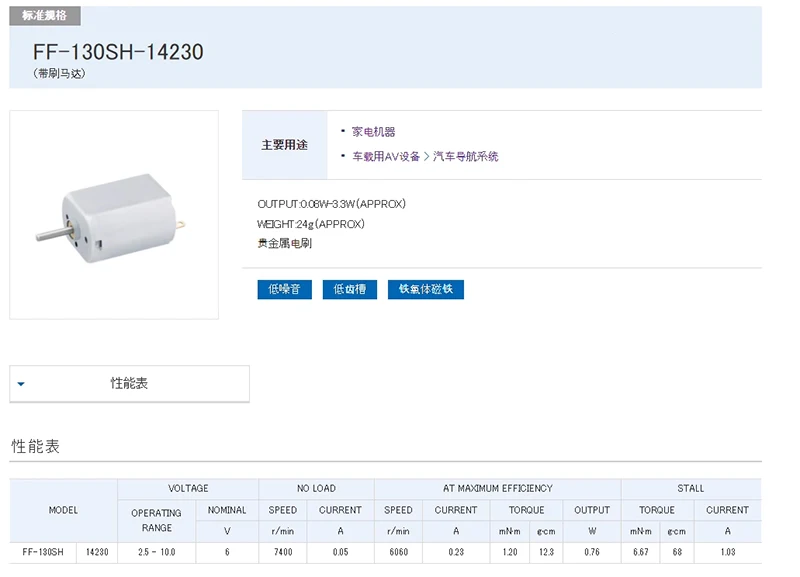

8. Test data:
  Voltage:3.0V   No-load speed:3900RPM   Current:30mA
  Voltage:5.0V   No-load speed:6500RPM   Current:42mA
  Voltage:6.0V   No-load speed:7500RPM   Current:48mA
  Voltage:9.0V   No-load speed:11000RPM  Current:90mA
  Voltage:12.0V  No-load speed:14500RPM  Current:180mA
9.Note: For this motor, the higher the voltage, the greater the current, and the motor is also prone to overheating.
=========================
Package List:
Motor x 1PCS
