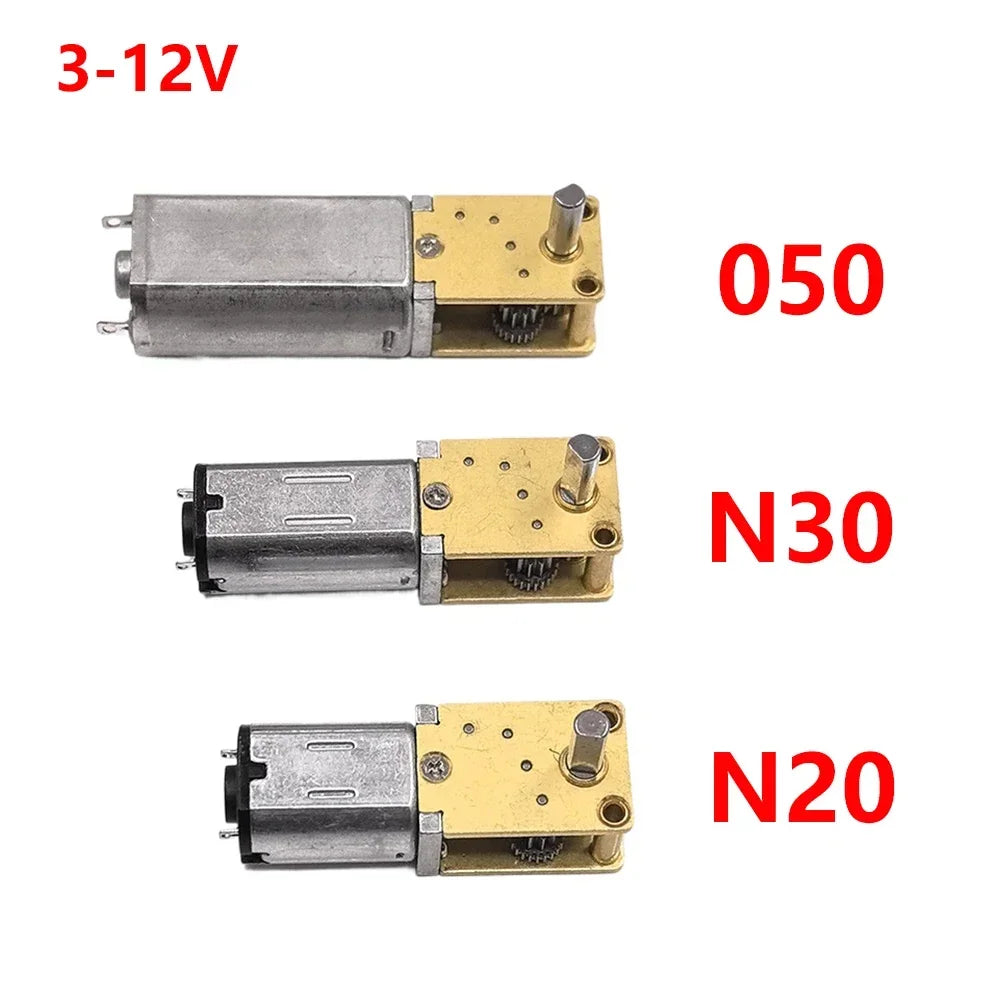

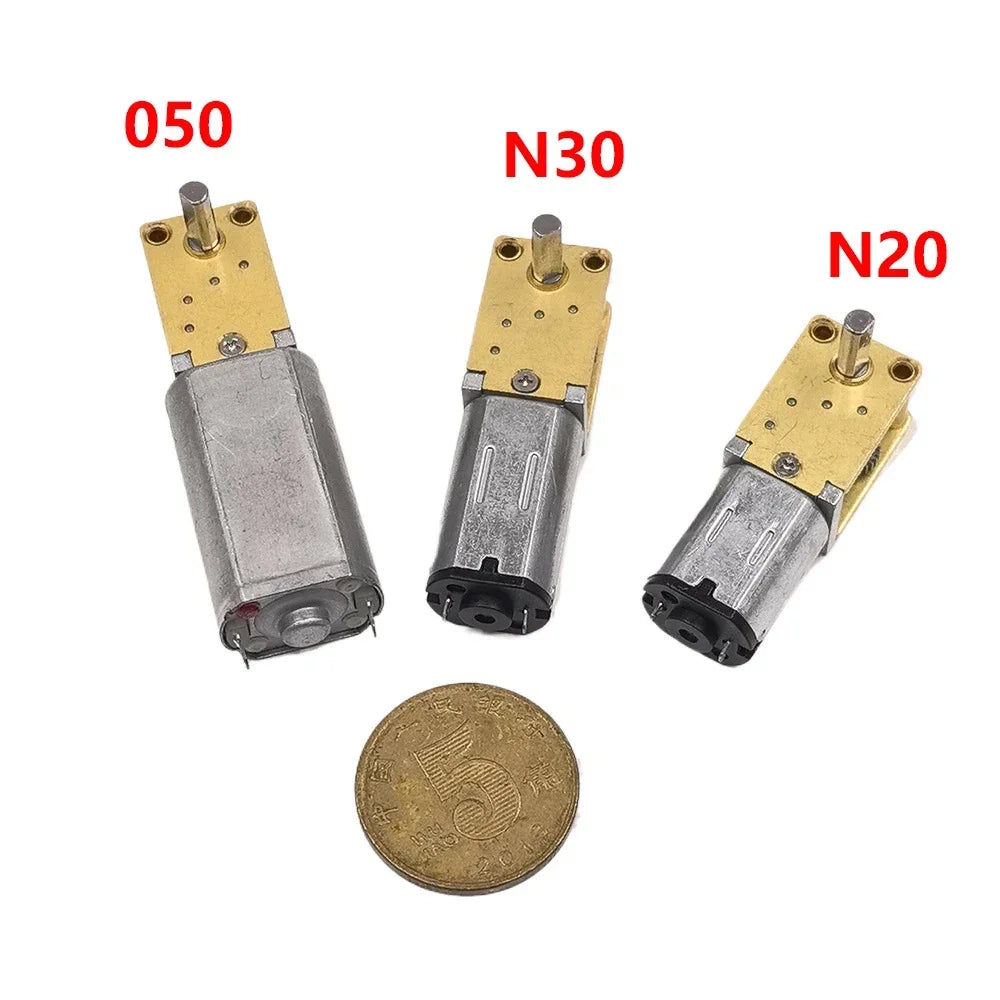

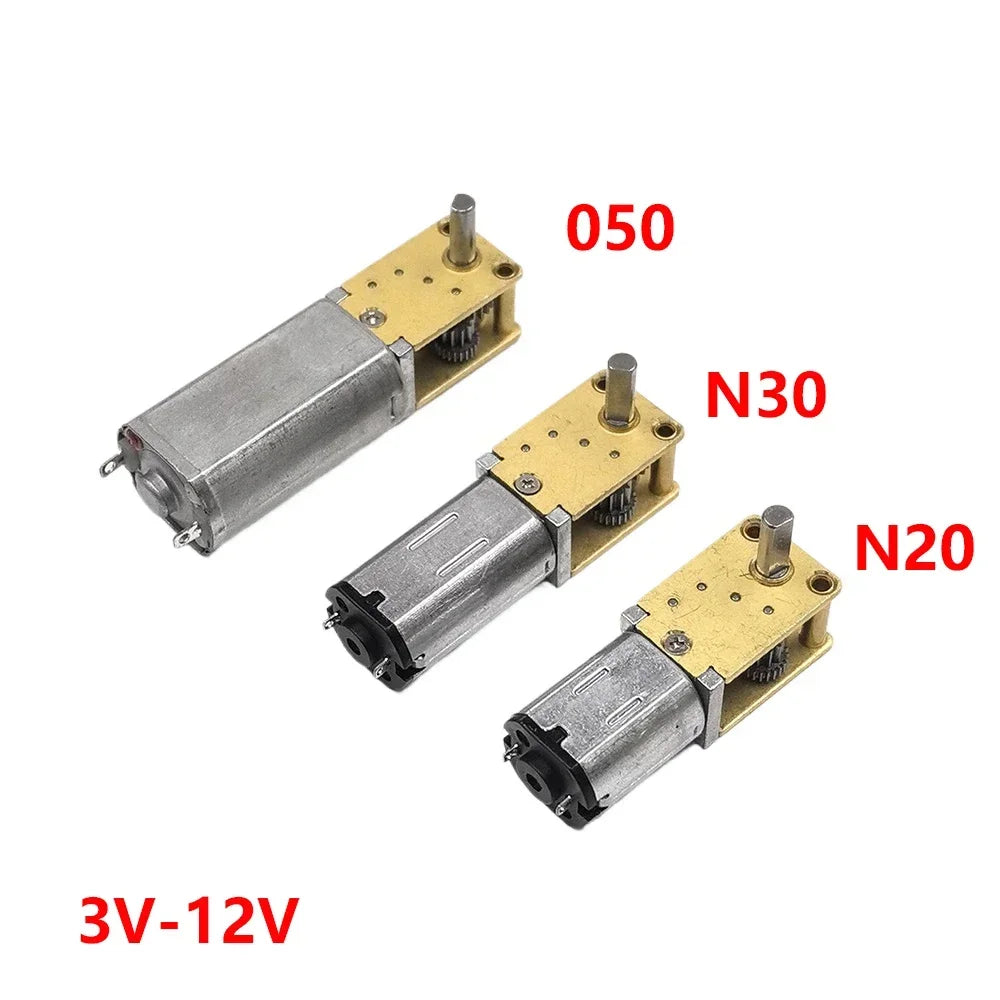

Micro Worm Gear Motor 050 N30 N20 DC 3V-12V Slow Speed Right Angle
Micro Worm Gear Motor 050 N30 N20 DC 3V-12V Slow Speed Right Angle
Couldn't load pickup availability
This compact micro worm gear motor packs dependable torque into a small, right-angle gearbox — perfect for DIY electronics, robotics, automation projects, and small appliances.
- Multiple reduction ratios: choose from A–H (1030:1 down to 21:1) to get the speed and torque your project needs.
- Wide voltage range: runs on 3V–12V DC, giving you flexible power options.
- All-metal gearbox: durable right-angle worm drive provides quiet, reliable performance.
- Standard output shaft: 8mm shaft length with 3mm D-shape output fits common couplings and gears.
- Compact and lightweight: 13g–24g depending on the model, easy to mount in tight spaces.
- Great for hobby builds: ideal for smart home devices, small robots, turntables, and DIY gadgets.
Pick your preferred reduction ratio and get your project moving with this dependable micro gear motor.
Share
- 5 stars: 5 (83%)
- 4 stars: 1 (17%)
- 3 stars: 0 (0%)
- 2 stars: 0 (0%)
- 1 star: 0 (0%)
Motors came, good quality. Shaft spins strong enough my fingers cannot stall it
motor had less torque than expected compared to similar n20 motors, can stop motor with my fingers @4.5v 90-381 rpm
The N20 motor was delivered on time and well packaged. It performed as described with rated voltage producing rated rpm. The quality of the gears and the assembly was excellent.
The N20 motor was delivered on time and well packaged. It performed as described with rated voltage producing rated rpm. The quality of the gears and the assembly was excellent.
Ein sehr kleines Bauteil. Erfüllt meine Erwartungen in vollem Umfang. Weiter so.
Ein sehr kleines Bauteil. Erfüllt meine Erwartungen in vollem Umfang. Weiter so.
