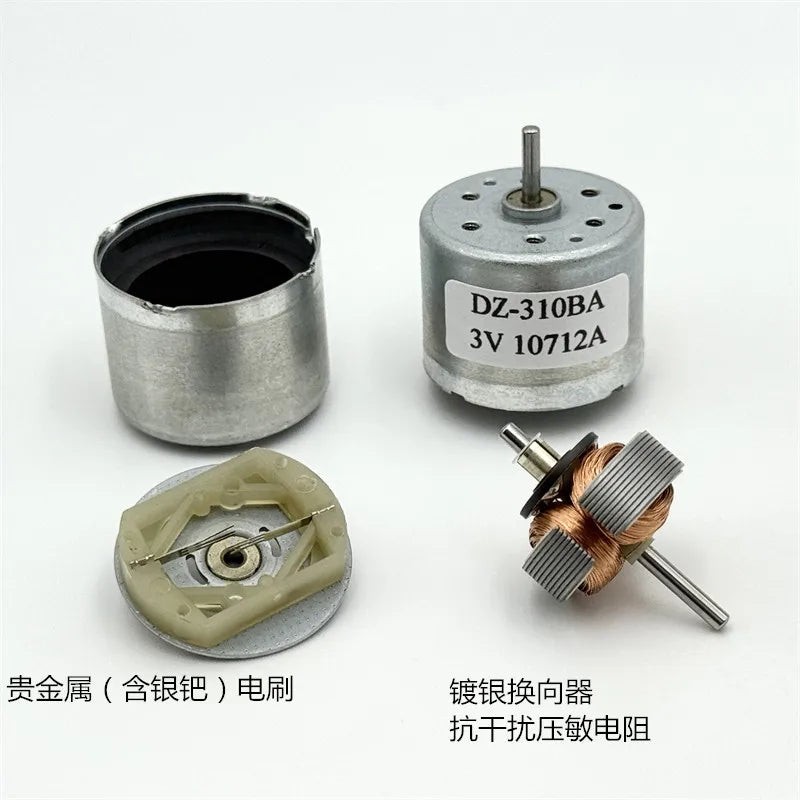

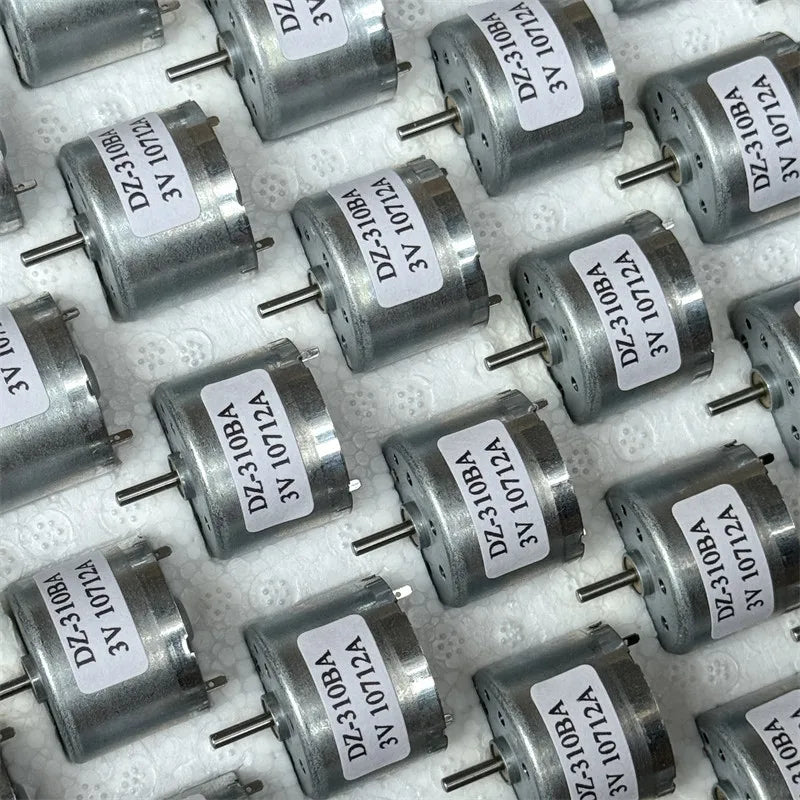

Brand-new DZ Dazhen brand 310 brushed DC micro-motor (DZ-310BA) in original packaging. It is packaged with foam. One piece contains 400 pieces (80 pieces per tray). The motor uses precious metals (silver-palladium) brushes, a silver-plated commutator, and an anti-interference varistor. After testing, the motor can be used within the voltage range of 3.0V to 7.4V. It operates stably, quietly, with low power consumption and high quality.

Friendly reminder: The label on the casing of this batch of motors is of the DZ-310BA model, and the internal copper wire parameter is 13370. The 310 motor can be used in small devices, model toys, miniature fans, and household appliances.

Brand: Dazhen Motor
Model: 310 Motor (DZ-310BA)

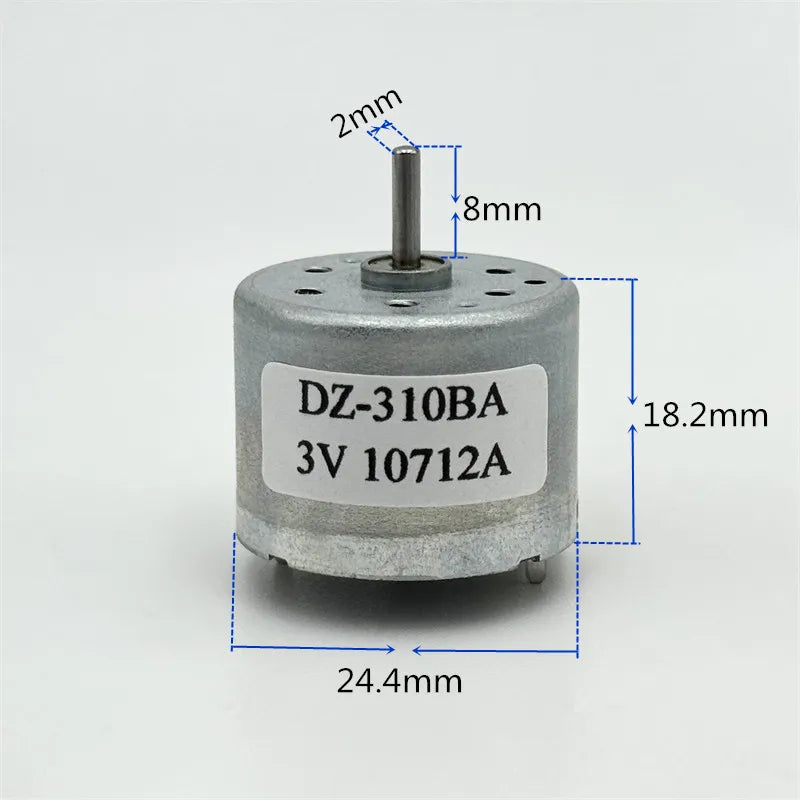

Dimensions: 24.4mm * 18.2mm
Shaft diameter: 2mm
Weight: Approximately 27.2 grams
Voltage range: 3.0V - 7.4V

Voltage Current No-load Rotation Speed
3.0 V 3 mA 1750 rpm
3.7 V 4 mA 2150 rpm
6.0 V 10 mA 3550 rpm
7.4 V 17 mA 4350 rpm
