Micro 48mm RS-887 DC Motor 24V-40V 36V High Power Large Torque Ball Bearing Engine For Electric Tools Drill Saw lawn mower

Micro 48mm RS-887 DC Motor 24V-40V 36V High Power Large Torque Ball Bearing Engine For Electric Tools Drill Saw lawn mower

$51.42 USD
$0.00 USD $51.42 USD
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

Brand Name: NONE

Certification: NONE

Choice: yes

Commutation: Brush

Construction: Permanent Magnet

Efficiency: IE 1

High-concerned chemical: None

Model Number: 887 Motor

Origin: Mainland China

Output Power: 74.6-735（include735）

Protect Feature: Explosion-proof

Type: Micro Motor

Use: Home Appliance

semi_Choice: yes

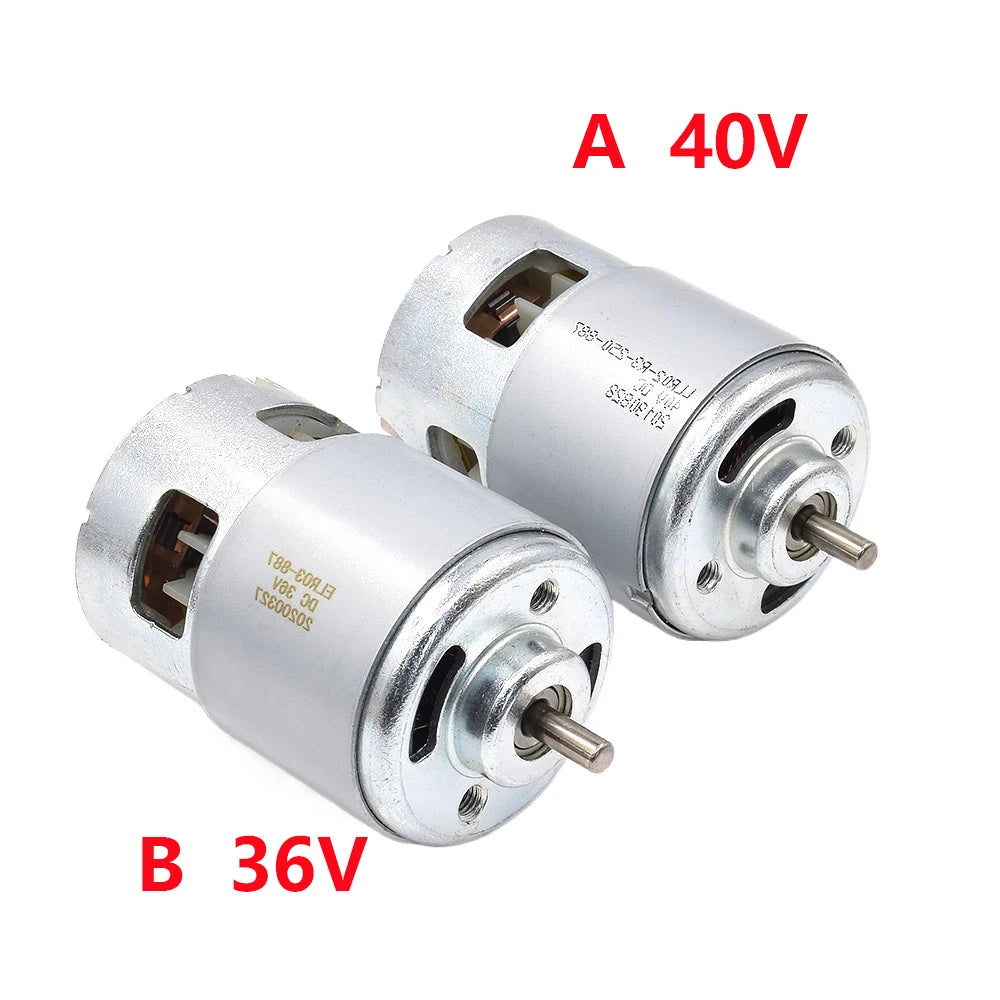

A and B motor size is same, parameter is very closed.

A Motor Parameter: Rated voltage 40V

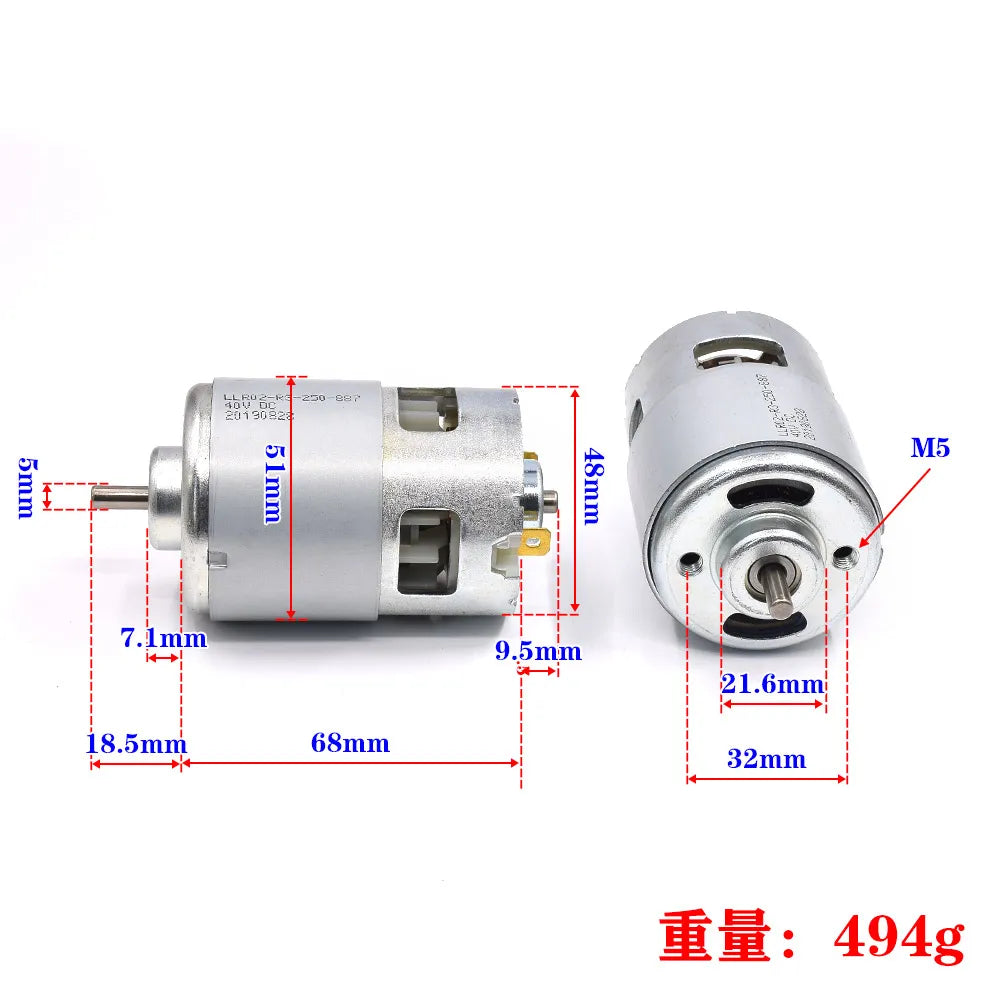

Motor outer diameter: 48 mm (with screen magnetic coil, it is 51 mm)
Motor length: 68 mm
Motor shaft diameter: 5 mm
Output shaft length: 18.5 mm
Motor weight: 500 grams
Voltage: DC12V
No load current: 0.85 A
Idle speed: 5900 RPM
Voltage: DC24V
No load current: 1.17 A
Idle speed: 12200 RPM
Voltage: DC36V
No load current: 1.53 A
Idle speed: 18500 RPM
Voltage: DC36V
No load current: 1.53 A
Idle speed: 18500 RPM
Voltage: DC40V
No load current: 1.69 A
Idle speed: 20700 RPM

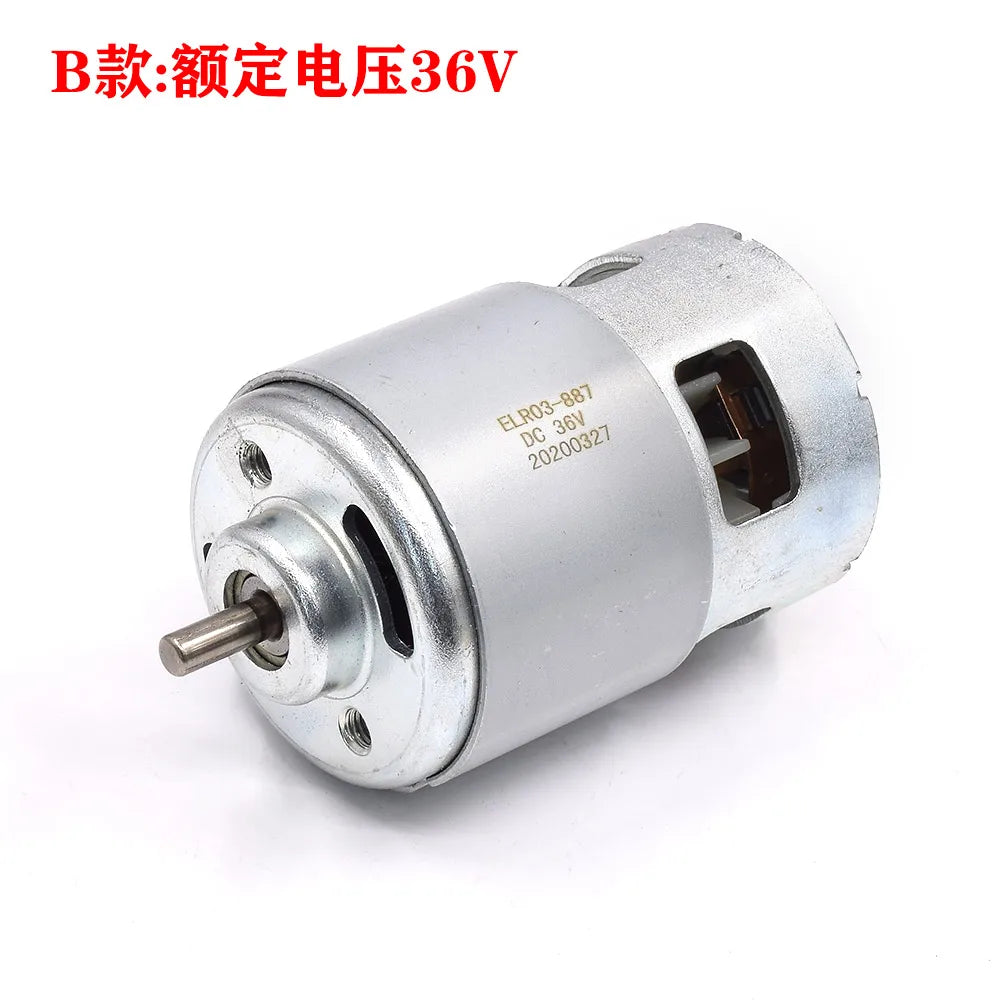

B Motor Parameter: Rated voltage 36V

Motor outer diameter: 48 mm (with screen magnetic coil, it is 51 mm)
Motor length: 68 mm
Motor shaft diameter: 5 mm
Output shaft length: 18.5 mm
Motor weight: 500 grams
Voltage: DC12V
No load current: 0.82 A
Idle speed: 5900 RPM
Voltage: DC24V
No load current: 1.11 A
Idle speed: 12200 RPM
Voltage: DC36V
No load current: 1.39 A
No load speed: 18400 RPM

Package Include:



Motor x 1pcs
