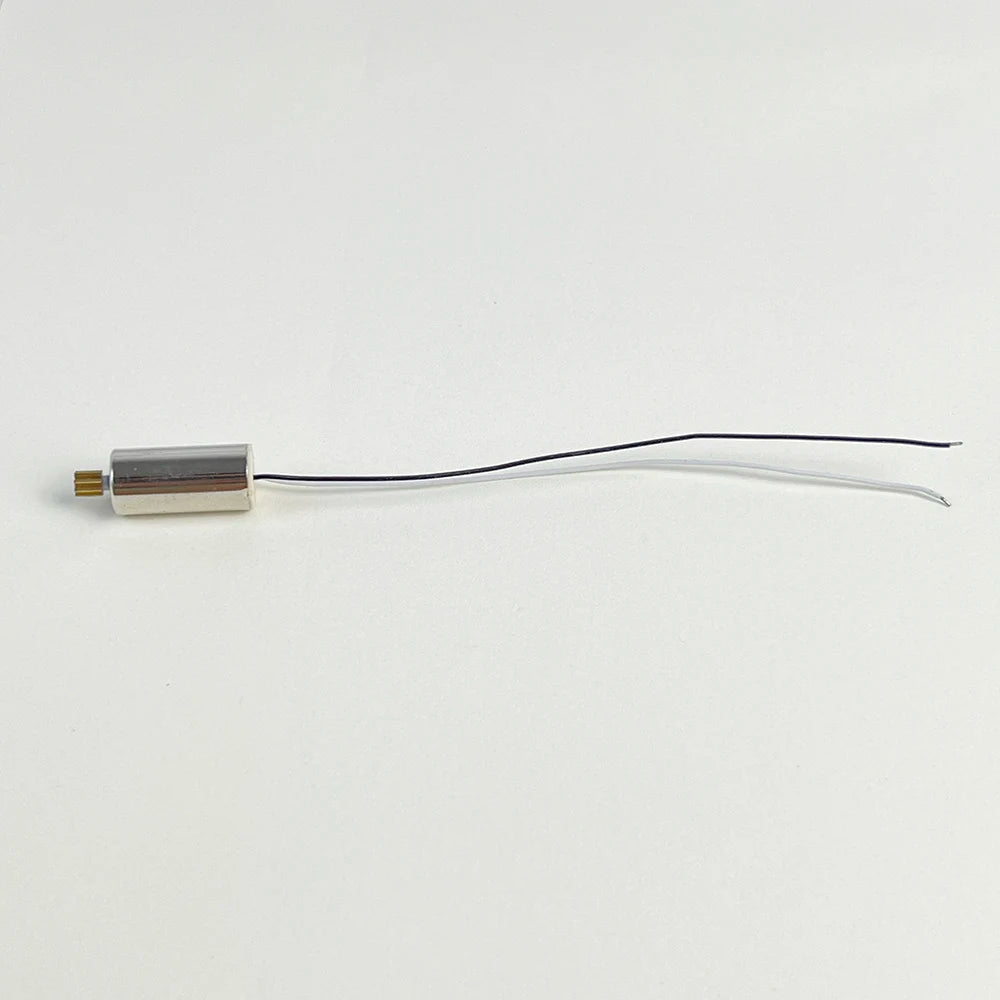

Mini 10mm*20mm 1020 Coreless Motor DC 3.7V 6V 7.4V High Speed 8T Brass Gear for RC Car Model Drone Quadcopter Aircraft Engine
Mini 10mm*20mm 1020 Coreless Motor DC 3.7V 6V 7.4V High Speed 8T Brass Gear for RC Car Model Drone Quadcopter Aircraft Engine
Couldn't load pickup availability
SPECIFICATIONS
Brand: Coreless DC Motor
Brand Name: NONE
Certification: ROHS
Choice: yes
Commutation: Brush
Construction: Permanent Magnet
Efficiency: IE 1
High-concerned chemical: None
Model Number: 1020 Coreless Motor
Origin: Mainland China
Output Power: ＜18.65
Output Voltage: 7.4V
Shaft Diameter: 1.2mm
Type: Micro Motor,Mini Coreless Magnetic Motor
Use: Home Appliance
semi_Choice: yes
Specification:
Features: high-speed, high-power, neodymium iron boron high-strength magnetic
It is original used for 2S 7.4V Quadcopter, can also used other field at 3.7V or 6V in RC car model .
Application: commonly used for Quadcopter, Radio-controlled aircraft, aircraft model, UAV, etc

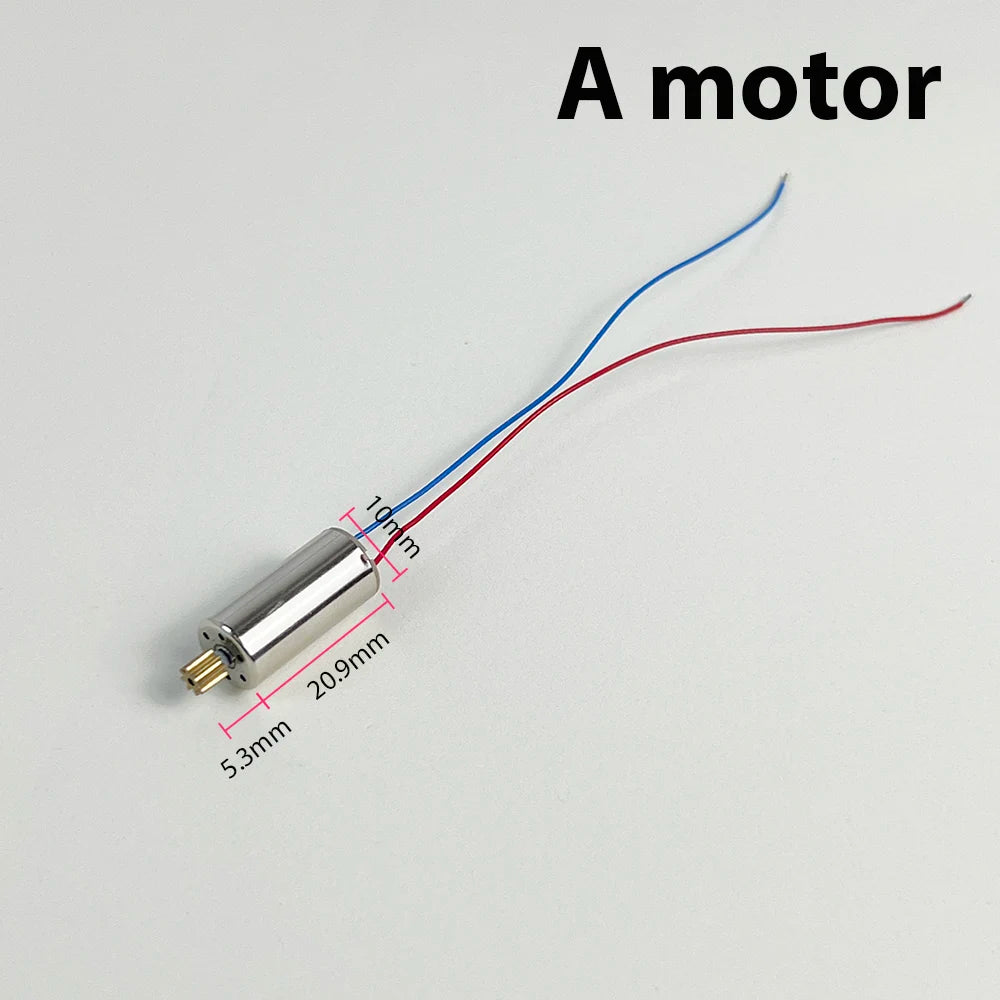

1.Motor diameter: 10mm
2.Motor length: 20.9mm
3.Output shaft diameter: 1.2mm(8T gear, gear outer diameter: 4mm, 0.4 modulus)
4.Output shaft length: 5.3mm
5.Cable length: 100mm
6.Weight: 8.5g
7. Test data: No-load
Voltage Speed
3.7V 20000RPM
7.4V 41000RPM
Package Include:
Motor x 1pcs (cable color base you select)
